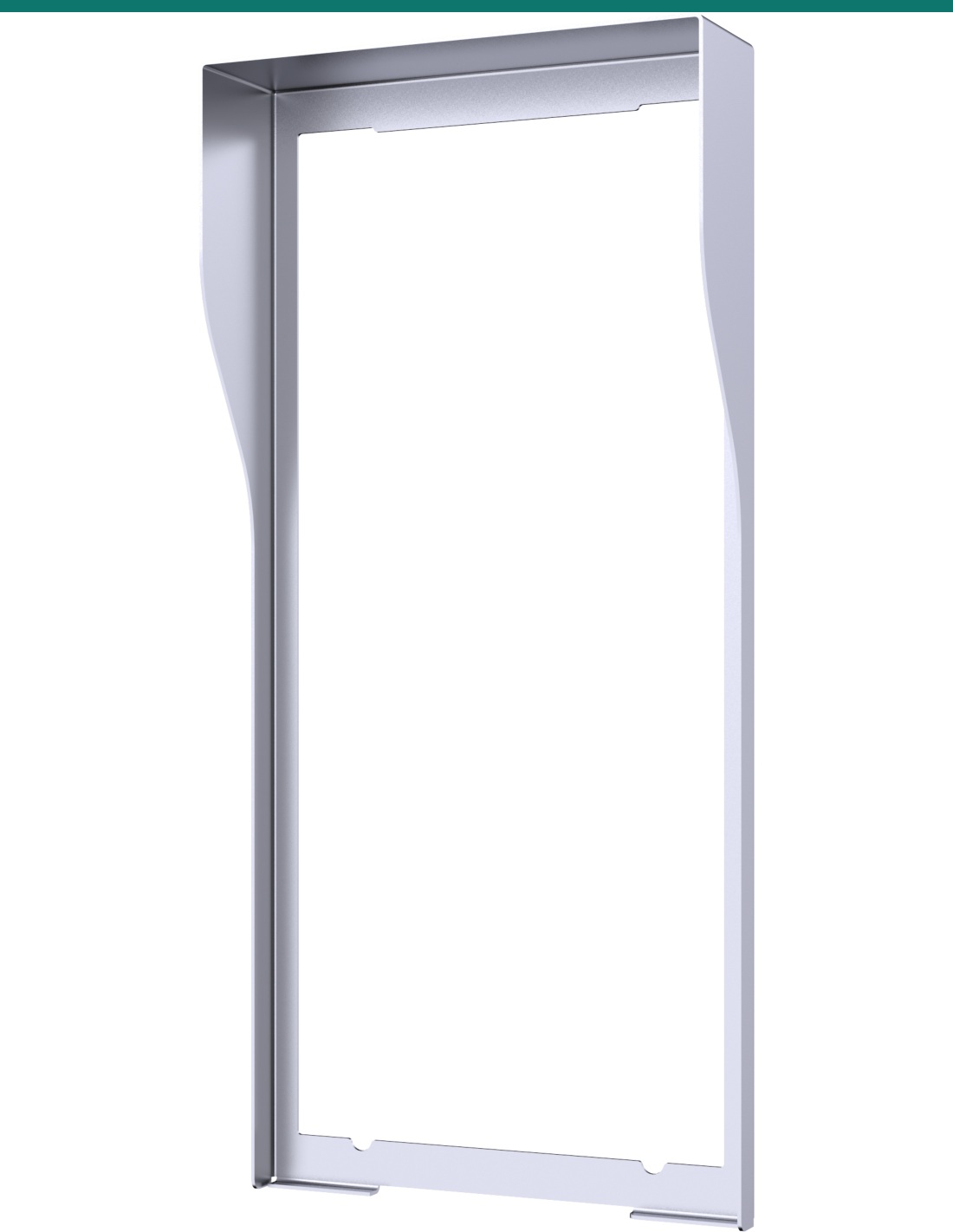

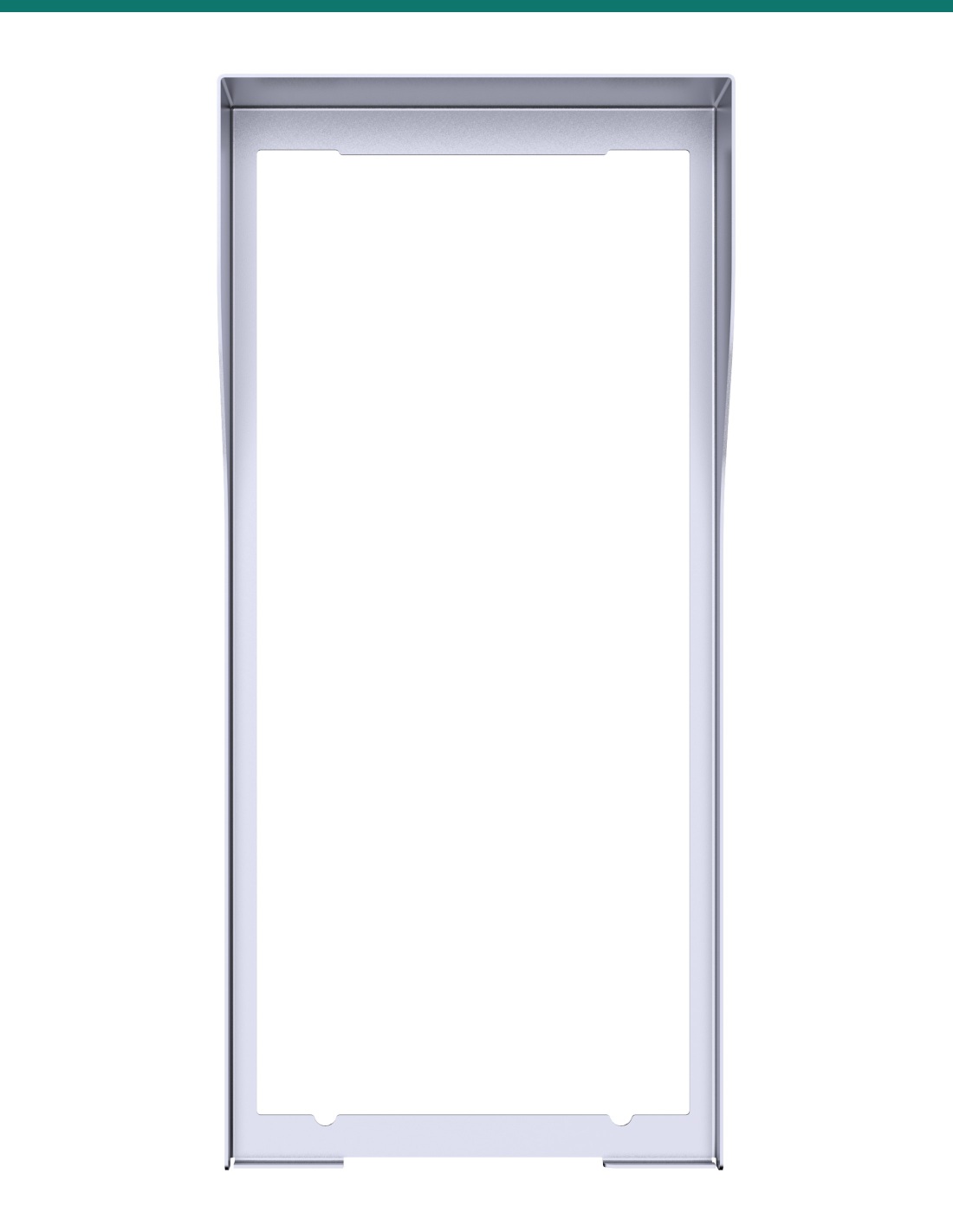

Akuvox R27 / R28 silver in-wall rain cover — front

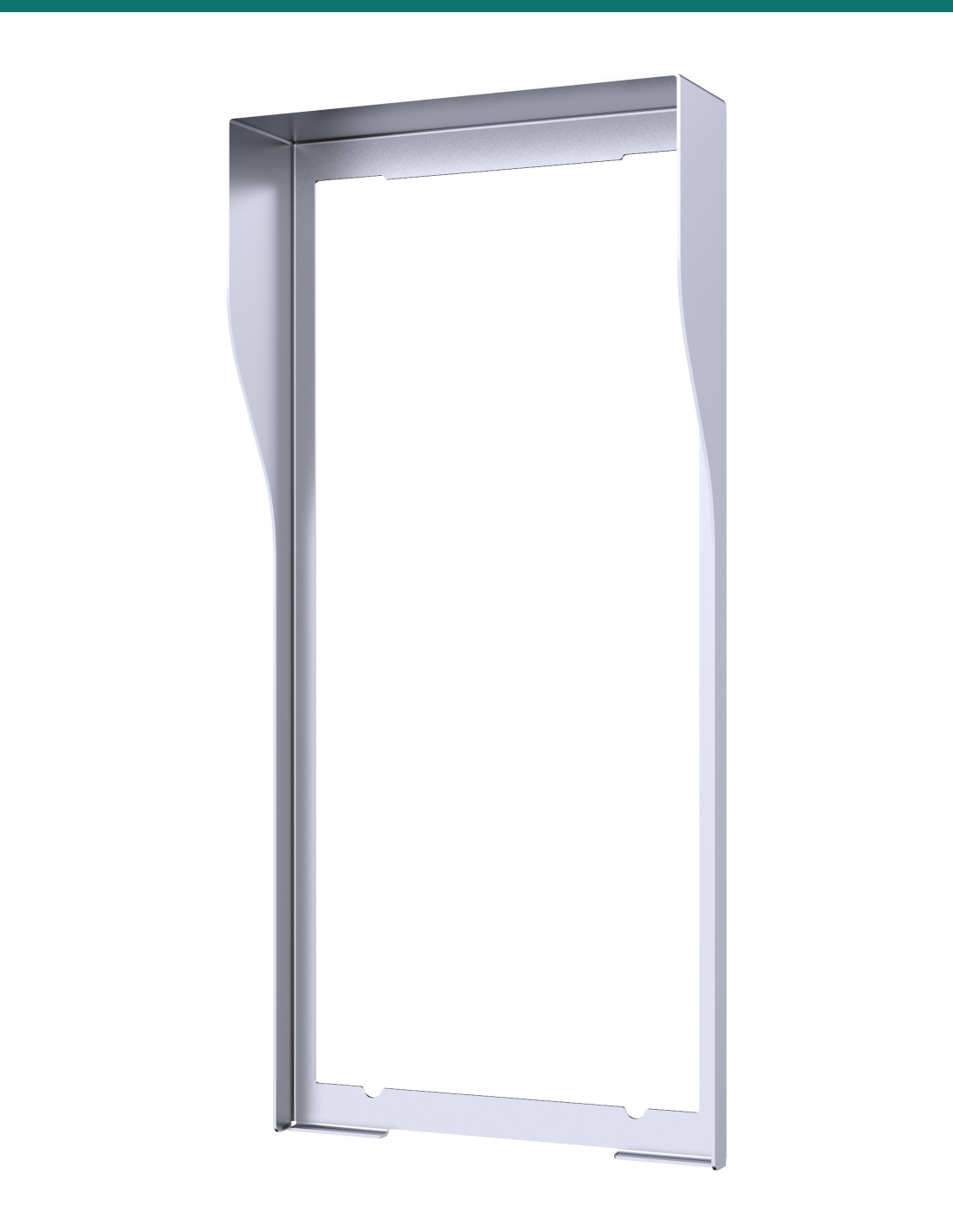

Akuvox R27 / R28 silver in-wall rain cover — left three-quarter view

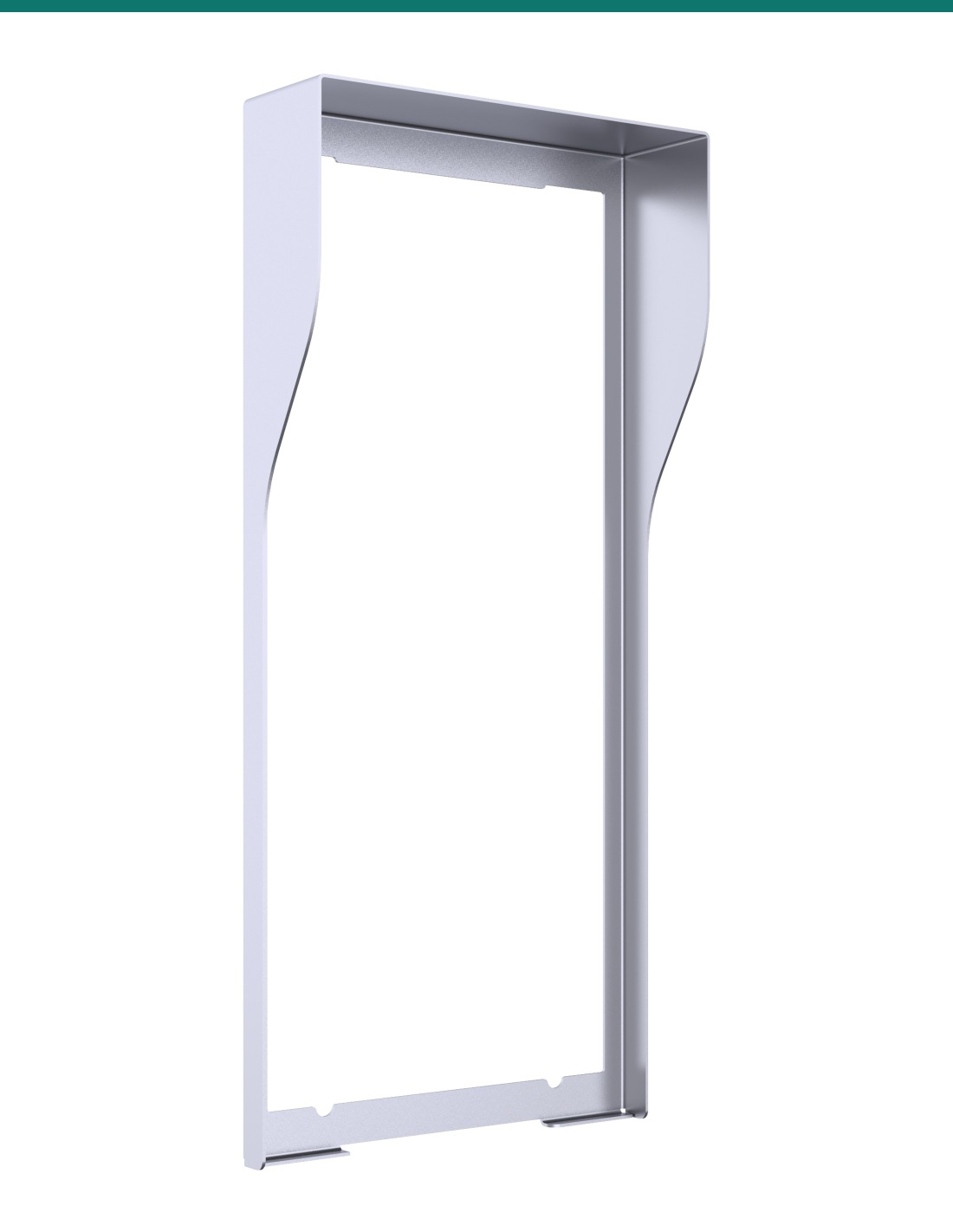

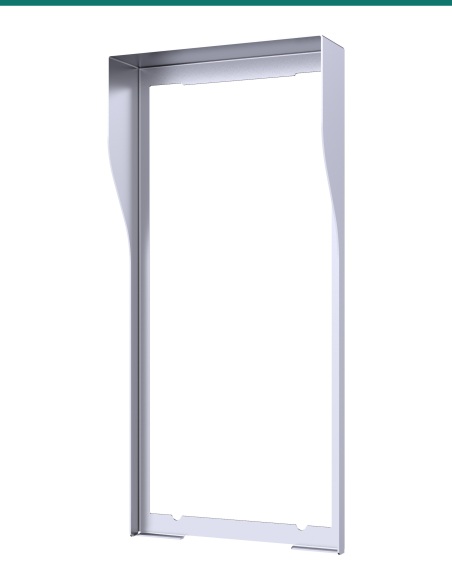

Akuvox R27 / R28 silver in-wall rain cover — right three-quarter view

Akuvox R27 / R28 Silver In-Wall Rain Cover — AK-R28-7INWALLH

AK-R28-7INWALLH
In Stock - Ready to Ship
$ 57.90
inc-GST

or 4 interest-free payments of $14.47 with

Akuvox R27 / R28 in-wall rain cover is a silver canopy for a flush-mounted R28A or R27, keeping rain and overhead sun off the screen, camera, keypad and card reader. Fit it with the R27 / R28 in-wall installation kit.

  • ✓Silver in-wall rain cover for Akuvox R27 and R28
  • ✓Protects the screen, camera, keypad and reader from rain and glare
  • ✓For flush installs with the R27 / R28 in-wall kit
  • ✓Silver to match the R28A aluminium front panel


Akuvox · R27 / R28 · Silver in-wall rain cover

Keep the screen clear in the rain.
For flush R27 and R28.

The AK-R28-7INWALLH is the Akuvox “R28 In-Wall Mounting Rain Cover — Silver”, listed by Akuvox as an R28 accessory. It frames a recessed station and throws rain clear of the 4.3″ screen and camera.

Rain cover only.

You receive the silver in-wall rain cover. The door phone and R27 / R28 in-wall kit are sold separately.

In the box
  • Akuvox R27 / R28 in-wall rain cover (silver)
What you also need (sold separately)
  • Akuvox R28A or R27 door phone
  • R27 / R28 in-wall installation kit

Readable screen, clearer picture.

Rain on the glass makes a screen hard to read and a camera hard to see through. The cover keeps the worst of the weather and overhead sun off the front panel.

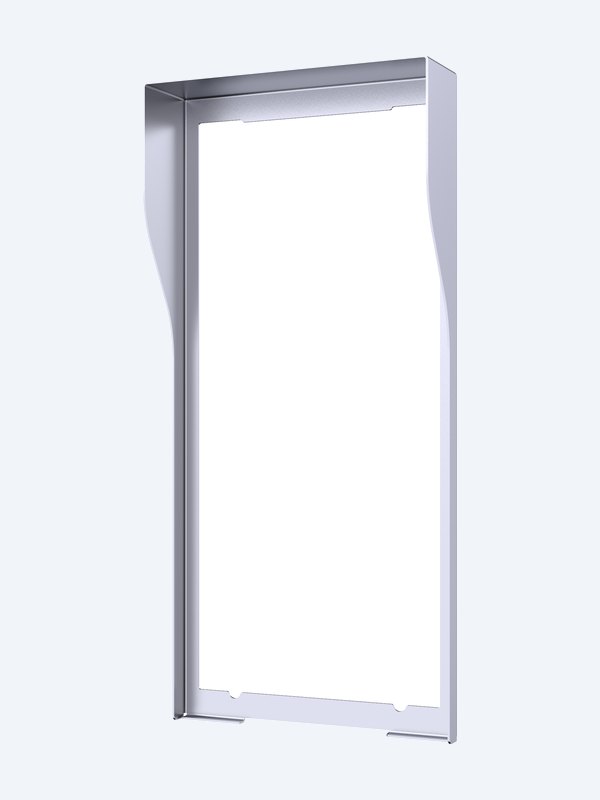

Akuvox R27 / R28 silver in-wall rain cover

Protection

Rain sheds off the canopy.

The cover wraps the top and sides of the recessed panel, so rain runs off rather than down the screen and camera window.

Silver finish to match the R28A’s silver aluminium front.

Pair it with

Pairs with

Door phone

Akuvox R28A

4.3″ screen keypad door phone.

Flush

R27 / R28 in-wall kit

The flush box and bracket the cover is used with.

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which door phones does it fit?

Akuvox R28 and R27 series stations when they are flush-mounted.

Is it for surface-mounted stations?

No. This is the in-wall cover; it is used with the R27 / R28 in-wall installation kit.

How is it fixed?

The cover and the flush-mounting bracket go onto the wall together with six ST4×20 screws, then the door phone hooks on and is locked with its two M3×6 hex socket screws.

Is there an on-wall version?

Yes. Akuvox makes a separate on-wall rain cover for surface-mounted R27 / R28 stations; this SKU is the in-wall cover.

What colour is it?

Silver, to suit the silver aluminium front of the R28A.

Is the door phone or in-wall kit included?

No. This SKU is the rain cover only.

Finish an exposed flush install.

Use with the R27 / R28 in-wall kit (AK-R27R28INWALLK).

Installation & safety notice

Fitting. Fix the rain cover and the flush-mounting bracket to the wall in sequence with six ST4×20 screws, hook the door phone onto the bracket and lock it with its two M3×6 hex socket screws — see the Akuvox R27 / R28 rain cover guides.

Colour
Silver
Brand
Akuvox
Mounting
In-Wall (flush) installs
Warranty
Australian warranty
Product Type
Rain hood
Model
R27 / R28 in-wall rain cover
Use With
R27 / R28 in-wall installation kit
Compatible with
Akuvox R27 and R28 series
Fixing
6 × ST4×20 screws, together with the flush-mounting bracket
