Akuvox S538 Black On-Wall Installation Kit for Surface Mounting — AK-S538ONWALLK

SKU AK-S538ONWALLK In Stock - Ready to Ship
$60.40 inc GST

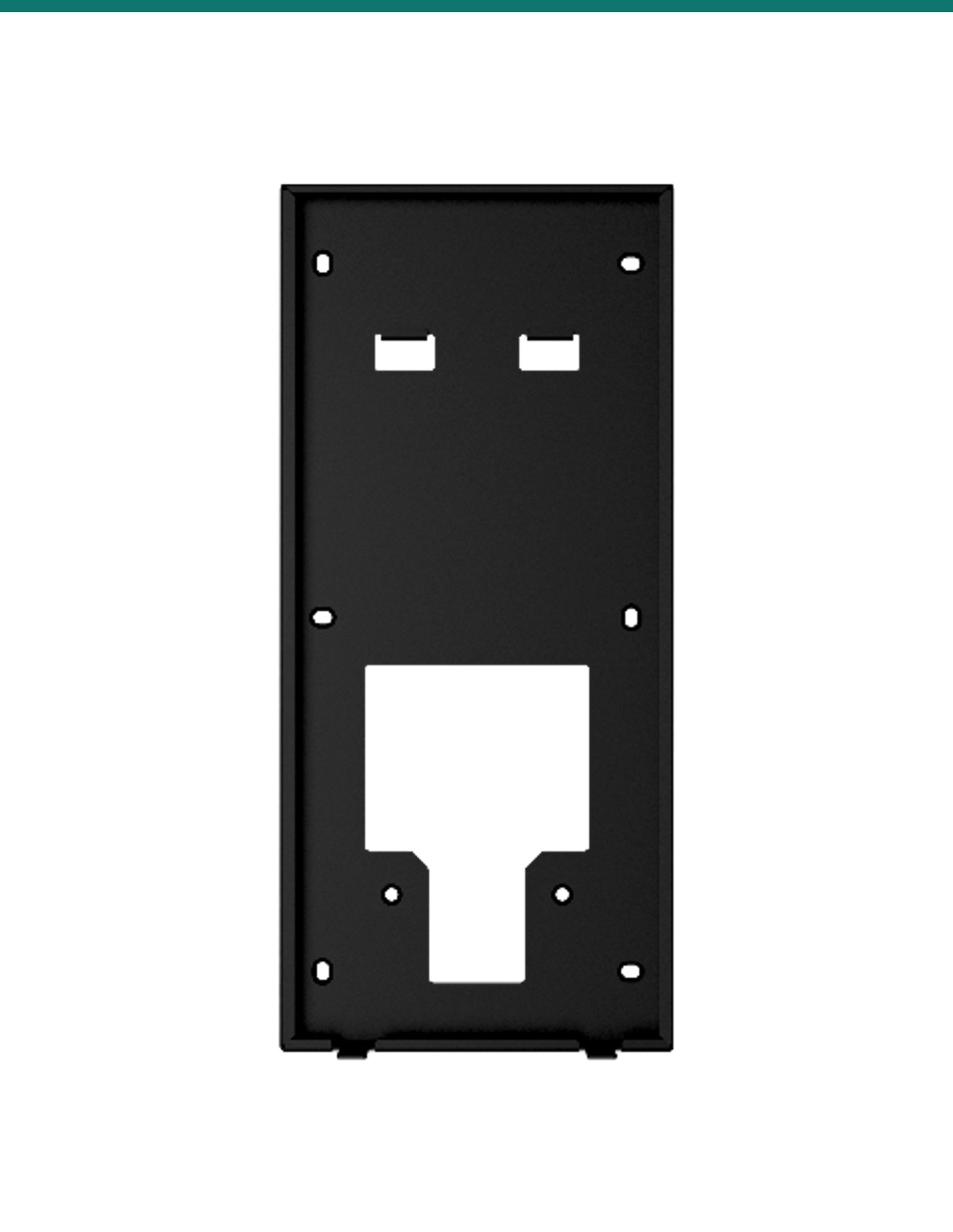

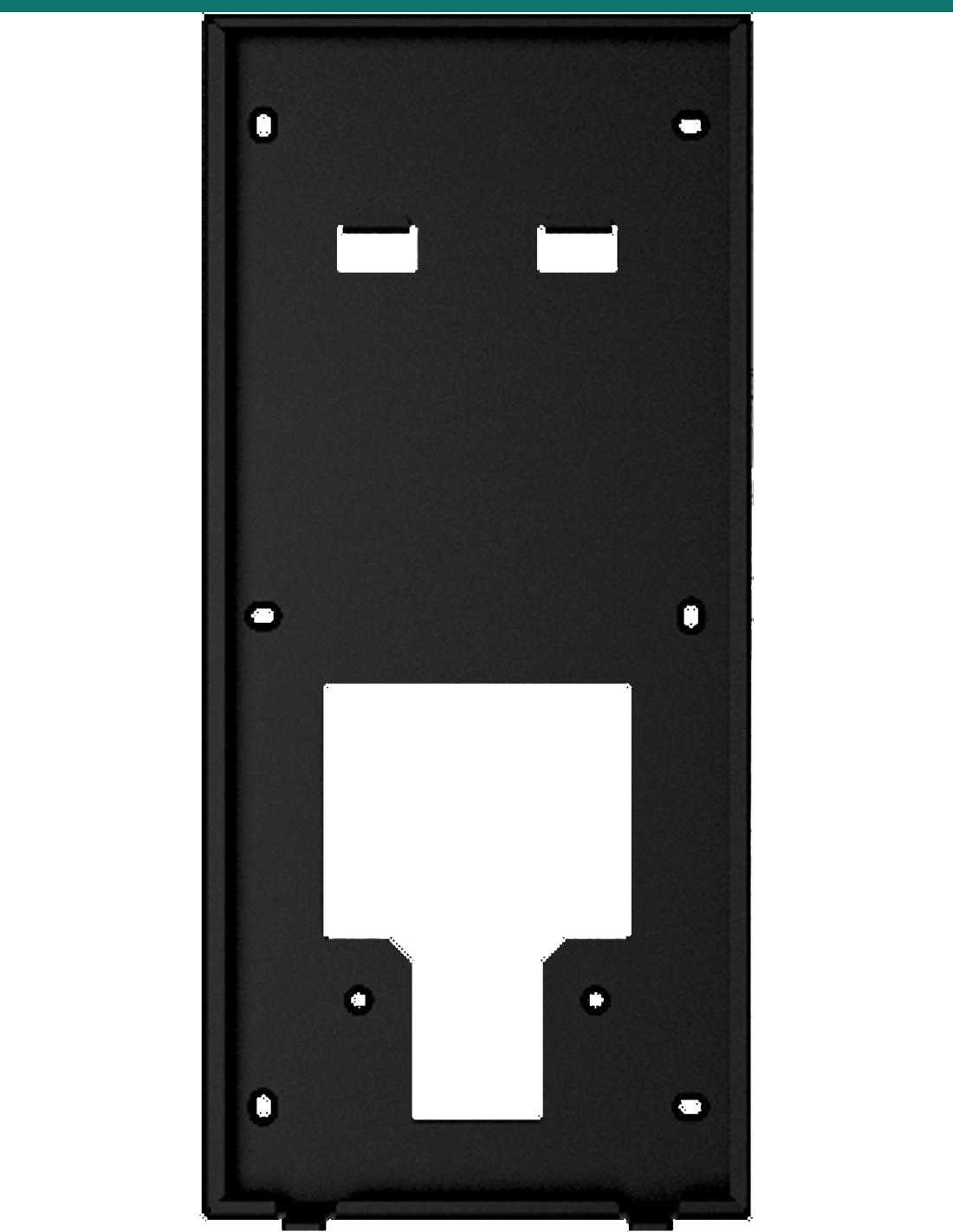

Akuvox AK-S538ONWALLK is the on-wall installation kit for the S538 8″ Android facial recognition door phone. The S538 ships without a box: this slim black plate screws to the wall, the S538 slides down onto its hooks and is locked in with a Torx screw. Template, screws and anchors are included.

  • ✓Surface-mounts the Akuvox S538 (297 × 136.4 × 29 mm)
  • ✓Black box, 296.5 × 135.9 × 16.3 mm (H × W × D)
  • ✓Wall-mounting template, 6 × ST4×20 screws and 6 anchors included
  • ✓2 × M4×30 screws to fix over an existing 86-type wall box


Akuvox · S538 · On-wall installation kit

Surface-mount the S538.
Slim box, template and fixings.

The AK-S538ONWALLK is Akuvox’s wall-mounting kit for the S538. The door phone is supplied without a box, so every S538 needs either this on-wall kit or the in-wall kit.

This SKU is the on-wall installation kit.

You receive the box and fixings listed below, as shown in the Akuvox S538 installation guide. The S538 door phone is sold separately.

In the box
  • Wall-mounting box × 1
  • Wall-mounting template × 1
  • ST4×20 crosshead screws × 6
  • M4×30 crosshead screws × 2
  • Plastic wall anchors × 6
What you also need (sold separately)
  • Akuvox S538 door phone
  • S538 on-wall rain cover for exposed entries (optional)
  • PoE 802.3at switch or 24 V DC 2 A supply

Sixteen millimetres off the wall.

The 16.3 mm plate keeps a surface-mounted S538 slim, and cables come through its centre opening from behind — no chasing a 290 mm pocket into the wall.

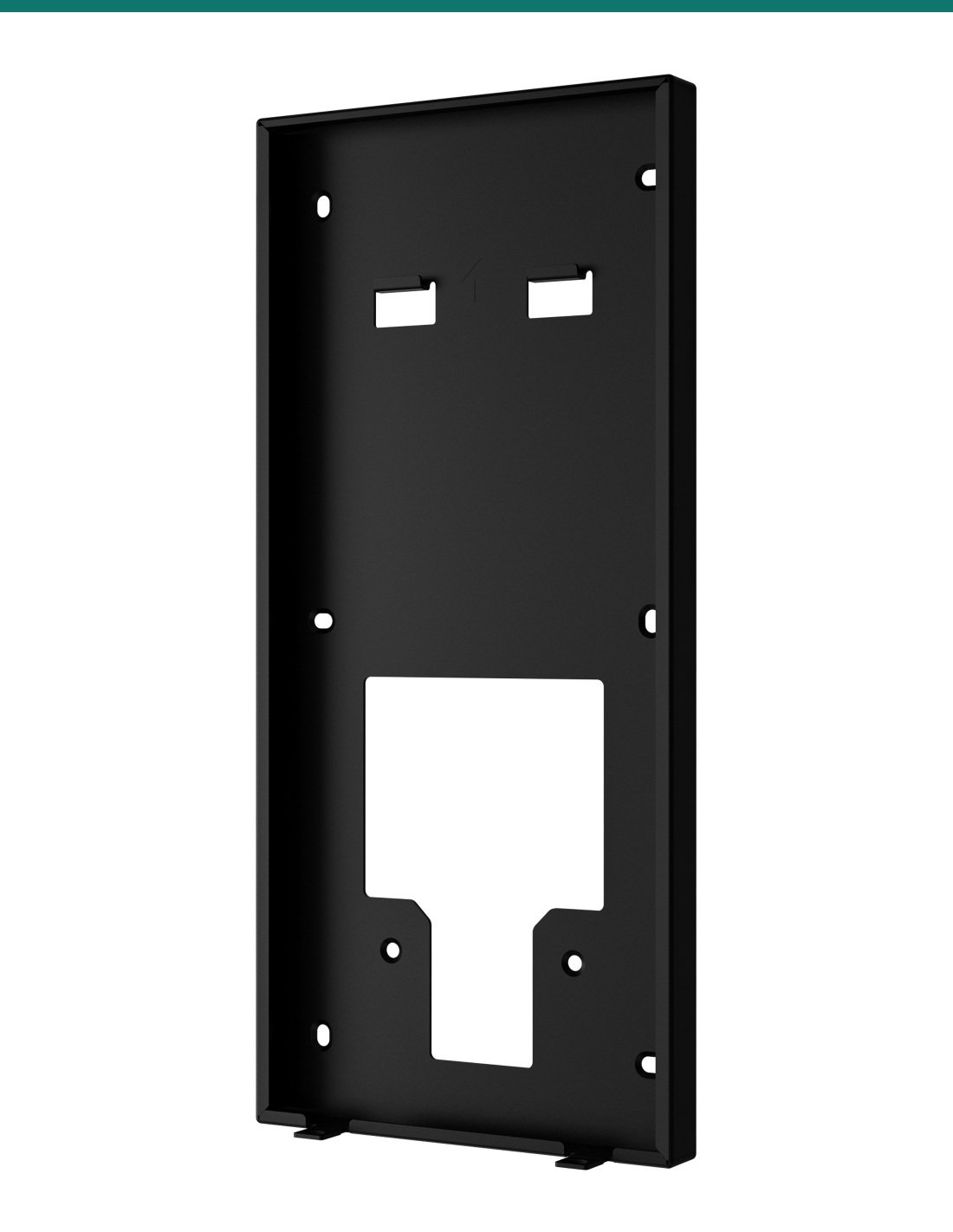

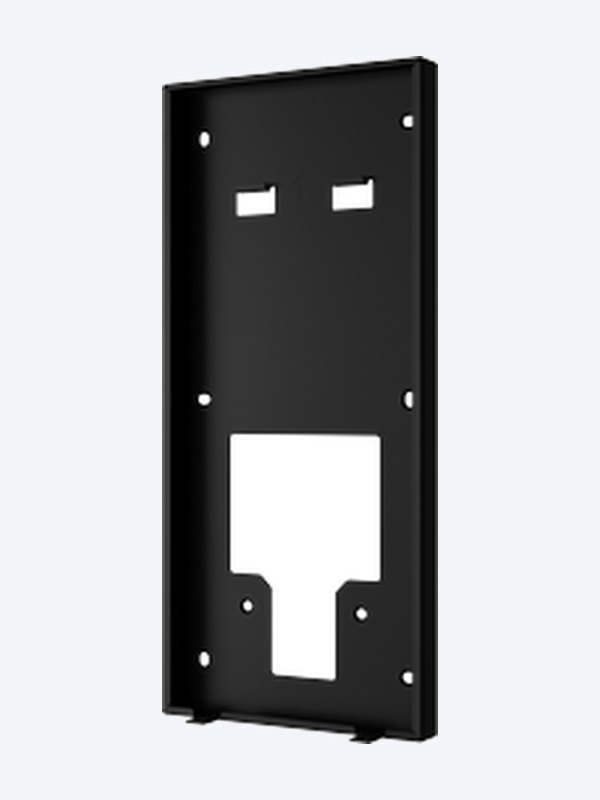

Akuvox S538 on-wall mounting box — three-quarter view

In the kit

A plate the S538 slides onto.

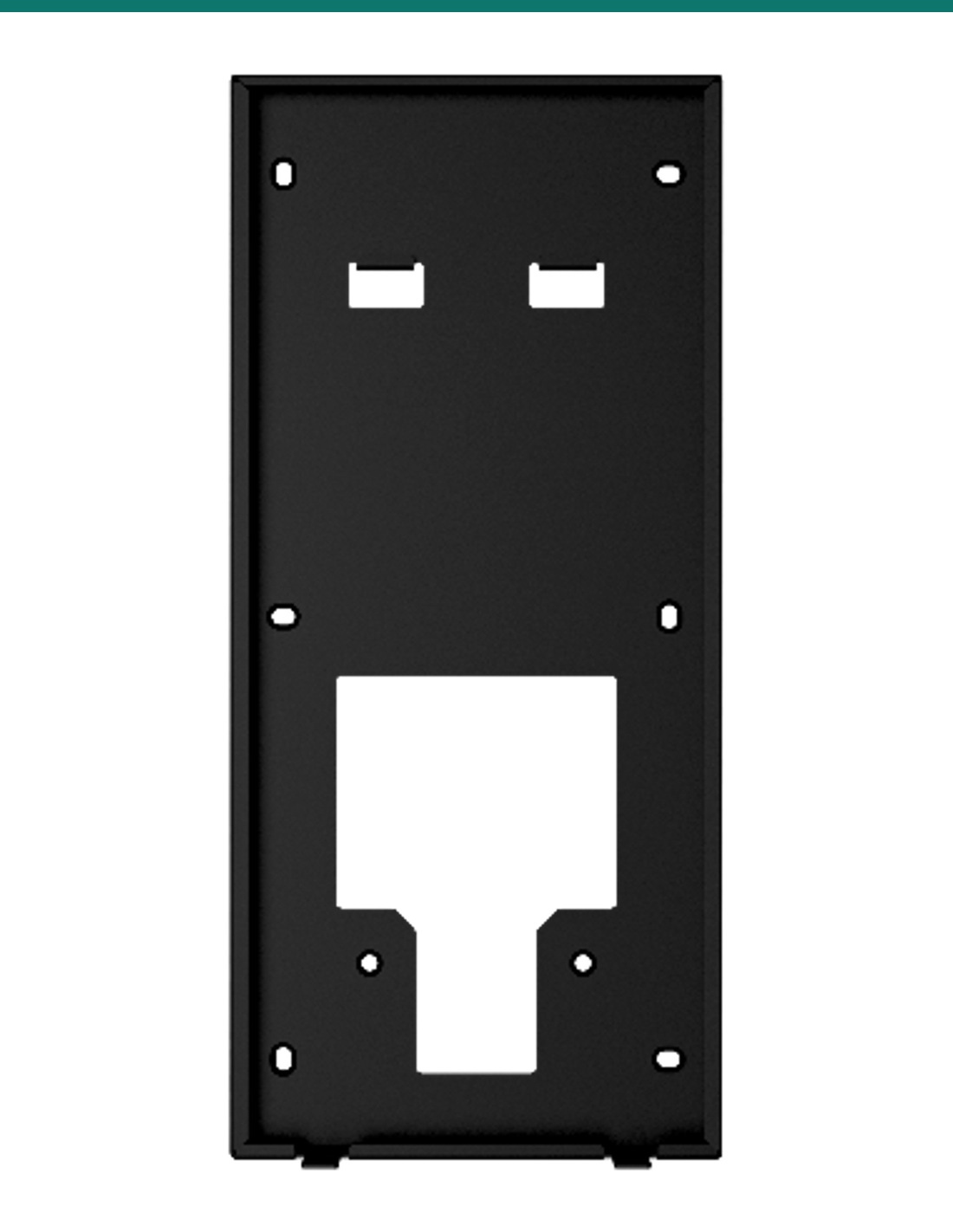

Black metal plate with two hooks near the top and a cable opening below. The S538 is aligned with the plate and slid down until it engages the top and bottom hooks.

A drilling template, six ST4×20 screws with anchors, and two M4×30 screws for an existing wall box are included.

Fit

Made for the S538.

The plate is 296.5 × 135.9 × 16.3 mm, sized to the 297 × 136.4 mm S538.

The S538 on-wall rain cover shares the plate’s fixing pattern and sits behind it on exposed walls.

Pair it with

Fits the Akuvox S538

Door phone

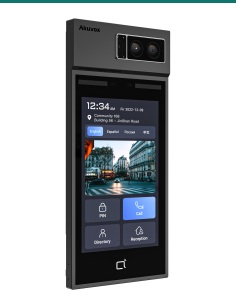

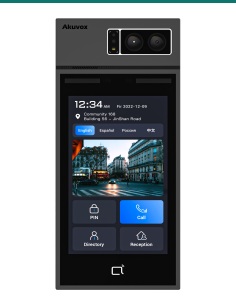

Akuvox S538

8″ Android facial recognition door phone with 5 MP starlight camera.

Weather

S538 on-wall rain cover

Black hood that keeps rain and glare off the 8″ screen on exposed walls.

Watch

See it in action

Installing the S538 door phone
Akuvox S538 tri-vision door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Does the S538 come with a mounting box?

No. Every S538 needs either this on-wall kit or the S538 in-wall kit.

Can I mount it over an existing wall box?

Yes. Use four ST4×20 screws into the wall and the two M4×30 screws into an 86-type embedded box.

How is the S538 secured to the plate?

It slides down onto the plate’s top and bottom hooks, then the Torx screw supplied with the S538 is driven in diagonally from underneath.

Will the rain cover fit with this kit?

Yes. The S538 on-wall rain cover is for surface-mounted S538 units and fixes behind this plate on the same holes.

What mounting height does Akuvox show?

The drawings place the bottom of the S538 about 1,007 mm above ground, keeping the usable parts below 1,219 mm for accessible entries.

Is the door phone included?

No. This SKU is the mounting kit only.

Surface-mount S538 installs.

Choose this kit for surface installs; for a recessed finish use the S538 in-wall kit. Add the S538 on-wall rain cover where the entry is exposed.

Installation & safety notice

Fitting. Apply the template with the cables through its cut-out, drill six 6 mm holes 25 mm deep and fix the box with the ST4×20 screws and anchors — or four ST4×20 and the two M4×30 into an existing 86-type box. Slide the S538 down onto the hooks and fasten the Torx screw at the bottom — see the Akuvox S538 installation guide.

Colour
Black
Brand
Akuvox
Mounting Height
Bottom of the S538 about 1,007 mm above ground
Mounting
S538 hooks onto the plate and locks with a Torx screw
Size
296.5 × 135.9 × 16.3 mm (H × W × D)
Warranty
Australian warranty
Product Type
On-wall (surface) mounting box
Model
S538 on-wall installation kit
Compatible with
Akuvox S538 door phone
Contents
Wall box, template, 6 × ST4×20 screws, 6 × anchors, 2 × M4×30 screws
Existing Box
Fixes over an 86-type wall box with 2 × M4×30 screws
