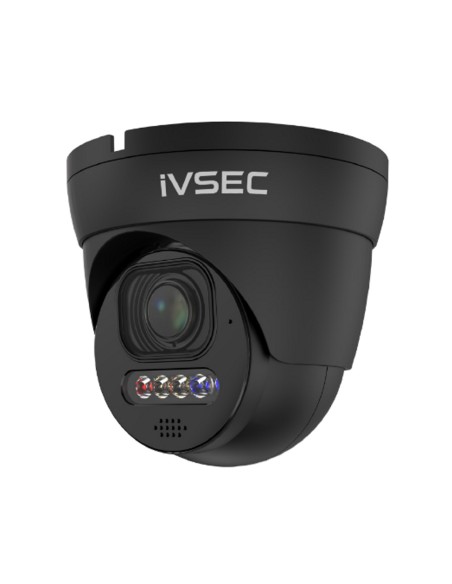

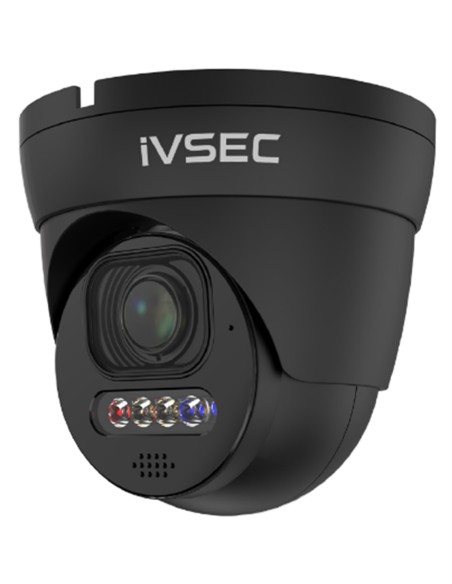

IVSEC Black 8MP 4K Ultra-HD Motorised Sony Sensor 25fps Full Colour Dome Security Camera - NC512ADX-BLK
IVNC512ADX-BLK
Crystal Clear Clarity
The high resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
Capture the Moment
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
Cater To Your Surveillance Needs
The device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
Monitor & Update Remotely
View live camera footage, receive alerts on the go, schedule alarms, and more with the iVSEC App.
Full Vivid Colour
Advanced Features with Vibrant Color and High-Quality Imaging at Night.
Deter, Detect, And Defend
In-built protection Siren, Flashing Lights, and Scheduling Assistant for Enhanced Security. Advanced Deterrent.
Value AI
Complete protection with accurate and targeted alerts to potential threats & reducing false alarms.
Two-Way Audio
Allows for remote communication between the camera and a connected device.
Sensor & Schedule Light
Motion-triggered smart night vision provides colour even in dark conditions.
Made To Withstand The Elements
With a metal casing, IP66 provides weatherproof monitoring & incredible durability.
Video Management Software
Aggregate NVR/IP cameras easily. Pool viewable camera channels & feeds at numerous locations.
Camera Specifications:
| Camera Type |
Dome |
| Image Sensor |
1/2.5″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
8 |
| Maximum Video Resolution |
3840 x 2160 |
| Lens |
3.3-12 mm (H.FOV: 114 to 36°) |
| Lens Type |
Motorised Zoom |
| Maximum Night IR Distance (M) |
45 |
| Image clarity |
5 |
| Connectors |
RJ-45 , Analog Video Out, Audio In, Audio Out, Alarm in or out *4 |
| Video Compression |
H.265, H.264 |
| ONVIF (depends on firmware version) |
2.6 |
| Operating Environment |
-30～+55°C/less than ≤ 95% RH |
| Dimensions |
Ø151 X 113mm |
| Weight (Net) |
0.87 |
| Accessories |
IV2422X, IV2433X, IV2444X, IV2455X |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption |
<9W |
| Connectors (web) |
RJ-45 , DC Power Input, Analog Video Output, Audio In, Audio Out, Alarm in or out *4, reset button |
| Outdoor Use |
Yes |
| IP Rating |
IP66 |
| Vandal Resistant |
Yes |
| Frame Rate at Resolution |
25 |
| Day/Night Mode |
Auto |
| Image Enhancement |
Rotate, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue |
| Edge Recording slot microSD/SDHC Card |
Yes |
| Video Compression |
H.265, H.264 (3 streams) |
| Audio Streaming |
Two-way audio (microphone with a distance [up to 8m] and speaker included) |
|
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SMTP, P2P (QR code) |
| Intelligent Video |
Video Analytics (Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting) |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Power Over Ethernet |
Yes |
| LED Types |
IR, Warm White, Red and Blue |
|
| UPNP |
Yes |
| In The Box |
Free Software available from FAQ, Printed quick user guide, Installation template, Mounting screws and plugs |
| Warranty |
3 Year Warranty |
