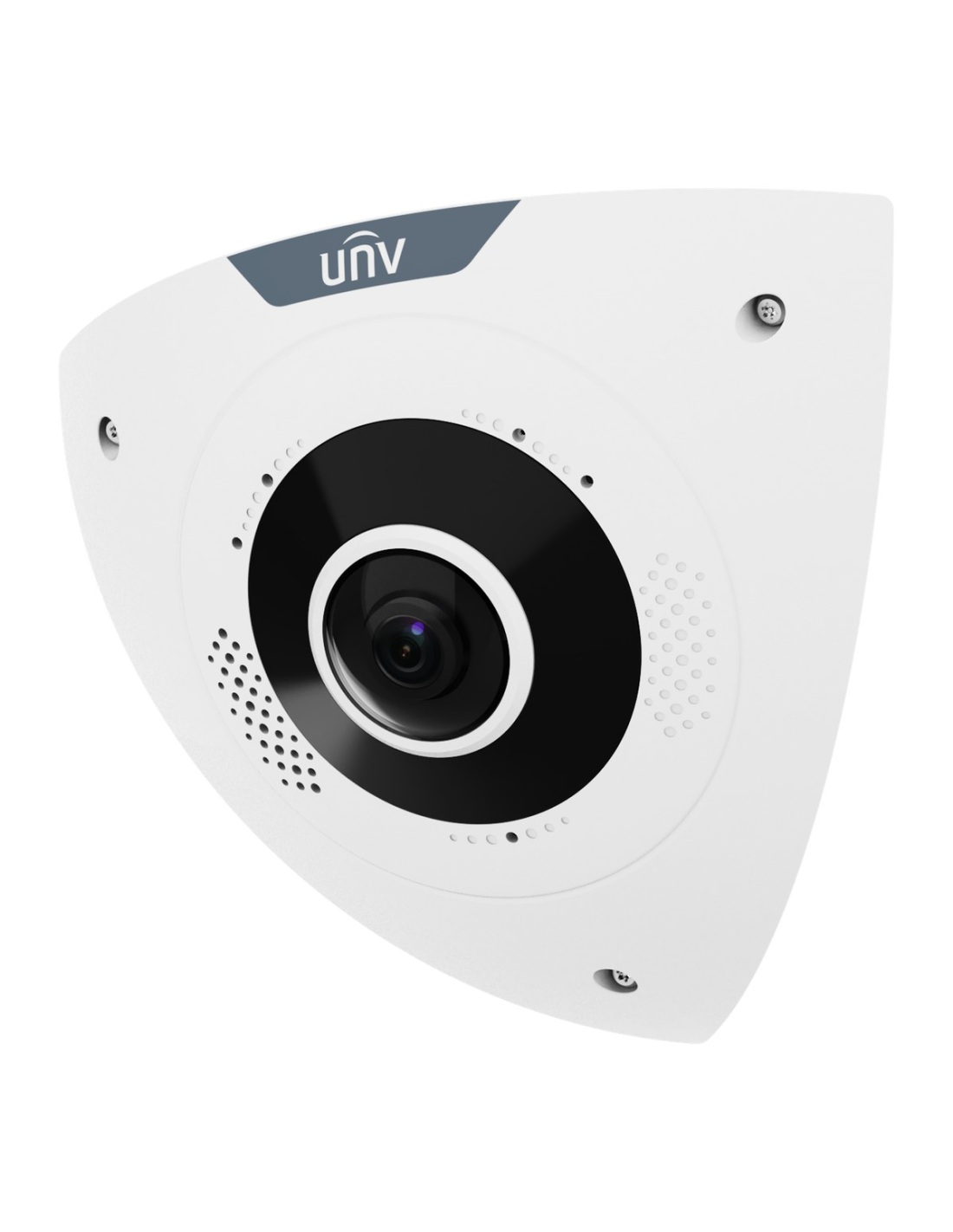

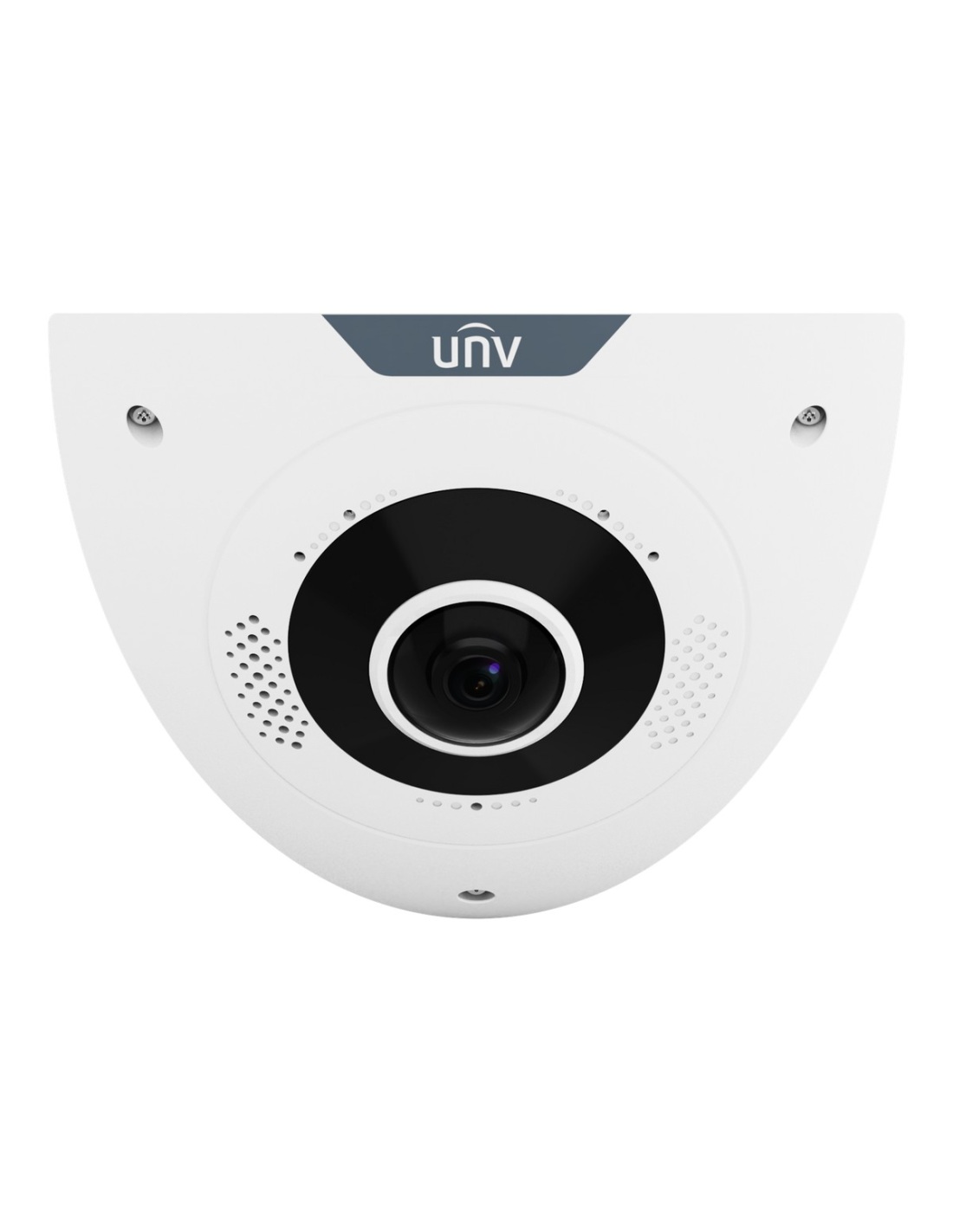

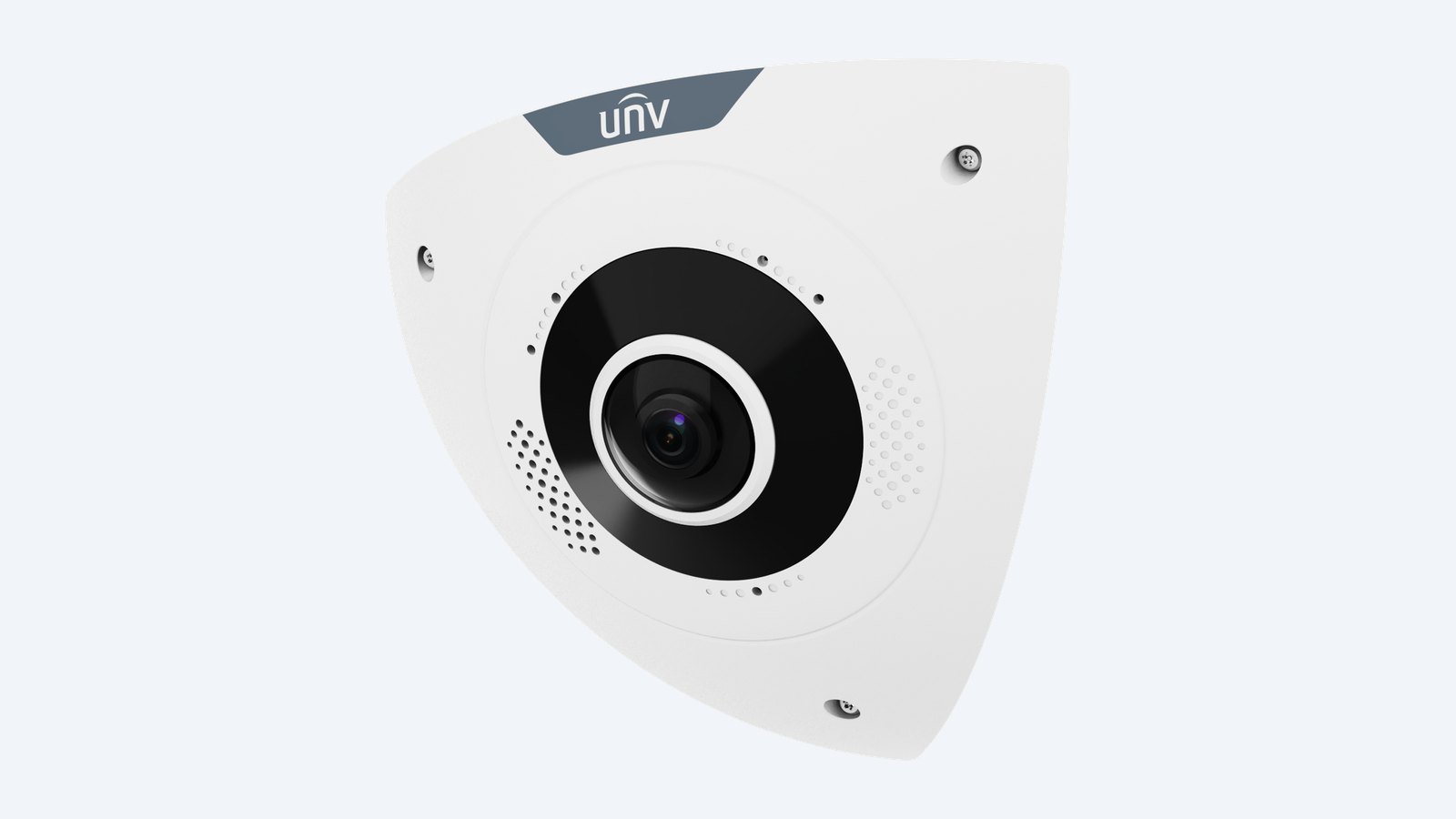

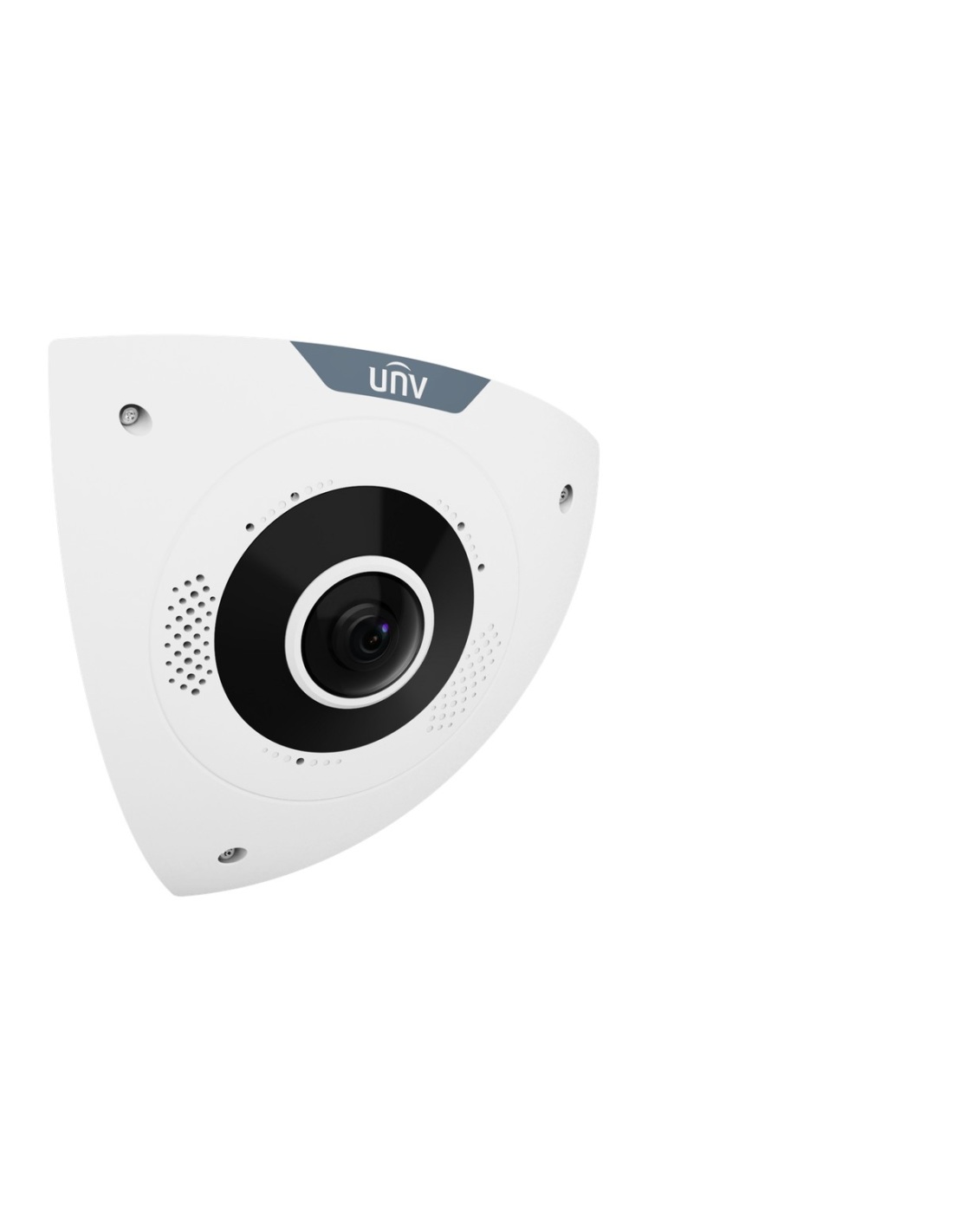

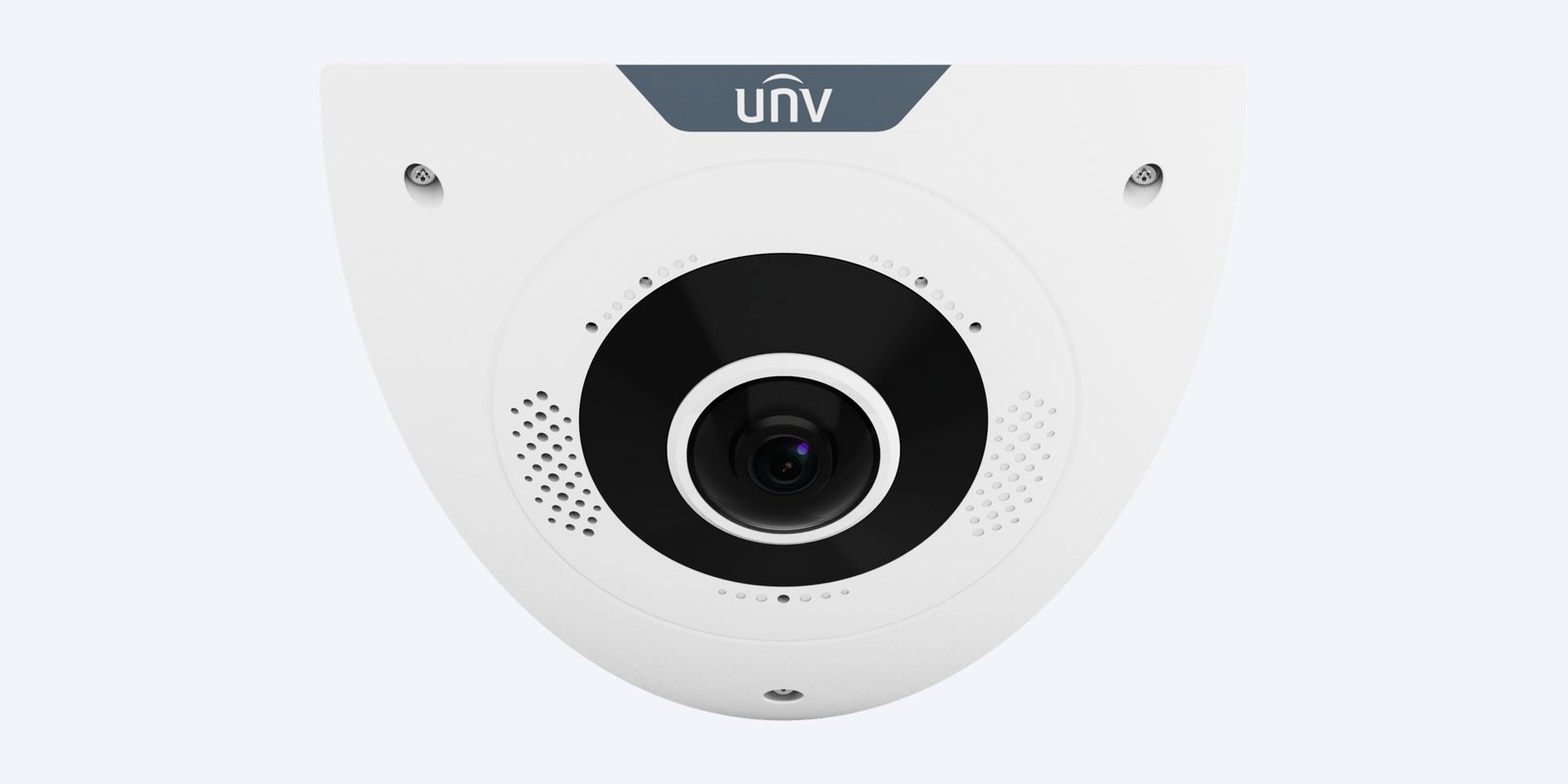

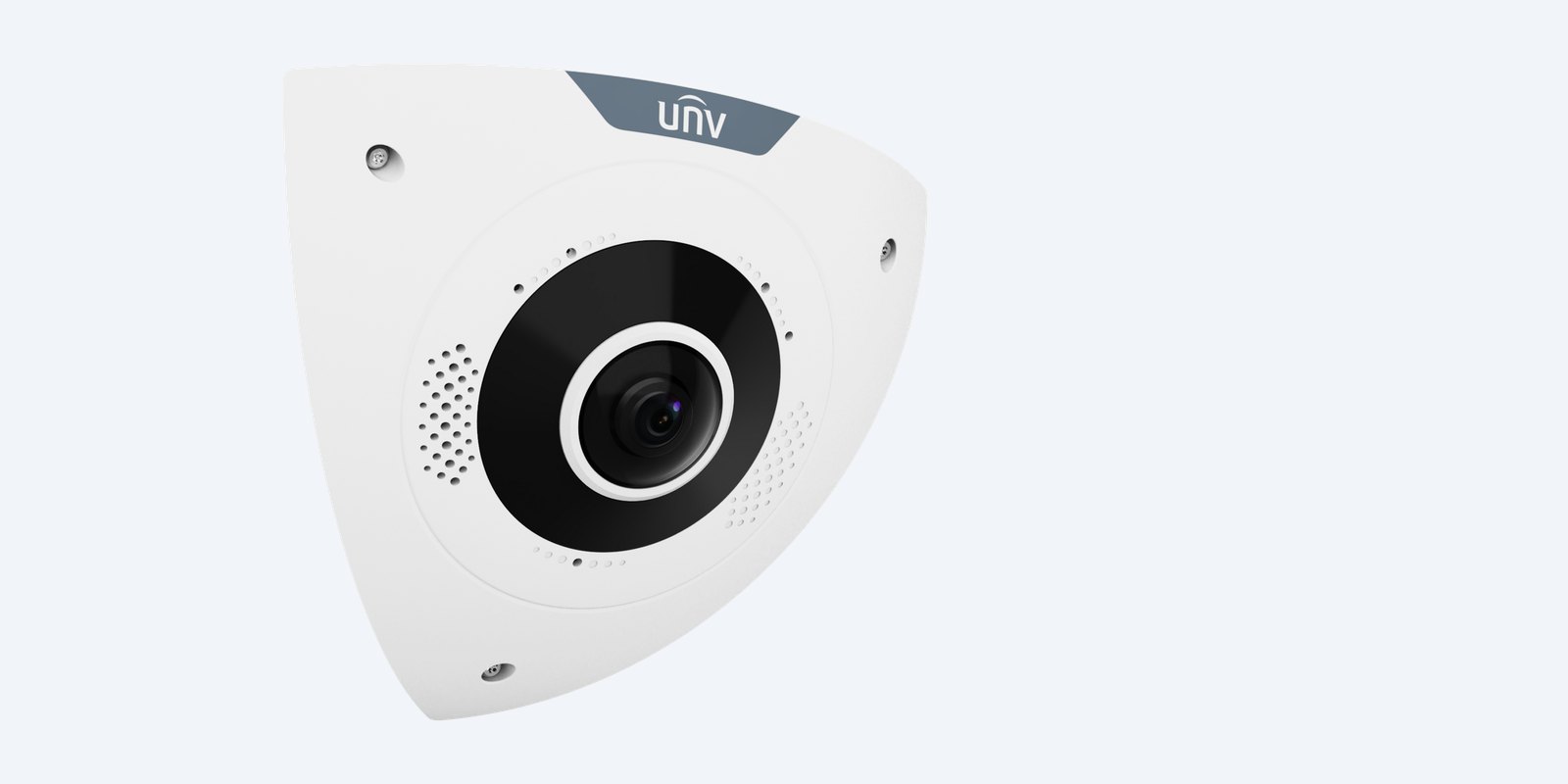

• IPC876SE-ADF20KMC-I1 camera
• Mounting screws and accessories
• Quick guide

• A PoE NVR or switch (802.3af), or a 12 V DC supply
• Cat6 cable to the camera
• A microSD card up to 512GB, to record on the camera
• A square ceiling corner with a cable entry

01

Pick the spot

The ceiling corner opposite the door, so it sees everyone who comes in and the whole floor.

02

Fix the camera

Screw the housing into the corner and bring the cable in through the wall or ceiling behind it.

03

Plug it in

Run Cat6 to a PoE port on the NVR or a PoE switch. The camera powers up from the cable.

04

Aim and add

Add it to the NVR or the EZView app, then draw the lines and zones for alarms.

Recorder

Uniview PoE NVR

Uniview recorders add the camera over one Cat6 cable, bring in its smart events and keep weeks of footage on their hard drives.

Cabling

Cat6 cable

Solid copper Cat6 for PoE runs up to 100 m from the switch or recorder.

Storage

microSD card

A surveillance-grade card up to 512GB records on the camera itself and covers network drop-outs.

Power

PoE switch

Powers cameras over their Cat6 cable where the recorder has no free PoE ports or sits too far away.

Lifts

The whole car with nothing to grab.

Holding and interview rooms

Flush in the corner, out of reach.

Stairwells

Up and down the flight from one corner.

Care and community rooms

Two-way audio for staff to talk.

Why a corner camera?

It fills the corner, so there is no dome or turret sticking out to pull or twist, and from the corner it sees the whole room.

What does IK11 mean?

IK11 is one step above IK10 on the impact scale, for housings that need to survive heavy blows. The housing is metal.

Is the IR visible?

It uses 940 nm IR, which shows far less red glow than the more common 850 nm.

Can I talk through it?

Yes. Dual microphones and a speaker give two-way audio from the app or the NVR.

How far does it see at night?

Up to 15 m, which covers most rooms from the corner.

Does it have smart detection?

Yes. Line crossing and intrusion detection (smart intrusion prevention), plus motion and tampering alarms.

Will it work with my recorder?

Uniview NVRs find it on their PoE ports and add it automatically, along with its smart events. Other recorders that support ONVIF (Profile S, G, T, M) can add it too, although smart events and the special views may only come through fully on Uniview.

Can I watch it on my phone?

Yes. Watch it through your Uniview NVR in the Uniview EZView app, or add the camera to the app on its own. Live view also works in a web browser.

Can it record without an NVR?

Yes. Fit a microSD card of up to 512GB and it records on the camera itself. With an NVR, the card also covers network drop-outs: ANR sends the missed footage to the recorder when the link returns.

How is it powered?

By PoE (IEEE 802.3af) over the same Cat6 cable as the video, from a PoE NVR or switch. Without PoE, it runs on a 12 V DC supply. It draws 11.5 W at most.

What is Ultra 265?

Uniview’s video compression. It keeps the same picture as H.265 in less space, so the recorder holds more days of footage. H.265, H.264 and MJPEG are there too.

What is the warranty?

Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
