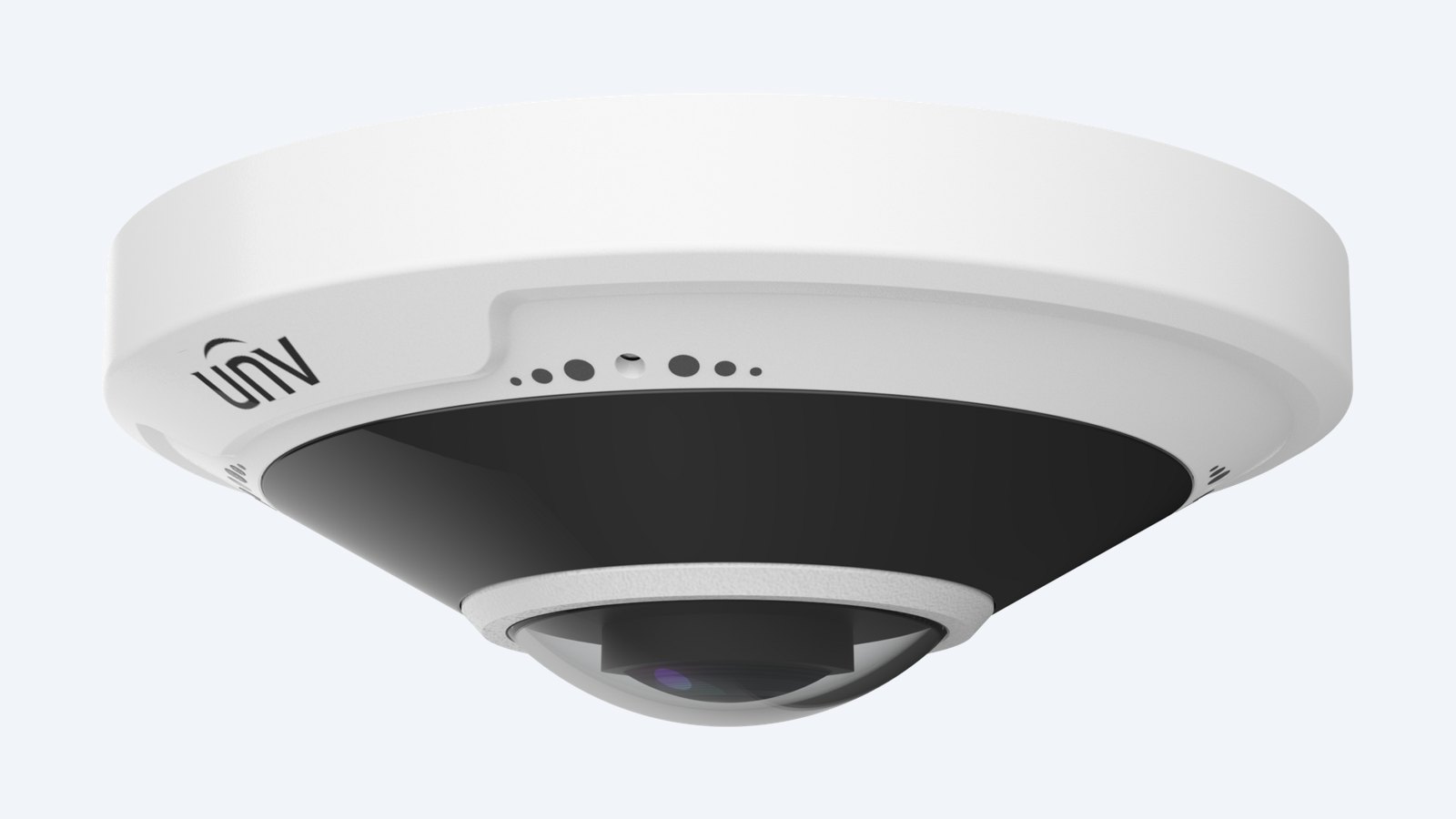

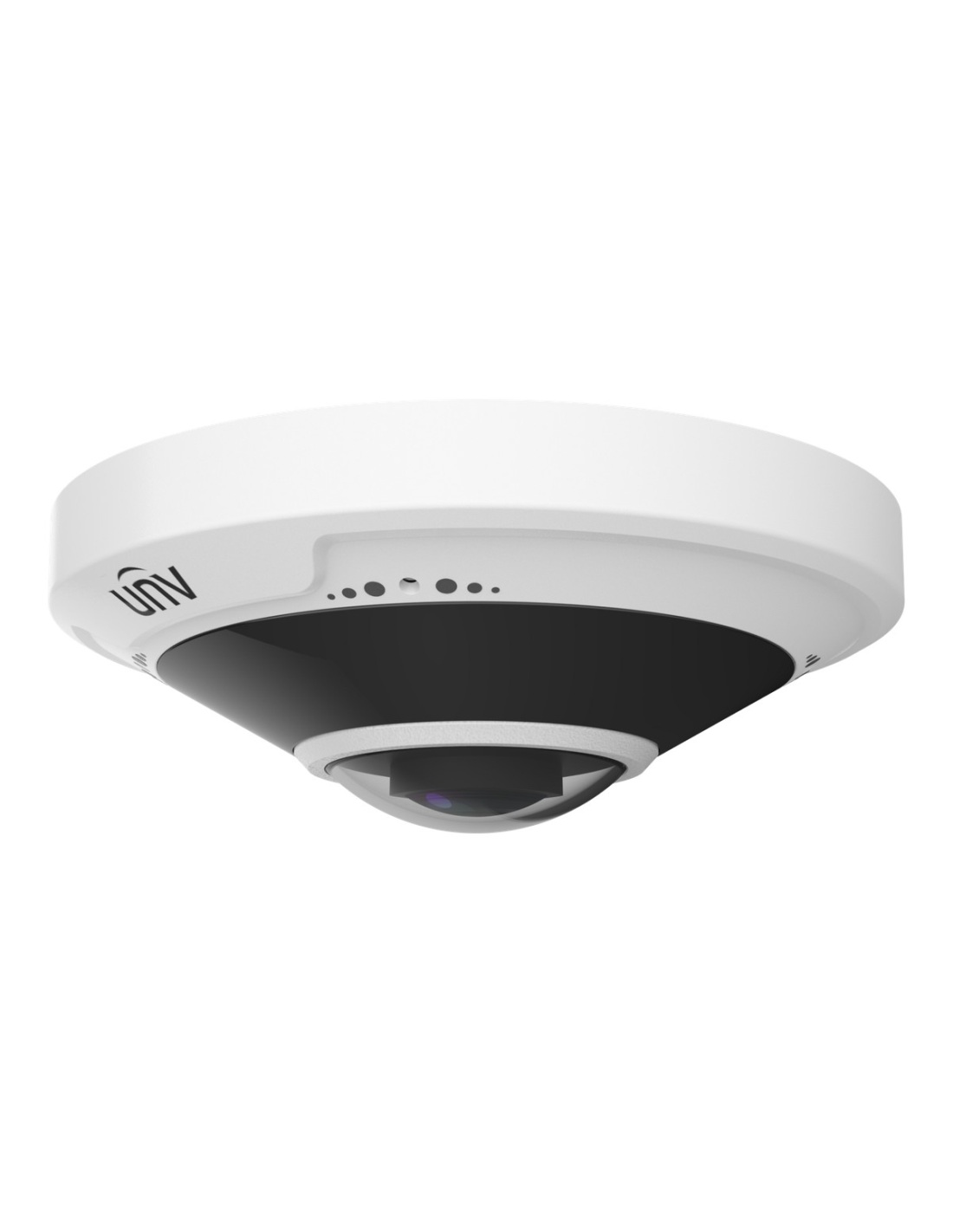

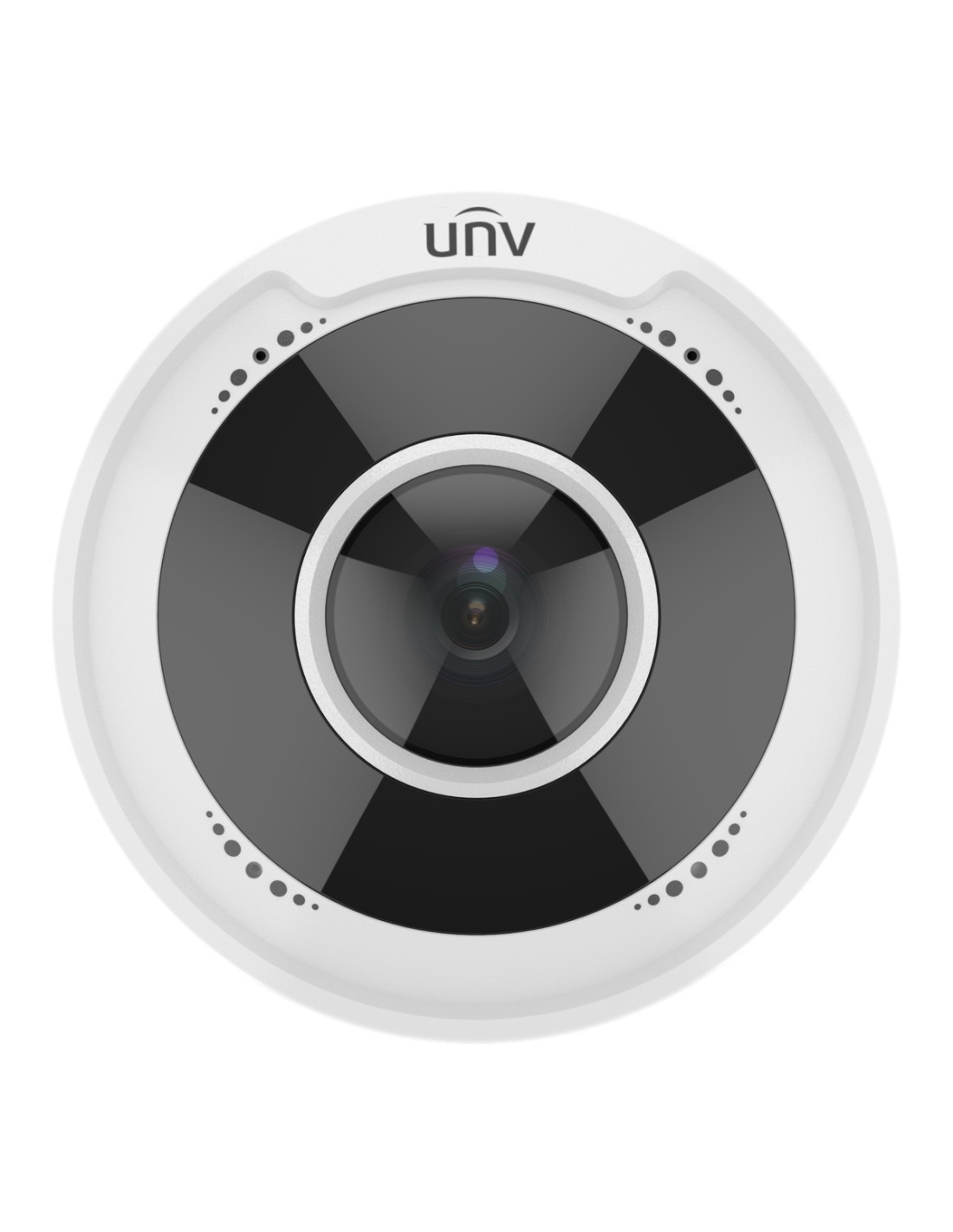

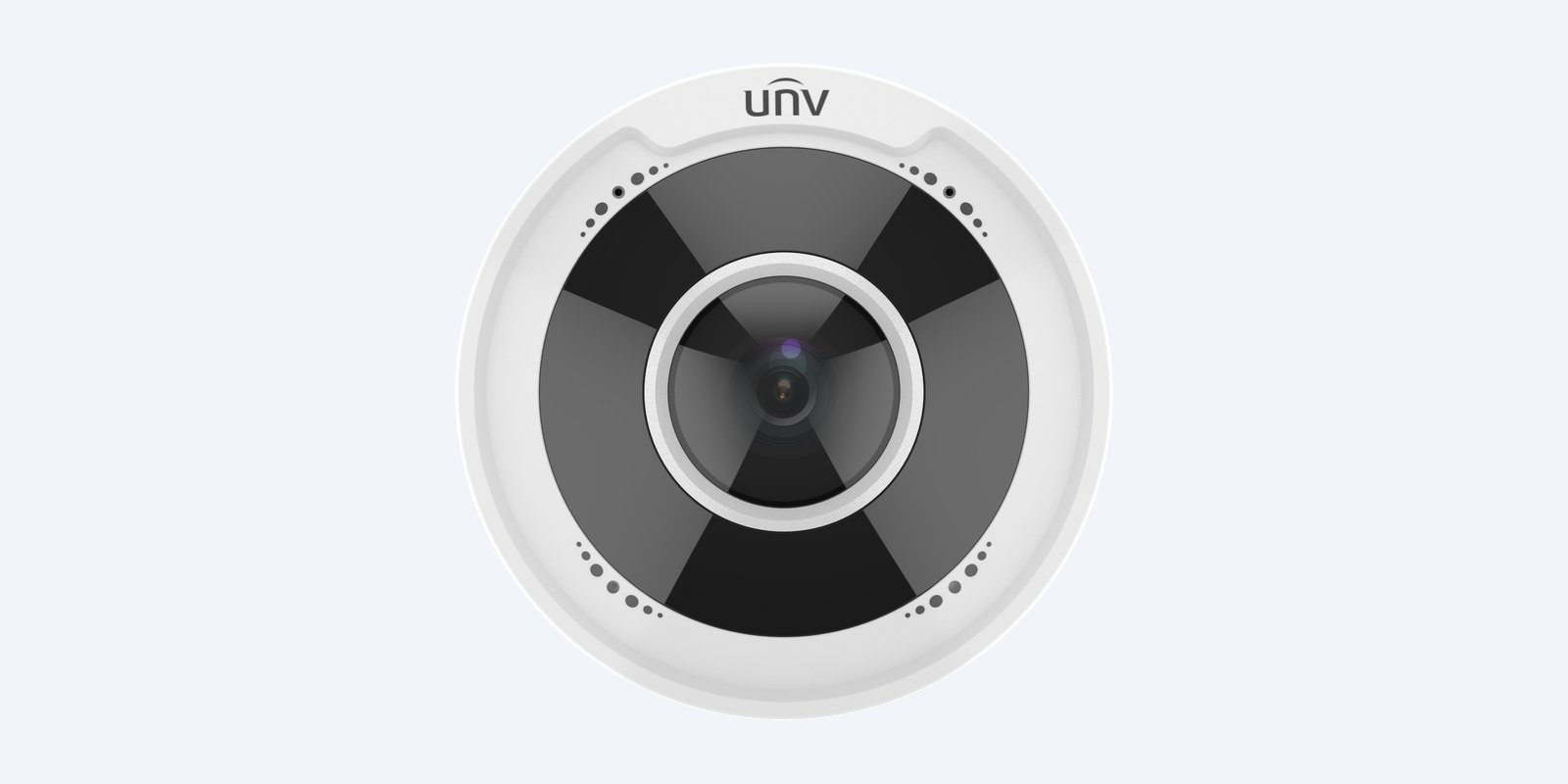

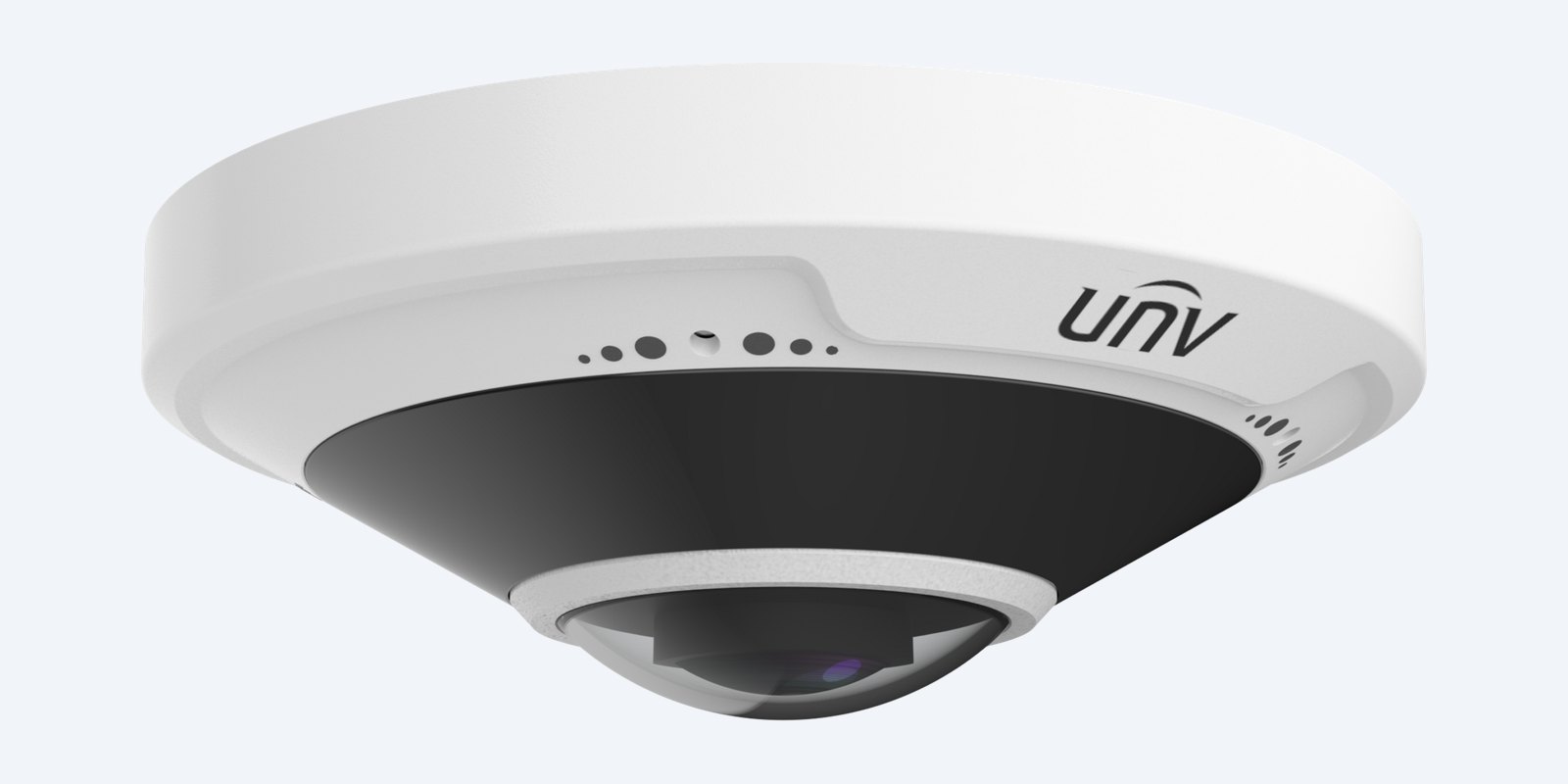

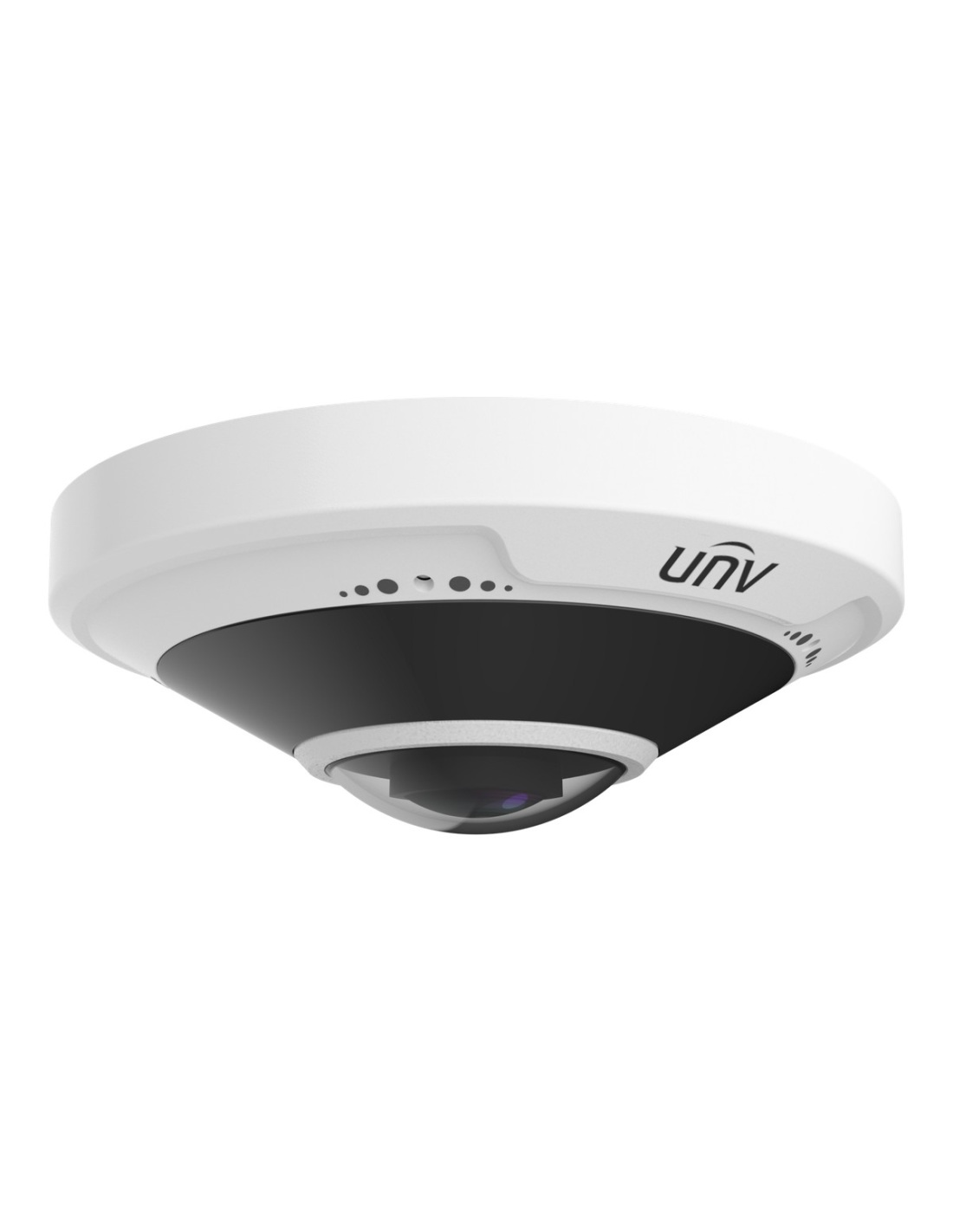

• IPC815SB-ADF14K-I0 camera
• Mounting screws and accessories
• Quick guide

• A PoE NVR or switch (802.3af), or a 12 V DC supply
• Cat6 cable to the camera
• A microSD card up to 512GB, to record on the camera
• TR-JB03-H-IN junction box or a TR-CM24-IN / TR-SE24-A-IN mount, if needed

01

Pick the spot

The centre of the ceiling, 2.5–4 m up, so the camera can see every wall. Keep it clear of light fittings that would shine into the lens.

02

Fix the camera

Screw it to the ceiling, or onto a TR-JB03-H-IN junction box where there is no cavity to hide the cable.

03

Plug it in

Run Cat6 to a PoE port on the NVR or a PoE switch. The camera powers up from the cable.

04

Aim and add

Set the mount type to ceiling, table or wall so the software dewarps correctly, then add it to the NVR or the EZView app.

Recorder

Uniview PoE NVR

Uniview recorders add the camera over one Cat6 cable, bring in its smart events and keep weeks of footage on their hard drives.

Mounting

TR-JB03-H-IN junction box

Listed by Uniview for this fisheye. Encloses the cable joint where there is no ceiling cavity.

Ceilings

TR-CM24-IN / TR-SE24-A-IN mounts

Listed by Uniview for this fisheye, for ceiling and pendant installs.

Cabling

Cat6 cable

Solid copper Cat6 for PoE runs up to 100 m from the switch or recorder.

Shops

The whole floor and both doors from one camera.

Offices

Open-plan floors and reception areas.

Classrooms and halls

Every wall of the room.

Lobbies

Lift doors, entry and mailboxes together.

Does it have smart detection?

It has motion, tampering and audio detection, and heat maps when used with a Uniview management platform. For line crossing and intrusion with people filtering, look at the IPC816SB.

Does it have a speaker?

No. It has dual microphones, and its audio output can drive an external speaker for two-way audio.

How far does it see at night?

Up to 10 m with IR, which covers most rooms from the ceiling.

Is it vandal resistant?

Yes. It is rated IK10 for impact and IP66 for weather, so it suits covered outdoor areas too.

Why does the picture look round?

A fisheye lens records the whole area as a circle. Dewarping turns that circle into normal-looking views: a single panorama, a double panorama, or several virtual cameras you can zoom into. You can do this live and on recorded footage.

Where should a fisheye go?

In the middle of the ceiling, looking straight down. From there it sees every wall of the room. It also mounts on a wall, where it gives a 180° view across the room.

Will it work with my recorder?

Uniview NVRs find it on their PoE ports and add it automatically, along with its smart events. Other recorders that support ONVIF (Profile S, G, T, M) can add it too, although smart events and the special views may only come through fully on Uniview.

Can I watch it on my phone?

Yes. Watch it through your Uniview NVR in the Uniview EZView app, or add the camera to the app on its own. Live view also works in a web browser.

Can it record without an NVR?

Yes. Fit a microSD card of up to 512GB and it records on the camera itself. With an NVR, the card also covers network drop-outs: ANR sends the missed footage to the recorder when the link returns.

How is it powered?

By PoE (IEEE 802.3af) over the same Cat6 cable as the video, from a PoE NVR or switch. Without PoE, it runs on a 12 V DC supply. It draws 8.5 W at most.

What is Ultra 265?

Uniview’s video compression. It keeps the same picture as H.265 in less space, so the recorder holds more days of footage. H.265, H.264 and MJPEG are there too.

What is the warranty?

Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
