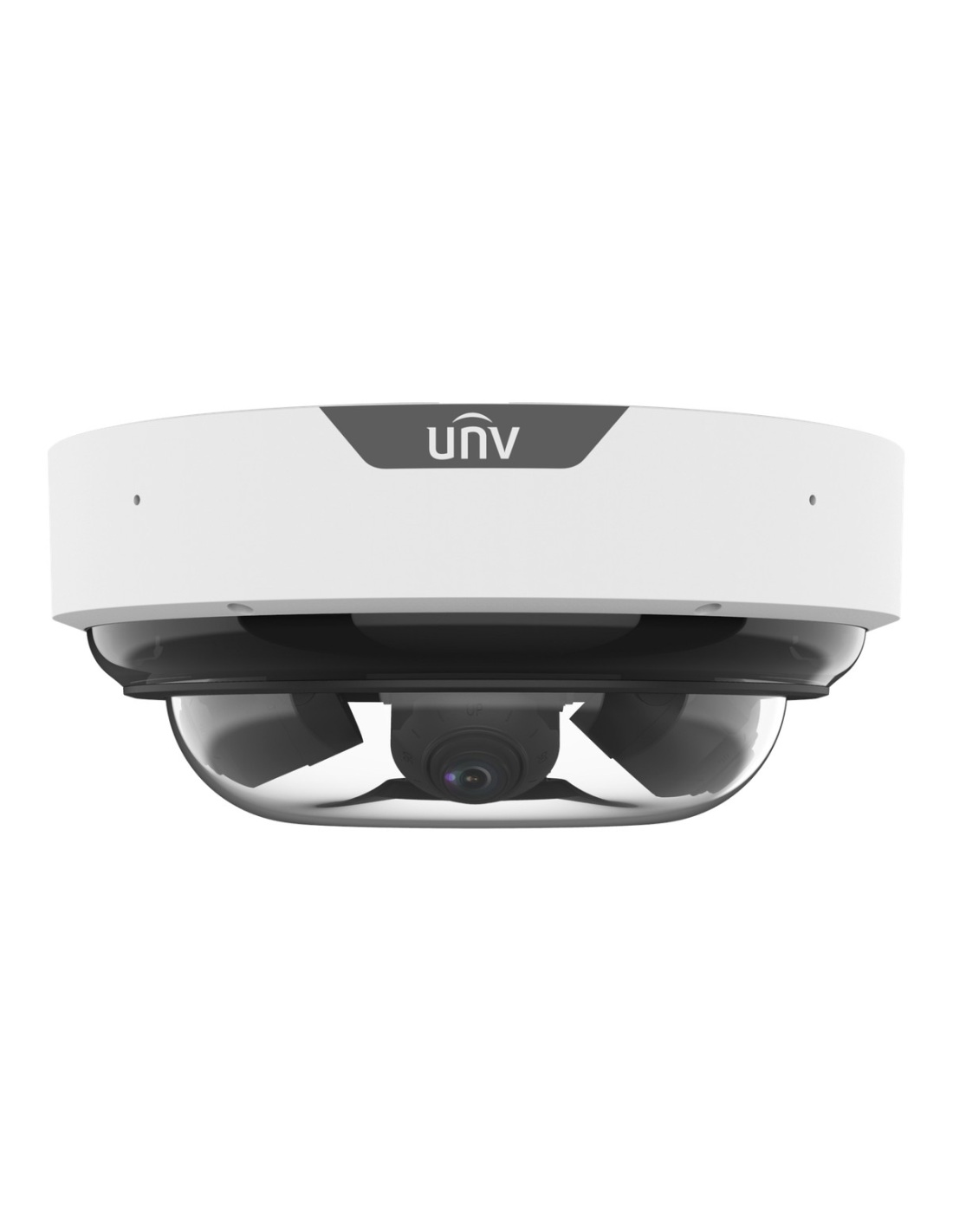

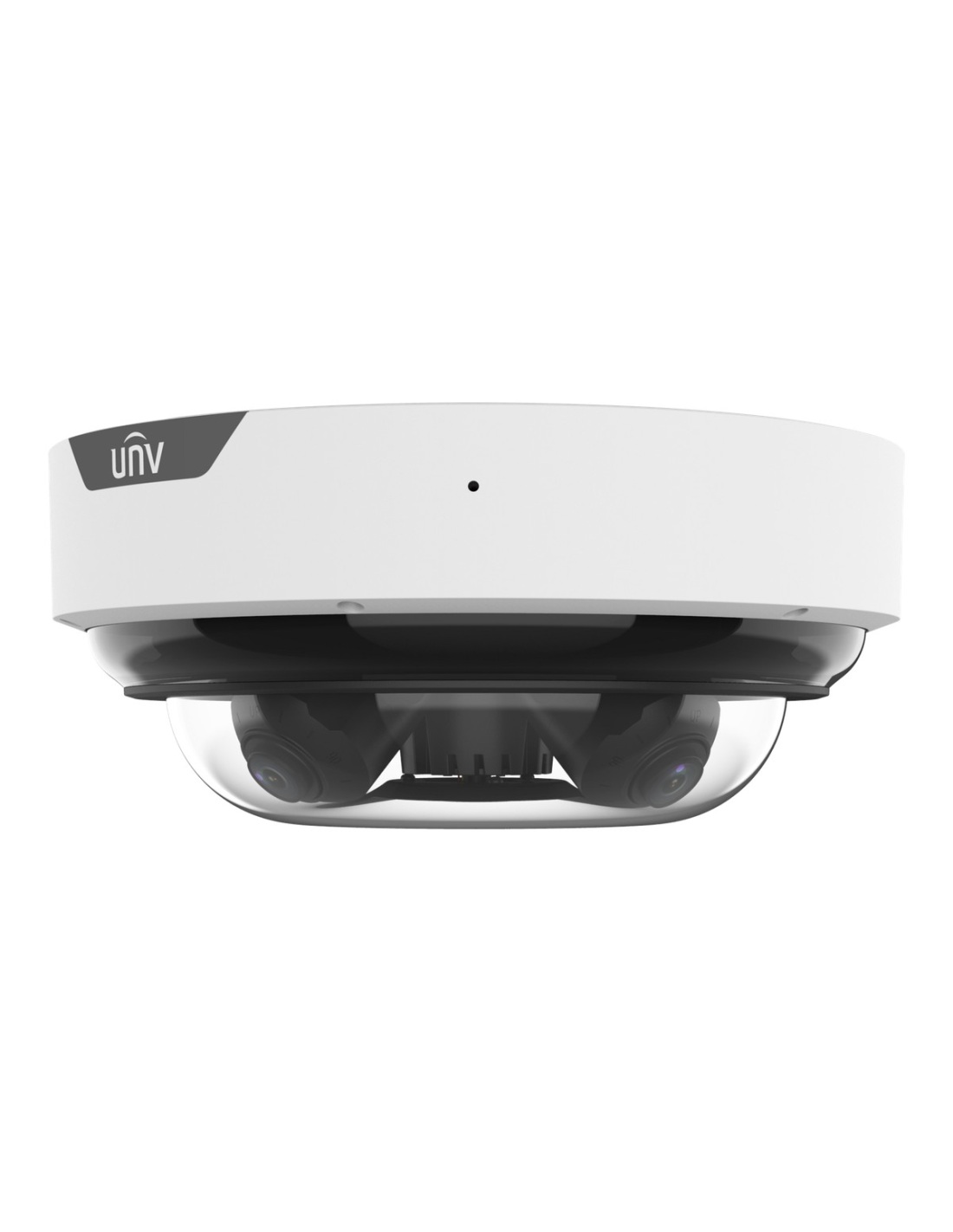

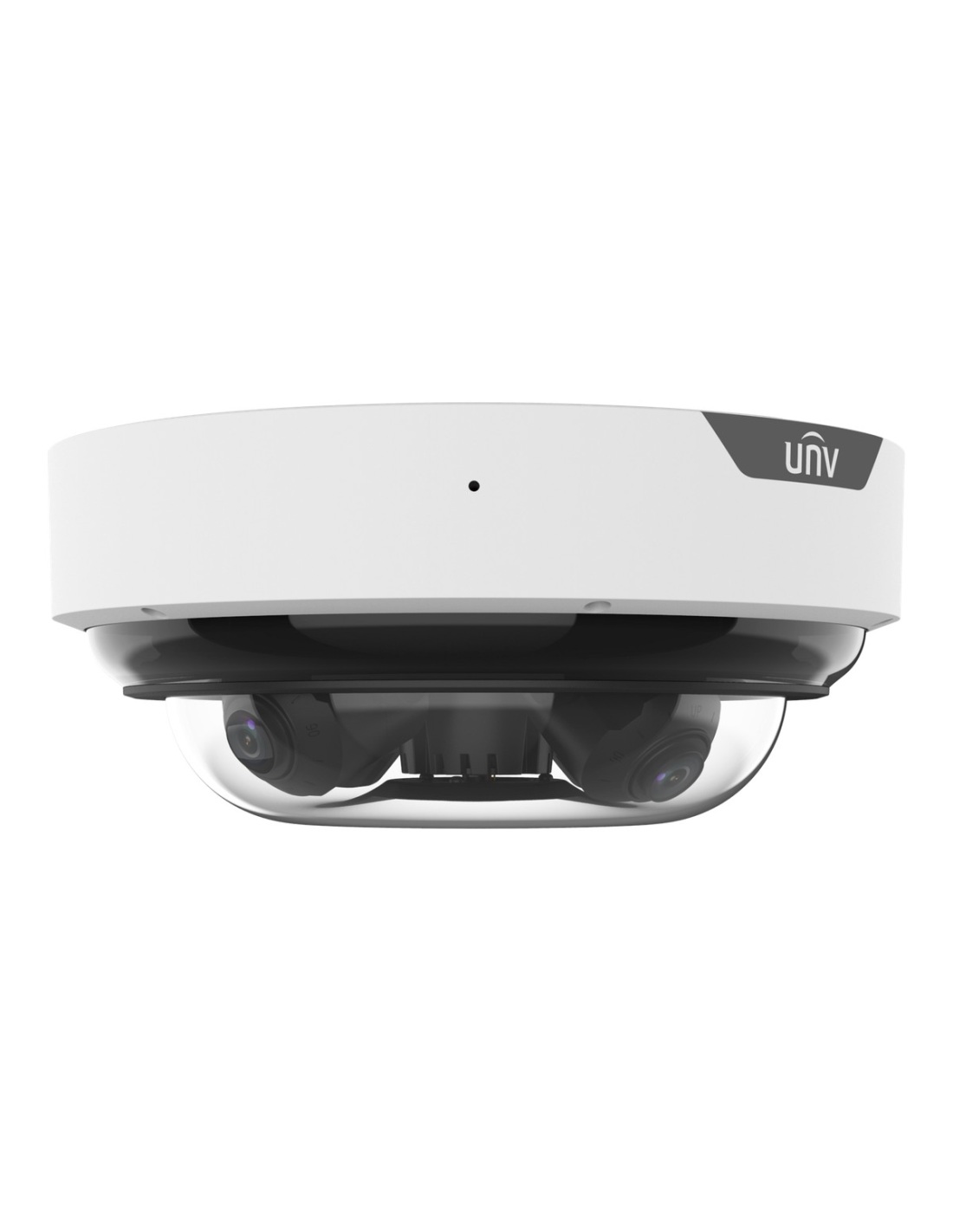

Uniview 4 x 5MP Multi-Sensor Camera, 2.7-13.5mm Varifocal Lenses, 50m IR, Hi-PoE - IPC8645EA-ADZKM-I1
IPC8645EA-ADZKM-I1
In stock $ 2,115.00
inc-GST
or 4 interest-free payments of $528.75 with
Four 5MP cameras with 2.7–13.5 mm varifocal lenses in one IP67 housing, each aimed and zoomed on its own, with 50 m IR, smart intrusion prevention and people counting on one Hi-PoE cable.
- ✓Four 5MP channels, one IP
- ✓Each lens 2.7–13.5 mm, 5× zoom
- ✓Each module aimed on its own
- ✓50 m IR
- ✓IP67, IK10, gigabit
- ✓Hi-PoE (802.3bt) or 24 V, 31 W
Uniview · Multi-sensor · 4 × 5MP
Four zoom cameras
on one cable and one mount.

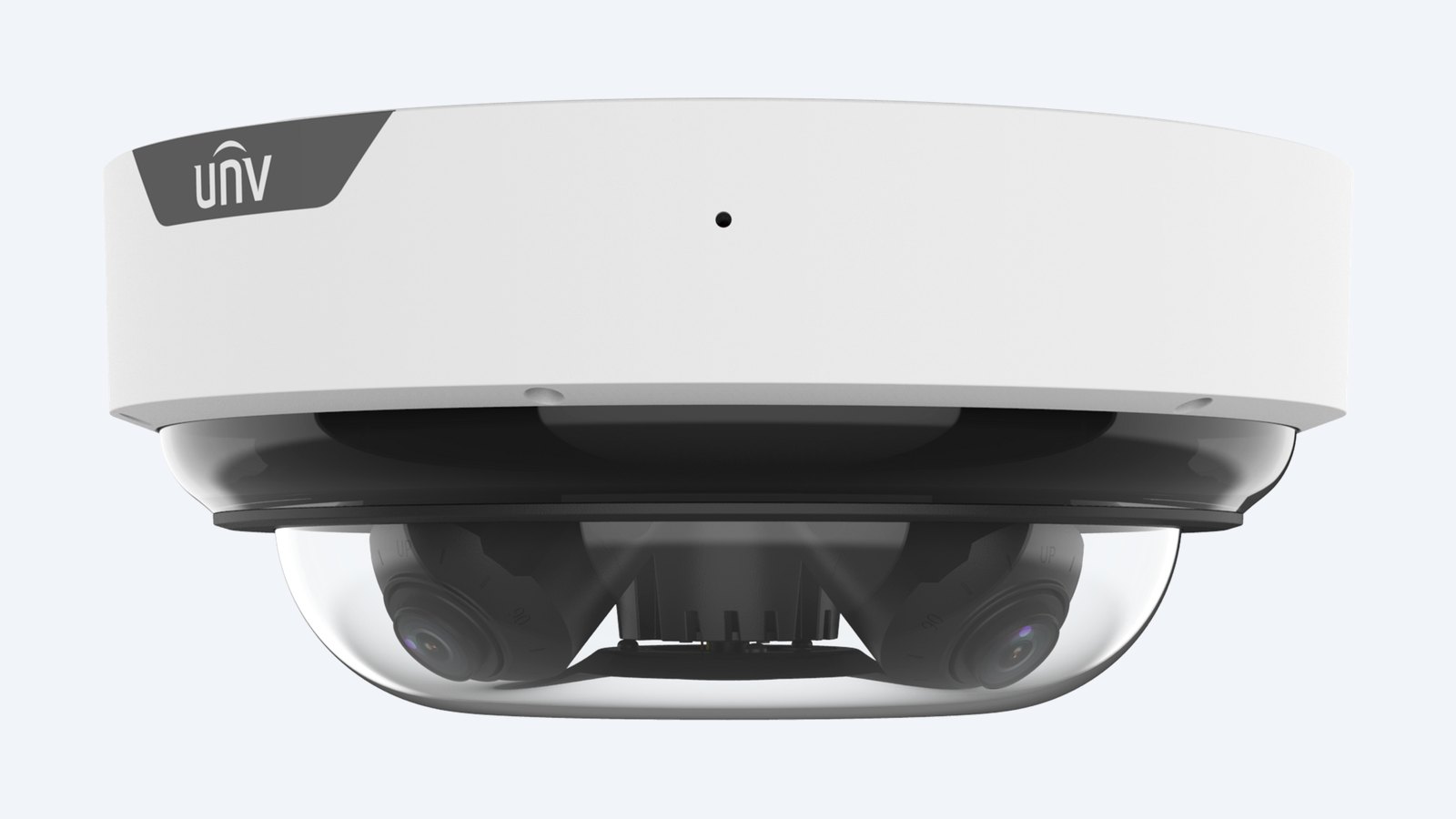

This is the Uniview IPC8645EA-ADZKM-I1. Four 5MP cameras in one housing, each with its own 2.7–13.5 mm zoom lens that pans, tilts and rotates on its own. Cover all four sides of an intersection, or aim all four along one long boundary.
In one sentence: the IPC8645EA-ADZKM-I1 is a four-channel multi-sensor camera with four 5MP (2880 × 1620) sensors, four 2.7–13.5 mm F1.2 varifocal lenses, 50 m IR, smart intrusion prevention, people counting, gigabit network, IP67 and IK10, powered by Hi-PoE (802.3bt) or 24 V.
Plan for Hi-PoE and a solid mount.
It draws up to 31 W and weighs 4.77 kg, so it needs an 802.3bt port or a 24 V supply and a proper bracket. One Cat6 cable carries all four video channels.
In the box
- IPC8645EA-ADZKM-I1 camera
- Waterproof cable parts
- Quick guide
You also need
- A Hi-PoE (802.3bt) port, or a 24 V DC or AC supply
- Cat6 cable to the camera
- A wall, corner or pole bracket (TR-UF45-K-IN, TR-WE45-A-IN or TR-UC08-A-IN)
- A recorder with four free channels
Each lens set for its own job.
Every module pans 0–360°, tilts 0–65° and rotates 0–355°, and every lens zooms from 110.3° wide to 31° tight. One lens can watch a gate at a distance while another covers the car park wide. Uniview rates each lens to identify a person at up to 24.8 m and detect out to 247.5 m.
Design

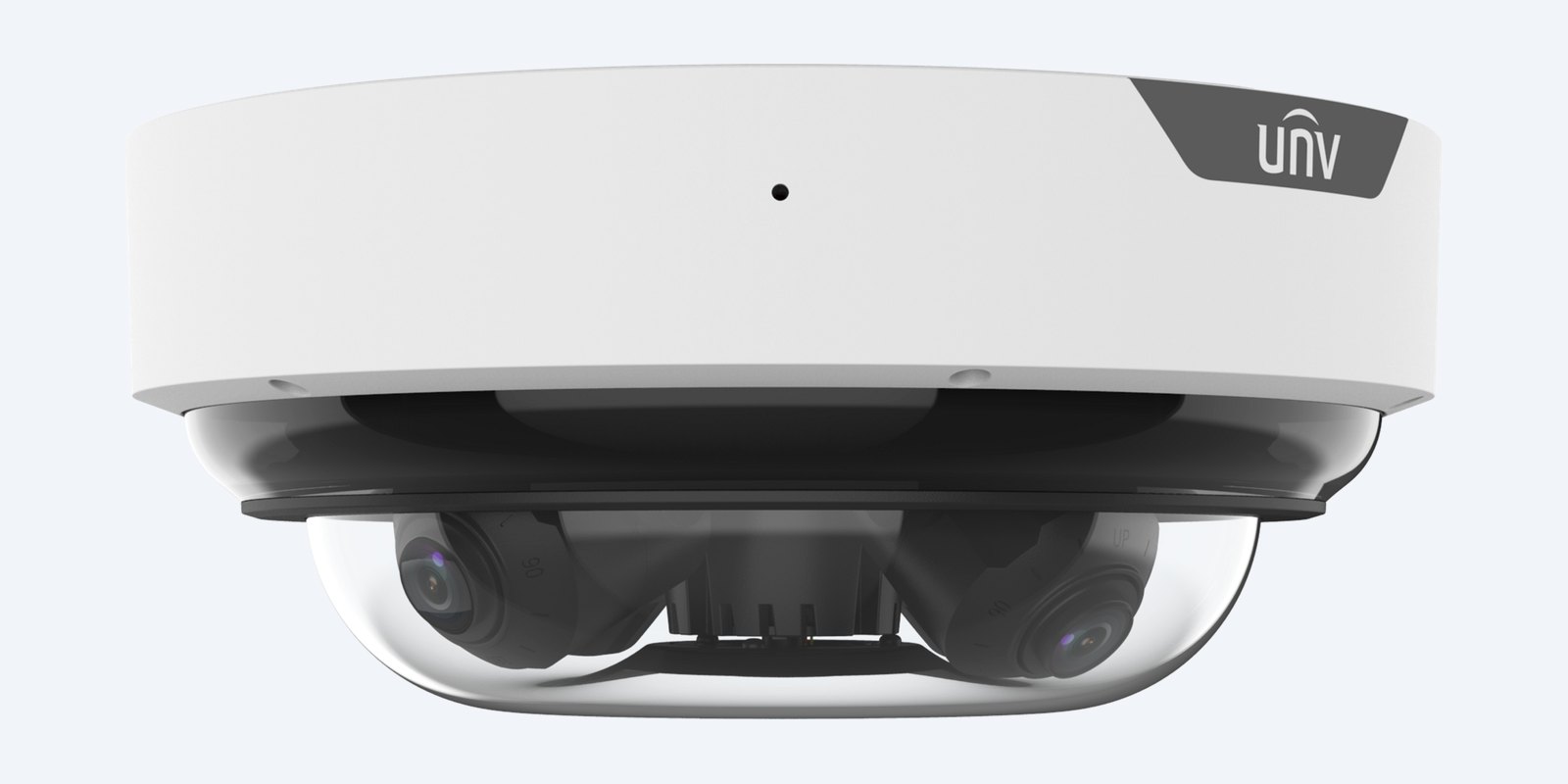

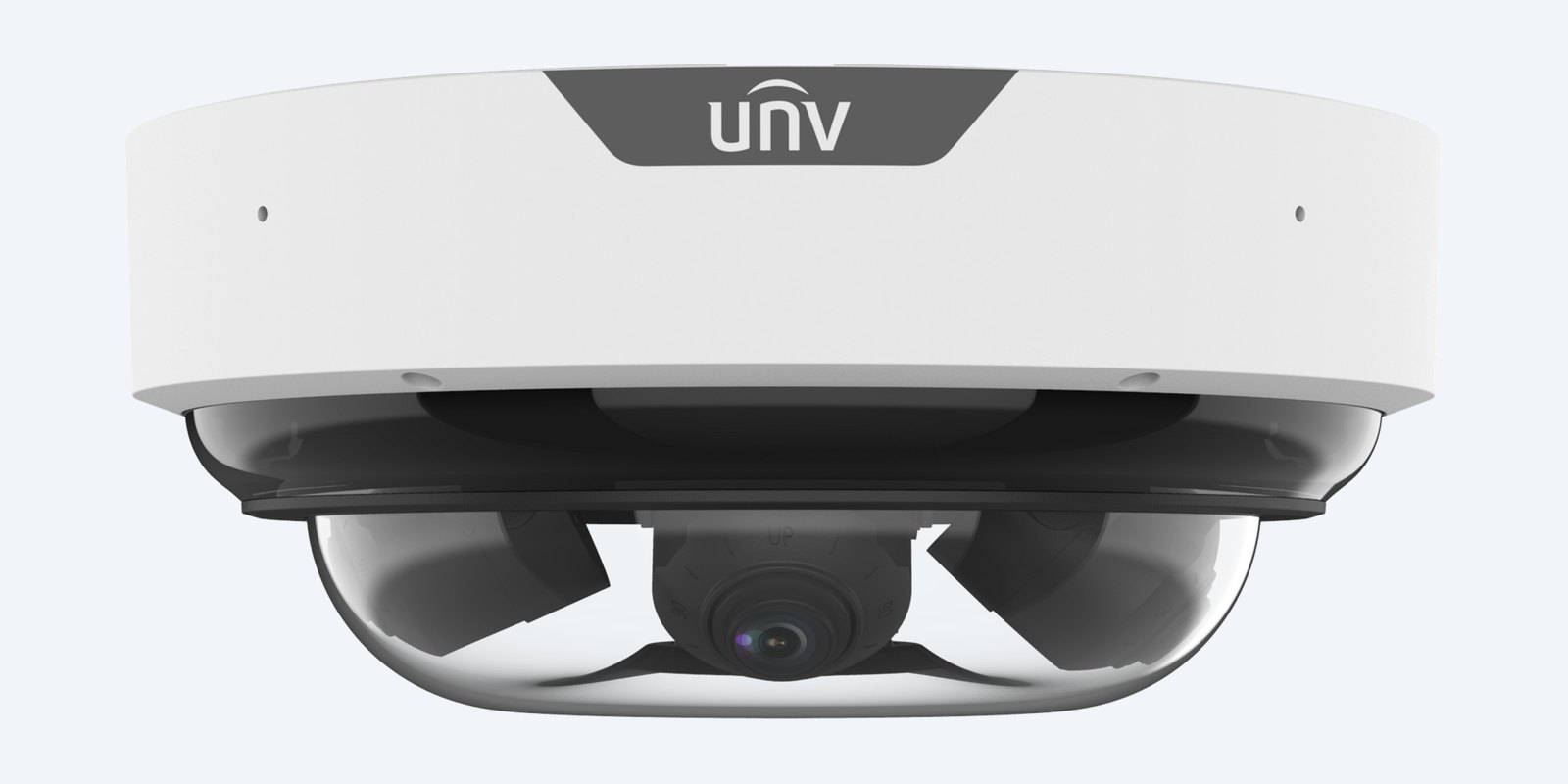

Four modules under one dome.
The modules slide around the ring so they can face any direction, and each lens has its own 2.7–13.5 mm varifocal zoom.
Build
IP67, IK10, 6 kV surge.
A heavy-duty housing for poles and building corners, working from −30 °C to 60 °C.

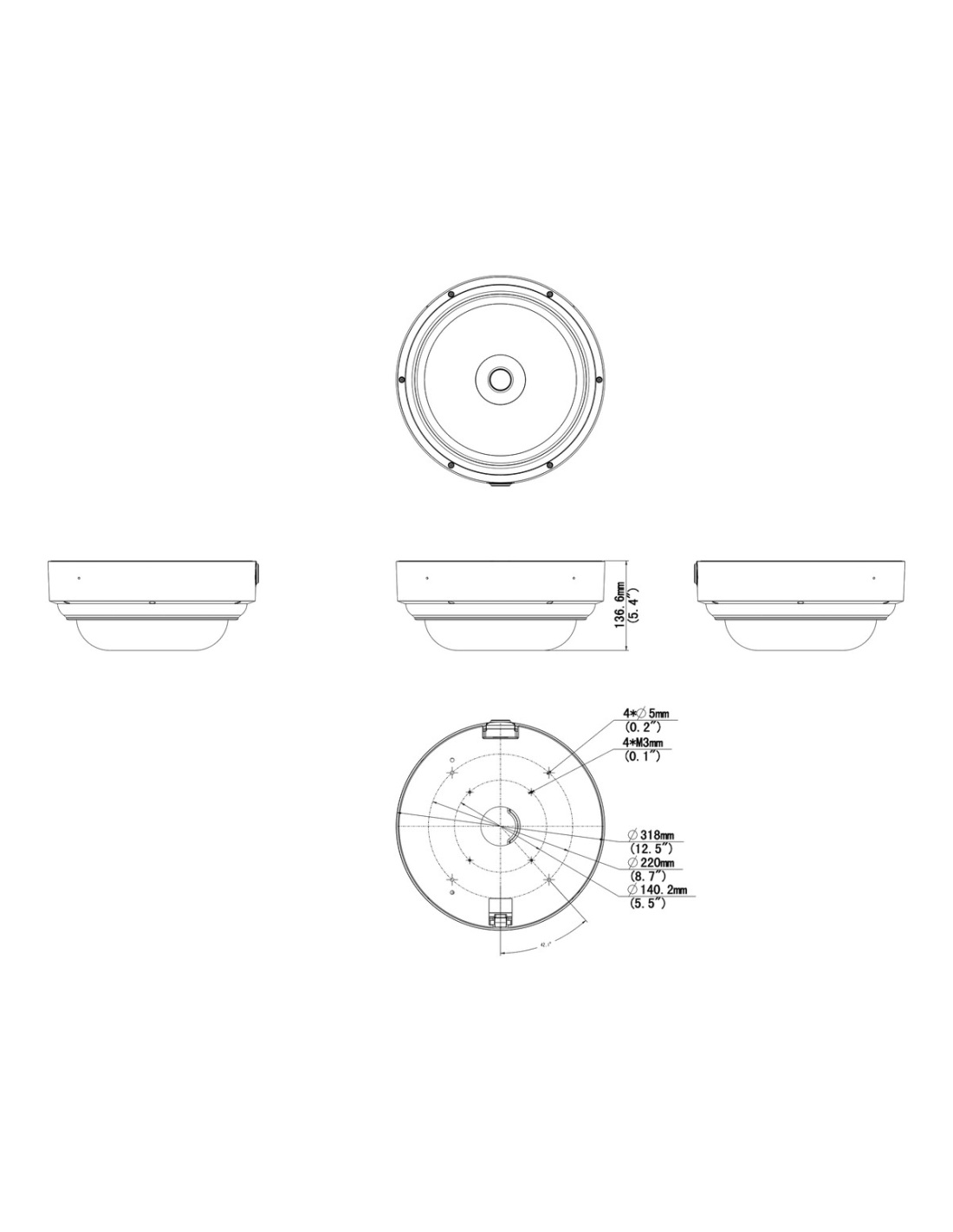

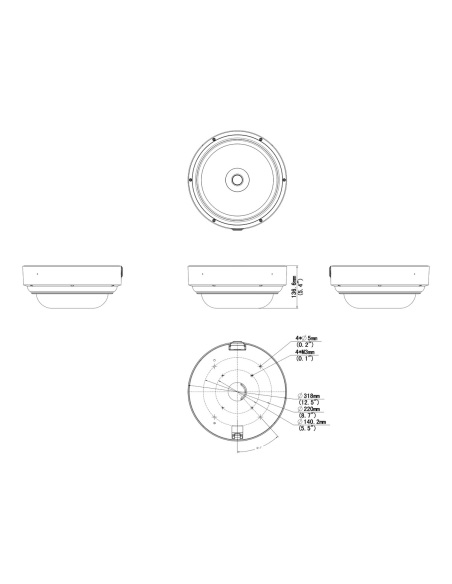

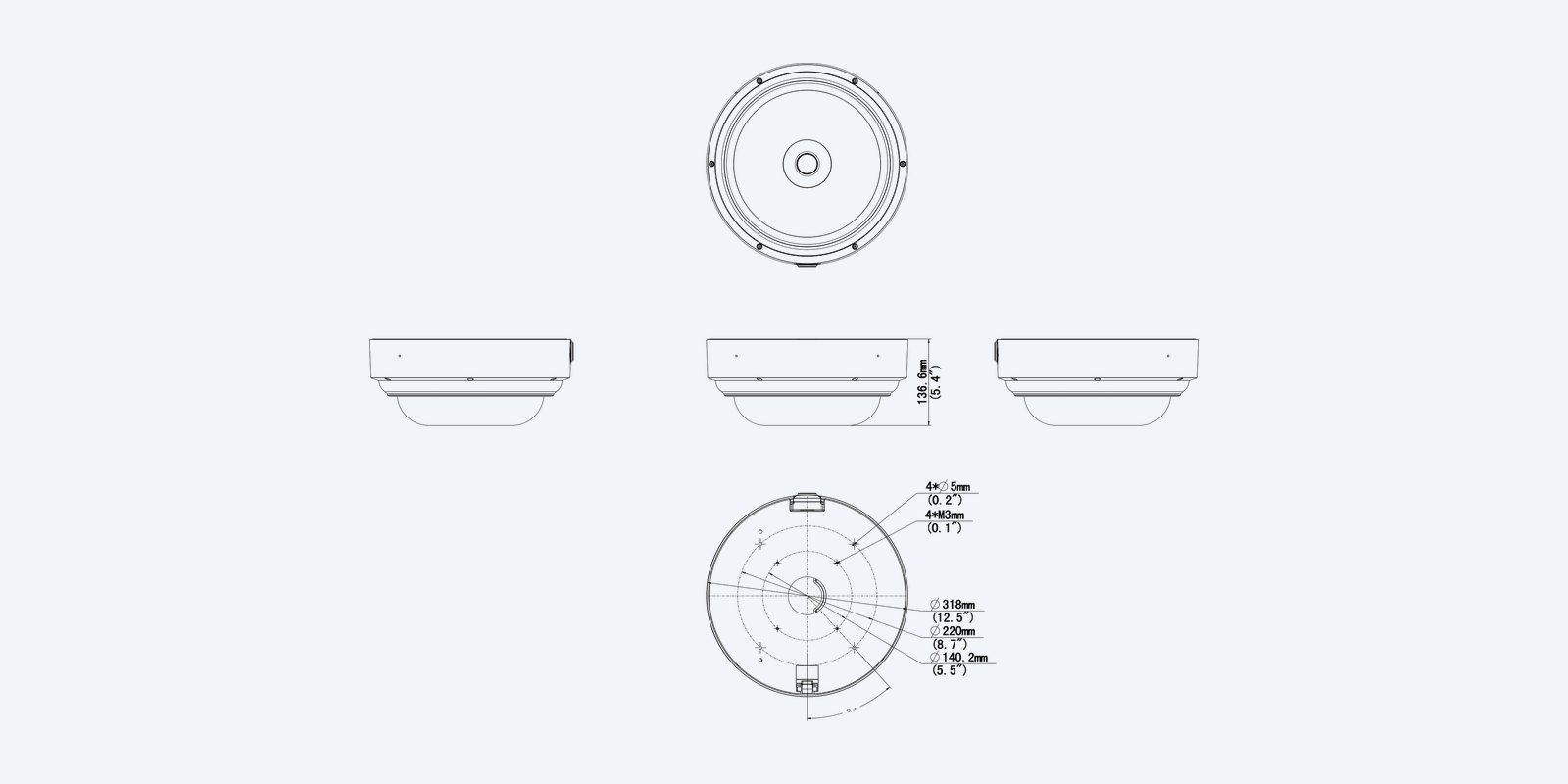

Dimensions
Ø318 × 136.6 mm, 4.77 kg.
Plan for a solid mount: Uniview lists the TR-UF45-K-IN, TR-WE45-A-IN and TR-UC08-A-IN for it.
How it goes in
From the box to recording.
01
Plan power and mount
Check you have an 802.3bt port or a 24 V supply, and a mount that suits the wall, corner or pole.
02
Fix the bracket
Fix the TR-UF45-K-IN adapter or a TR-WE45-A-IN wall or TR-UC08-A-IN corner bracket, then hang the camera.
03
Power it up
Run Cat6 to the bt port or connect the 24 V supply. One cable carries all four channels.
04
Aim each lens
Turn each module to its view, set each lens from wide to tight, then add the four channels to the NVR.
At a glance
IPC8645EA-ADZKM-I1
Show specs
Resolution
4 × 5MP (2880 × 1620), 20MP in total
Sensor
4 × 1/2.7" CMOS
Lens
4 × 2.7–13.5 mm varifocal, F1.2
Zoom
5× optical, per lens
View
110.3° to 31° across, per lens
Identify / recognise / detect
Identify 7.1–24.8 m, recognise 14.2–49.5 m, detect 70.9–247.5 m, per lens
Low light
0.002 lux colour, 0 lux with IR
WDR
130 dB true WDR
Night vision
IR up to 50 m
Frame rate
30 fps at 5MP, each channel
Compression
Ultra 265, H.265, H.264, MJPEG
Smart detection
Line crossing, intrusion, region entrance and exit with human and vehicle filtering; people counting; motion, tampering
Audio
Built-in mic; 1 audio in, 1 out
Other connections
Alarm 3 in, 2 out; 12 V DC output
On-camera storage
microSD up to 512GB; ANR
ONVIF
Profile S, G, T, M
Network
1 × RJ45 10/100/1000
Power
Hi-PoE (802.3bt), 24 V DC or 24 V AC, max 31 W
Weather and impact
IP67, IK10, 6 kV surge
Operating
−30 °C to 60 °C, ≤95% RH
Size and weight
Ø318 × 136.6 mm, 4.77 kg
Pair it with
What goes with it
Recorder
Uniview PoE NVR
Uniview recorders add the camera over one Cat6 cable, bring in its smart events and keep weeks of footage on their hard drives.
Mounting
TR-UF45-K-IN adapter
Listed by Uniview for this camera, to connect it to a wall, corner or pole bracket.
Walls and corners
TR-WE45-A-IN / TR-UC08-A-IN
Wall and corner brackets listed by Uniview for this camera.
Cabling
Cat6 cable
Solid copper Cat6 for PoE runs up to 100 m from the switch or recorder.
Where it is used
Where a multi-sensor camera fits
Intersections and car parks
Four directions from one pole.
Building corners
Two walls each way from one corner mount.
Perimeters
Four lenses aimed along one long boundary.
Schools and campuses
Quads and walkways where cabling is costly.
Uniview fisheye, corner and multi-sensor cameras side by side
| IPC815SB | IPC816SB | IPC86CEB | IPC876SE | IPC8645EA | |
|---|---|---|---|---|---|
| Type | Fisheye | Fisheye | Fisheye | Corner camera | 4-lens multi-sensor |
| Resolution | 5MP | 6MP | 12MP | 6MP | 4 × 5MP |
| View | 180° fisheye | 360° panorama | 360° panorama | 114.2° from a corner | Up to 4 × 110.3°, each lens aimed and set on its own |
| Night vision | 10 m IR | 15 m IR | 15 m IR | 15 m IR | 50 m IR |
| Speaker | — | Yes | Yes | Yes | — |
| Protection | IP66, IK10 | IP67, IK10 | IP67, IK10 | IP67, IK11 | IP67, IK10 |
| Power | PoE, max 8.5 W | PoE, max 8.4 W | PoE, max 12.0 W | PoE, max 11.5 W | Hi-PoE (802.3bt) or 24 V, max 31 W |
| Size and weight | Ø125 × 43.7 mm, 0.36 kg | Ø126 × 52 mm, 0.44 kg | Ø149 × 55 mm, 0.52 kg | 212 × 209 × 78 mm, 1.0 kg | Ø318 × 136.6 mm, 4.77 kg |
Model codes shortened. PoE means 802.3af; each of the first four also runs on 12 V DC. All record to microSD up to 512GB. — means not fitted. Figures from the Uniview datasheets.
Common questions
Is it one camera or four on the recorder?
One IP address with four video channels. Your recorder needs four free channels, and enough incoming bandwidth for four 5MP streams.
Can each lens zoom?
Yes. Each lens is a 2.7–13.5 mm (5×) varifocal, from 110.3° wide to 31° tight. Each module also pans, tilts and rotates on its own.
What is Hi-PoE?
IEEE 802.3bt, the high-power version of PoE. This camera draws up to 31 W, which is more than standard PoE (802.3af) or PoE+ (802.3at) can supply. Use a switch or injector with a bt port, or a 24 V supply.
Why the gigabit port?
Four 5MP streams add up. The 10/100/1000 port gives them room on the network.
Can it power other devices?
Yes. It has a 12 V DC output to power a small accessory. It also has 3 alarm inputs and 2 outputs.
How far does it see at night?
Up to 50 m with IR.
Will it work with my recorder?
Uniview NVRs find it on their PoE ports and add it automatically, along with its smart events. Other recorders that support ONVIF (Profile S, G, T, M) can add it too, although smart events and the special views may only come through fully on Uniview.
Can I watch it on my phone?
Yes. Watch it through your Uniview NVR in the Uniview EZView app, or add the camera to the app on its own. Live view also works in a web browser.
Can it record without an NVR?
Yes. Fit a microSD card of up to 512GB and it records on the camera itself. With an NVR, the card also covers network drop-outs: ANR sends the missed footage to the recorder when the link returns.
How is it powered?
By Hi-PoE (IEEE 802.3bt) from a switch or injector with a bt port, or from a 24 V DC or 24 V AC supply. It draws up to 31 W, more than a standard PoE or PoE+ port can supply.
What is Ultra 265?
Uniview’s video compression. It keeps the same picture as H.265 in less space, so the recorder holds more days of footage. H.265, H.264 and MJPEG are there too.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Planning a site with panoramic, PTZ or plate cameras? Call 1300 736 970 or email [email protected] with a floor plan or photos and we will suggest the models, mounts and recorder.
Installation and safety
Power. Use an 802.3bt port or a regulated 24 V DC or 24 V AC supply rated for at least 31 W. The alarm connections are for dry contacts only.
Weather. IP67 and IK10 with 6 kV surge protection, rated from −30 °C to 60 °C. Fix to a structure that can carry 4.77 kg in wind.
Figures. From the Uniview IPC8645EA-ADZKM-I1 datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- Ø318 × 136.6 mm
- Audio
- Built-in mic; 1 audio in, 1 out
- Weight
- 4.77 kg
- Operating temperature
- −30 °C to 60 °C, ≤95% RH
- Power
- Hi-PoE (802.3bt), 24 V DC or 24 V AC, max 31 W
- Colour
- White
- Video Compression
- Ultra 265, H.265, H.264, MJPEG
- Resolution
- 4 × 5MP (2880 × 1620), 20MP in total
- Brand
- Uniview
- Frame Rate
- 30 fps at 5MP, each channel
- Interoperability
- Profile S, G, T, M
- Image Sensor
- 4 × 1/2.7" CMOS
- Lens
- 4 × 2.7–13.5 mm varifocal, F1.2
- Minimum Illumination
- 0.002 lux colour, 0 lux with IR
- Field of View
- 110.3° to 31° across, per lens
- Protection
- IP67, IK10, 6 kV surge
- WDR
- 130 dB true WDR
- Optical Zoom
- 5× optical, per lens
- Warranty
- 3 years
- Product Type
- Multi-Sensor Panoramic IP Camera
- Onboard Storage
- microSD up to 512GB; ANR
- Model
- IPC8645EA-ADZKM-I1
- Smart detection
- Line crossing, intrusion, region entrance and exit with human and vehicle filtering; people counting; motion, tampering
- Night Vision
- IR up to 50 m
