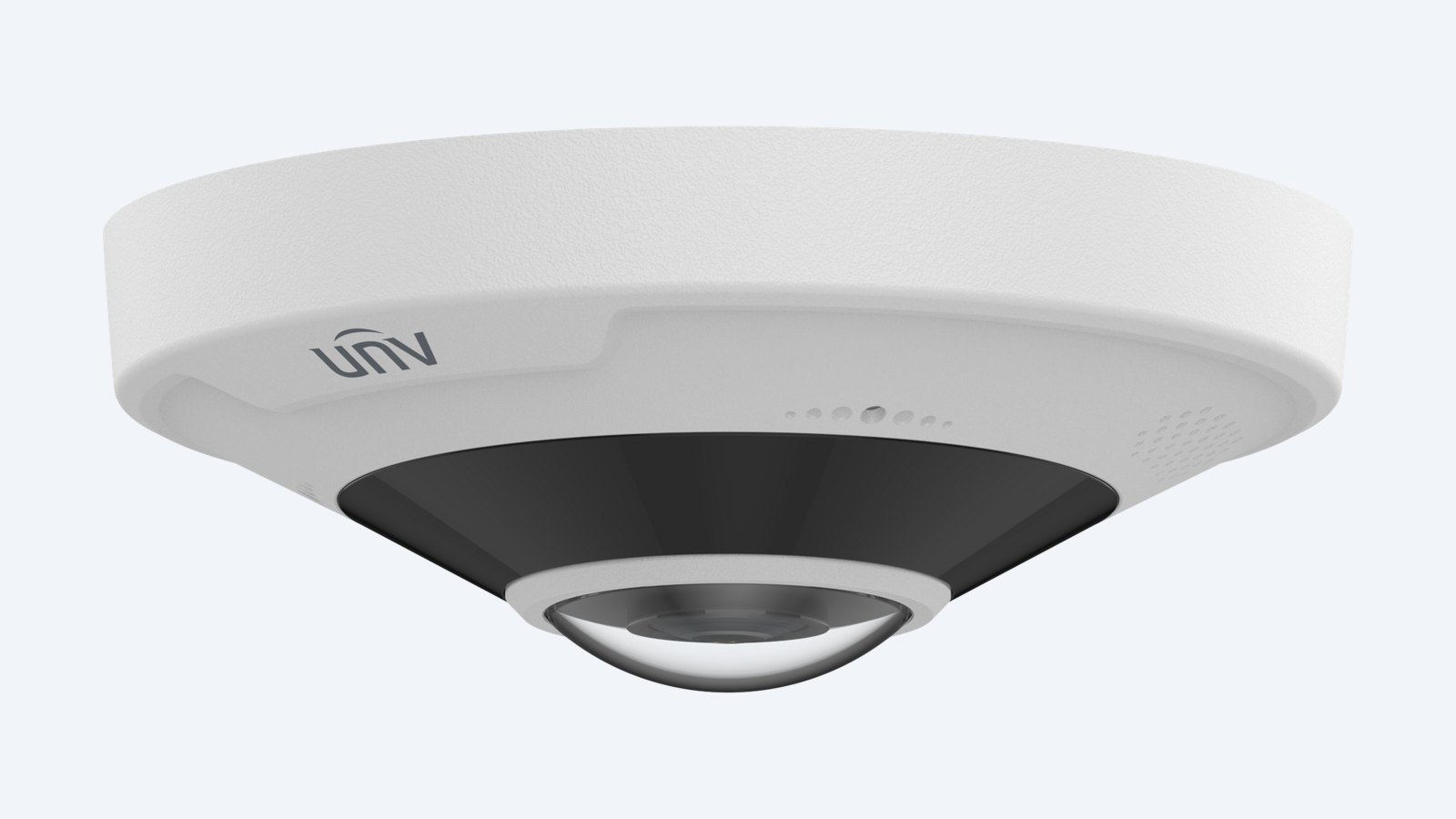

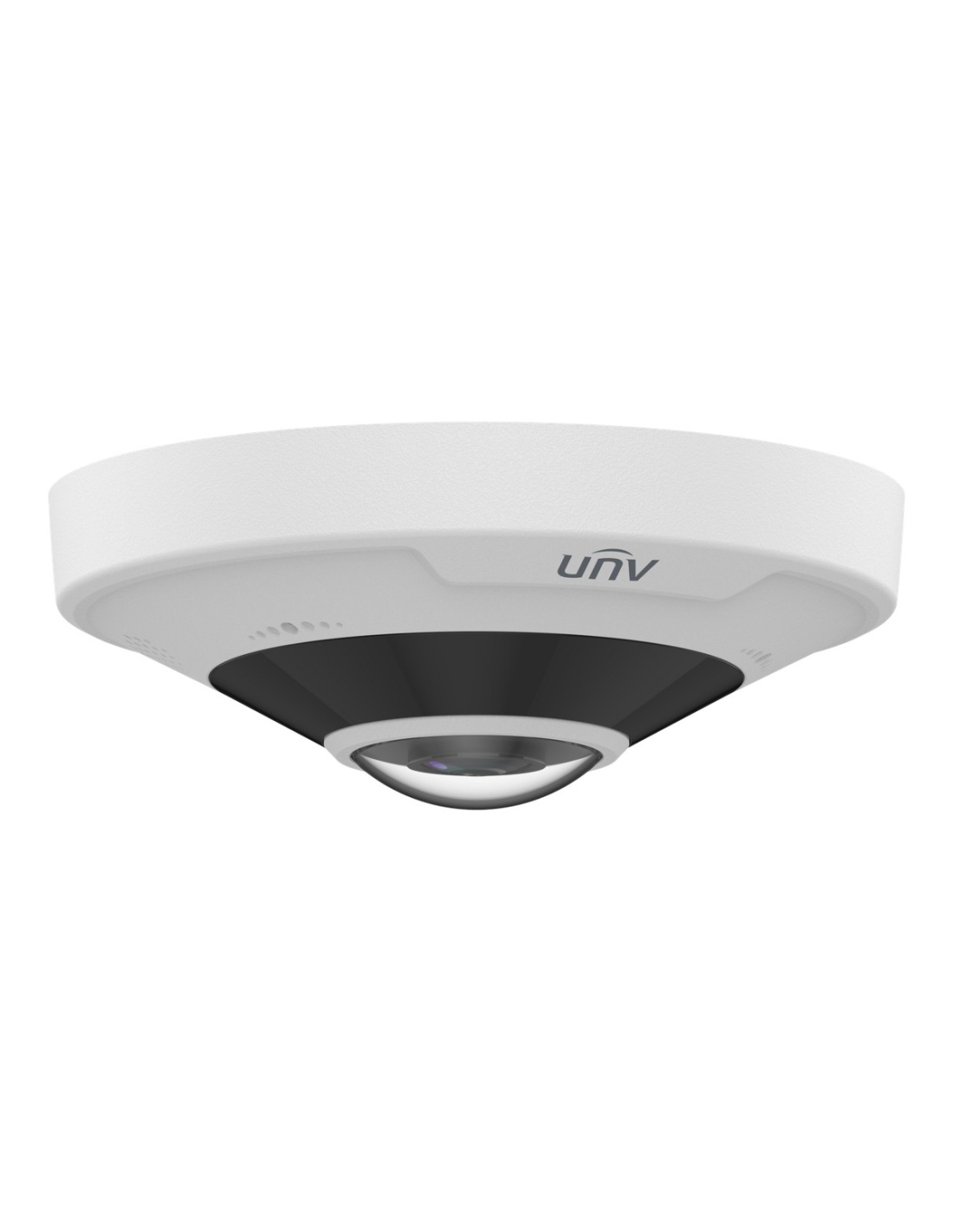

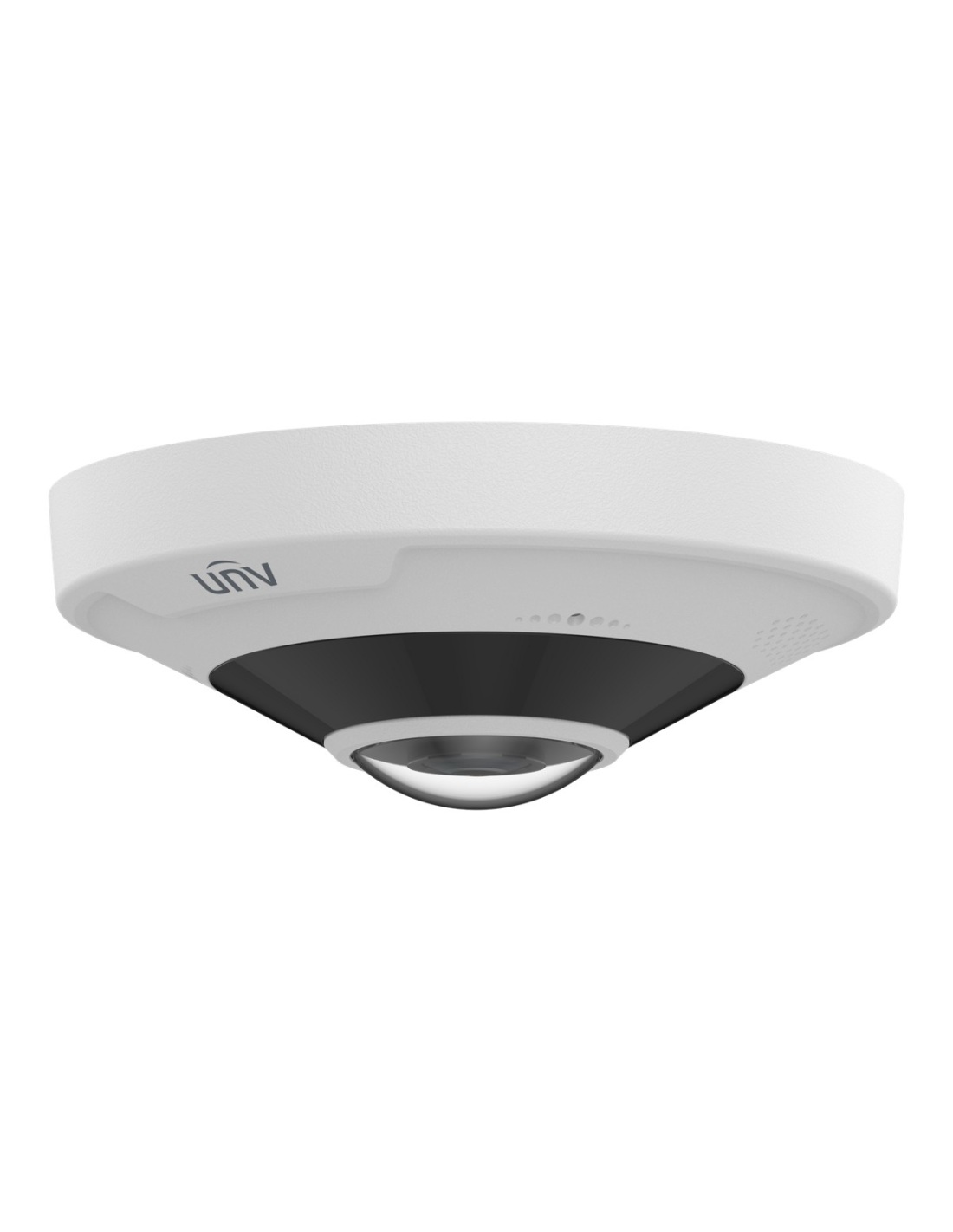

Uniview 12MP Fisheye 360° Panoramic Camera, 1.8mm, 15m IR, Mic & Speaker, IK10 - IPC86CEB-AF18KC-I0
IPC86CEB-AF18KC-I0
In stock $ 1,100.00
inc-GST
or 4 interest-free payments of $275.00 with
A 12MP 360° fisheye with a large 1/1.7" sensor for big spaces, with line crossing and intrusion, heat maps, 15 m IR, two-way audio and alarm connections.
- ✓12MP (4000 × 3000)
- ✓1/1.7" sensor
- ✓360° panorama and PTZ views
- ✓15 m IR
- ✓Mic, speaker and alarm I/O
- ✓PoE, max 12 W
Uniview · Fisheye · 12MP · 360°
12MP for big rooms,
so the edges stay sharp.
This is the Uniview IPC86CEB-AF18KC-I0. A 12MP fisheye with a 1/1.7" sensor and a 1.8 mm lens. The extra pixels matter in large spaces, where dewarped views near the edge of a fisheye picture need detail to work with.
In one sentence: the IPC86CEB-AF18KC-I0 is a 12MP (4000 × 3000) fisheye with a 1/1.7" sensor, 1.8 mm F2.0 lens, 360° panoramic view, 15 m IR, line crossing and intrusion, heat maps, dual mics and a speaker, alarm and RS485 connections, IP67 and IK10, powered by PoE.
One camera, one Cat6 cable.
Video and power share a single Cat6 run from a PoE recorder or switch. A junction box or wall mount is only needed if the site calls for it.
In the box
- IPC86CEB-AF18KC-I0 camera
- Mounting screws and accessories
- Quick guide
You also need
- A PoE NVR or switch (802.3af), or a 12 V DC supply
- Cat6 cable to the camera
- A microSD card up to 512GB, to record on the camera
- TR-JB04-D-IN junction box or a TR-CM24-IN / TR-SE24-A-IN mount, if needed
One camera across a big floor.
Fisheyes lose detail towards the edge of the circle. Starting from 4000 × 3000 on a large 1/1.7" sensor gives the dewarped views more to work with across warehouses, halls and large shop floors.

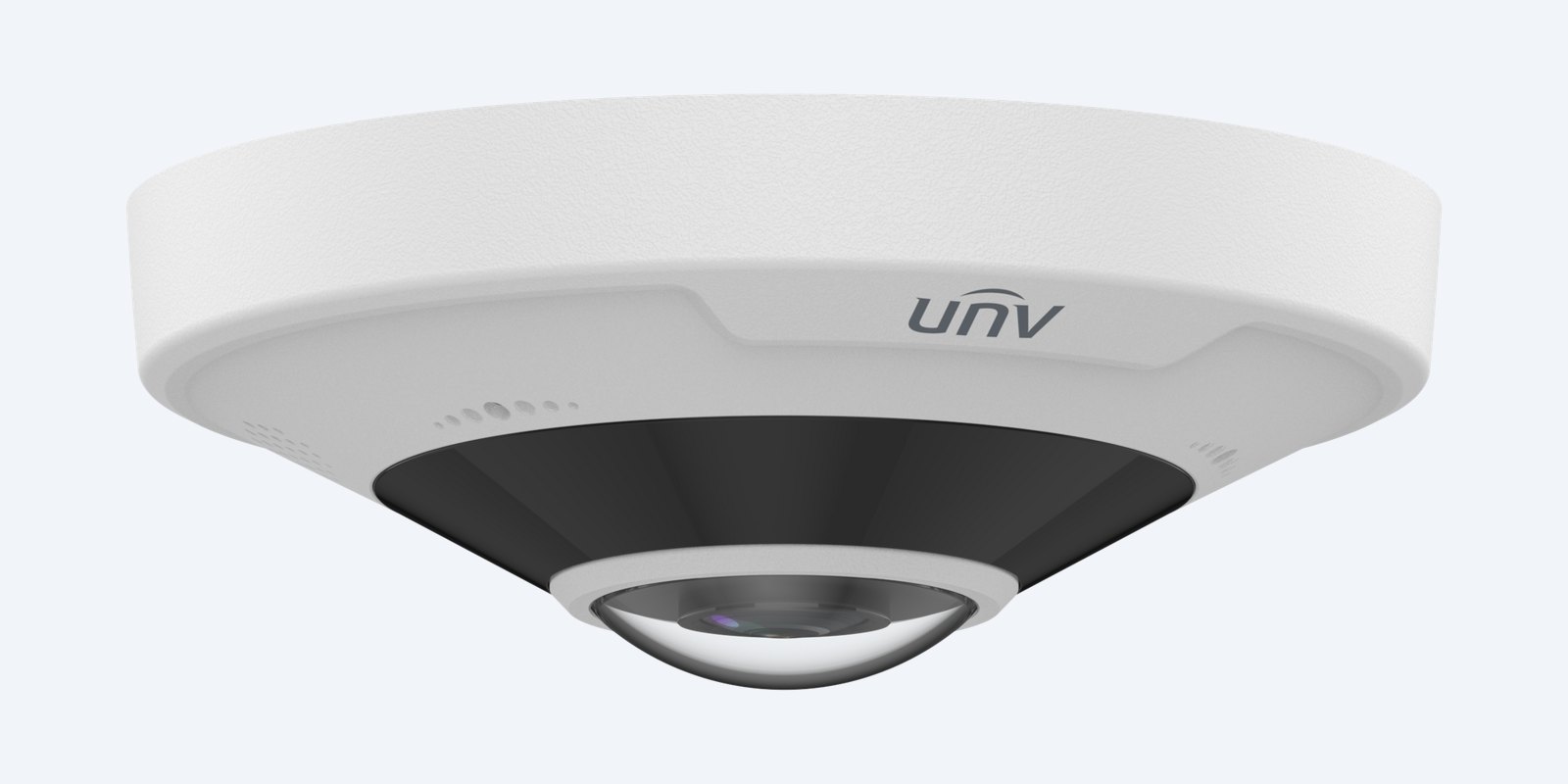

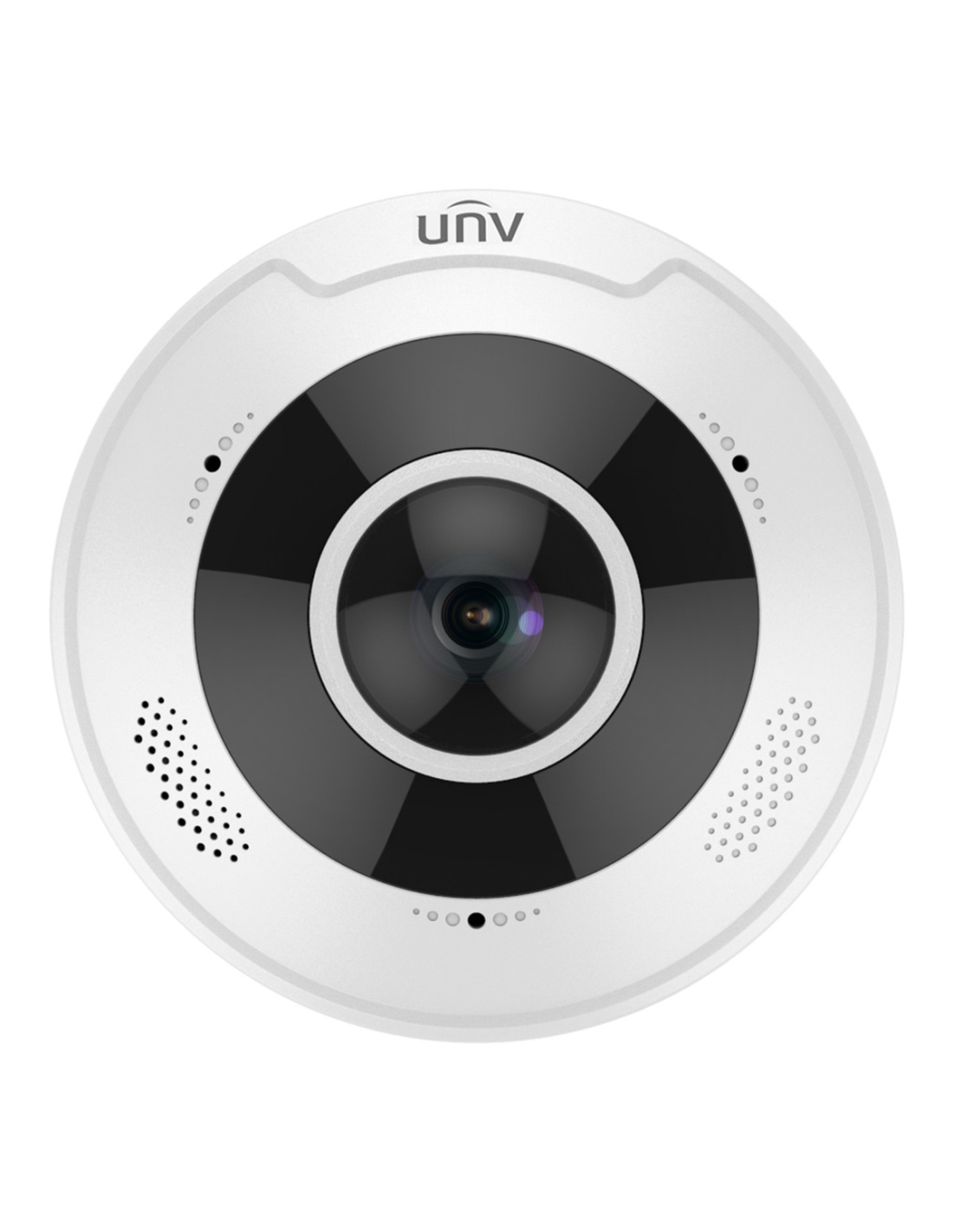

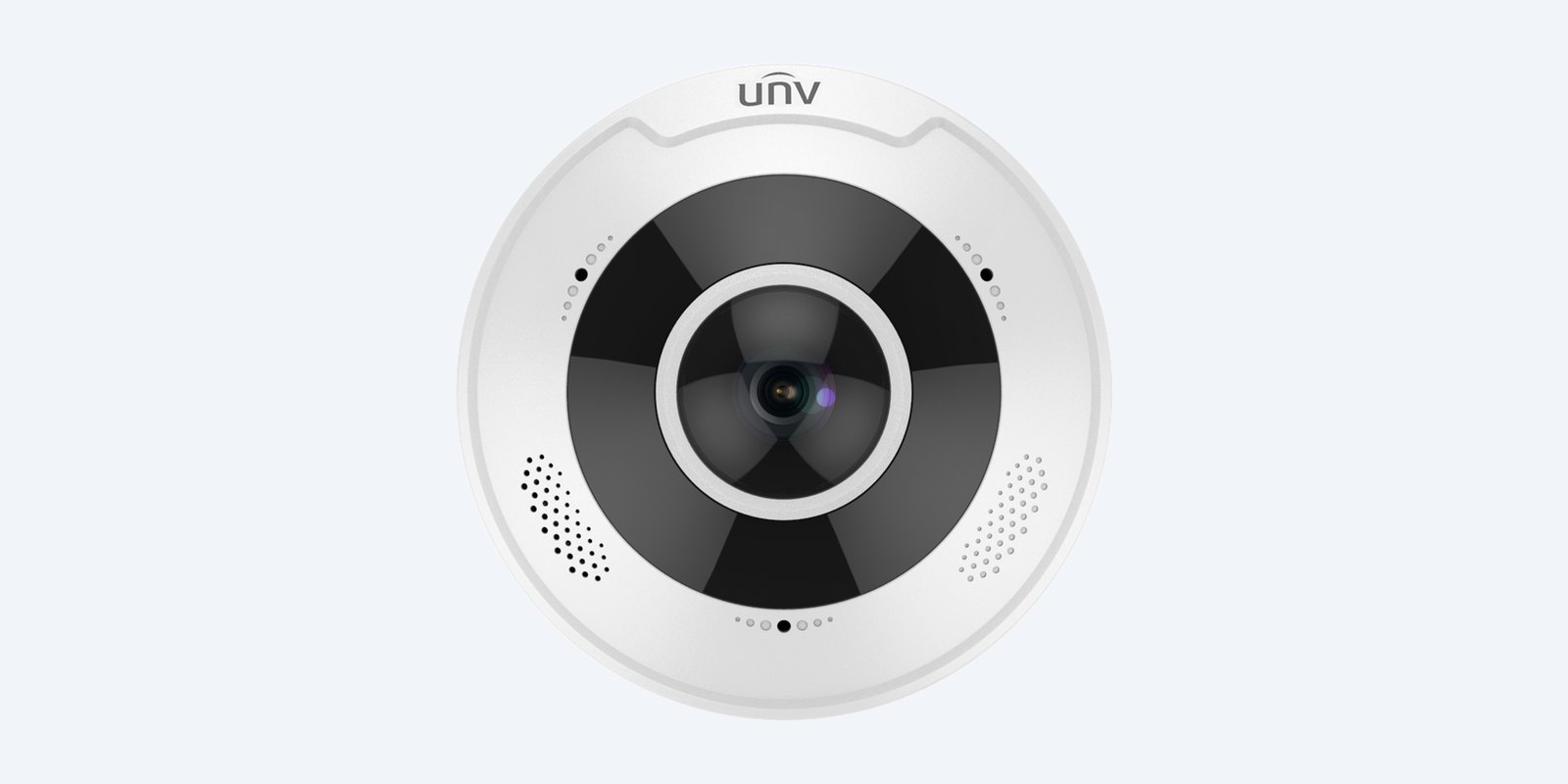

Design
A large sensor behind a 1.8 mm lens.
IR reaches 15 m. Dual mics and a speaker are built in for two-way audio.
Coverage
360° panorama.
Uniview rates it to identify a person at 4.4 m and recognise someone known at 8.8 m, with detection out to 43.8 m.

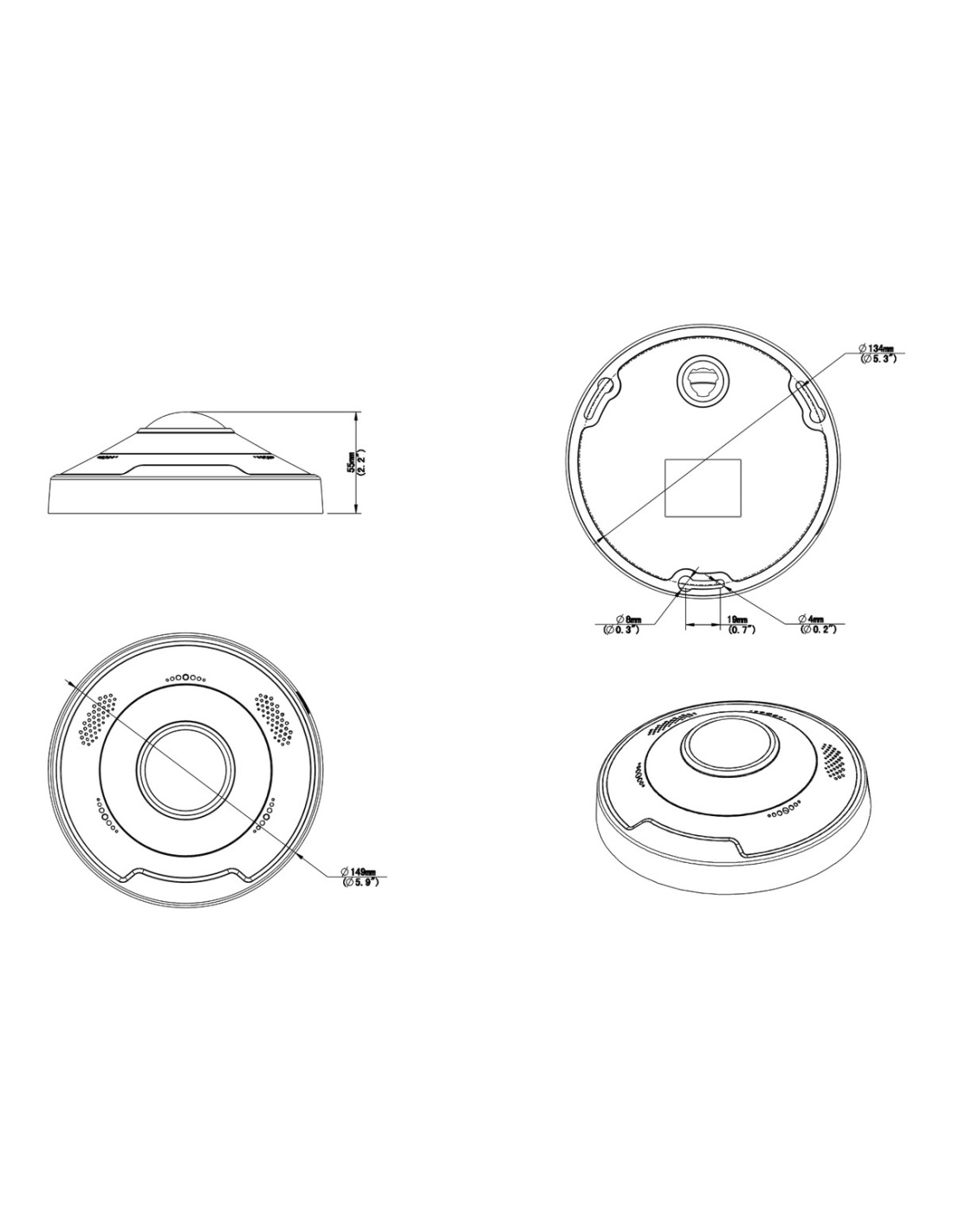

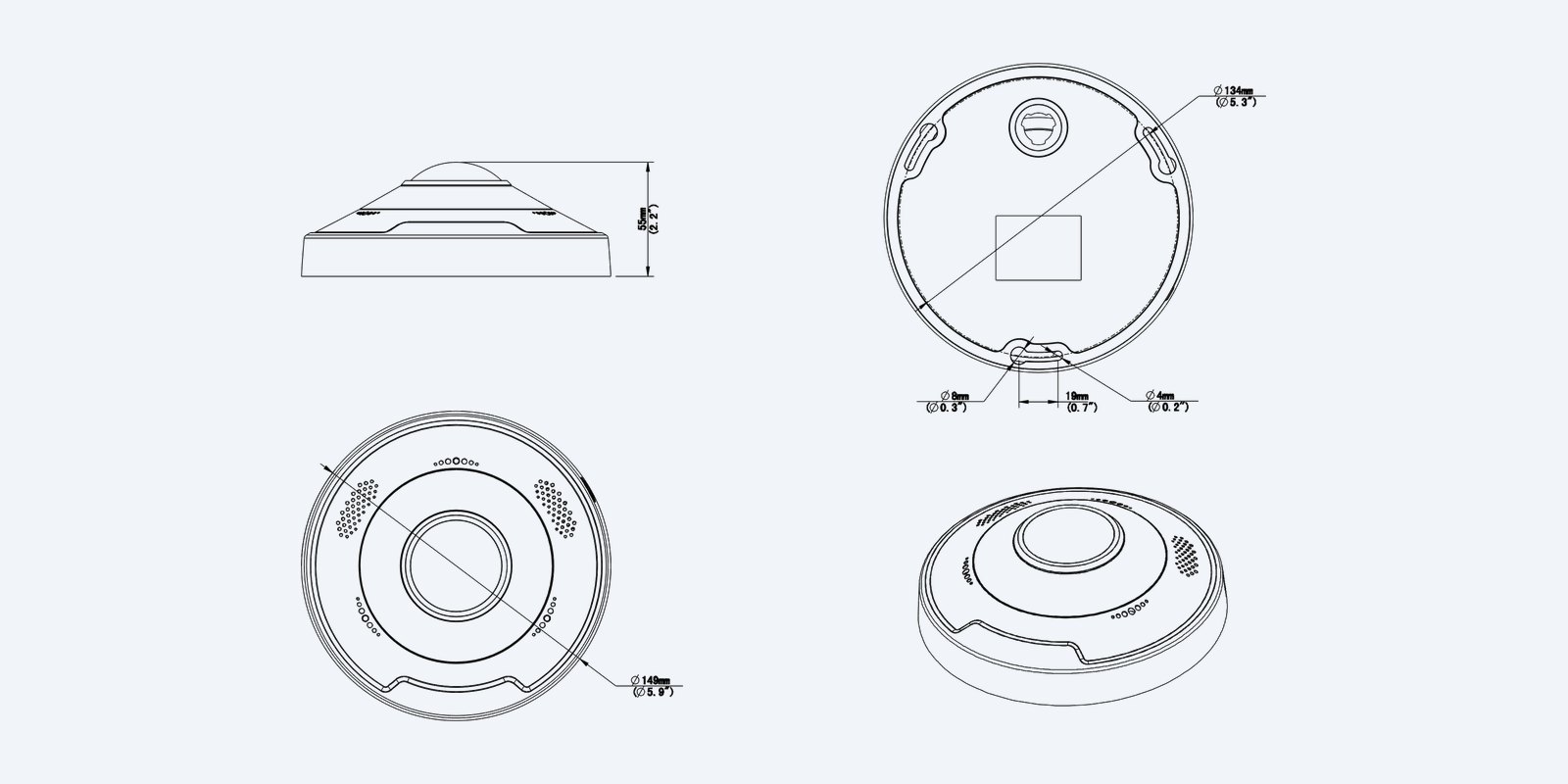

Dimensions
Ø149 × 55 mm, 0.52 kg.
IP67 and IK10, working from −30 °C to 60 °C.
How it goes in
From the box to recording.
01
Pick the spot
The centre of the ceiling of the space, up to 4–5 m in large rooms, so the camera can see every wall.
02
Fix the camera
Screw it to the ceiling, or onto a TR-JB04-D-IN junction box where there is no cavity to hide the cable.
03
Plug it in
Run Cat6 to a PoE port on the NVR or a PoE switch. The camera powers up from the cable.
04
Aim and add
Choose the panorama and PTZ views, add it to the NVR or the EZView app, then draw lines and zones for alarms.
At a glance
IPC86CEB-AF18KC-I0
Show specs
Resolution
12MP (4000 × 3000)
Sensor
1/1.7" CMOS
Lens
1.8 mm fisheye, F2.0
View
360° panorama (180° fisheye)
Identify / recognise / detect
4.4 / 8.8 / 43.8 m
Low light
0.03 lux colour, 0 lux with IR
WDR
Digital WDR
Night vision
IR up to 15 m
Dewarping
Panorama and PTZ views
Frame rate
20 fps at 12MP; 25 fps at 3000 × 2000
Compression
Ultra 265, H.265, H.264, MJPEG
Smart detection
Line crossing and intrusion; heat map with a management platform; motion, tampering
Audio
Built-in dual mic and speaker, two-way audio; 1 audio in, 1 out
Other connections
Alarm 2 in, 1 out; RS485; BNC video out
On-camera storage
microSD up to 512GB; ANR
ONVIF
Profile S, G, T, M
Network
1 × RJ45 10/100
Power
PoE (802.3af) or 12 V DC, max 12.0 W
Weather and impact
IP67, IK10
Operating
−30 °C to 60 °C, ≤95% RH
Size and weight
Ø149 × 55 mm, 0.524 kg
Pair it with
What goes with it
Recorder
Uniview PoE NVR
Uniview recorders add the camera over one Cat6 cable, bring in its smart events and keep weeks of footage on their hard drives.
Mounting
TR-JB04-D-IN junction box
Listed by Uniview for this fisheye. Encloses the cable joint where there is no ceiling cavity.
Ceilings
TR-CM24-IN / TR-SE24-A-IN mounts
Listed by Uniview for this fisheye, for ceiling and pendant installs.
Cabling
Cat6 cable
Solid copper Cat6 for PoE runs up to 100 m from the switch or recorder.
Where it is used
Where it fits
Warehouses
A whole pick floor from one ceiling point.
Halls and gyms
Large rooms where detail at the edge matters.
Large shop floors
Heat maps show which aisles are busy.
Atriums and lobbies
Every entry and lift door together.
Uniview fisheye, corner and multi-sensor cameras side by side
| IPC815SB | IPC816SB | IPC86CEB | IPC876SE | IPC8645EA | |
|---|---|---|---|---|---|
| Type | Fisheye | Fisheye | Fisheye | Corner camera | 4-lens multi-sensor |
| Resolution | 5MP | 6MP | 12MP | 6MP | 4 × 5MP |
| View | 180° fisheye | 360° panorama | 360° panorama | 114.2° from a corner | Up to 4 × 110.3°, each lens aimed and set on its own |
| Night vision | 10 m IR | 15 m IR | 15 m IR | 15 m IR | 50 m IR |
| Speaker | — | Yes | Yes | Yes | — |
| Protection | IP66, IK10 | IP67, IK10 | IP67, IK10 | IP67, IK11 | IP67, IK10 |
| Power | PoE, max 8.5 W | PoE, max 8.4 W | PoE, max 12.0 W | PoE, max 11.5 W | Hi-PoE (802.3bt) or 24 V, max 31 W |
| Size and weight | Ø125 × 43.7 mm, 0.36 kg | Ø126 × 52 mm, 0.44 kg | Ø149 × 55 mm, 0.52 kg | 212 × 209 × 78 mm, 1.0 kg | Ø318 × 136.6 mm, 4.77 kg |
Model codes shortened. PoE means 802.3af; each of the first four also runs on 12 V DC. All record to microSD up to 512GB. — means not fitted. Figures from the Uniview datasheets.
Common questions
Why 12MP?
A fisheye spreads its pixels over the whole room. Starting at 4000 × 3000 leaves more detail in each dewarped view, which helps in large spaces.
What can it connect to?
Besides PoE, it has 2 alarm inputs, 1 alarm output, audio in and out, RS485 and a BNC video output for setting up on site.
Can I talk through it?
Yes. Dual microphones and a speaker give two-way audio from the app or the NVR.
How far does it see at night?
Up to 15 m with IR.
Why does the picture look round?
A fisheye lens records the whole area as a circle. Dewarping turns that circle into normal-looking views: a single panorama, a double panorama, or several virtual cameras you can zoom into. You can do this live and on recorded footage.
Where should a fisheye go?
In the middle of the ceiling, looking straight down. From there it sees every wall of the room. It also mounts on a wall, where it gives a 180° view across the room.
Will it work with my recorder?
Uniview NVRs find it on their PoE ports and add it automatically, along with its smart events. Other recorders that support ONVIF (Profile S, G, T, M) can add it too, although smart events and the special views may only come through fully on Uniview.
Can I watch it on my phone?
Yes. Watch it through your Uniview NVR in the Uniview EZView app, or add the camera to the app on its own. Live view also works in a web browser.
Can it record without an NVR?
Yes. Fit a microSD card of up to 512GB and it records on the camera itself. With an NVR, the card also covers network drop-outs: ANR sends the missed footage to the recorder when the link returns.
How is it powered?
By PoE (IEEE 802.3af) over the same Cat6 cable as the video, from a PoE NVR or switch. Without PoE, it runs on a 12 V DC supply. It draws 12.0 W at most.
What is Ultra 265?
Uniview’s video compression. It keeps the same picture as H.265 in less space, so the recorder holds more days of footage. H.265, H.264 and MJPEG are there too.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Planning a site with panoramic, PTZ or plate cameras? Call 1300 736 970 or email [email protected] with a floor plan or photos and we will suggest the models, mounts and recorder.
Installation and safety
Power. Use a PoE (802.3af) port or a regulated 12 V DC supply. The alarm input and output are for dry contacts only.
Weather. IP67 and IK10, rated from −30 °C to 60 °C.
Figures. From the Uniview IPC86CEB-AF18KC-I0 datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- Ø149 × 55 mm
- Audio
- Built-in dual mic and speaker, two-way audio; 1 audio in, 1 out
- Weight
- 0.524 kg
- Operating temperature
- −30 °C to 60 °C, ≤95% RH
- Power
- PoE (802.3af) or 12 V DC, max 12.0 W
- Colour
- White
- Video Compression
- Ultra 265, H.265, H.264, MJPEG
- Resolution
- 12MP (4000 × 3000)
- Brand
- Uniview
- Frame Rate
- 20 fps at 12MP; 25 fps at 3000 × 2000
- Interoperability
- Profile S, G, T, M
- Image Sensor
- 1/1.7" CMOS
- Lens
- 1.8 mm fisheye, F2.0
- Minimum Illumination
- 0.03 lux colour, 0 lux with IR
- Field of View
- 360° panorama (180° fisheye)
- Protection
- IP67, IK10
- WDR
- Digital WDR
- Warranty
- 3 years
- Product Type
- Fisheye 360° Panoramic IP Camera
- Onboard Storage
- microSD up to 512GB; ANR
- Model
- IPC86CEB-AF18KC-I0
- Smart detection
- Line crossing and intrusion; heat map with a management platform; motion, tampering
- Night Vision
- IR up to 15 m
