Uniview 4MP 16x PTZ Camera, 5.5-88mm, 100m IR, Auto Tracking, IP66 IK10, PoE+ - IPC6434LR-X16-VG1
IPC6434LR-X16-VG1
In stock $ 630.00
inc-GST
or 4 interest-free payments of $157.50 with
A 4MP PTZ with a 16× 5.5–88 mm zoom, 100 m IR, auto tracking of people and vehicles, smart intrusion prevention and 1024 presets in an IK10 housing on one PoE+ cable.
- ✓4MP, 16× optical zoom
- ✓Identify to 204.8 m
- ✓100 m IR
- ✓Tracks people and vehicles
- ✓IP66, IK10, 6 kV surge
- ✓PoE+ (802.3at), max 23 W
Uniview · 4MP · 16× PTZ
16× zoom,
and it follows what it finds.

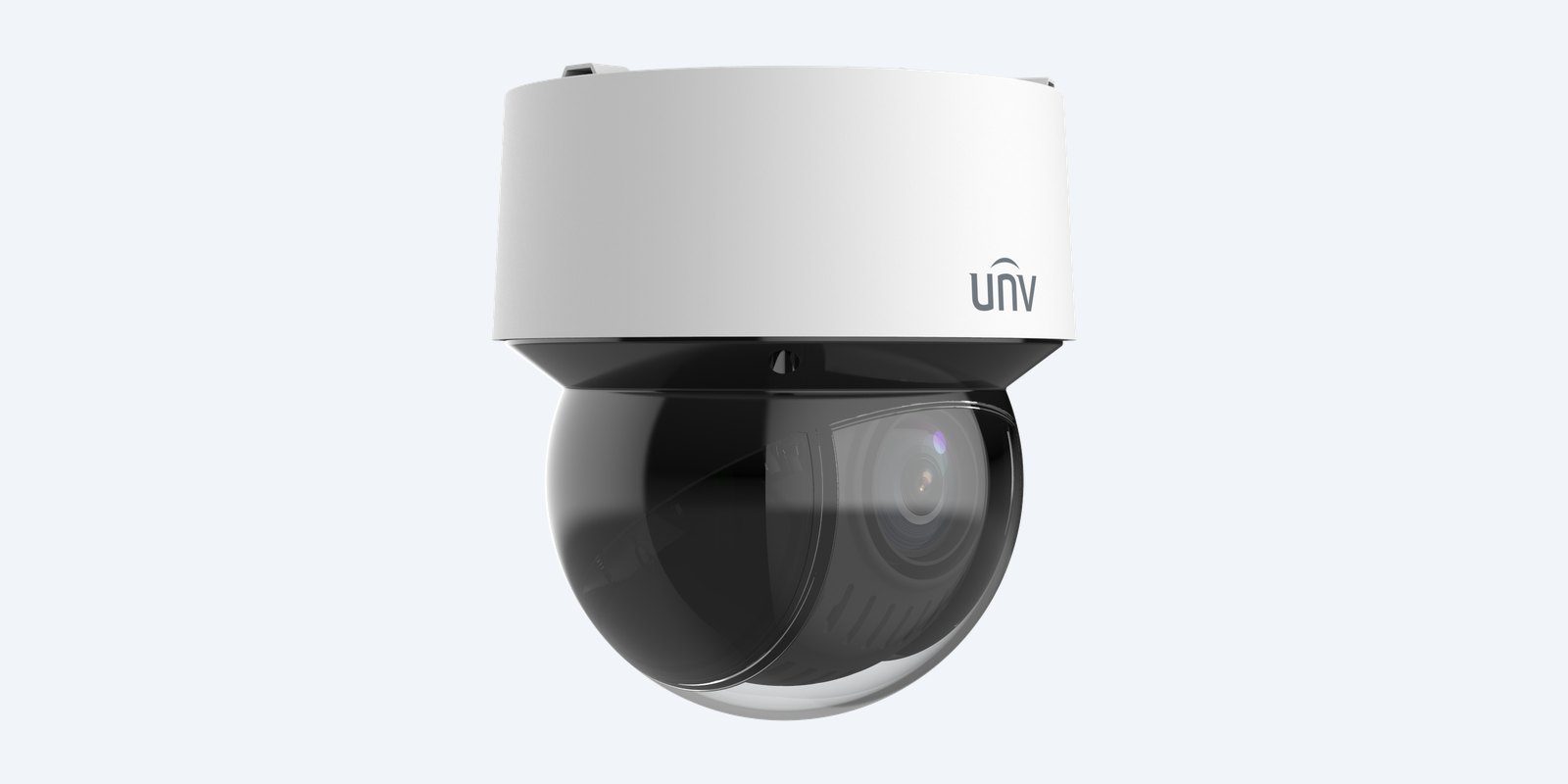

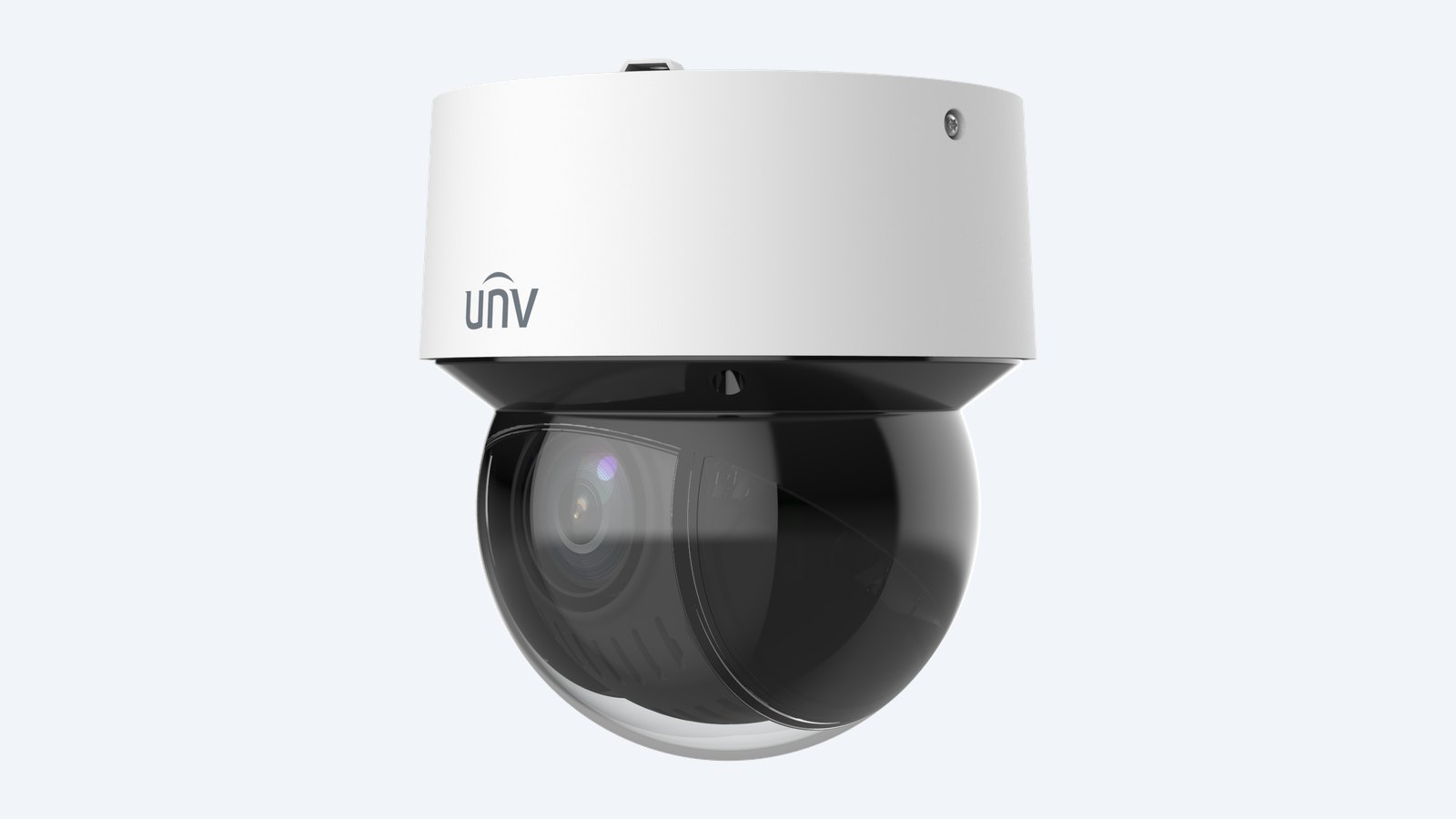

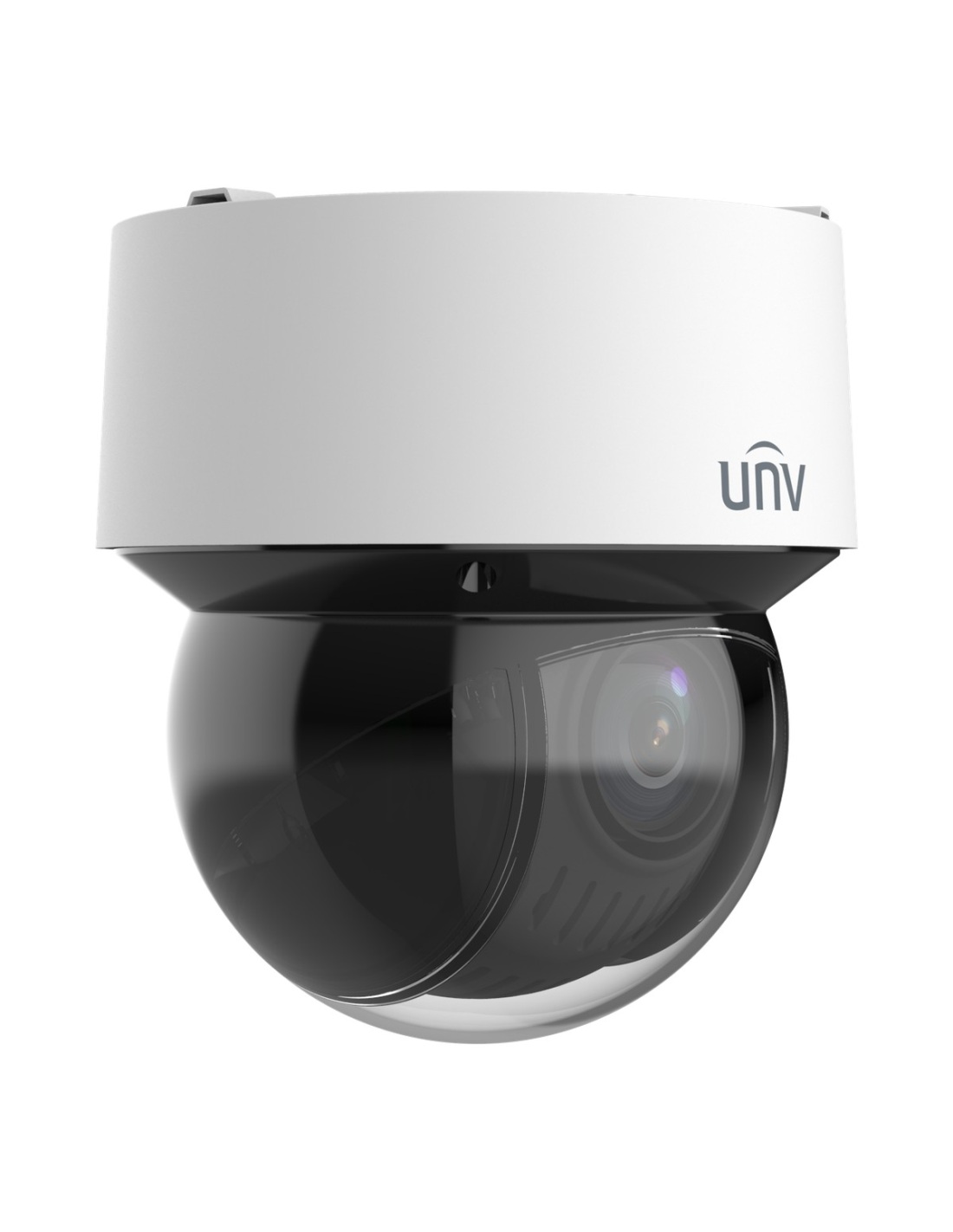

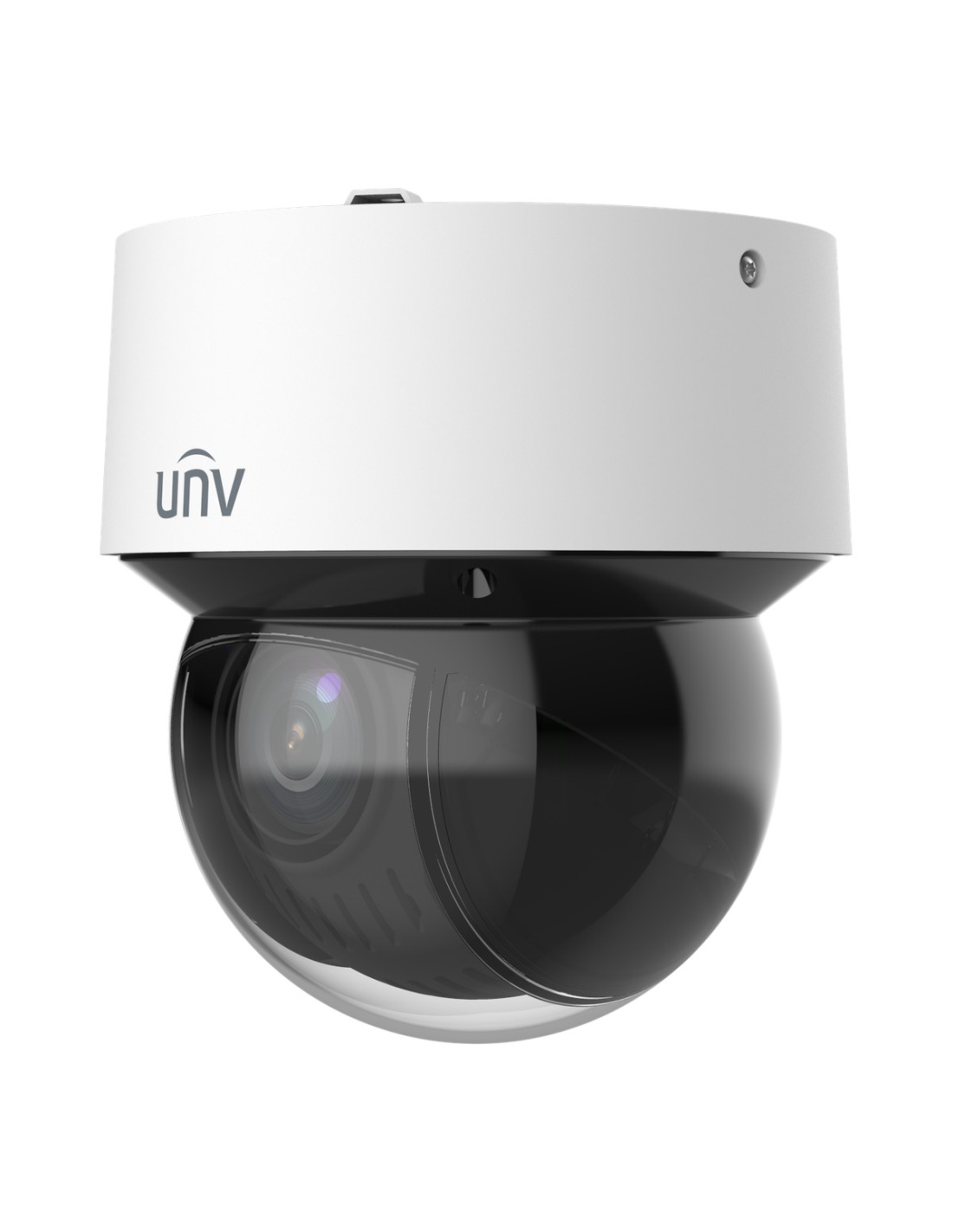

This is the Uniview IPC6434LR-X16-VG1. A 4MP PTZ with a 5.5–88 mm 16× lens and 100 m IR. It detects people and vehicles crossing lines or entering zones, then turns and zooms to follow them.
In one sentence: the IPC6434LR-X16-VG1 is a 4MP (2688 × 1520) PTZ with a 5.5–88 mm F1.78–3.73 lens, 16× optical zoom, 100 m IR, LightHunter, auto tracking of people and vehicles, 1024 presets, IP66 and IK10, powered by PoE+ or 12 V DC.
Needs a bracket and a PoE+ port.
One Cat6 cable carries video and power from a PoE+ switch or NVR. Uniview lists the TR-FM180-IN and TR-WE45-IN mounts among others for it.
In the box
- IPC6434LR-X16-VG1 camera
- Waterproof cable parts
- Quick guide
You also need
- A PoE+ (802.3at) port, or a 12 V DC 3 A supply
- Cat6 cable to the camera
- A wall or pendant mount (TR-WE45-IN or TR-FM180-IN)
- A microSD card up to 512GB, to record on the camera
From the whole yard to a face at the fence.
At 5.5 mm it sees 50.85° across; at 88 mm, 3.47°. Uniview rates it to identify a person at up to 204.8 m fully zoomed in. It pans 360° at up to 240°/s, so it can reach a preset fast when an alarm comes in.
Design

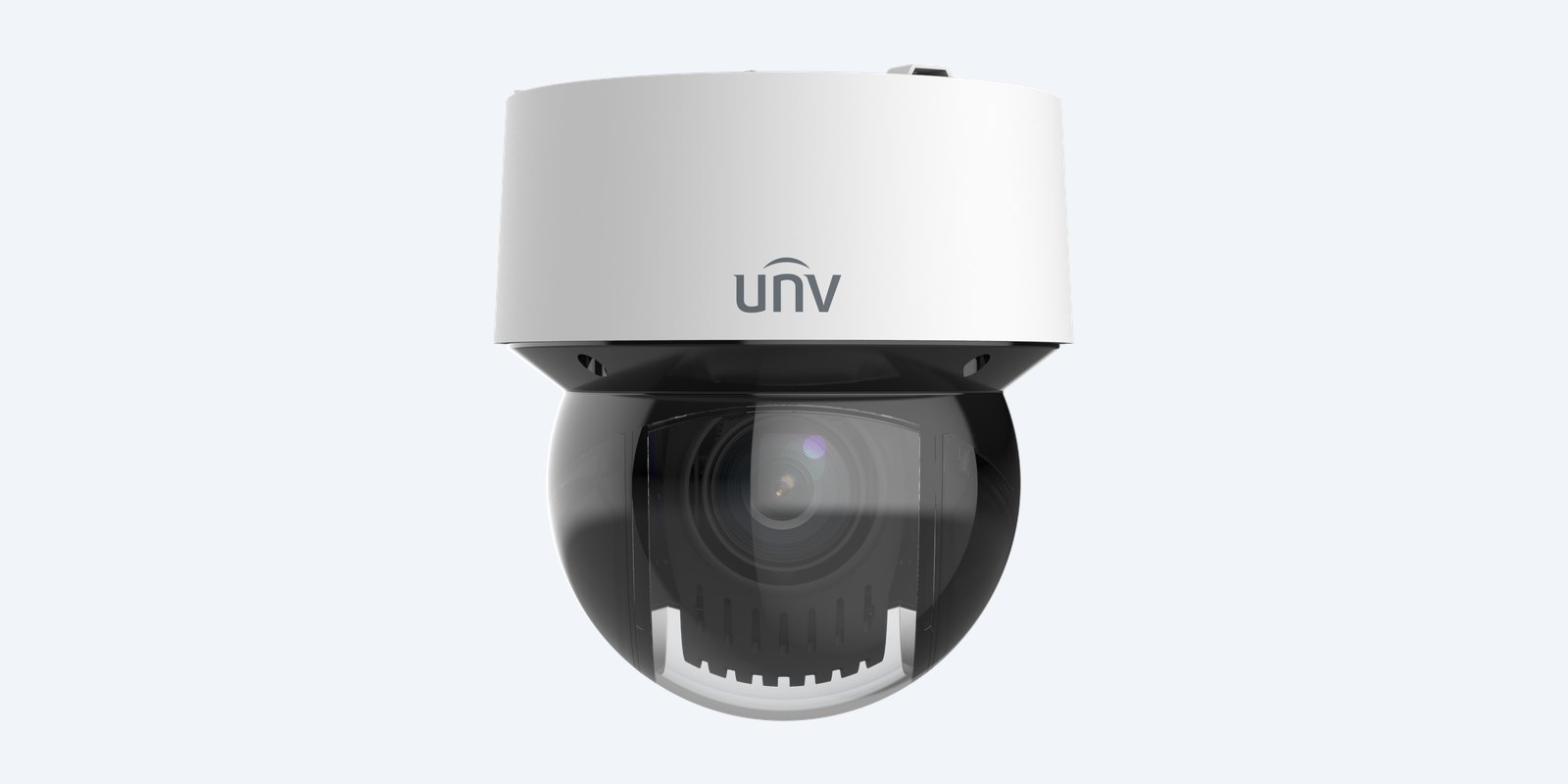

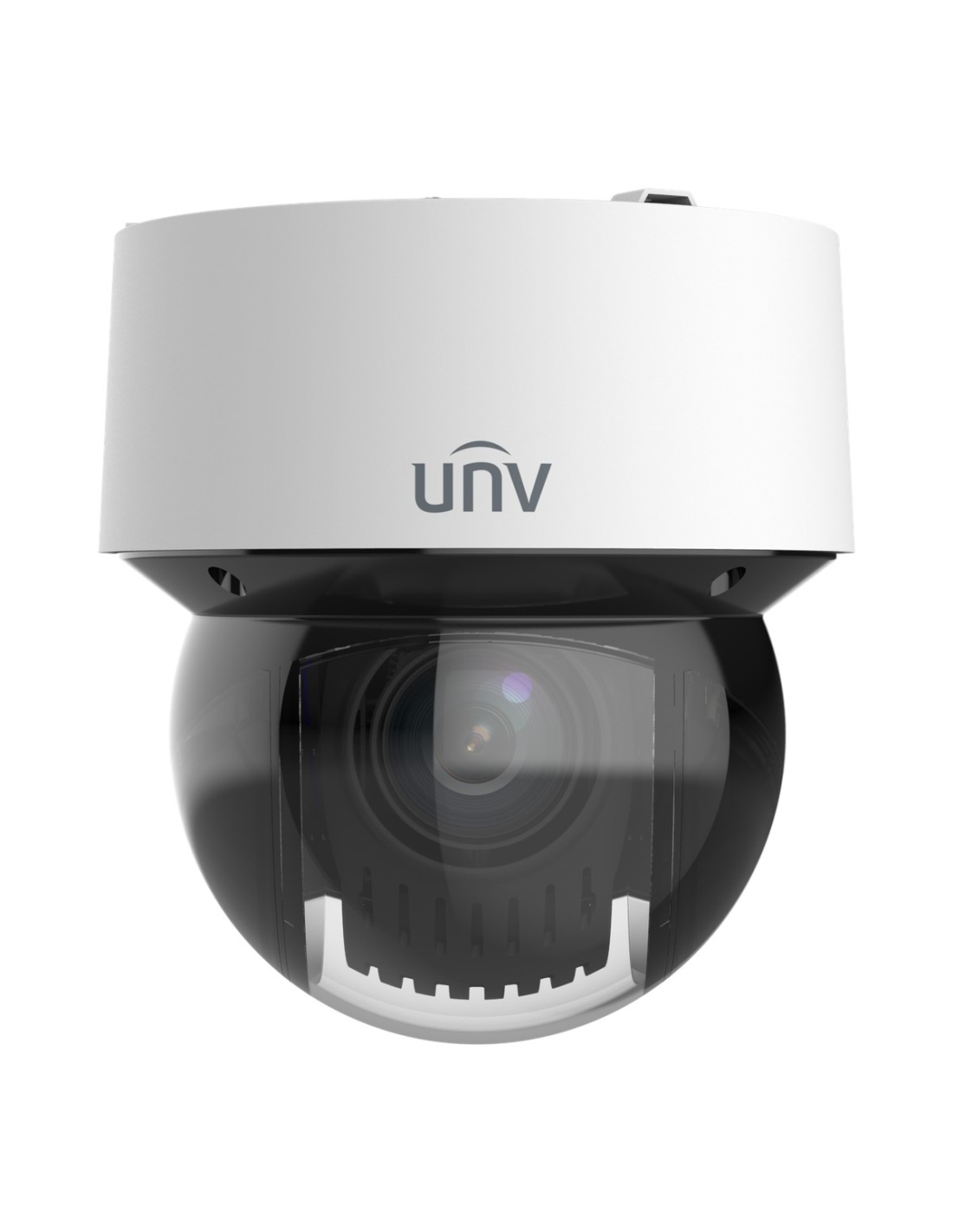

A compact PTZ dome.
IR sits around the lens, reaching 100 m. The housing is rated IK10.
Movement
360° endless pan.
Pan at 0.1–240°/s and tilt −5° to 90° at up to 120°/s, with 1024 presets.
Dimensions

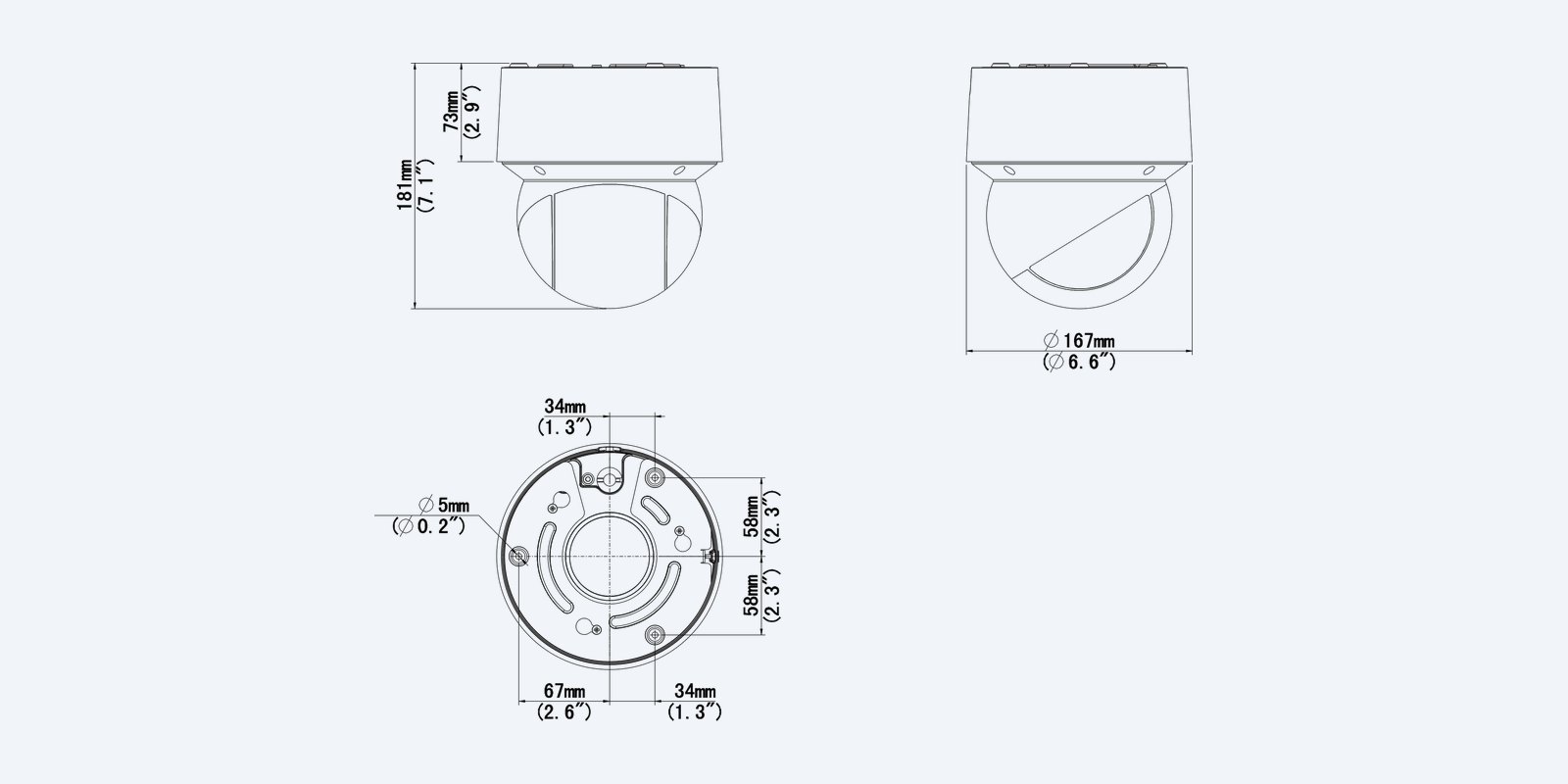

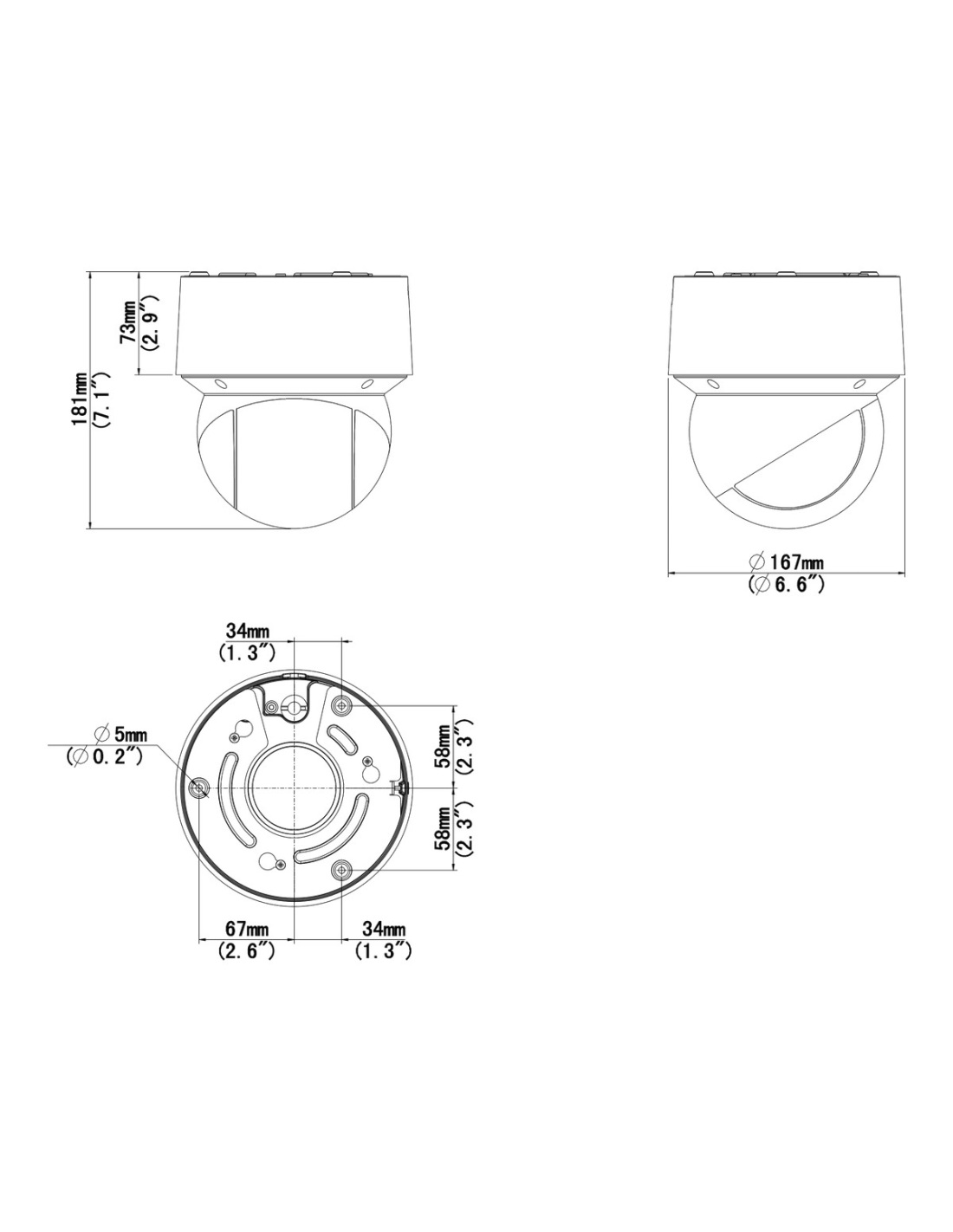

Ø167 × 181 mm, 2.3 kg.
IP66 and IK10 with 6 kV surge protection, working from −40 °C to 65 °C.
How it goes in
From the box to patrolling.
01
Plan power and mount
Pick a high point with a clear view in every direction you want to patrol. Check you have a PoE+ (802.3at) port.
02
Fix the bracket
Mount the bracket on a solid wall, corner or pole, run the cable through it and hang the camera. Seal the cable joint with the supplied waterproof parts.
03
Power it up
Run Cat6 to a PoE+ port on the switch or NVR, and add it to the NVR or the EZView app.
04
Set presets and rules
Save presets, set up patrols, draw lines and zones, then turn on auto tracking for people and vehicles.
At a glance
IPC6434LR-X16-VG1
Show specs
Resolution
4MP (2688 × 1520)
Sensor
1/2.9" CMOS
Lens
5.5–88 mm, F1.78–3.73
Zoom
16× optical
View
50.85° to 3.47° across
Identify / recognise / detect
Identify at 12.8–204.8 m
Low light
0.005 lux colour, 0 lux with IR (LightHunter)
WDR
120 dB true WDR
Night vision
IR up to 100 m
Frame rate
30 fps at 4MP
Compression
Ultra 265, H.265, H.264, MJPEG
Smart detection
Line crossing, intrusion, region entrance and exit; auto tracking of people and vehicles
Audio
1 audio in, 1 out
Pan and tilt
Pan 360° endless at 0.1–240°/s; tilt −5° to 90° at 0.1–120°/s
Presets and patrols
1024 presets
Other connections
Alarm 2 in, 1 out; RS485
On-camera storage
microSD up to 512GB; ANR
ONVIF
Profile S, G, T, M
Network
1 × RJ45 10/100
Power
PoE+ (802.3at) or 12 V DC 3 A, max 23 W
Weather and impact
IP66, IK10, 6 kV surge
Operating
−40 °C to 65 °C
Size and weight
Ø167 × 181 mm, 2.3 kg
Pair it with
What goes with it
Recorder
Uniview PoE NVR
Uniview recorders add the camera over one Cat6 cable, bring in its smart events and keep weeks of footage on their hard drives.
Walls
TR-WE45-IN wall mount
Listed by Uniview for this camera.
Mounting
TR-FM180-IN mount
Listed by Uniview for this camera.
Cabling
Cat6 cable
Solid copper Cat6 for PoE runs up to 100 m from the switch or recorder.
Where it is used
Where it fits
Industrial yards
Patrol the yard and follow people after hours.
Car parks
Track vehicles from entry to bay.
Farms
Sheds, gates and paddocks from one pole.
Schools
Grounds and boundaries at night.
Uniview PTZ cameras side by side
| IPC6324LWH | IPC6434LR | IPC6424SR-B | IPC94144SFW | IPC6624SFW | IPC6828EL | |
|---|---|---|---|---|---|---|
| Resolution | 4MP | 4MP | 4MP | 4MP PTZ + 4MP fixed | 4MP, up to 60 fps | 8MP 4K |
| Optical zoom | 5× | 16× | 25× | 25× | 25× | 42× |
| Identify at full zoom | 20.9 m | 204.8 m | 247.5 m | 270 m | 240.8 m | 482.9 m |
| Night vision | 40 m warm light | 100 m IR | 100 m IR | 100 m IR, 30 m warm light | 250 m IR, 100 m warm light | 500 m laser IR |
| Auto tracking | People | People and vehicles | People and vehicles | From the fixed lens | Yes | Yes |
| Warning light and sound | Speaker | — | — | Light and speaker | Red and blue light, speaker | — |
| Power | PoE+ or 12 V, 25.4 W | PoE+ or 12 V, 23 W | PoE+ or 12 V, 21 W | PoE+ or 12 V, 24 W | PoE+ or 24 V, 21.7 W | Hi-PoE or 24 V, 67 W |
| Protection | IP66 | IP66, IK10 | IP67, IK10 | IP66 | IP67, IK10 | IP67 |
| Weight | 1.33 kg | 2.3 kg | 3.05 kg | 2.27 kg | 5.2 kg | 6.9 kg |
Model codes shortened. PoE+ is 802.3at; Hi-PoE is 802.3bt. All record to microSD up to 512GB and take 1024 presets. — means not fitted. Figures from the Uniview datasheets.
Common questions
What does auto tracking follow?
People and vehicles. Once one is detected, the camera pans, tilts and zooms to keep it in the picture.
How far does it see at night?
Up to 100 m with IR, which zooms with the lens.
Does it have a microphone?
Not built in. It has one audio input and one output for an external mic and speaker.
Is it vandal resistant?
Yes, IK10, with IP66 weather protection and 6 kV surge protection.
How fast does it move?
It pans 360° endlessly at up to 240°/s and tilts at up to 120°/s.
What is a preset and a patrol?
A preset is a saved position with its own pan, tilt and zoom, such as the gate, the loading dock or the car park entry. A patrol moves the camera through a list of presets on a timer, so one camera keeps watch over several spots.
Does it need a bracket?
Yes. A PTZ camera is heavier than a fixed camera and needs a solid wall, corner, ceiling or pole mount. The Uniview mounts listed for it are shown under What goes with it; call us if you are not sure which one suits the site.
Will it work with my recorder?
Uniview NVRs add it and give you pan, tilt and zoom control from the recorder. Other ONVIF (Profile S, G, T, M) recorders can add it too; smart events and PTZ control depend on that recorder.
Can I control it from my phone?
Yes. In the Uniview EZView app you can watch live, pan, tilt and zoom, jump to presets and play back recordings.
Can it record on its own?
Yes, to a microSD card of up to 512GB. With an NVR, ANR fills any gap from the card when a network drop-out ends.
How is it powered?
By PoE+ (IEEE 802.3at) over one Cat6 cable, or a 12 V DC (±10%, 3 A) supply. It draws up to 23 W, so a standard 802.3af PoE port is not enough.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Planning a site with panoramic, PTZ or plate cameras? Call 1300 736 970 or email [email protected] with a floor plan or photos and we will suggest the models, mounts and recorder.
Installation and safety
Power. Use a PoE+ (802.3at) port or a regulated 12 V DC 3 A supply. The alarm and RS485 connections are low voltage only.
Weather. IP66 and IK10 with 6 kV surge protection, rated from −40 °C to 65 °C.
Figures. From the Uniview IPC6434LR-X16-VG1 datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- Ø167 × 181 mm
- Audio
- 1 audio in, 1 out
- Weight
- 2.3 kg
- Operating temperature
- −40 °C to 65 °C
- Power
- PoE+ (802.3at) or 12 V DC 3 A, max 23 W
- Colour
- White
- Video Compression
- Ultra 265, H.265, H.264, MJPEG
- Resolution
- 4MP (2688 × 1520)
- Brand
- Uniview
- Frame Rate
- 30 fps at 4MP
- Interoperability
- Profile S, G, T, M
- Image Sensor
- 1/2.9" CMOS
- Lens
- 5.5–88 mm, F1.78–3.73
- Minimum Illumination
- 0.005 lux colour, 0 lux with IR (LightHunter)
- Field of View
- 50.85° to 3.47° across
- Protection
- IP66, IK10, 6 kV surge
- WDR
- 120 dB true WDR
- Optical Zoom
- 16× optical
- Warranty
- 3 years
- Product Type
- PTZ IP Camera
- Onboard Storage
- microSD up to 512GB; ANR
- Model
- IPC6434LR-X16-VG1
- Smart detection
- Line crossing, intrusion, region entrance and exit; auto tracking of people and vehicles
- Night Vision
- IR up to 100 m
- Pan / Tilt
- Pan 360° endless at 0.1–240°/s; tilt −5° to 90° at 0.1–120°/s
