Uniview Mounts & Accessories
Uniview 4-Inch PTZ Dome In-Ceiling Mount, Flush Fit, 210 mm Cut-Out, Indoor - TR-FM180-IN
TR-FM180-IN
In stock $ 39.40
inc-GST
or 4 interest-free payments of $9.85 with
Uniview TR-FM180-IN indoor in-ceiling mount for 4-inch PTZ domes such as the IPC6434LR-X16-VG1. Ø210 mm cut-out, Ø280 mm trim.
- ✓Recesses a 4-inch PTZ into the ceiling
- ✓Ø210 mm ceiling cut-out
- ✓Ø280 mm trim ring covers the edge
- ✓91 mm deep
- ✓Sheet metal and PC, 1.2 kg
- ✓Indoor only
Uniview · In-ceiling mount · 4-inch PTZ
A PTZ flush with the ceiling,
with the body hidden above it.

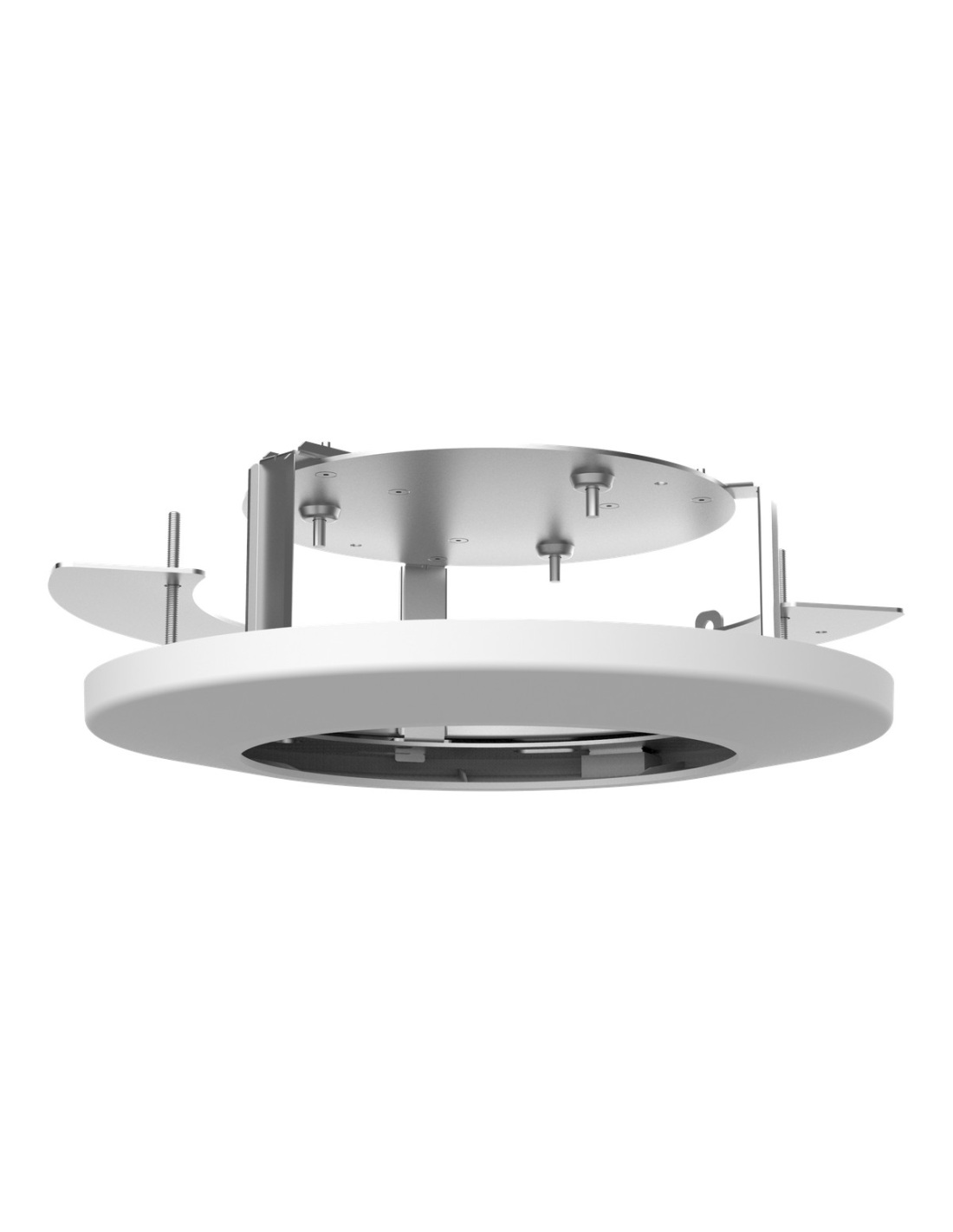

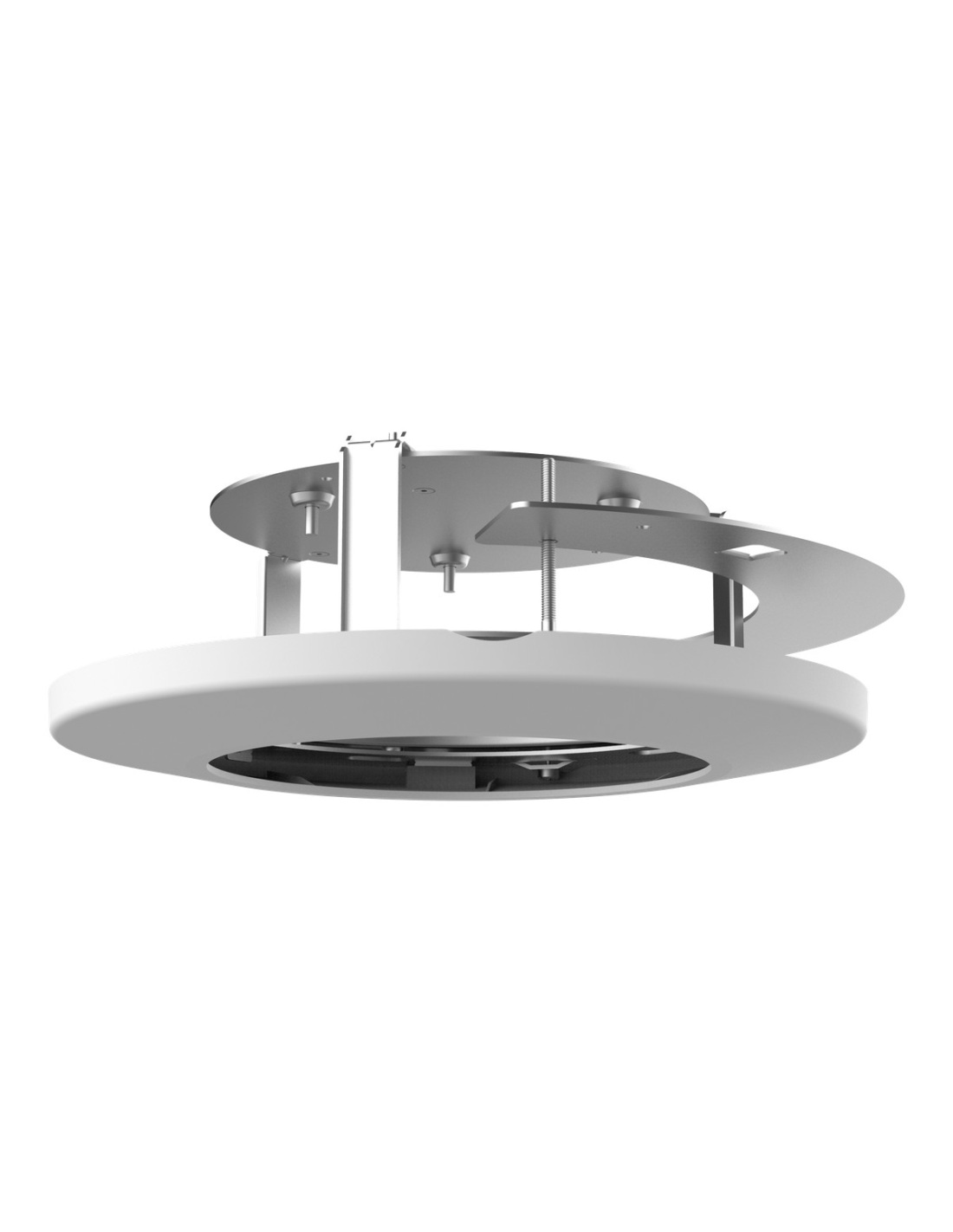

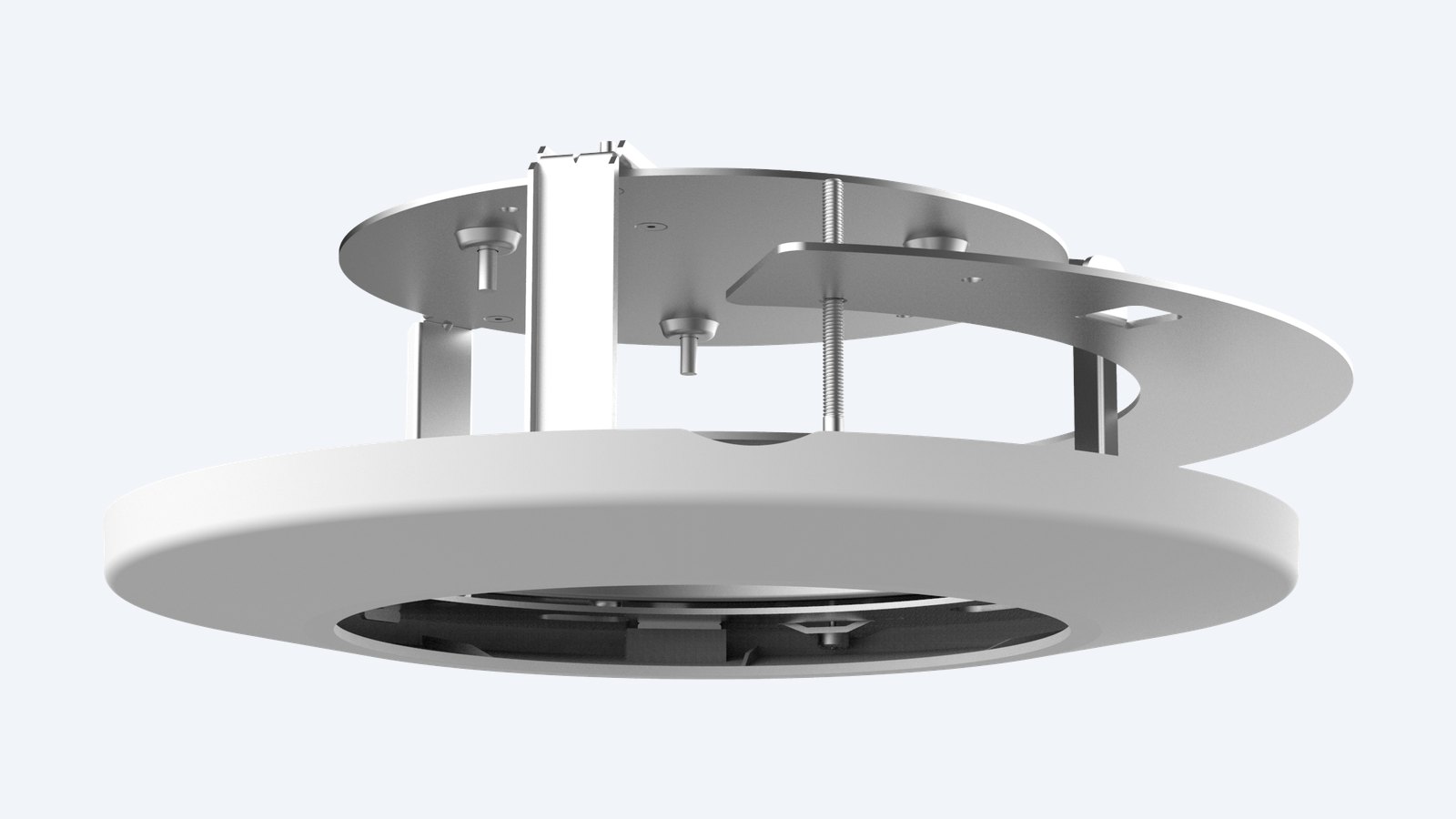

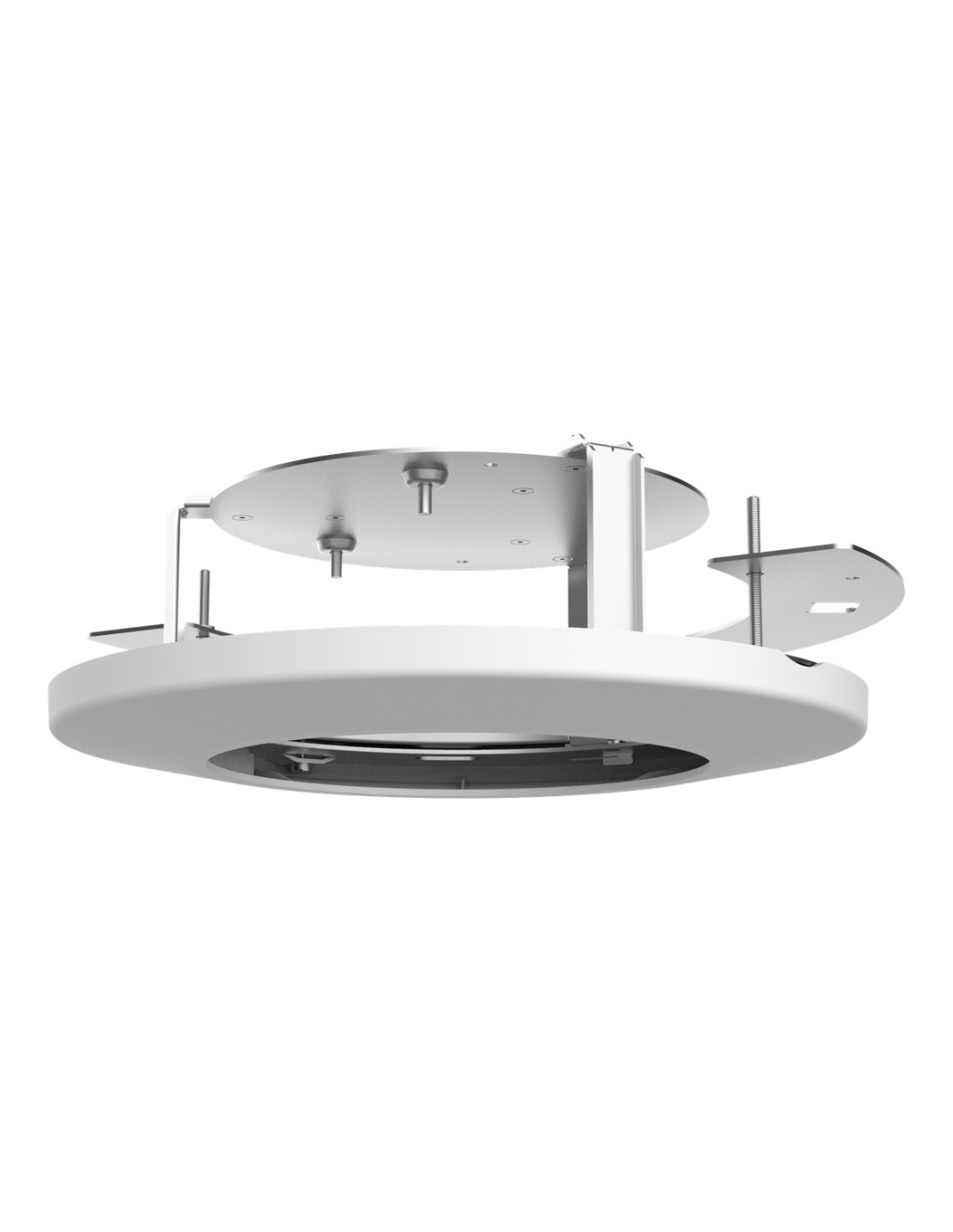

This is the Uniview TR-FM180-IN. An indoor in-ceiling mount for Uniview 4-inch PTZ domes. The mount sits in a 210 mm hole in the ceiling, so only the dome shows below and the body and cabling stay out of sight.
In one sentence: the TR-FM180-IN is a Ø280 × 91 mm sheet metal and PC in-ceiling mount for Uniview 4-inch PTZ domes, needing a Ø210 mm ceiling cut-out, weighing 1.2 kg.
The in-ceiling mount only. The PTZ is separate.
Order it with a 4-inch PTZ dome such as the IPC6434LR-X16-VG1. You need access above the ceiling to run the cable.
In the box
- TR-FM180-IN in-ceiling mount
You also need
- A compatible 4-inch PTZ dome
- A Ø210 mm hole saw or cut-out
- Access above the ceiling for the cable
- A ceiling that will hold 1.2 kg plus the camera
For offices, shops and foyers.
Indoors a surface-mounted PTZ can look bulky. Recessed into the ceiling, it looks like a smoke detector-sized dome while still panning and zooming across the room.

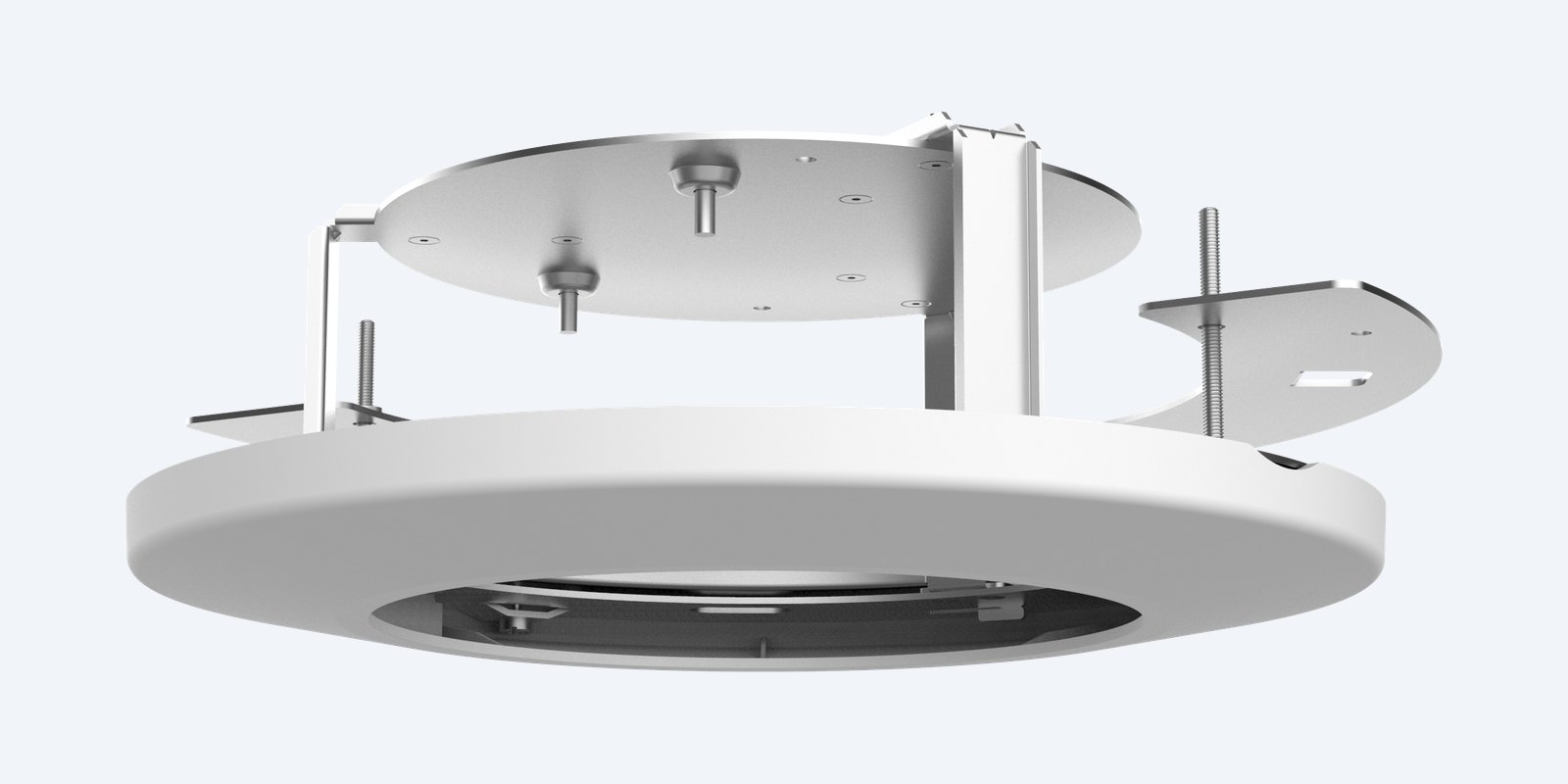

Trim and clamps
Clamps grip the ceiling from above.
The Ø280 mm trim ring covers the cut edge, and the clamp arms on top swing out over the ceiling sheet when tightened.

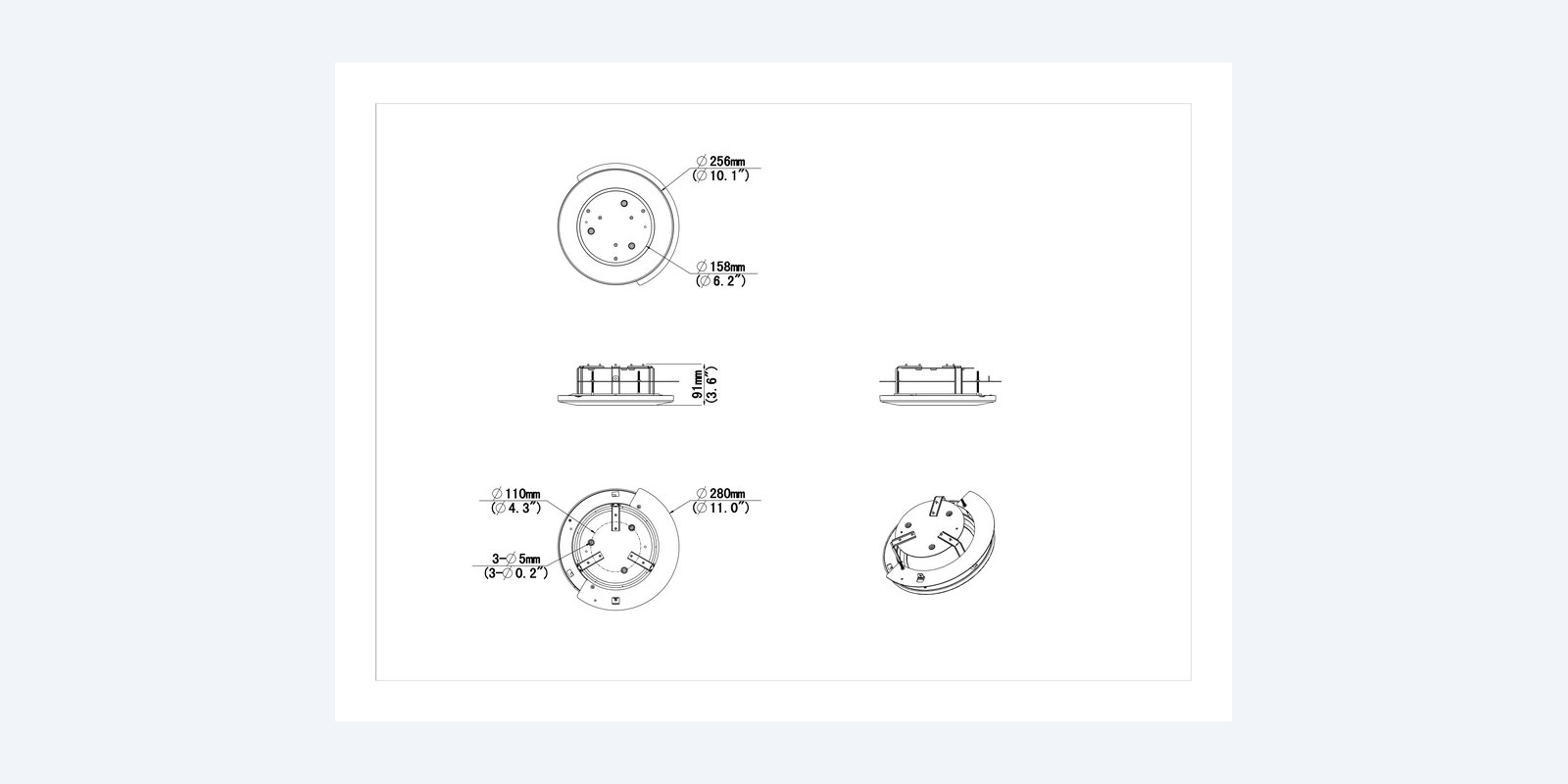

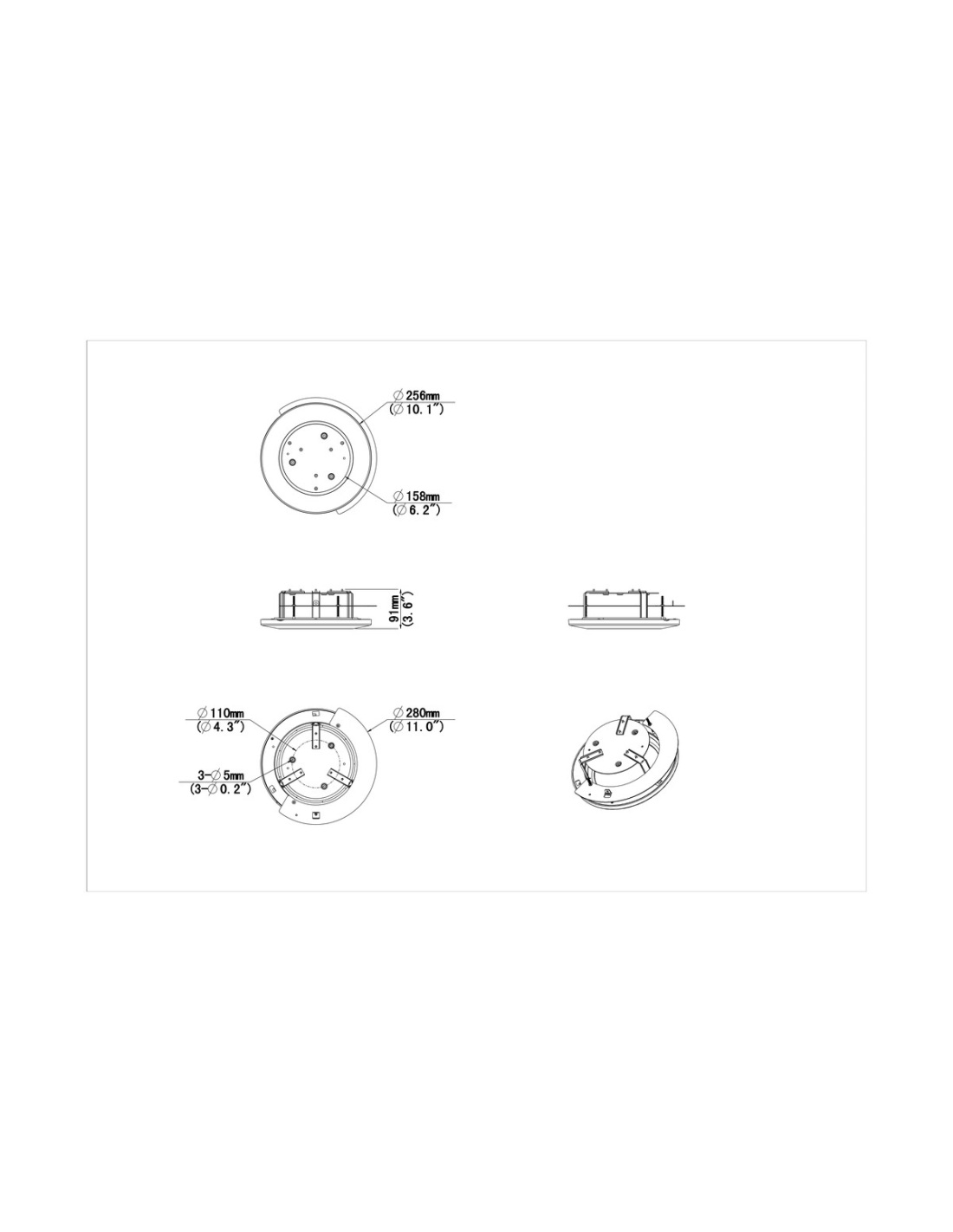

Size
Ø280 mm trim, 91 mm deep.
Cut a Ø210 mm hole in the ceiling. The mount needs 91 mm of depth above the ceiling surface, and the camera fixes on three Ø5 mm holes on a 110 mm circle.
How it goes in
From the box to a mounted camera.
01
Cut the hole
Mark and cut a Ø210 mm hole, checking there is 91 mm of clear space above and no joist in the way.
02
Fit the mount
Push the mount up into the hole and tighten the clamps so they grip the ceiling from above.
03
Connect the PTZ
Run the cable down through the mount and connect the PTZ.
04
Fit and set up
Fix the PTZ into the mount, power up and set its presets.
At a glance
TR-FM180-IN
Show specs
Type
In-ceiling mount
Fits
Uniview 4-inch PTZ domes (IPC6434LR-X16-VG1)
Size
Ø280 × 91 mm
Ceiling cut-out
Ø210 mm
Weight
1.2 kg
Material
Sheet metal and PC
Use
Indoor
Colour
White
Pair it with
What goes with it
PTZ

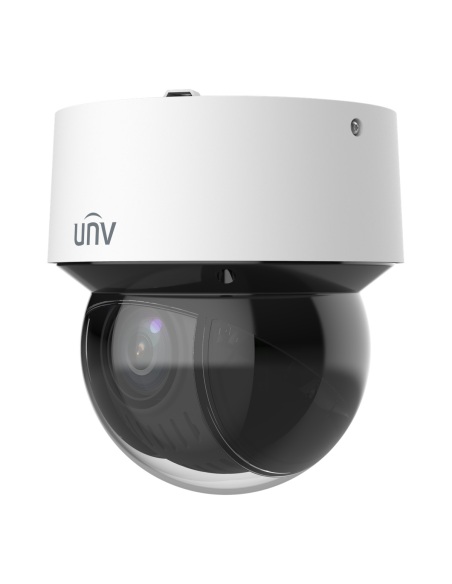

Uniview IPC6434LR 16x PTZ
4MP 4-inch PTZ that lists this mount.
Recorder
Uniview PoE NVR
Records and controls the PTZ.
Cabling
Cat6 cable
Solid-copper Cat6 for PoE runs of up to 100 m.
Wall
TR-WE45-IN wall mount
For the same PTZ on a wall instead.
Where it is used
Where it is used
Offices and foyers
A discreet PTZ in a plasterboard ceiling.
Retail floors
Pan across aisles and zoom on the registers.
Hotels and clubs
Lobbies and gaming rooms.
Schools
Halls and corridors with suspended ceilings.
Uniview PTZ brackets side by side
| TR-WE45-IN | TR-WE45-A-IN | TR-UC08-A-IN | TR-FM180-IN | TR-UF45-K-IN | |
|---|---|---|---|---|---|
| Type | Wall arm | Long wall arm | Corner adapter | In-ceiling mount | Pendant/wall adapter |
| Size | 230.3 × 141 × 201.5 mm | 216 × 141 × 314 mm | 215 × 210 × 122 mm | Ø280 × 91 mm | Ø318 × 116 mm |
| Weight | 0.79 kg | 1.0 kg | 1.87 kg | 1.2 kg | 1.3 kg |
| Material | Aluminium alloy | Aluminium alloy | Steel | Sheet metal and PC | Aluminium alloy |
| Use | Indoor or outdoor | Indoor or outdoor | Indoor or outdoor | Indoor | Indoor or outdoor |
The wall arms end in a G1½ thread for the PTZ; the corner adapter takes either arm. Figures from the Uniview datasheets and drawings.
Common questions
Which cameras does it fit?
Uniview lists it for indoor in-ceiling installation of its 4-inch PTZ domes. From our range, the IPC6434LR-X16-VG1 datasheet lists it.
What size hole do I cut?
Ø210 mm. The trim ring is Ø280 mm, so it covers the cut edge.
How much space do I need above the ceiling?
The mount is 91 mm deep; allow extra room for the camera body and cable bend.
What ceilings does it suit?
Plasterboard and suspended tile ceilings that can carry the mount and camera. The clamps grip the ceiling sheet from above.
Can I use it outdoors?
No. Uniview lists it for indoor use only. Outdoors, use the TR-WE45-IN wall arm.
Do I need access above the ceiling?
Only to run the cable to the hole. The mount itself is fitted from below.
What is it made of?
Sheet metal with a PC (polycarbonate) trim. It weighs 1.2 kg.
Will it work with a 5-inch or larger PTZ?
No, it is made for 4-inch PTZ domes. Call us for the right mount for larger PTZs.
What is it made of?
Sheet metal and PC (polycarbonate), 1.2 kg.
Is it white or black?
White. It matches Uniview’s white cameras.
Do I need a licensed installer?
Fixing the bracket is a normal handyman job. In Australia, fixed data cabling inside walls and ceilings must be run by a registered cabler; plugging a camera into an existing outlet does not need one.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure which mount suits your camera or wall? Call 1300 736 970 or email [email protected] with the camera model and a photo of the spot, and we will match the bracket.
Installation and safety
Fixing. Check the ceiling can carry the mount and camera; on a weak ceiling, add a support above. Turn off power before connecting the camera.
Indoor. Uniview lists this mount for indoor ceilings only. Keep it away from moisture and steam.
Figures. From the Uniview TR-FM180-IN datasheet and dimension drawing; camera fits from Uniview’s camera datasheets and accessory guide. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- Ø280 × 91 mm
- Weight
- 1.2 kg
- Material
- Sheet metal and PC
- Colour
- White
- Installation
- Ceiling, indoor (Ø210 mm cut-out)
- Brand
- Uniview
- Warranty
- 3 years
- Product Type
- PTZ Camera In-Ceiling Mount
- Model
- TR-FM180-IN
- Use
- Indoor
- Mount type
- In-ceiling (flush)
- Depth
- 91 mm
- Compatible Cameras
- Uniview IPC6434LR-X16-VG1 (4-inch PTZ domes)
- Camera Series
- Uniview 4-inch PTZ domes
- Ceiling Cut-Out
- Ø210 mm
- Trim Diameter
- 280 mm
