Uniview PTZ Dome Wall Mount, G1.5" Thread, Aluminium, White, Also Fits Uniarch IPC-P4P4 - TR-WE45-IN
TR-WE45-IN
In stock $ 26.30
inc-GST
or 4 interest-free payments of $6.58 with
Uniview TR-WE45-IN aluminium PTZ wall arm with G1½ thread for Uniview PTZ domes, also listed for the Uniarch IPC-P4P4-X25. 201.5 mm reach, cable inside the arm.
- ✓For Uniview PTZ domes and Uniarch IPC-P4P4
- ✓G1½ camera thread
- ✓201.5 mm reach, cable inside
- ✓Keyhole slots for one-person fitting
- ✓Corner mounting with TR-UC08-A-IN
- ✓Aluminium alloy, 0.79 kg
Uniview · PTZ wall arm · 201.5 mm reach

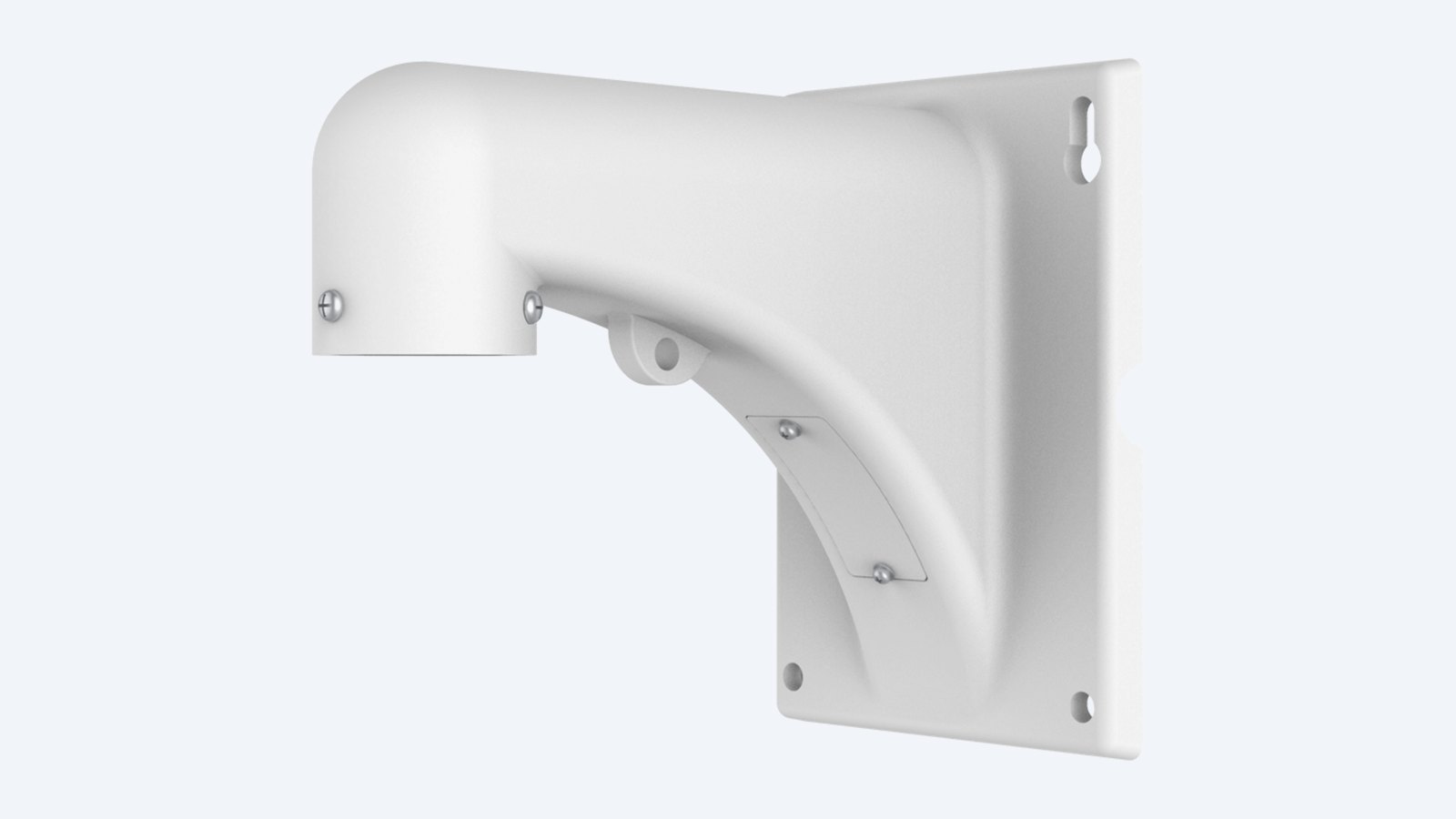

A wall arm made for PTZ domes,
with the cable inside.

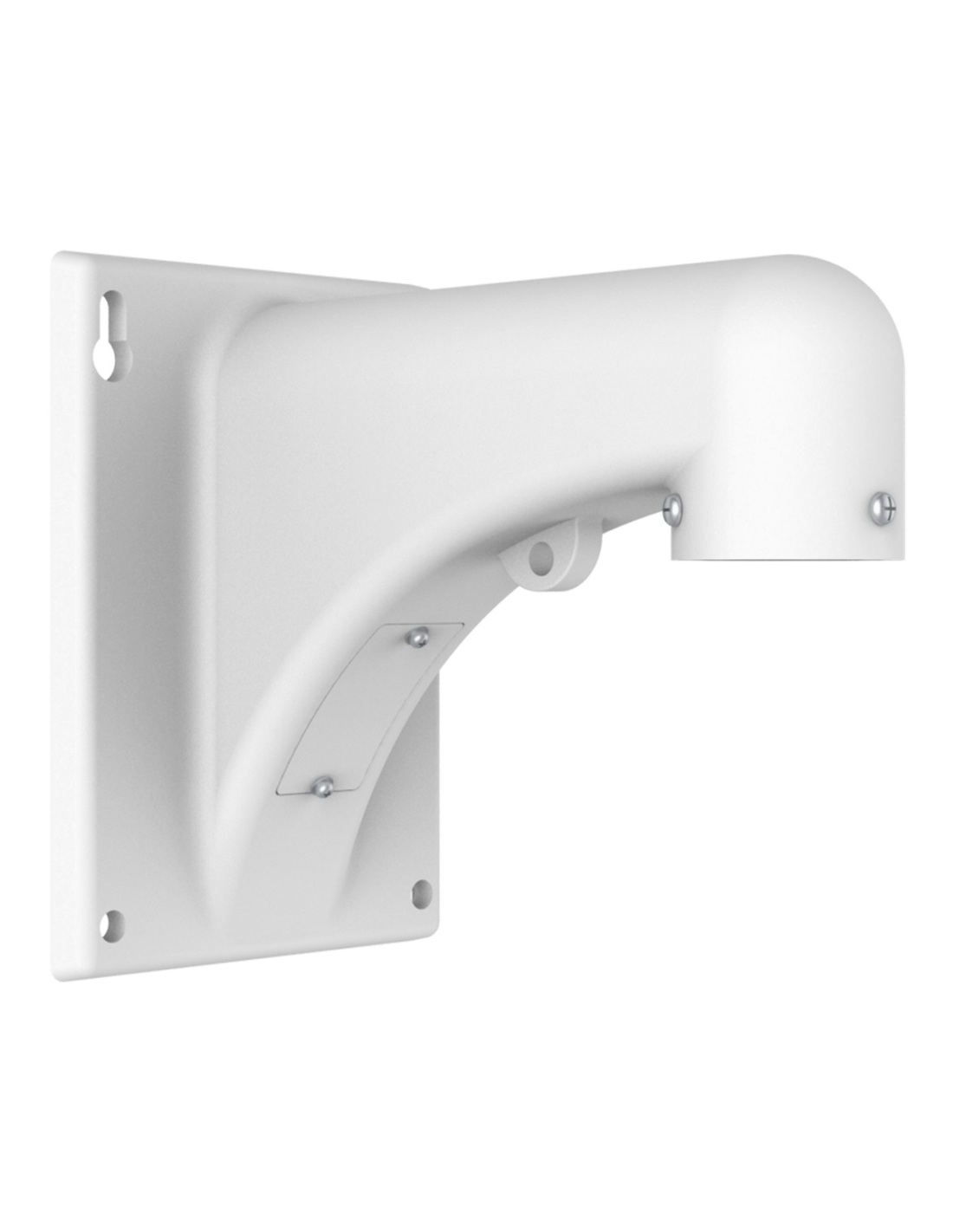

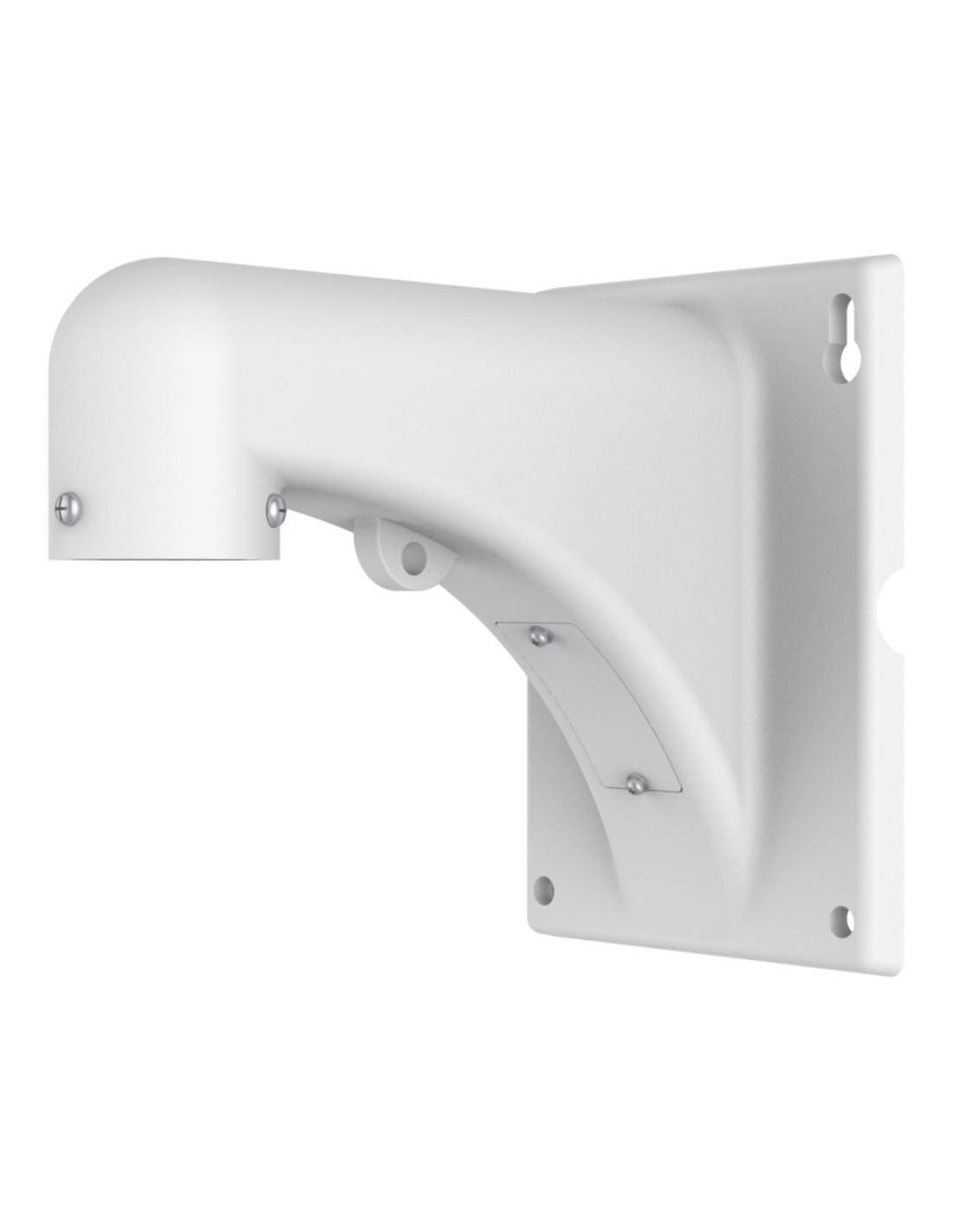

This is the Uniview TR-WE45-IN. A cast aluminium wall arm for Uniview PTZ dome cameras. The PTZ screws onto the G1½ thread at the end, and the cable runs inside the arm from the wall.
In one sentence: the TR-WE45-IN is a 230.3 × 141 × 201.5 mm aluminium alloy wall arm for Uniview PTZ domes, with a G1½ camera thread, weighing 0.79 kg, for indoor or outdoor walls.
The wall arm only. The PTZ and wall fixings are separate.
Order it with a Uniview PTZ dome. Use wall anchors rated for the camera’s weight; for a corner, add the TR-UC08-A-IN.
In the box
- TR-WE45-IN wall mount
You also need
- A compatible PTZ dome
- 4 heavy-duty anchors to suit your wall (Ø9 mm holes)
- A drill
- Outdoor sealant for the cable hole
- TR-UC08-A-IN, for a corner
The standard way to put a PTZ on a wall.
A PTZ needs to hang clear of the wall to turn all the way round. The arm holds it out and down, and the cable stays inside the arm, out of the weather and out of reach.

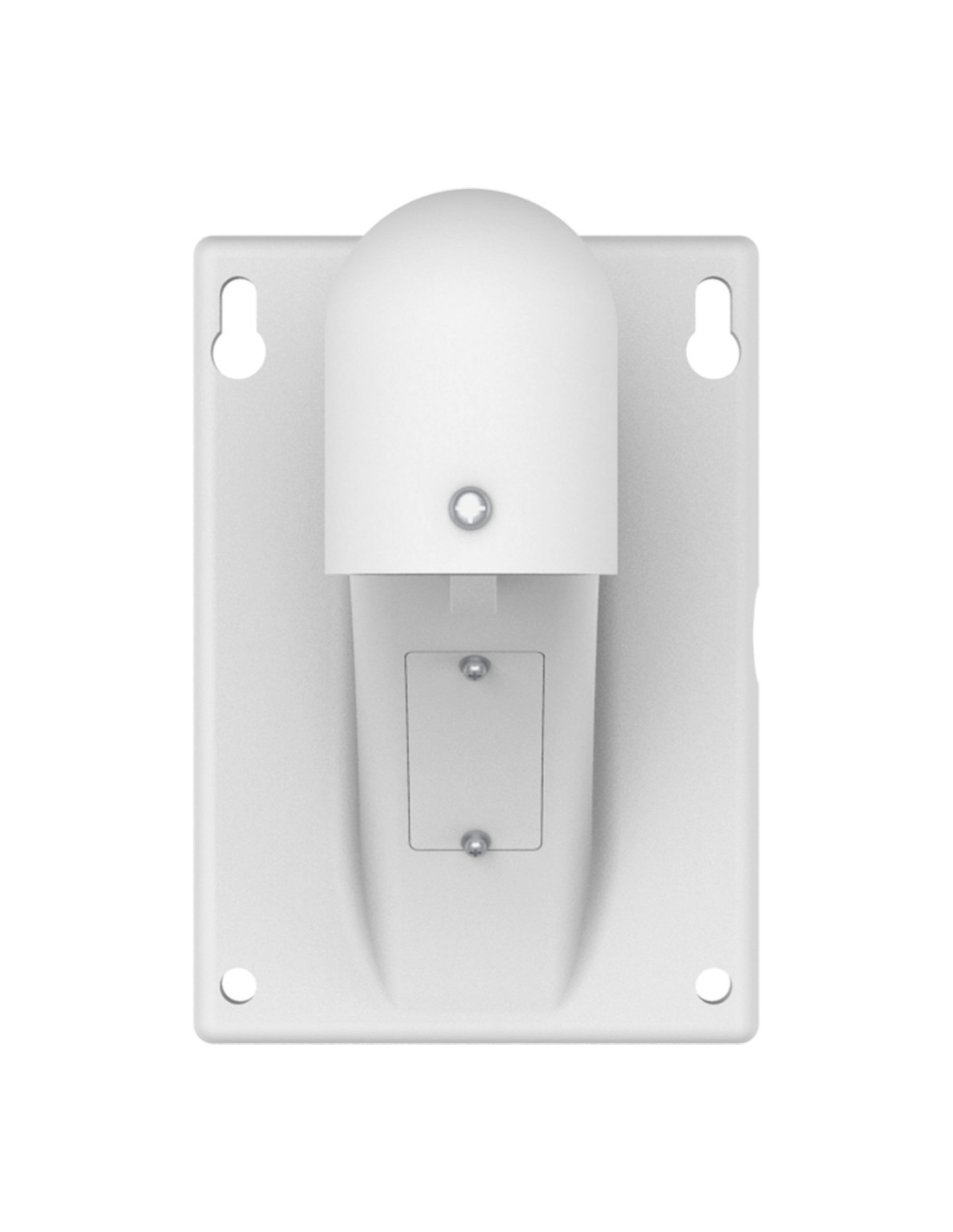

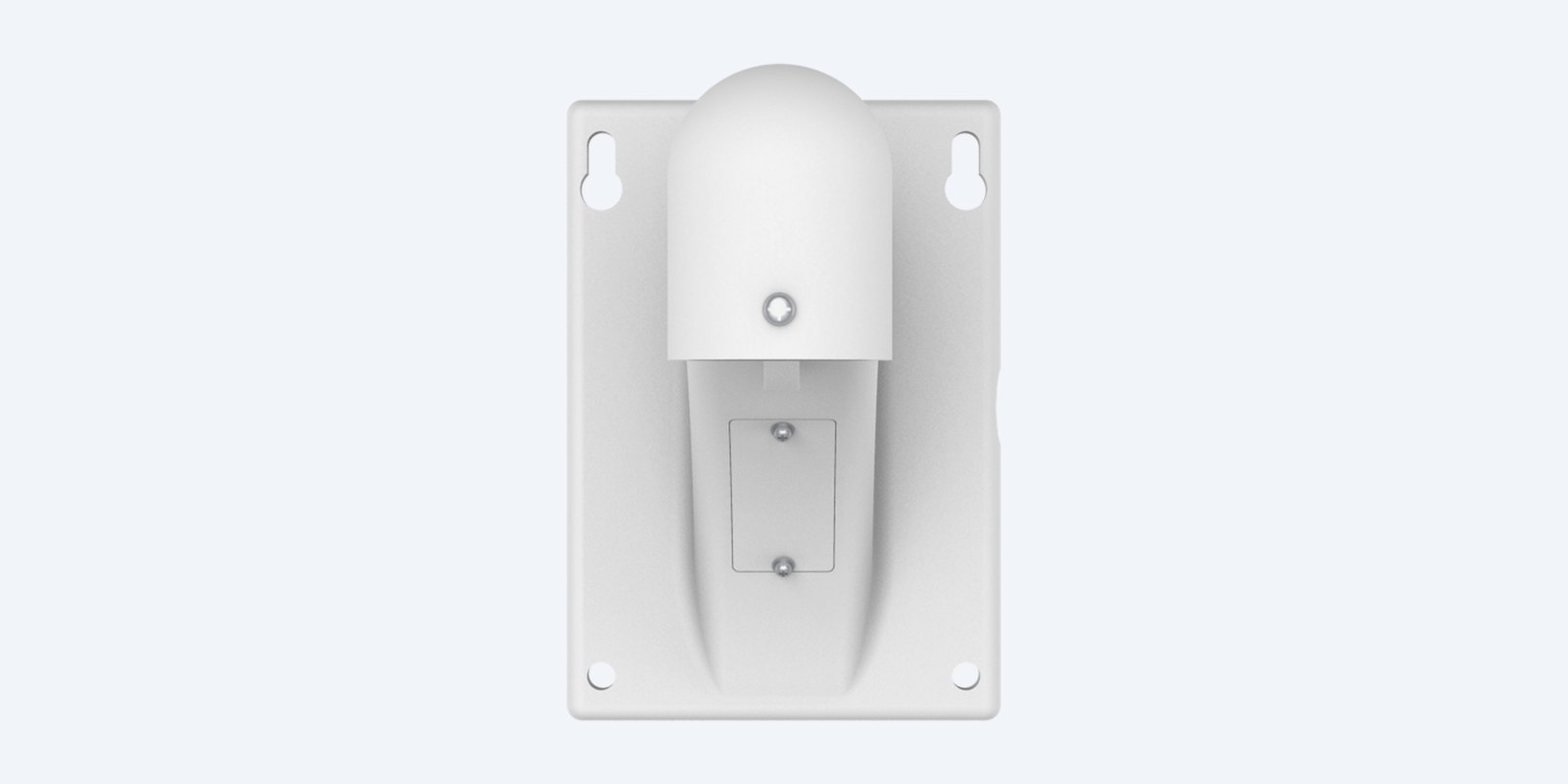

Wall plate
Hang it, then bolt it.
Two keyhole slots let you hang the arm on two bolts while you line it up, then four Ø9 mm holes bolt it down. The plate is 117 × 170 mm.

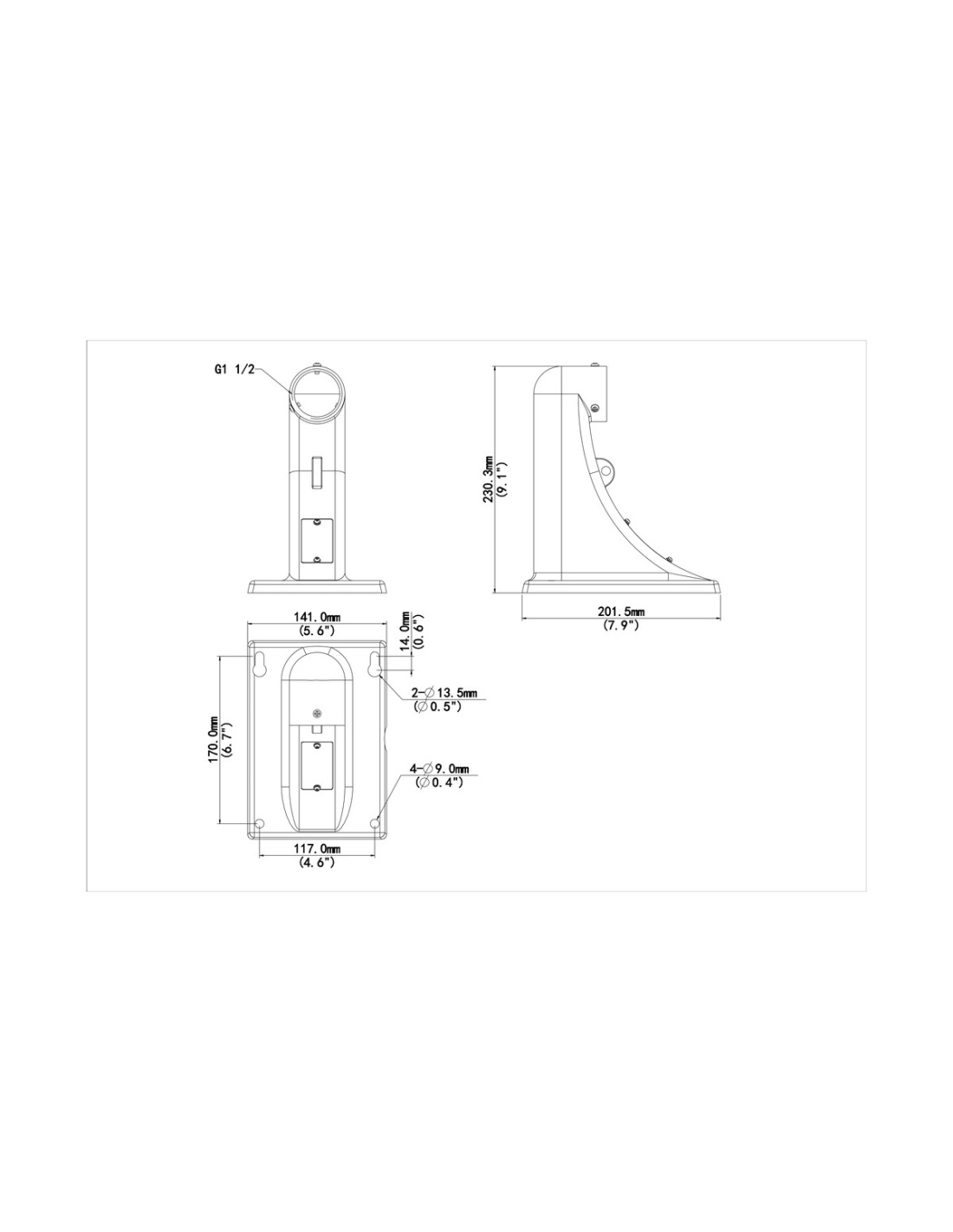

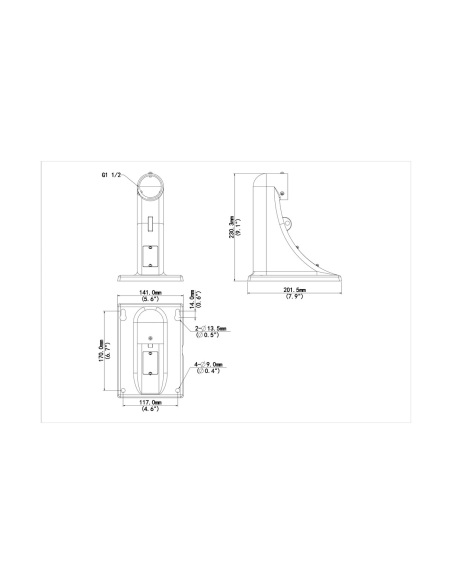

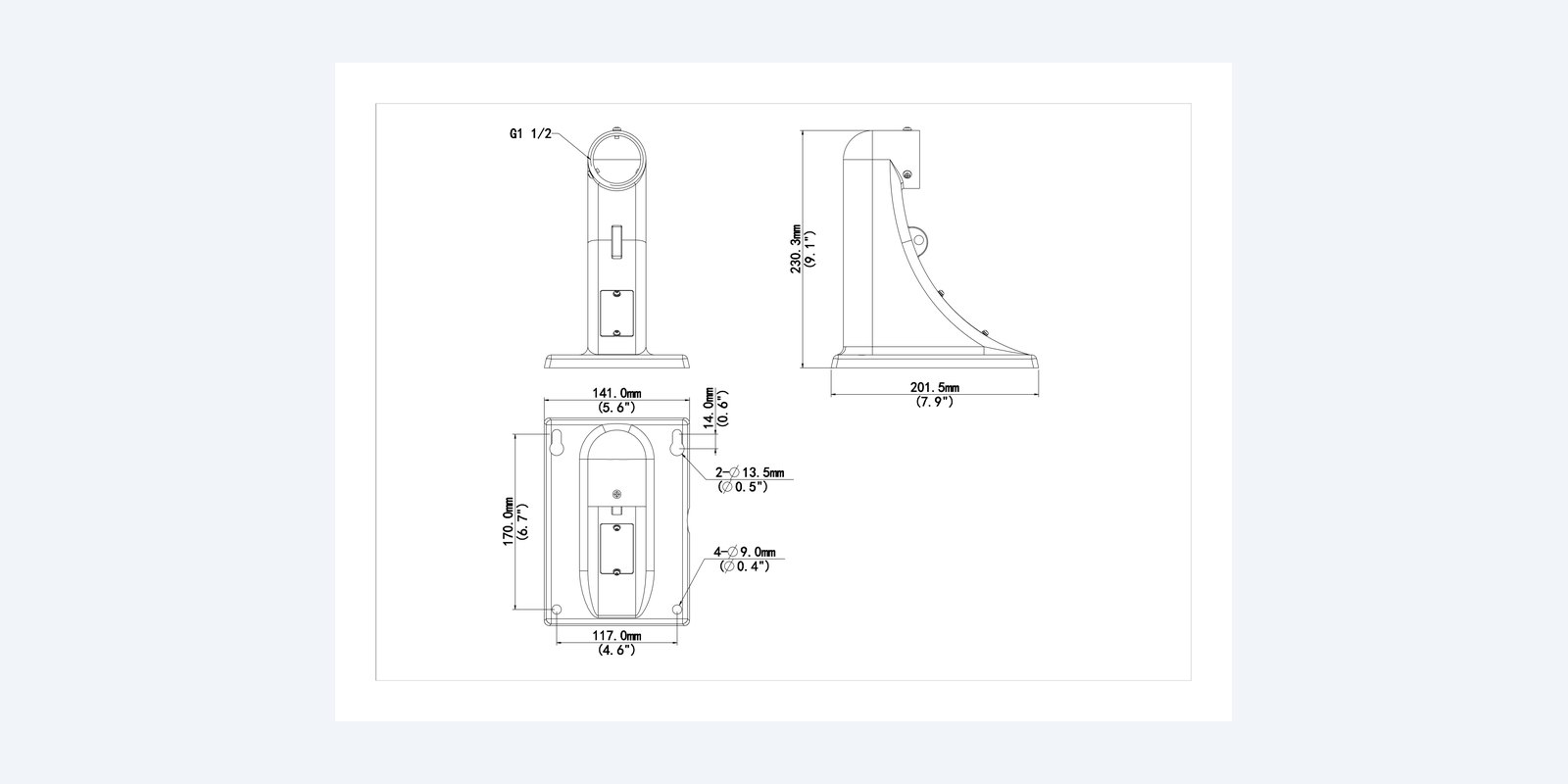

Size
201.5 mm out, 230.3 mm high.
The wall plate is 141 × 170 mm with four Ø9 mm holes and two Ø13.5 mm keyhole slots. The camera end is a G1½ thread.
How it goes in
From the box to a mounted camera.
01
Mark and drill
Hold the plate level, mark the keyholes and the four bolt holes, and drill the cable hole behind the plate.
02
Fix the arm
Hang it on the keyhole bolts, feed the cable through the arm and tighten all fixings.
03
Fit the PTZ
Connect the cable, screw the PTZ onto the G1½ thread and lock it with its set screw.
04
Set it up
Power up, check the PTZ turns freely and set presets and patrols.
At a glance
TR-WE45-IN
Show specs
Type
PTZ wall arm
Fits
Uniview PTZ domes; Uniarch IPC-P4P4-X25
Size
230.3 × 141 × 201.5 mm
Reach
201.5 mm
Weight
0.79 kg
Material
Aluminium alloy
Camera thread
G1½
Wall holes
4 × Ø9 mm + 2 × Ø13.5 mm keyholes
Use
Indoor or outdoor
Colour
White
Pair it with
What goes with it
PTZ
Uniview IPC6624SFW PTZ
4MP 25x PTZ that lists this arm.
Corner
TR-UC08-A-IN corner adapter
Steel adapter for an outside corner.
Longer arm
TR-WE45-A-IN
312 mm reach for wider eaves.
Uniarch
Uniarch IPC-P4P4-X25
Uniarch PTZ whose datasheet lists this arm.
Where it is used
Where it is used
Car parks and yards
High on a building wall covering the whole lot.
Warehouses
Outside walls watching docks and gates.
Farms
Shed walls covering paddocks and machinery.
Retail
Shopfronts and loading lanes.
Uniview PTZ brackets side by side
| TR-WE45-IN | TR-WE45-A-IN | TR-UC08-A-IN | TR-FM180-IN | TR-UF45-K-IN | |
|---|---|---|---|---|---|
| Type | Wall arm | Long wall arm | Corner adapter | In-ceiling mount | Pendant/wall adapter |
| Size | 230.3 × 141 × 201.5 mm | 216 × 141 × 314 mm | 215 × 210 × 122 mm | Ø280 × 91 mm | Ø318 × 116 mm |
| Weight | 0.79 kg | 1.0 kg | 1.87 kg | 1.2 kg | 1.3 kg |
| Material | Aluminium alloy | Aluminium alloy | Steel | Sheet metal and PC | Aluminium alloy |
| Use | Indoor or outdoor | Indoor or outdoor | Indoor or outdoor | Indoor | Indoor or outdoor |
The wall arms end in a G1½ thread for the PTZ; the corner adapter takes either arm. Figures from the Uniview datasheets and drawings.
Common questions
Which cameras does it fit?
Uniview PTZ domes with the G1½ mount. The IPC6434LR-X16-VG1, IPC6624SFW-X25-C-VH2 and IPC94144SFW-X25-F40C datasheets list it, Uniview’s accessory guide adds the IPC6424SR-X25-VF, and the Uniarch IPC-P4P4-X25 datasheet lists it too.
How far does it hold the PTZ from the wall?
201.5 mm. For more clearance from eaves or a deep fascia, the TR-WE45-A-IN reaches 312 mm.
Can I mount it on a corner?
Yes, with the TR-UC08-A-IN steel corner adapter. Its front plate has four M8 holes in the same 117 × 170 mm pattern as this arm’s wall plate.
What fixings do I need?
Four bolts or anchors to suit the Ø9 mm holes, plus two for the keyhole slots, rated for the camera’s weight in your wall. Masonry anchors for brick and concrete; never plasterboard alone.
How does the cable get to the camera?
From the wall behind the plate, up inside the arm to the G1½ thread. Drill the hole inside the plate’s outline so it is covered.
How much weight will it hold?
Uniview does not publish a load rating. It is made for its PTZ domes; fix it with anchors rated well above the camera’s weight.
Can I use it outdoors?
Yes, Uniview lists it for indoor or outdoor walls.
How big is it?
230.3 mm high, 141 mm wide and 201.5 mm deep, weighing 0.79 kg.
What is it made of?
Aluminium alloy, 0.79 kg.
Is it white or black?
White. It matches Uniview’s white cameras.
Do I need a licensed installer?
Fixing the bracket is a normal handyman job. In Australia, fixed data cabling inside walls and ceilings must be run by a registered cabler; plugging a camera into an existing outlet does not need one.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure which mount suits your camera or wall? Call 1300 736 970 or email [email protected] with the camera model and a photo of the spot, and we will match the bracket.
Installation and safety
Fixing. Fix into brick, concrete or steel with anchors rated for the camera; never plasterboard alone. Working at height needs a stable platform. Turn off power before connecting the camera.
Weather. Seal the cable hole behind the plate and the thread at the camera end so water cannot follow the cable inside.
Figures. From the Uniview TR-WE45-IN datasheet and dimension drawing; camera fits from Uniview’s camera datasheets and accessory guide. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 230.3 × 141 × 201.5 mm
- Weight
- 0.79 kg
- Material
- Aluminium Alloy
- Colour
- White
- Installation
- Wall, indoor or outdoor
- Brand
- Uniview
- Warranty
- 3 years
- Product Type
- PTZ Camera Wall Mount
- Model
- TR-WE45-IN
- Use
- Indoor or outdoor
- Mount type
- Wall arm (PTZ)
- Compatible Cameras
- Uniview IPC6434LR-X16-VG1, IPC6624SFW-X25-C-VH2, IPC94144SFW-X25-F40C, IPC6424SR-X25-VF; Uniarch IPC-P4P4-X25
- Camera Series
- Uniview PTZ domes (IPC62/63/64/66 series); Uniarch P4P4
- Wall Fixing Holes
- 4 × Ø9 mm, 2 × Ø13.5 mm keyholes
- Reach
- 201.5 mm
- Camera Thread
- G1½
- Corner Mounting
- With TR-UC08-A-IN
