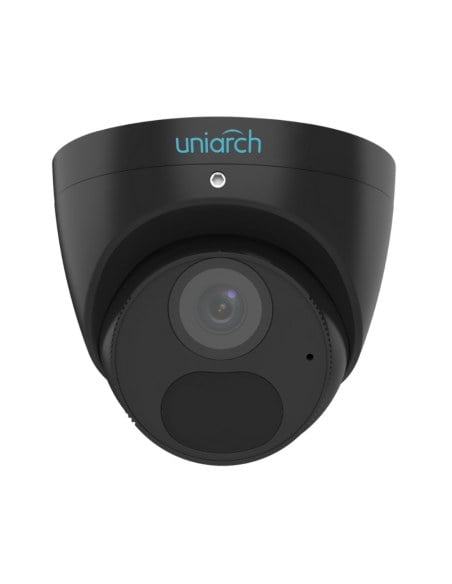

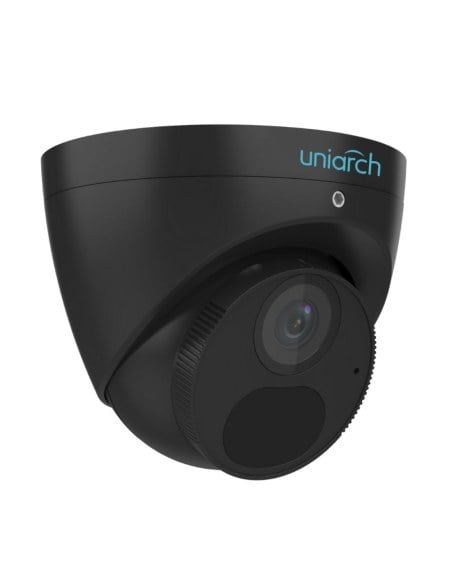

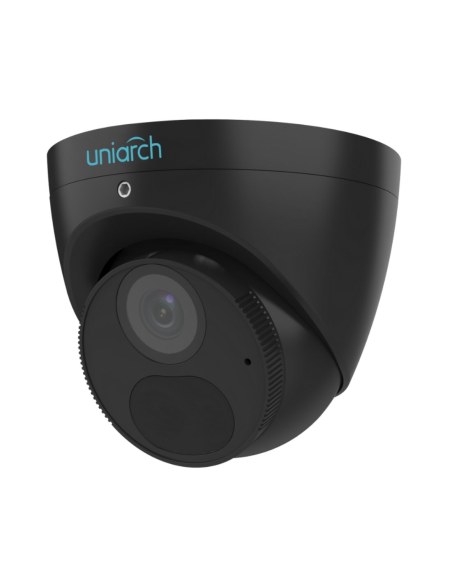

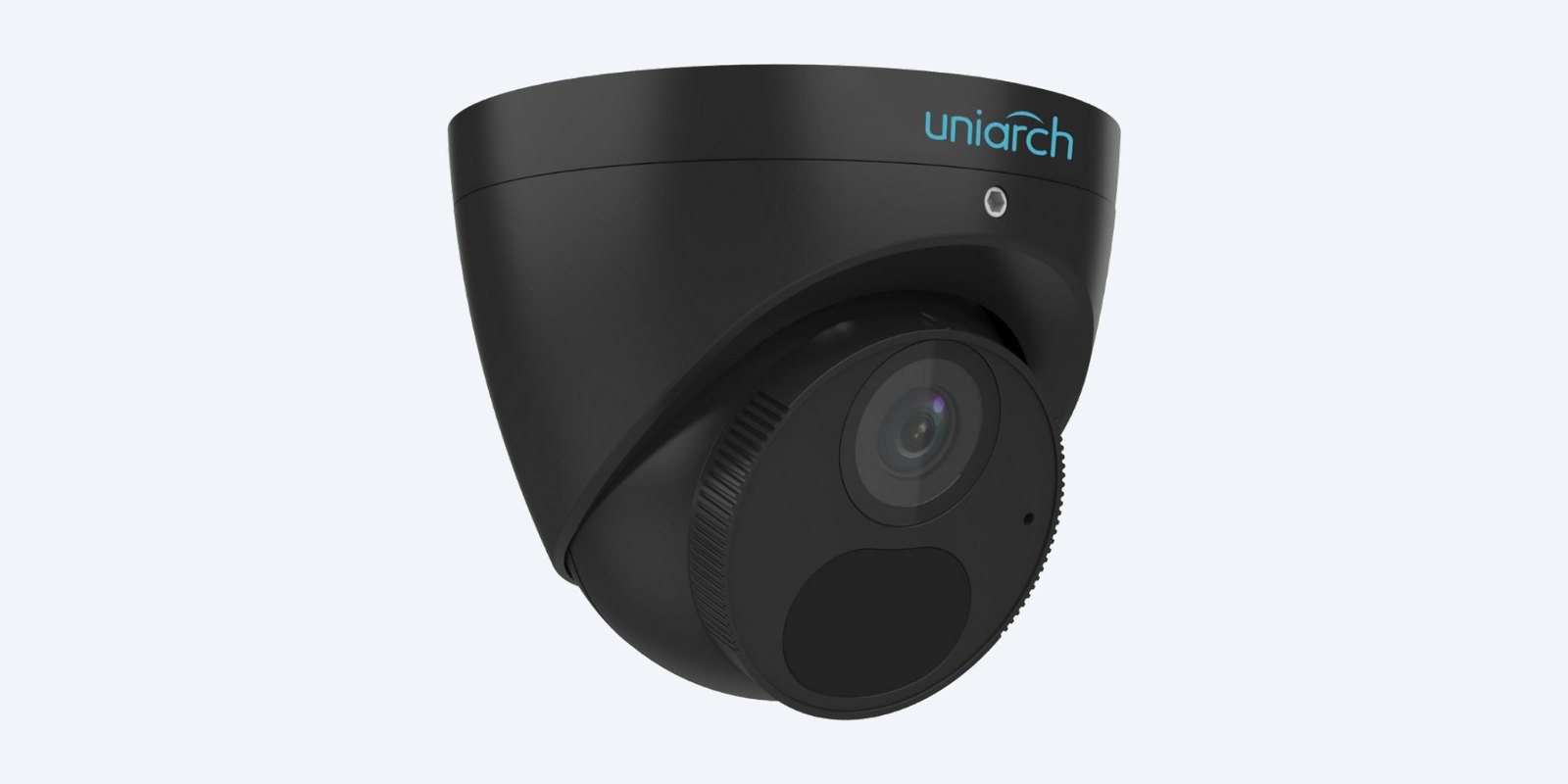

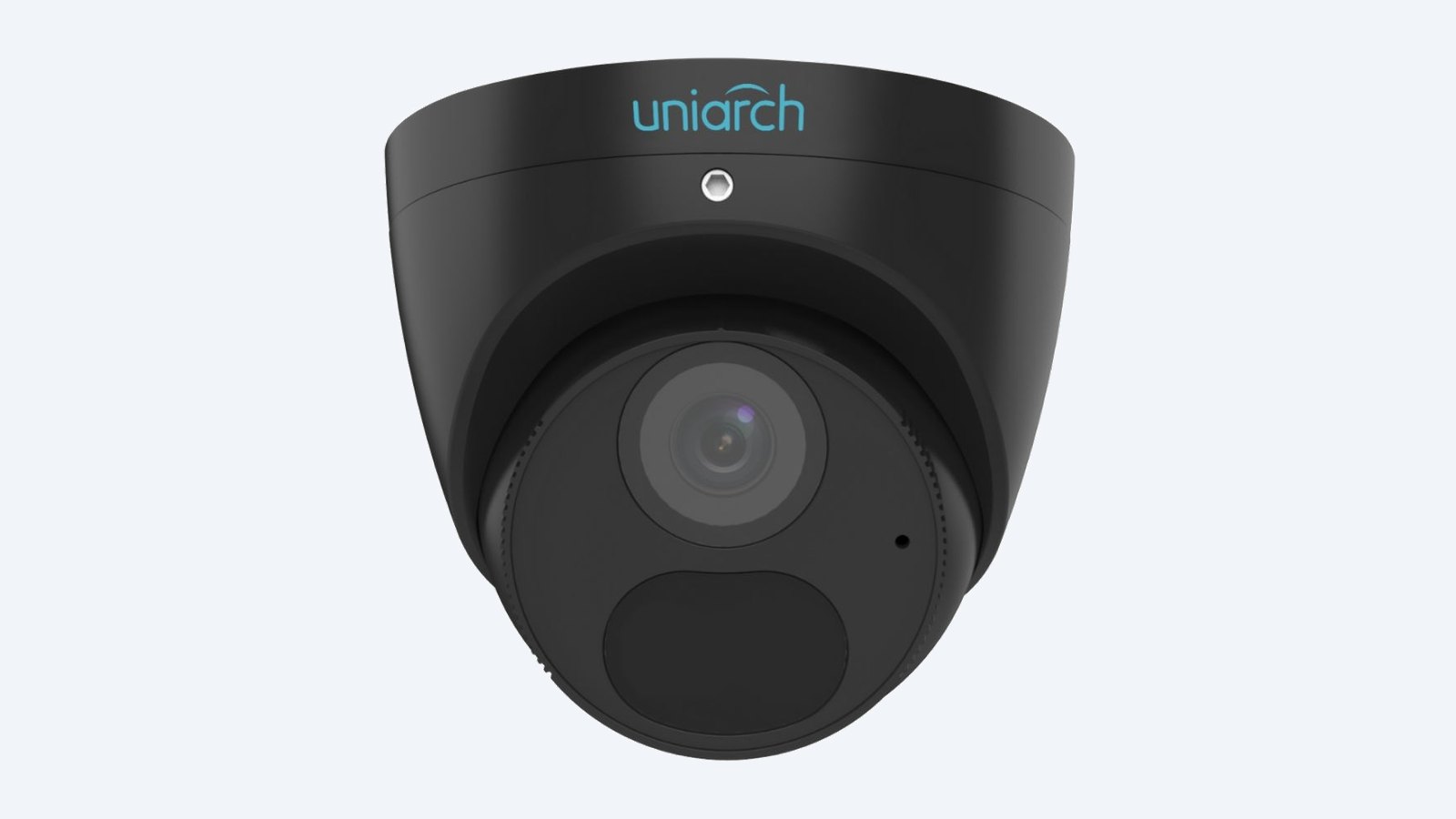

• IPC-T1E8-AF28K-B camera
• Fixing screws and drill template
• Quick guide

• A PoE NVR or switch (802.3af), or a 12 V DC supply
• Cat6 cable to the camera
• A microSD card up to 256GB, to record on the camera
• A black junction box or wall mount, if needed (ask us)

01

Pick the spot

High enough to be out of easy reach, close enough to see faces, with a route for one Cat6 cable. Under an eave keeps sun and rain off the lens.

02

Fix the base

Screw the base to the wall or eave, or onto a TR-JB03-G-IN junction box so the cable joint is enclosed.

03

Plug it in

Run Cat6 to a PoE port on the NVR or a PoE switch. The camera powers up from the cable.

04

Aim and add

Turn the eyeball to frame the view, then add it to the NVR or the Uniarch app.

Recorder

Uniarch PoE NVR

4, 8, 16 and 32-channel recorders that power the camera over one Cat6 cable and add it automatically.

Mounting

TR-JB03-G-IN junction box

Encloses the cable joint behind the camera on brick, render or a soffit with no cavity.

Walls

TR-WM03-D-IN wall mount

Holds the camera out from the wall so it can look along the building.

Cabling

Uniarch Cat6 cable

A 305 m box of solid copper Cat6 for PoE runs up to 100 m.

Dark eaves and fascias

Monument, charcoal and black trims.

Modern shopfronts

Black awnings and frames over the entry.

Cafés and bars

Dark ceilings where a white camera would stand out.

Home entries

A discreet 4K view of the front door.

Is it the same camera as the white IPC-T1E8-AF28K?

Yes. Specifications, picture and features are identical. Only the housing colour differs.

Do the mounts come in black?

Uniarch makes black versions of the junction box and wall mount (TR-JB03-G-IN-BLACK and TR-WM03-D-IN-BLACK). We list the white ones; ask us if you want black.

What resolution and frame rate does it record?

8MP 4K (3840 × 2160) at up to 20 fps, or 5MP, 4MP and 1080p at 30 fps.

How far does it see at night?

Up to 30 m with infrared, in black and white. Smart IR stops close faces washing out.

Does it tell people from other movement?

Yes. Intrusion detection looks for the shape of a person, so trees and headlights are less likely to send an alert. Motion, tampering and audio detection are built in too.

Does it record sound?

Yes, through the built-in microphone. For a speaker and warning light in black, see the Tri-guard IPC-T1P8-AF28KC-B.

Will it work with my recorder?

Uniarch and Uniview NVRs find it on their PoE ports and add it automatically. Other recorders that support ONVIF Profile S, G or T can add it too, although the smart events may only come through on Uniarch and Uniview.

Can I watch it on my phone?

Yes. View it through your Uniarch NVR in the Uniarch app, or add the camera to the app on its own. Live view in a web browser works without a plug-in in current Chrome, Firefox and Edge.

Can it record without an NVR?

Yes. Fit a microSD card of up to 256GB and it records on the camera itself. With an NVR, the card also covers network drop-outs: ANR sends the missed footage to the recorder when the link returns.

How is it powered?

By PoE (IEEE 802.3af) over the same Cat6 cable as the video, from a PoE NVR or switch. Without PoE, it runs on a 12 V DC supply. It draws 4.5 W at most.

What is Ultra 265?

Uniarch’s video compression. It keeps the same picture as H.265 in less space, so the recorder holds more days of footage. H.265, H.264 and MJPEG are there too.

What is the warranty?

Uniarch 3-year manufacturer warranty, handled in Australia through us. Contact us first and we will organise any claim.
