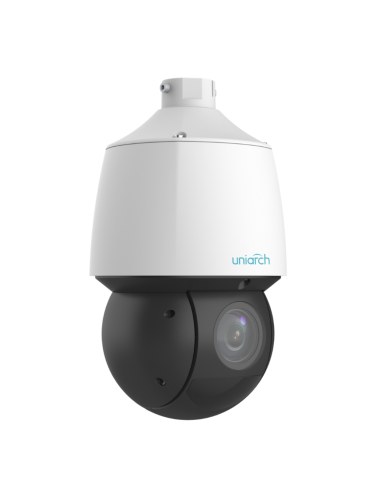

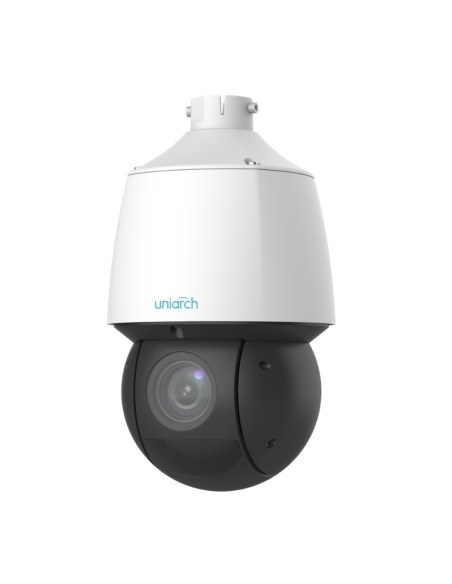

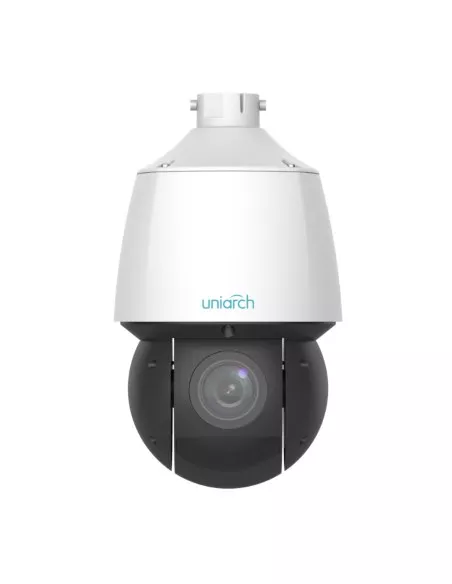

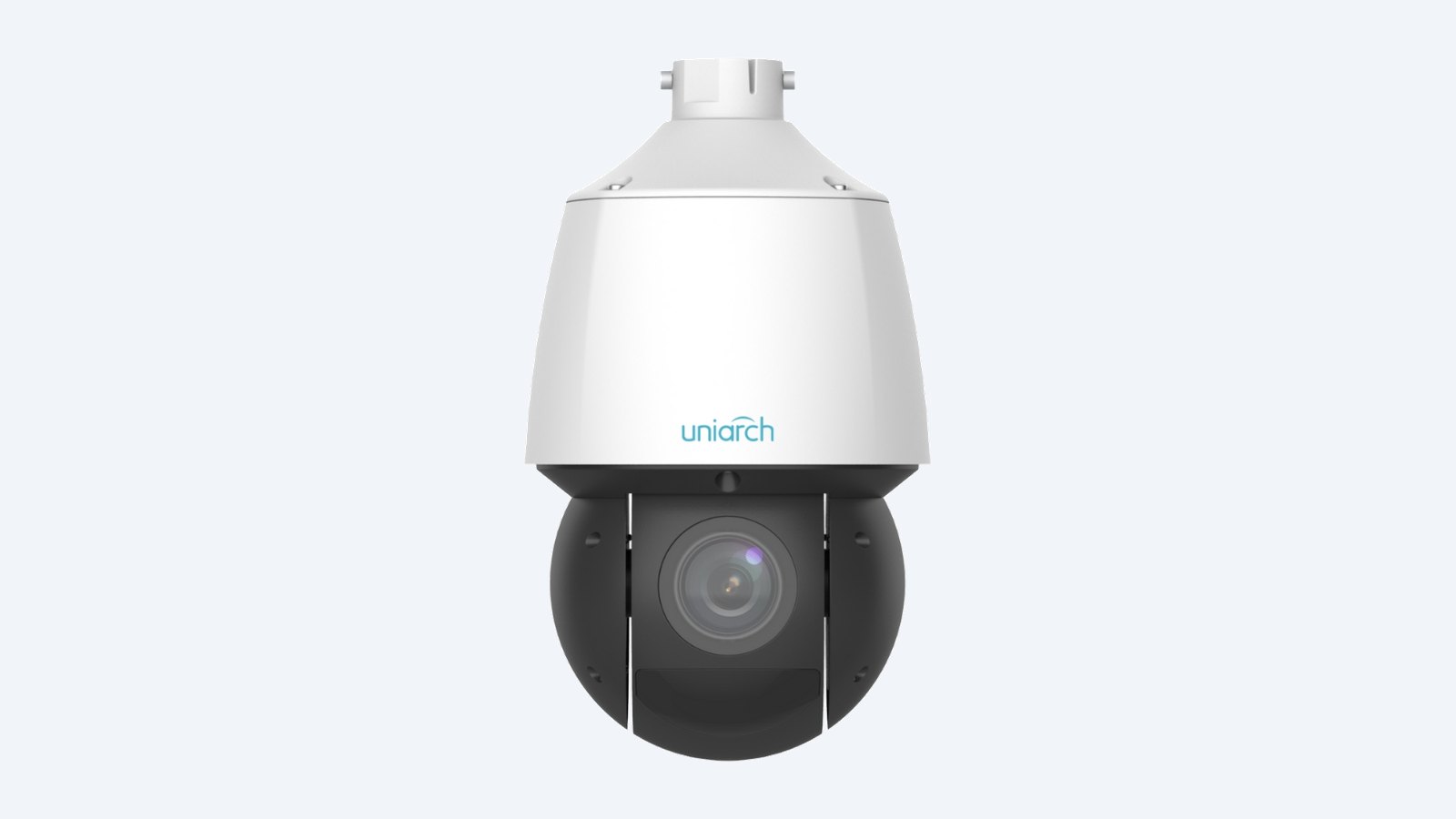

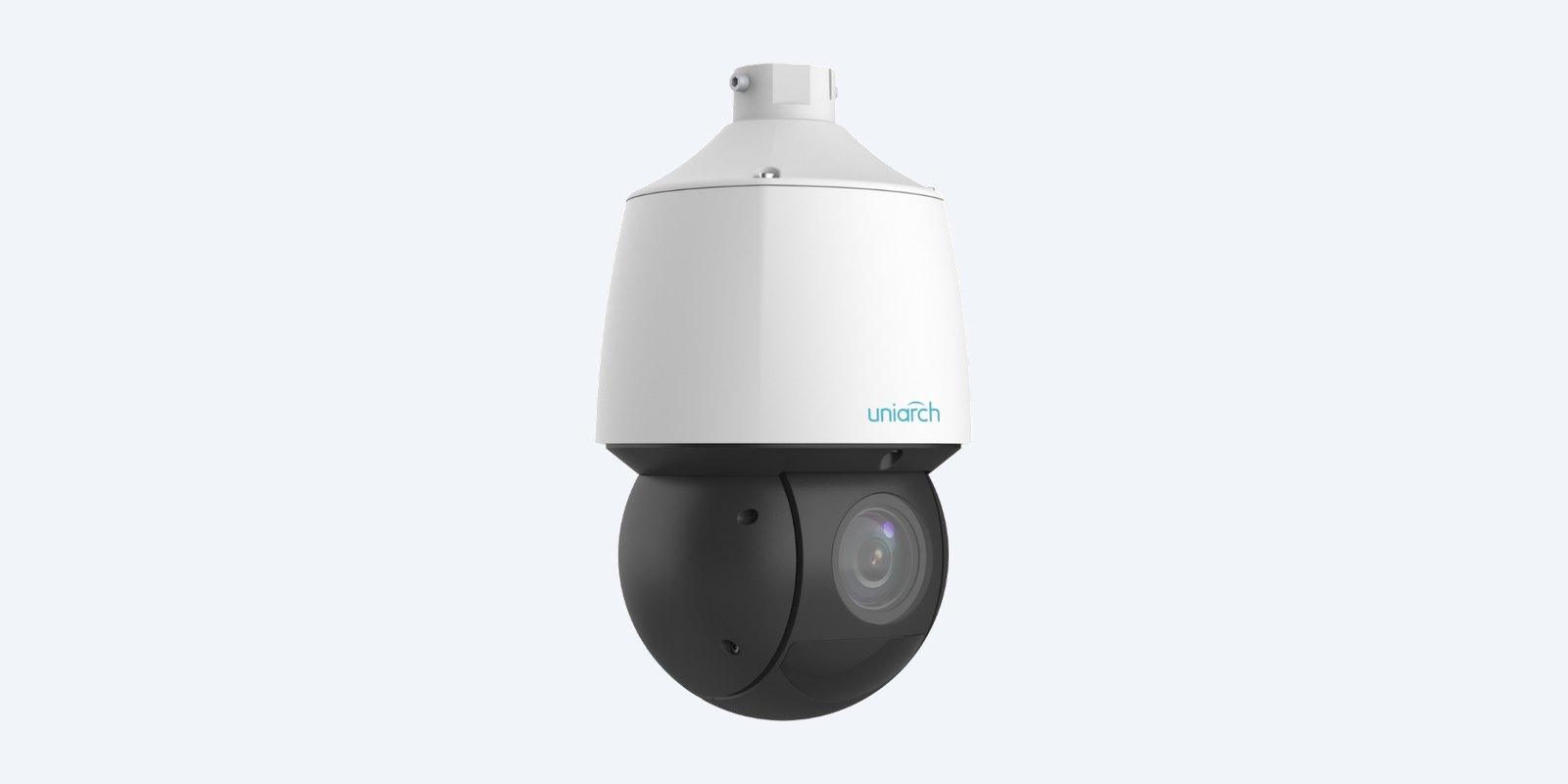

• IPC-P4P4-X25 camera
• Quick guide

• A wall or pole bracket (TR-WE45-IN wall mount, ask us)
• A PoE+ (802.3at) port or a 12 V DC 3 A supply
• Cat6 cable to the camera
• A microSD card up to 256GB, to record on the camera

01

Fit the bracket

Fix a PTZ wall bracket (or pole or corner adapter) high on a solid wall or pole with a clear view in every direction you need.

02

Power and connect

Run Cat6 to a PoE+ (802.3at) port, or use a 12 V DC 3 A supply. Connect any alarm or audio devices to its alarm and audio terminals.

03

Hang and set up

Hang the camera on the bracket, add it to the NVR or app and save presets for each spot you care about.

04

Set patrols and tracking

Build patrols, set the home position, then draw zones and turn on auto tracking to follow intruders.

Recorder

Uniarch 16 or 32-channel NVR

The NVR-216B-P16 and NVR-432XU-P16 PoE ports supply up to 30 W each, enough for this camera.

Cabling

Uniarch Cat6 cable

Solid copper Cat6 for PoE+ runs up to 100 m.

Fixed cameras

Uniarch 8MP bullets

Fixed views of gates and doors while the PTZ covers the open area.

Smaller sites

Uniarch IPC-P1E5-AX4PKC

A 5MP mini PTZ with 4× zoom, warning light and speaker.

Car parks

Sweep the lot and zoom to a plate or face.

Industrial yards

Follow vehicles and people across the yard.

Farms and depots

100 m IR over paddocks and machinery.

Schools and campuses

Ovals, grounds and building perimeters from one point.

What is the zoom range?

25× optical, from 4.8 mm (52.2° across) to 120 mm (2.74°), plus 16× digital. Fully zoomed in, Uniarch rates it to identify a person at 247.5 m.

Does it follow people automatically?

Yes. Auto tracking pans, tilts and zooms to follow a moving person or vehicle across the scene.

How is it powered?

PoE+ (IEEE 802.3at) over the Cat6 cable or a 12 V DC 3 A supply. It draws up to 21 W. The PoE ports on the Uniarch NVR-104B-P4, NVR-108B-P8, NVR-216B-P16 and NVR-432XU-P16 supply up to 30 W each, so it can run straight from the recorder.

What mount does it need?

A PTZ wall bracket. Uniarch lists the TR-WE45-IN wall mount for it. Tell us whether it goes on a wall, corner or pole and we will confirm the bracket and adapter.

Does it have a microphone or speaker?

No, but it has an audio input and output for an external microphone and speaker, plus 2 alarm inputs and 1 alarm output for sensors or a siren, and RS485.

How far does it see at night?

Infrared reaches 100 m. LightHunter keeps colour down to 0.003 lux before the IR is needed.

Can it handle harsh weather?

Yes. It is IP67 and IK10, has 6 kV surge protection and works from −40 °C to 70 °C.

Will it work with my recorder?

Uniarch and Uniview NVRs add it and give you pan, tilt and zoom control from the recorder. Other ONVIF (Profile S, G or T) recorders can add it too; smart events and PTZ control depend on that recorder.

Can I control it from my phone?

Yes. In the Uniarch app you can watch live, pan, tilt and zoom, jump to presets and play back recordings.

Can it record on its own?

Yes, to a microSD card of up to 256GB. With an NVR, ANR fills any gap from the card when a network drop-out ends.

What is Ultra 265?

Uniarch’s video compression. It keeps the same picture as H.265 in less space, so the recorder holds more days of footage.

What is the warranty?

Uniarch 3-year manufacturer warranty, handled in Australia through us. Contact us first and we will organise any claim.
