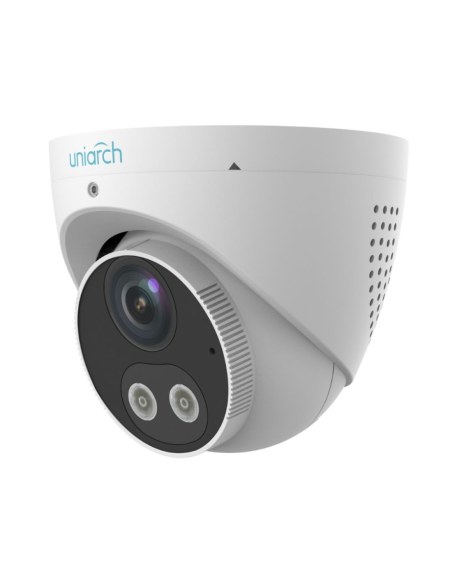

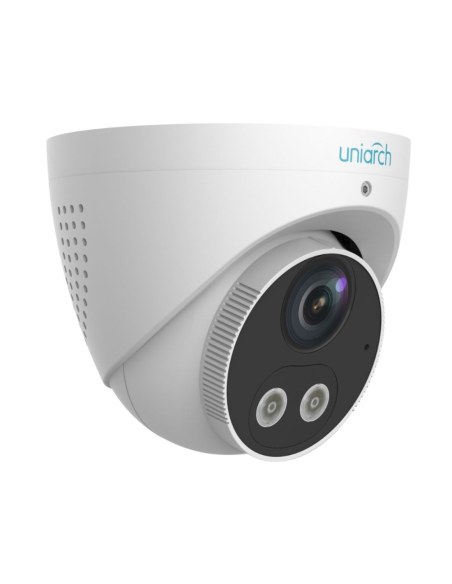

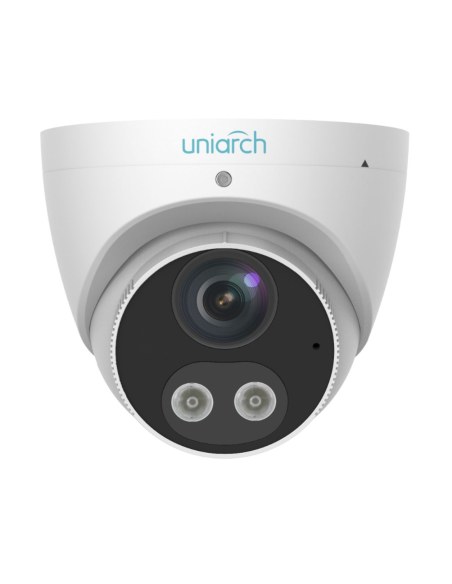

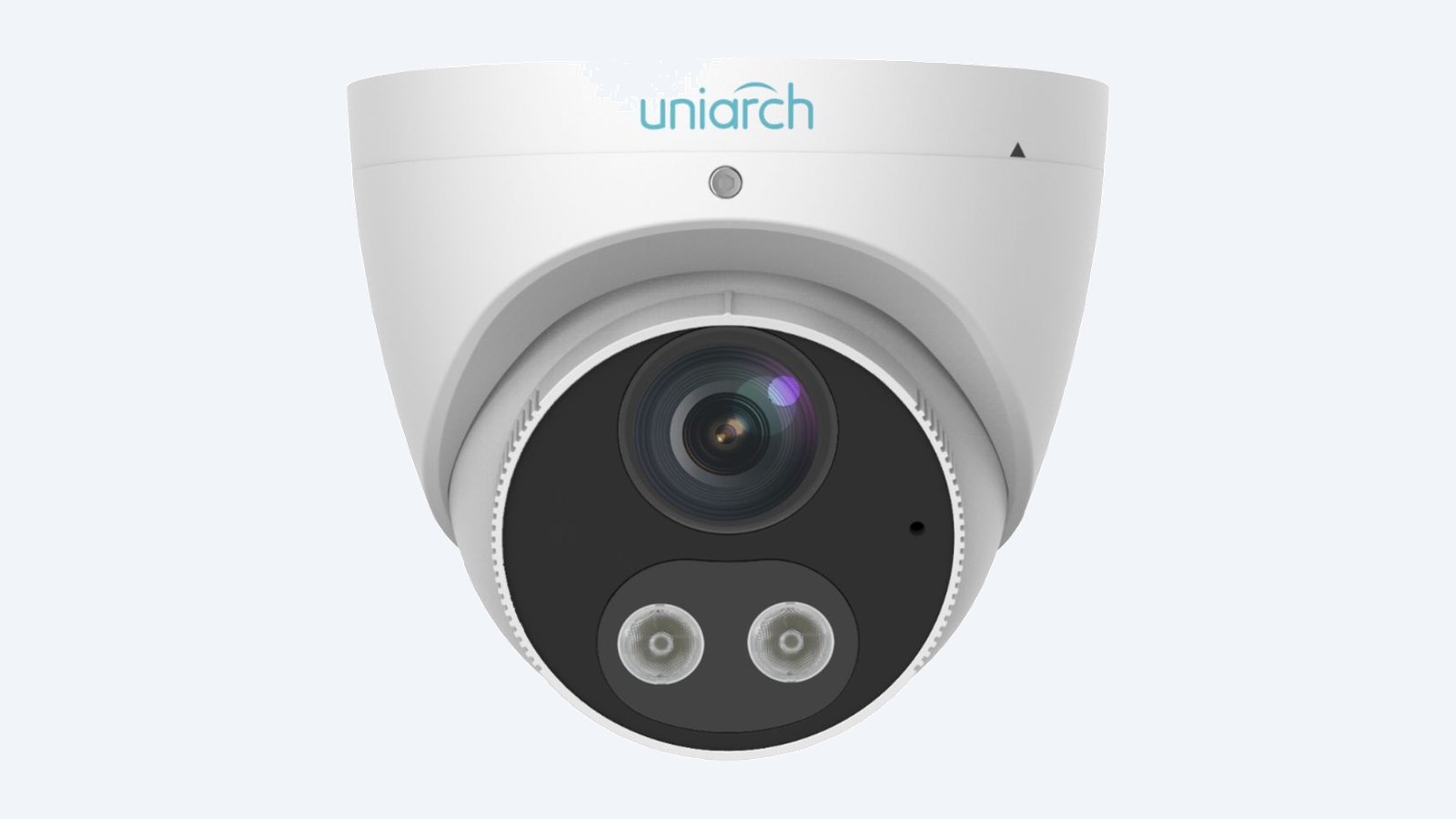

Uniarch IPC-T1P5-AF28KC white 5MP Tri-guard turret camera with a warning light, speaker and two-way audio. Person and vehicle detection, 30 m IR, IP67, PoE.
This is the Uniarch IPC-T1P5-AF28KC. A white 5MP turret camera that does more than record. When a person or vehicle crosses into a zone you set, it switches on a warning light and plays a warning sound, so they know they are on camera.
In one sentence: the IPC-T1P5-AF28KC is a white 5MP (2880 × 1620) Tri-guard turret with a warning light, speaker and mic, person and vehicle filtering, a 2.8 mm F1.6 lens, 101.1° view, 30 m IR and IP67, powered by PoE.
One camera, one Cat6 cable.
Video and power share a single Cat6 run from a PoE recorder or switch. Mounts and a memory card are optional.
A normal camera tells you what went wrong. A Tri-guard camera tries to stop it: light and sound go off the moment someone steps over a line, and you can speak to them through the speaker. It records 5MP at a full 30 fps.
Design

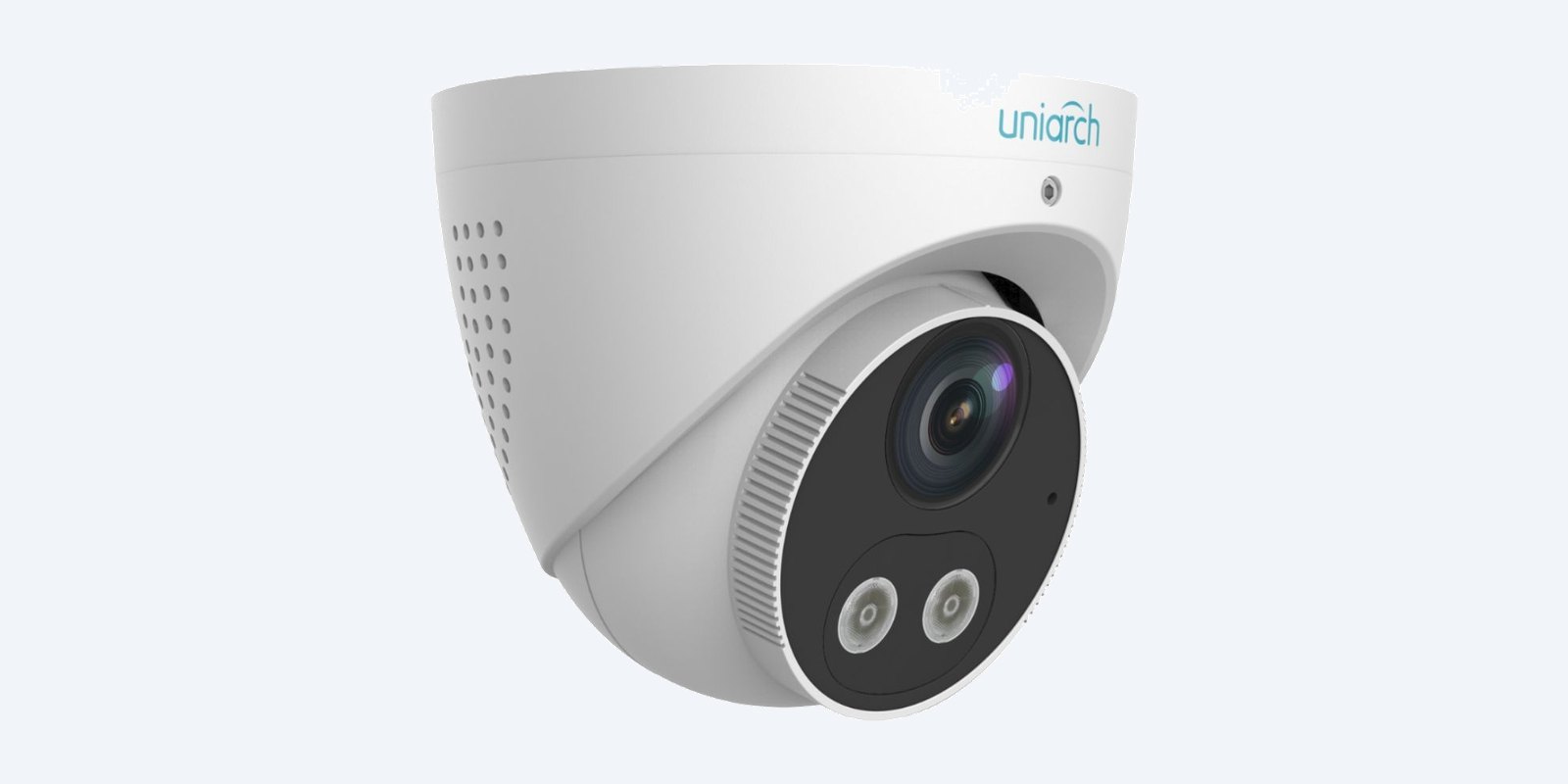

The eyeball holds the lens with the warning light just beneath it. It pans 360°, tilts 0–90° and rotates 360° in the metal base.
Sound
Play the warning sound when a zone is breached, or talk back to whoever is there from the app. The mic picks up sound for recording.
How it goes in
01
High enough to be out of easy reach, close enough to see faces, with a route for one Cat6 cable. Under an eave keeps sun and rain off the lens.
02
Screw the base to the wall or eave, or onto a TR-JB03-G-IN junction box so the cable joint is enclosed.
03
Run Cat6 to a PoE port on the NVR or a PoE switch. The camera powers up from the cable.
04
Turn the eyeball to frame the view, add it to the NVR or app, then draw the lines and zones that should set off the light and sound.
At a glance
Show specs
Resolution
5MP (2880 × 1620)
Sensor
1/2.7" CMOS
Lens
2.8 mm fixed, F1.6
View
101.1° across, 55.3° high
Identify / recognise / detect
6.3 / 12.6 / 63 m
Low light
0.003 lux colour, 0 lux with IR
WDR
120 dB true WDR
Night vision
Smart IR up to 30 m (850 nm)
Deterrence
Warning light and warning sound, linked to smart events
Frame rate
30 fps at 5MP and below
Compression
Ultra 265, H.265, H.264, MJPEG
Smart detection
Line crossing, intrusion, region entrance and exit, with person and vehicle filtering; motion, tampering, audio
Audio
Built-in mic and speaker, two-way audio
On-camera storage
microSD up to 256GB; ANR
ONVIF
Profile S, G, T
Network
1 × RJ45 10/100
Power
PoE (802.3af) or 12 V DC, max 7.5 W
Weather and impact
IP67
Operating
−30 °C to 55 °C, ≤95% RH
Size and weight
Ø111 × 95 mm, 0.43 kg
Pair it with
Recorder
4, 8, 16 and 32-channel recorders that power the camera over one Cat6 cable and add it automatically.
Mounting
Encloses the cable joint behind the camera on brick, render or a soffit with no cavity.
Walls
Holds the camera out from the wall so it can look along the building.
Cabling
A 305 m box of solid copper Cat6 for PoE runs up to 100 m.
Where it is used
Warn off anyone stepping over the boundary at night.
Light and sound when a car pulls in after hours.
Move on loiterers before they try the lock.
Talk to visitors and warn after hours.
| T1P5 / T1P5-B | T1P8 / T1P8-B | B1P8 | |
|---|---|---|---|
| Type | Turret, white or black | Turret, white or black | Bullet |
| Resolution | 5MP (2880 × 1620) | 8MP 4K (3840 × 2160) | 8MP 4K (3840 × 2160) |
| Frame rate at full resolution | 30 fps | 20 fps | 20 fps |
| Lens | 2.8 mm F1.6 | 2.8 mm F1.6 | 2.8 mm F2.0 |
| View across | 101.1° | 106.7° | 112.4° |
| Identify / recognise | 6.3 / 12.6 m | 8.7 / 17.4 m | 8.4 / 16.8 m |
| Colour low light | 0.003 lux | 0.003 lux | 0.01 lux |
| Max power | 7.5 W | 10.5 W | 10.5 W |
| Operating | −30 °C to 55 °C | −30 °C to 60 °C | −30 °C to 60 °C |
| Size and weight | Ø111 × 95 mm, 0.43 kg | Ø111 × 95 mm, 0.48 kg | 191 × 72 × 74 mm, 0.41 kg |
Model codes shortened from IPC-…-AF28KC. Every Tri-guard model has a warning light, a speaker and mic with two-way audio, person and vehicle filtering, 30 m IR, microSD up to 256GB, IP67 and PoE (802.3af) or 12 V DC. Figures from the Uniarch datasheets.
When someone crosses a line or walks into a zone you have drawn, the camera switches on its warning light and plays a warning sound through its speaker. The person knows straight away they have been seen, which is often enough to make them leave before anything happens. This is what Uniarch calls active deterrence.
Much less often than plain motion detection. The camera sorts what it sees into people, cars and bikes, and filters out most false alarms from leaves, birds and changing light. You choose whether people, vehicles or both trigger the alarm.
Yes. It has a microphone and a speaker with two-way audio, so you can listen in and speak to a visitor or an intruder from the app or the NVR.
No. The light and sound only go off for the smart events you link them to. You can leave them off and use the camera for recording and alerts only.
5MP (2880 × 1620) at a full 30 fps, with 4MP, 3MP and 1080p options. Uniarch rates it to identify at 6.3 m and recognise at 12.6 m.
Yes. The IPC-T1P5-AF28KC-B is the same camera in black, and the IPC-T1P8-AF28KC is the 8MP 4K Tri-guard turret.
Uniarch and Uniview NVRs find it on their PoE ports and add it automatically. Other recorders that support ONVIF Profile S, G or T can add it too, although the smart events may only come through on Uniarch and Uniview.
Yes. View it through your Uniarch NVR in the Uniarch app, or add the camera to the app on its own. Live view in a web browser works without a plug-in in current Chrome, Firefox and Edge.
Yes. Fit a microSD card of up to 256GB and it records on the camera itself. With an NVR, the card also covers network drop-outs: ANR sends the missed footage to the recorder when the link returns.
By PoE (IEEE 802.3af) over the same Cat6 cable as the video, from a PoE NVR or switch. Without PoE, it runs on a 12 V DC supply. It draws 7.5 W at most.
Uniarch’s video compression. It keeps the same picture as H.265 in less space, so the recorder holds more days of footage. H.265, H.264 and MJPEG are there too.
Uniarch 3-year manufacturer warranty, handled in Australia through us. Contact us first and we will organise any claim.
Not sure which camera suits each spot? Call 1300 736 970 or email [email protected] with a photo of the area and we will suggest the model and mount.
Power. PoE (IEEE 802.3af) or 12 V DC ±25%, 7.5 W maximum. Use one or the other.
Weather. IP67. Works from −30 °C to 55 °C. Seal the cable entry, or use the TR-JB03-G-IN junction box where the joint would be exposed.
Figures. From the Uniarch IPC-T1P5-AF28KC datasheet. Uniarch 3-year manufacturer warranty, handled in Australia through us.
