• IPC-B1P8-AF28KC camera
• Fixing screws and drill template
• Quick guide

• A PoE NVR or switch (802.3af), or a 12 V DC supply
• Cat6 cable to the camera
• A microSD card up to 256GB, to record on the camera
• TR-JB05-B-IN junction box or TR-UP06-C-IN pole adapter, if needed

01

Pick the spot

High enough to be out of easy reach, close enough to see faces, with a route for one Cat6 cable. Under an eave keeps sun and rain off the lens.

02

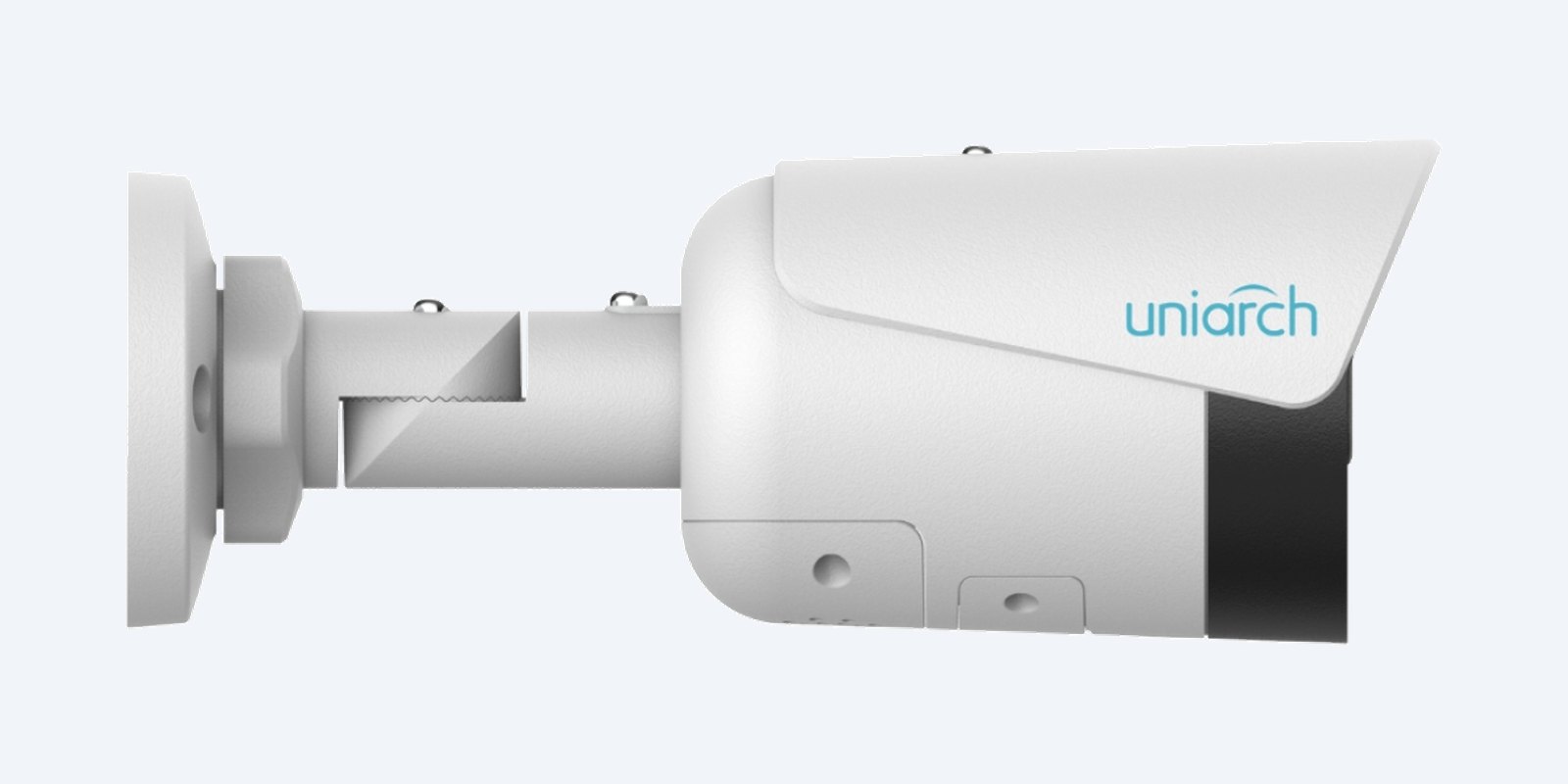

Fix the bracket

Screw the bracket to the wall or eave, onto a TR-JB05-B-IN junction box, or to a pole with the TR-UP06-C-IN adapter.

03

Plug it in

Run Cat6 to a PoE port on the NVR or a PoE switch. The camera powers up from the cable.

04

Aim and draw zones

Swing the bracket to frame the view and lock it, add it to the NVR or app, then draw the lines and zones that should set off the light and sound.

Recorder

Uniarch PoE NVR

4, 8, 16 and 32-channel recorders that power the camera over one Cat6 cable and add it automatically.

Mounting

TR-JB05-B-IN junction box

Encloses the cable joint behind the bracket on brick, render or a soffit with no cavity.

Poles

TR-UP06-C-IN pole adapter

Straps the camera to a pole or rail 67–127 mm across.

Cabling

Uniarch Cat6 cable

A 305 m box of solid copper Cat6 for PoE runs up to 100 m.

Driveways

Light and sound when someone walks up at night.

Fence lines

A line-crossing warning along the boundary.

Car yards

Pole mounted with vehicle and person zones.

Construction sites

Warn and talk to after-hours visitors.

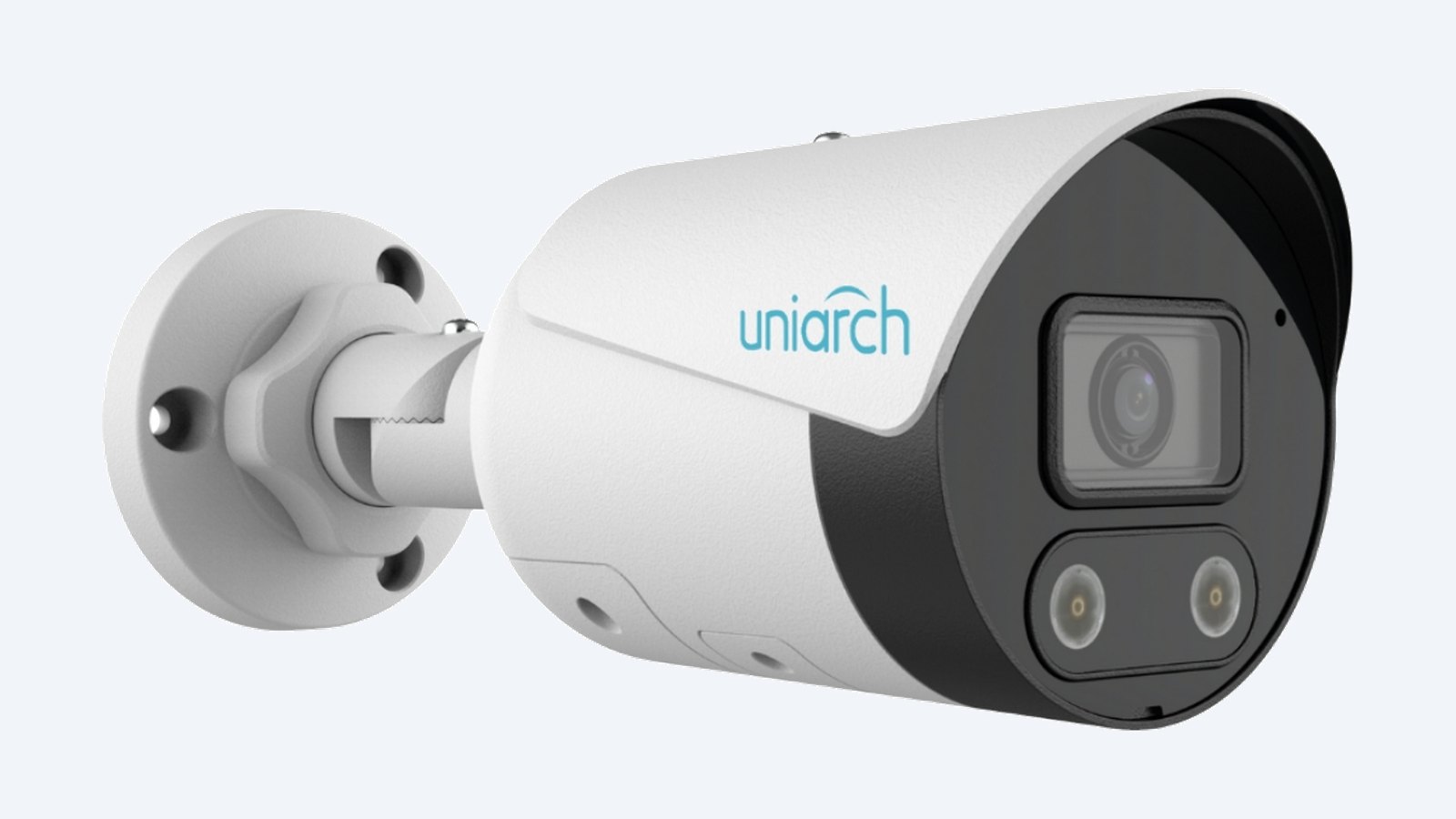

What does the warning light and speaker do?

When someone crosses a line or walks into a zone you have drawn, the camera switches on its warning light and plays a warning sound through its speaker. The person knows straight away they have been seen, which is often enough to make them leave before anything happens. This is what Uniarch calls active deterrence.

Will cats, trees or headlights set it off?

Much less often than plain motion detection. The camera sorts what it sees into people, cars and bikes, and filters out most false alarms from leaves, birds and changing light. You choose whether people, vehicles or both trigger the alarm.

Can I talk through it?

Yes. It has a microphone and a speaker with two-way audio, so you can listen in and speak to a visitor or an intruder from the app or the NVR.

Do I have to use the light and sound?

No. The light and sound only go off for the smart events you link them to. You can leave them off and use the camera for recording and alerts only.

What resolution and frame rate does it record?

8MP 4K (3840 × 2160) at up to 20 fps, or 5MP, 4MP and 1080p at 30 fps. It identifies a person at 8.4 m and recognises at 16.8 m.

Should I choose the bullet or the Tri-guard turret?

The bullet is more visible and has a wider 112.4° view; the 8MP turret has a brighter F1.6 lens (0.003 lux against 0.01 lux) and comes in black. Light, speaker and detection are the same.

Will it work with my recorder?

Uniarch and Uniview NVRs find it on their PoE ports and add it automatically. Other recorders that support ONVIF Profile S, G or T can add it too, although the smart events may only come through on Uniarch and Uniview.

Can I watch it on my phone?

Yes. View it through your Uniarch NVR in the Uniarch app, or add the camera to the app on its own. Live view in a web browser works without a plug-in in current Chrome, Firefox and Edge.

Can it record without an NVR?

Yes. Fit a microSD card of up to 256GB and it records on the camera itself. With an NVR, the card also covers network drop-outs: ANR sends the missed footage to the recorder when the link returns.

How is it powered?

By PoE (IEEE 802.3af) over the same Cat6 cable as the video, from a PoE NVR or switch. Without PoE, it runs on a 12 V DC supply. It draws 10.5 W at most.

What is Ultra 265?

Uniarch’s video compression. It keeps the same picture as H.265 in less space, so the recorder holds more days of footage. H.265, H.264 and MJPEG are there too.

What is the warranty?

Uniarch 3-year manufacturer warranty, handled in Australia through us. Contact us first and we will organise any claim.
