• MT-22-V(P) monitor
• Stand

• A recorder, DVR or PC with HDMI or VGA
• A power point

01

Fit the stand

Attach the stand to the monitor.

02

Connect the recorder

HDMI from the NVR or DVR, or VGA plus the audio lead.

03

Power on

Connect power and select the input.

04

Set the picture

Use the buttons on the bezel to set brightness and volume.

Recorder

Uniarch NVR

4, 8, 16 and 32-channel recorders with HDMI output.

Cameras

Uniarch IP cameras

6MP and 8MP turrets, bullets and domes.

Standard model

MT-22-V 22" monitor

The 60 Hz version, rated for 24/7 use with VESA mounting.

Bigger screen

MT-24-V 24" monitor

A 24-inch Full HD panel with the same inputs.

Reception desks

A neat screen where customers can see it.

Shop counters

Smooth live view of the floor and entry.

Home offices

Cameras beside the computer.

Security desks

Follow moving people and vehicles more easily.

How is it different from the MT-22-V?

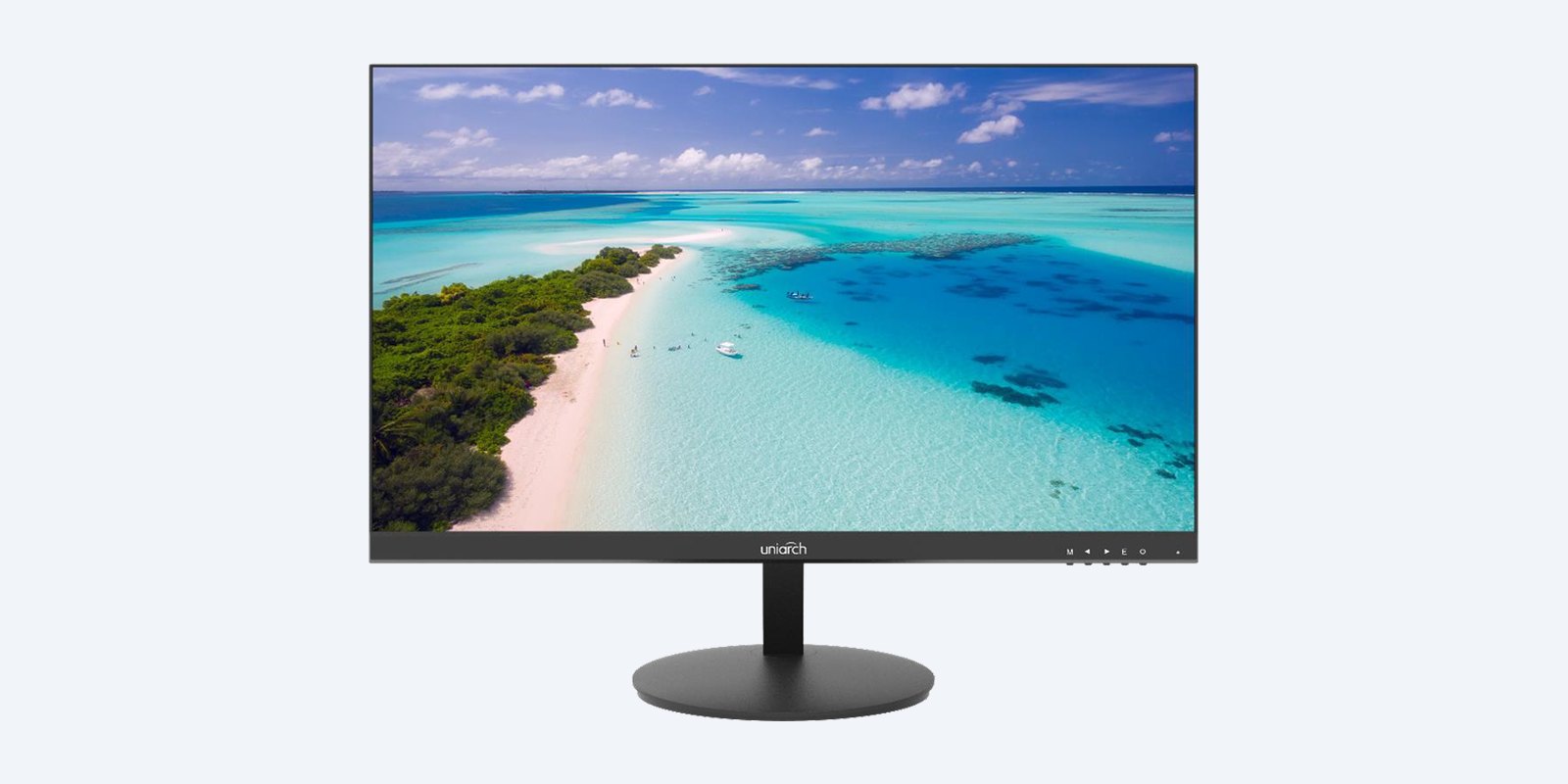

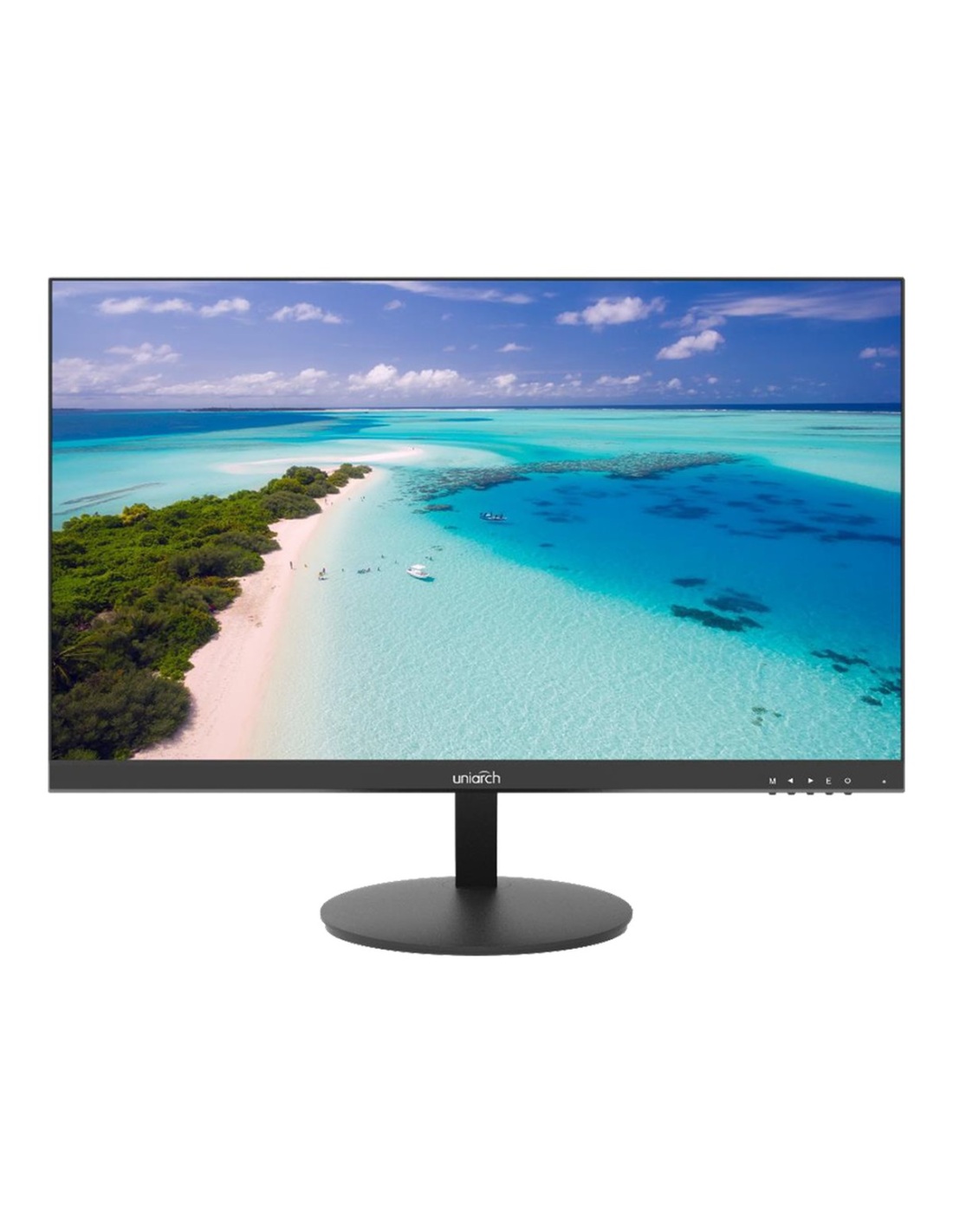

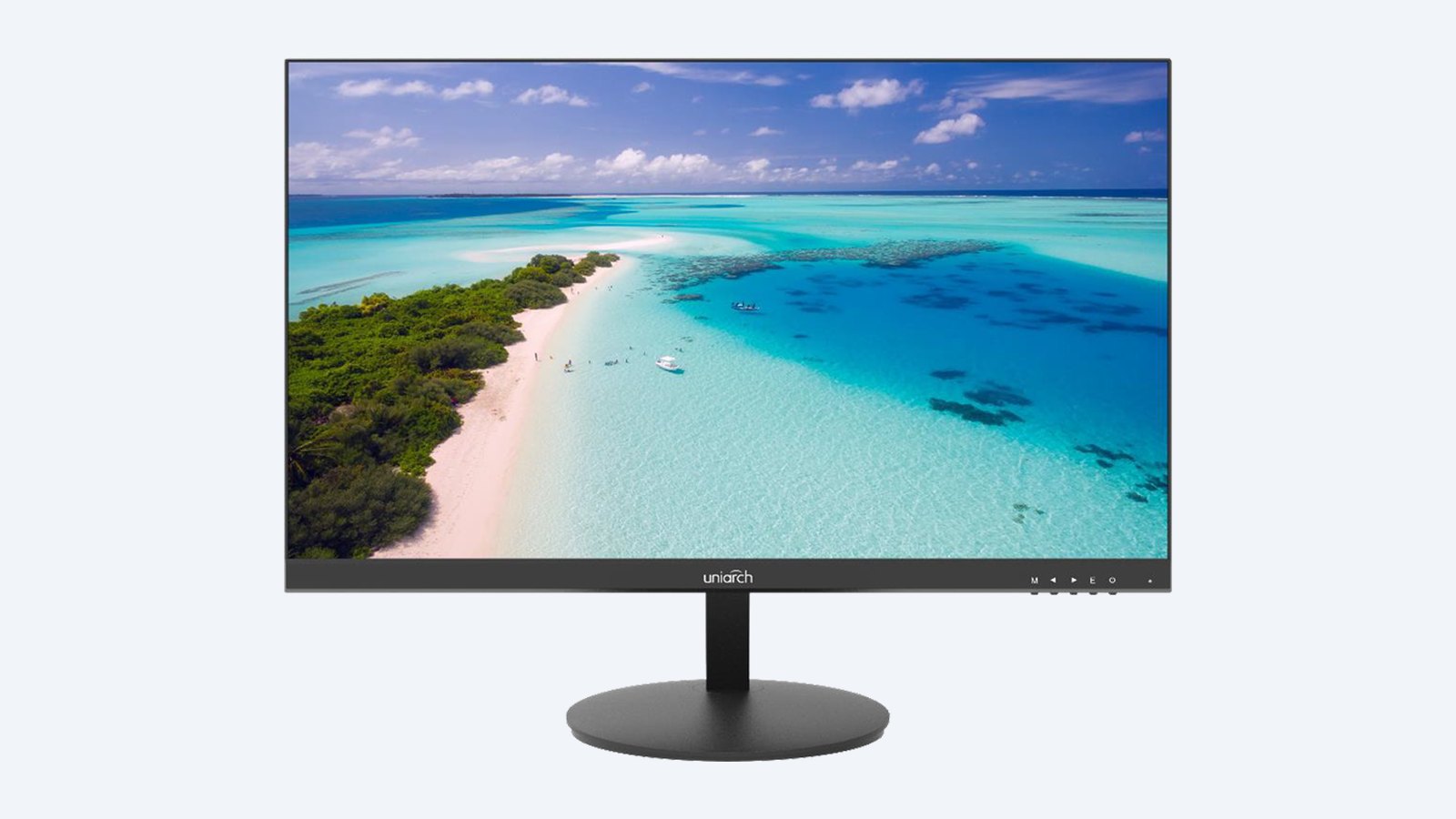

The (P) is the premium version: 100 Hz instead of 60 Hz, and an ultra-thin frameless design. Both are 22-inch Full HD with HDMI, VGA, audio in and two 1.5 W speakers.

What does 100 Hz do for CCTV?

The picture refreshes 100 times a second, so motion looks smoother than on a 60 Hz screen, especially when scrolling playback.

Will it work with any NVR or DVR?

Yes. Any recorder, DVR or PC with HDMI or VGA output connects directly.

Do I need separate speakers?

No. Two 1.5 W speakers are built in, fed over HDMI or the audio input.

What resolution is it?

1920 × 1080 Full HD. Set a 4K recorder’s HDMI output to 1080p.

Can I wall mount it?

Uniarch has not yet published the mounting details for this model. Call us and we will confirm before you order.

Is it rated for 24/7 use?

Uniarch has not yet published a duty rating for the (P). For a screen that stays on around the clock, the MT-22-V and MT-24-V are rated 7 × 24.

How many cameras can I see at once?

That depends on the recorder’s split screen. A 16-channel NVR shows all sixteen in a 4 × 4 layout.

Is there a datasheet?

Not yet. Uniarch has not released a public datasheet for the (P); we will add it here when it is published.

What inputs does it have?

One HDMI, one VGA and one audio input.

Can I see it before I buy?

Call 1300 736 970 and we will answer any questions about size, inputs and mounting.

What is the warranty?

Uniarch 3-year manufacturer warranty, handled in Australia through us. Contact us first and we will organise any claim.
