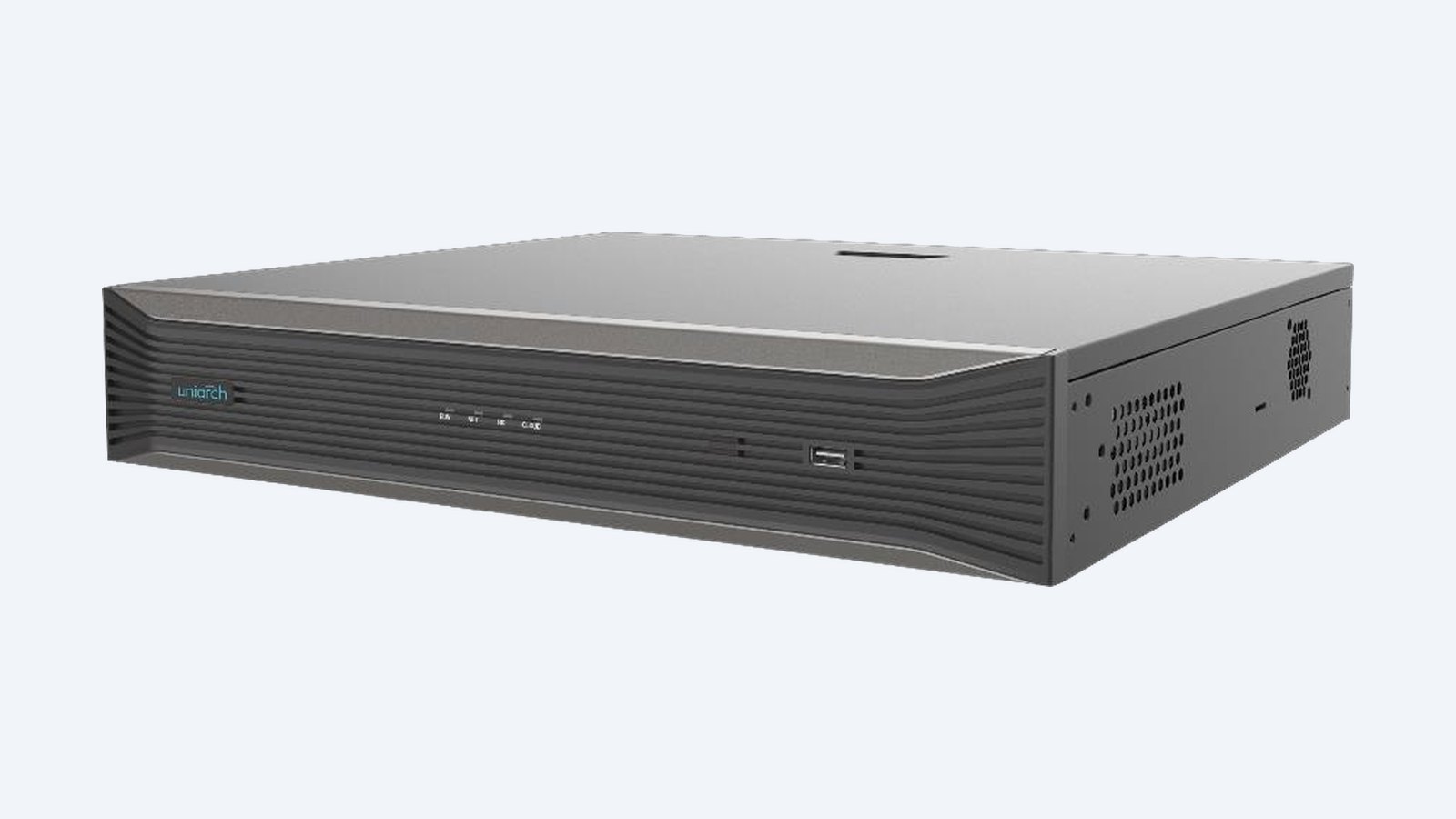

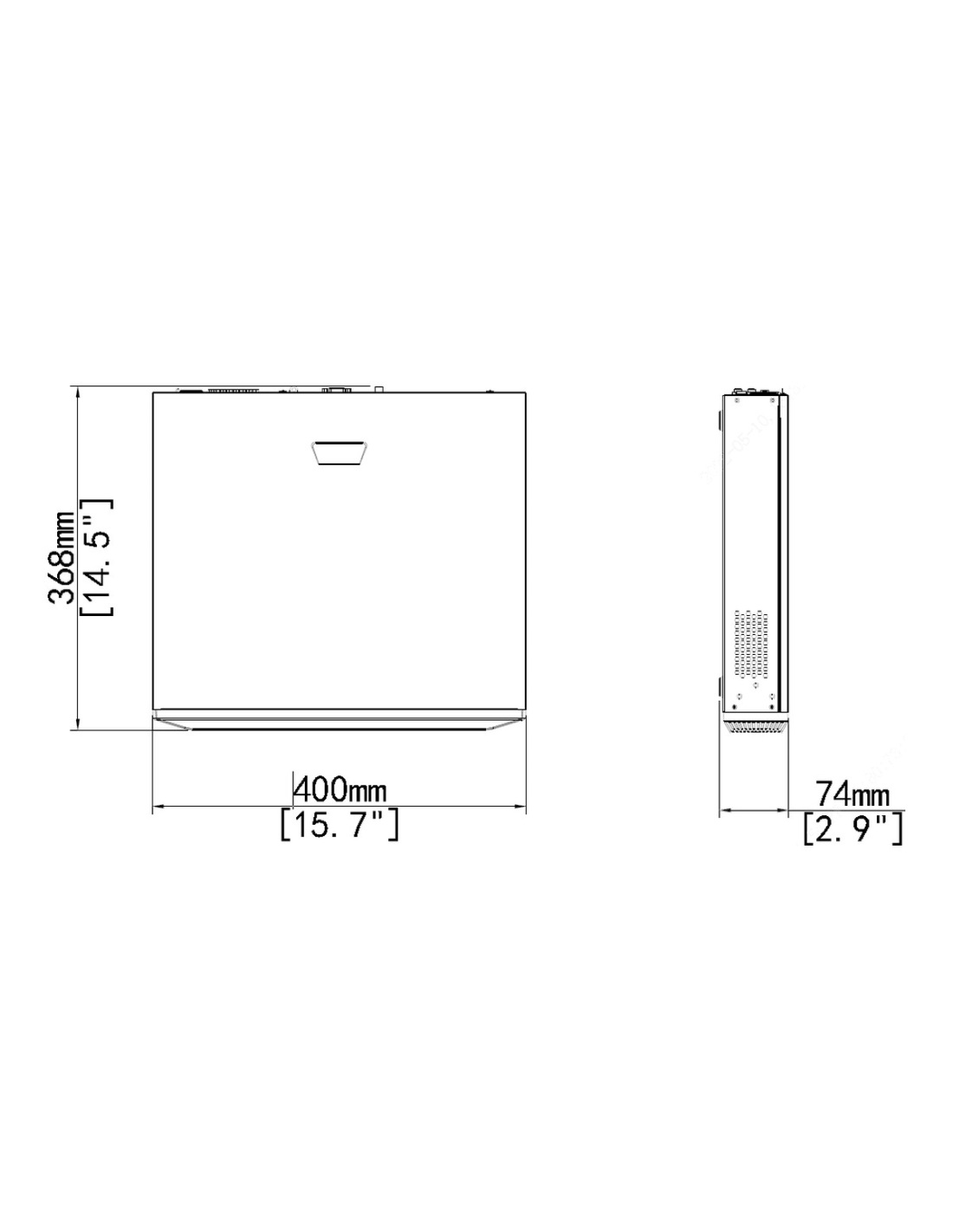

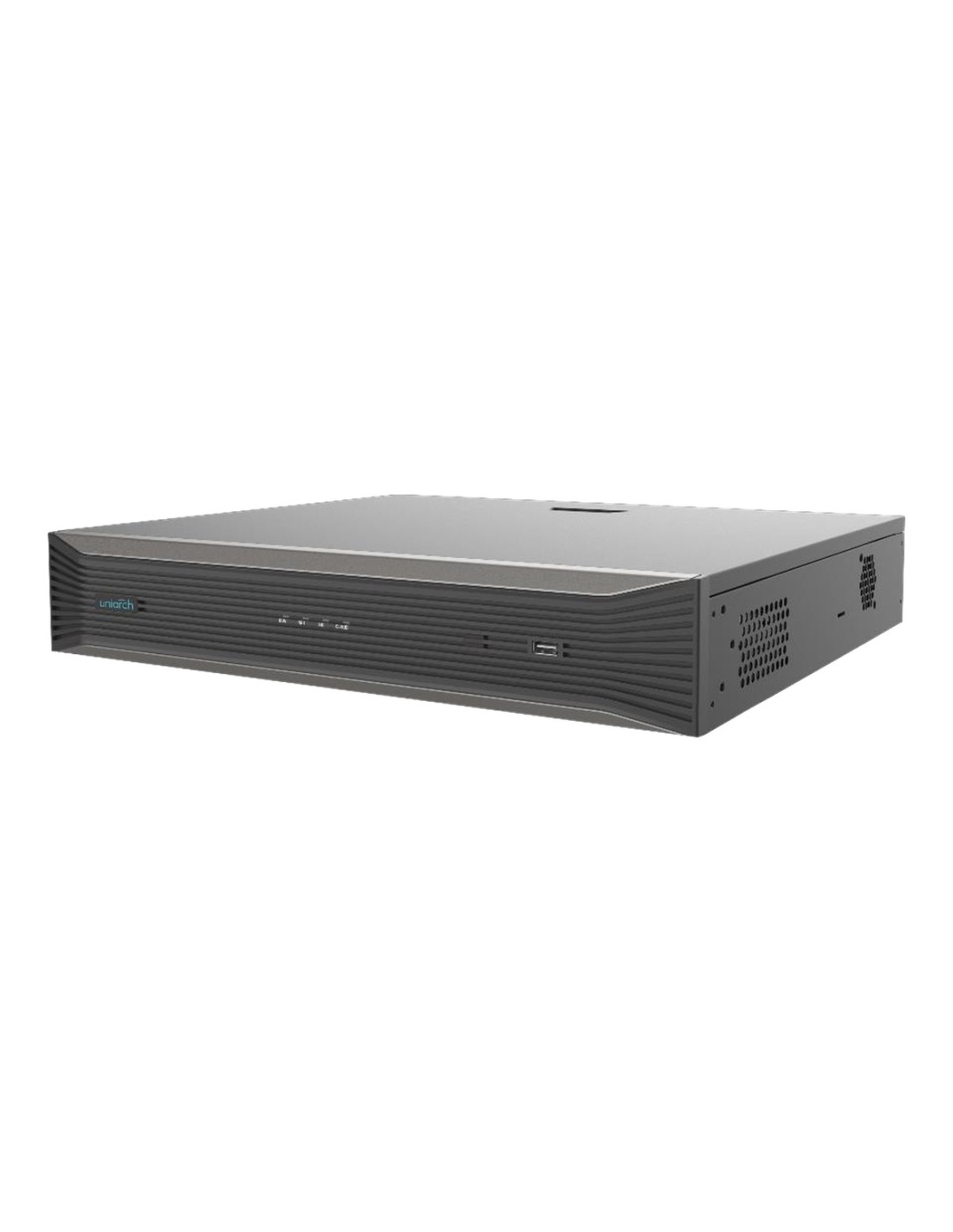

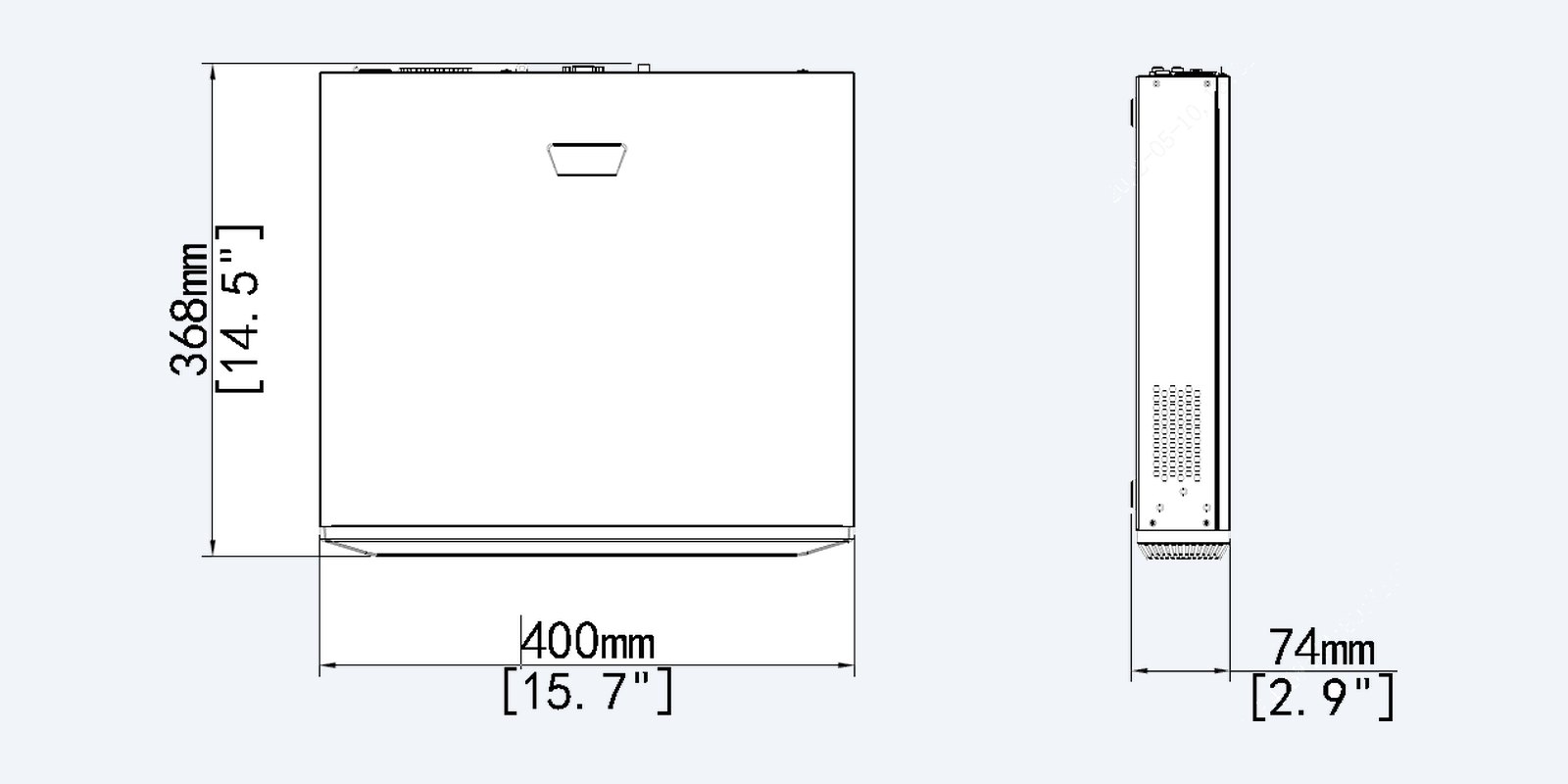

• NVR-432XU-P16 recorder
• Mains power lead
• Quick guide

• Extra drives for RAID 1 or 5, if wanted
• Up to 32 IP cameras
• A PoE switch for cameras 17 to 32
• A monitor or TV with HDMI or VGA
• Your router, for the phone app

01

Fit the hard drive

With the power off, open the lid and fit a surveillance drive in each bay you are using. Format it from the setup wizard.

02

Plug in the cameras

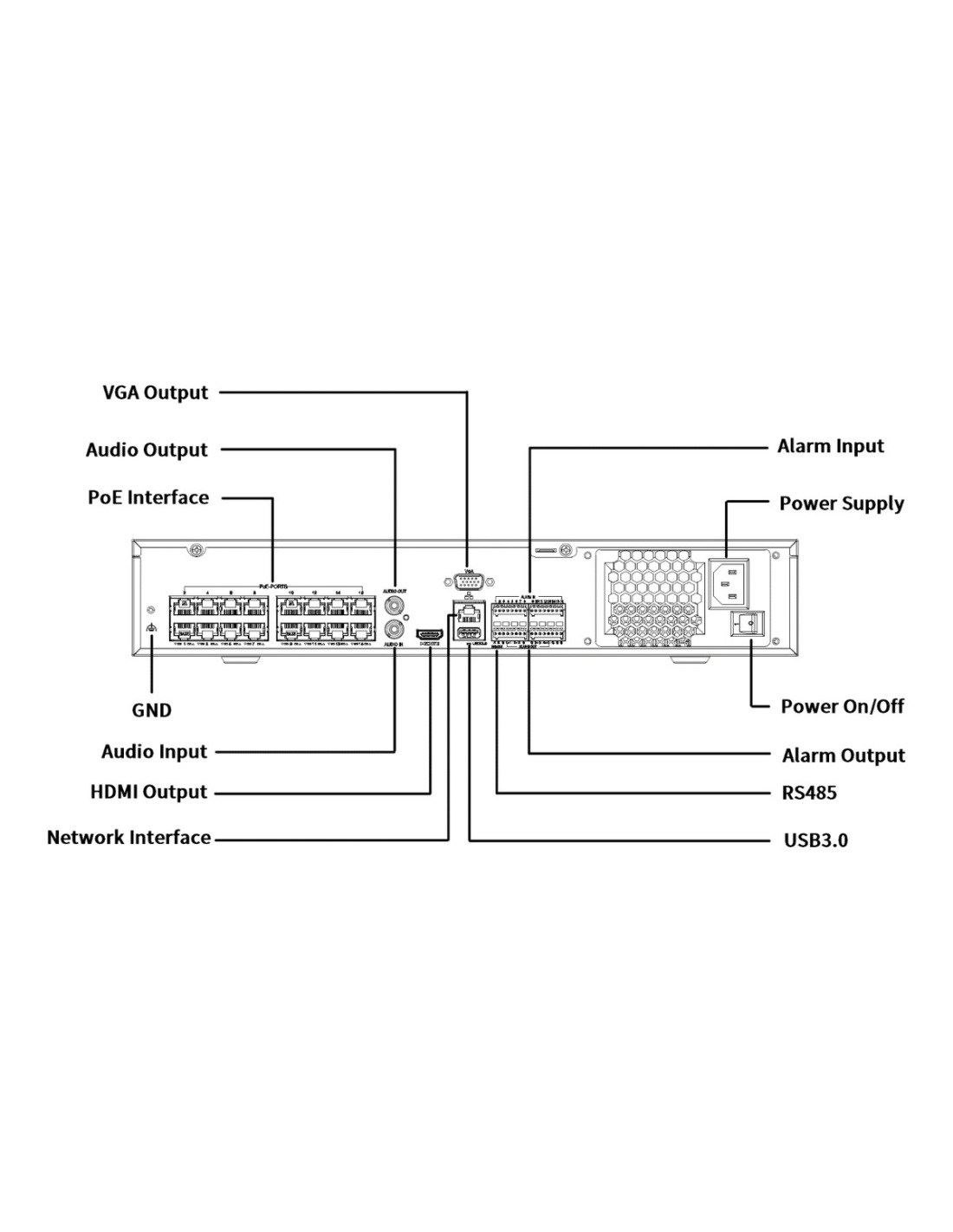

Run Cat6 from each camera to a PoE port on the back. Uniarch cameras are found and added automatically.

03

Connect screen and network

HDMI or VGA to the monitor, the network port to your router, then power on and follow the wizard.

04

Add it to the app

Scan the P2P QR code in the Uniarch app for live view, playback and alerts on your phone.

Storage

Seagate SkyHawk drive

Surveillance-rated 2, 4 or 6TB drives built for 24/7 recording. Fit three or four matching drives to use RAID 5.

Cameras

Uniarch IP cameras

6MP and 8MP Uniarch turrets, bullets and domes plug straight in and add smart events.

Viewing

Uniarch 22" or 24" monitor

Full HD screens rated for 24/7 use, with HDMI and built-in speakers.

Cabling

Cat6 cable

Solid-copper Cat6 for PoE runs of up to 100 m to each camera.

Factories and depots

Production floor, loading bays, fences and gates.

Apartment complexes

Car parks, lobbies, lifts and common areas.

Schools

Grounds, entries and corridors across several buildings.

Shopping strips

Shared areas and multiple tenancies on one recorder.

How do I connect more than sixteen cameras?

Sixteen plug into the built-in PoE ports. Connect the rest through a PoE switch on the same network as the recorder’s LAN port, up to 32 cameras in total.

What does RAID 5 give me?

With three or four drives, RAID 5 spreads the footage with parity, so recording carries on if one drive fails and you lose only one drive’s worth of space. RAID 1 mirrors pairs of drives.

What is the highest camera resolution?

Up to 12MP recording. It decodes one 12MP, two 4K or five 4MP streams at 30 fps for live view and playback.

Is a hard drive included?

No. The NVR-432XU-P16 ships empty so you can choose the storage. Four SATA bays take drives of up to 10TB each, with RAID 1 or RAID 5. We suggest surveillance-rated drives such as Seagate SkyHawk.

Will it work with cameras that are not Uniarch?

Yes, with ONVIF (Profile S, G or T) or RTSP cameras. Smart events such as line crossing and intrusion come from Uniarch and Uniview cameras; third-party cameras normally give video and basic motion only.

Can I watch the cameras on my phone?

Yes. Connect the recorder’s network port to your router and add it to the Uniarch app with the P2P QR code. Live view, playback and alerts then work on iPhone and Android.

What screen can I plug in?

Any monitor or TV with HDMI or VGA. HDMI runs up to 4K (3840 × 2160) at 30 Hz and VGA up to 1920 × 1080. The Uniarch MT-22-V and MT-24-V monitors suit it and have speakers built in.

What is Ultra 265?

Uniarch’s compression. It records the same picture as H.265 in less space, so the drive holds more days of footage. H.265 and H.264 are supported too.

What does ANR do?

If the network drops, compatible cameras keep recording to their SD card and the NVR pulls the missing footage back when the link returns.

How far can the cameras be from the recorder?

Up to 100 m of Cat6 per PoE port, which is the Ethernet limit. Beyond that, add a PoE switch or extender part way.

Can I mount it in a rack?

It suits a rack shelf or a secure cabinet. Ask us about mounting options for your rack.

What is the warranty?

Uniarch 3-year manufacturer warranty, handled in Australia through us. Contact us first and we will organise any claim.
