Uniview Bullet and Mini PTZ Junction Box, Square, Aluminium, Black - TR-JB07-D-IN-BK
TR-JB07-D-IN-BK
In stock $ 32.90
inc-GST
or 4 interest-free payments of $8.22 with
Uniview TR-JB07-D-IN-BK square aluminium junction box for IPC23XX bullets, the IPC6324LWH mini PTZ and the Uniarch IPC-P1E5. Covers the cable joint, with three 3/4" entries. Black finish.
- ✓Fits IPC23XX bullets and mini PTZs
- ✓Hides the cable tail and RJ45 plug
- ✓Three 3/4" cable entries
- ✓125 × 125 × 57 mm, 0.75 kg
- ✓Pole mounting with TR-UP06-C-IN
- ✓Aluminium alloy, black
Uniview · Junction box · Bullets and mini PTZ
A solid base for a bullet,
with room for the connector.

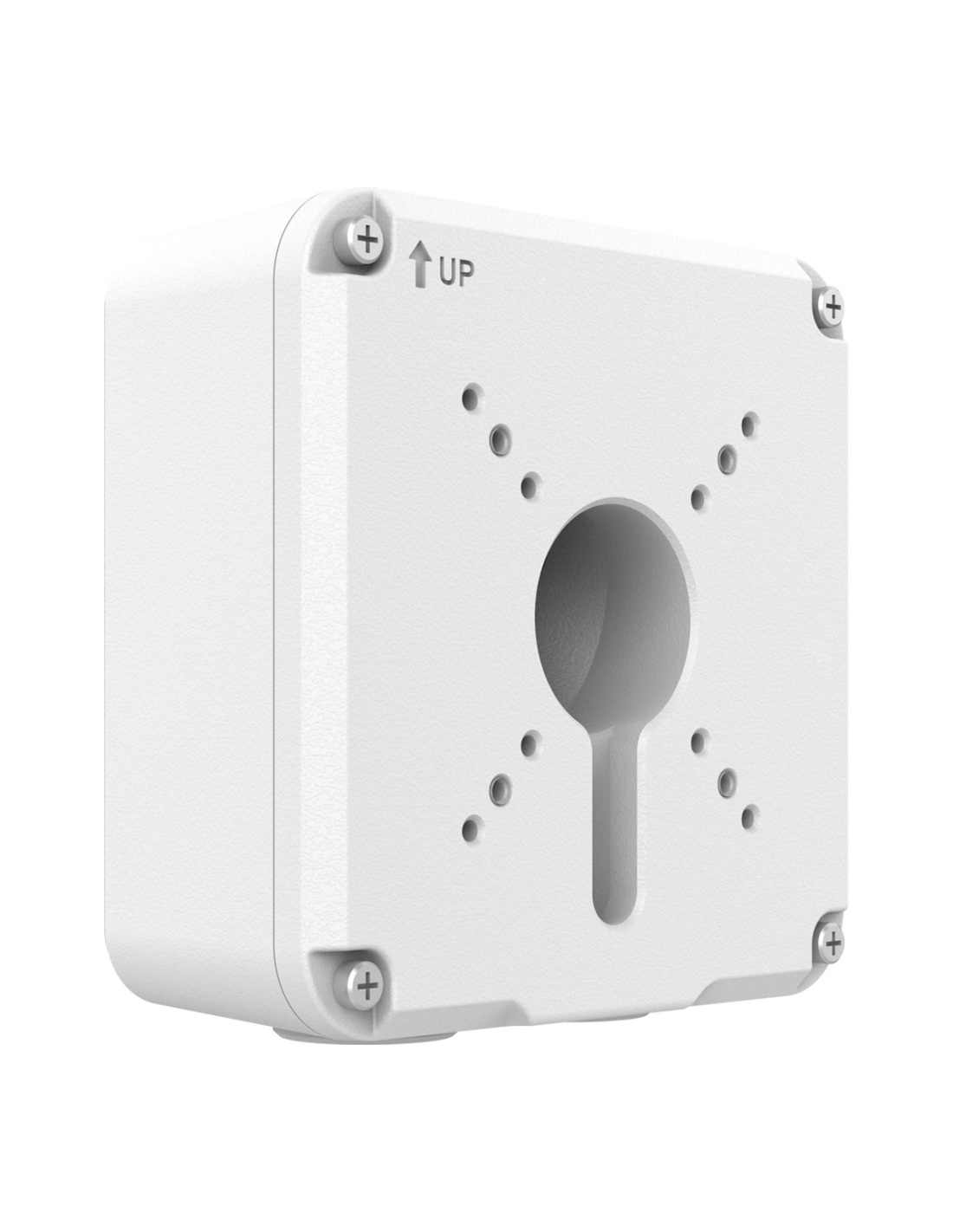

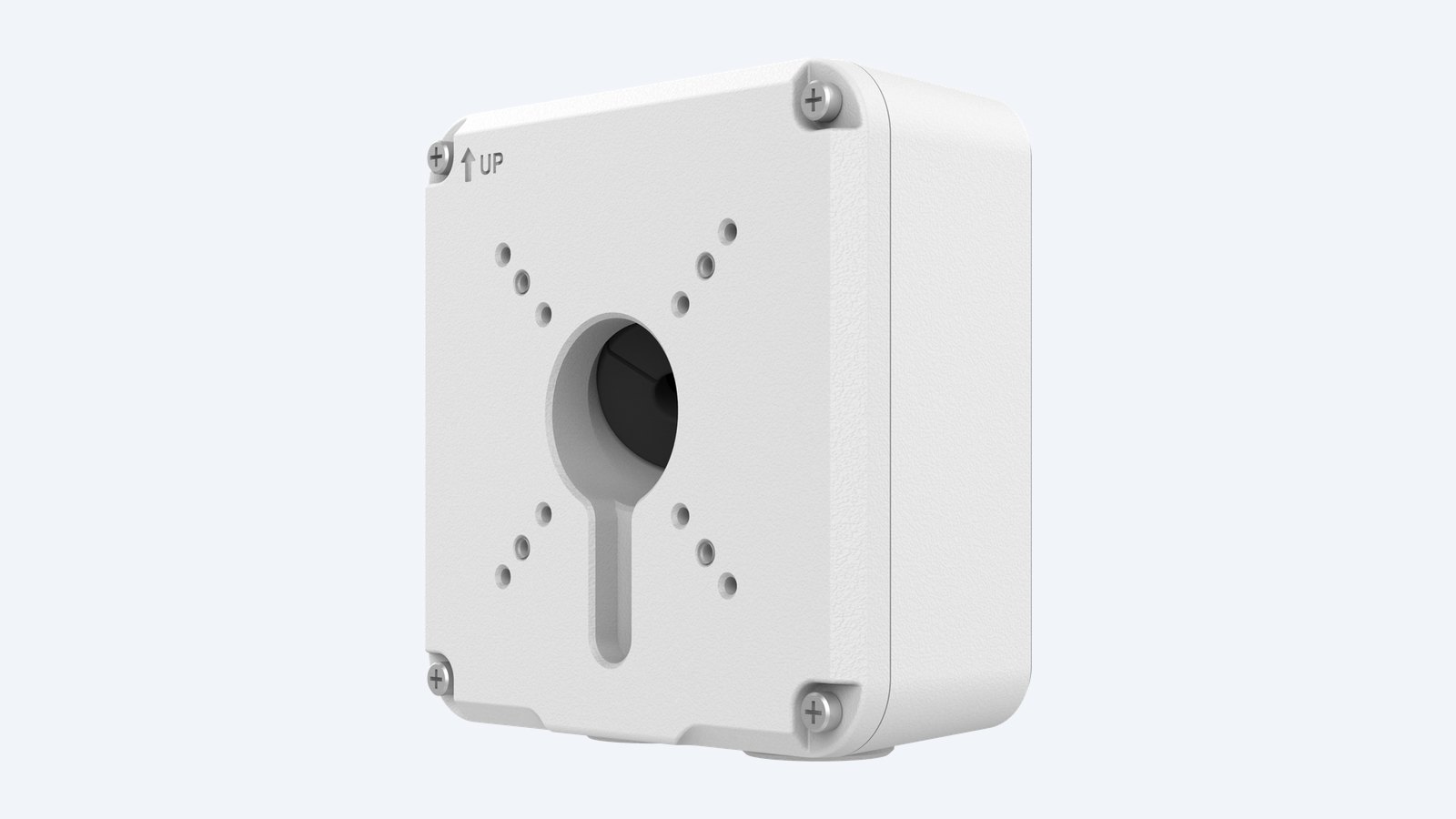

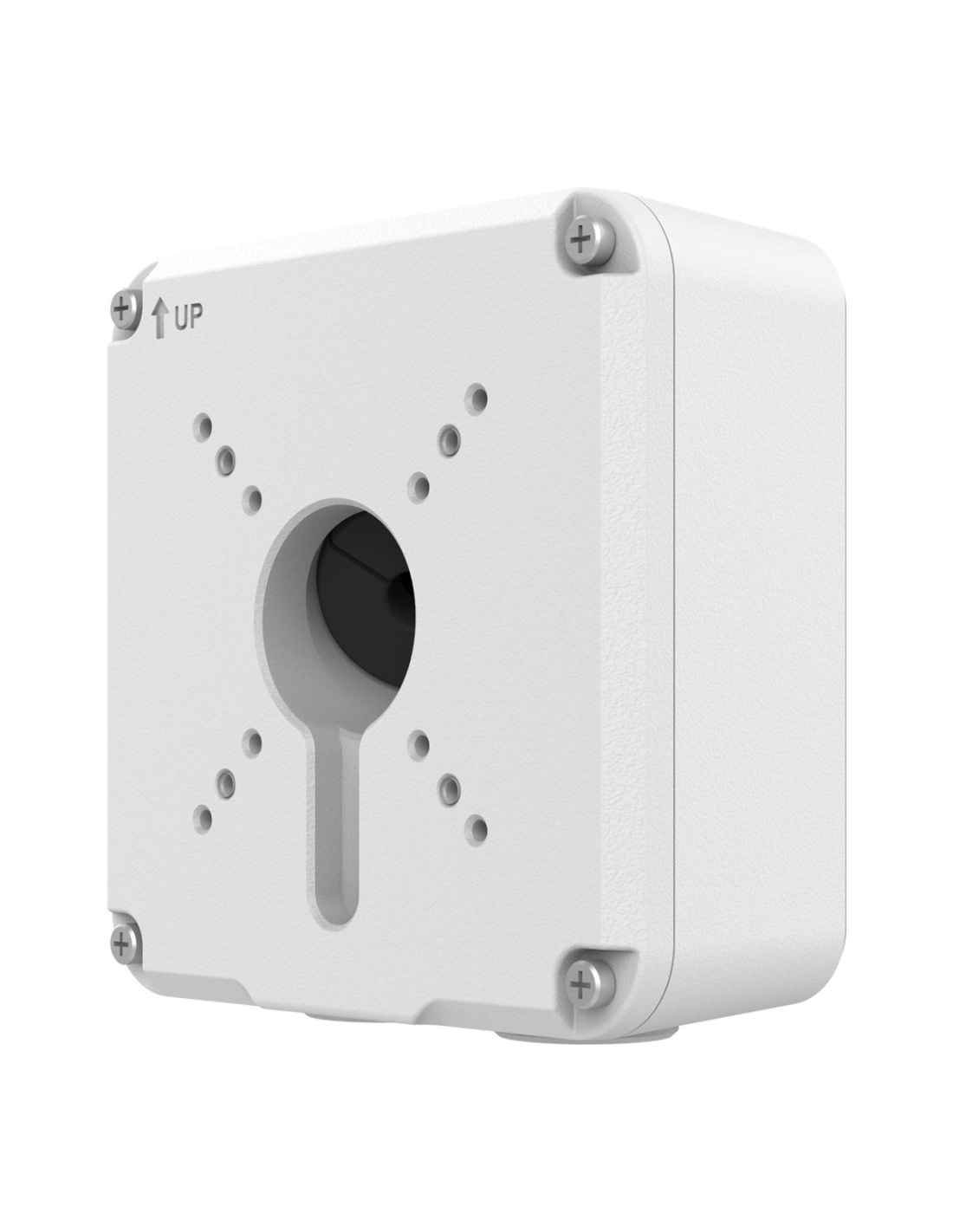

This is the Uniview TR-JB07-D-IN-BK. A square aluminium junction box that goes between the wall and a Uniview bullet or mini PTZ. The camera’s cable tail and RJ45 plug sit inside it, and the cable can come from behind, from below or through the side.
In one sentence: the TR-JB07-D-IN-BK is a 125 × 125 × 57 mm aluminium alloy junction box for Uniview IPC23XX/222X, IPC74X and IPC252/26X bullets, with three 3/4" threaded cable entries, weighing 0.75 kg.
The box only. The camera and wall fixings are separate.
Order it with a matching bullet or mini PTZ. Use four wall fixings that suit your surface, or add the TR-UP06-C-IN to put it on a pole. This is the black finish; the photos show the white version of the same box.
In the box
- TR-JB07-D-IN-BK junction box
You also need
- A compatible bullet or mini PTZ
- 4 screws and plugs to suit your wall
- A drill
- Outdoor sealant for the cable hole
- TR-UP06-C-IN pole adapter, for a pole
Room for the plug, so the cable stays out of the weather.
Bullets and mini PTZs have a cable tail with an RJ45 plug and power lead. The box gives that joint a covered space, so it is not left hanging under the camera.

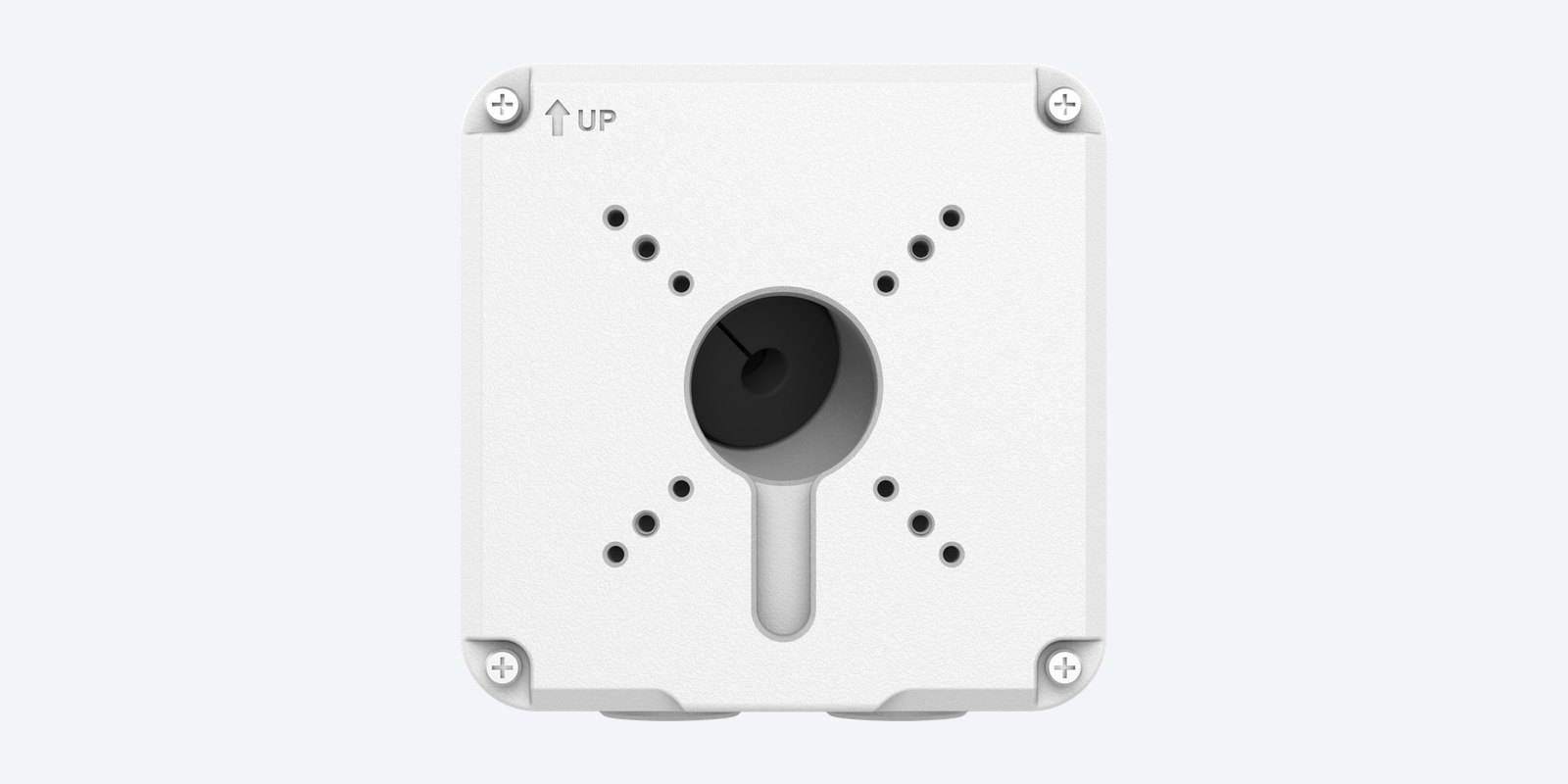

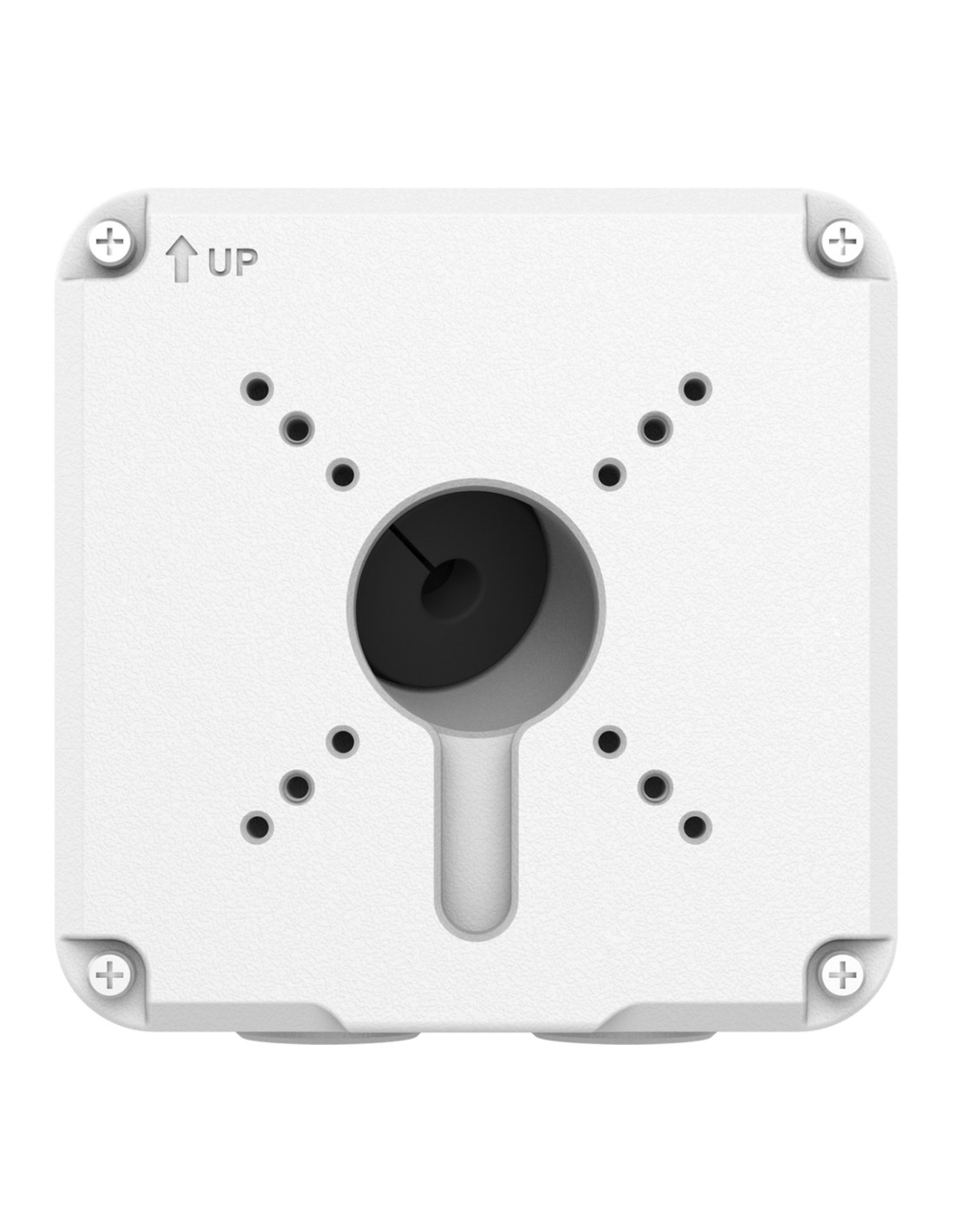

Lid
One lid, several camera patterns.
The lid has M4 threaded holes on 39 mm and 64 mm squares and a 74 mm circle, an UP arrow, and a slotted Ø36 mm hole that lets the plug through without cutting it off.

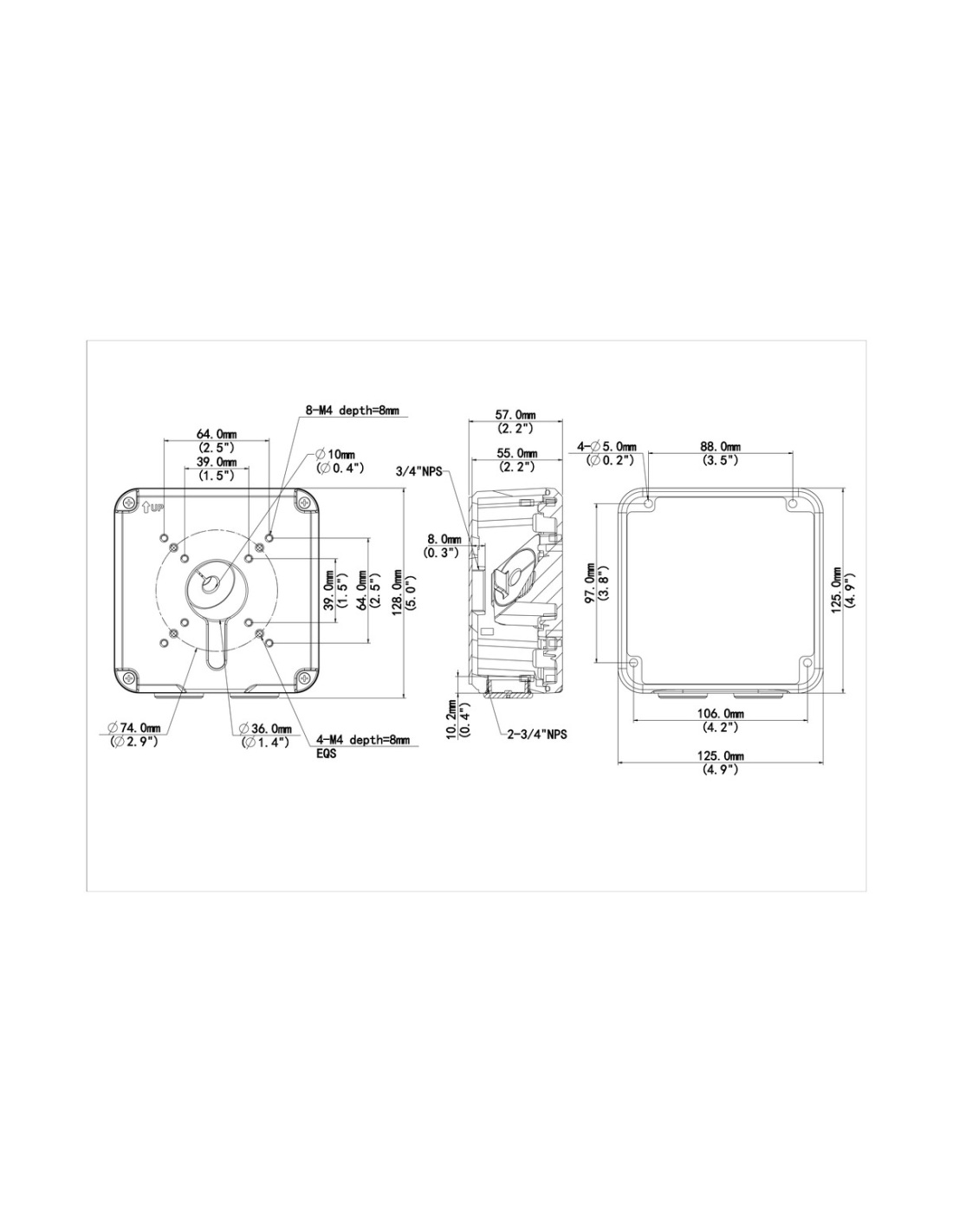

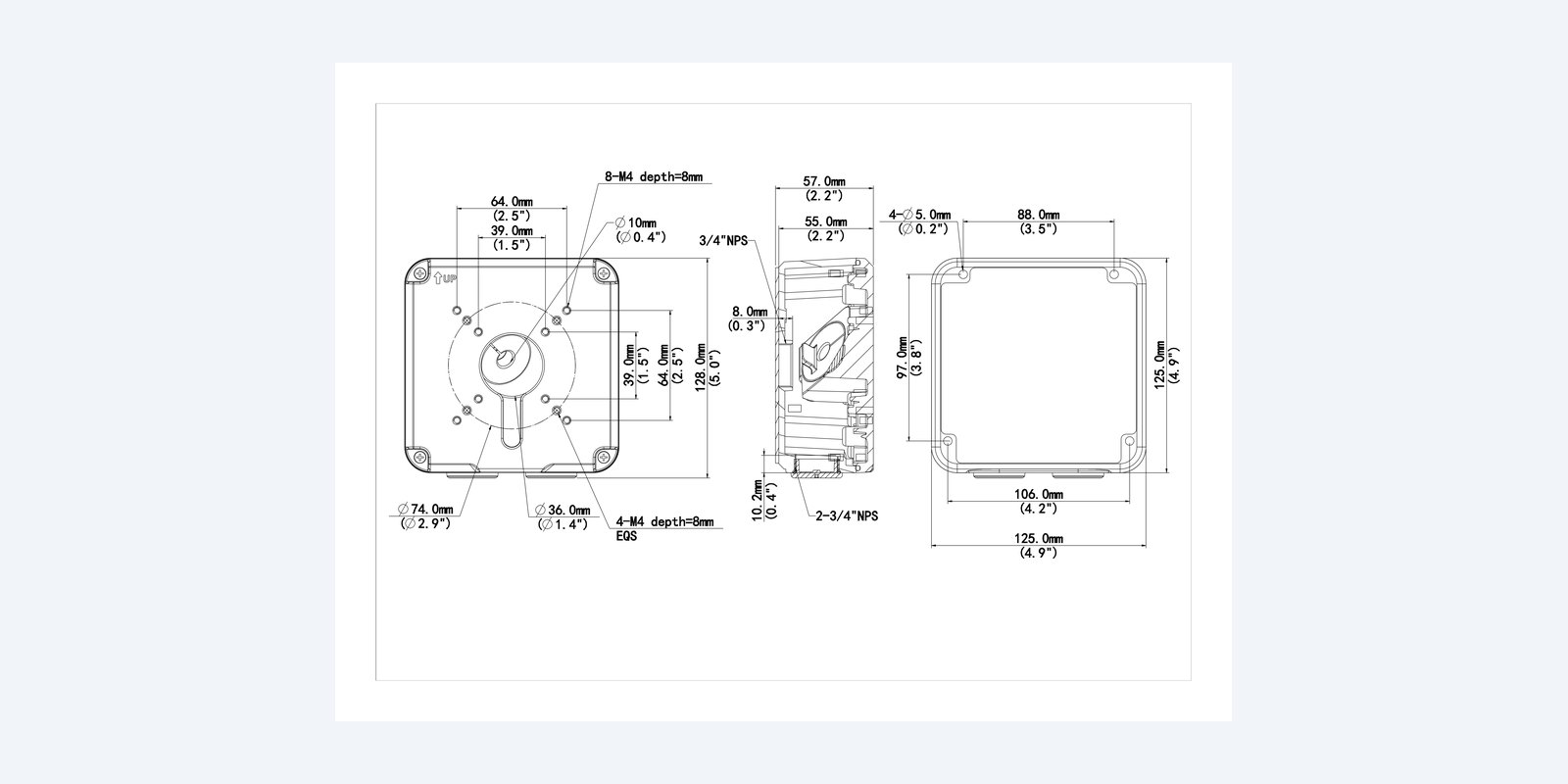

Size
125 × 125 mm, 57 mm deep.
Four Ø5 mm holes, 88 × 97 mm apart, fix the base. There is a 3/4" NPS entry in the side and two in the base, so the cable can come from behind, from below or along the wall.
How it goes in
From the box to a mounted camera.
01
Mark and drill
Hold the base with the UP arrow pointing up and mark the four holes. Drill a cable hole in the middle if the cable comes from the wall.
02
Fix the base
Screw the base to the wall, or bolt it to the TR-UP06-C-IN on a pole. Fit a gland to any entry you use for surface cable.
03
Connect the camera
Pass the plug through the slotted hole, connect it and tuck the joint inside.
04
Close and aim
Screw the lid on, fix the camera to the lid with M4 screws and aim it.
At a glance
TR-JB07-D-IN-BK
Show specs
Type
Square junction box
Fits
Uniview IPC23XX/222X, IPC74X, IPC252/26X bullets; IPC6324LWH mini PTZ; Uniarch IPC-P1E5
Size
125 × 125 × 57 mm
Weight
0.75 kg
Material
Aluminium alloy
Cable entries
3 × 3/4" NPS (side and base)
Wall holes
4 × Ø5 mm, 88 × 97 mm
Camera fixing
M4 on 39 mm and 64 mm squares, Ø74 mm circle
Colour
Black
Pair it with
What goes with it
Camera
Uniview IPC2328SB bullet
8MP motorised bullet from the IPC23XX series.
Mini PTZ
Uniview IPC6324LWH Tri-Guard
4MP 5x PTZ that lists this box in its datasheet.
Poles
TR-UP06-C-IN pole adapter
Straps this box to a pole or rail.
White
TR-JB07-D-IN
The same box in white.
Where it is used
Where it is used
Driveways and gates
A bullet on the house wall looking down the drive.
Car parks
On a pole with the TR-UP06-C-IN.
Warehouses
Roller doors and loading bays.
Farms and sheds
Steel posts and shed walls.
Uniview bullet mounting parts side by side
| TR-JB07-D-IN | TR-JB05-B-IN | TR-UP06-C-IN | TR-UP06-B-IN | |
|---|---|---|---|---|
| Type | Junction box | Junction box | Pole adapter | Pole bracket |
| For | IPC23XX, 222X, 74X, 252/26X bullets | IPC21XX mini bullets | Bullet junction boxes | IPC22X, IPC24X bullets |
| Size | 125 × 125 × 57 mm | Ø104.4 × 57 mm | 136 × 127 × 63.6 mm | 100 × 90 × 38.2 mm |
| Weight | 0.75 kg | 0.36 kg | 0.34 kg | 0.2 kg |
| Pole size | — | — | 67–127 mm | 67–127 mm |
— means not applicable. Figures from the Uniview datasheets (TR-UP06-C-IN pole range from the Uniarch-branded datasheet of the same part).
Common questions
Which cameras does it fit?
Uniview lists it for its IPC23XX/222X, IPC74X and IPC252/26X bullets. From our range: the IPC2328SB-DZK-I0 and IPC2328SB-ADZKM-DL-I1 bullets and the IPC6324LWH-AX5C-VG2 Tri-Guard mini PTZ (its datasheet lists this box). The Uniarch IPC-P1E5 mini PTZ also lists it.
Does it fit the IPC2B bullets?
Uniview lists the newer TR-JB07-D-IN-V2 for the IPC2B16 and IPC2B18 bullets, not this version, so we do not list them here. Call us and we will confirm the right box for your camera.
How many cable entries are there?
Three, all 3/4" NPS: one on the side and two in the base. Uniview’s TR-A01-IN is an NPT 3/4" waterproof gland for them; for Australian 20 mm conduit use a matching thread adapter.
How big is it?
125 × 125 mm and 57 mm deep. It weighs 0.75 kg.
Can I put it on a pole?
Yes. Uniview pairs it with the TR-UP06-C-IN pole adapter, which straps to poles 67–127 mm across.
What screws do I need?
Four screws to suit the Ø5 mm holes, with masonry plugs for brick or timber screws into a stud or fascia. Uniview does not list fixings in the box.
Can I use it outdoors?
Yes. Uniview lists it for outdoor or indoor use. Seal the wall hole and fit glands to any open entry.
Which way up does it go?
With the UP arrow on the lid pointing up, so the camera’s bracket lines up with the hole pattern.
What is it made of?
Aluminium alloy, 0.75 kg. It will not rust like steel.
Is it white or black?
Black. It is the black finish of the TR-JB07-D-IN, made to match black Uniview cameras. Uniview only publishes photos of the white version, so the photos here show the white part; the shape and size are the same.
Do I need a licensed installer?
Fixing the bracket is a normal handyman job. In Australia, fixed data cabling inside walls and ceilings must be run by a registered cabler; plugging a camera into an existing outlet does not need one.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure which mount suits your camera or wall? Call 1300 736 970 or email [email protected] with the camera model and a photo of the spot, and we will match the bracket.
Installation and safety
Fixing. Fix into solid material, never plasterboard alone. Turn off power to the camera before connecting it.
Weather. Seal any unused cable entry and point cable glands downward so water cannot run into the camera connection.
Figures. From the Uniview TR-JB07-D-IN datasheet and dimension drawing; camera fits from Uniview’s camera datasheets and accessory guide. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 125 × 125 × 57 mm
- Weight
- 0.75 kg
- Material
- Aluminium Alloy
- Colour
- Black
- Installation
- Wall, or pole with TR-UP06-C-IN
- Brand
- Uniview
- Warranty
- 3 years
- Product Type
- Camera Junction Box
- Model
- TR-JB07-D-IN-BK
- Cable Entry
- 3 × 3/4" NPS (side and base)
- Use
- Indoor or outdoor
- Mount type
- Junction box
- Compatible Cameras
- Uniview IPC2328SB-DZK-I0, IPC2328SB-ADZKM-DL-I1, IPC6324LWH-AX5C-VG2; Uniarch IPC-P1E5
- Camera Series
- Uniview IPC23XX/222X, IPC74X, IPC252/26X bullets; IPC6324 mini PTZ; Uniarch P1E
- Wall Fixing Holes
- 4 × Ø5 mm, 88 × 97 mm
- Camera Fixing
- M4 on 39 mm and 64 mm squares, Ø74 mm circle
- Pole Mounting
- With TR-UP06-C-IN
