Uniview Multi-Sensor Camera Pendant and Wall Adapter, G1.5" Thread, for IPC8645EA - TR-UF45-K-IN
TR-UF45-K-IN
In stock $ 46.10
inc-GST
or 4 interest-free payments of $11.53 with
Uniview TR-UF45-K-IN aluminium adapter for the IPC8645EA four-sensor camera. G1½ thread for Uniview wall arms and pendants, with a safety lanyard.
- ✓Made for the Uniview IPC8645EA
- ✓G1½ thread for Uniview arms and pendants
- ✓Wall, corner or pendant mounting
- ✓Safety lanyard for fitting
- ✓Ø318 × 116 mm, 1.3 kg
- ✓Aluminium alloy, indoor or outdoor
Uniview · Adapter · Four-sensor camera
Hang the four-sensor camera
from a wall arm or pendant.

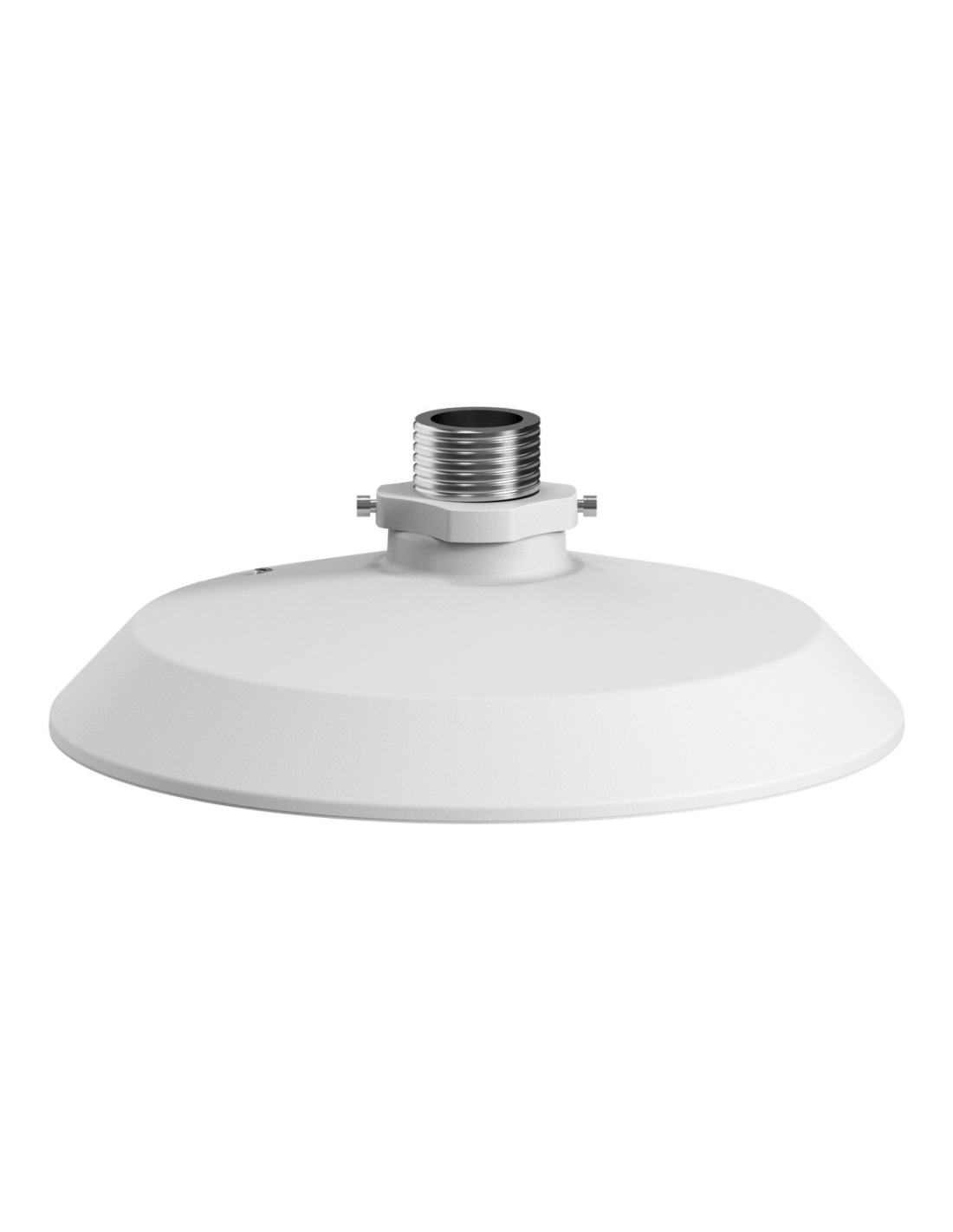

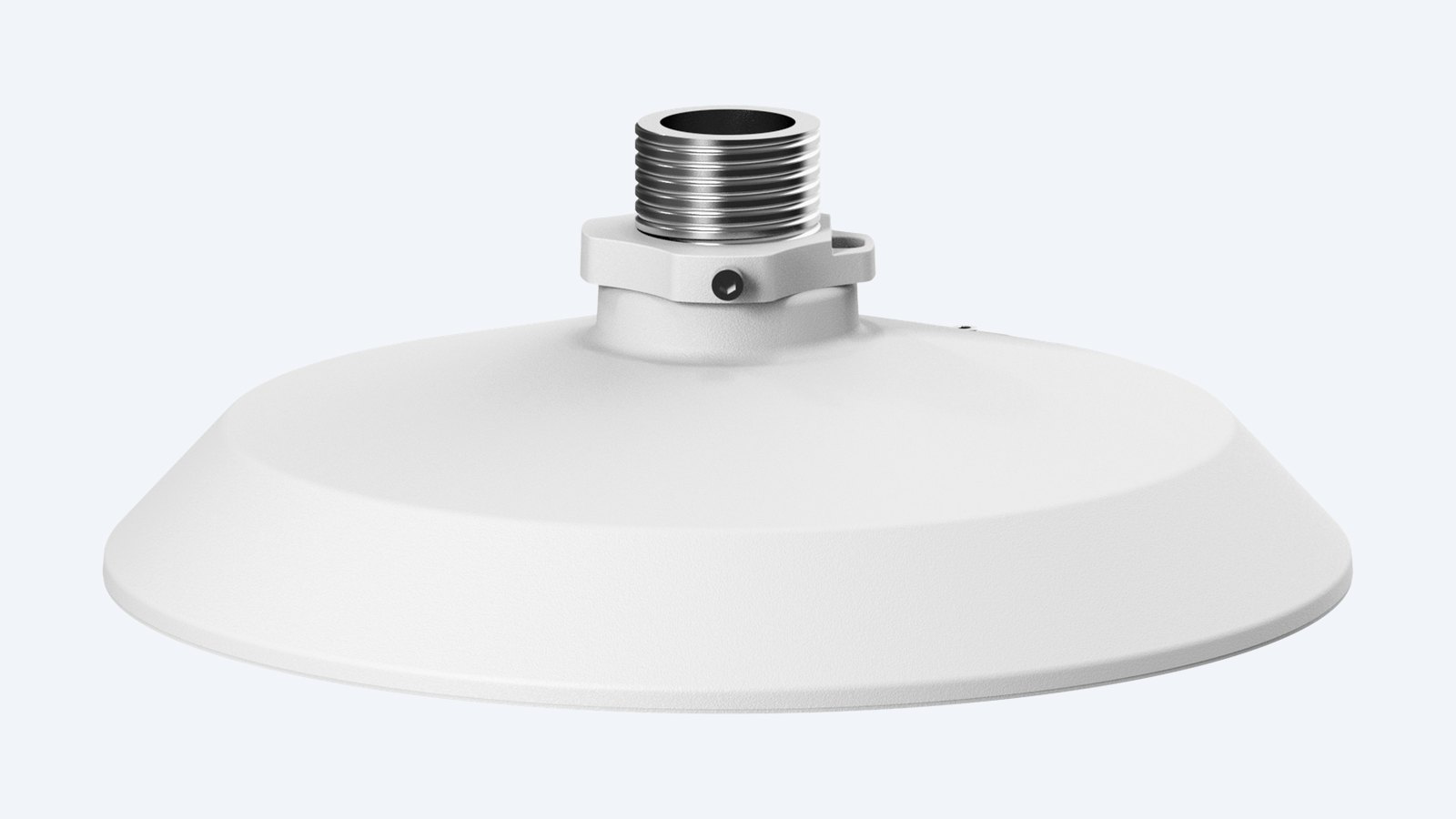

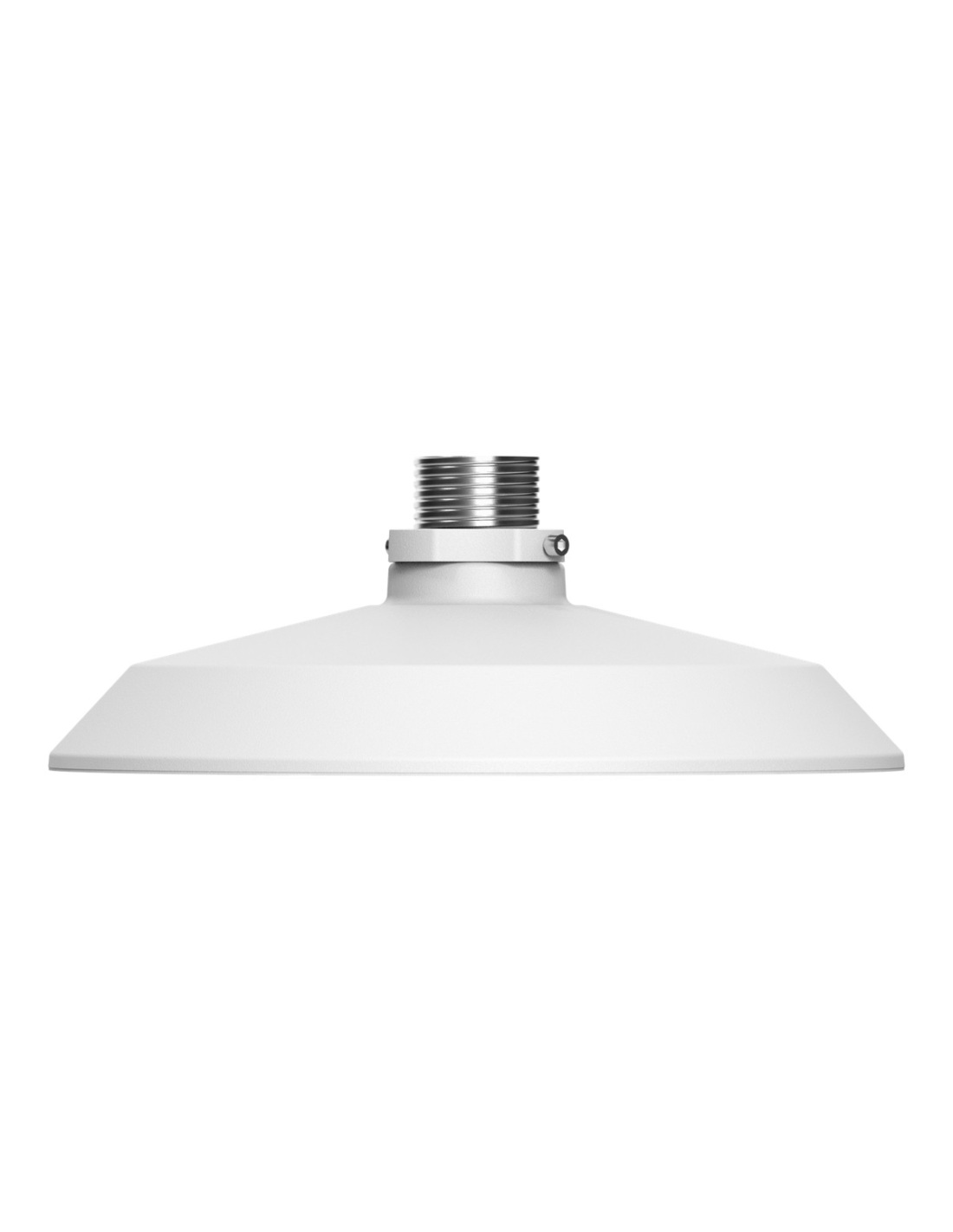

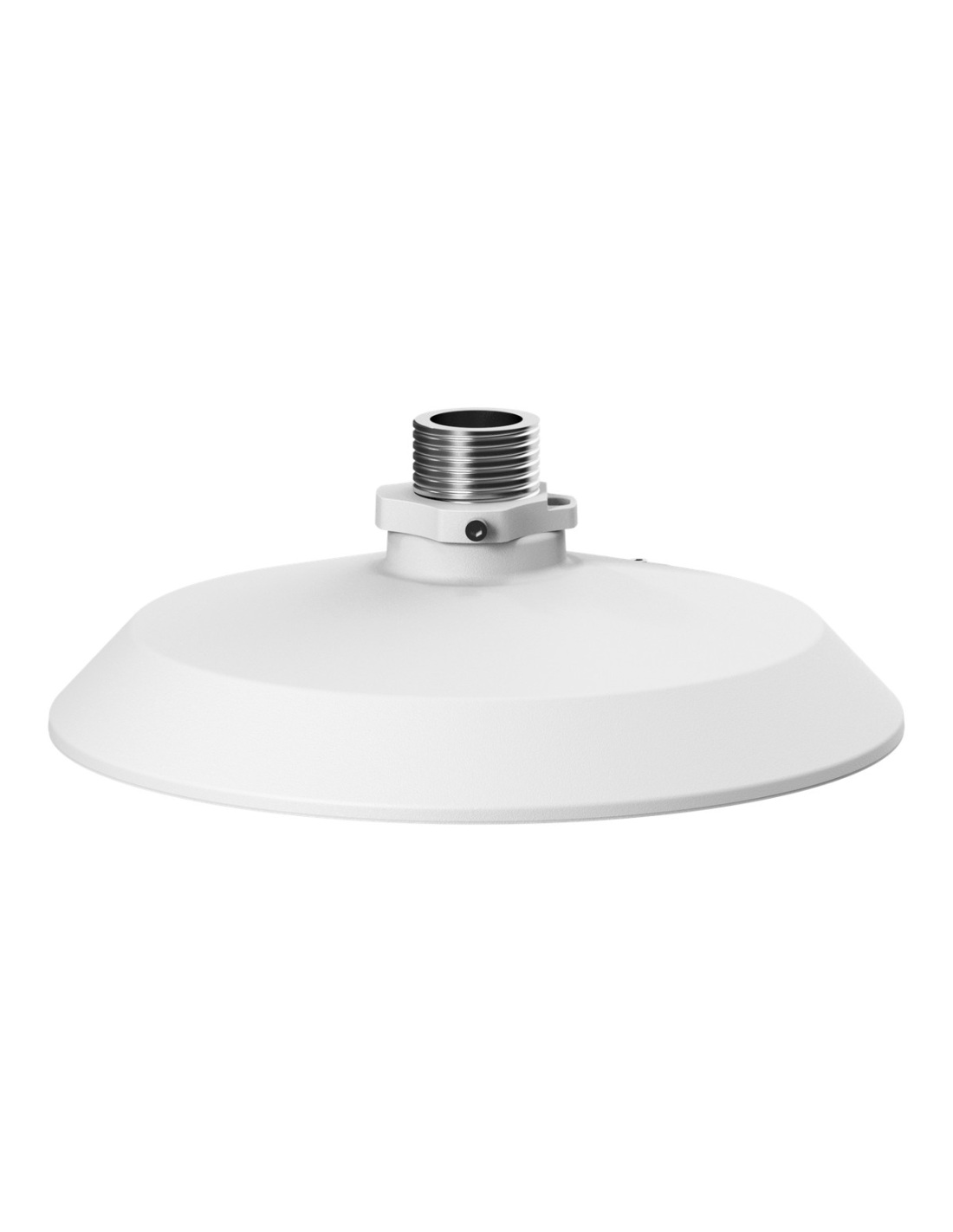

This is the Uniview TR-UF45-K-IN. An aluminium adapter for the Uniview IPC8645EA four-sensor panoramic camera. The camera fixes underneath, and the G1½ thread on top screws onto a Uniview PTZ-style wall arm or pendant.
In one sentence: the TR-UF45-K-IN is a Ø318 × 116 mm aluminium alloy adapter for the Uniview IPC8645EA multi-sensor camera, with a G1½ thread for Uniview wall arms and pendants, weighing 1.3 kg.
The adapter only. The wall arm or pendant and the camera are separate.
Order it with the IPC8645EA and a Uniview wall arm (TR-WE45-A-IN) or pendant with a G1½ thread.
In the box
- TR-UF45-K-IN adapter
You also need
- A Uniview IPC8645EA-ADZKM-I1
- A G1½ wall arm or pendant: Uniview lists the TR-WE45-A-IN
- Fixings for the arm
- Thread sealant for outdoor use
One adapter, wall or ceiling.
The IPC8645EA has four cameras under one wide cover, too big for a standard junction box. The adapter gives it a matching round base and a single G1½ thread, so it goes on the same arms as a PTZ.
Thread

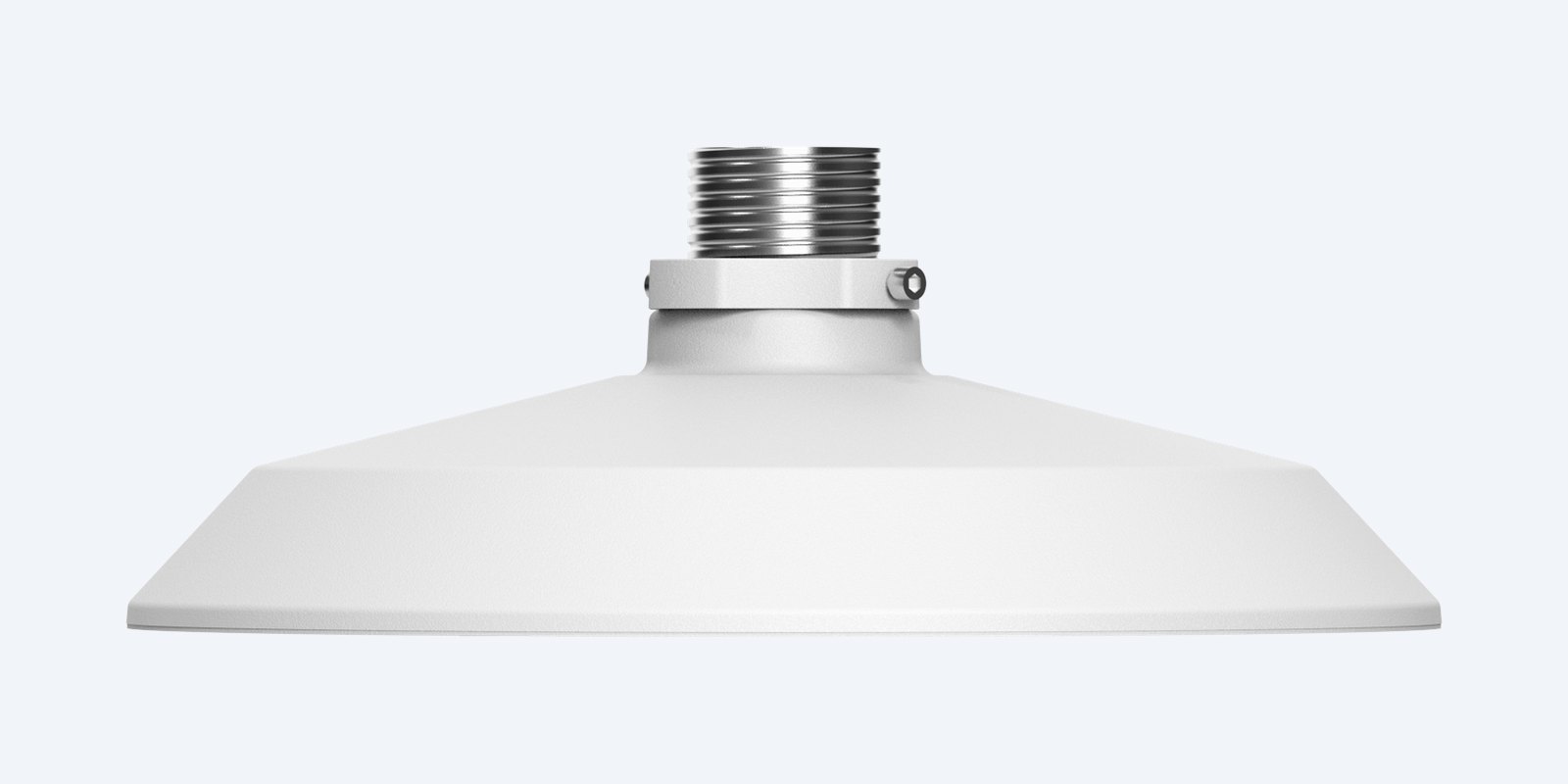

A G1½ neck with a locking ring.
The threaded neck screws onto the arm or pendant and locks with its ring. Underneath, four M4 holes on a 220 mm circle hold the camera, with a safety lanyard to clip on while you fit it.
Size
Ø318 mm across, 116 mm high.

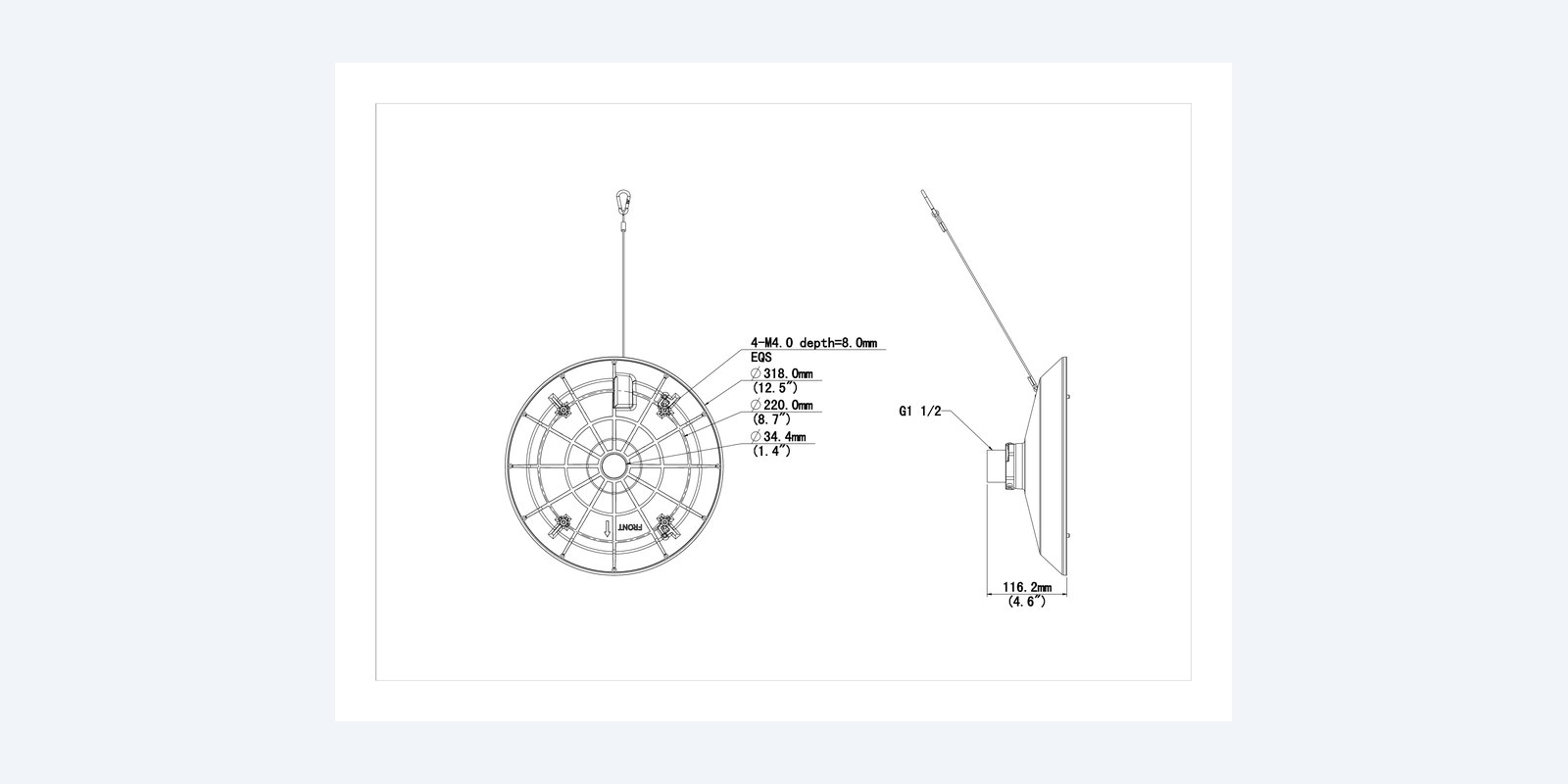

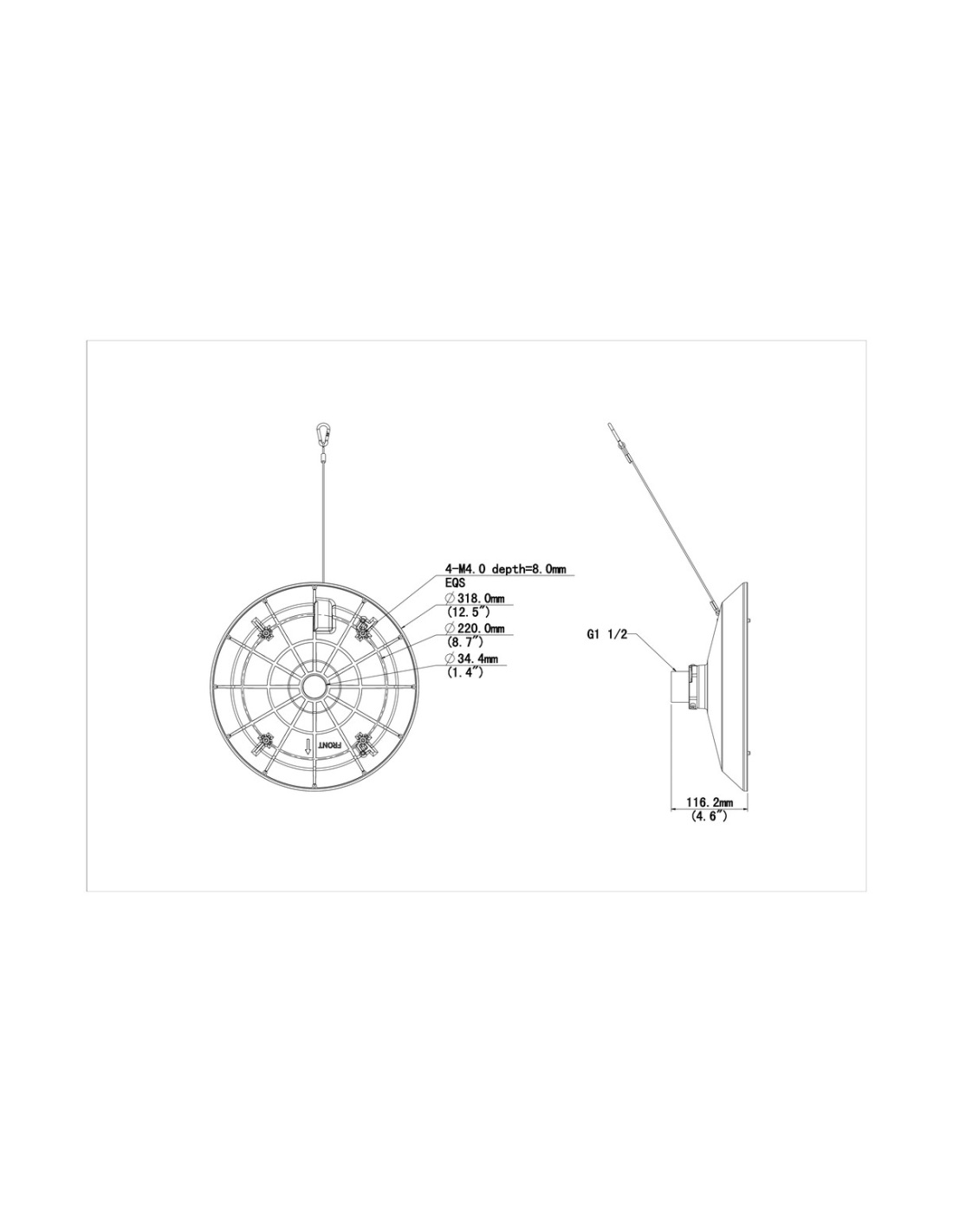

Four M4 holes on a Ø220 mm circle take the camera, with a Ø34.4 mm cable passage through the G1½ neck. A FRONT arrow shows the camera’s orientation.
How it goes in
From the box to a mounted camera.
01
Fix the arm or pendant
Mount the Uniview wall arm or pendant and pull the cable through.
02
Fit the adapter
Screw the adapter onto the G1½ thread and tighten the locking ring.
03
Hang the camera
Clip on the safety lanyard, connect the cable and fix the camera with four M4 screws, FRONT arrow facing the scene.
04
Aim the sensors
Set each of the four lenses to its area.
At a glance
TR-UF45-K-IN
Show specs
Type
Pendant/wall adapter
Fits
Uniview IPC8645EA-ADZKM-I1
Size
Ø318 × 116 mm
Weight
1.3 kg
Material
Aluminium alloy
Top thread
G1½
Camera fixing
4 × M4 on a Ø220 mm circle
Cable passage
Ø34.4 mm
Use
Indoor or outdoor
Colour
White
Pair it with
What goes with it
Camera
Uniview IPC8645EA
20MP four-sensor panoramic camera.
Wall arm
TR-WE45-A-IN long wall arm
Listed in the IPC8645EA datasheet.
Corner
TR-UC08-A-IN corner adapter
For the arm on an outside corner.
Cabling
Cat6 cable
Solid-copper Cat6 for PoE runs of up to 100 m.
Where it is used
Where it is used
Car parks
Four directions from one pole or wall.
Intersections and yards
Every approach covered by one camera.
Warehouses
Aisles in four directions from one point.
Campuses
Quadrangles and open areas.
Uniview PTZ brackets side by side
| TR-WE45-IN | TR-WE45-A-IN | TR-UC08-A-IN | TR-FM180-IN | TR-UF45-K-IN | |
|---|---|---|---|---|---|
| Type | Wall arm | Long wall arm | Corner adapter | In-ceiling mount | Pendant/wall adapter |
| Size | 230.3 × 141 × 201.5 mm | 216 × 141 × 314 mm | 215 × 210 × 122 mm | Ø280 × 91 mm | Ø318 × 116 mm |
| Weight | 0.79 kg | 1.0 kg | 1.87 kg | 1.2 kg | 1.3 kg |
| Material | Aluminium alloy | Aluminium alloy | Steel | Sheet metal and PC | Aluminium alloy |
| Use | Indoor or outdoor | Indoor or outdoor | Indoor or outdoor | Indoor | Indoor or outdoor |
The wall arms end in a G1½ thread for the PTZ; the corner adapter takes either arm. Figures from the Uniview datasheets and drawings.
Common questions
Which camera does it fit?
The Uniview IPC8645EA-ADZKM-I1 four-sensor camera, whose datasheet lists this adapter. Uniview calls it the four-eyes multi-directional camera ceiling/wall mounting adapter.
What does it screw onto?
A G1½ thread, the same as Uniview’s PTZ wall arms and pendants. The IPC8645EA datasheet lists the TR-WE45-A-IN long wall arm, the TR-WE45-B-IN gooseneck and the TR-CE45-IN ceiling bracket; we stock the TR-WE45-A-IN.
Can I mount it on a corner or pole?
On a corner, yes: the TR-WE45-A-IN arm bolts to the TR-UC08-A-IN corner adapter. For poles, Uniview lists its TR-UP08 pole brackets; call us and we will source one.
Is there a safety cord?
Yes. Uniview’s drawing shows a safety lanyard with a clip, to hold the camera while you fit it.
How big is it?
Ø318 mm across and 116 mm high, weighing 1.3 kg.
Can I use it outdoors?
Yes, Uniview lists it for indoor or outdoor use. Seal the thread so water cannot run down inside.
How does the cable run?
Down through the arm or pendant and the Ø34.4 mm passage in the adapter’s neck to the camera.
Which way does the camera face?
A FRONT arrow on the adapter lines up with the camera, so the four lenses point where you planned.
What is it made of?
Aluminium alloy, 1.3 kg.
Is it white or black?
White. It matches Uniview’s white cameras.
Do I need a licensed installer?
Fixing the bracket is a normal handyman job. In Australia, fixed data cabling inside walls and ceilings must be run by a registered cabler; plugging a camera into an existing outlet does not need one.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure which mount suits your camera or wall? Call 1300 736 970 or email [email protected] with the camera model and a photo of the spot, and we will match the bracket.
Installation and safety
Fixing. The adapter and camera together are heavy; fix the arm or pendant into solid structure and use the safety lanyard while fitting. Working at height needs a stable platform. Turn off power before connecting the camera.
Weather. Seal the G1½ thread with thread sealant outdoors so water cannot follow the cable inside.
Figures. From the Uniview TR-UF45-K-IN datasheet and dimension drawing; camera fits from Uniview’s camera datasheets and accessory guide. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- Ø318 × 116 mm
- Weight
- 1.3 kg
- Material
- Aluminium Alloy
- Colour
- White
- Installation
- Pendant or wall arm, indoor or outdoor
- Brand
- Uniview
- Warranty
- 3 years
- Product Type
- Multi-Sensor Camera Adapter
- Model
- TR-UF45-K-IN
- Use
- Indoor or outdoor
- Mount type
- Pendant/wall adapter
- Compatible Cameras
- Uniview IPC8645EA-ADZKM-I1
- Camera Series
- Uniview multi-sensor (IPC8645)
- Camera Fixing
- 4 × M4 on Ø220 mm
- Wall Arm
- TR-WE45-A-IN
- Top Thread
- G1½
- Cable Passage
- Ø34.4 mm
