Uniview Mounts & Accessories
Uniview Bullet Pole Mount Bracket, 67-127 mm Poles, Stainless Straps, Black - TR-UP06-B-IN-BK
TR-UP06-B-IN-BK
In stock $ 11.60
inc-GST
or 4 interest-free payments of $2.90 with
Uniview TR-UP06-B-IN-BK pole bracket for Uniview bullets incl. the IPC2B18 and IPC2328SB. Clamps to poles 67–127 mm across with stainless steel straps. Black finish.
- ✓Fits Uniview IPC22X/IPC24X and newer bullets
- ✓Poles and rails 67–127 mm
- ✓Stainless steel straps, no drilling
- ✓15 × M4 holes, Ø40 mm cable hole
- ✓100 × 90 × 38.2 mm, 0.2 kg
- ✓Black finish
Uniview · Pole bracket · 67–127 mm poles
Put the camera on a pole,
without drilling it.

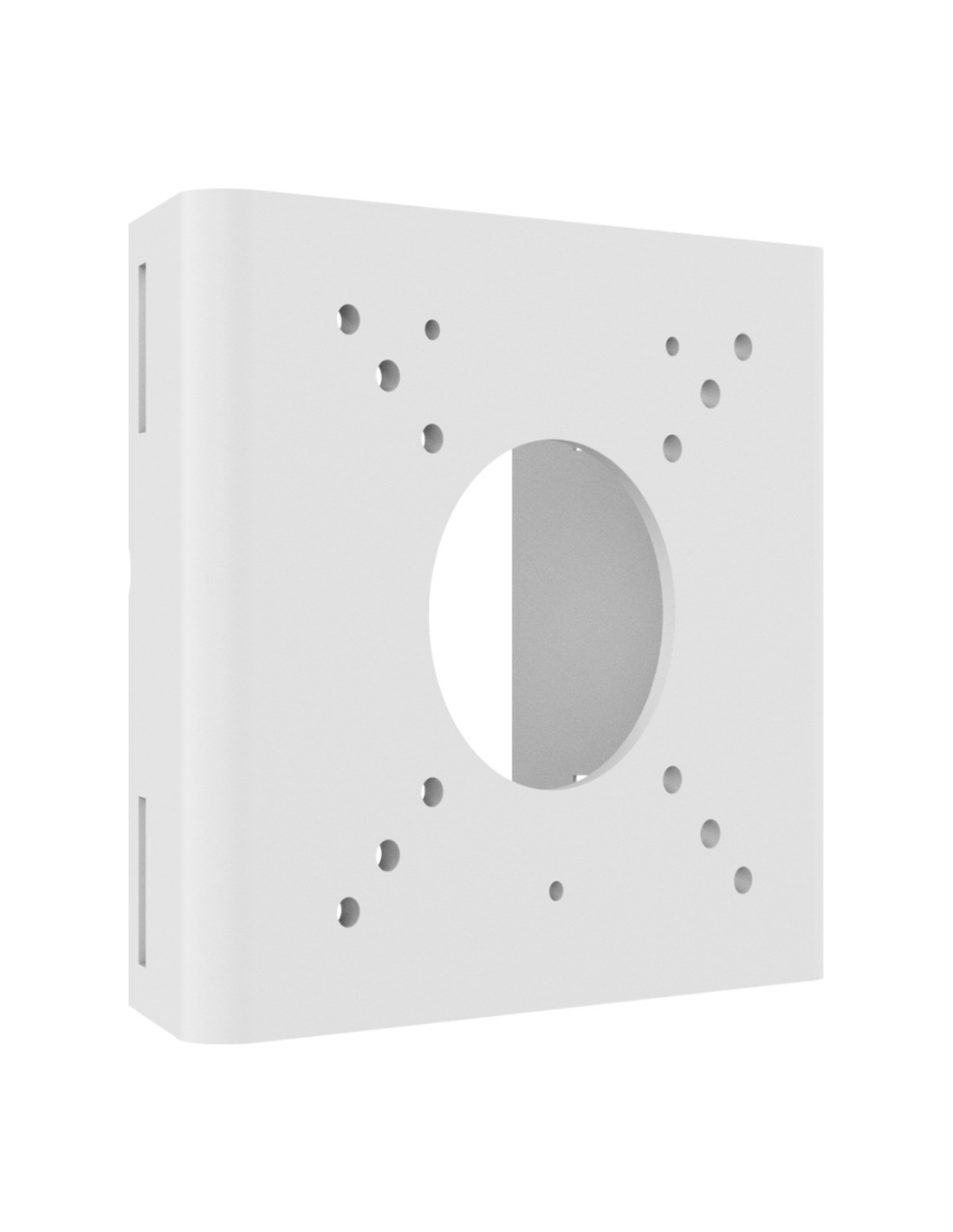

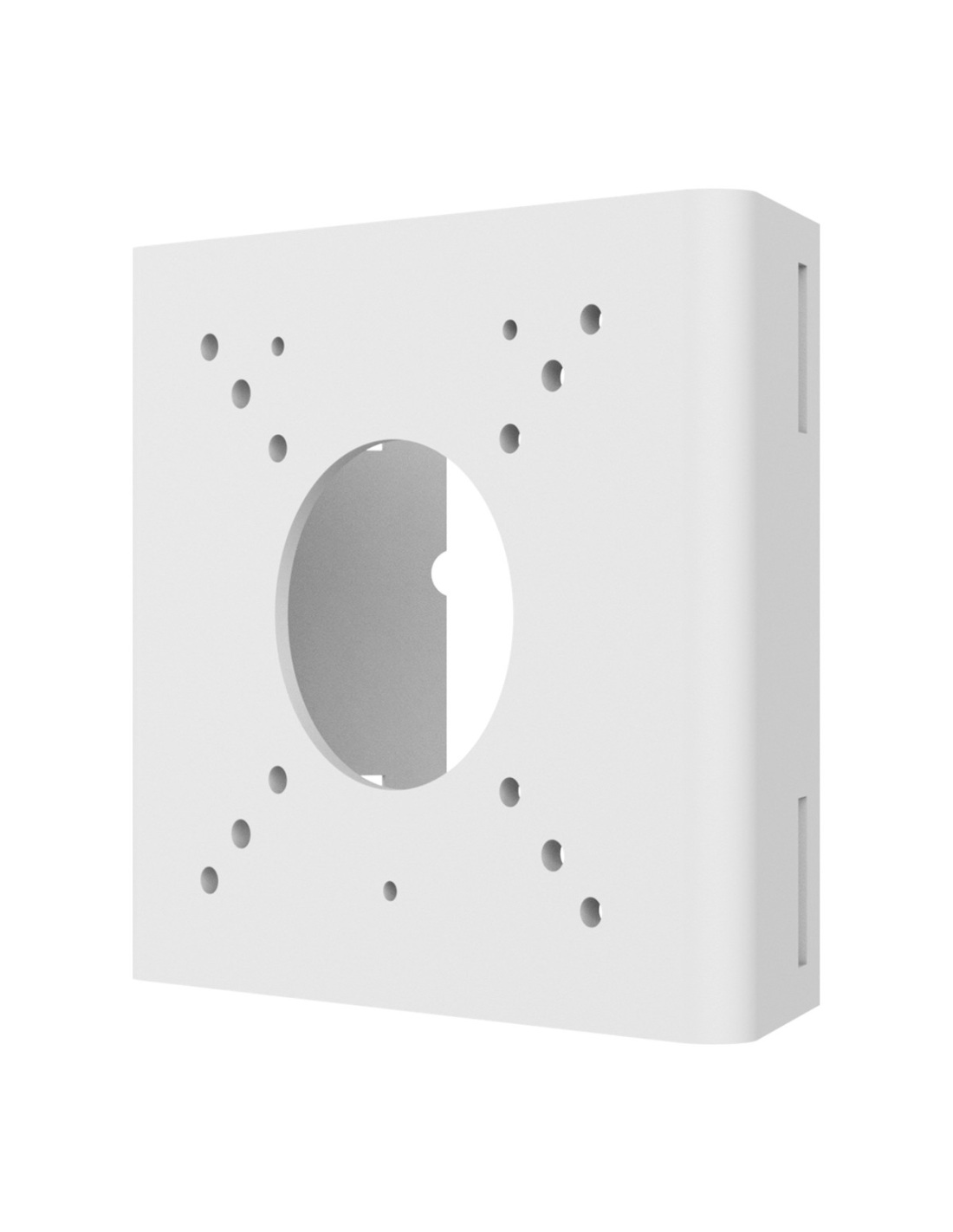

This is the Uniview TR-UP06-B-IN-BK. A compact aluminium pole bracket with adjustable stainless steel straps. It clamps to a pole or rail 67–127 mm across and gives a Uniview bullet a flat plate to mount on.
In one sentence: the TR-UP06-B-IN-BK is a 100 × 90 × 38.2 mm aluminium pole bracket with stainless steel straps for Uniview bullets, for poles from 67 to 127 mm, weighing 0.2 kg.
The bracket for one camera. The camera is separate.
Order it with a matching bullet. Uniview lists an adjustable embrace loop for the 67–127 mm range. This is the black finish; the photos show the white version.
In the box
- TR-UP06-B-IN-BK pole bracket
- Adjustable stainless steel straps
You also need
- A compatible Uniview bullet
- A pole or rail 67–127 mm across
- A screwdriver or nut driver for the straps
- M4 screws for the camera base
For posts, poles and rails.
Car parks, gates, farm yards and fences often have a pole where the camera needs to be. The bracket clamps around it, so there is nothing to drill into the pole itself.

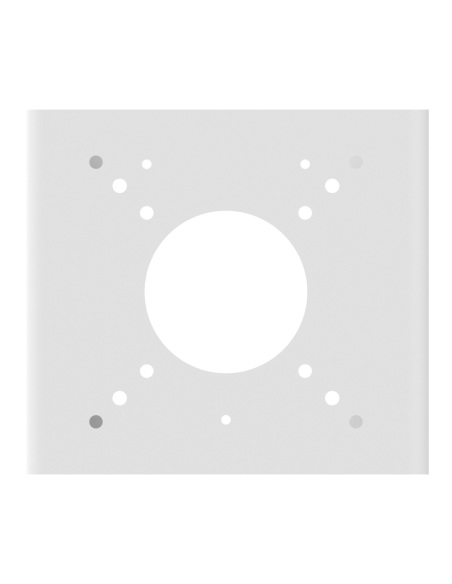

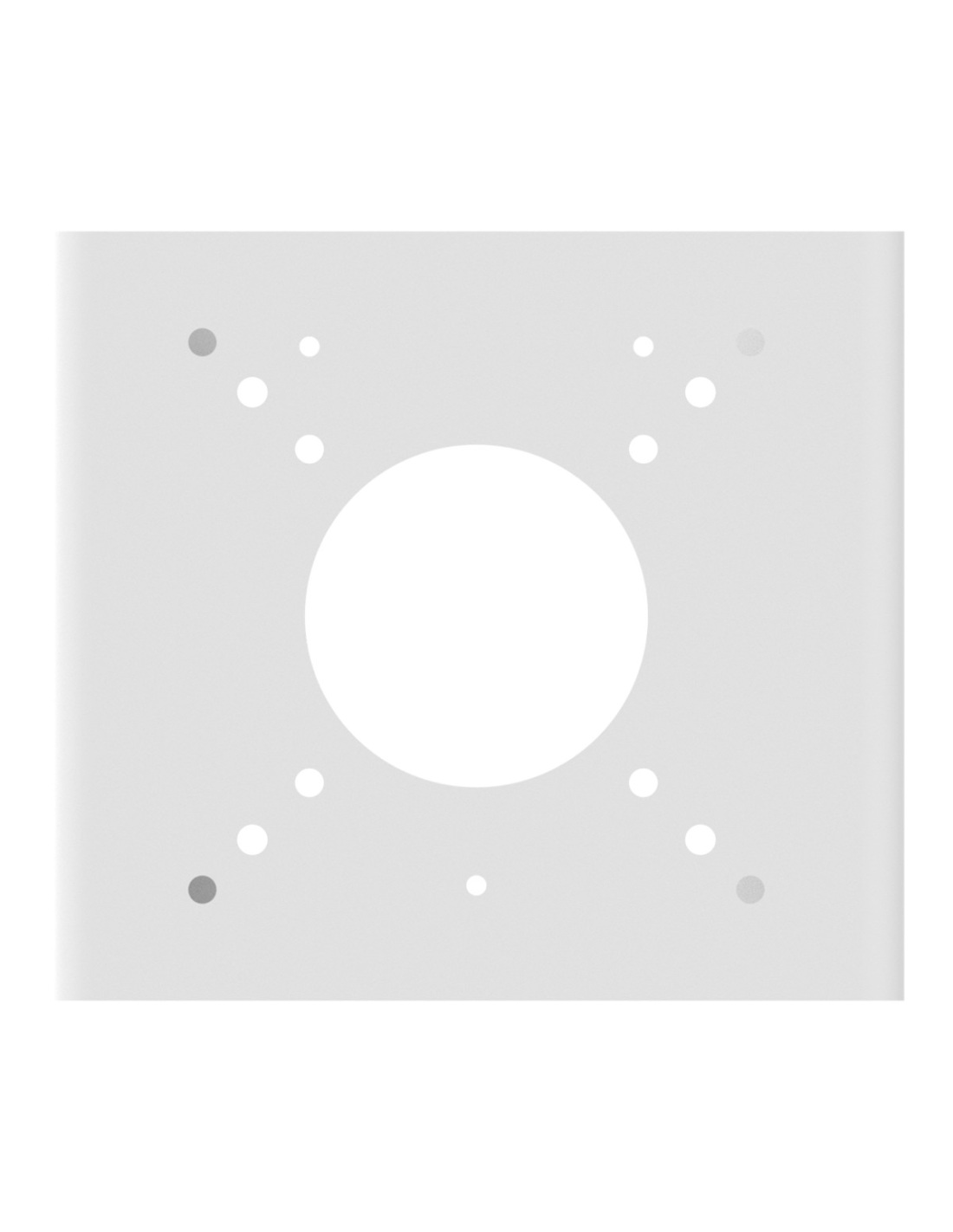

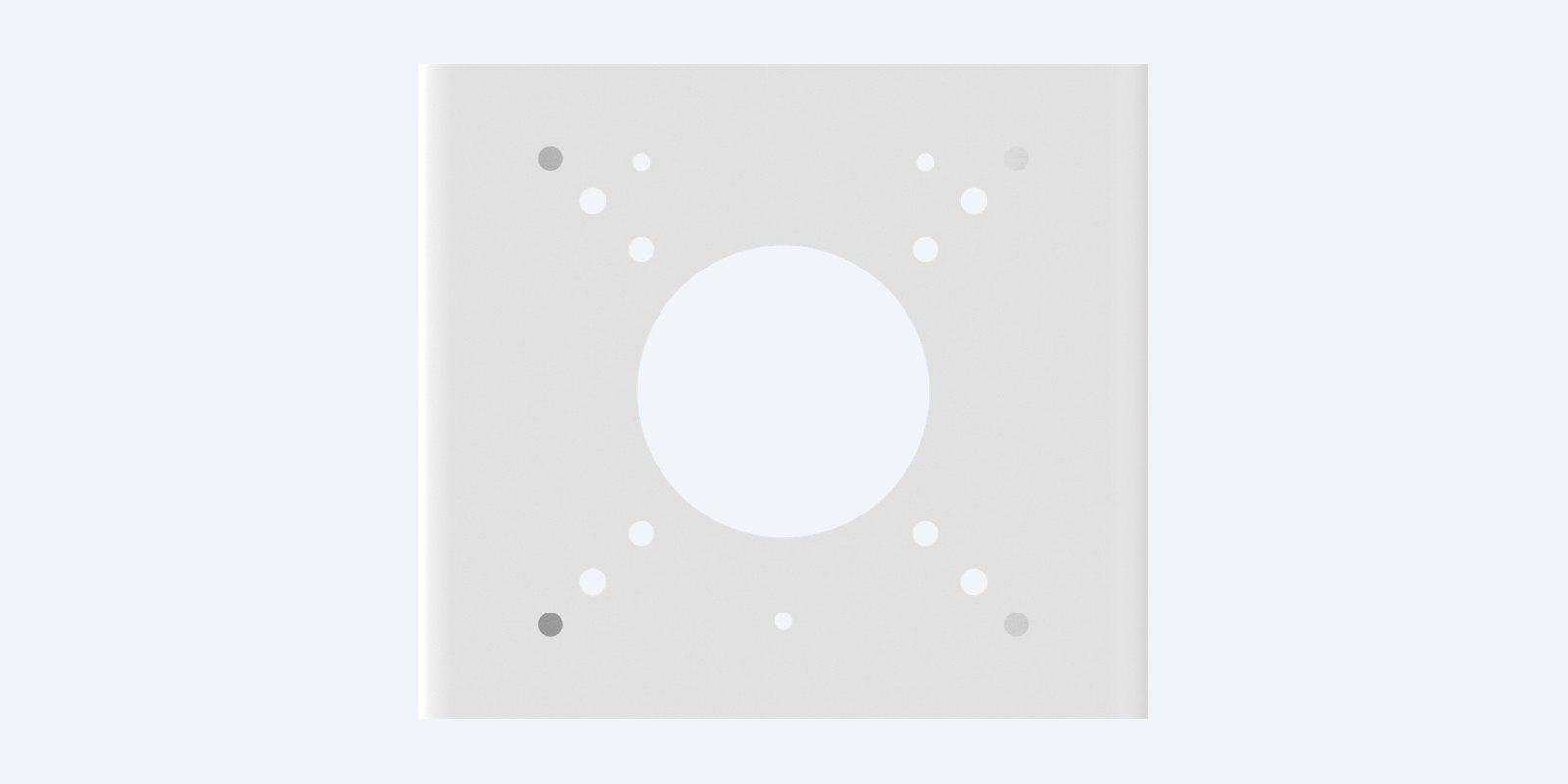

Front plate

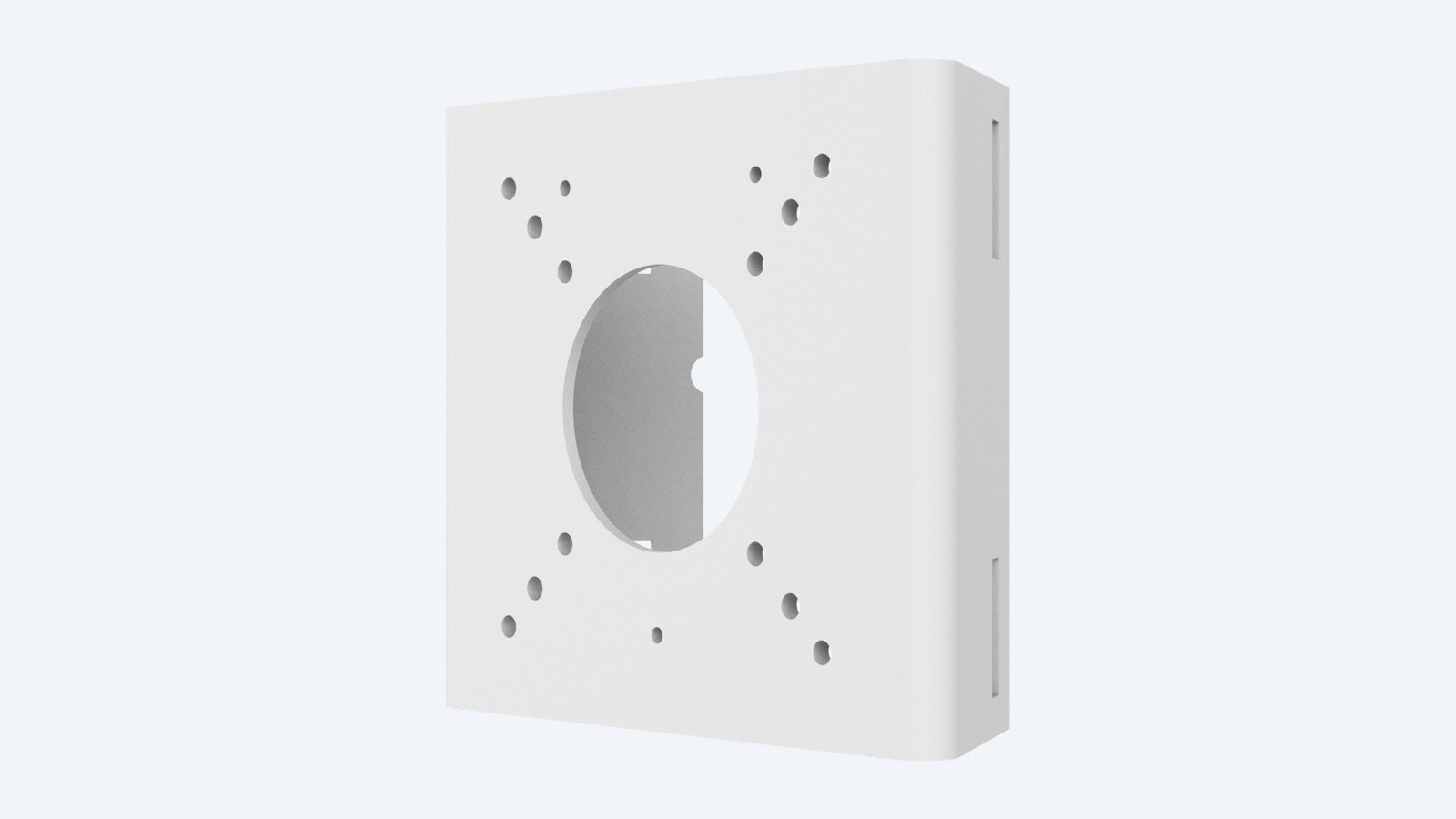

Fifteen M4 holes and a 40 mm cable hole.

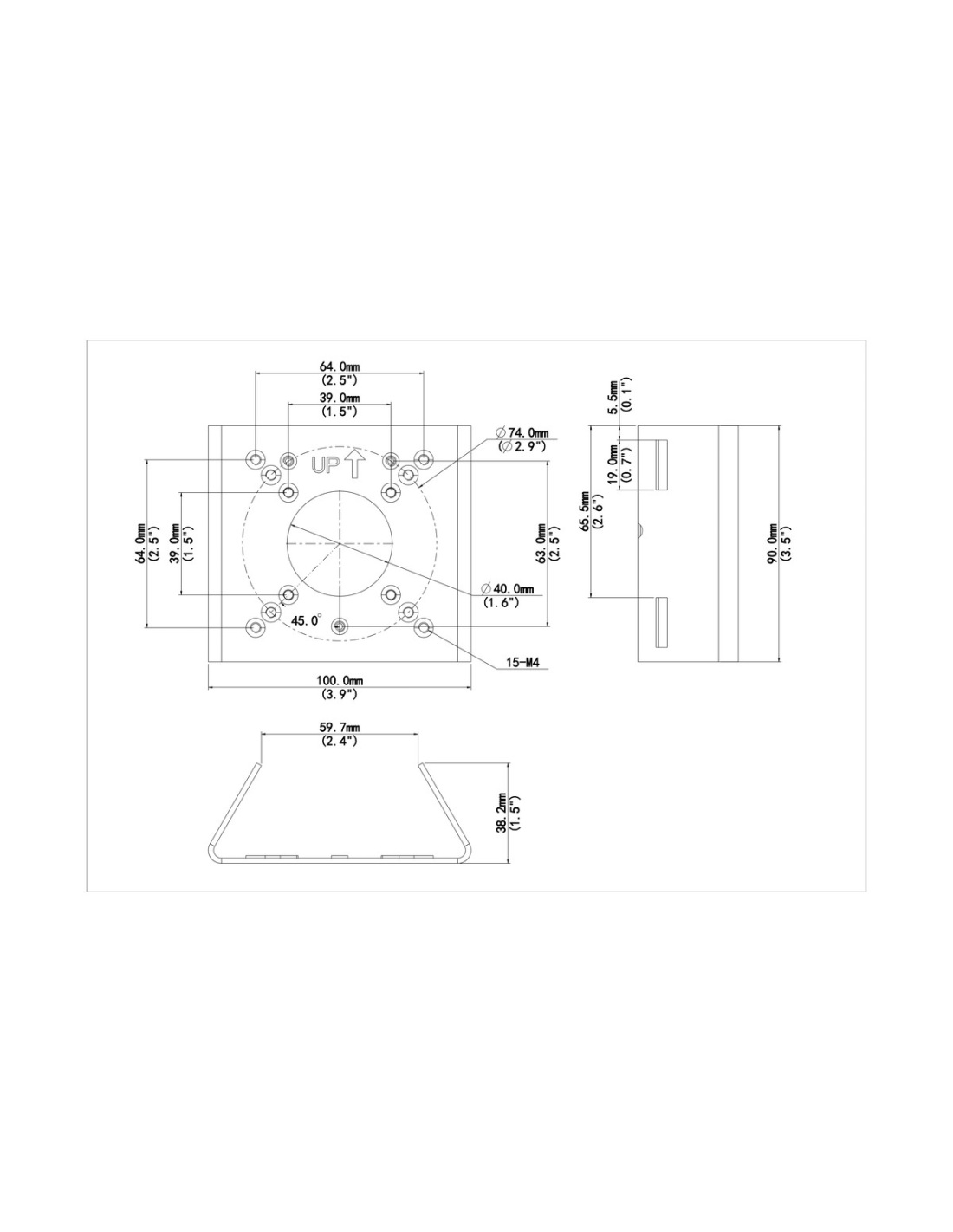

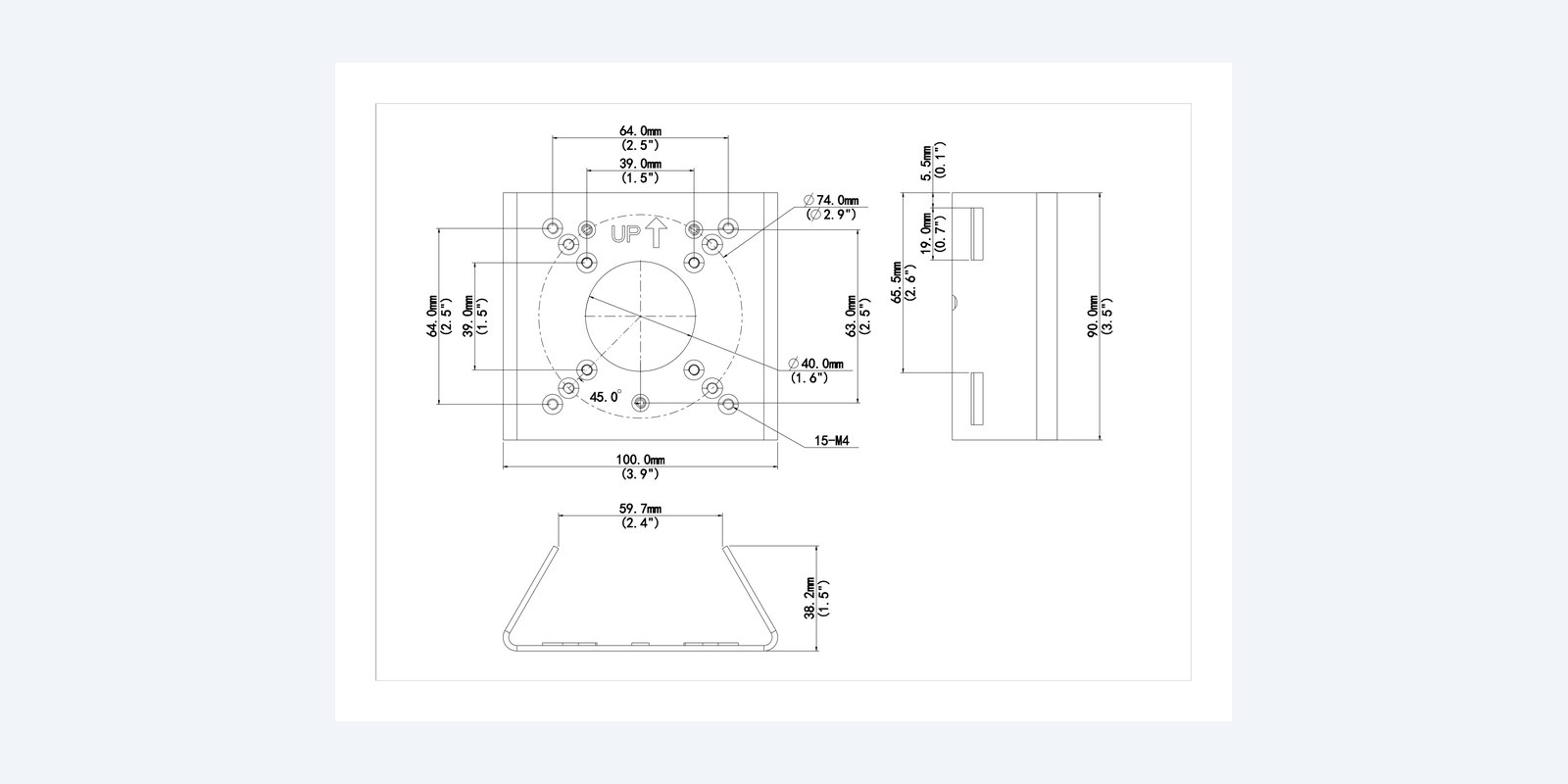

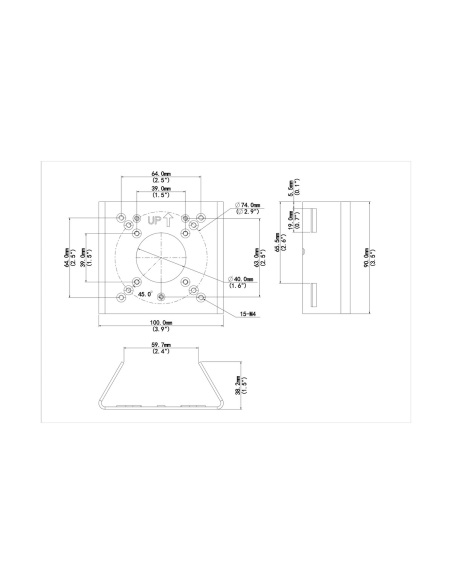

The 100 × 90 mm plate has fifteen M4 threaded holes in several patterns (39 mm and 64 mm squares and a 74 mm circle), an UP arrow, and a Ø40 mm hole for the cable.
Size
100 × 90 mm, 38.2 mm deep.
The curved back sits against the pole, and the straps pass through 19 mm slots at each side. The front plate has a Ø40 mm cable hole and fifteen M4 holes.
How it goes in
From the box to a mounted camera.
01
Thread the straps
Feed the straps through the slots and loosely around the pole.
02
Set height and tighten
Slide it to height with the UP arrow pointing up, face it the right way and tighten the straps.
03
Fit the camera
Bring the cable through the 40 mm hole and screw the bullet’s base to the plate with M4 screws.
04
Connect and aim
Plug in the camera, seal the joint and aim it.
At a glance
TR-UP06-B-IN-BK
Show specs
Type
Pole bracket
Fits
Uniview IPC22X, IPC24X bullets (and others listed below)
Pole size
67–127 mm diameter
Size
100 × 90 × 38.2 mm
Weight
0.2 kg
Material
Aluminium, stainless steel straps
Front plate
15 × M4 holes
Cable hole
Ø40 mm
Use
Outdoor, pole or rail
Colour
Black
Pair it with
What goes with it
Camera
Uniview IPC2B18SS-BK bullet
8MP LightHunter bullet that lists this bracket.
Camera
Uniview IPC2B18SE-WP-BK
8MP Tri-Guard bullet in black.
With a box
TR-UP06-C-IN pole adapter
Larger adapter for a bullet junction box on a pole.
White
TR-UP06-B-IN
The same bracket in white.
Where it is used
Where it is used
Car parks
Light poles and bollards over the bays.
Gates and entries
Gate posts watching vehicles come and go.
Farms and yards
Steel posts beside sheds, yards and machinery.
Balconies and rails
Round handrails and balustrade posts.
Uniview bullet mounting parts side by side
| TR-JB07-D-IN | TR-JB05-B-IN | TR-UP06-C-IN | TR-UP06-B-IN | |
|---|---|---|---|---|
| Type | Junction box | Junction box | Pole adapter | Pole bracket |
| For | IPC23XX, 222X, 74X, 252/26X bullets | IPC21XX mini bullets | Bullet junction boxes | IPC22X, IPC24X bullets |
| Size | 125 × 125 × 57 mm | Ø104.4 × 57 mm | 136 × 127 × 63.6 mm | 100 × 90 × 38.2 mm |
| Weight | 0.75 kg | 0.36 kg | 0.34 kg | 0.2 kg |
| Pole size | — | — | 67–127 mm | 67–127 mm |
— means not applicable. Figures from the Uniview datasheets (TR-UP06-C-IN pole range from the Uniarch-branded datasheet of the same part).
Common questions
Which cameras does it fit?
Uniview’s datasheet lists it for its IPC22X and IPC24X bullets, and its accessory guide adds the IPC23XX, IPC222X, IPC252/254, IPC26X and IPC21XX bullets. The camera datasheets of these models in our black range list it: IPC2B18SS and IPC2B18SE.
What size pole does it fit?
Round poles and rails from 67 mm to 127 mm in diameter.
Do I have to drill the pole?
No. The straps clamp the bracket around the pole. You only need a hole in the pole if you want the cable to run inside it.
How does the cable get to the camera?
Through the 40 mm hole in the middle of the plate, from inside a hollow pole or down the outside in conduit.
How is it different from the TR-UP06-C-IN?
This one takes the bullet directly and is smaller (100 × 90 mm, 0.2 kg). The TR-UP06-C-IN is a larger plate made to carry a bullet junction box such as the TR-JB07-D-IN.
How big is it?
100 × 90 × 38.2 mm, weighing 0.2 kg.
How much weight will it hold?
Uniview does not publish a load rating. It is made for its bullet cameras; tighten the straps firmly on a sound pole.
Can I use it on a square post?
Uniview lists it for poles and rails. The straps can go around a square post of similar size, but the curved back sits best on a round pole. Send us a photo if you are unsure.
What is it made of?
Aluminium bracket with stainless steel straps, 0.2 kg in total.
Is it white or black?
Black. It is the black finish of the TR-UP06-B-IN, made to match black Uniview cameras. Uniview only publishes photos of the white version, so the photos here show the white part; the shape and size are the same.
Do I need a licensed installer?
Fixing the bracket is a normal handyman job. In Australia, fixed data cabling inside walls and ceilings must be run by a registered cabler; plugging a camera into an existing outlet does not need one.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure which mount suits your camera or wall? Call 1300 736 970 or email [email protected] with the camera model and a photo of the spot, and we will match the bracket.
Installation and safety
Fixing. Check the pole is sound and tighten the straps firmly; re-check them after the first few weeks. Working at height needs a stable platform. Turn off power to the camera before connecting it.
Weather. Bring the cable into the camera or junction box from below, or seal the hole if it runs inside the pole, so water cannot follow the cable in.
Figures. From the Uniview TR-UP06-B-IN datasheet and dimension drawing; camera fits from Uniview’s camera datasheets and accessory guide. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 100 × 90 × 38.2 mm
- Weight
- 0.2 kg
- Material
- Aluminium, stainless steel
- Colour
- Black
- Installation
- Pole or rail, outdoor
- Brand
- Uniview
- Pole Diameter
- 67–127 mm
- Warranty
- 3 years
- Product Type
- Camera Pole Mount Adapter
- Model
- TR-UP06-B-IN-BK
- Use
- Outdoor
- Mount type
- Pole adapter
- Compatible Cameras
- Uniview IPC2B18SS, IPC2B18SE
- Camera Series
- Uniview IPC22X, IPC24X bullets; IPC23XX, IPC21XX (accessory guide)
- Front Plate Holes
- 15 × M4
- Cable Hole
- Ø40 mm
- Straps
- Adjustable stainless steel
