Uniview Mounts & Accessories
Uniview Ceiling Bracket for Tri-Guard Mini PTZ IPC6324LWH, Aluminium, White - TR-CM06-D
TR-CM06-D
In stock $ 7.30
inc-GST
or 4 interest-free payments of $1.82 with
Uniview TR-CM06-D aluminium ceiling bracket for the IPC6324LWH-AX5C-VG2 Tri-Guard mini PTZ. Hangs the camera from a ceiling or eave.
- ✓Made for the Uniview IPC6324LWH mini PTZ
- ✓Hangs the camera from a ceiling or eave
- ✓Four-hole ceiling flange
- ✓104 × 131 × 67 mm
- ✓Aluminium alloy
- ✓Indoor or outdoor
Uniview · Ceiling bracket · Tri-Guard mini PTZ
Hang the mini PTZ from the ceiling,
instead of the wall.

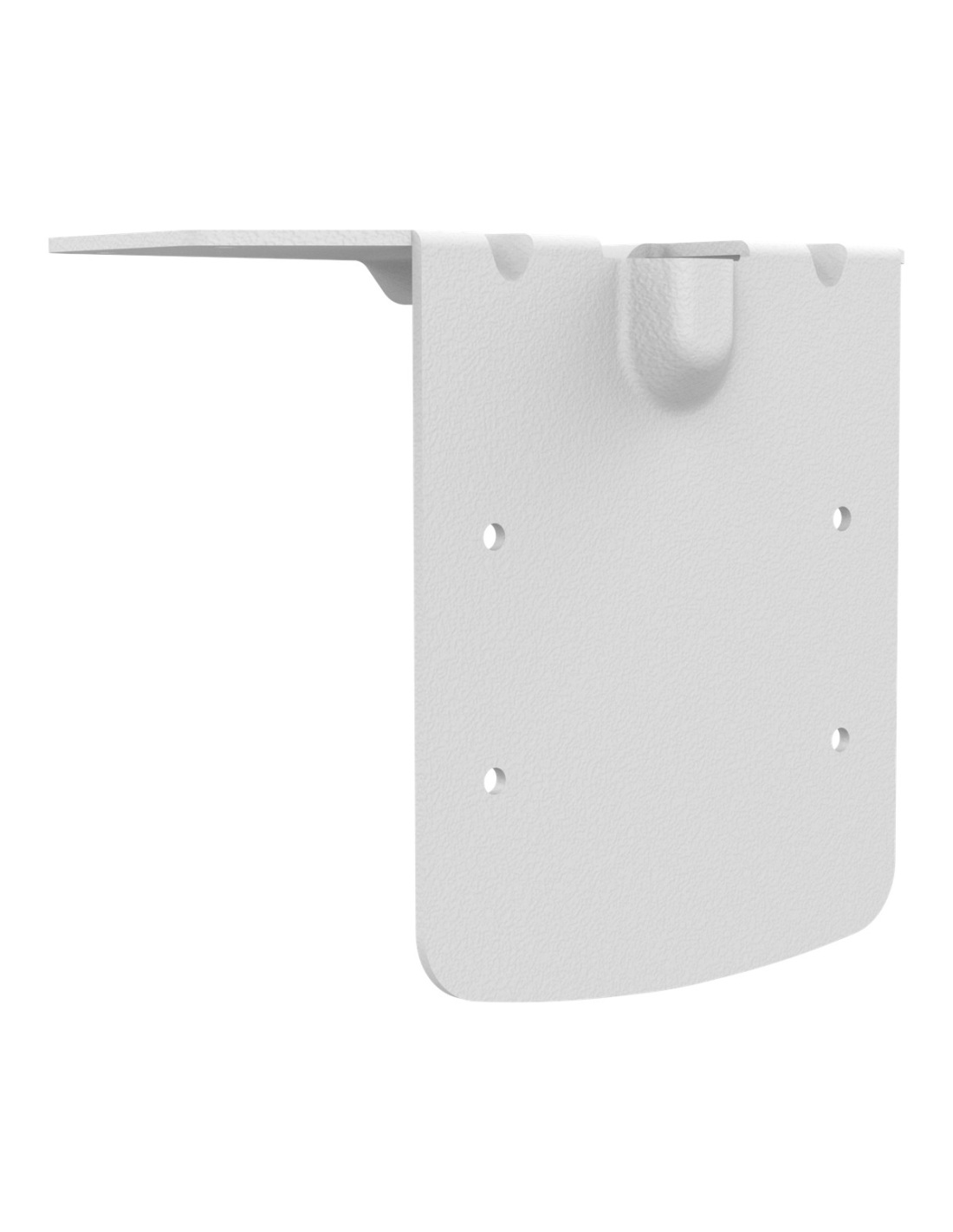

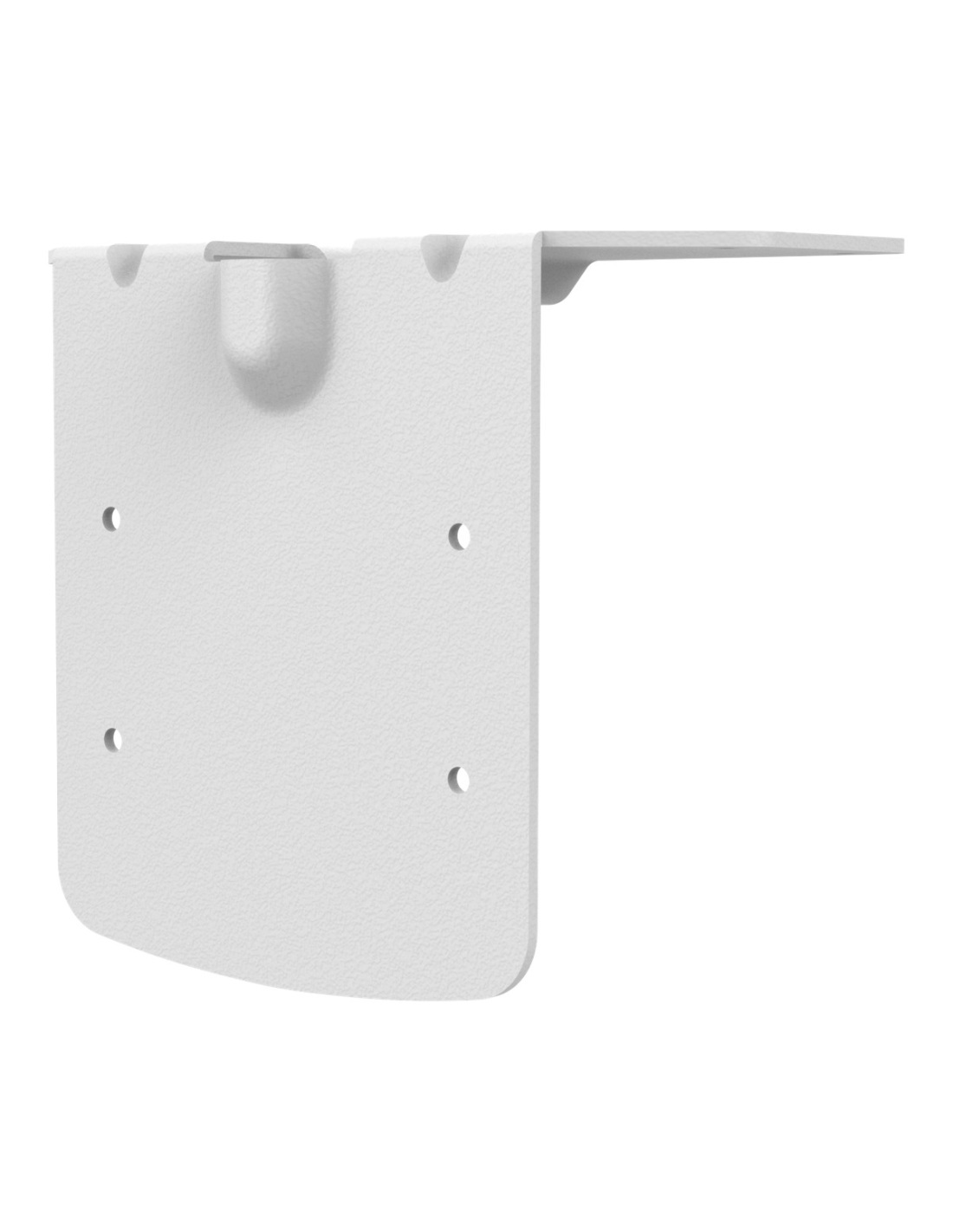

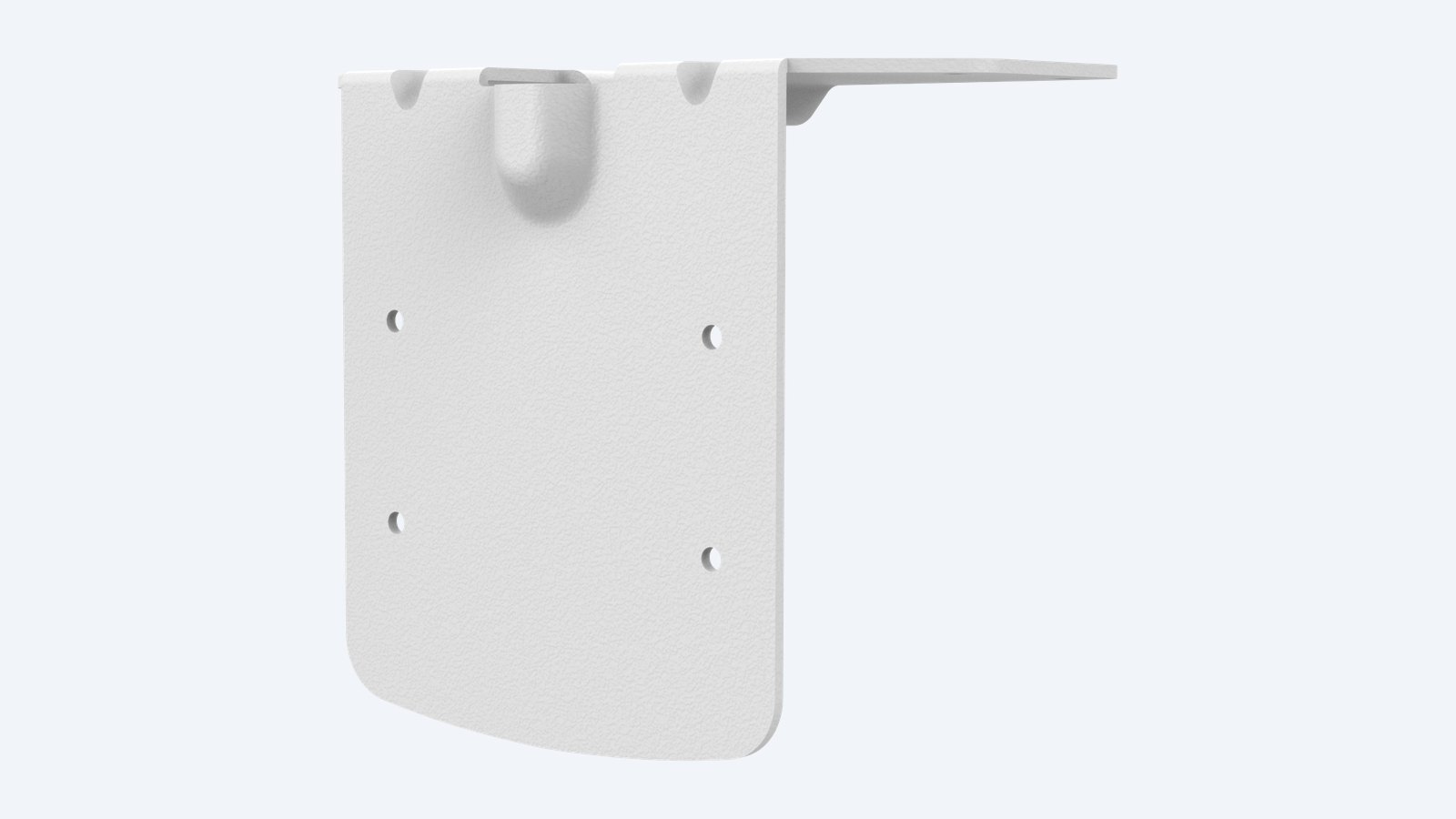

This is the Uniview TR-CM06-D. A small L-shaped aluminium bracket that lets the Uniview IPC6324LWH Tri-Guard mini PTZ hang from a ceiling or eave. One face fixes up to the ceiling; the camera’s base screws to the other.
In one sentence: the TR-CM06-D is a 104 × 131 × 67 mm aluminium alloy ceiling bracket for the Uniview IPC6324LWH-AX5C-VG2 mini PTZ, weighing 0.088 kg, for indoor or outdoor use.
The bracket only. The camera and fixings are separate.
Order it with the IPC6324LWH-AX5C-VG2. Use four screws to suit your ceiling or eave.
In the box
- TR-CM06-D ceiling bracket
You also need
- A Uniview IPC6324LWH-AX5C-VG2
- 4 screws to suit the ceiling (Ø4.8 mm holes)
- A drill
- Outdoor sealant for the cable hole
Under the eave, out of the weather.
The IPC6324LWH normally fixes to a wall. Under a deep eave or a carport roof, hanging it from the ceiling keeps it in the dry and gives the PTZ a clear view all round.
Two faces
Ceiling flange and camera plate.

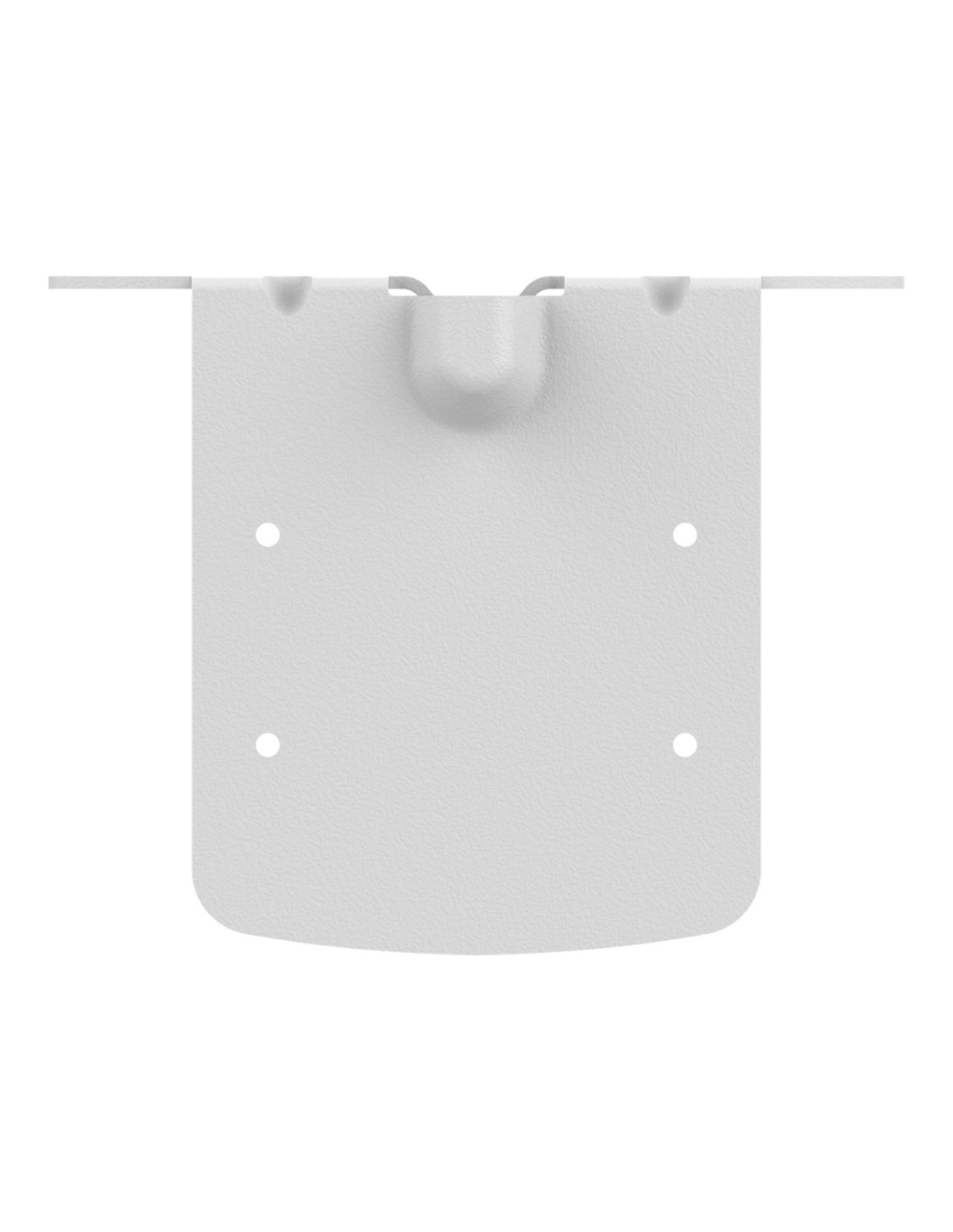

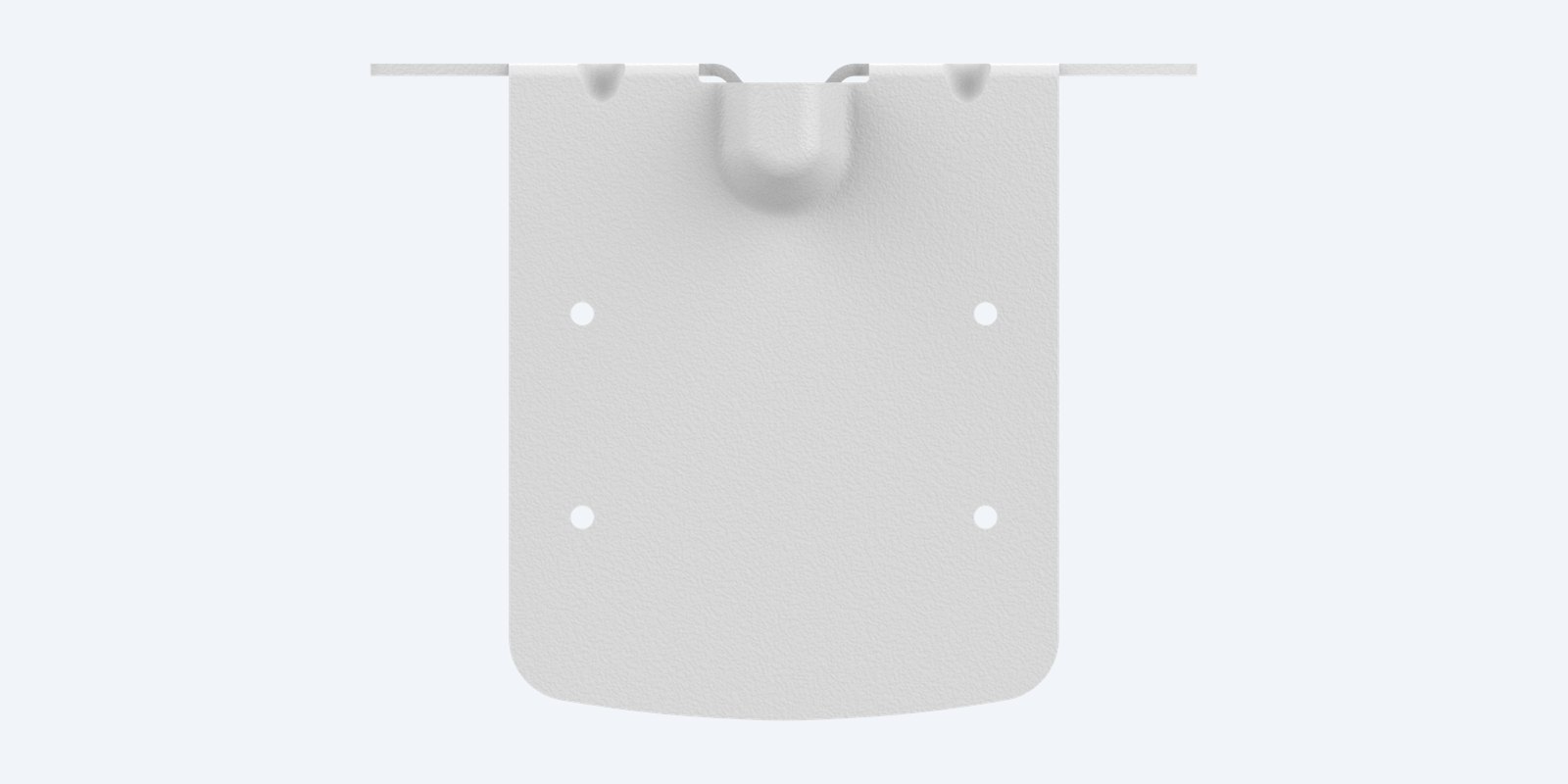

The top flange fixes to the ceiling on four Ø4.8 mm holes. The upright plate has four Ø3.6 mm holes, 64 mm apart, for the camera’s base, and a cable notch at the top.
Size
104 × 131 × 67 mm.

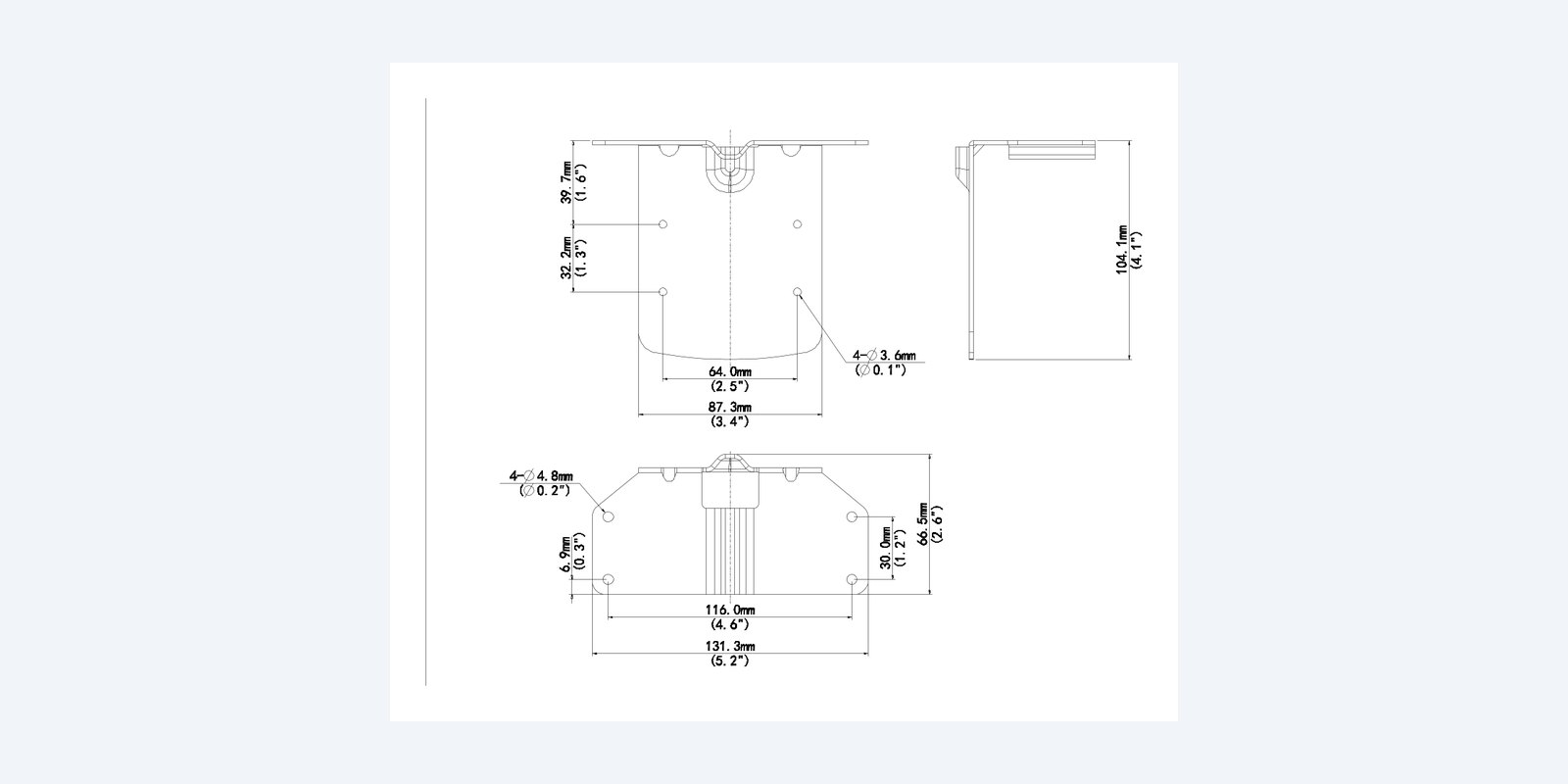

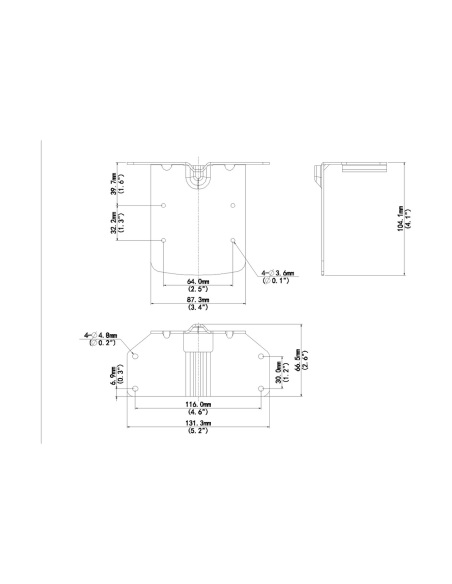

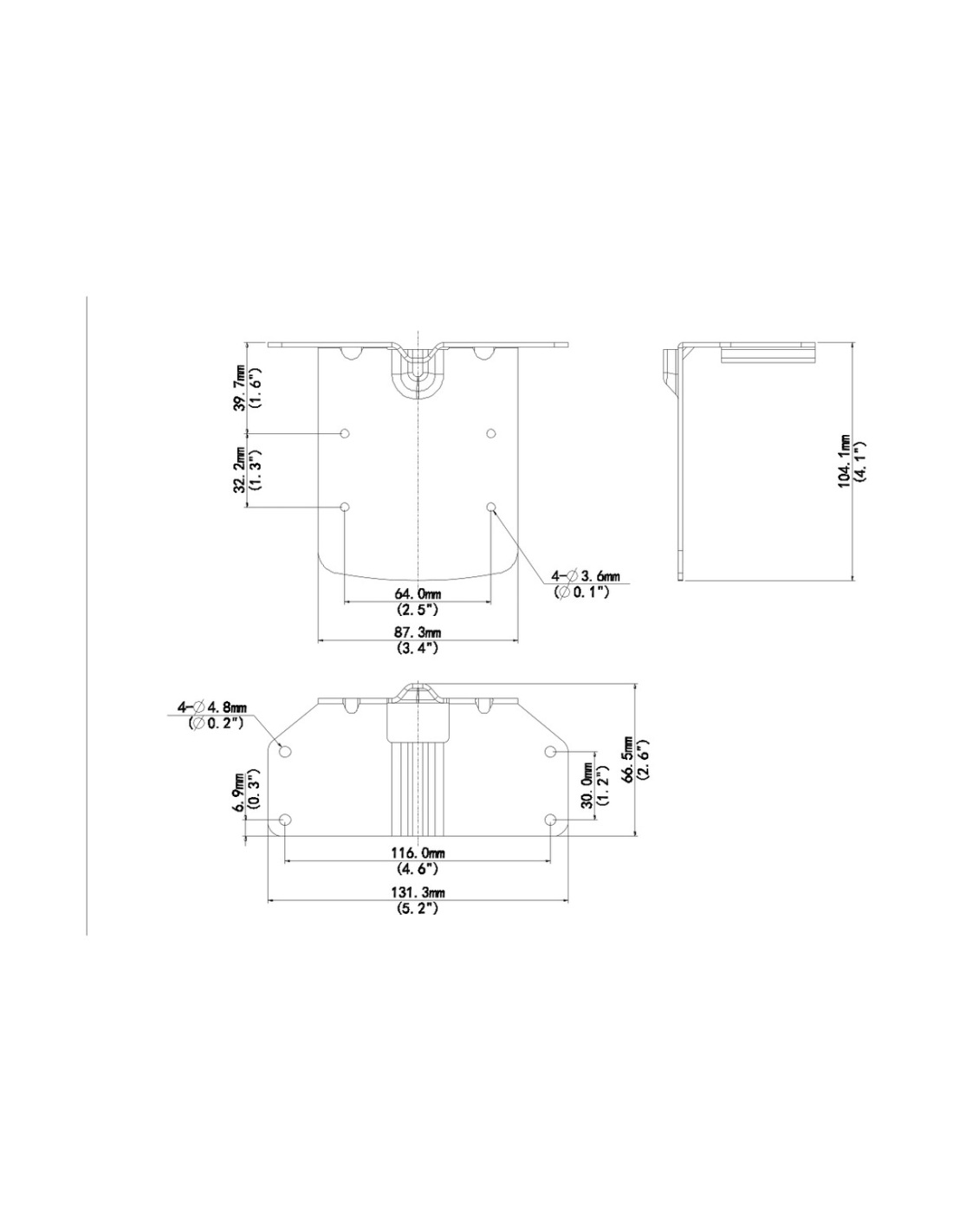

The ceiling flange is 131.3 mm wide with four Ø4.8 mm holes (116 mm apart). The 104.1 mm-high camera plate has four Ø3.6 mm holes on a 64 mm spacing.
How it goes in
From the box to a mounted camera.
01
Mark and drill
Hold the flange to the ceiling, mark the four holes and drill the cable hole.
02
Fix the bracket
Screw the flange to a joist, batten or solid eave.
03
Fit the camera
Screw the camera’s base to the upright plate and bring the cable through the notch.
04
Connect and aim
Connect the camera, seal the joint and set its presets.
At a glance
TR-CM06-D
Show specs
Type
Ceiling (hanging) bracket
Fits
Uniview IPC6324LWH-AX5C-VG2
Size
104 × 131 × 67 mm
Weight
0.088 kg
Material
Aluminium alloy
Ceiling holes
4 × Ø4.8 mm
Camera holes
4 × Ø3.6 mm, 64 mm apart
Use
Indoor or outdoor
Colour
White
Pair it with
What goes with it
Camera
Uniview IPC6324LWH Tri-Guard PTZ
4MP 5x mini PTZ with warm light and siren.
Wall
TR-JB07-D-IN junction box
For the same camera on a wall.
Pole
TR-UP06-B-IN pole bracket
For the same camera on a pole.
Cabling
Cat6 cable
Solid-copper Cat6 for PoE runs of up to 100 m.
Where it is used
Where it is used
Under eaves
A mini PTZ watching the yard and driveway.
Carports and verandas
Out of the rain under a roof.
Shop awnings
Watching the footpath and entry.
Warehouse mezzanines
Hanging below a mezzanine floor.
Uniview mounts for the IPC6324LWH
| TR-CM06-D | TR-JB07-D-IN | TR-UP06-B-IN | |
|---|---|---|---|
| Type | Ceiling bracket | Junction box | Pole bracket |
| Size | 104 × 131 × 67 mm | 125 × 125 × 57 mm | 100 × 90 × 38.2 mm |
| Weight | 0.088 kg | 0.75 kg | 0.2 kg |
| Mounting | Ceiling | Wall | Pole 67–127 mm |
All three are listed in the IPC6324LWH-AX5C-VG2 datasheet. Figures from the Uniview datasheets.
Common questions
Which camera does it fit?
The Uniview IPC6324LWH-AX5C-VG2 Tri-Guard mini PTZ, whose datasheet lists this bracket. Uniview names it a hoisting (hanging) bracket for that camera type.
Why use it?
It lets the mini PTZ hang from a ceiling or eave instead of fixing to a wall, keeping it under cover with a clear view.
What screws do I need?
Four screws for the Ø4.8 mm ceiling holes, into a joist, batten or solid eave lining. Uniview does not list fixings in the box.
Can I use it outdoors?
Yes, Uniview lists it for indoor or outdoor use.
How big is it?
104 × 131 × 67 mm. Uniview lists the weight as 0.088 kg.
Does it fit other cameras?
Uniview lists it for its IPC6324LWH mini PTZ only. Ask us before using it with another camera.
How does the cable run?
Through a hole in the ceiling above the flange, then down the notch at the top of the camera plate to the camera.
What other mounts suit the IPC6324LWH?
Its datasheet also lists the TR-JB07-D-IN junction box for walls and the TR-UP06-B-IN pole bracket.
What is it made of?
Aluminium alloy, 0.088 kg.
Is it white or black?
White. It matches Uniview’s white cameras.
Do I need a licensed installer?
Fixing the bracket is a normal handyman job. In Australia, fixed data cabling inside walls and ceilings must be run by a registered cabler; plugging a camera into an existing outlet does not need one.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure which mount suits your camera or wall? Call 1300 736 970 or email [email protected] with the camera model and a photo of the spot, and we will match the bracket.
Installation and safety
Fixing. Fix into a joist, batten or solid eave lining, not ceiling sheet alone. Turn off power before connecting the camera.
Weather. Seal the cable hole in the ceiling so water cannot follow the cable down to the camera.
Figures. From the Uniview TR-CM06-D datasheet and dimension drawing; camera fits from Uniview’s camera datasheets and accessory guide. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 104 × 131 × 67 mm
- Weight
- 0.088 kg
- Material
- Aluminium Alloy
- Colour
- White
- Installation
- Ceiling, indoor or outdoor
- Brand
- Uniview
- Warranty
- 3 years
- Product Type
- Camera Ceiling Bracket
- Model
- TR-CM06-D
- Use
- Indoor or outdoor
- Mount type
- Ceiling (hanging) bracket
- Compatible Cameras
- Uniview IPC6324LWH-AX5C-VG2
- Camera Series
- Uniview IPC6324 Tri-Guard mini PTZ
- Camera Fixing
- 4 × Ø3.6 mm, 64 mm apart
- Ceiling Fixing Holes
- 4 × Ø4.8 mm
