Uniview Long PTZ Dome Wall Mount, 312 mm Reach, G1.5" Thread, Aluminium, White - TR-WE45-A-IN
TR-WE45-A-IN
In stock $ 47.10
inc-GST
or 4 interest-free payments of $11.78 with
Uniview TR-WE45-A-IN long aluminium PTZ wall arm with G1½ thread and 312.7 mm reach, for Uniview PTZ domes and the IPC8645EA with its adapter.
- ✓For Uniview PTZ domes
- ✓312.7 mm reach past eaves and gutters
- ✓G1½ camera thread, cable inside
- ✓Keyhole slots for one-person fitting
- ✓Corner mounting with TR-UC08-A-IN
- ✓Aluminium alloy, 1.0 kg
Uniview · Long PTZ wall arm · 312 mm reach
More reach for the PTZ,
clear of eaves and gutters.

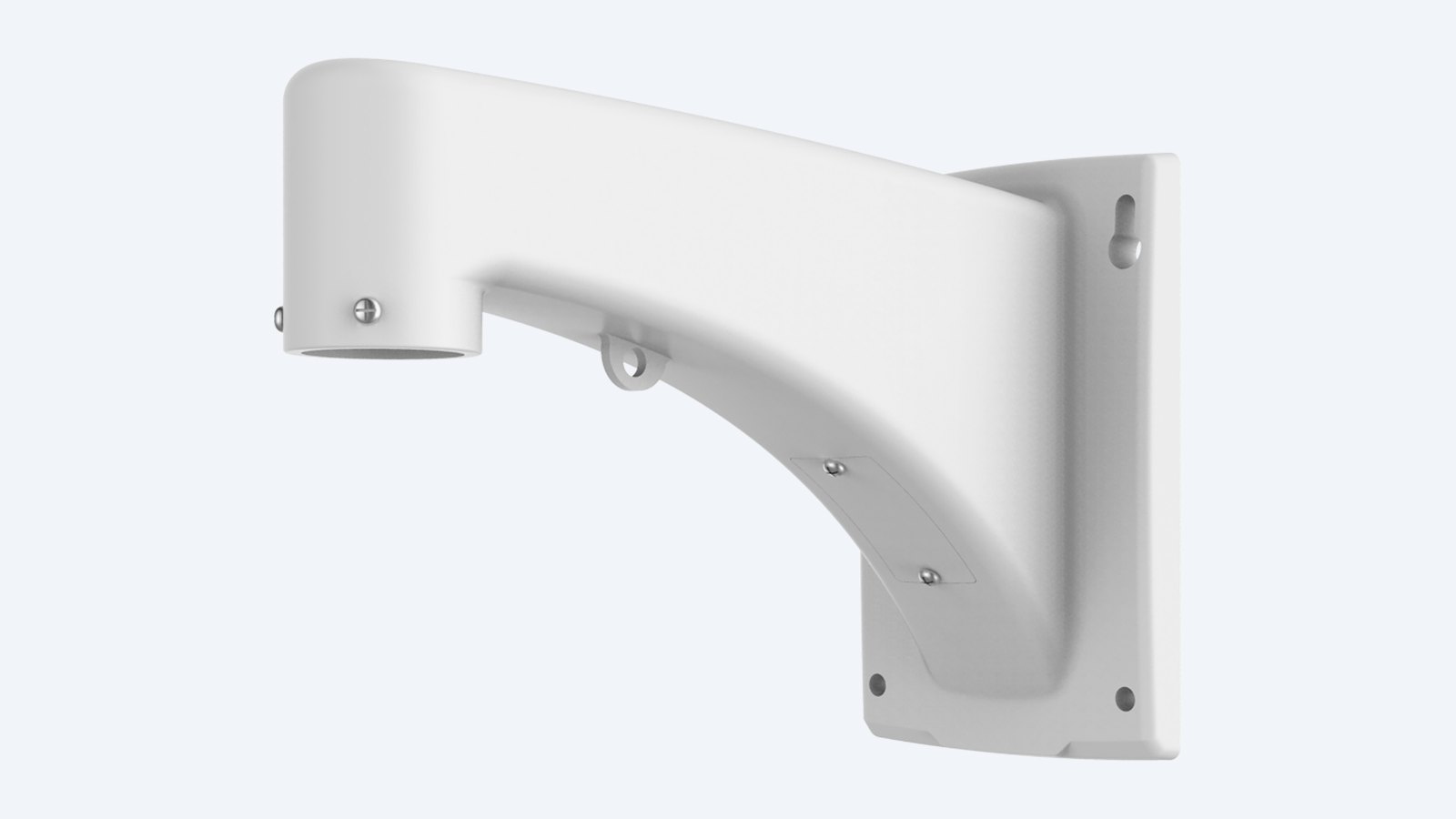

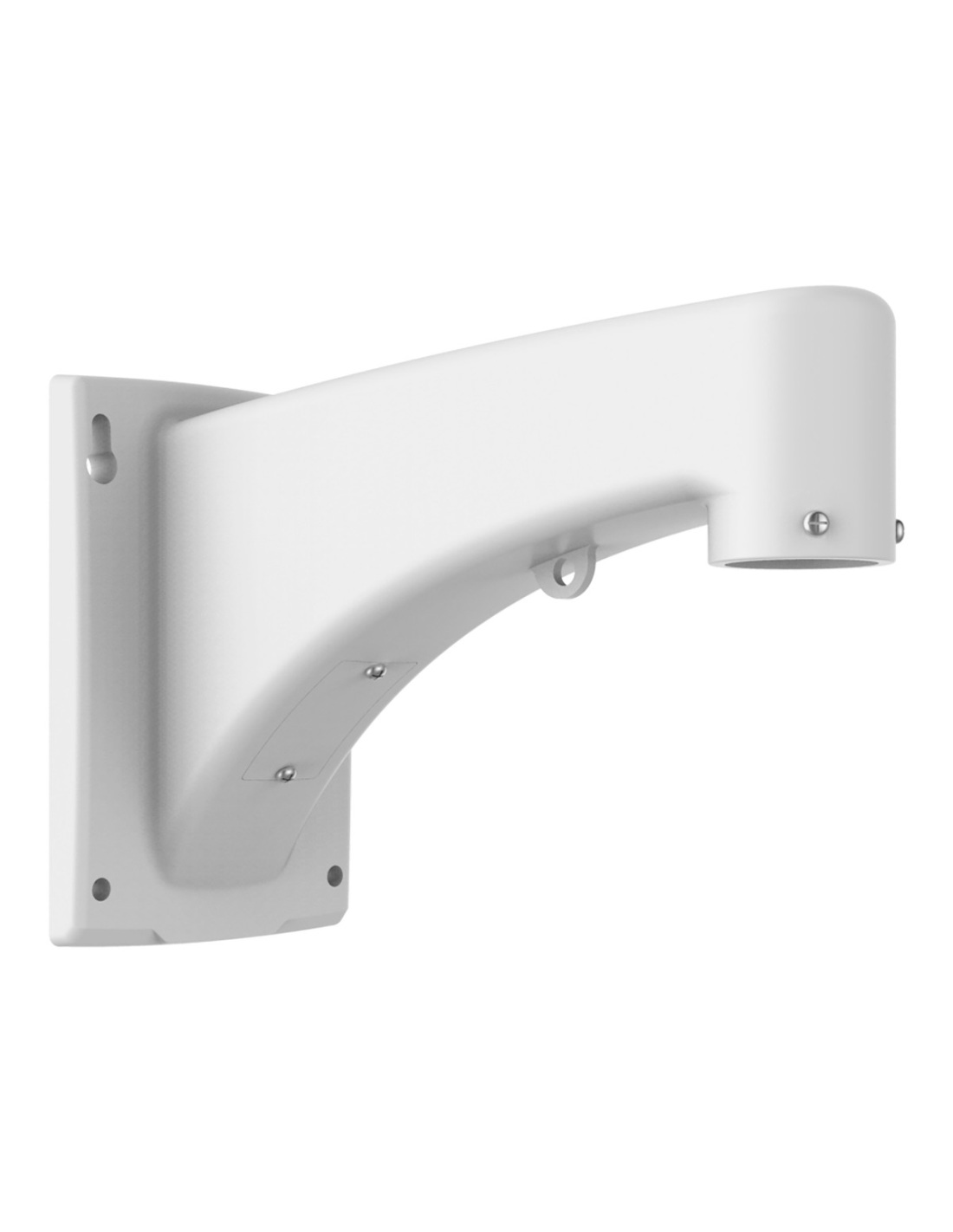

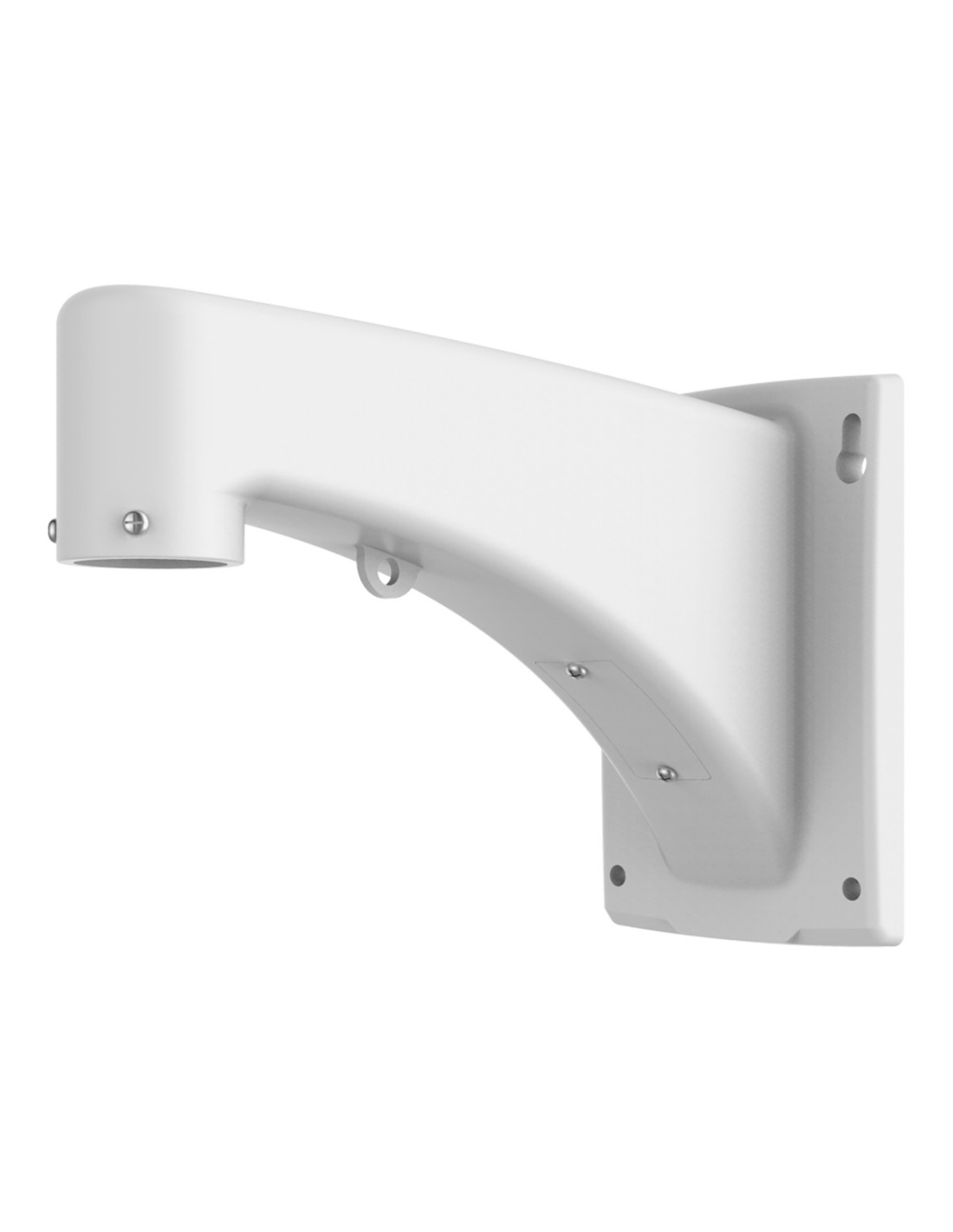

This is the Uniview TR-WE45-A-IN. A long aluminium wall arm for Uniview PTZ domes. It puts the camera 312.7 mm out from the wall, so it can turn all the way round past eaves, gutters and deep fascias.
In one sentence: the TR-WE45-A-IN is a 216 × 141 × 314 mm aluminium alloy long wall arm for Uniview PTZ domes, with a G1½ camera thread and a 312.7 mm reach, weighing 1.0 kg.
The wall arm only. The PTZ and wall fixings are separate.
Order it with a Uniview PTZ dome. For the IPC8645EA four-sensor camera, add the TR-UF45-K-IN adapter. For a corner, add the TR-UC08-A-IN.
In the box
- TR-WE45-A-IN wall mount
You also need
- A compatible PTZ dome
- 4 heavy-duty anchors to suit your wall (Ø9 mm holes)
- A drill
- Outdoor sealant for the cable hole
- TR-UC08-A-IN, for a corner
When the standard arm is too short.
Under wide eaves or beside a gutter, a PTZ on a short arm loses part of its view to the building. The long arm moves it out past the obstruction, with the cable still inside.

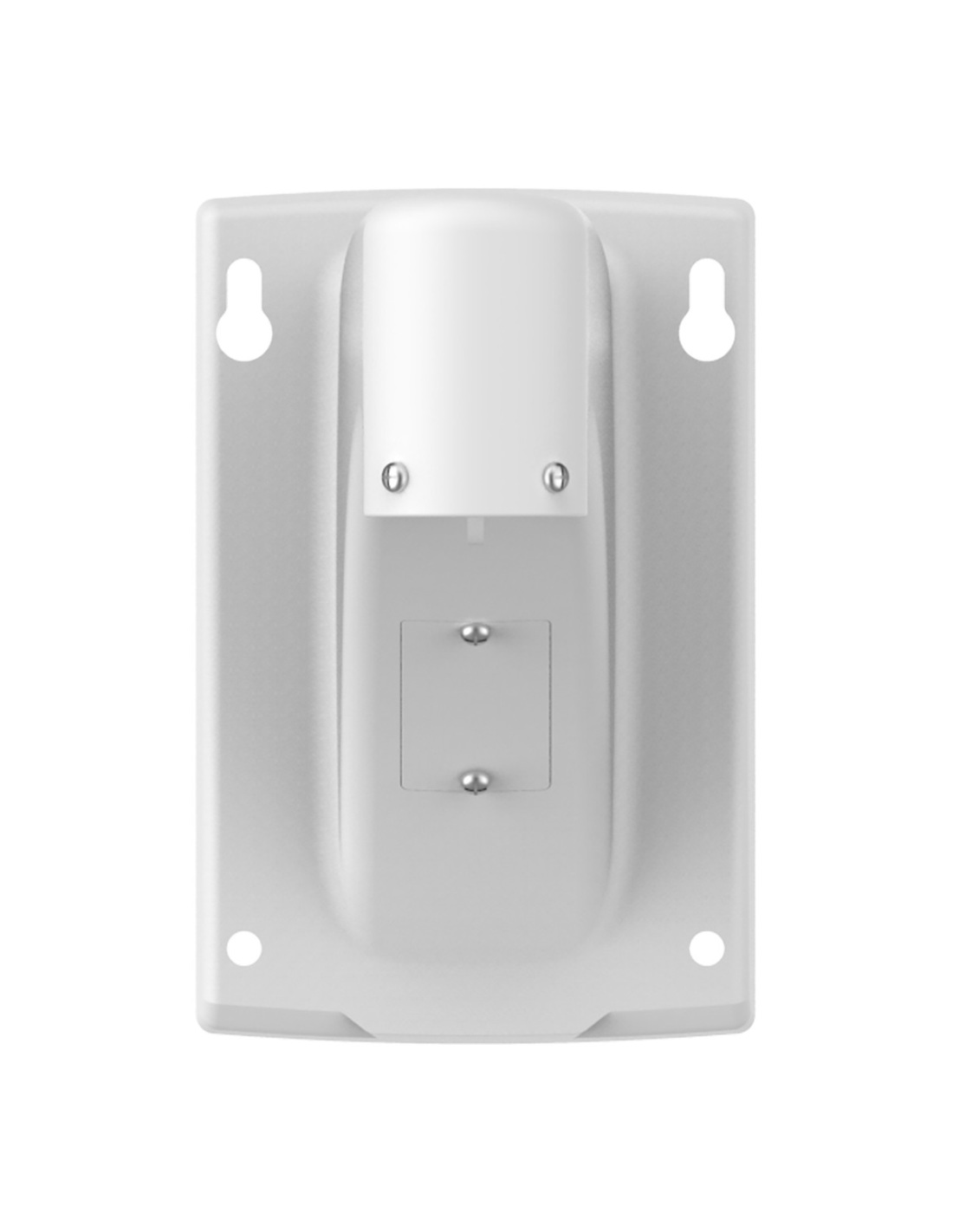

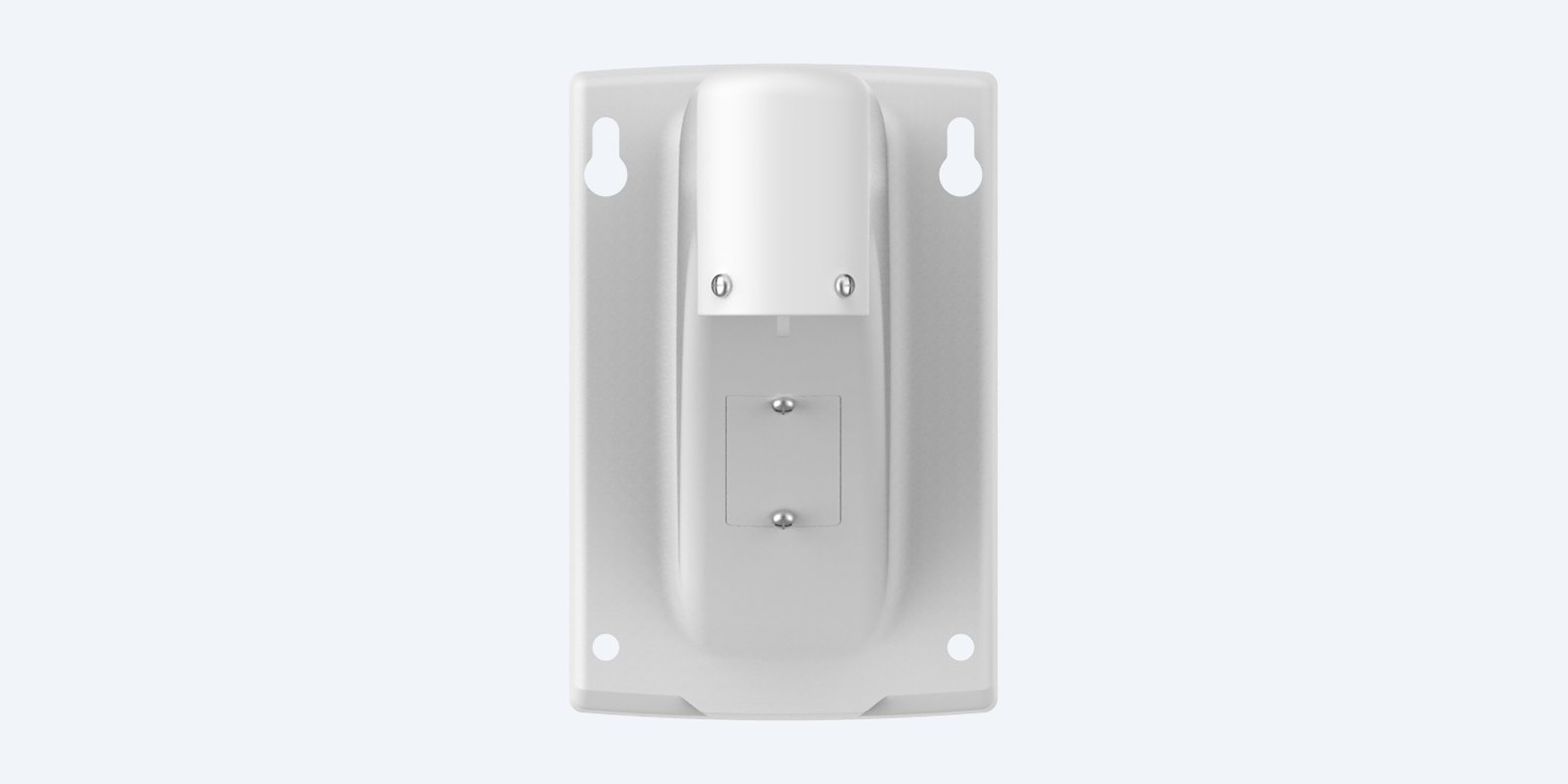

Wall plate
Hang it, then bolt it.
Two Ø14 mm keyhole slots let you hang the arm while you line it up, then four Ø9 mm holes on a 117 × 170 mm pattern bolt it down.

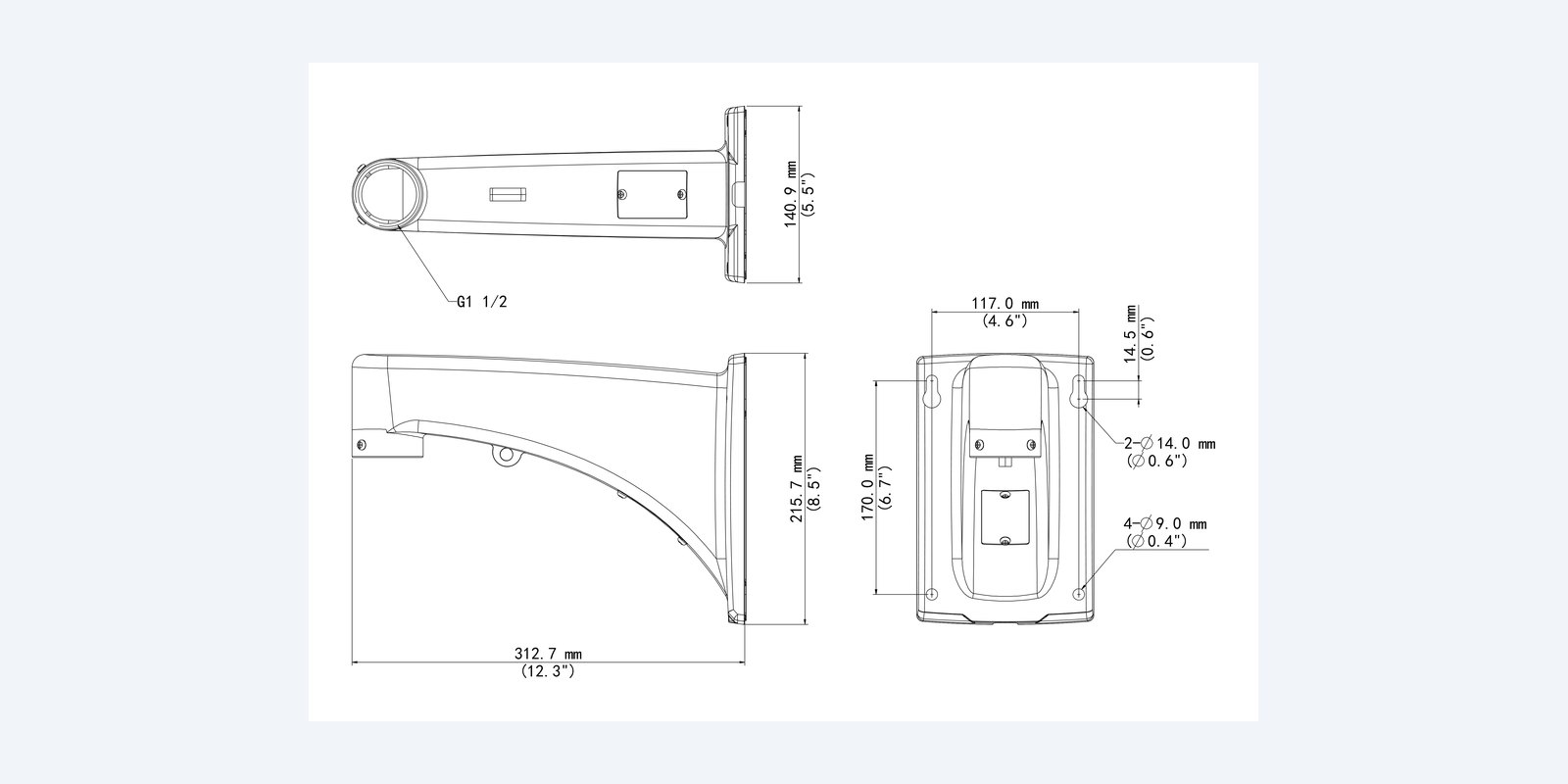

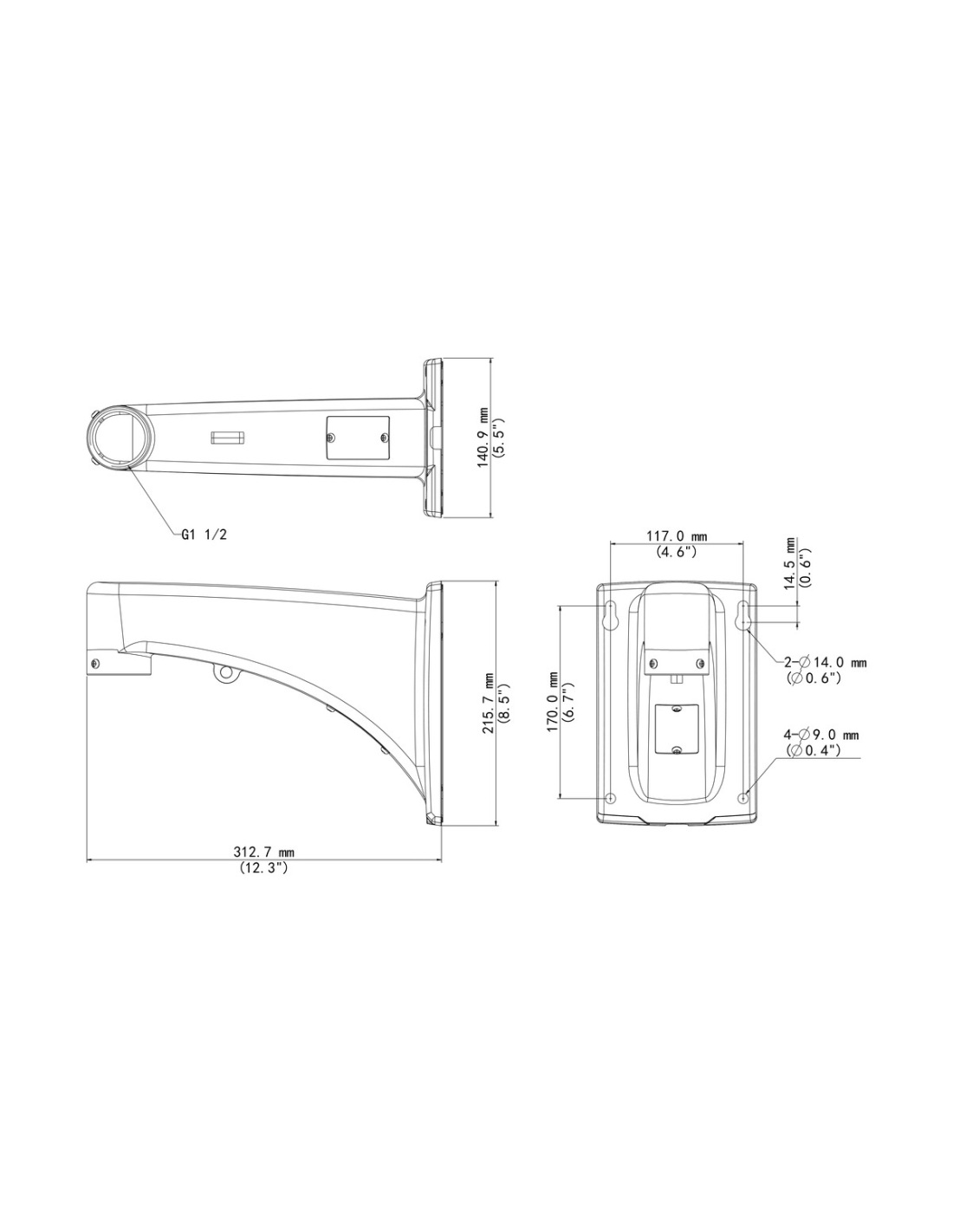

Size
312.7 mm out from the wall.
The arm is 215.7 mm high and 140.9 mm wide at the wall, with four Ø9 mm holes and two Ø14 mm keyhole slots. The camera end is a G1½ thread.
How it goes in
From the box to a mounted camera.
01
Mark and drill
Hold the plate level, mark the keyholes and the four bolt holes, and drill the cable hole behind the plate.
02
Fix the arm
Hang it on the keyhole bolts, feed the cable through the arm and tighten all fixings.
03
Fit the PTZ
Connect the cable, screw the PTZ onto the G1½ thread and lock it with its set screw.
04
Set it up
Power up, check the PTZ turns freely and set presets and patrols.
At a glance
TR-WE45-A-IN
Show specs
Type
Long PTZ wall arm
Fits
Uniview PTZ domes; IPC8645EA with TR-UF45-K-IN
Size
216 × 141 × 314 mm
Reach
312.7 mm
Weight
1.0 kg
Material
Aluminium alloy
Camera thread
G1½
Wall holes
4 × Ø9 mm (117 × 170 mm) + 2 × Ø14 mm keyholes
Use
Indoor or outdoor
Colour
White
Pair it with
What goes with it
PTZ
Uniview IPC6828EL 42x PTZ
4K 42x PTZ that lists this arm.
Four-sensor
TR-UF45-K-IN adapter
Fits the IPC8645EA to this arm.
Corner
TR-UC08-A-IN corner adapter
Steel adapter for an outside corner.
Shorter arm
TR-WE45-IN
201.5 mm reach where space is tight.
Where it is used
Where it is used
Wide eaves
Out past the eave so the PTZ sees the whole yard.
Car parks
High on a wall covering every bay.
Industrial sites
Warehouse walls watching gates and docks.
Large homes and acreage
One PTZ covering the driveway and grounds.
Uniview PTZ brackets side by side
| TR-WE45-IN | TR-WE45-A-IN | TR-UC08-A-IN | TR-FM180-IN | TR-UF45-K-IN | |
|---|---|---|---|---|---|
| Type | Wall arm | Long wall arm | Corner adapter | In-ceiling mount | Pendant/wall adapter |
| Size | 230.3 × 141 × 201.5 mm | 216 × 141 × 314 mm | 215 × 210 × 122 mm | Ø280 × 91 mm | Ø318 × 116 mm |
| Weight | 0.79 kg | 1.0 kg | 1.87 kg | 1.2 kg | 1.3 kg |
| Material | Aluminium alloy | Aluminium alloy | Steel | Sheet metal and PC | Aluminium alloy |
| Use | Indoor or outdoor | Indoor or outdoor | Indoor or outdoor | Indoor | Indoor or outdoor |
The wall arms end in a G1½ thread for the PTZ; the corner adapter takes either arm. Figures from the Uniview datasheets and drawings.
Common questions
Which cameras does it fit?
Uniview PTZ domes with the G1½ mount. The IPC6624SFW-X25-C-VH2, IPC6828EL-X42-W-VH1 and IPC94144SFW-X25-F40C datasheets list it, and Uniview’s accessory guide adds the IPC6424SR-X25-VF. The IPC8645EA four-sensor camera uses it with the TR-UF45-K-IN adapter.
How far does it hold the PTZ from the wall?
312.7 mm, about 110 mm more than the standard TR-WE45-IN.
Can I mount it on a corner?
Yes, with the TR-UC08-A-IN steel corner adapter. Its four M8 holes match this arm’s 117 × 170 mm hole pattern.
What fixings do I need?
Four bolts or anchors to suit the Ø9 mm holes, plus two for the keyhole slots, rated for the camera’s weight in your wall. Never plasterboard alone.
How does the cable get to the camera?
From the wall behind the plate, inside the arm to the G1½ thread.
How much weight will it hold?
Uniview does not publish a load rating. The longer reach adds leverage, so use anchors rated well above the camera’s weight.
Can I use it outdoors?
Yes, Uniview lists it for indoor or outdoor walls.
How big is it?
216 × 141 × 314 mm (Uniview’s datasheet), weighing 1.0 kg.
What is it made of?
Aluminium alloy, 1.0 kg.
Is it white or black?
White. It matches Uniview’s white cameras.
Do I need a licensed installer?
Fixing the bracket is a normal handyman job. In Australia, fixed data cabling inside walls and ceilings must be run by a registered cabler; plugging a camera into an existing outlet does not need one.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure which mount suits your camera or wall? Call 1300 736 970 or email [email protected] with the camera model and a photo of the spot, and we will match the bracket.
Installation and safety
Fixing. Fix into brick, concrete or steel with anchors rated for the camera; the long arm adds leverage. Working at height needs a stable platform. Turn off power before connecting the camera.
Weather. Seal the cable hole behind the plate and the thread at the camera end so water cannot follow the cable inside.
Figures. From the Uniview TR-WE45-A-IN datasheet and dimension drawing; camera fits from Uniview’s camera datasheets and accessory guide. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 216 × 141 × 314 mm
- Weight
- 1.0 kg
- Material
- Aluminium Alloy
- Colour
- White
- Installation
- Wall, indoor or outdoor
- Brand
- Uniview
- Warranty
- 3 years
- Product Type
- PTZ Camera Wall Mount
- Model
- TR-WE45-A-IN
- Use
- Indoor or outdoor
- Mount type
- Long wall arm (PTZ)
- Compatible Cameras
- Uniview IPC6624SFW-X25-C-VH2, IPC6828EL-X42-W-VH1, IPC94144SFW-X25-F40C, IPC6424SR-X25-VF; IPC8645EA-ADZKM-I1 with TR-UF45-K-IN
- Camera Series
- Uniview PTZ domes (IPC62/63/64/66/68 series)
- Wall Fixing Holes
- 4 × Ø9 mm (117 × 170 mm), 2 × Ø14 mm keyholes
- Reach
- 312.7 mm
- Camera Thread
- G1½
- Corner Mounting
- With TR-UC08-A-IN
- New
In stock
Uniview PTZ Cameras
Uniview 4MP 25x PTZ Camera, 4.8-120mm, 100m Smart IR, Auto Tracking, IP67 IK10, PoE+ -...
- New
In stock
Uniview Panoramic & Fisheye Cameras

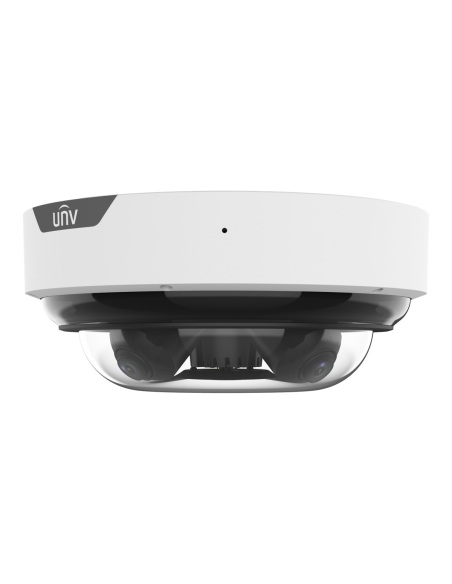

Uniview 4 x 5MP Multi-Sensor Camera, 2.7-13.5mm Varifocal Lenses, 50m IR, Hi-PoE -...
