Uniview 4-Inch Dome Wall Mount with Junction Box, IPC323X Motorised Domes, White - TR-JB07/WM04-B-IN-V2
TR-JB07/WM04-B-IN-V2
In stock $ 43.60
inc-GST
or 4 interest-free payments of $10.90 with
Uniview TR-JB07/WM04-B-IN-V2 aluminium wall arm with built-in junction box for IPC323X 4-inch domes. Holds the camera 254.5 mm out with the cable joint boxed in.
- ✓Fits Uniview IPC323X 4-inch domes
- ✓Junction box built into the arm
- ✓254.5 mm reach from the wall
- ✓Rear, side and bottom cable entries
- ✓Aluminium alloy, 0.86 kg
- ✓White finish
Uniview · Wall arm + junction box · IPC323X 4-inch domes
Out from the wall,
with the cable joint boxed in.

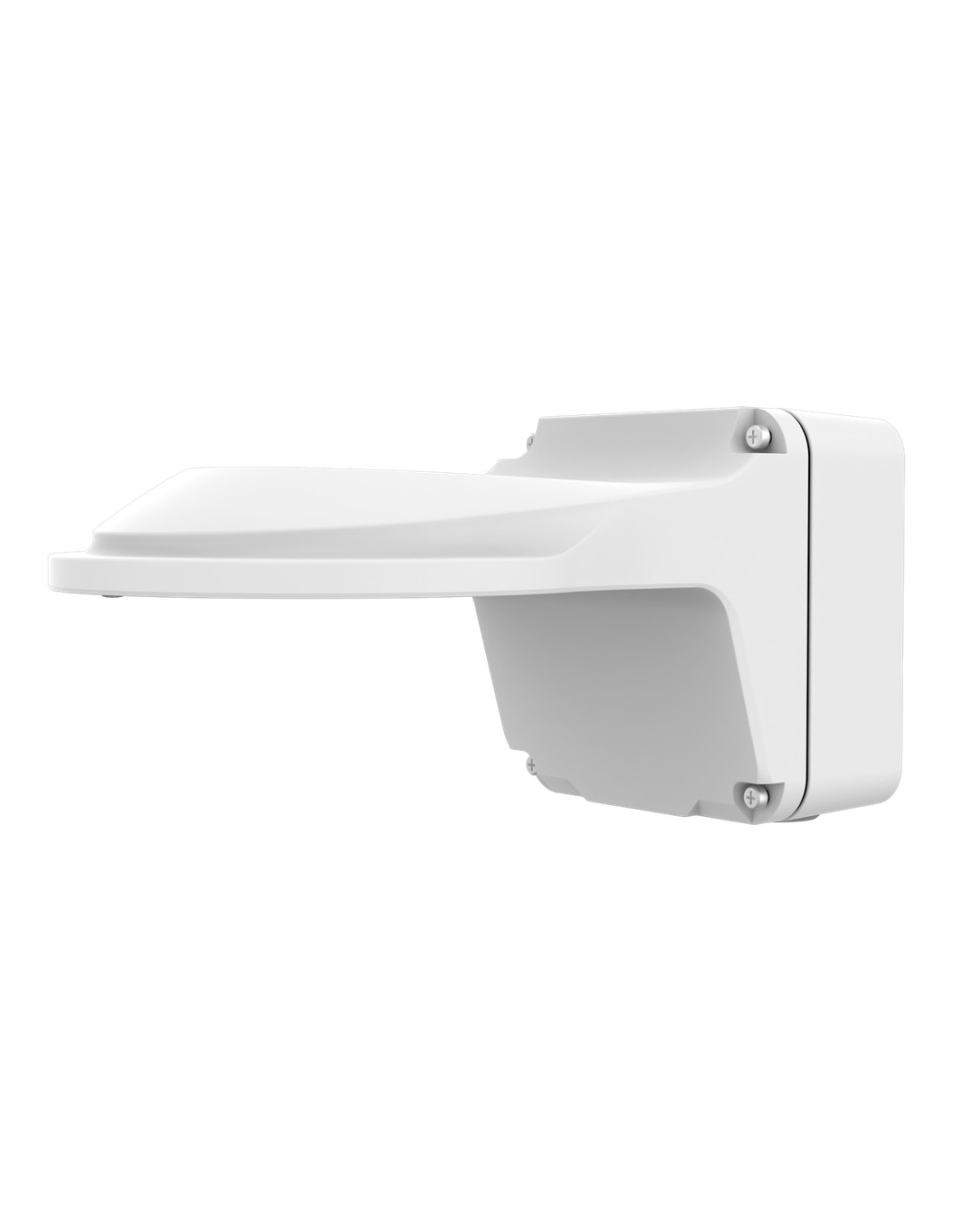

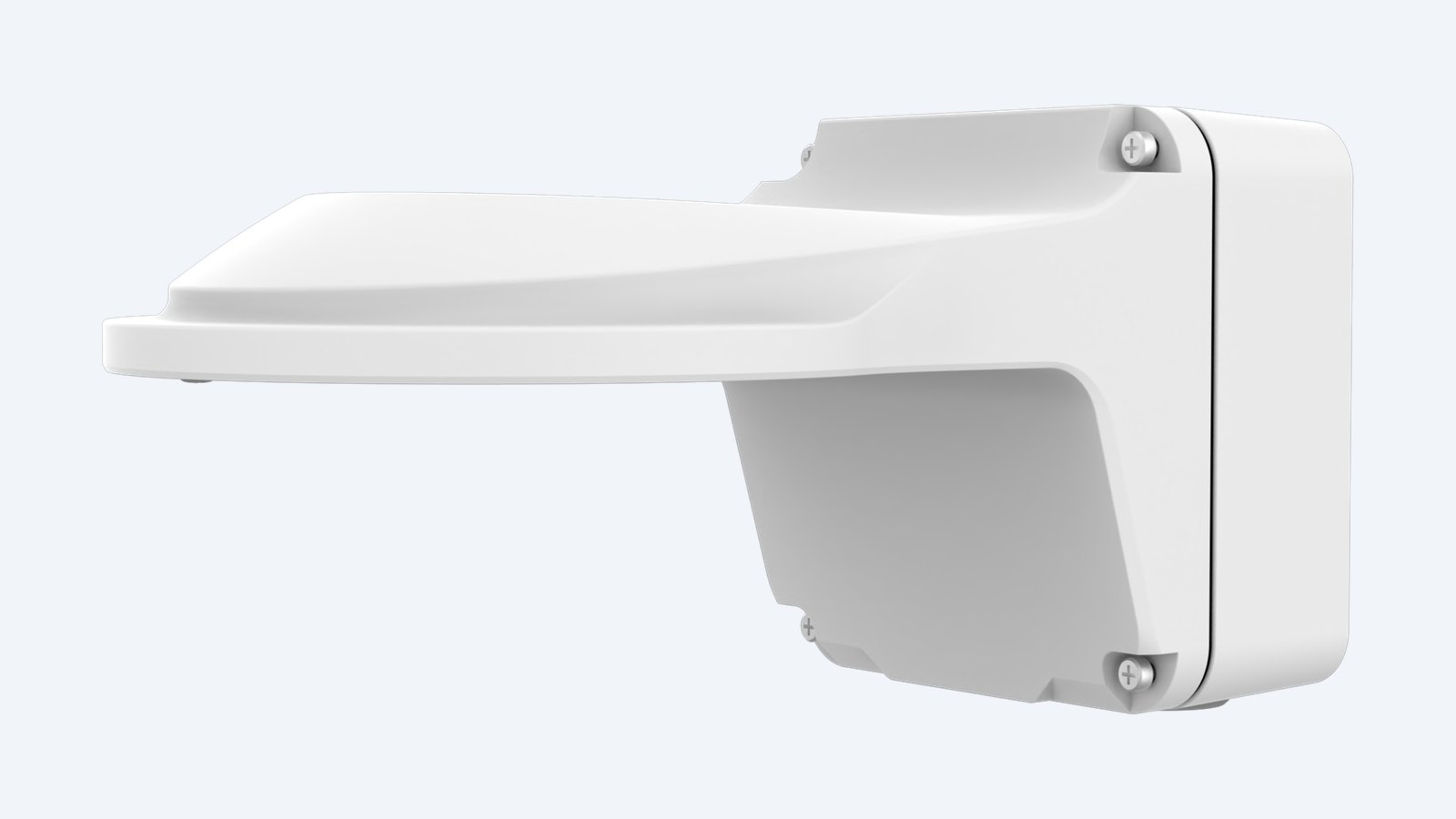

This is the Uniview TR-JB07/WM04-B-IN-V2. A wall arm and junction box in one aluminium piece. The box at the wall end holds the camera’s cable tail and plug, and the arm sets the 4-inch dome 254.5 mm out so it can look along the wall.
In one sentence: the TR-JB07/WM04-B-IN-V2 is a 254.5 × 124.9 × 128 mm aluminium alloy wall arm with a built-in junction box and rear cable outlet, for Uniview IPC323X 4-inch domes, weighing 0.86 kg.
The arm with its junction box. The camera and fixings are separate.
Order it with a matching 4-inch dome. Use four wall fixings that suit your surface.
In the box
- TR-JB07/WM04-B-IN-V2 wall mount with junction box
You also need
- A compatible 4-inch dome (see the list below)
- 4 screws and plugs to suit your wall
- A drill
- Outdoor sealant for the cable hole
- An NPT 3/4" gland or conduit fitting if you use a side or bottom entry
One part instead of two.
Outdoors, a plain wall arm leaves the camera’s cable joint in the wall or exposed. Here the junction box is part of the arm: the cable comes out of the wall into the box, the plug stays dry inside, and only the camera’s own lead runs along the arm.
Junction box
Cable from behind, below or the side.

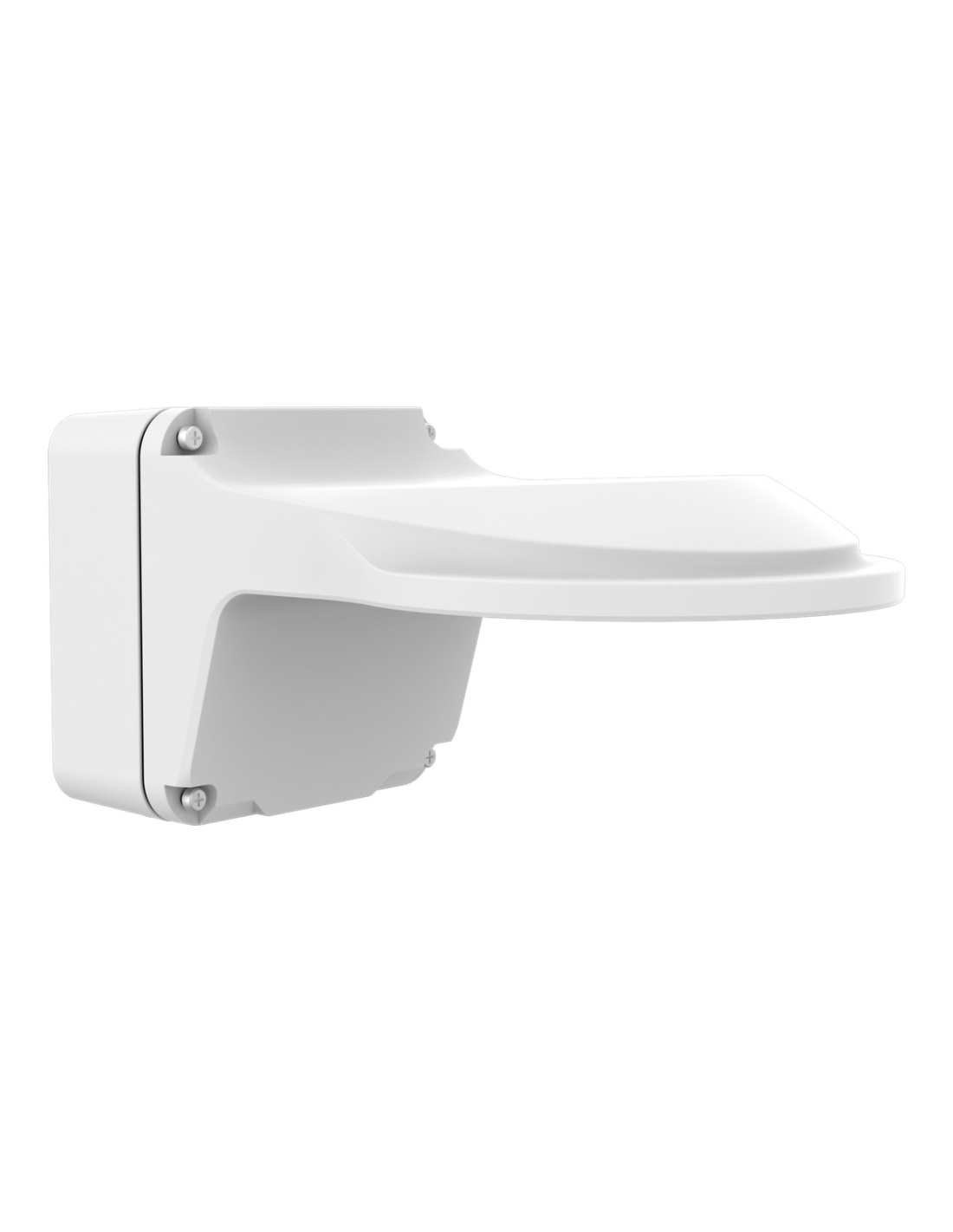

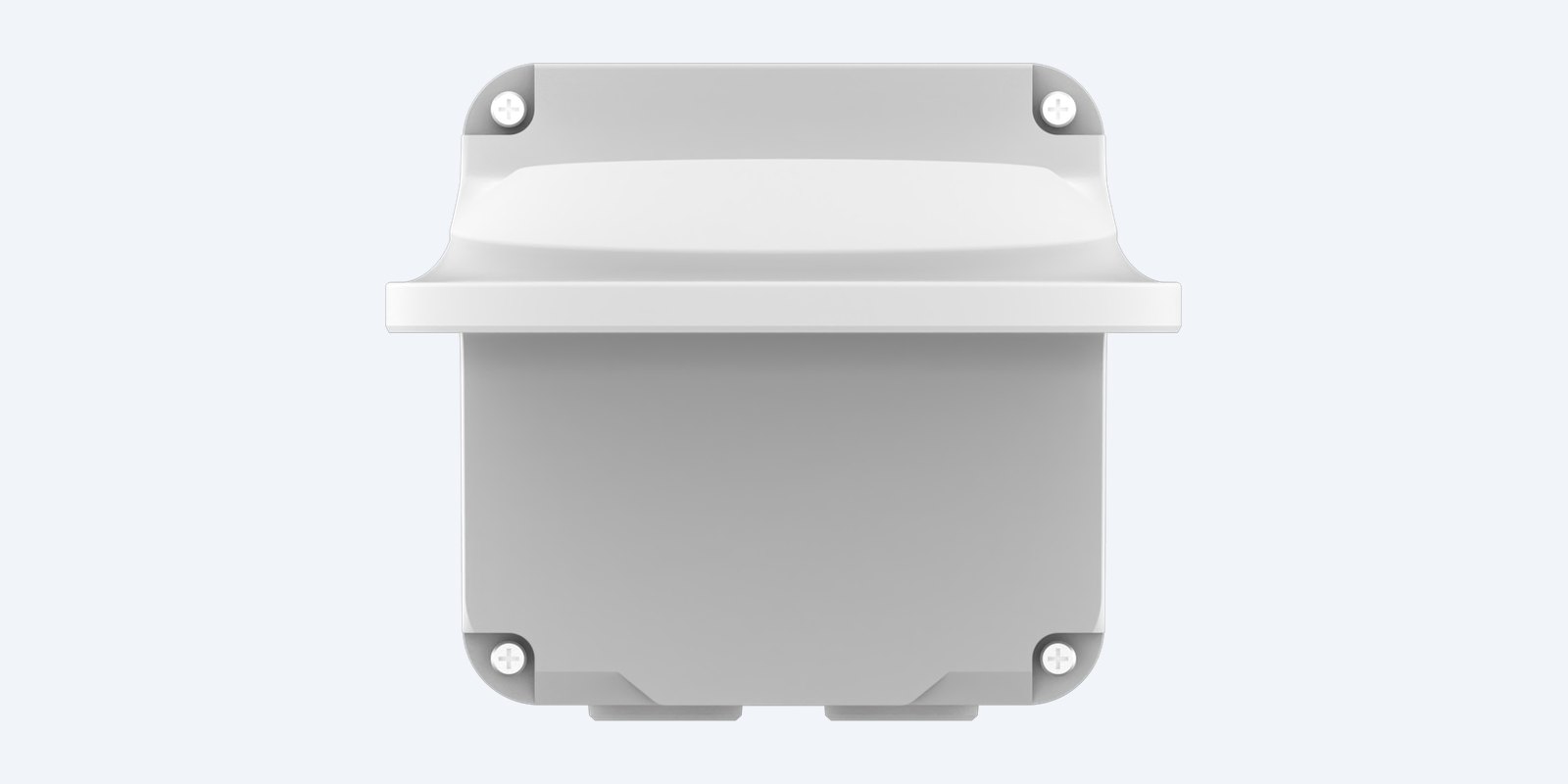

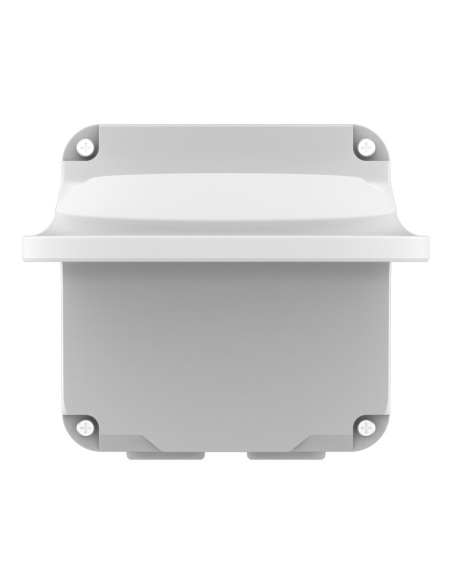

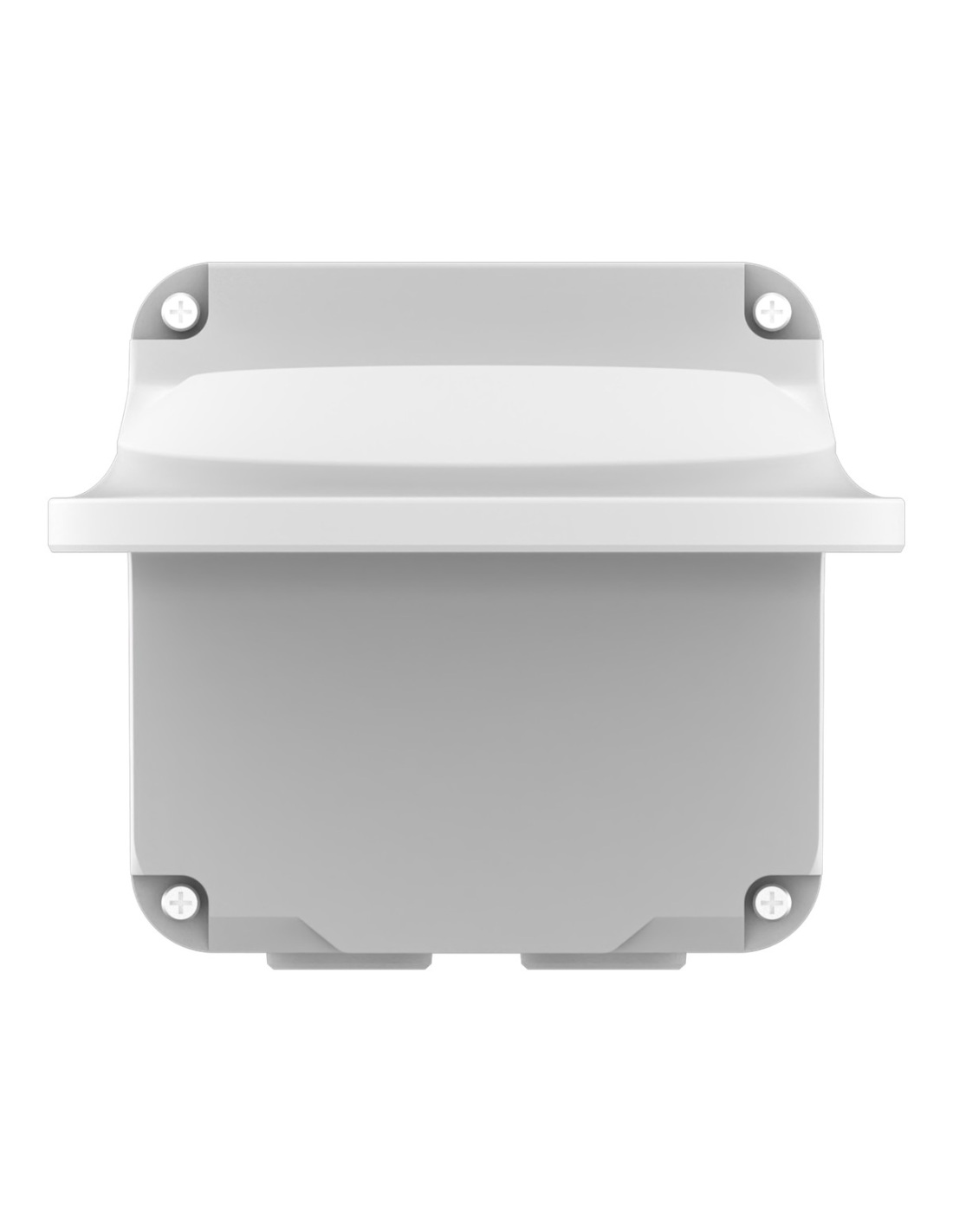

The wall end is a sealed box with a removable cover. Cable comes in through the back, or through the 3/4" threaded entries on the side and underneath when it runs along the wall.
Size
254.5 mm out from the wall.

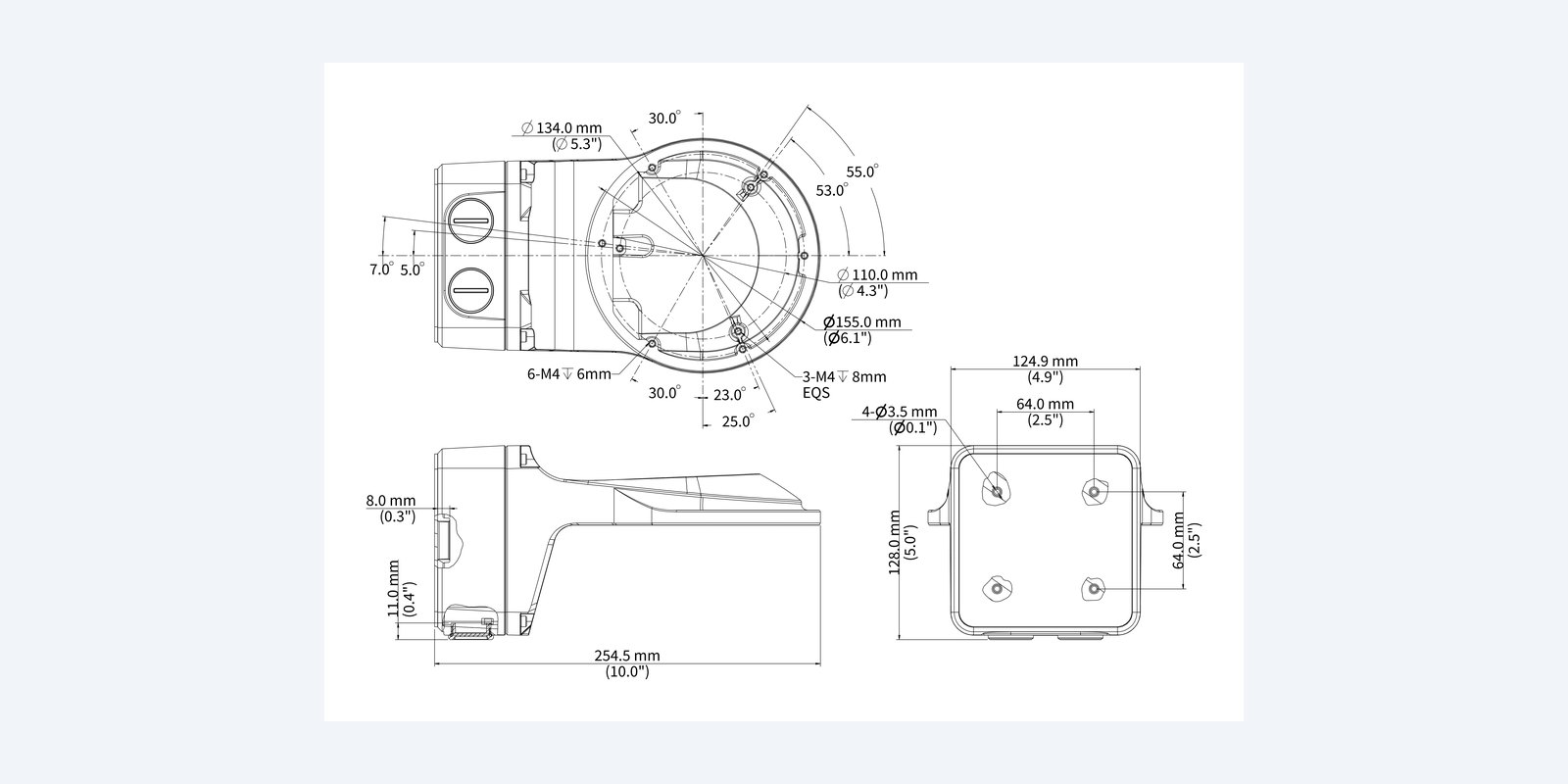

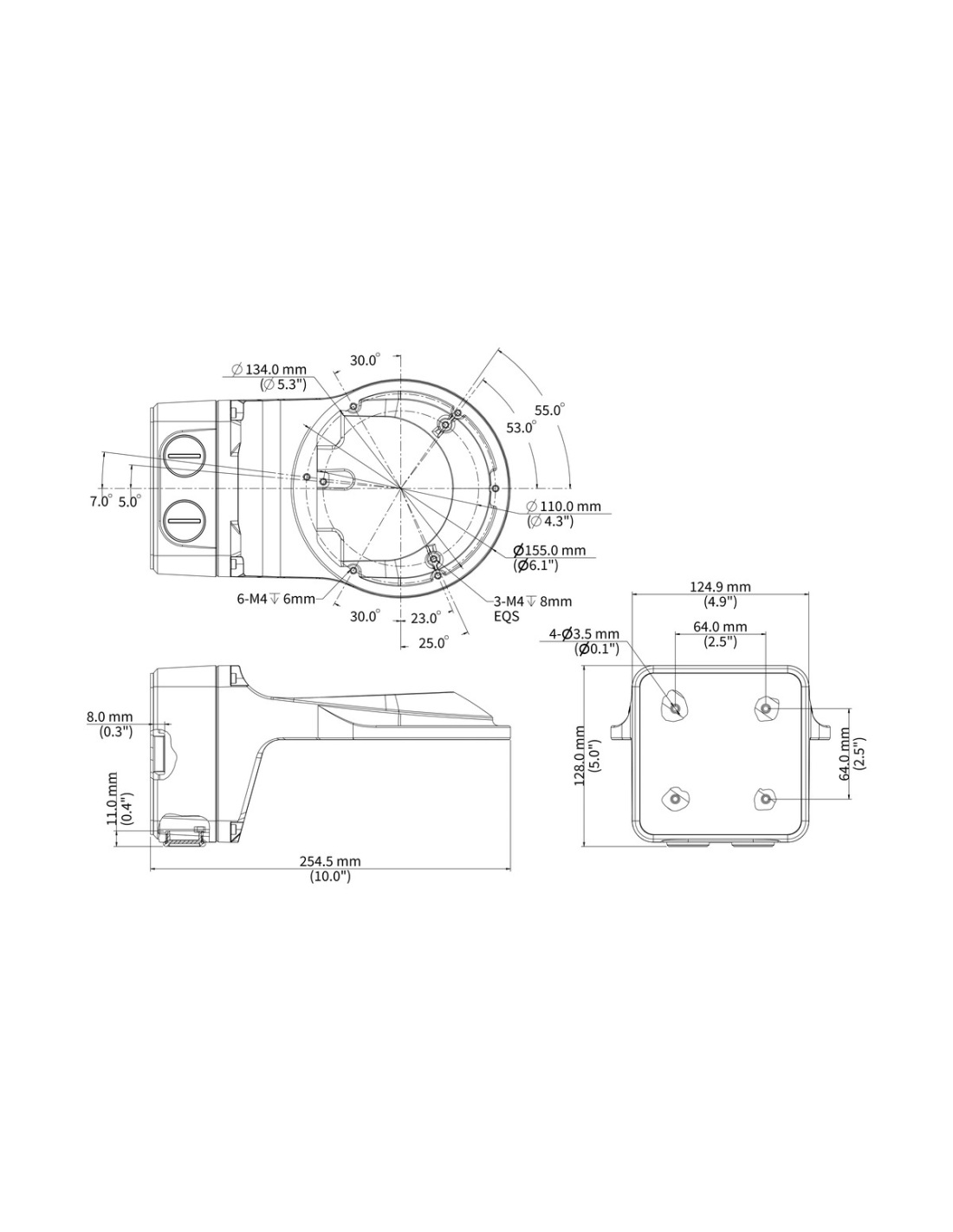

The arm is 254.5 mm long. The box at the wall end is 124.9 × 128 mm, with four Ø5 mm holes on a 64 mm square.
How it goes in
From the box to a mounted camera.
01
Mark and drill
Hold the box level and mark the four holes. Drill the cable hole behind the box.
02
Fix the arm
Pull the cable into the box and screw the back to the wall with four fixings.
03
Connect the camera
Run the camera’s lead along the arm and plug it in inside the box. Close the cover.
04
Fit and aim
Screw the camera’s base onto the ring at the end of the arm, then aim it.
At a glance
TR-JB07/WM04-B-IN-V2
Show specs
Type
Wall arm with junction box
Fits
Uniview IPC323X 4-inch domes
Size
254.5 × 124.9 × 128 mm
Reach
254.5 mm from the wall
Weight
0.86 kg
Material
Aluminium alloy
Cable entries
Rear outlet, plus 3/4" NPS side and bottom
Wall holes
4 × Ø5 mm on a 64 mm square
Camera fixing
M4 holes around the 4-inch camera ring
Colour
White
Pair it with
What goes with it
Camera
Uniview IPC3238SB dome
8MP dual-light motorised dome.
Camera
Uniview IPC3235SB dome
5MP LightHunter motorised dome.
Indoor
TR-WM04-IN wall mount
Lighter indoor arm for the same domes.
Cabling
Cat6 cable
Solid-copper Cat6 for PoE runs of up to 100 m.
Where it is used
Where it is used
Outdoor walls
Brick, render and cladding with no eave above.
Side passages
Look along the side of the house.
Driveways and entries
Watch along the wall towards the gate.
Shopfronts
Out from the wall over the footpath or car park.
Uniview wall arms with a junction box side by side
| TR-JB07/WM03-F-IN | TR-JB07/WM03-F-IN-V2-BK | TR-JB07/WM03-G-IN | TR-JB07/WM03-G-IN-V2-BK | TR-JB07/WM04-B-IN-V2 | |
|---|---|---|---|---|---|
| For | IPC363X, IPC36XXS/E turrets | IPC363X SS/SA/SB, IPC353X, IPC31X LP, IPC3K2XSE | IPC36XXL Easy turrets | 32 domes, mini domes, plastic turrets | IPC323X 4" domes |
| Size | 235 × 126.2 × 128.6 mm | 235 × 126.2 × 128.5 mm | 231.4 × 125 × 128.8 mm | 231.4 × 125 × 128.8 mm | 254.5 × 124.9 × 128 mm |
| Weight | 0.98 kg | 0.84 kg | 1 kg | 0.88 kg | 0.86 kg |
| Colour | White | Black | White | Black | White |
All aluminium alloy with a rear cable outlet. Size is reach × width × height from the Uniview datasheets.
Common questions
Which cameras does it fit?
Uniview lists it for its IPC323X fixed domes, and the IPC3235SB, IPC3236SB and IPC3238SB datasheets list it. From our range: IPC3235SB-ADZK-I0, IPC3236SB-ADZKM-DL-I1 and IPC3238SB-ADZKM-DL-I1.
Why a wall arm with a junction box?
It keeps the camera’s cable tail and plug in a covered box at the wall, so the joint is not exposed and you only need one cable hole behind the box.
How far does it hold the camera from the wall?
The arm is 254.5 mm long overall, so the camera sits clear of the wall and gutters.
Can the cable come along the wall?
Yes. As well as the rear outlet there are 3/4" NPS threaded entries on the side and underneath. Uniview’s TR-A01-IN is an NPT 3/4" waterproof gland for them; for 20 mm conduit use a matching thread adapter.
What screws do I need?
Four screws to suit the Ø5 mm holes on a 64 mm square, with masonry plugs for brick or concrete, or timber screws into a stud. Plasterboard alone is not strong enough. Uniview does not list fixings in the box.
How much weight will it hold?
Uniview does not publish a load rating. The arm levers the camera’s weight out from the wall, so fix it into solid material.
Indoor or outdoor?
Both. For indoor walls where you do not need the junction box, the lighter TR-WM04-IN is an option.
Why a bigger arm for these domes?
The IPC323X domes are 4-inch motorised domes with a wider base than the 3-inch domes, so the arm is longer with a larger camera ring.
What is it made of?
Aluminium alloy, 0.86 kg. It will not rust like steel.
Is it white or black?
White. It matches Uniview’s white cameras.
Do I need a licensed installer?
Fixing the bracket is a normal handyman job. In Australia, fixed data cabling inside walls and ceilings must be run by a registered cabler; plugging a camera into an existing outlet does not need one.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure which mount suits your camera or wall? Call 1300 736 970 or email [email protected] with the camera model and a photo of the spot, and we will match the bracket.
Installation and safety
Fixing. Fix into brick, concrete or solid timber; the arm’s leverage is too much for plasterboard alone. Turn off power to the camera before connecting it.
Weather. Seal any unused cable entry and point cable glands downward so water cannot run into the camera connection.
Figures. From the Uniview TR-JB07/WM04-B-IN-V2 datasheet and dimension drawing; camera fits from Uniview’s camera datasheets and accessory guide. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 254.5 × 124.9 × 128 mm
- Weight
- 0.86 kg
- Material
- Aluminium Alloy
- Colour
- White
- Installation
- Wall, indoor or outdoor
- Brand
- Uniview
- Warranty
- 3 years
- Product Type
- Camera Wall Mount with Junction Box
- Model
- TR-JB07/WM04-B-IN-V2
- Cable Entry
- Rear outlet; 3/4" NPS side and bottom
- Use
- Indoor or outdoor
- Mount type
- Wall arm with junction box
- Junction Box
- Built in
- Compatible Cameras
- Uniview IPC3235SB, IPC3236SB, IPC3238SB (IPC323X 4-inch domes)
- Camera Series
- Uniview IPC323X 4-inch domes
- Wall Fixing Holes
- 4 × Ø5 mm on a 64 mm square
- Camera Fixing
- M4 holes around the 4-inch camera ring
- Reach
- 254.5 mm
