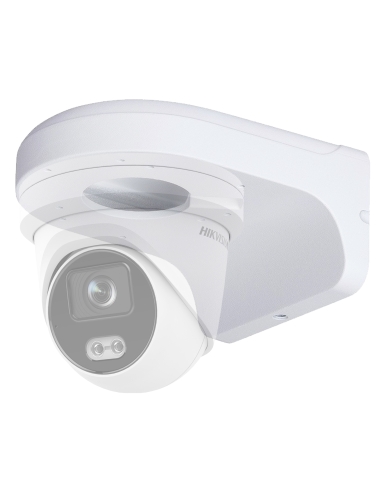

    Right Angle Wall Mount Camera Bracket

    VSBKTB2204W
    In Stock - Ready to Ship
    $ 22.50
    inc-GST

    The VIP Vision VSBKTB2204W is a durable right-angle wall mount bracket designed for turret (eyeball) cameras. Equivalent to the Dahua PFB204W, it provides a clean, secure mounting solution with internal cable routing for professional CCTV installations. Built from powder-coated aluminium, it delivers reliable performance in demanding environments.

    • Right-angle wall mount design for turret cameras
    • Equivalent to Dahua PFB204W bracket
    • Durable aluminium construction with clean cable management

    Various Payment Types at Checkout.

    All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep



    VIP Vision Right Angle Wall Mount Bracket

    Model: VSBKTB2204W

    Equivalent to Dahua DH-AC-PFB204W

    The VIP Vision VSBKTB2204W is a professional-grade right-angle wall mount bracket designed for turret (eyeball) cameras. This bracket is the VIP equivalent of the Dahua PFB204W, sharing the same mounting style, footprint, and real-world compatibility.

    Manufactured from powder-coated aluminium, it provides a clean, durable, and reliable mounting solution for CCTV installations across residential, commercial, and industrial environments. It allows for internal cable routing, protecting terminations while delivering a clean, professional finish.

    Key Features

    • Right-angle wall mount design for turret cameras
    • Equivalent mounting pattern to Dahua PFB204W
    • Durable aluminium construction with powder-coated finish
    • Internal cable routing for clean, protected installations
    • Compact and professional appearance
    • Suitable for indoor and outdoor use (with correct sealing)

    Why Installers Use This Bracket

    This style of bracket is one of the most commonly used CCTV mounts in Australia. It allows installers to position cameras off the wall, improving viewing angles while keeping cabling hidden and protected.

    Because it shares the same design as Dahua’s PFB204W, it is widely used across both VIP Vision and Dahua ecosystems, making it extremely versatile for mixed-system installations.

    Specifications

    SpecificationDetails
    MaterialAluminium Alloy
    Load Capacity1.0kg
    Operating Conditions-40°C to 60°C / 90% RH
    Dimensions162 x 129.4 x 80mm

    VIP Vision Camera Compatibility

    This bracket is designed for VIP Vision turret (eyeball) cameras and is officially listed as compatible with:

    • VSIPL-6DIRG-I
    • VSIPP-4DIRG-I3 / VSIPP-6DIRG-I3 / VSIPP-8DIRG-I3
    • VSIPP-6DIRG-I3-B / VSIPP-8DIRG-I3-B
    • VSIPP-5DIRG-I2-P
    • VSIPP-4DIRMG-I3 / VSIPP-6DIRMG-I3 / VSIPP-8DIRMG-I3
    • VSIPP-6DG-ID4 / VSIPP-8DG-ID4 / VSIPP-8DG-ID4-B / VSIPP-8DG-ID4-P
    • VSIPP-8DD-ID3

    These are confirmed in the VIP Vision accessory compatibility guide where VSBKTB204W / VSBKTB2204W are specified as wall mounts for turret cameras.

    Dahua Camera Compatibility (Equivalent Bracket)

    As this bracket shares the same design as Dahua PFB204W, it is widely used with Dahua turret cameras including:

    Modern / Current:

    • IPC-HDW3667 / 3867 / 3467 / 3567 series
    • IPC-HDW5442 / 5241 / 5541
    • IPC-HDW5842 / 5849 / 5449

    Common Installed Base:

    • IPC-HDW3849 / 3549 / 3449 / 3249
    • IPC-HDW2549 / 2449 / 2249
    • IPC-HDW4231 / 4431 / 4831
    • IPC-HDW2231 / 2431 / 2831

    HDCVI Turret Cameras:

    • HAC-HDW1200 / 1400 / 1500
    • HAC-HDW2241 / 2501 / 2402 / 2601 / 2802
    • HAC-HDW1509 / 1239 / 2249 LED

    Consumer Models:

    • Dahua T1A / T2A / T3A / T4A / T5A turret cameras

    Important: Not suitable for bullet (HFW) cameras.

    Installer Notes & Real-World Use

    This bracket is widely used beyond official compatibility lists due to its practical design.

    Common installer practices:

    • Using tech screws when mounting holes do not align perfectly
    • Pre-drilling mounting holes for precise positioning
    • Mounting slightly offset to achieve optimal camera angle
    • Using junction boxes behind walls for additional cable space

    This flexibility makes it one of the most adaptable wall brackets available.

    CRITICAL: Sealing & Waterproofing

    Proper sealing is essential for any outdoor installation.

    Best practice:

    • Apply silicone to top and sides of bracket
    • Seal cable entry points
    • Ensure no water path into wall cavity

    If not sealed correctly:

    • Water ingress into wall
    • Connector corrosion
    • Camera faults and failures
    • Mould and long-term structural damage
    • Costly service call-backs

    Important: The bracket itself does not provide full waterproofing — correct installation does.

    Dimensions
    162 x 129.4 x 80mm
    Operating Conditions
    -40° ~ 60°C / 90% RH (max)
    Weight
    0.57kg
    Weather Resistance
    N/A
    Materials
    Aluminium
    Bracket Type
    Right Angle
    Load Bearing Capacity
    1.00kg
    Pipe Thread
    N/A
