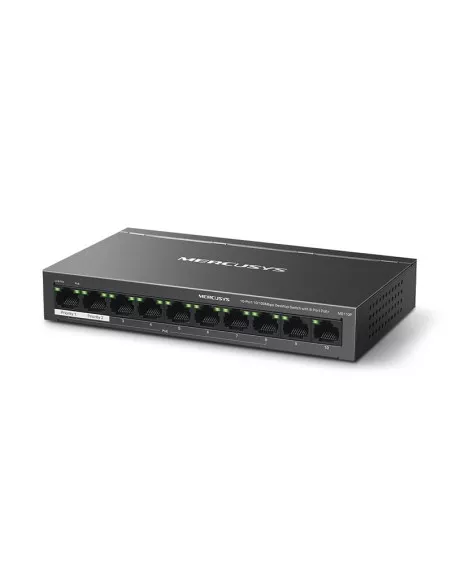

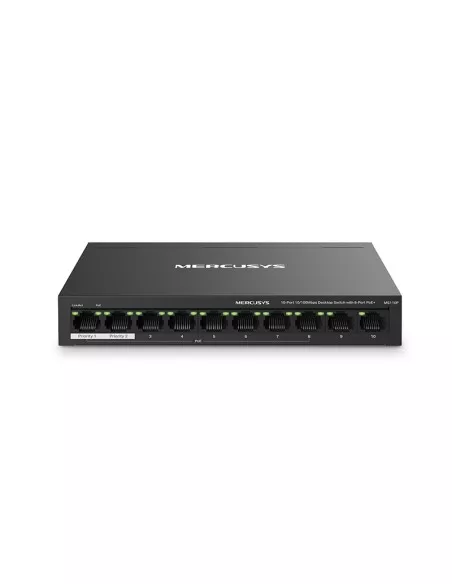

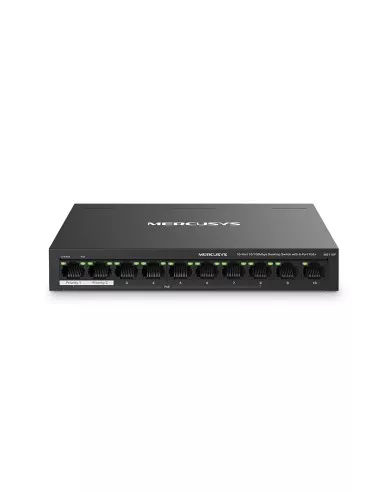

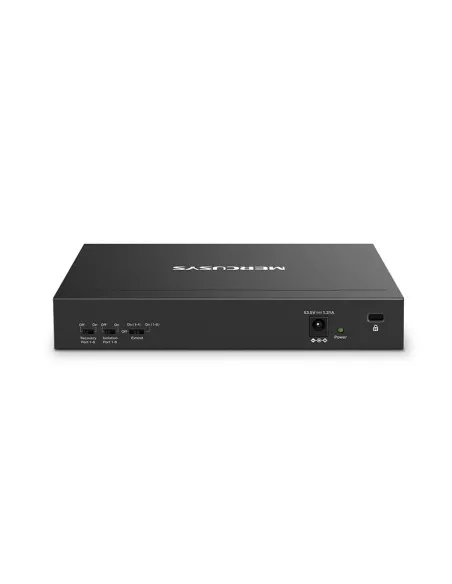

TP-Link MS110P | 10/100 Ethernet Switch | 8x PoE+ Ports

Mercusys 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+



MS110P



Mercusys MS110P 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - 10 10/100 Mbps RJ45 ports with 8 PoE+ ports - Up to 30W Per PoE Port, 65W For all PoE Ports - 2x Uplink Ports - Long-Range Up to 250m - Isolation Mode - Works with IEEE 802.3af/at compliant PDs - Durable Metal Casing - Plug & Play.



Product Features:

10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports

Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable

High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*

2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.

Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

Isolation Mode: One click to divide traffic for specific ports for stability and security

Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

Durable Metal Casing: Allows for efficient heat dissipation and long network life

Plug and Play: Simple to use and saves time and effort

PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices





Power over Ethernet: Two Cables in One

No Fuss

No need for electricians; simplify installation and deployment.

Cost-Efficiency

Getting rid of extra cables and power adapters will save money on infrastructure.

Flexibility

Deployment in complex situations is made possible by more placement possibilities.

Power Management

Improves power usage while intelligently protecting your gadgets from power surges.

IEEE 802.3af/at

PoE ports compliant with the 802.3af/at Powered Devices.









Package Contents

• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)

• Power Adapter

• Quick Installation Guide



Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% RH non-condensing

Storage Humidity: 5%~95% RH non-condensing



*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type.
