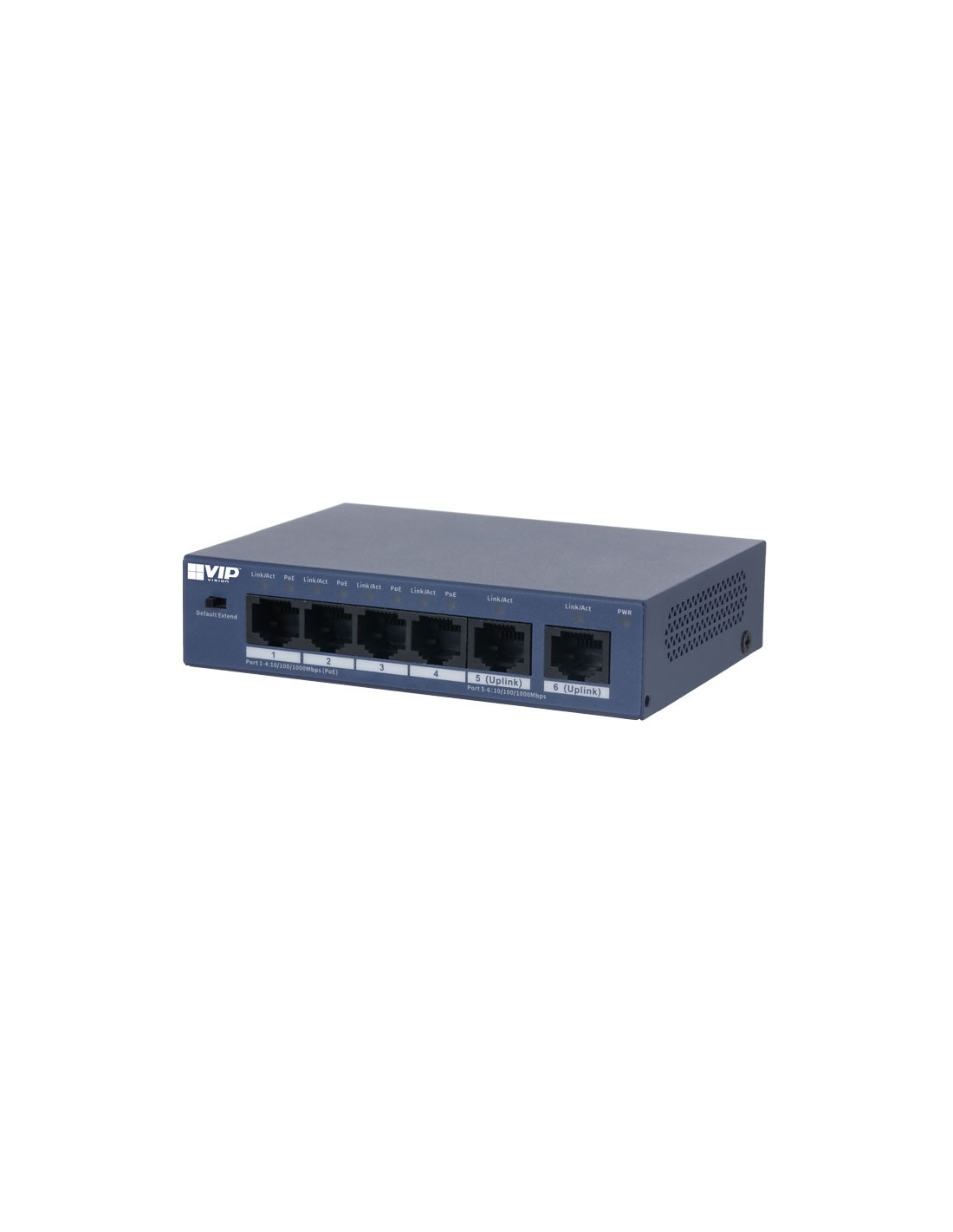

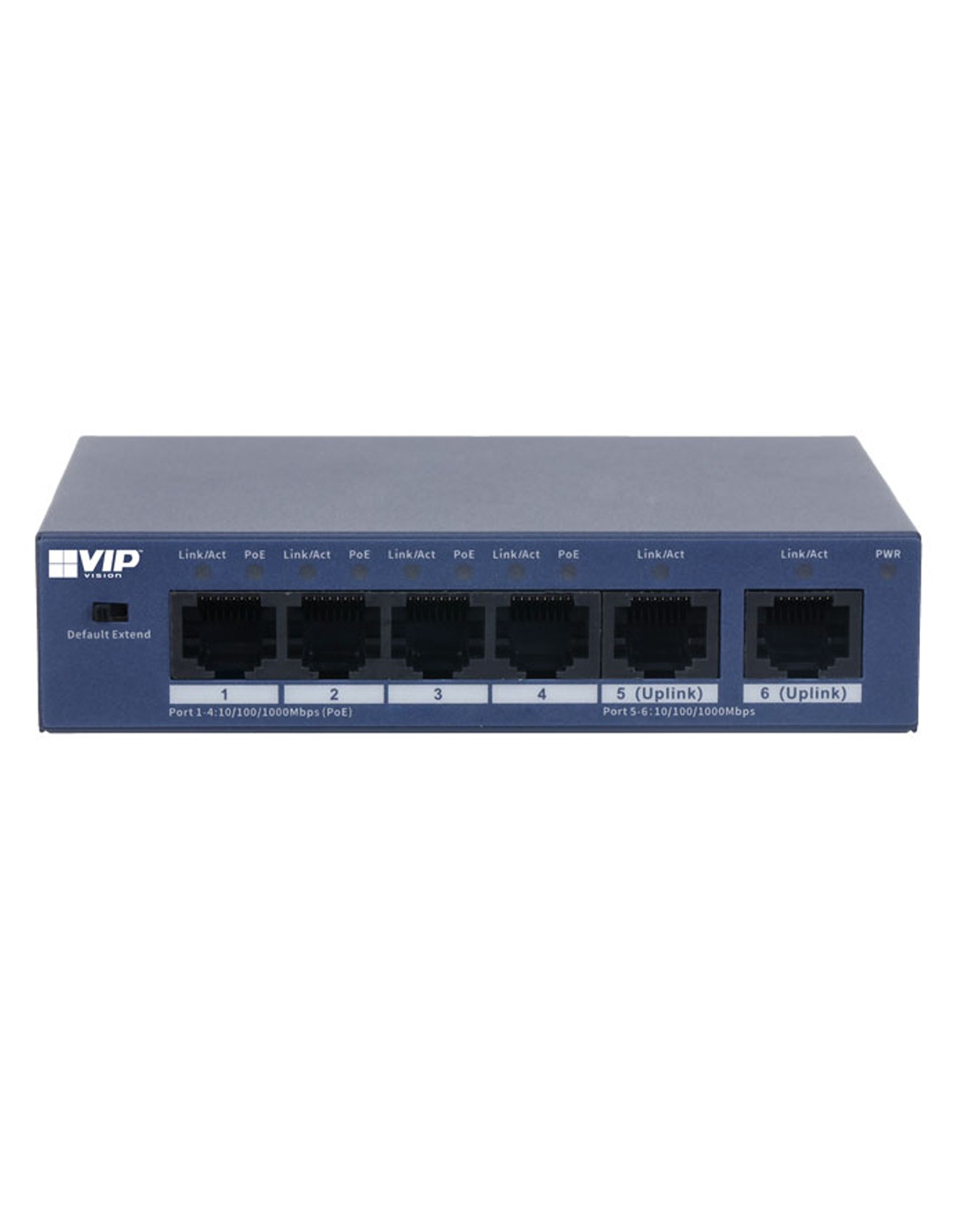

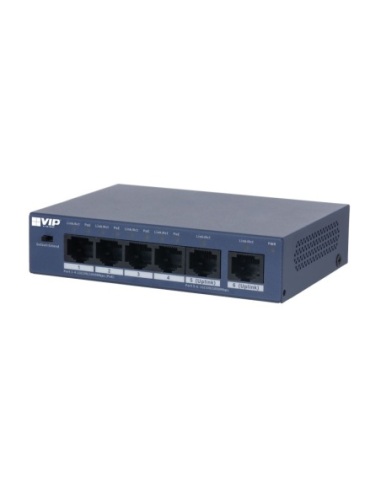

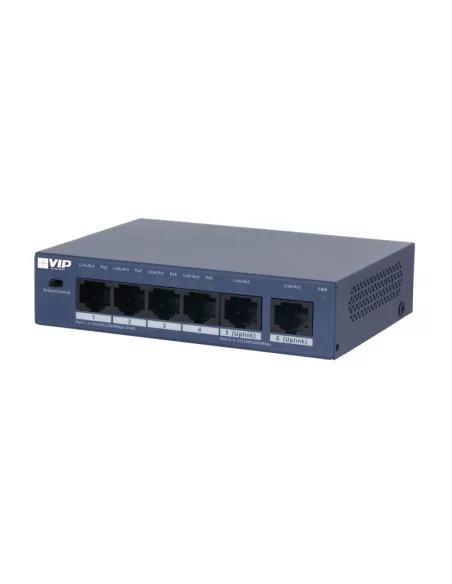

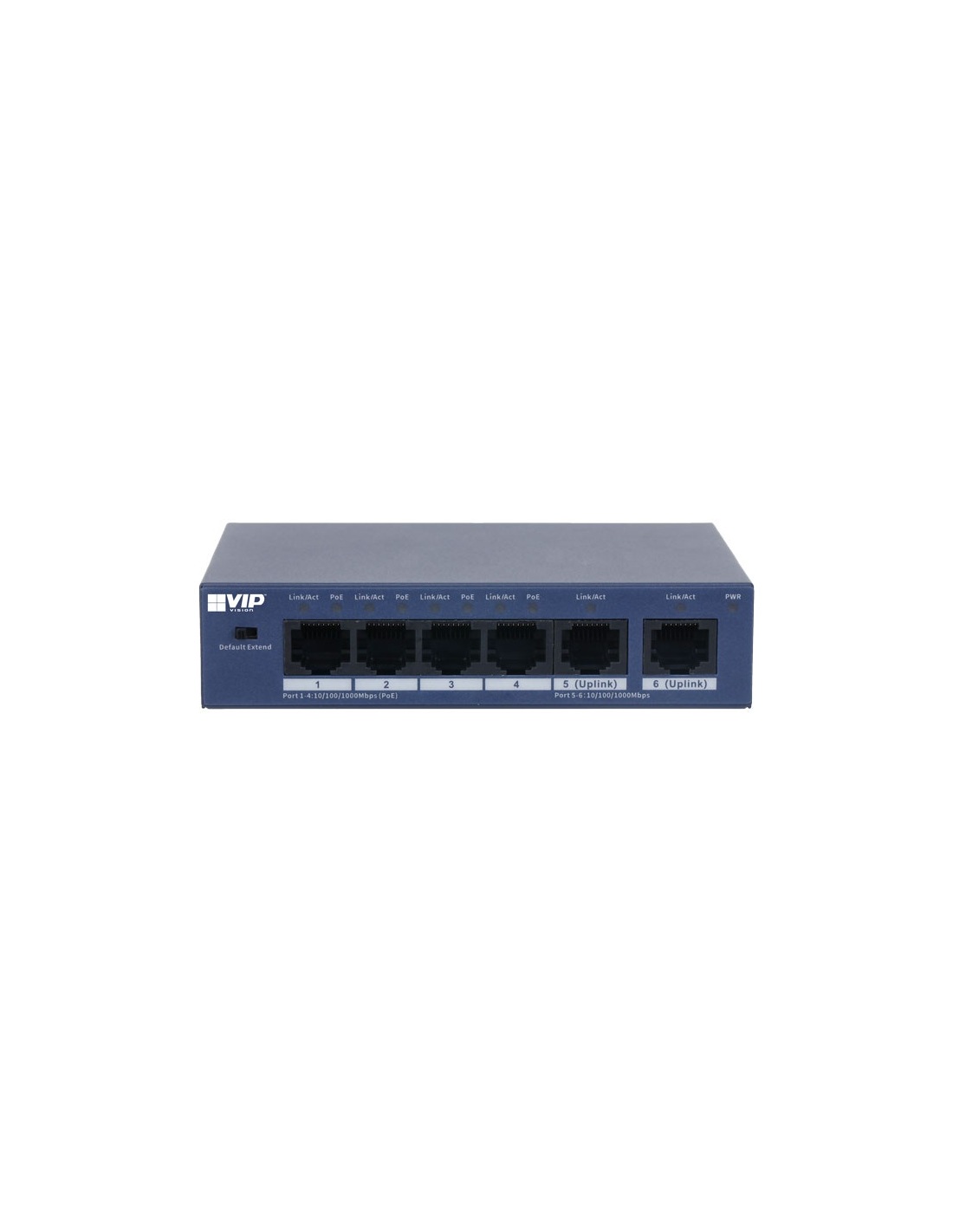

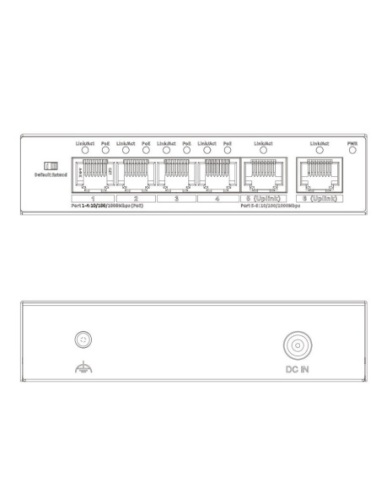

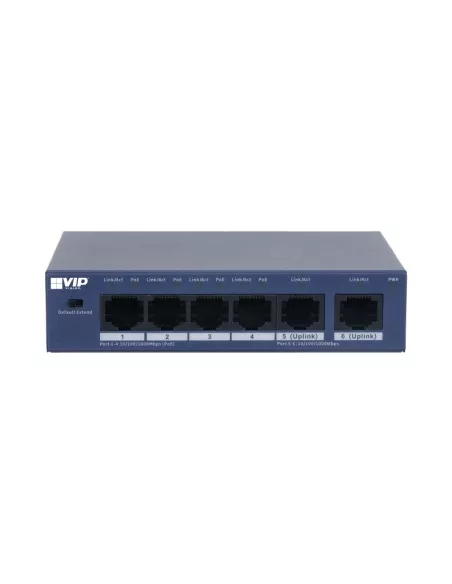

VIP Vision Unmanaged Gigabit 4-Port PoE+ Switch with 2× Gigabit Uplink Ports — VSPOE-SWB4U
Model VSPOE-SWB4U
The VIP Vision VSPOE-SWB4U is a compact, unmanaged Gigabit PoE+ switch built to power and connect edge devices with simple plug-and-play deployment. It provides 4× 10/100/1000Mbps PoE+ ports for cameras, access points, IP phones and access control devices, plus 2× 10/100/1000Mbps uplink ports for fast backhaul to your network.
With a 53VDC power supply included, a full metal enclosure, and Extend mode up to 250m (10Mbps in extend mode), it’s ideal for tidy CCTV and small network builds where reliable power delivery and Gigabit performance matter.
Key Features & Benefits
- 4× Gigabit PoE+ RJ45 device ports (10/100/1000Mbps) for powered edge devices.
- 2× Gigabit RJ45 uplink ports (10/100/1000Mbps) for fast network backhaul.
- PoE+ up to 30W per port with 60W total PoE power load.
- Unmanaged switch — plug-and-play for quick installs.
- Extend mode up to 250m PoE range (10Mbps transfer rate in extend mode).
- 12Gbps switching capacity with smooth Gigabit throughput.
- Lightning overvoltage protection for added resilience.
- Professional full metal enclosure for durability at the edge.
- 53VDC power supply included for immediate deployment.
Gigabit PoE+ in a compact footprint.
Power four devices with dual Gigabit uplinks and optional long-range Extend mode.
Real-World Applications
CCTV Surveillance — power multiple IP cameras with stable PoE+ and fast uplinks.
Wi-Fi Deployments — connect PoE access points while maintaining Gigabit backhaul.
Access Control — power controllers and door hardware without extra injectors.
Long Cable Runs — use Extend mode up to 250m (10Mbps in extend mode) for difficult sites.
Quick Specs
| Switch Type |
Unmanaged Gigabit PoE+ Switch |
| Device Ports |
4× 10/100/1000Mbps RJ45 (PoE+) |
| Uplink Ports |
2× 10/100/1000Mbps RJ45 |
| PoE Standards |
IEEE 802.3af (PoE) / IEEE 802.3at (PoE+) |
| PoE Power Budget |
Up to 30W per port / Up to 60W total |
| Switching Capacity |
12Gbps |
| Packet Forwarding Rate |
8.928Mpps |
| Extend Mode |
Up to 250m range at 10Mbps |
| Input Power |
53VDC |
| Lightning Protection |
Common Mode: 6kV / Differential Mode: 1kV |
| Mounting |
Rackmount Tabs (1RU) / Desktop Mount |
| Operating Environment |
-10° to 55°C / RH90% (max) |
| Dimensions |
115.5 × 84.3 × 27mm |
| Weight |
0.2kg |
| Warranty |
4 Years |
What’s in the Box
- 1× VIP Vision VSPOE-SWB4U unmanaged Gigabit PoE+ switch
- 53VDC power supply
Choose the VSPOE-SWB4U for compact Gigabit PoE+ switching with dual uplinks and long-range Extend mode support.
