Uniview 30W Outdoor Horn IP Speaker, PoE, Two-Way Audio, 130dB, IP66, NVR Alarm Broadcast - IPS302030-S
IPS302030-S
In stock $ 487.50
inc-GST
or 4 interest-free payments of $121.88 with
Uniview IPS302030-S 30 W outdoor horn IP speaker: 130 dB voice warnings linked to Uniview NVR alarms, two-way audio, 100 stored messages, IP66, PoE+ or 24/12 V.
- ✓30 W, up to 130 dB
- ✓IP66 outdoor horn
- ✓Alarm broadcast with Uniview NVRs
- ✓Two-way audio, built-in mic
- ✓100 stored MP3/WAV messages
- ✓PoE+ (802.3at) or 24/12 V DC
Uniview · Horn IP speaker · 30 W
A voice warning
they will hear across the yard.

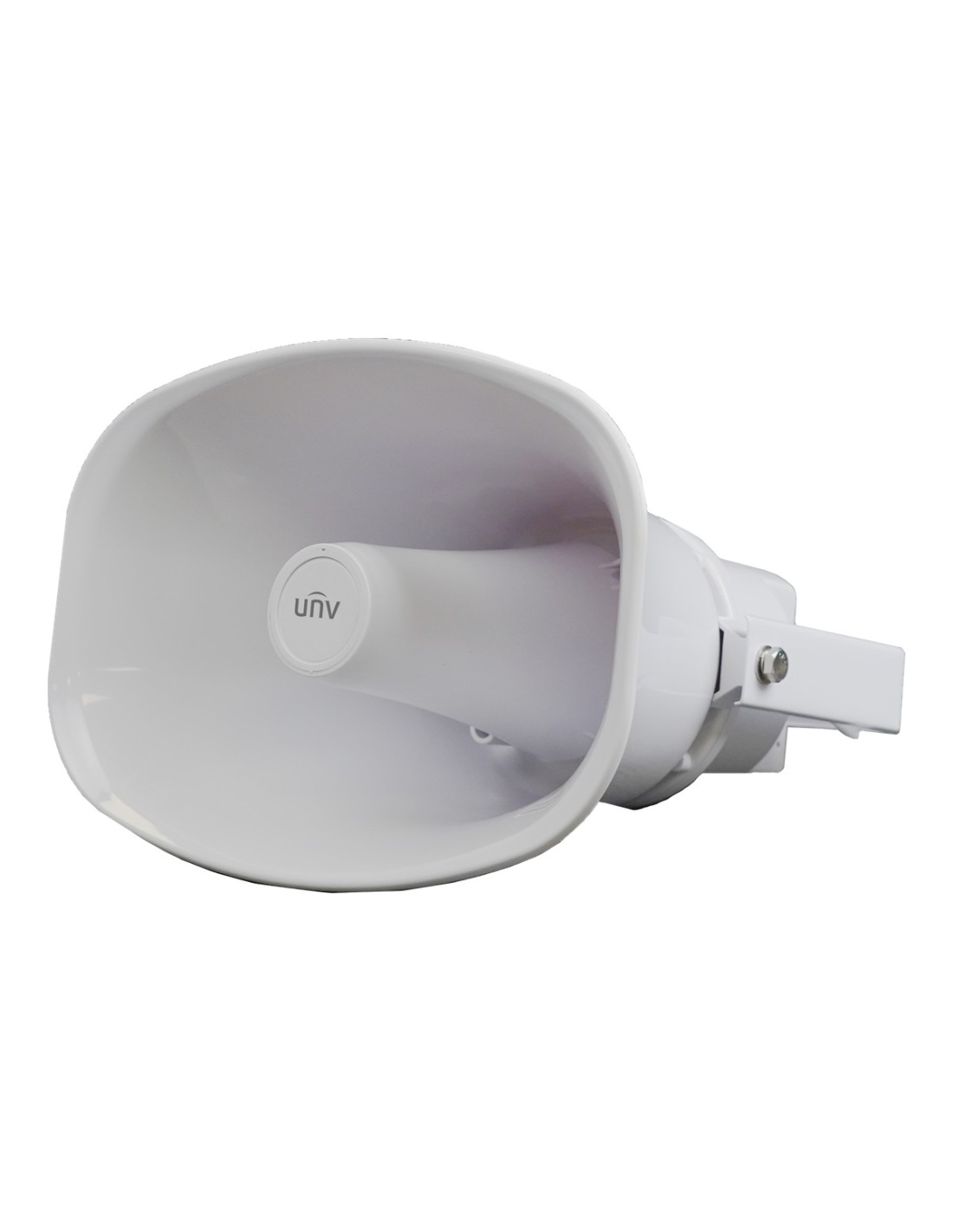

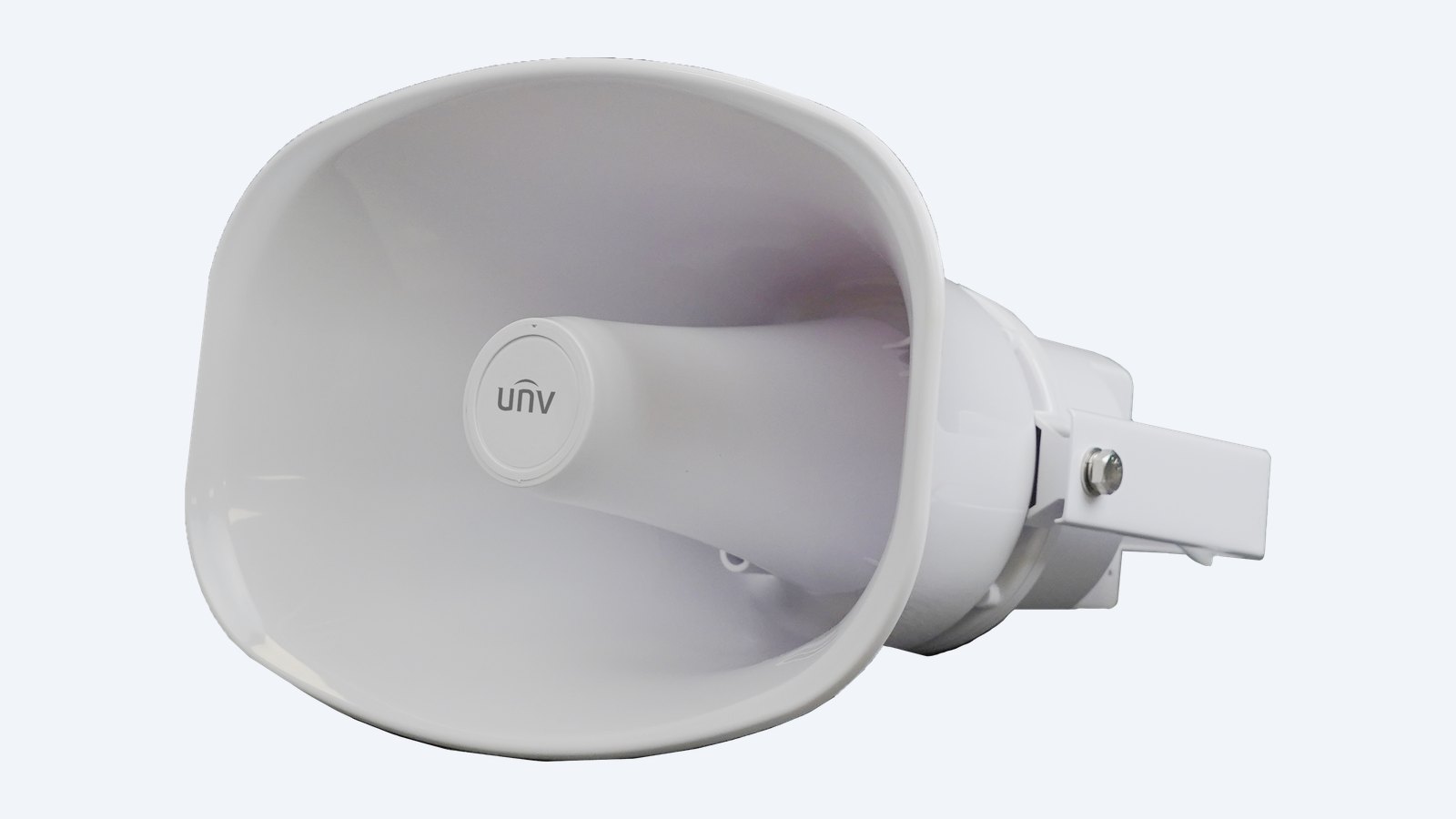

This is the Uniview IPS302030-S. A 30 W outdoor horn speaker on the network. When a Uniview NVR or camera picks up an intruder, it plays a recorded warning at up to 130 dB, and you can talk through it live from the app — all over one PoE cable.
In one sentence: the IPS302030-S is a Uniview 30 W outdoor horn IP speaker with 130 dB maximum sound level, a built-in mic for two-way audio, 64 MB for 100 stored audio files, 2 alarm inputs, IP66 and power by 802.3at PoE, 24 V or 12 V.
One Cat6 cable for power and sound.
Power it from an 802.3at (PoE+) port, or a 24 V or 12 V supply. Link it to a Uniview NVR or camera for alarm broadcast.
In the box
- IPS302030-S speaker
- Phoenix terminal block
- Quick guide
You also need
- An 802.3at PoE+ port, or a 24 V / 12 V supply
- Cat6 cable to the speaker
- A Uniview NVR for alarm broadcast (optional)
- A solid surface to mount it
Loud enough for open ground.
At up to 130 dB with a 300 Hz to 12.5 kHz range, a spoken warning carries across car parks, yards and building sites. The ABS horn is rated IP66 and runs from −30 °C to 55 °C.

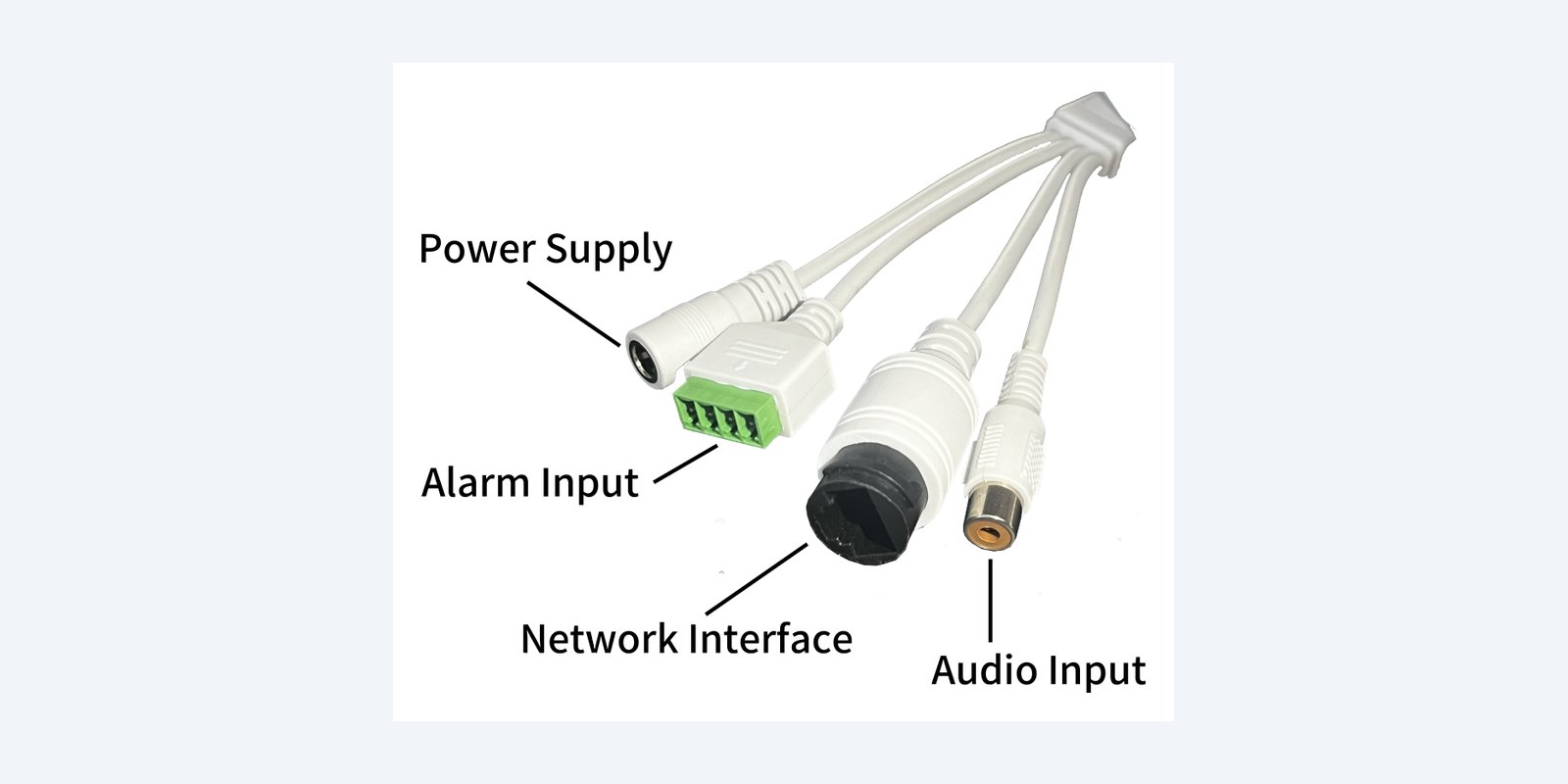

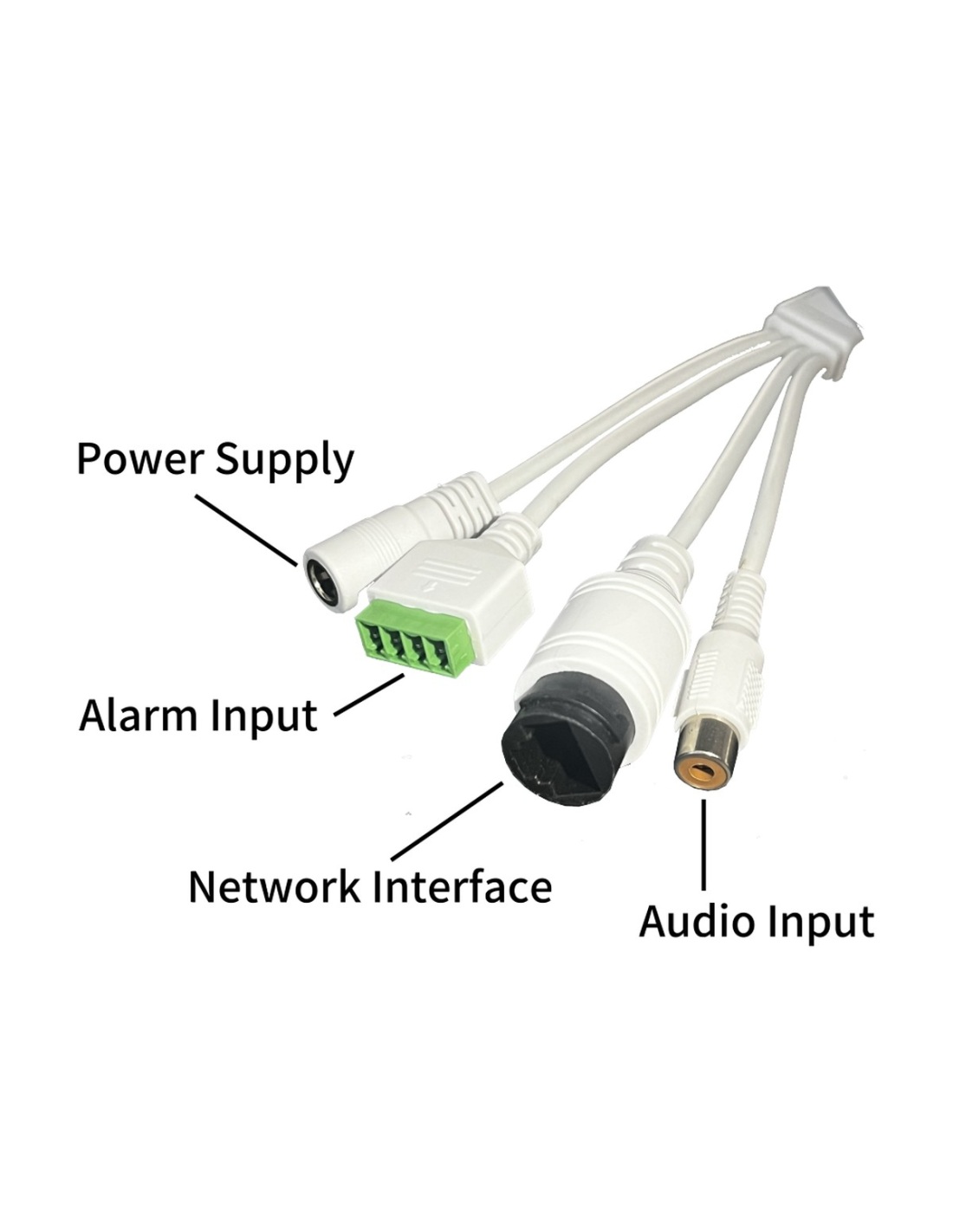

Connections
Network, power, audio and alarm in.
Connect the network cable, 24 V or 12 V DC power if not using PoE, the RCA audio input and the 2 alarm inputs (on the supplied phoenix terminal).

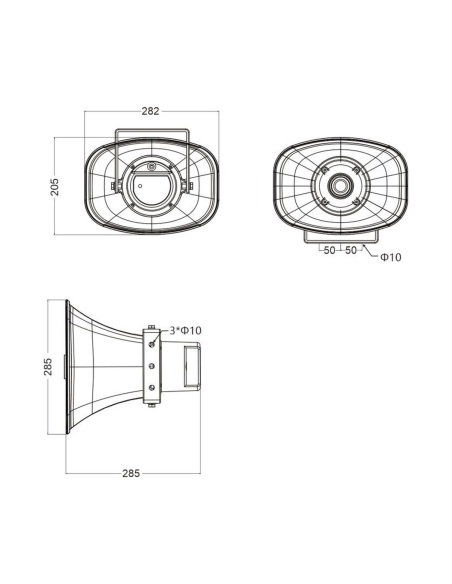

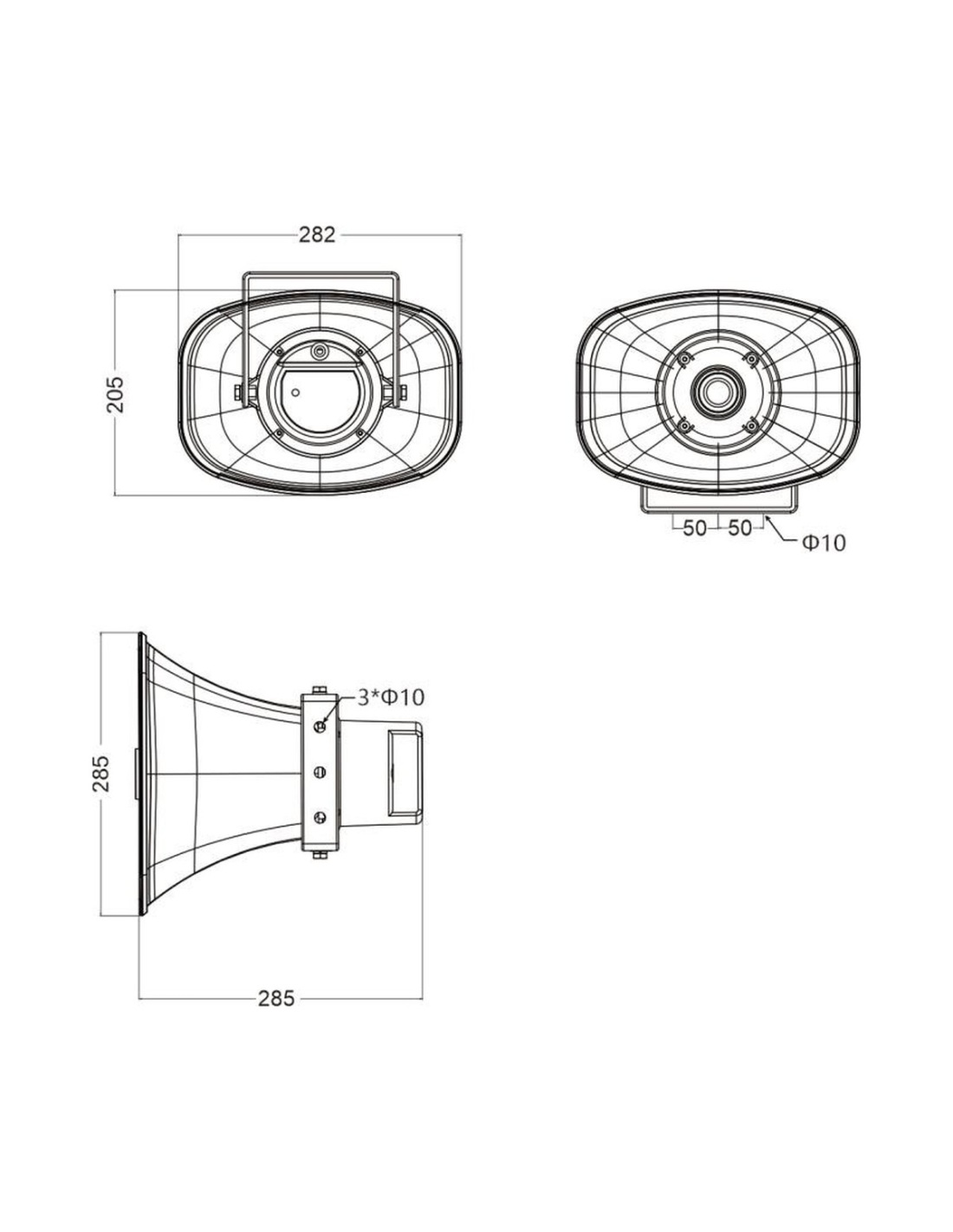

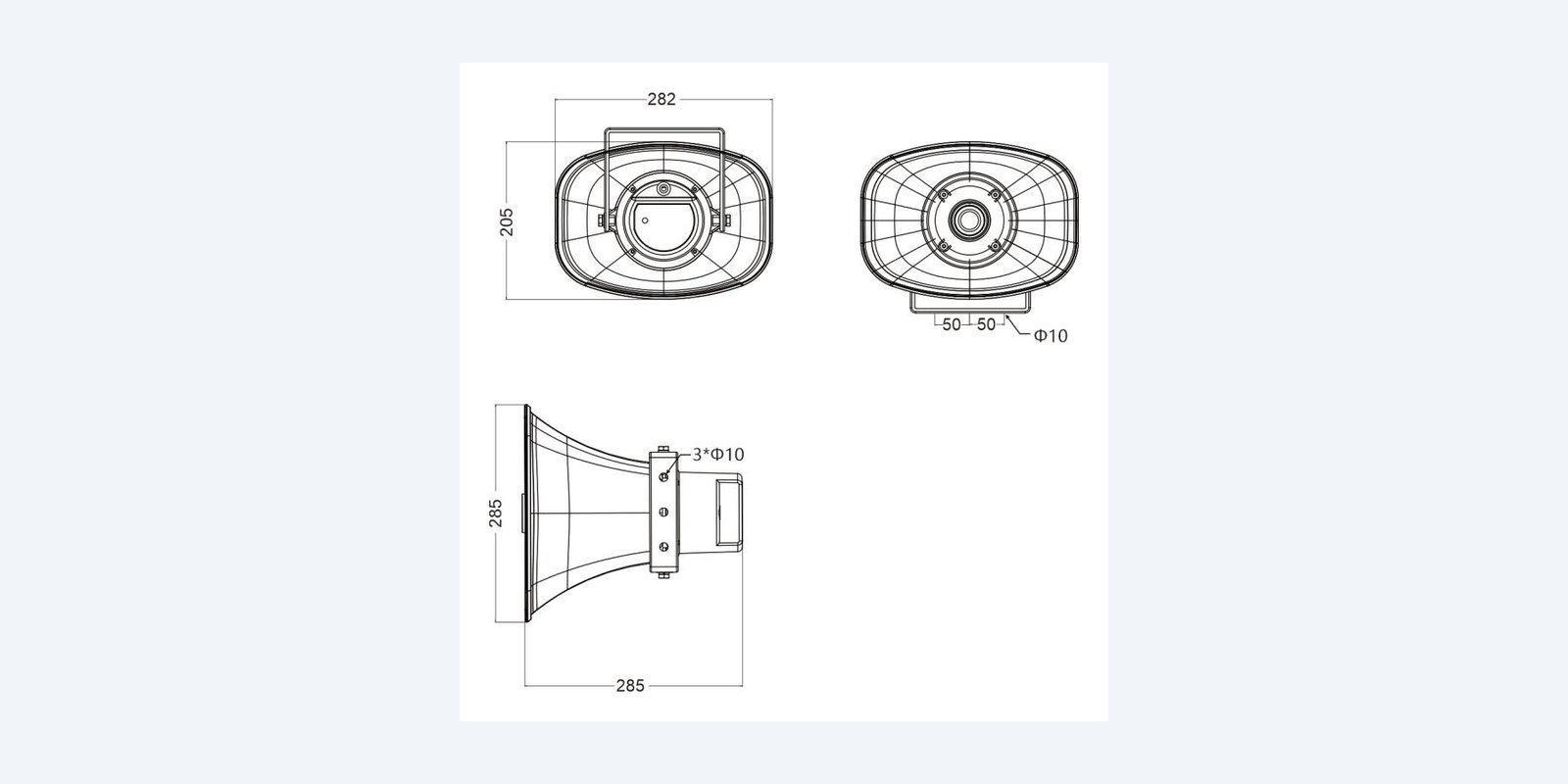

Size
282 × 205 × 285 mm.
A bracket-mounted horn rated IP66.
How it goes in
From the box to the first announcement.
01
Mount the horn
Fix the bracket securely and aim the horn at the area to cover.
02
Run Cat6
Run Cat6 from an 802.3at PoE+ port; it powers the speaker and carries the audio.
03
Add it to the NVR
Add the speaker to a Uniview NVR or camera, then upload your messages (up to 100 MP3 or WAV files).
04
Link the alarms
Choose which events play which message, and test a live announcement from the app.
At a glance
IPS302030-S
Show specs
Output
30 W
Max sound level
130 dB
Frequency
300 Hz – 12.5 kHz
Audio
Built-in mic, two-way audio; RCA audio input
Messages
64 MB for 100 MP3/WAV files
Alarm
2 alarm inputs; alarm broadcast with Uniview NVRs
Protocols
ONVIF, SIP, RTSP
Power
802.3at PoE, 24 V 1.4 A or 12 V 2.5 A
Housing
ABS horn, IP66
Size
282 × 205 × 285 mm
Operating
−30 °C to 55 °C
Compliance
NDAA compliant
Pair it with
What goes with it
Recording

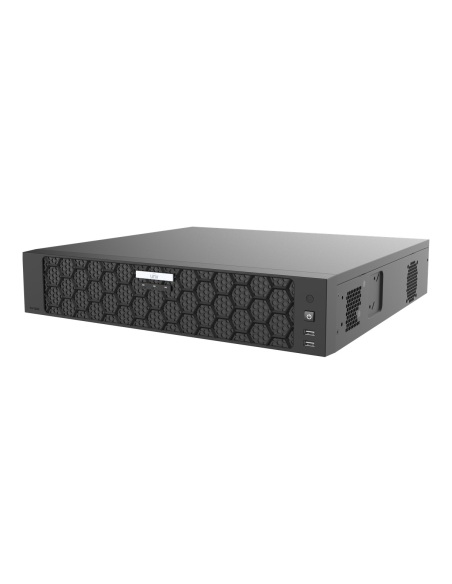

Uniview NVR
Uniview NVRs link IP speakers for alarm broadcast — up to 64 on the NVR804-64-IX-G.
Cameras
Uniview smart cameras
Line crossing or intrusion on a camera triggers the warning message.
Power
PoE+ switch
An 802.3at (PoE+) port runs the 30 W horn over one cable.
Indoors
Uniview IPS301015-S
The 15 W ceiling speaker covers shops, offices and corridors.
Where it is used
Where it fits
Car parks
Warn loiterers before they reach a vehicle.
Building sites
After-hours voice warnings across the site.
Yards and depots
Talk to drivers at the gate or warn intruders.
Farms and rural
Cover sheds and gates from one speaker.
Uniview IP speakers side by side
| IPS301015-S ceiling | IPS302030-S horn | |
|---|---|---|
| Type | Ceiling, indoor | Horn, outdoor |
| Output | 15 W | 30 W |
| Max sound level | 100 dB | 130 dB |
| Frequency | 100 Hz – 15 kHz | 300 Hz – 12.5 kHz |
| Power | 802.3af PoE or 12 V 1.4 A | 802.3at PoE, 24 V 1.4 A or 12 V 2.5 A |
| Housing | Metal | ABS, IP66 |
| Operating | −10 °C to 50 °C | −30 °C to 55 °C |
| Size | Ø200 × 95 mm, 180 mm cut-out | 282 × 205 × 285 mm |
Both have a built-in mic for two-way audio, 64 MB for 100 MP3/WAV files, 2 alarm inputs, an RCA audio input, ONVIF/SIP/RTSP support and alarm broadcast with Uniview NVRs. Figures from the Uniview datasheets.
Common questions
How does it work with a Uniview NVR?
Add it to the NVR as an IP speaker. When a camera or the NVR raises an alarm, the speaker plays the message you chose. You can also talk through it live.
How many messages can it store?
Up to 100 MP3 or WAV files in 64 MB of built-in storage.
Can I talk to people through it?
Yes. It has a built-in mic, so you can speak and listen — two-way audio.
How is it powered?
From an 802.3at (PoE+) port, or a 24 V 1.4 A or 12 V 2.5 A DC supply.
Can it be used with a phone system?
It supports SIP, so it can work with SIP phone systems for paging. Ask us to check your system.
Does it work with other brands?
It supports ONVIF, SIP and RTSP. Alarm broadcast is designed around Uniview NVRs and cameras.
Can I play background music?
It has an RCA audio input for an external source, and plays stored files.
Can an alarm sensor trigger it?
Yes. It has 2 alarm inputs for sensors or buttons.
Can it go outside?
Yes. It is rated IP66 and runs from −30 °C to 55 °C.
How loud is it?
Up to 130 dB, with 30 W output.
Is it NDAA compliant?
Yes, Uniview lists it as NDAA compliant.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Planning voice warnings with your cameras? Call 1300 736 970 or email [email protected] with your NVR model and the areas to cover.
Installation and safety
Power. Use an 802.3at PoE+ port, or a 24 V 1.4 A or 12 V 2.5 A DC supply — one source only.
Placement. Outdoors, IP66, −30 °C to 55 °C. Mount the bracket securely, aimed away from neighbours.
Figures. From the Uniview IPS302030-S datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 282 × 205 × 285 mm
- Power Supply
- 802.3at PoE, 24 V 1.4 A or 12 V 2.5 A
- Ingress Protection
- IP66
- Operating Environment
- −30 °C to 55 °C
- Material
- ABS
- Power
- 30 W
- Audio Input
- Built-in mic; RCA audio input
- Audio Output
- 130 dB max, 300 Hz – 12.5 kHz
- Brand
- Uniview
- Alarm Interface
- 2 alarm inputs
- Protocols
- ONVIF, SIP, RTSP
- Storage Capacity
- 64 MB, 100 MP3/WAV files
- Warranty
- 3 years
- Product Type
- Outdoor Horn IP Speaker
- Model
- IPS302030-S
