Akuvox Compact Villa Door Phones
Akuvox KF03 Blue 13.56 MHz MIFARE DESFire EV3 Encrypted Key Fob — AK-KF03
$9.00 inc GST
Akuvox KF03 is the blue, high-security fob in Akuvox’s KF range: an NXP MIFARE DESFire EV3 chip with AES encryption and EAL5+ certification, far harder to copy than MIFARE Classic fobs. Pairs with Akuvox readers that support DESFire. Sold as a single fob.
- ✓NXP MIFARE DESFire EV3 chip, 13.56 MHz ISO 14443A, 7-byte UID
- ✓DES, 2K3DES, 3K3DES and AES · EAL5+ certified · SUN message authentication
- ✓8 KB memory · over 25 years data retention · 1,000,000 write cycles
- ✓Blue PC+ABS fob with key-ring slot, 44.6 × 34.5 × 6 mm · sold singly
Akuvox · KF03 · DESFire EV3 key fob

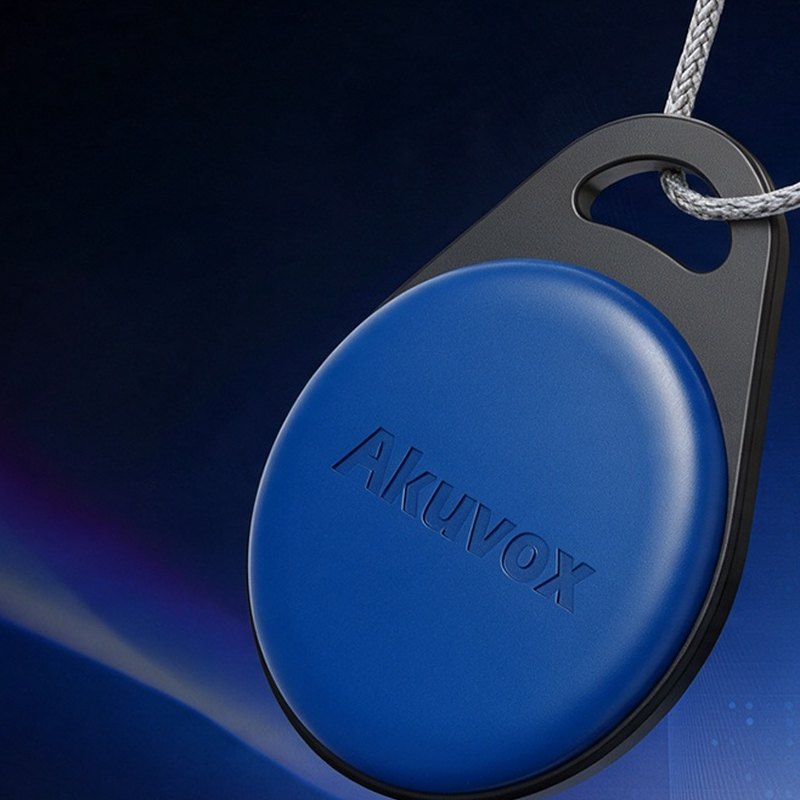

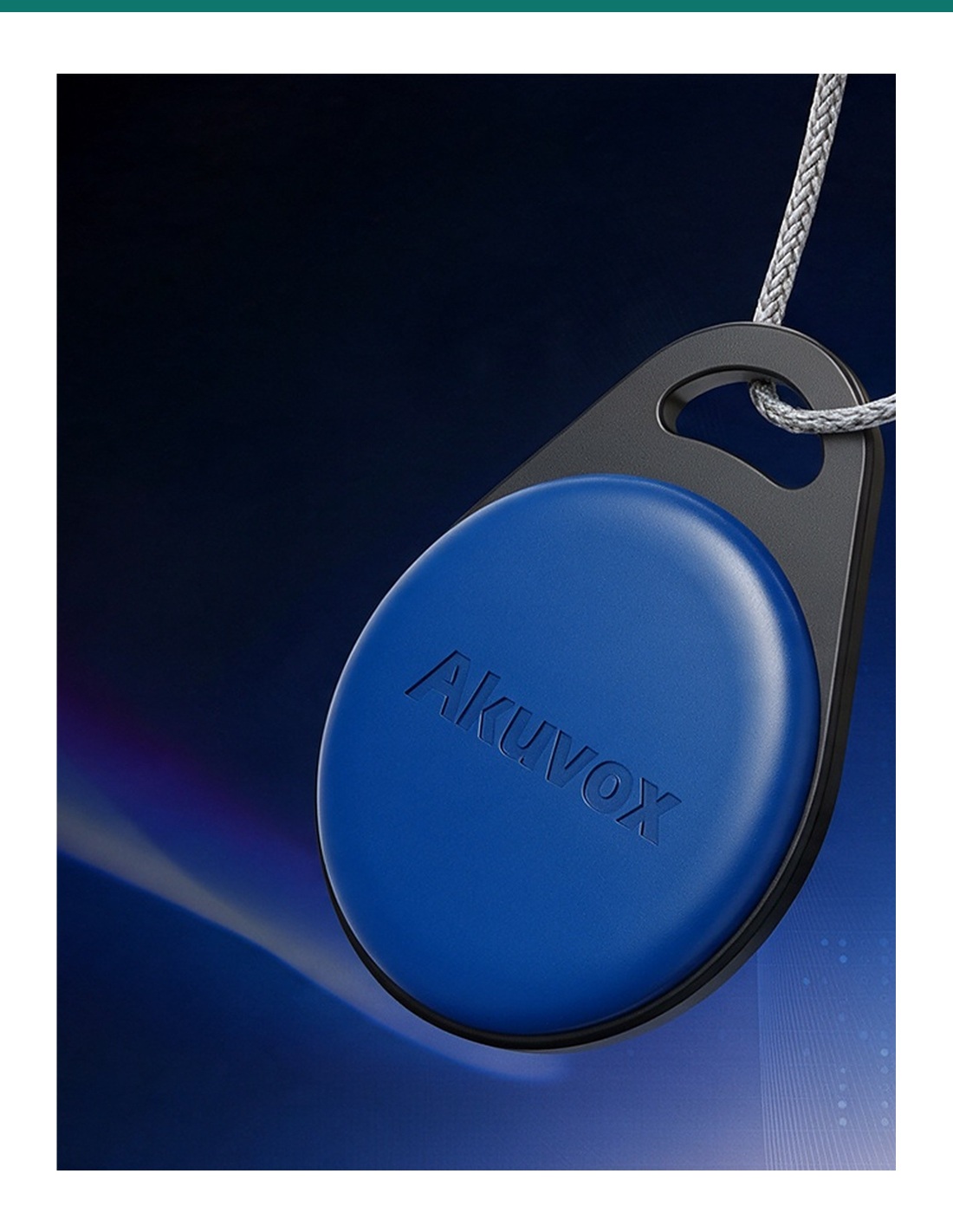

On the key ring.
Tap to enter.
The AK-KF03 is Akuvox’s KF03 key fob. It carries an NXP MIFARE DESFire EV3 chip, the same encrypted credential as the Akuvox DESFire EV3 card, on a key ring. Each SKU is one fob.
This SKU is one key fob.
You receive a single KF03 fob. Akuvox door phones, access terminals and the ACR-CID01 desktop reader are sold separately.
In the box
- 1 × Akuvox KF03 key fob
What you also need(sold separately)
- Akuvox door phone or access terminal with a 13.56 MHz reader and DESFire support
- Akuvox ACR-CID01 (optional) for desk enrolment and key setup
Encrypted, hard to copy.
The KF01 and KF02 use MIFARE Classic chips. The KF03 steps up to DESFire EV3 with AES keys, a transaction timer against relay attacks and EAL5+ certified silicon, for sites that need cloning resistance.
Fob
Security in a key-ring fob.
DESFire EV3 supports DES, 2K3DES, 3K3DES and AES, with SUN message authentication and a transaction timer that helps stop man-in-the-middle attacks.
8 KB of memory, a 7-byte static UID and over 25 years data retention.

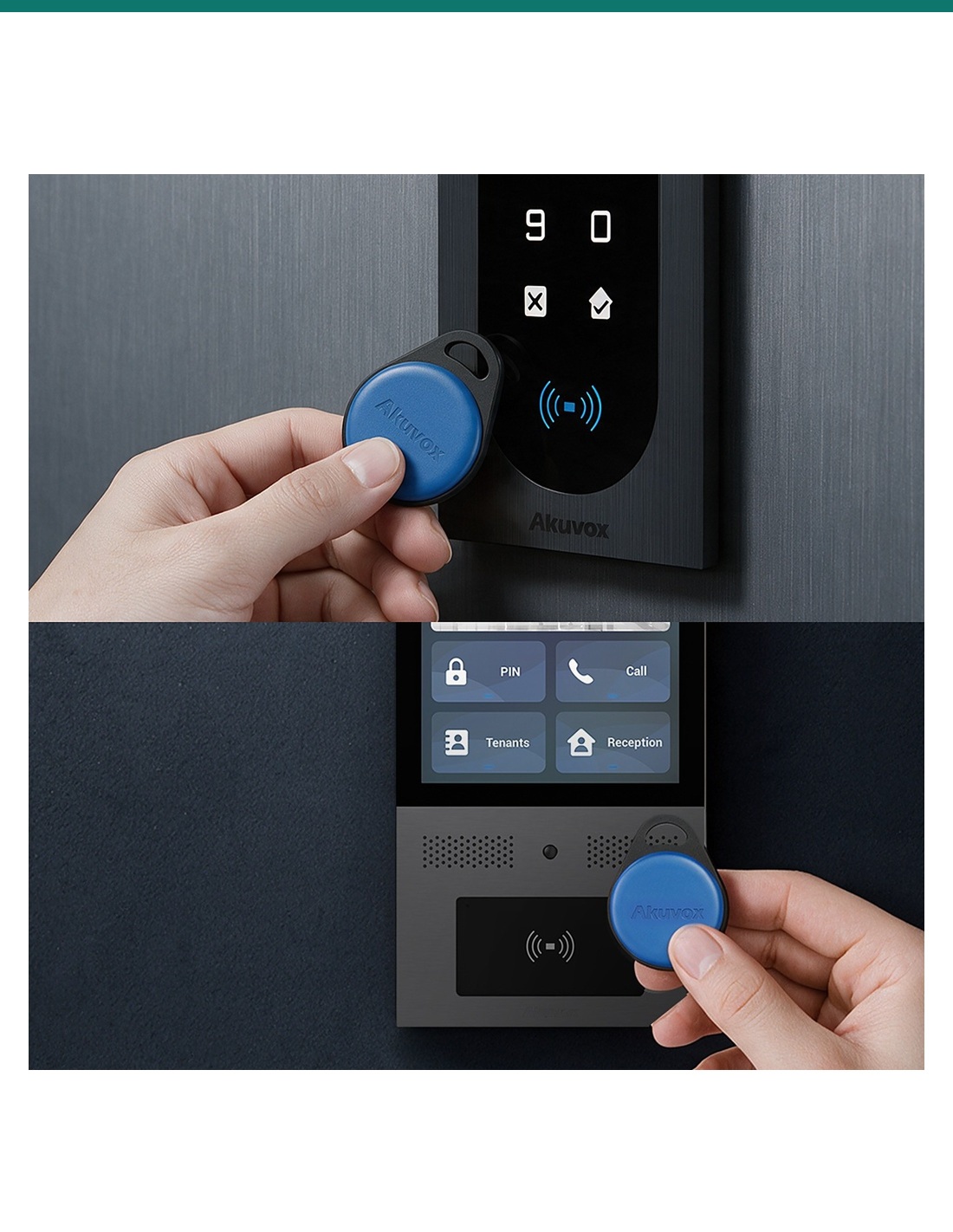

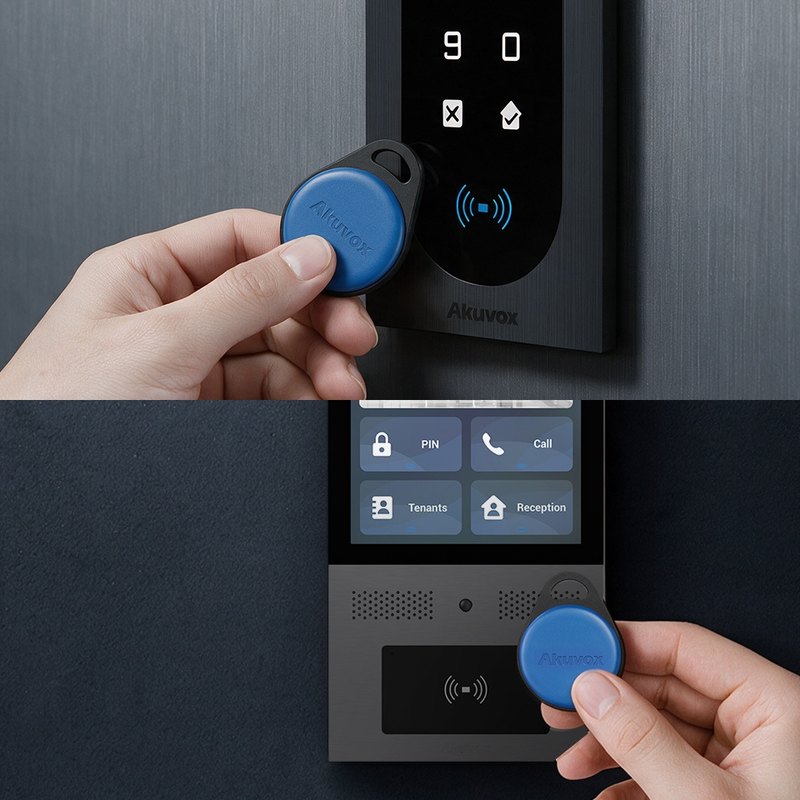

Tap to enter
Tap on a DESFire reader.
Once the application keys are set, the fob is read on Akuvox door phones and terminals with DESFire support.
Write endurance is at least 1,000,000 cycles, ten times the MIFARE Classic fobs.
At a glance
Key specs — AK-KF03
Show all specifications
- Card technology
- NXP MIFARE DESFire EV3
- Frequency
- 13.56 MHz
- Standard
- ISO 14443A
- Memory
- 8 KB non-volatile
- Material / colour
- PC + ABS, blue
- Size
- 44.6 × 34.5 × 6 mm
- Data retention
- More than 25 years
- Write endurance
- 1,000,000 cycles minimum
- Working temperature
- −20 °C to +50 °C
- Pack quantity
- 1 fob
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-KF03
Chip
- Chip
- NXP MIFARE DESFire EV3
- Operating frequency
- 13.56 MHz
- Protocol
- ISO/IEC 14443 Type A
- Memory
- 8 KB non-volatile
- Applications
- Unlimited, within memory
- Data retention
- More than 25 years
- Write endurance
- 1,000,000 cycles minimum
- UID
- 7-byte static UID
- Encryption algorithms
- DES, 2K3DES, 3K3DES, AES
- Certification
- EAL5+ (IC hardware and software)
- Security features
- SUN message authentication, transaction timer
Fob and environment
- Dimensions
- 44.6 × 34.5 mm (± 0.1 mm)
- Thickness
- 6 mm
- Material
- PC + ABS, key-ring slot
- Working humidity
- 10–90%, non-condensing
- Working temperature
- −20 °C to +50 °C
- Storage temperature
- −20 °C to +50 °C
- Environmental compliance
- RoHS, China RoHS, REACH, halogen free
- Colour
- Blue
Encryption on Akuvox devices
- Key tool
- Akuvox ACRM with the ACR-CID01 desktop reader
- Default PICC and app key
- All zeros (32 hex digits); set your own before issuing
- App ID
- 6 hexadecimal digits
- File ID
- 0–31
- Device setting
- Access Control > Card Setting > DESFire, with matching App ID, File ID, key and key ID
Pair it with
Reads on these Akuvox devices
Door
Akuvox R20K
Keypad door phone that reads DESFire on R20 V5 firmware.
Access
Akuvox A08S and A01S
Access terminals with DESFire support on current firmware.
Keys
Akuvox ACR-CID01
Desktop reader used with ACRM to write fob keys.
Downloads
Datasheets and guides
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
How do the KF01, KF02 and KF03 differ?
Same fob shell, different chip. The grey KF01 has a Fudan chip that is MIFARE Classic compatible; the orange KF02 has a genuine NXP MIFARE Classic S50 chip; the blue KF03 has an NXP MIFARE DESFire EV3 chip with AES encryption, 8 KB memory and EAL5+ certification, the hardest of the three to copy.
Is this one fob or a pack?
One fob. Order the quantity you need.
Which Akuvox devices read it?
S539, S538, S535, S532, X916, X915 V2, X912, X910, R29, R28 V2, R20 V5, E12 V2, E16 V2, E16 V3, E18, A01, A02, A03, A05 V2, A08 and A15, each from a minimum firmware version. The R25 does not read DESFire.
How do I enrol it?
On the device’s user page click Obtain and hold the fob on the reader, or capture it at a desk with the Akuvox ACR-CID01 USB reader.
Do I need to program it?
Yes for encrypted reading. Create the application and file with the Akuvox ACRM tool and an ACR-CID01, then enter the same App ID, File ID and key on each device.
Is it the same as the Akuvox DESFire EV3 card?
Same chip and encryption; the KF03 is a fob for a key ring, the card is an ISO card. Both can be used on the same system.
Does it need a battery?
No. It is passive and powered by the reader’s field.
Fobs that resist cloning.
KF03 fobs suit sites moving off MIFARE Classic: set your DESFire keys once with ACRM, then enrol each fob on the device.
Installation & safety notice
Passive fob with no battery or wiring.
- Memory
- 8 KB non-volatile
- Frequency
- 13.56 MHz
- Material
- PC + ABS
- Colour
- Blue
- Working Temperature
- −20 °C to +50 °C
- Brand
- Akuvox
- Standard
- ISO 14443A
- Size
- 44.6 × 34.5 × 6 mm
- Warranty
- Australian warranty
- Product Type
- RFID key fob
- Model
- KF03
- Card Technology
- NXP MIFARE DESFire EV3
- Pack Quantity
- 1 fob
- Encryption
- DES, 2K3DES, 3K3DES, AES (EAL5+)
- Data Retention
- More than 25 years
- Write Endurance
- 1,000,000 cycles minimum
