Akuvox Compact Villa Door Phones
Akuvox KF02 Orange 13.56 MHz NXP MIFARE Classic S50 Key Fob — AK-KF02
$3.60 inc GST
Akuvox KF02 is the orange fob in Akuvox’s KF range, with a genuine NXP MIFARE Classic S50 chip, the same as the S50 card. It drops into existing MIFARE Classic sites and reads on Akuvox door phones and access terminals. Sold as a single fob.
- ✓Genuine NXP MIFARE Classic S50 (1K) chip, 13.56 MHz ISO 14443A
- ✓1 KB EEPROM · over 10 years data retention · 100,000 write cycles
- ✓Orange PC+ABS fob with key-ring or lanyard slot, 44.6 × 34.5 × 6 mm
- ✓Passive, no battery · sold singly

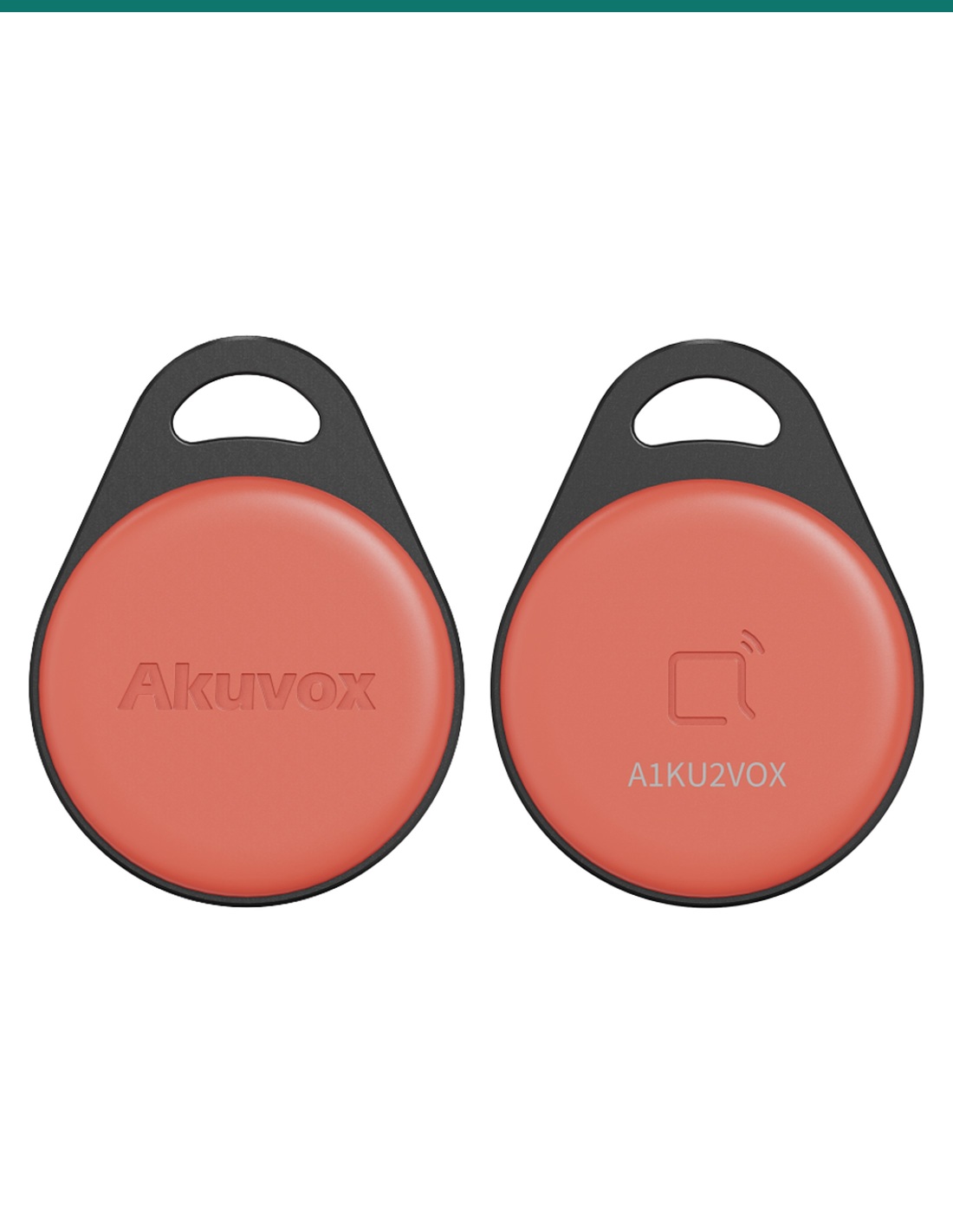

Akuvox · KF02 · MIFARE Classic S50 key fob
On the key ring.
Tap to enter.
The AK-KF02 is Akuvox’s KF02 key fob. It carries a genuine NXP MIFARE Classic S50 chip, the same credential as the Akuvox S50 card, in a fob that lives on a key ring. Each SKU is one fob.
This SKU is one key fob.
You receive a single KF02 fob. Akuvox door phones, access terminals and the ACR-CID01 desktop reader are sold separately.
In the box
- 1 × Akuvox KF02 key fob
What you also need(sold separately)
- Akuvox door phone or access terminal with a 13.56 MHz reader
- Akuvox ACR-CID01 (optional) for desk enrolment
Genuine NXP chip.
Choose the KF02 when a site already runs MIFARE Classic S50 cards or needs a branded NXP chip. The KF01 is the Fudan-chip value option; the KF03 steps up to encrypted DESFire EV3.

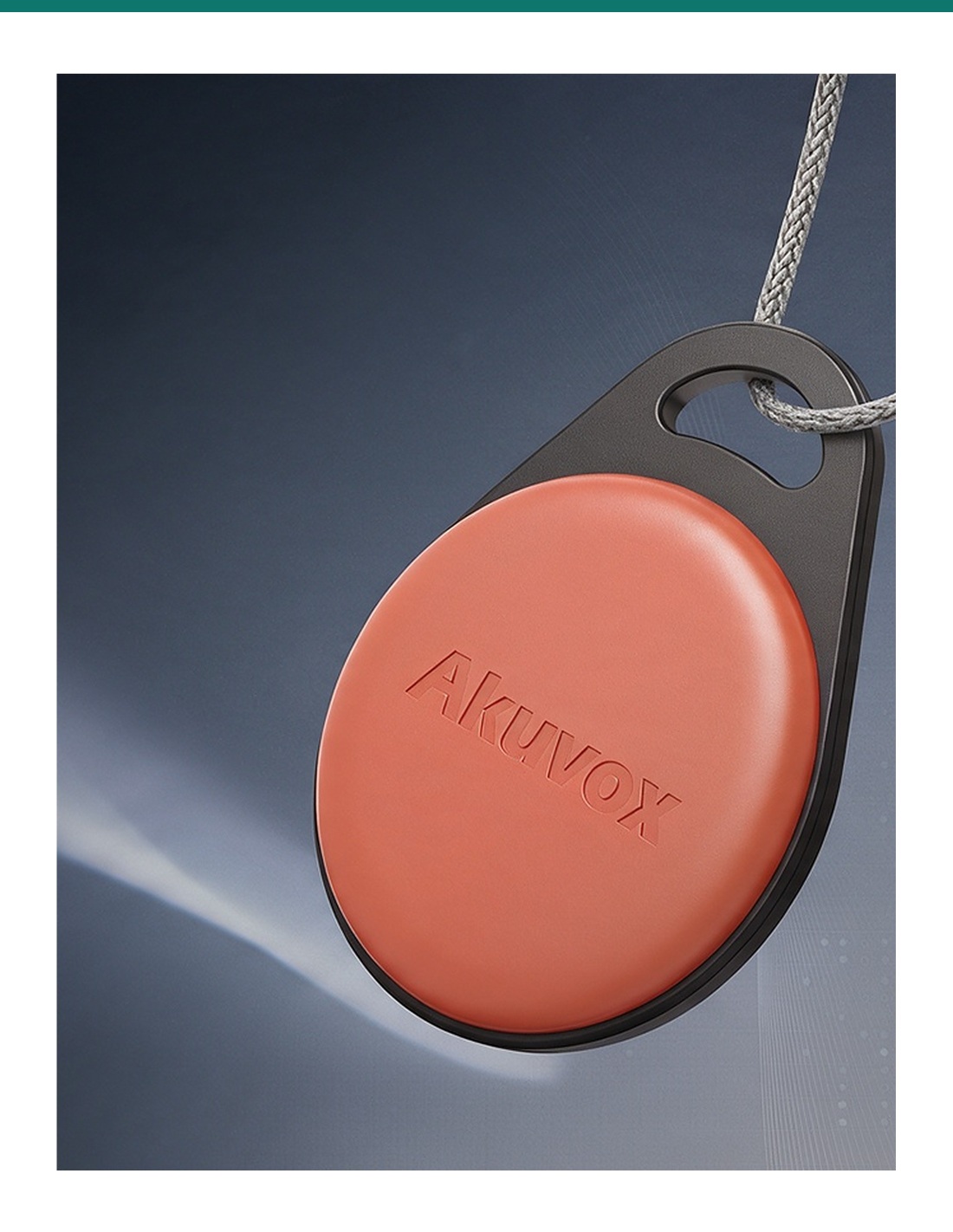

Fob

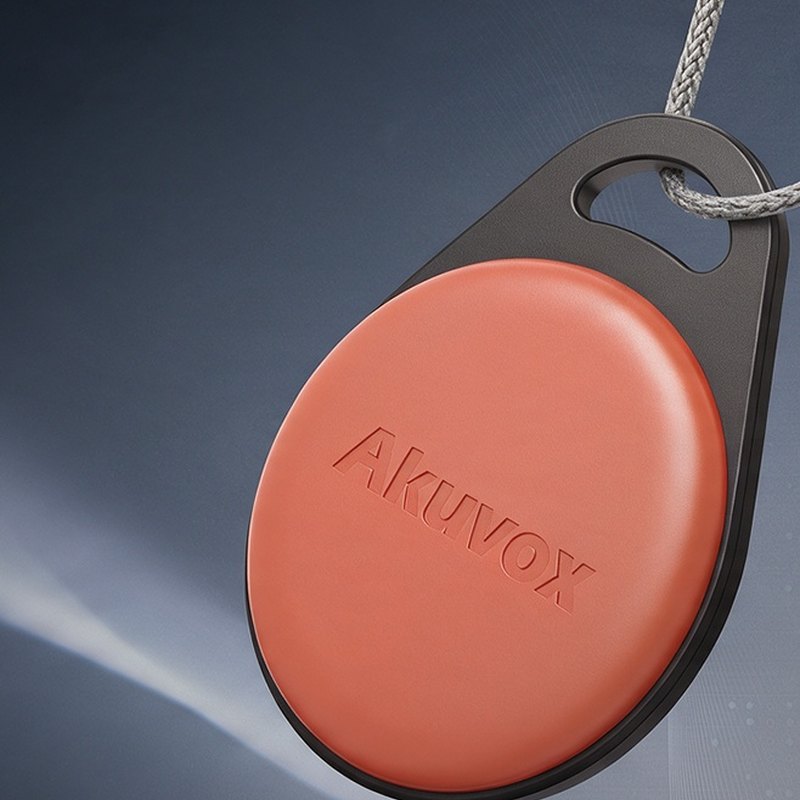

On a key ring or lanyard.
The PC+ABS body has an integrated slot for a key ring or lanyard, and stands up to daily handling.
Passive and battery-free, so there is nothing to charge or replace.

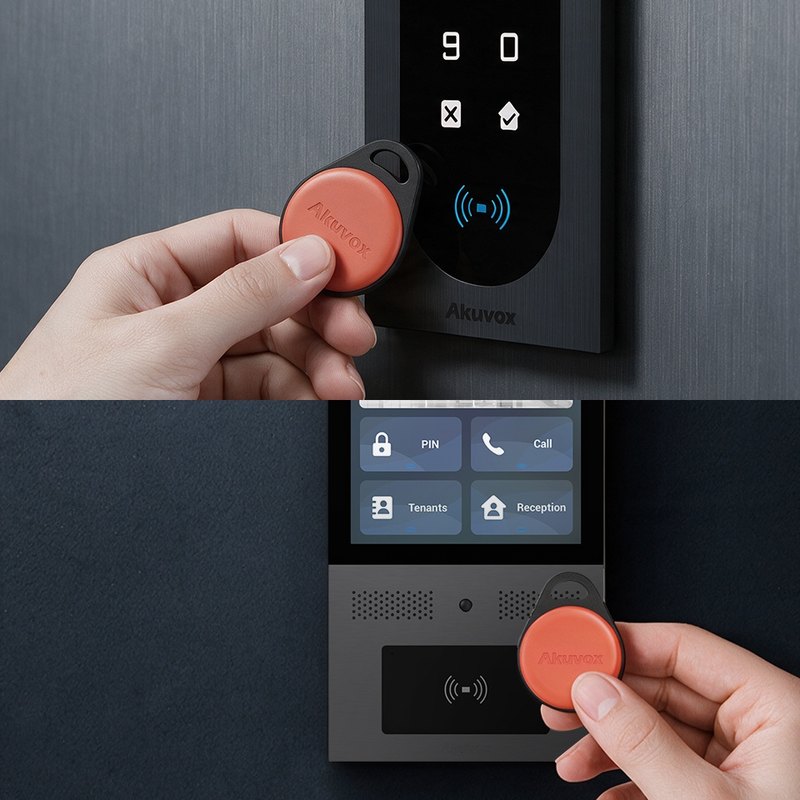

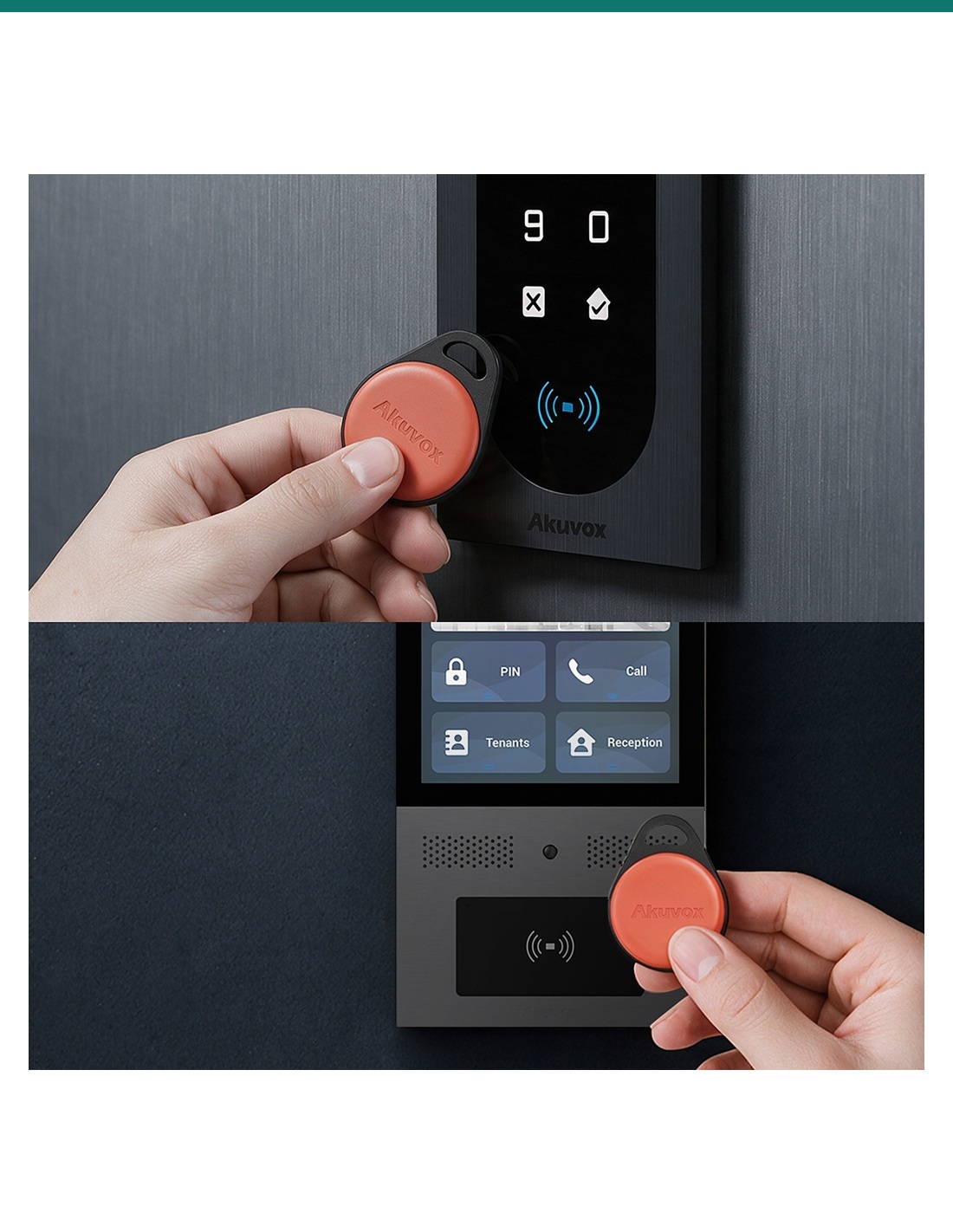

Tap to enter
Works with existing MIFARE sites.
The NXP S50 chip reads on Akuvox devices that take MIFARE Classic 1K cards, so fobs and cards can be issued side by side.
Data retention is over 10 years, with at least 100,000 write cycles.
At a glance
Key specs — AK-KF02
Show all specifications
- Card technology
- NXP MIFARE Classic S50 (1K)
- Frequency
- 13.56 MHz
- Standard
- ISO 14443A
- Memory
- 1 KB EEPROM
- Material / colour
- PC + ABS, orange
- Size
- 44.6 × 34.5 × 6 mm
- Data retention
- More than 10 years
- Write endurance
- 100,000 cycles minimum
- Working temperature
- −20 °C to +50 °C
- Pack quantity
- 1 fob
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-KF02
Chip
- Chip
- NXP MIFARE Classic S50 (1K)
- Operating frequency
- 13.56 MHz
- Protocol
- ISO/IEC 14443 Type A
- Memory
- 1 KB EEPROM
- Applications
- Unlimited, within memory
- Data retention
- More than 10 years
- Write endurance
- 100,000 cycles minimum
Fob and environment
- Dimensions
- 44.6 × 34.5 mm (± 0.1 mm)
- Thickness
- 6 mm
- Material
- PC + ABS, key-ring slot
- Working humidity
- 10–90%, non-condensing
- Working temperature
- −20 °C to +50 °C
- Storage temperature
- −20 °C to +50 °C
- Environmental compliance
- RoHS, China RoHS, REACH, halogen free
- Colour
- Orange
Encryption on Akuvox devices
- Encryption
- MIFARE Classic sector key, written with the Akuvox ACRM tool and ACR-CID01
- Default key (new fob)
- FFFFFFFFFFFF
- Sector / block
- Sector 0–15, block 0–2
- Card code (CID)
- Up to 4 bytes
Pair it with
Reads on these Akuvox devices
Door
Akuvox R20K and R25K
Door phones with built-in 13.56 MHz card readers.
Card
Akuvox S50 card
Same NXP MIFARE Classic S50 chip in ISO card form.
Enrol
Akuvox ACR-CID01
USB desktop reader for enrolling fobs at a desk.
Downloads
Datasheets and guides
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
How do the KF01, KF02 and KF03 differ?
Same fob shell, different chip. The grey KF01 has a Fudan chip that is MIFARE Classic compatible; the orange KF02 has a genuine NXP MIFARE Classic S50 chip; the blue KF03 has an NXP MIFARE DESFire EV3 chip with AES encryption, 8 KB memory and EAL5+ certification, the hardest of the three to copy.
Is this one fob or a pack?
One fob. Order the quantity you need.
Which Akuvox devices read it?
Akuvox door phones and access terminals with 13.56 MHz MIFARE readers, including A01, A02, A03, A05 V2, A08, E12 V2, E16 V2, E18, R20 V5, R25, R27, R28 V2, R29, S532, S535, S539, X910, X912, X915 V2 and X916 on current firmware.
How do I enrol it?
On the device’s user page click Obtain and hold the fob on the reader, or capture it at a desk with the Akuvox ACR-CID01 USB reader.
Is it the same chip as the Akuvox S50 card?
Yes. Both use the NXP MIFARE Classic S50 (1K) chip, so a fob and a card enrol and encrypt the same way.
Can it be encrypted?
Yes: write a MIFARE Classic sector key with the Akuvox ACRM tool and an ACR-CID01, then enter the same key on each device.
Does it need a battery?
No. It is passive and powered by the reader’s field.
Fobs for MIFARE sites.
KF02 fobs enrol at any Akuvox door phone or ACR-CID01 desktop reader and work alongside S50 cards already in use.
Installation & safety notice
Passive fob with no battery or wiring.
- Memory
- 1 KB EEPROM
- Frequency
- 13.56 MHz
- Material
- PC + ABS
- Colour
- Orange
- Working Temperature
- −20 °C to +50 °C
- Brand
- Akuvox
- Standard
- ISO 14443A
- Size
- 44.6 × 34.5 × 6 mm
- Warranty
- Australian warranty
- Product Type
- RFID key fob
- Model
- KF02
- Card Technology
- NXP MIFARE Classic S50 (1K)
- Pack Quantity
- 1 fob
- Data Retention
- More than 10 years
- Write Endurance
- 100,000 cycles minimum
- New
In Stock - Ready to Ship
Akuvox Compact Villa Door Phones
Akuvox R25K Black 4MP Wide-Angle SIP Video Door Phone with Keypad — AK-R25K-BLACK
- New
In Stock - Ready to Ship
Akuvox Access Readers & Controllers
Akuvox A08S Slim Keypad, QR and Bluetooth Access Control Terminal — AK-A08
- New
In Stock - Ready to Ship
Akuvox Access Readers & Controllers
Akuvox ACR-CID01 Black USB Desktop Card and BLE Enrolment Reader — AK-ACR-CID01
- New
In Stock - Ready to Ship
Akuvox Access Readers & Controllers
Akuvox S50 Black 13.56 MHz MIFARE Classic 1K ISO Card — AK-CARD-S50
- New
CALL stock OR Max avail. in cart
Akuvox Access Readers & Controllers

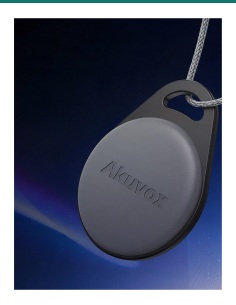

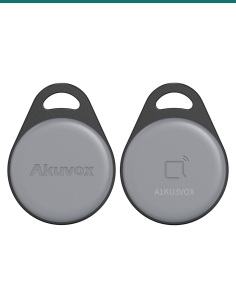

Akuvox KF01 Grey 13.56 MHz MIFARE Classic-Compatible Key Fob — AK-KF01
