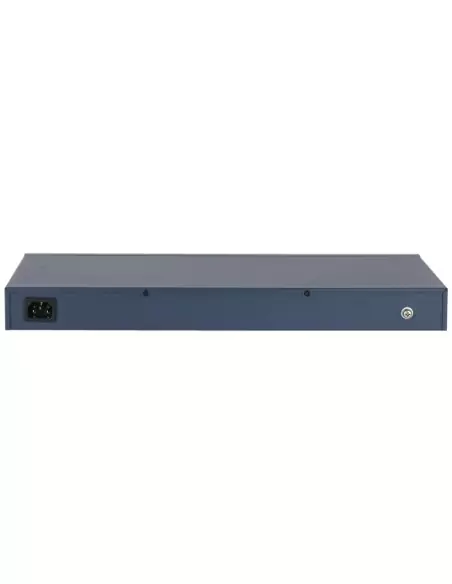

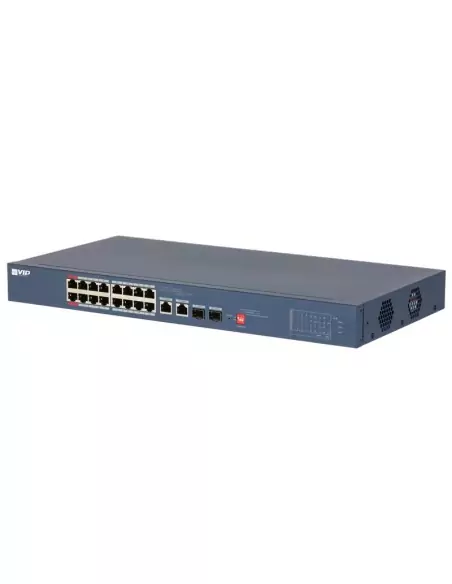

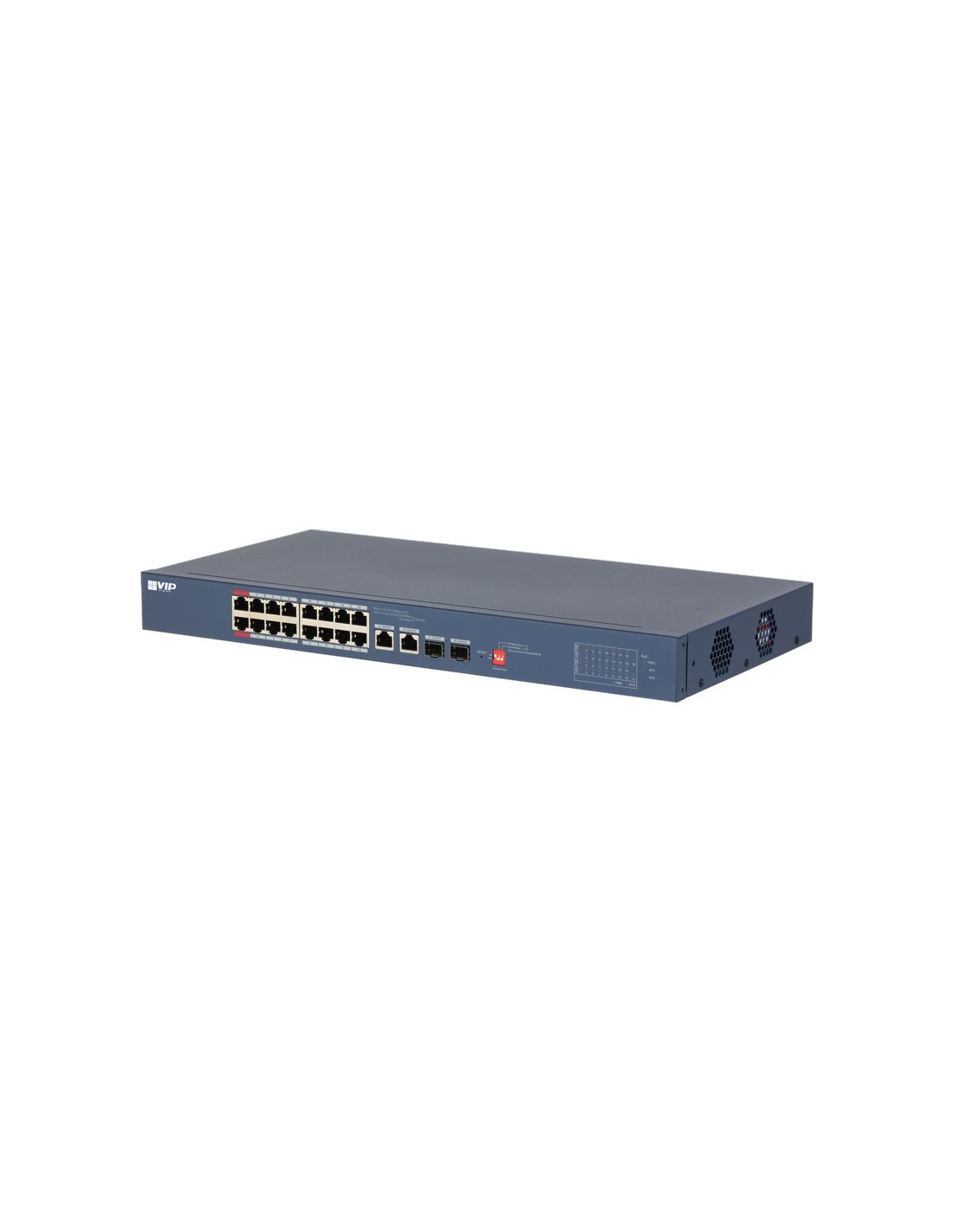

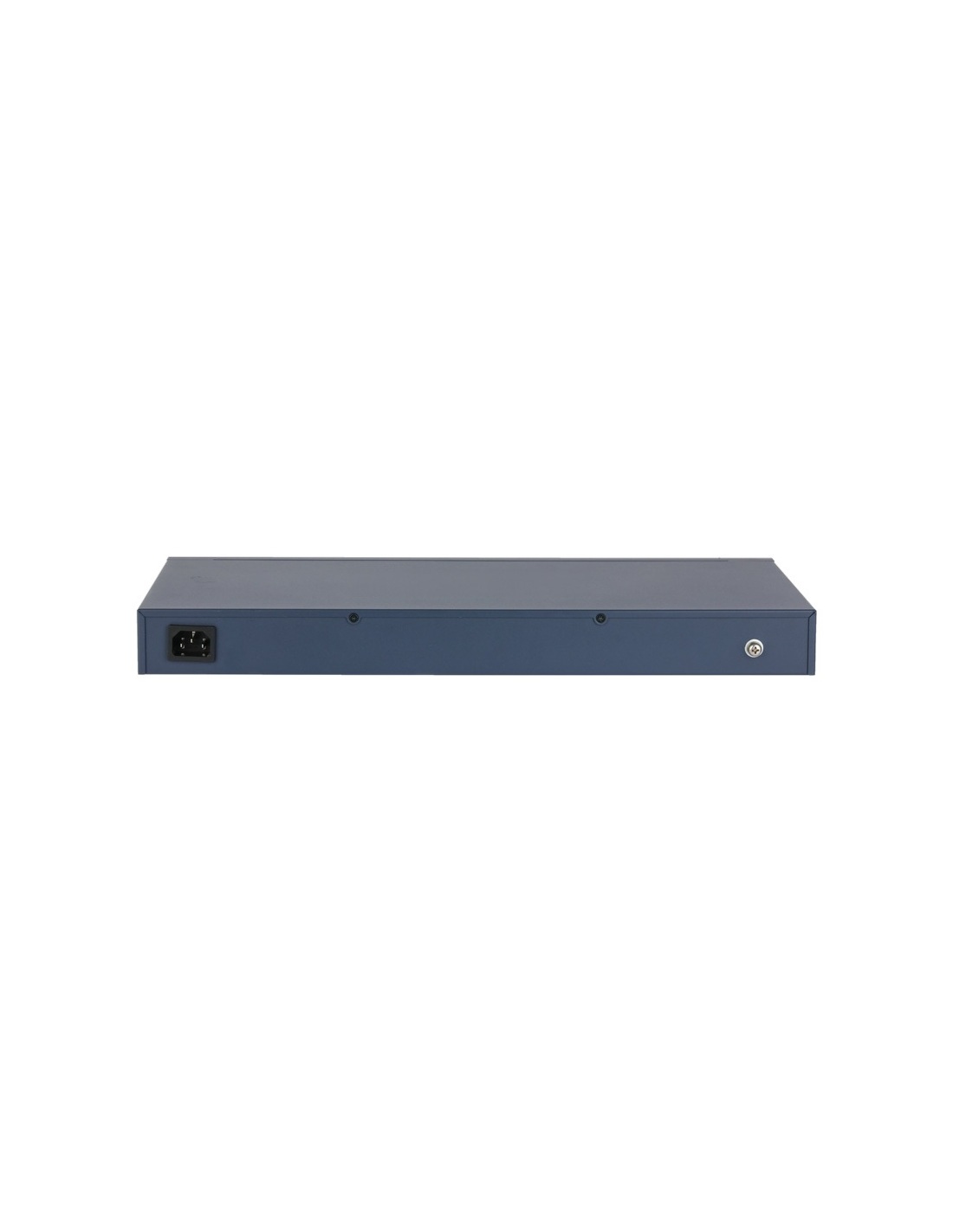

VIP Vision 16-Port Managed Hi-PoE Switch (Fast Ethernet) - VSPOE-SWA16C2
VSPOE-SWA16C2
In Stock - Ready to Ship
$ 385.00
inc-GST
or 4 interest-free payments of $96.25 with
- 16 x 10/100 PoE ports
- Ports 1-2 Hi-PoE up to 90W; ports 3-16 up to 30W
- 240W total PoE budget
- 2 x gigabit SFP and 2 x gigabit RJ45 uplinks
- Extend mode: up to 250m

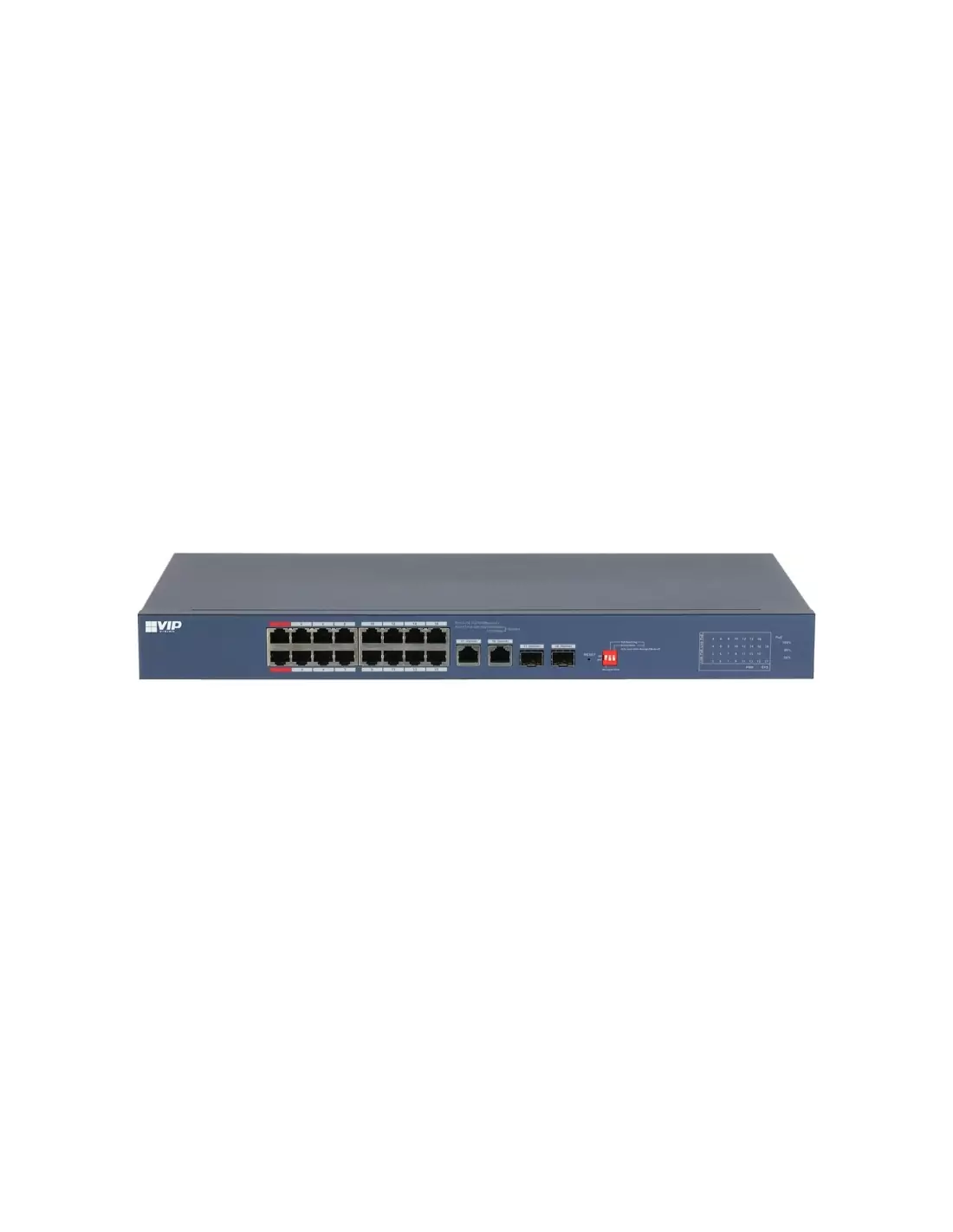

VIP Vision 16-Port Managed Hi-PoE Switch (Fast Ethernet)
4 Years Warranty!
VSPOE-SWA16C2
A 16-port managed PoE switch built for security systems. Two Hi-PoE ports deliver up to 90W for PTZ cameras and other high-power devices, and long-range mode runs PoE up to 250m.
Features:
• 16 x 10/100 PoE ports
• Ports 1-2 Hi-PoE up to 90W; ports 3-16 up to 30W
• 240W total PoE budget
• 2 x gigabit SFP and 2 x gigabit RJ45 uplinks
• Extend mode: up to 250m
• L2 managed: VLAN, QoS, link aggregation, port mirroring
• Web and cloud PoE management with fault alarms

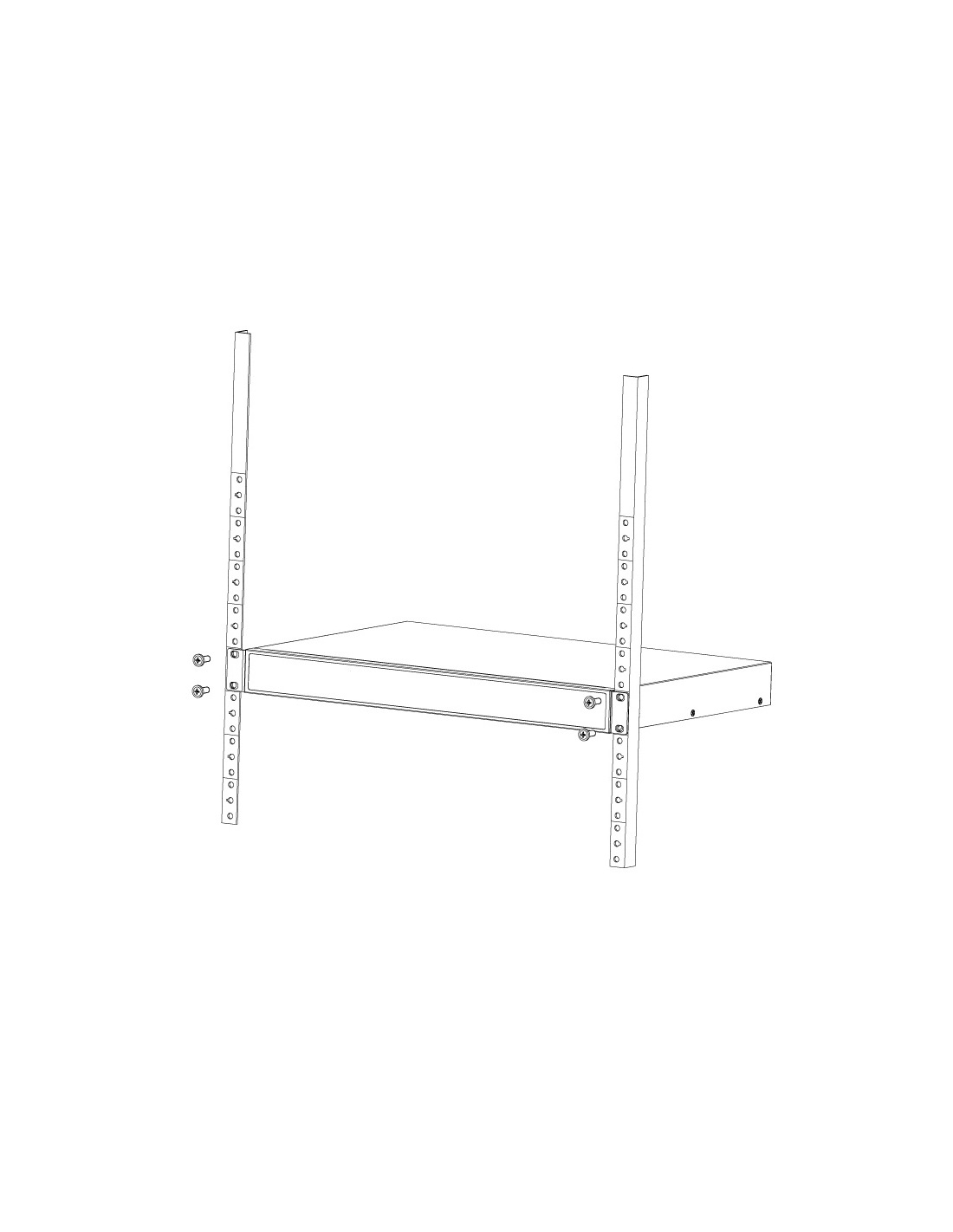

• 1RU rackmount or desktop
Ideal for:
Medium CCTV systems, PTZ cameras and network racks.
Full specifications are listed in the Data Sheet tab. Need help choosing or planning an install? Our technical team at InFront Technologies is happy to help.

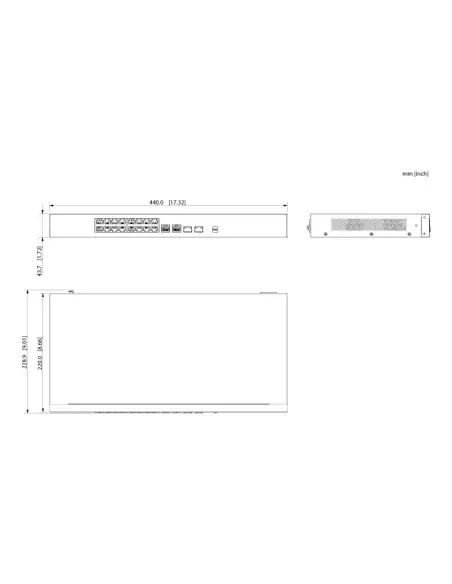

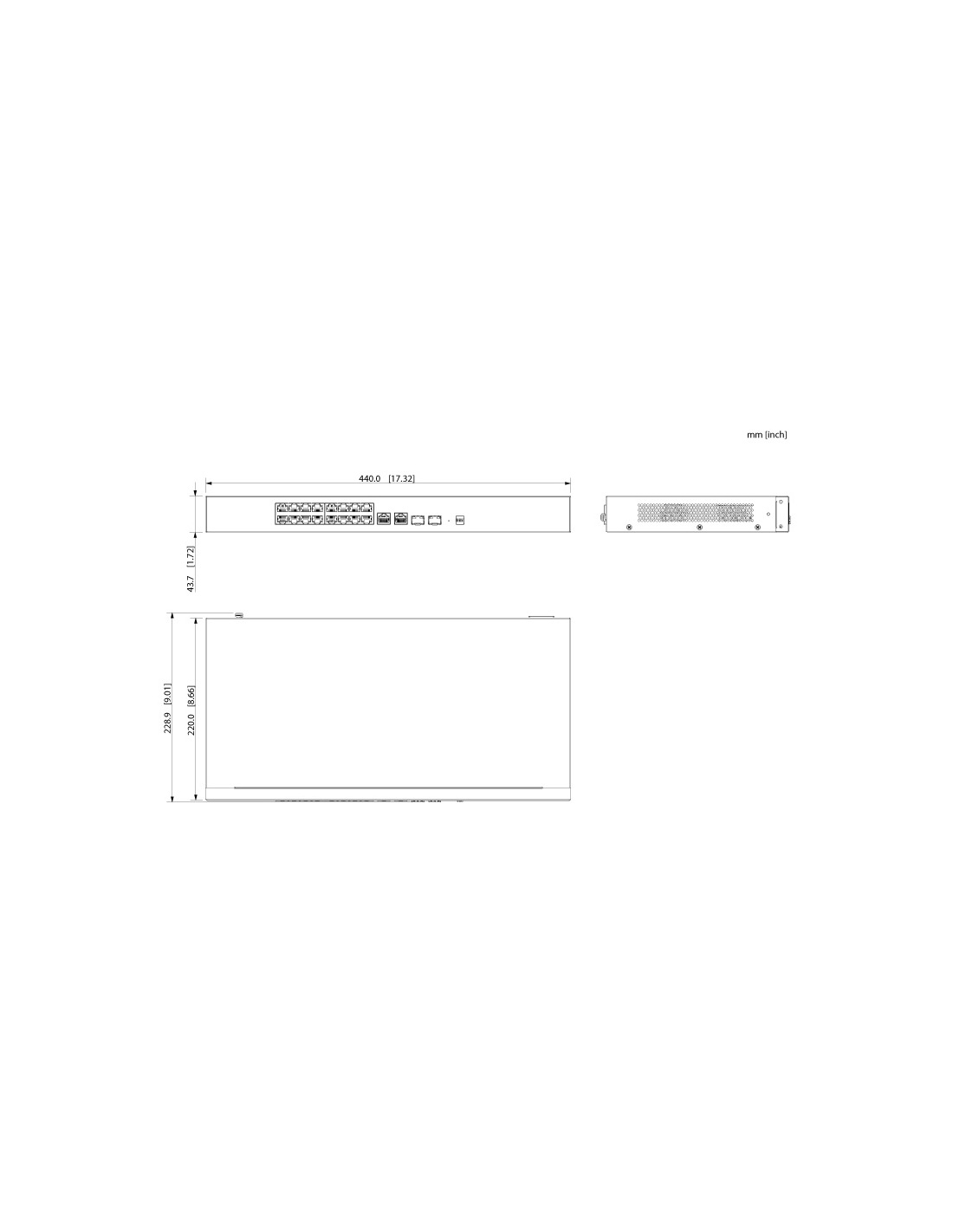

- Dimensions
- 440 x 220 x 44mm
- Operating Environment
- -10° ~ 55°C / RH95% (max)
- Weight
- 2.35kg
- Ports
- 16 ports
- PoE
- Yes

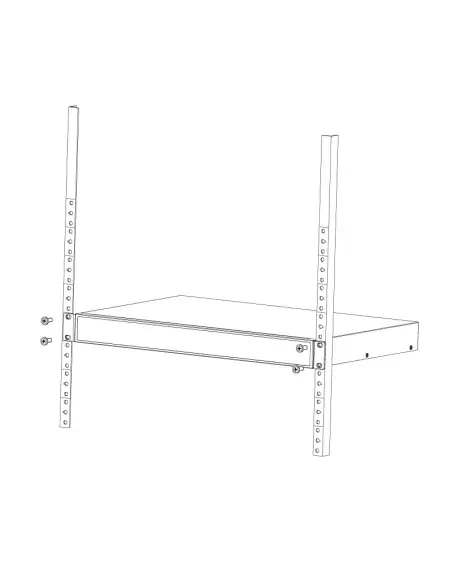

- Mounting Options
- Rackmount Tabs (1RU) / Desktop Mount
- DHCP
- Yes
- Management
- L2 Managed
- PoE Protocol
- PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE (IEEE802.3bt)
- Device Ports
- 16 x 10/100 Base-T (PoE power supply ports)
- Exchange Mode
- -
- Extend Mode
- Up to 250m range at 10Mbps
- Flow Control
- Yes
- Input Power
- 100 ~ 240VAC
- Lightning Protection
- Common Mode: 4kV / Differential Mode: 2kV
- LLDP
- Yes
- MAC Address Capacity
- 8K
- Network Management
- Yes
- Network Time Protocol
- Yes
- Packet Forwarding Rate
- 5.36Mbps
- PoE Management
- Web / Cloud / Logs / Fault Alarm
- Port Aggregation
- Yes
- Port Mirroring
- Yes; N:1, Local Port
- Quality of Service
- Yes
- Security Features
- Yes
- Spanning Tree Protocol
- Yes
- Speed
- Fast 10/100
- Switch Management
- N/A
- Switch Power Load
- Port 1-2: ≤90W / Port 3-16: ≤30W / Total: ≤240W
- Switching Capacity
- 7.2bps
- System Maintenance
- Yes
- Uplink Ports
- 2 x 1000 Base-X / 2 x 10/100/1000 Base-T
- Virtual LAN
- Yes; IEEE802.1Q
