Uniview 64-Channel NVR, 32MP Recording, Dual 4K HDMI, 8 HDD Bays, RAID 0/1/5/6/10, N+1 Hot Spare - NVR508-64E-IQ
NVR508-64E-IQ-0T
In stock $ 2,265.00
inc-GST
or 4 interest-free payments of $566.25 with
Uniview NVR508-64E-IQ 64-channel network video recorder. Up to 32MP recording, 512 Mbps, two 4K HDMI and two VGA outputs, eight drive bays with RAID 0/1/5/6/10 and N+1 hot spare. No HDD, or 2–8TB fitted.
- ✓64 channels, up to 32MP each
- ✓512 Mbps incoming bandwidth
- ✓8 SATA bays, RAID 0/1/5/6/10
- ✓N+1 hot spare
- ✓2 × HDMI 4K/60 + 2 × VGA
- ✓16 alarm in, 10 out
Uniview · 64 channels · 8 bays
Sixty-four cameras.
Eight drives. Two control rooms.

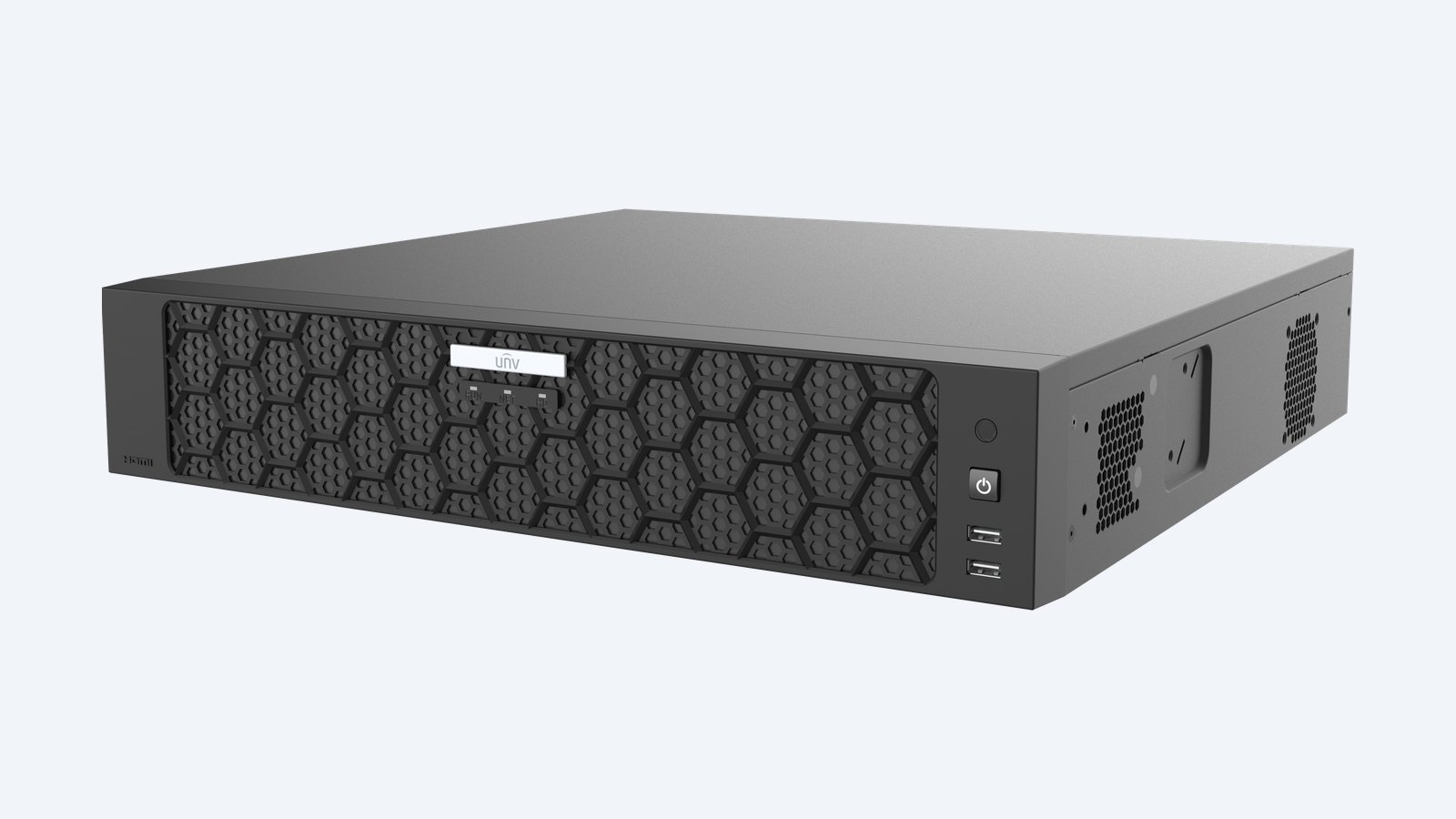

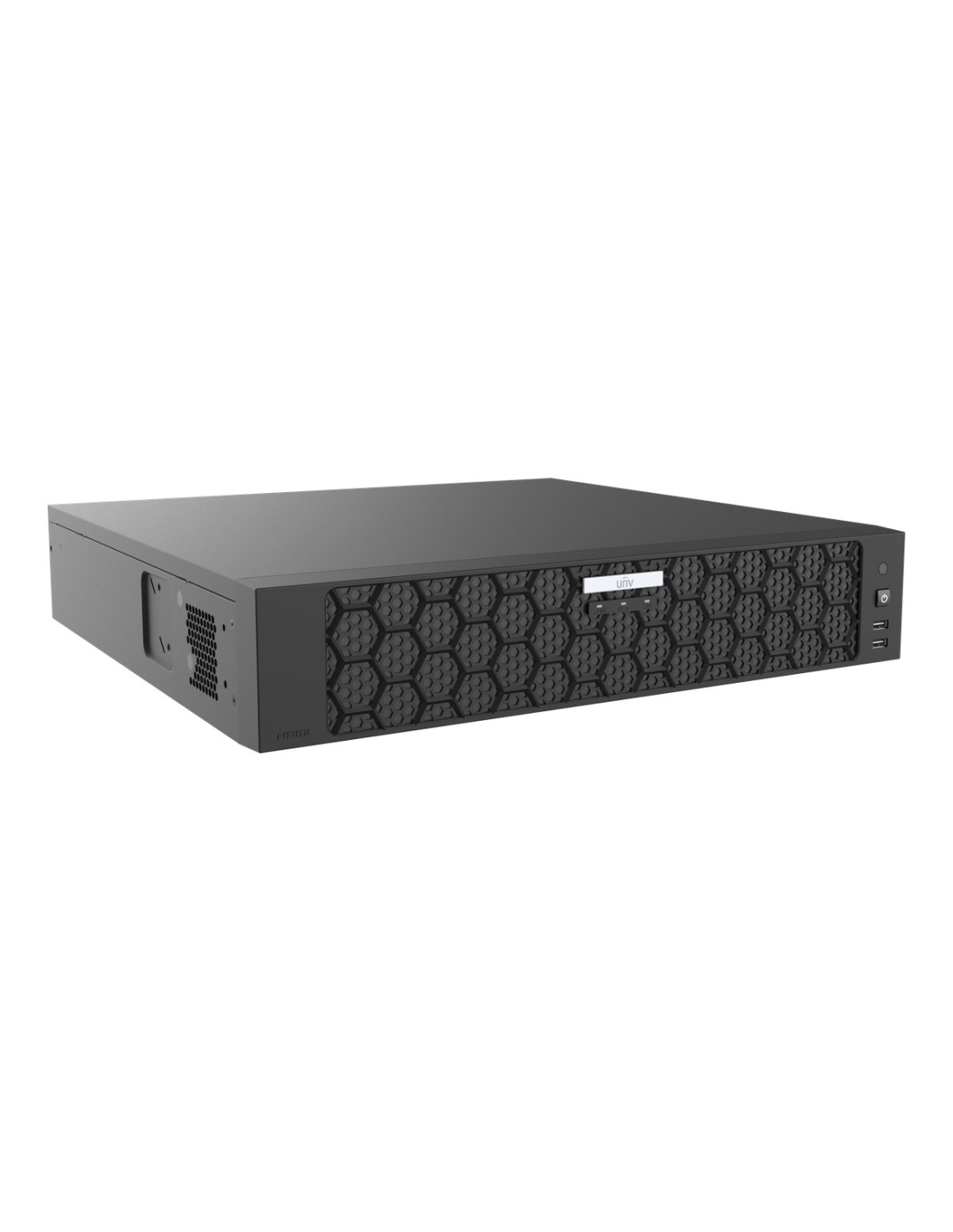

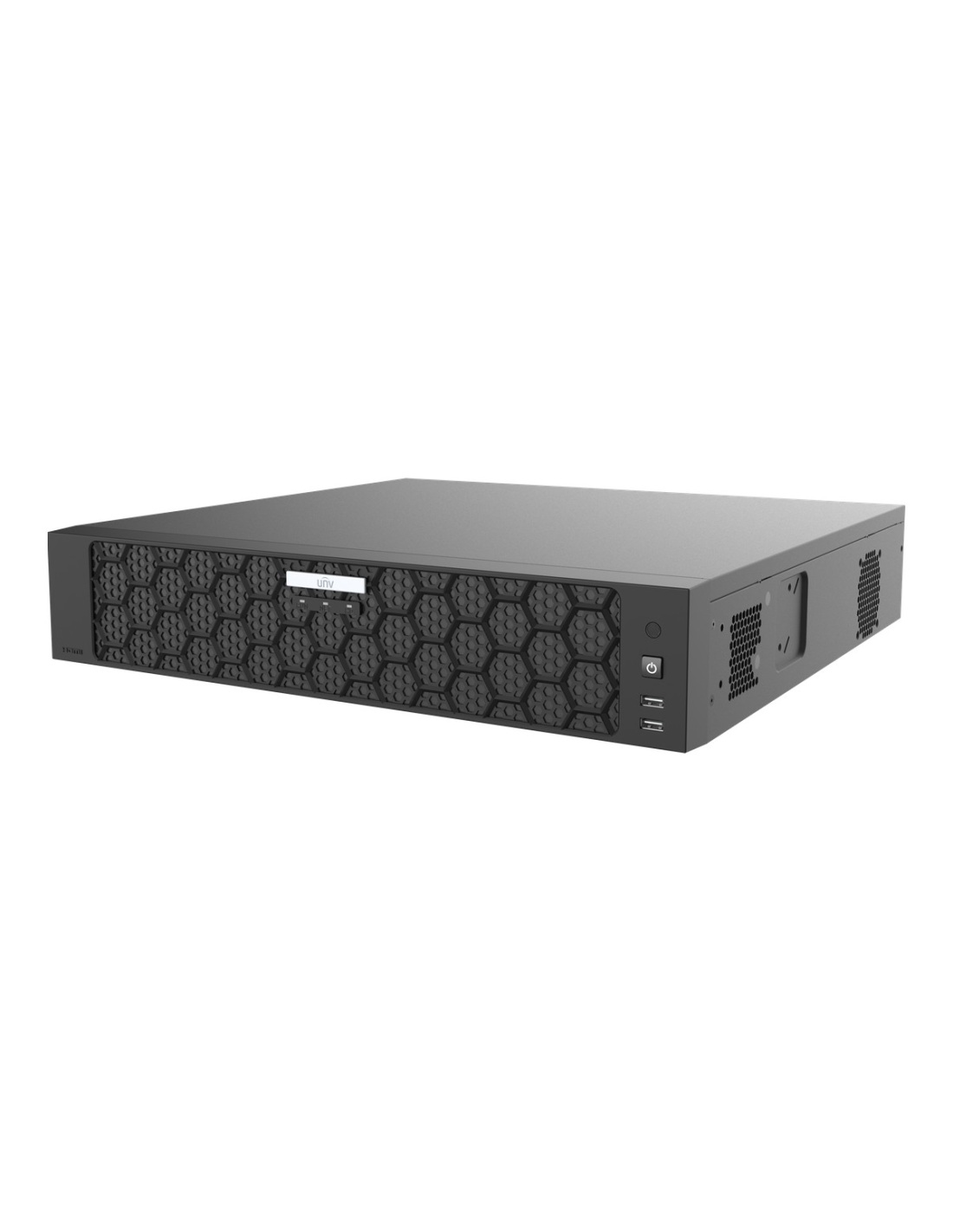

This is the Uniview NVR508-64E-IQ. A 2U recorder for large sites: 64 channels at up to 32MP, 512 Mbps of incoming video, eight drive bays with RAID 0, 1, 5, 6 and 10, and two independent pairs of HDMI and VGA outputs.
In one sentence: the NVR508-64E-IQ is a 64-channel Uniview NVR with up to 32MP recording, 512 Mbps incoming bandwidth, eight SATA bays up to 24TB each with RAID 0/1/5/6/10 and N+1 hot spare, two Gigabit ports and two 4K HDMI outputs.
Order it without a drive, or with a 2, 4, 6 or 8TB drive fitted.
The NVR508-64E-IQ comes without cameras or a screen, and without a hard drive unless you choose one above. Add PoE switches for the cameras and your screens. The recorder has no PoE ports and runs from mains power.
In the box
- NVR508-64E-IQ recorder
- Mains power cord
- Quick guide
You also need
- A hard drive, if you did not choose one fitted (up to 7 more are optional)
- Up to 64 IP cameras
- PoE switches for the cameras
- Monitors with HDMI or VGA
- A 19-inch rack or shelf
Built for footage you cannot lose.
RAID 6 keeps recording through two drive failures, and N+1 hot spare lets a standby recorder take over if this one stops. With 512 Mbps of incoming bandwidth, all 64 channels can record 4K at full quality.

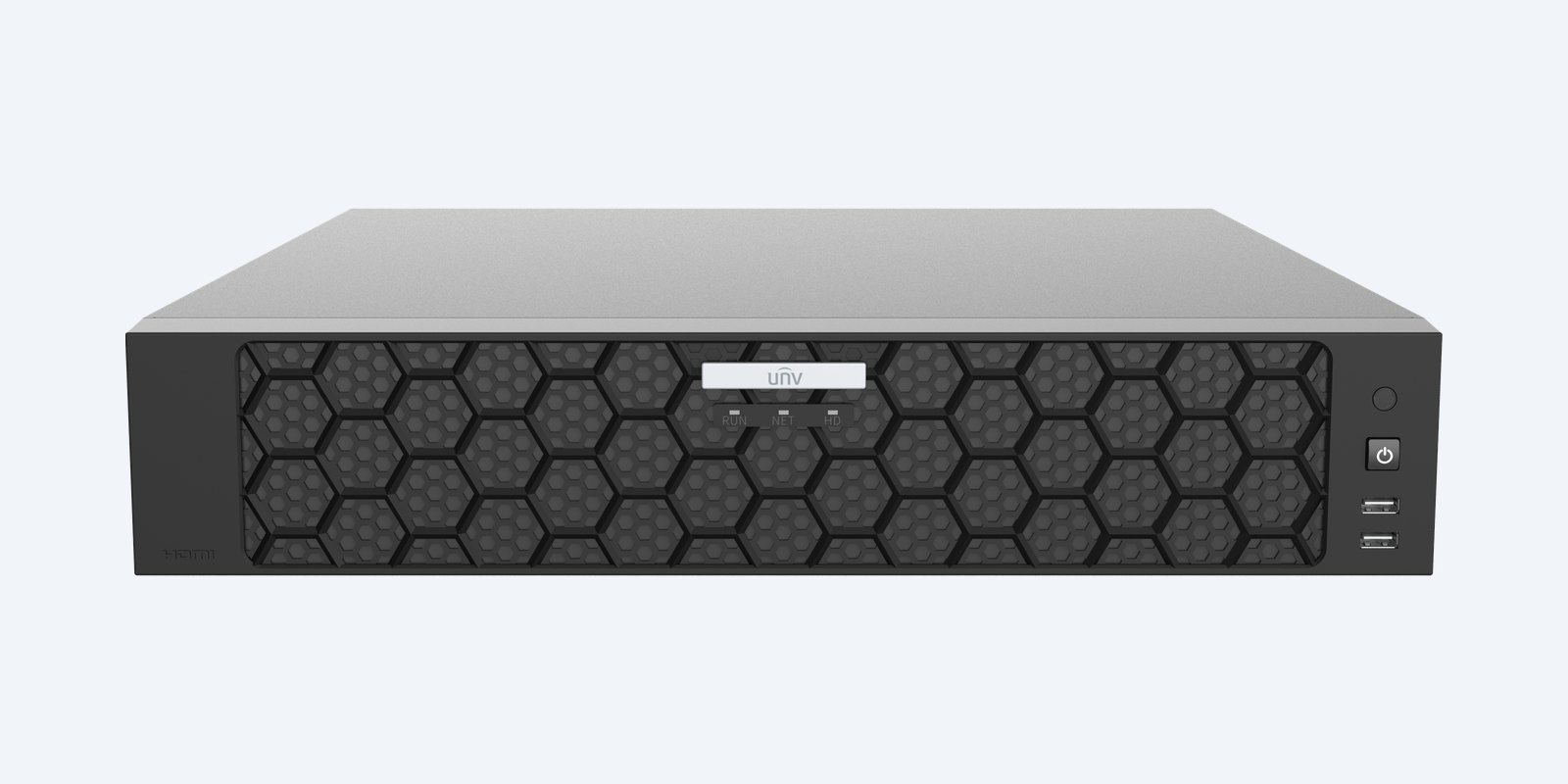

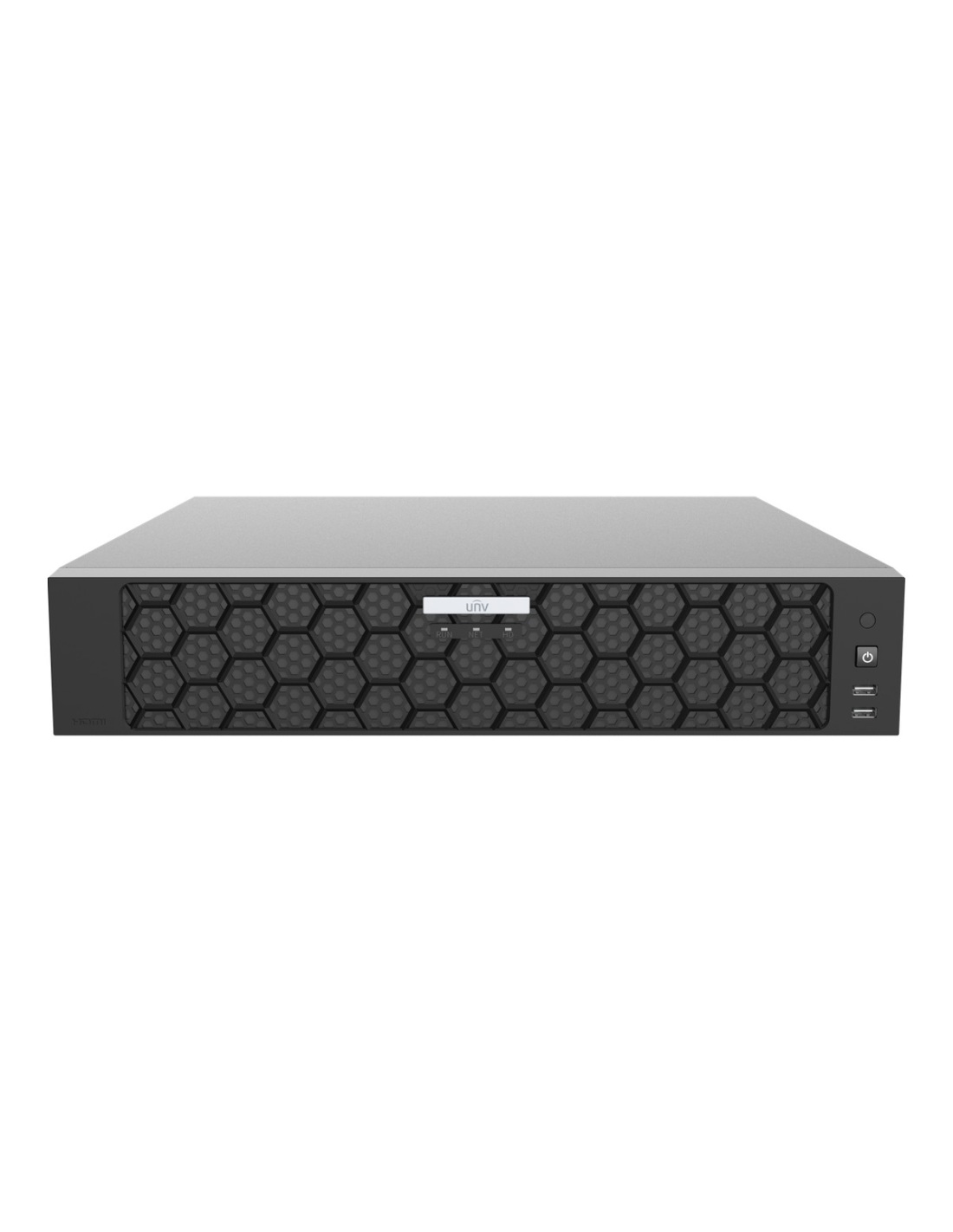

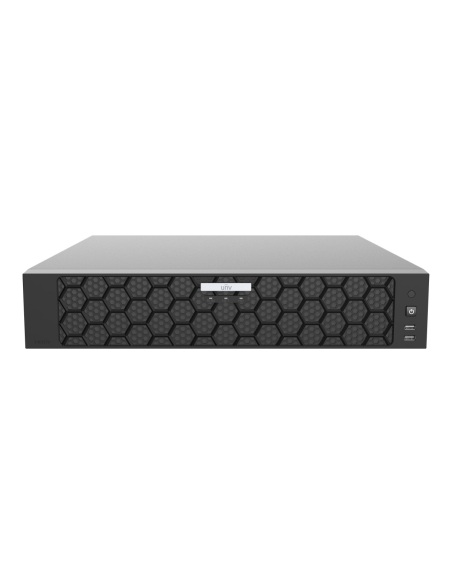

Front panel
A 2U rack case.
Two USB 2.0 ports are on the front. At the back: two Gigabit LAN, two HDMI and two VGA, two USB 3.0, eSATA, RS485, RS232, alarm terminals (16 in, 10 out), a 12 V output and RCA audio (1 in, 2 out).

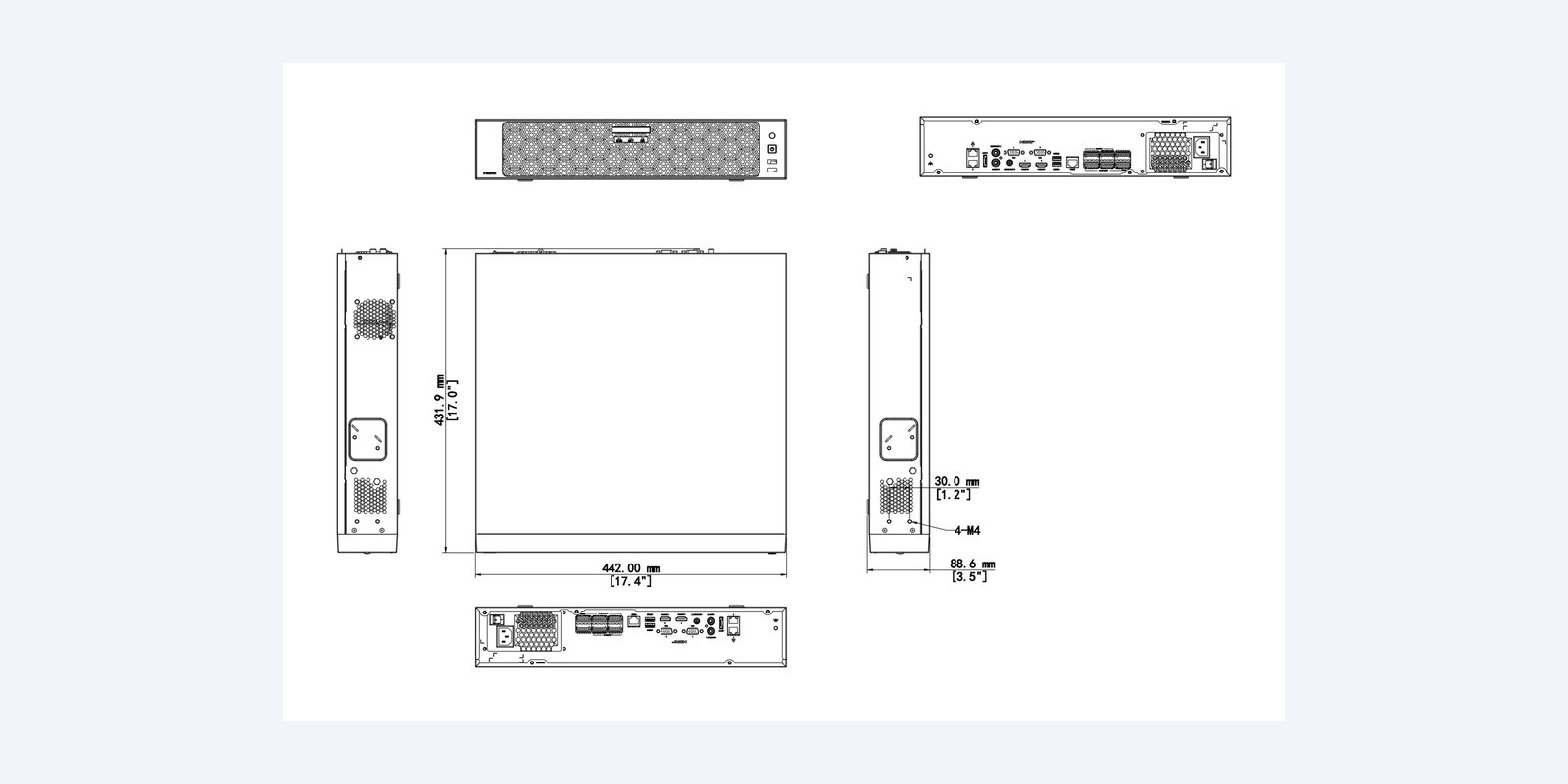

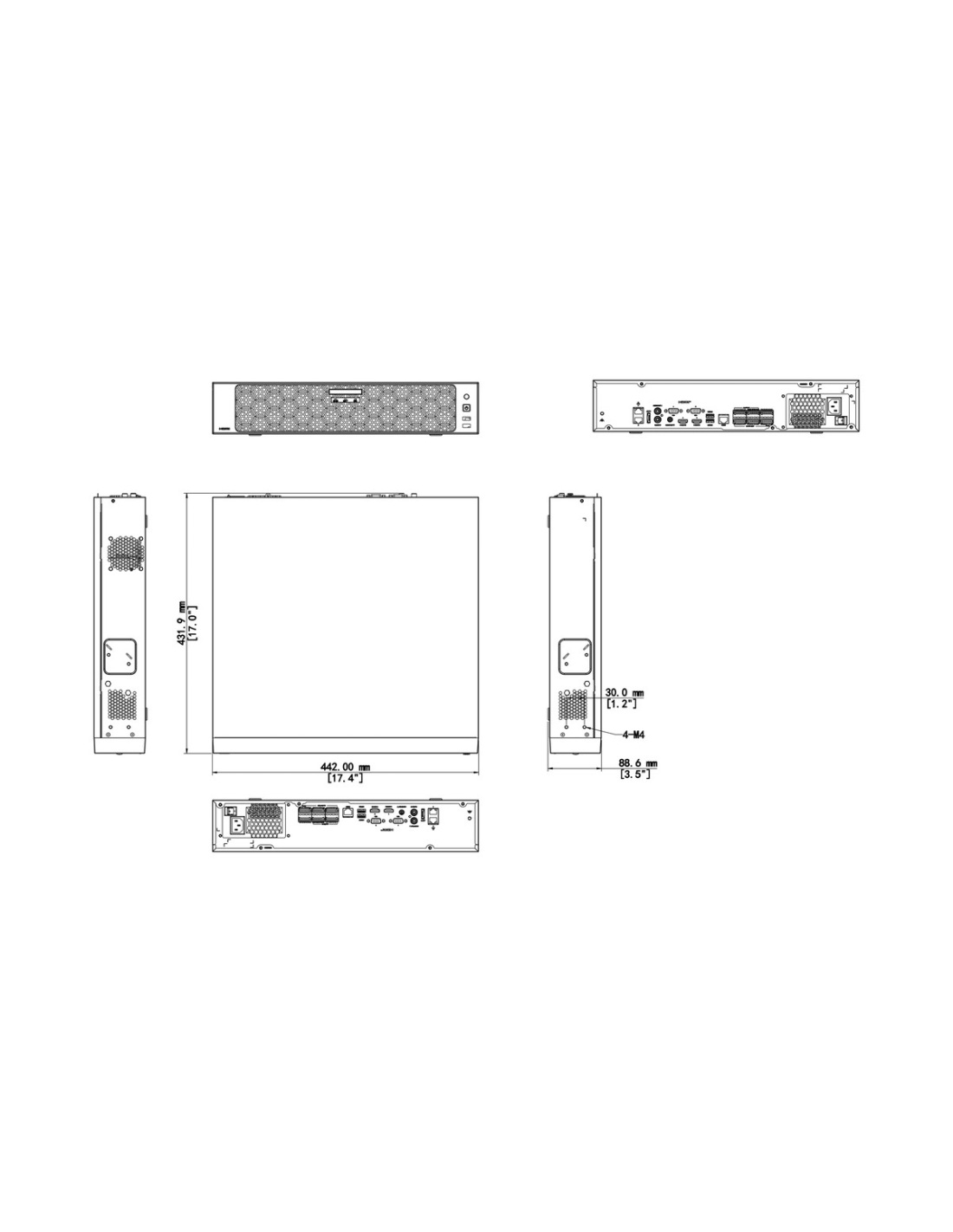

Size
442 × 432 × 86 mm.
It weighs 5.5 kg or less without drives and draws 35 W or less before drives. It fits 2U of a 19-inch rack with Uniview FL-2U rack ears.
How it goes in
From the box to recording.
01
Fit the hard drives
If you did not order one fitted: with the power off, fit surveillance drives in the bays you are using, then format them or build the RAID array from the setup wizard.
02
Connect the cameras
Plug the cameras into PoE switches on the same network as the recorder. It searches the network and adds Uniview cameras automatically.
03
Connect screens and network
HDMI or VGA to the monitors, a network port to your switch or router, then power on and follow the wizard.
04
Add it to the app
Scan the P2P QR code in the UNV-Link app, or add the recorder to Uniview’s EZStation software on a PC.
At a glance
NVR508-64E-IQ
Show specs
Channels
64 IP cameras
PoE
None — use PoE switches
Recording
Up to 32MP
Compression
Ultra 265, H.265, H.264
Bandwidth
512 Mbps in and out (200 Mbps with smart on)
Decoding
2 × 32MP, 8 × 4K, 16 × 4MP, 32 × 1080p or 64 × 720p @30 (smart off)
Outputs
2 × HDMI (4K/60 Hz), 2 × VGA; HDMI1/VGA1 and HDMI2/VGA2 independent
Storage
8 SATA, up to 24TB each; RAID 0, 1, 5, 6, 10; N+1 hot spare
Network
2 × RJ45 Gigabit
USB
2 × USB 2.0 front, 2 × USB 3.0 rear
Alarm
16 in, 10 out; RS485, RS232, eSATA, 12 V out
Audio
1 in, 2 out (RCA), two-way audio
Power
100–240 V AC, ≤35 W without HDD
Size and weight
442 × 432 × 86 mm, ≤5.5 kg
Operating
−10 °C to 50 °C, ≤90% RH
Pair it with
What goes with it
Storage
Seagate SkyHawk drive
Surveillance-rated 2, 4 or 6TB drives built for 24/7 recording. For 64 cameras, fill the bays with large drives and run RAID 5 or 6.
Cameras
Uniview IP cameras
Uniview turrets, bullets and domes add the smart events and fast searches this recorder is built around.
Network
PoE switch
This recorder has no PoE ports, so a PoE switch powers the cameras and links them to it.
Viewing
Two monitors
Two independent HDMI/VGA pairs drive a guard station and a manager’s screen with different layouts.
Where it is used
Where a 64-channel recorder fits
Industrial sites
Plant, yards, gates and fences on one recorder.
Shopping centres
Malls, car parks, loading docks and service corridors.
Campuses
Schools, hospitals and universities with many buildings.
Transport and logistics
Depots, warehouses and vehicle yards.
Uniview high-channel recorders side by side
| NVR502-16E-IM-G | NVR502-32E-IM-G | NVR508-64E-IQ | NVR516-128E-R | |
|---|---|---|---|---|
| Camera channels | 16 | 32 | 64 | 128 |
| Max recording | 32MP | 32MP | 32MP | 32MP |
| Incoming bandwidth | 192 Mbps | 192 Mbps | 512 Mbps | 640 Mbps |
| Screen outputs | HDMI 4K + VGA | HDMI 4K + VGA | 2 × HDMI 4K/60 + 2 × VGA | HDMI 8K + HDMI 4K/60 + 2 × VGA |
| Hard drive bays | 2 × up to 24TB | 2 × up to 24TB | 8 × up to 24TB | 16 × up to 16TB, hot swap |
| RAID | RAID 1 | RAID 1 | RAID 0, 1, 5, 6, 10 | RAID 0, 1, 5, 6, 10, 50, 60 |
| Network ports | 2 × Gigabit | 2 × Gigabit | 2 × Gigabit | 2 × Gigabit |
| Alarm in / out | 4 / 1 | 4 / 1 | 16 / 10 | 16 / 10 |
| Power | 12 V DC, ≤25 W | 12 V DC, ≤25 W | 100–240 V AC, ≤35 W | 100–240 V AC, ≤50 W |
| Case | 1U | 1U | 2U | 3U |
None of these has PoE ports: cameras connect through a PoE switch on the same network. Power figures without hard drives; incoming bandwidth with smart functions off. Figures from the Uniview datasheets.
Common questions
Which RAID levels does it support?
RAID 0, 1, 5, 6 and 10 across its eight bays. RAID 6 survives two drive failures; RAID 5 survives one while keeping more space.
What is N+1 hot spare?
One spare recorder watches several working ones. If a working recorder fails, the spare takes over recording, and the footage syncs back when it is repaired.
Can it drive two different screens?
Yes. HDMI1 and VGA1 show one layout, HDMI2 and VGA2 another, so two monitors can show different views. Both HDMI outputs run up to 4K at 60 Hz.
Is a hard drive included?
Not as standard. The NVR508-64E-IQ is sold without a drive, or with a 2, 4, 6 or 8TB surveillance drive fitted — choose the option above. It has eight SATA bays of up to 24TB each. A fitted drive fills one bay; add more at any time for space or RAID.
Will it work with cameras that are not Uniview?
Uniview lists standard cameras of other brands for the recorder’s own motion, intrusion and face detection on a limited number of channels, so most third-party IP cameras can be added. Fast searches such as AcuSearch need Uniview cameras. Send us the camera model and we will check it.
Can I watch the cameras on my phone?
Yes. P2P is built in: connect the network port to your router and add the recorder to Uniview’s UNV-Link app by scanning its QR code. Live view, playback and alerts then work on iPhone and Android, and up to 128 remote users can connect.
What screen can I plug in?
Monitors with HDMI or VGA. There are two HDMI outputs up to 4K at 60 Hz and two VGA outputs; HDMI1/VGA1 and HDMI2/VGA2 show independent layouts.
What is Ultra 265?
Uniview’s compression. It records the same picture as H.265 in less space, so the drive holds more days of footage. H.265 and H.264 are supported too.
What does ANR do?
If the network drops, compatible Uniview cameras keep recording to their SD card and the NVR pulls the missing footage back when the link returns.
How far can the cameras be from the recorder?
It has no PoE ports, so the cameras plug into a PoE switch and the switch connects to the recorder. Each Cat6 run from the switch can be up to 100 m, and switches can be placed around the site.
Can I mount it in a rack?
Yes. It is a 2U, 19-inch case that mounts with Uniview FL-2U rack ears — ask us if you need a set.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure how many channels or how much storage you need? Call 1300 736 970 or email [email protected] with the number of cameras and how many days you want to keep, and we will size the drives.
Installation and safety
Power. Runs from 100–240 V AC. Power off before fitting or removing hard drives, and earth the case.
Placement. Use indoors between −10 °C and 50 °C, under 90% humidity, with space around the vents. Keep it somewhere secure so a thief cannot take the footage with it.
Figures. From the Uniview NVR508-E-IQ series datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 442 × 432 × 86 mm
- Power Supply
- 100–240 V AC
- Audio
- 1 in, 2 out (RCA)
- Operating Environment
- −10 °C and 50 °C, ≤90% RH
- Weight
- ≤5.5 kg without HDD
- Power Consumption
- ≤35 W without HDD
- Video Compression
- Ultra 265, H.265, H.264
- Video Input
- 64 Channels
- Brand
- Uniview
- USB
- 2 × USB 2.0, 2 × USB 3.0
- Incoming Bandwidth
- 512 Mbps (200 Mbps with smart on)
- Recording Resolution
- Up to 32MP
- Display Output
- 2 × HDMI up to 4K/60 Hz, 2 × VGA
- Network Interface
- 2 × RJ45 Gigabit
- Smart Search
- AcuSearch, AcuTrack, SmartSearch+, face, vehicle and behaviour search
- Warranty
- 3 years
- Product Type
- Network Video Recorder
- Model
- NVR508-64E-IQ
- HDD Bays
- 8 SATA
- RAID
- RAID 0, 1, 5, 6, 10; N+1 hot spare
- Outgoing Bandwidth
- 512 Mbps
- Max HDD Capacity
- 24TB per drive
- Hard Drive
- Optional 2, 4, 6 or 8TB fitted (standard: no drive)
- Playback Decoding
- 2 × 32MP, 4 × 16MP, 8 × 4K, 16 × 4MP, 32 × 1080p or 64 × 720p @30
