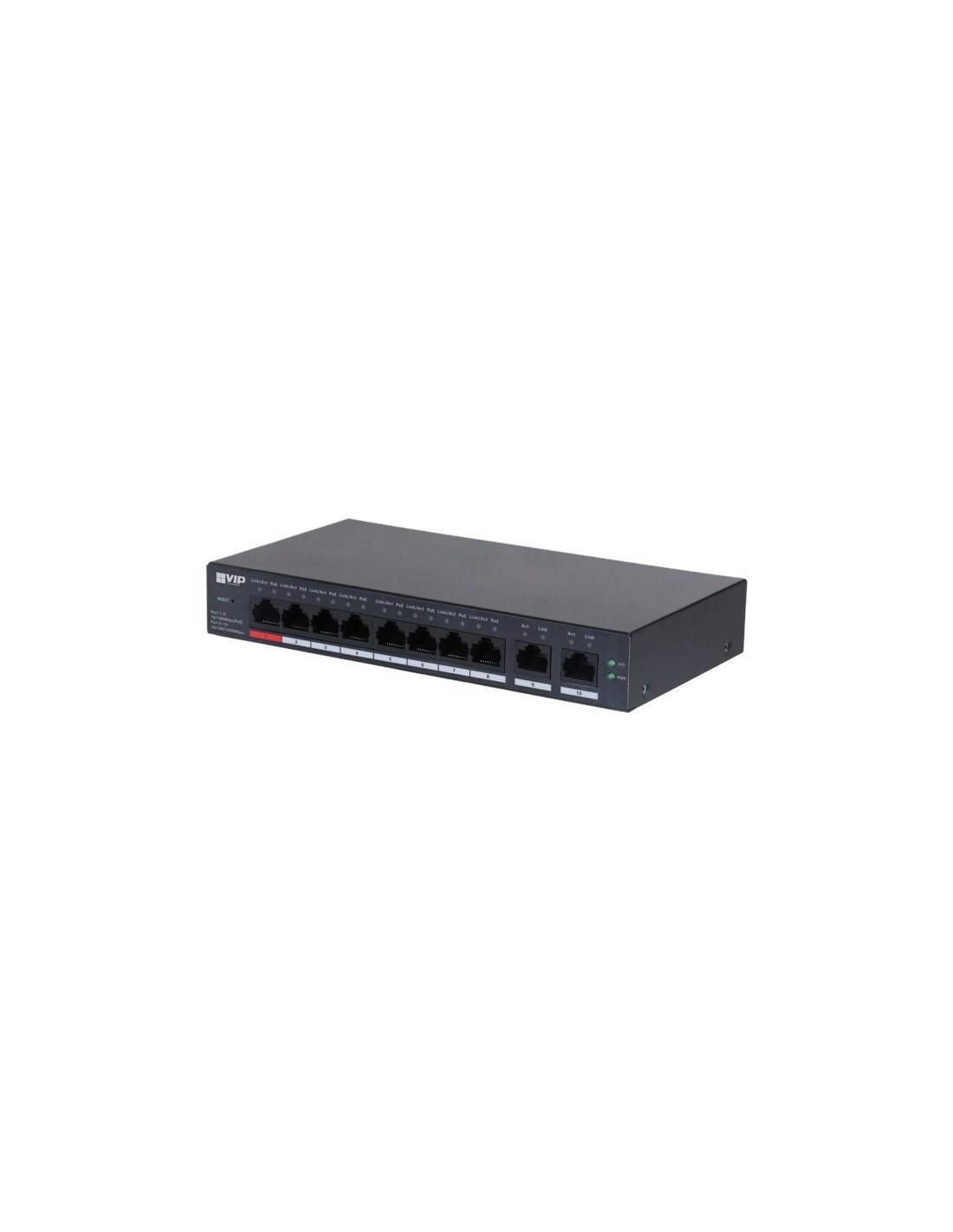

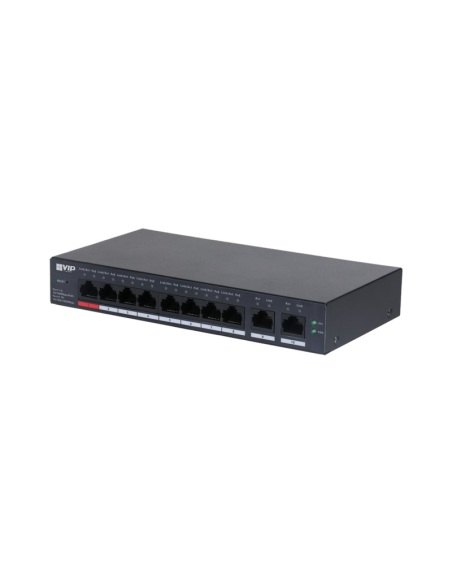

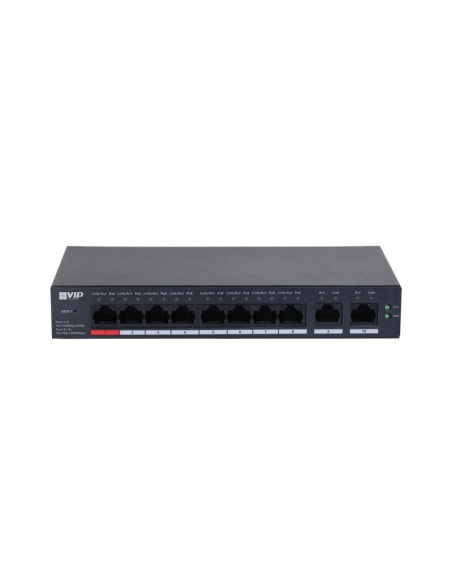

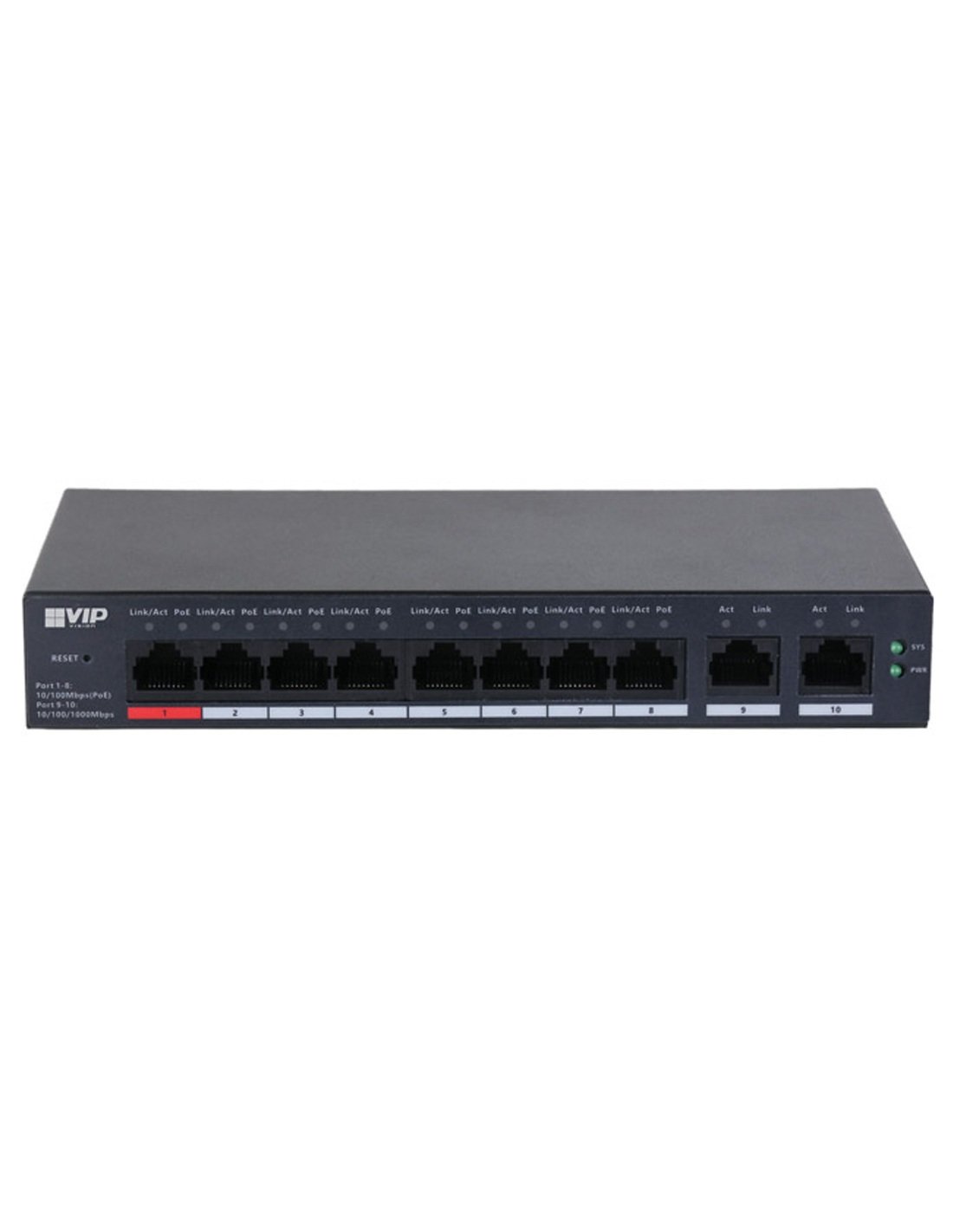

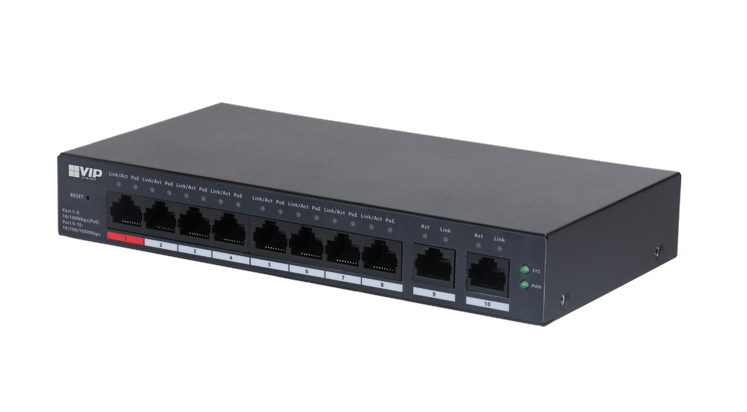

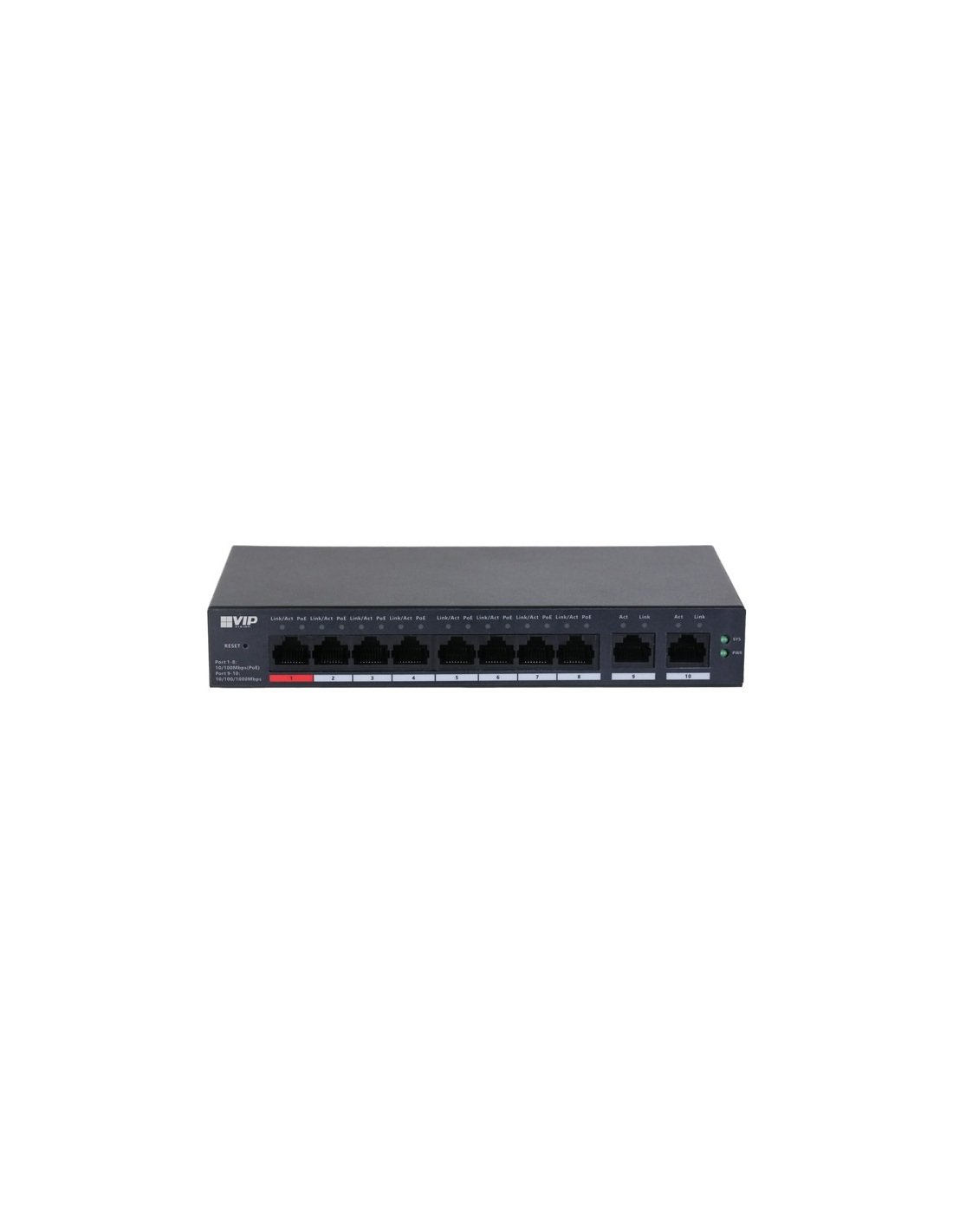

The VIP Vision VSPOE‑SWA8C is a wall/desktop‑mount 8‑port Fast (10/100) PoE switch built for security edge networks. It supports PoE / PoE+ / Hi‑PoE with Gigabit uplinks and an Extend mode for long‑distance PoE runs — perfect for powering IP cameras, WAPs and access devices.

Key Features & Benefits

• 8 × Fast PoE Ports — 10/100Mbps device ports for CCTV & edge networking
• 2 × Gigabit Uplinks — 10/100/1000 RJ45 for LAN/NVR connectivity
• Hi‑PoE up to 90W (Port 1) — Ports 2–8 up to 30W each; 110W total PoE budget
• Extend Mode to 250m — Long‑reach PoE at 10Mbps for distant cameras
• Full‑metal enclosure — Professional build with 4kV/2kV surge protection (CM/DM)
• Unmanaged, plug‑and‑play — No configuration required for rapid installs
• 8K MAC table — Stable performance on busy small networks
• 4‑Year Warranty — Long‑term reliability for professional systems

Ideal Applications

• Powering IP cameras across small/remote sites
• Wireless access points, intercoms & IP phones
• Access control doors & edge security devices
• Outbuildings, sheds & temporary CCTV networks

Specifications at a Glance

• Model: VSPOE‑SWA8C
• Device Ports: 8 × 10/100 Base‑T (PoE power supply ports)
• Uplink Ports: 2 × 10/100/1000 Base‑T
• PoE Protocols: IEEE 802.3af / 802.3at / Hi‑PoE (802.3bt)
• PoE Budget: Port 1 ≤ 90W; Ports 2–8 ≤ 30W; Total ≤ 110W
• Switching Capacity: 5.6 Gbps • Forwarding: 4.17 Mpps • MAC: 8K
• Extend Mode: Up to 250m @ 10Mbps
• Lightning Protection: 4kV (common mode) / 2kV (differential)

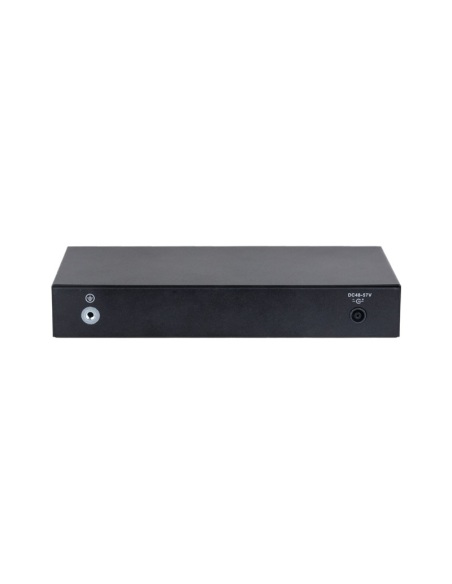

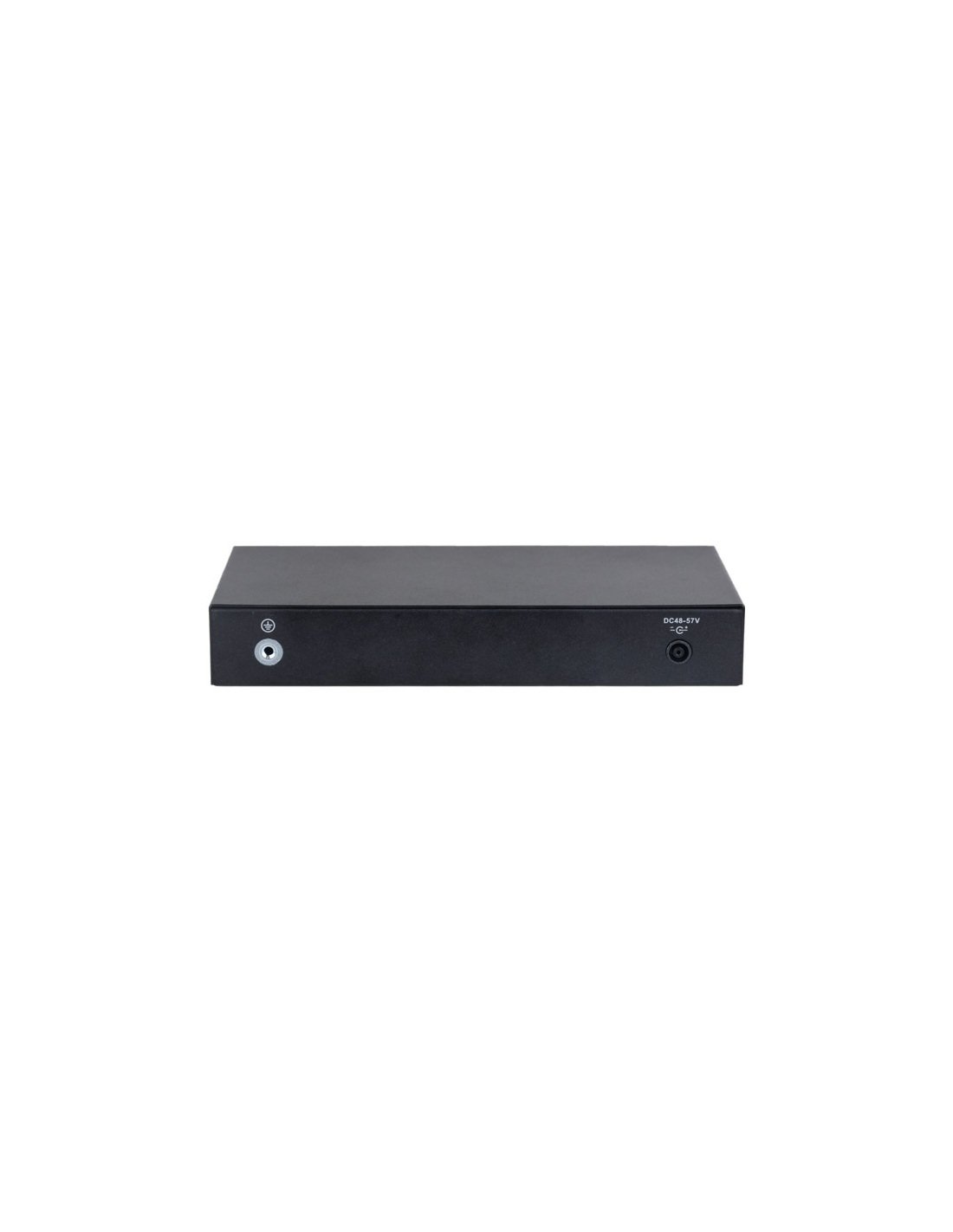

• Input Power: 54VDC

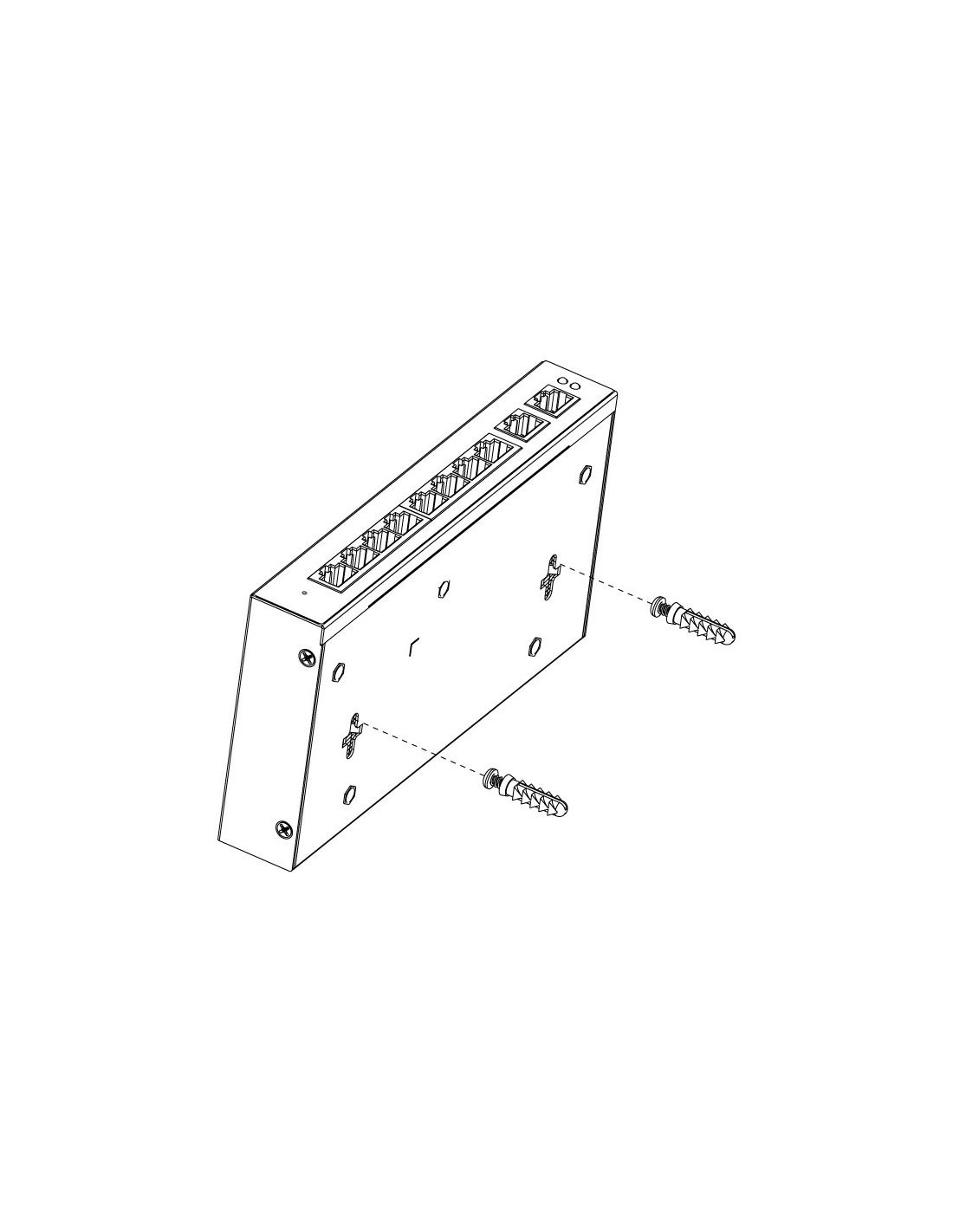

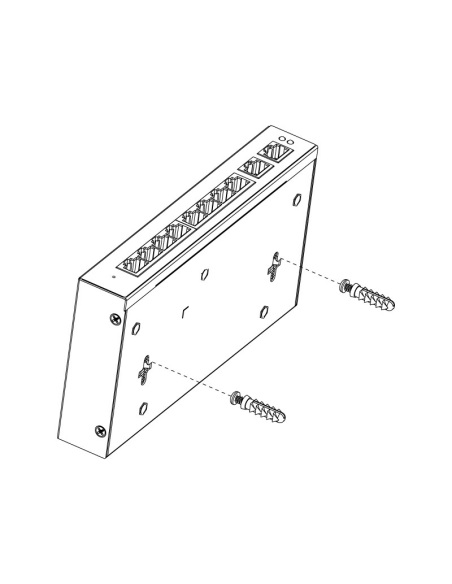

• Mounting: Wall / Desktop
• Operating Environment: –10°C to +55°C; RH ≤ 95%

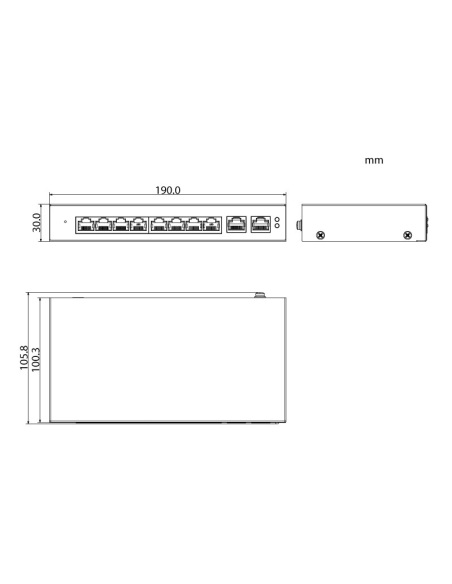

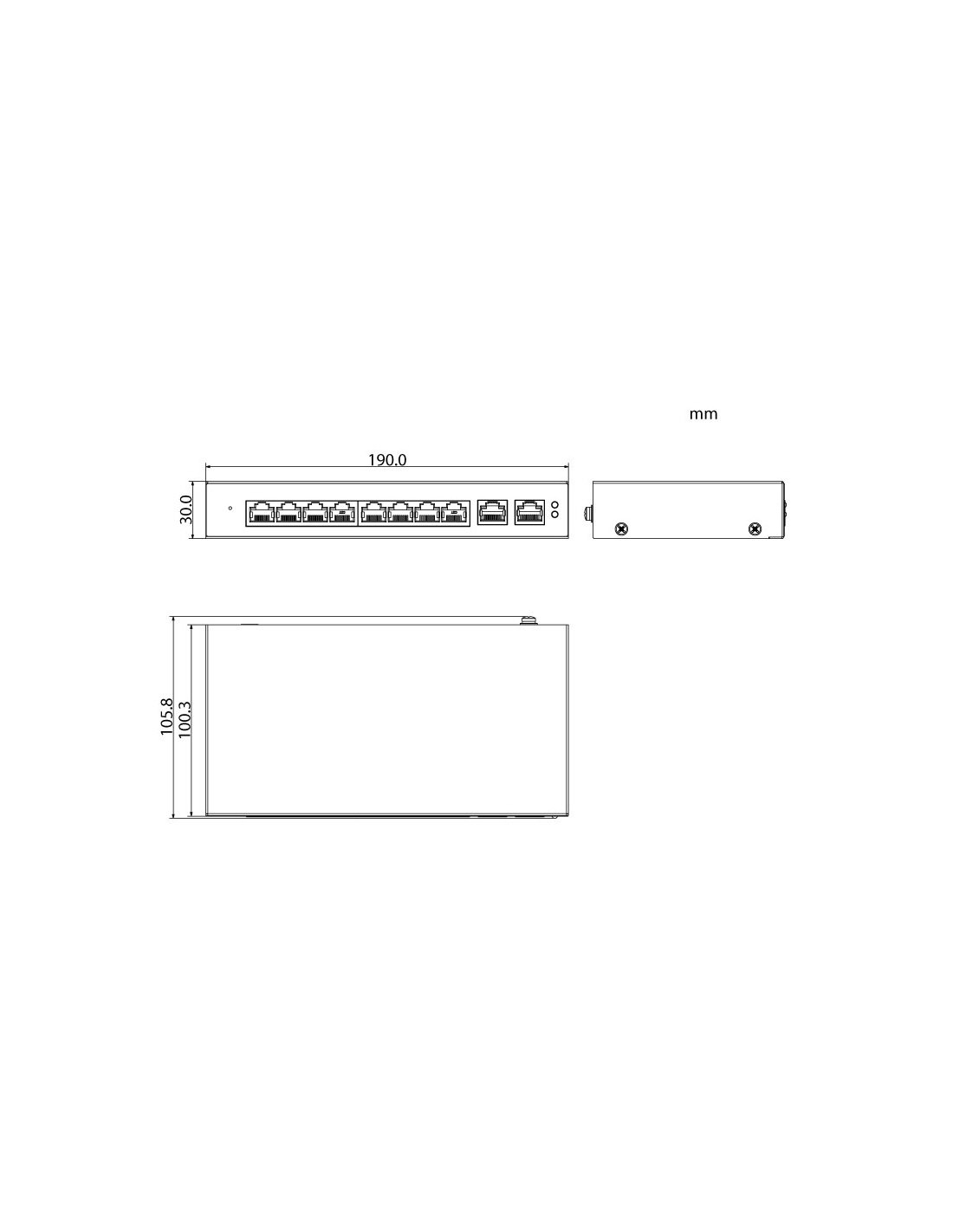

• Dimensions / Weight: 190 × 106 × 30 mm; 0.50 kg
• Warranty: 4 Years
