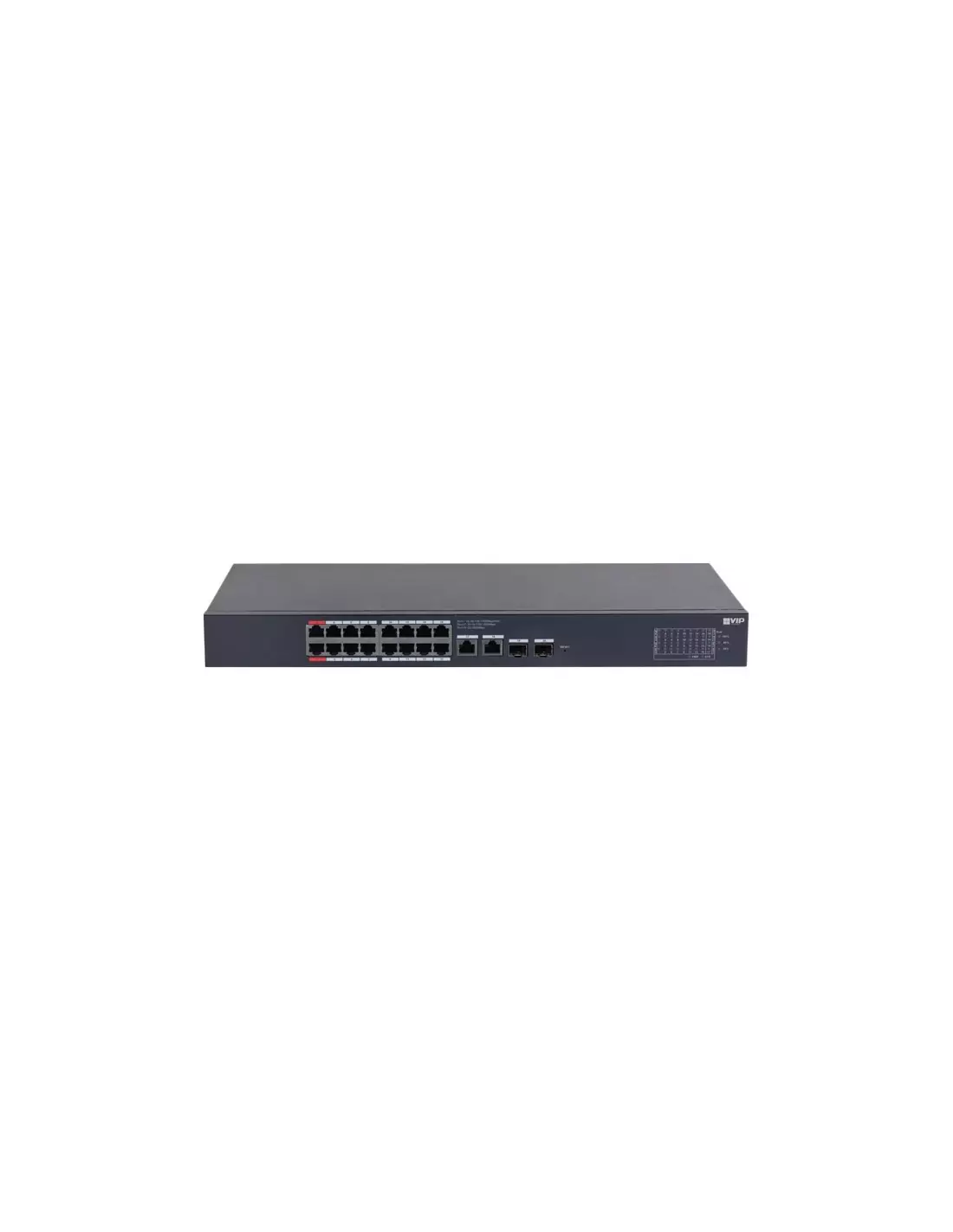

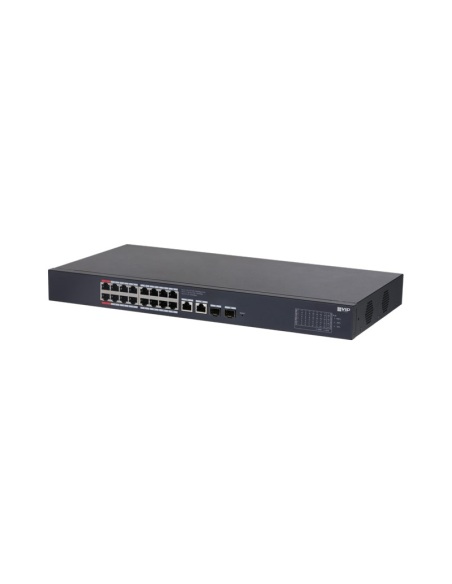

VIP Vision 16-Port Gigabit Cloud Managed Hi-PoE VSPOE-SWB16C

VIP Vision 16-Port Gigabit Cloud Managed Hi-PoE Switch - VSPOE-SWB16C

Name: VIP Vision 16-Port Gigabit Cloud Managed Hi-PoE Switch - VSPOE-SWB16C
Brand: VIP Vision
SKU: VSPOE-SWB16C
Price: 464.75 AUD
Availability: InStock

Reference: VSPOE-SWB16C

In Stock - Ready to Ship

$ 464.75

inc-GST

or 4 interest-free payments of $116.19 with

16 x 10/100/1000 PoE ports
2 x Hi-PoE ports for high-power devices (802.3bt)
2 x gigabit RJ45 uplinks and 2 x gigabit SFP ports
Extend mode: up to 250m
L2 managed: web, CLI, SNMP and cloud management

Description
Product Details

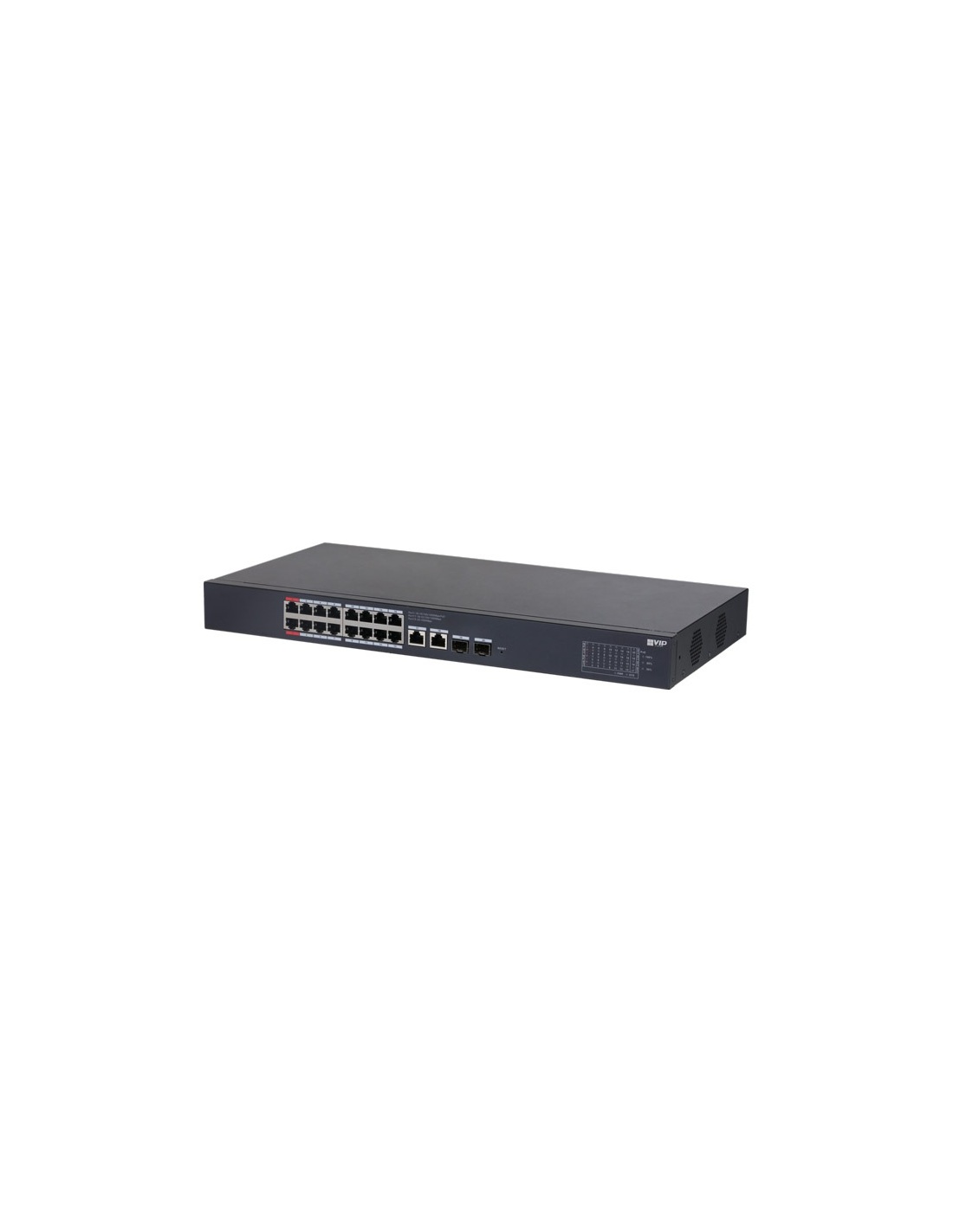

VIP Vision 16-Port Gigabit Cloud Managed Hi-PoE Switch

4 Years Warranty!

VSPOE-SWB16C

A full gigabit 16-port PoE switch with cloud management. Every port runs at 1000M, two ports provide Hi-PoE for high-power devices, and long-range mode runs PoE up to 250m.

Features:

• 16 x 10/100/1000 PoE ports

• 2 x Hi-PoE ports for high-power devices (802.3bt)

• 2 x gigabit RJ45 uplinks and 2 x gigabit SFP ports

• Extend mode: up to 250m

• L2 managed: web, CLI, SNMP and cloud management

• Green PoE and per-port power control

• Rackmount or desktop

Ideal for:

High-resolution CCTV, AI cameras, WiFi access points and business networks.

Full specifications are listed in the Data Sheet tab. Need help choosing or planning an install? Our technical team at InFront Technologies is happy to help.

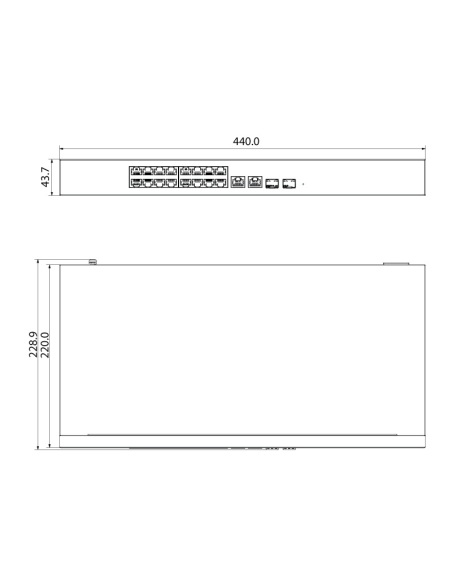

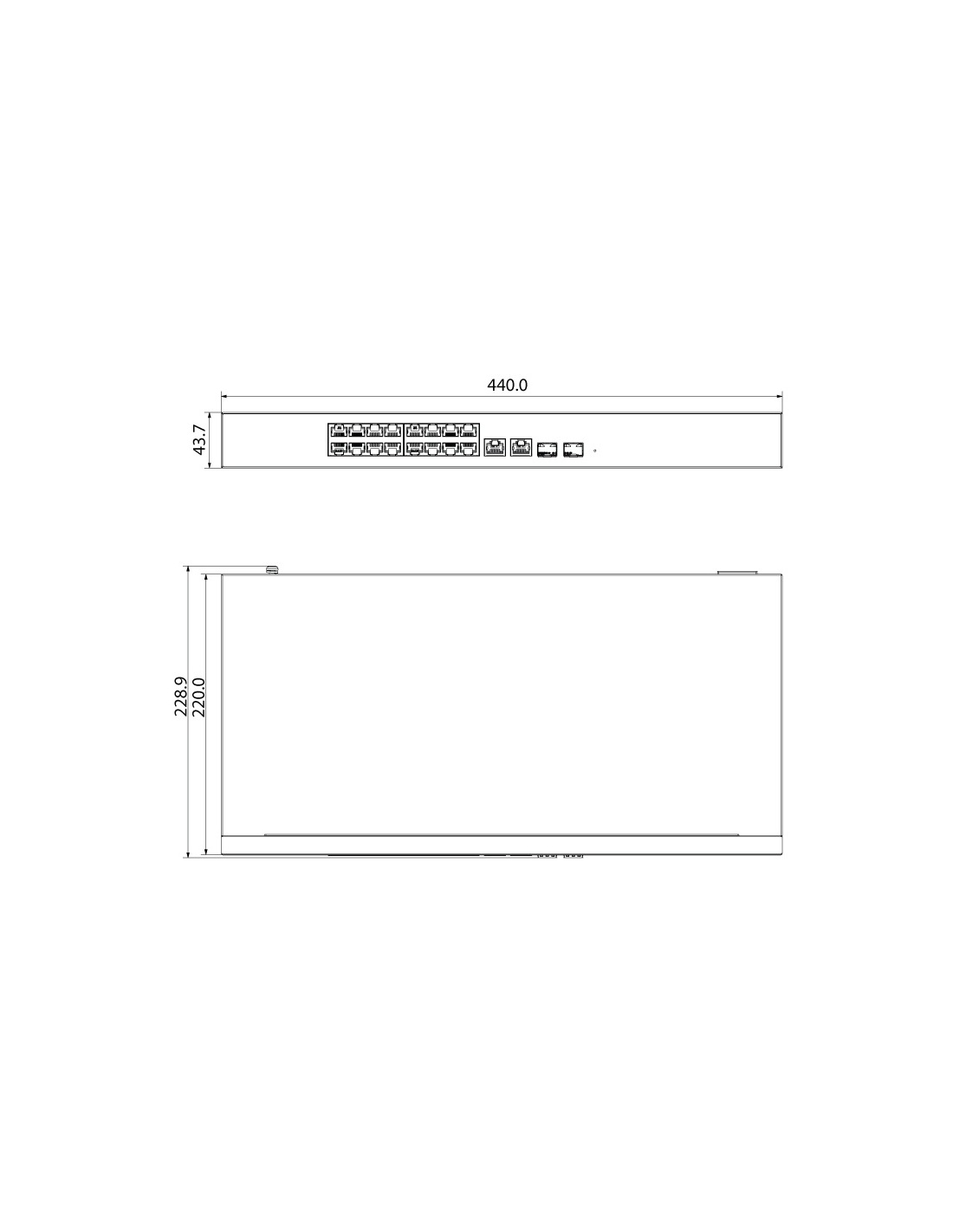

Dimensions: 440 x 220 x 44mm
Operating Environment: Operating Temperature –10 °C to +55 °C
Weight: 2.37kg
Ports: 16 ports
PoE: Yes

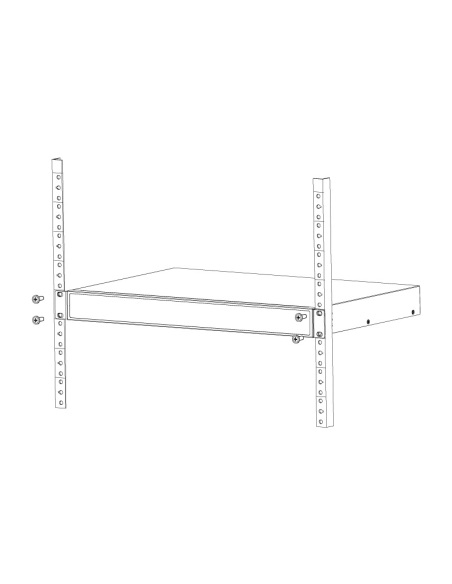

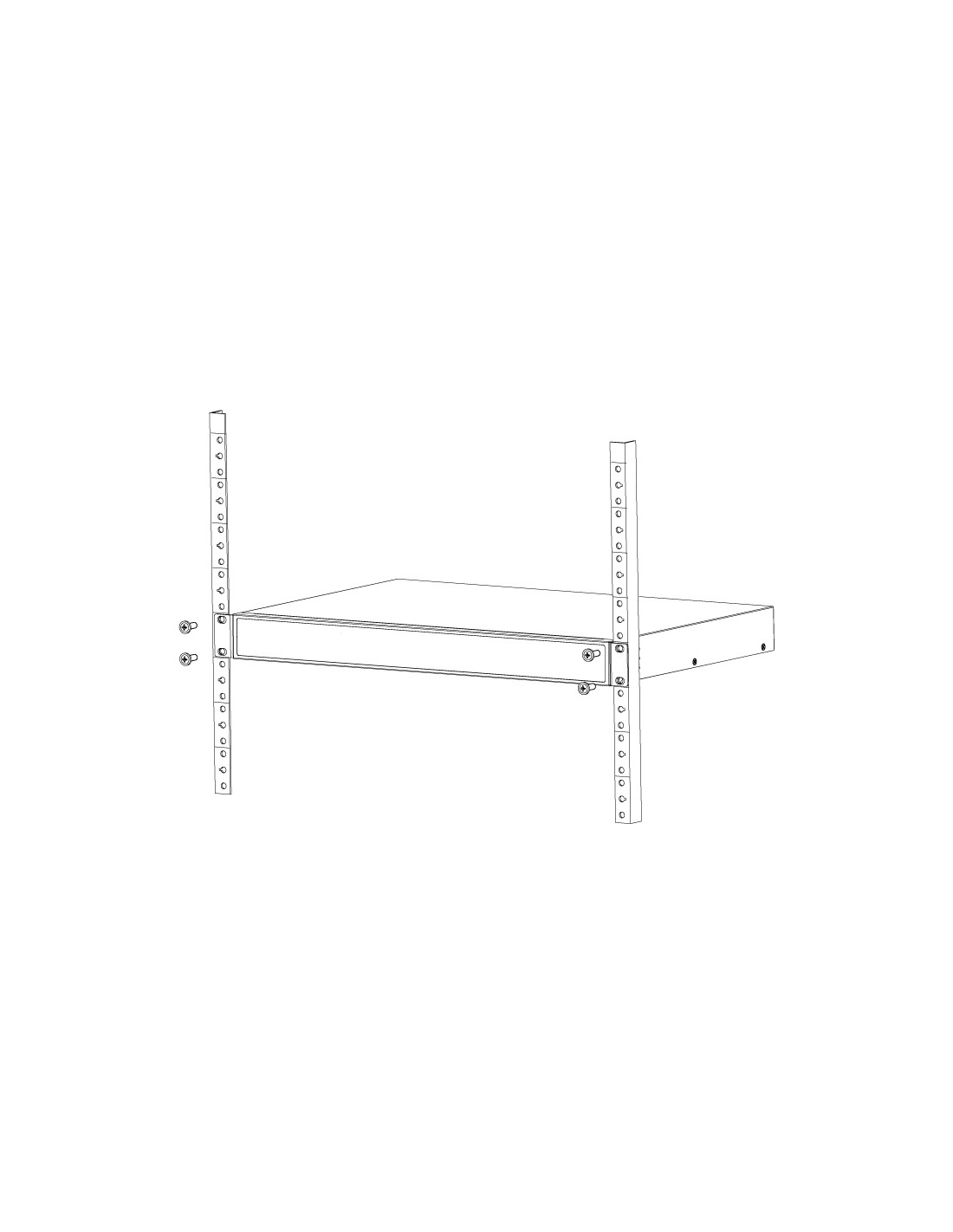

Mounting Options: Desktop mount & Rack mount tabs
DHCP: DHCP Client / DHCP Server / DHCP Snooping
Management: L2 Managed
PoE Protocol: IEEE802.3af / IEEE802.3at / Hi-PoE / IEEE802.3bt
Device Ports: Port 1-16: 16 x 10/100/1000M Base-T (PoE)
Exchange Mode: Store & forward
Extend Mode: Support up to 250m at 10Mbps
Flow Control: Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Input Power: 100 ~ 240VAC
Lightning Protection: Common Mode: 4kV / Differential Mode: 2kV
LLDP: Support
MAC Address Capacity: 8K
Network Management: Web (http and https protocol), iLinksView, CLI; SNMP V1/V2C/V3
Network Time Protocol: Support
Packet Forwarding Rate: 29.76Mbps
PoE Management: Power consumption management, Power on and power off, Power down for overload, Green PoE, Legacy support
Port Aggregation: Link Aggregation
Port Mirroring: Many-to-one port mirroring
Quality of Service: 8 output queues for each port, Traffic shaping, port tag remarking, QoS based on CoS/DPL/PCP, QoS based on DSCP
Security Features: User management, HTTPS, SSH, SNMP V1/V2/V3, ACL, 802.1x, Loop protection
Spanning Tree Protocol: STP / RSTP / MSTP
Speed: Gigabit 10/100/1000
Switch Management: Layer 2+ Management
Switch Power Load: Port 1-2: ≤90W / Ports 3-16: ≤30W (Total: ≤240W)
Switching Capacity: 40Gbps
System Maintenance: Configuration file upload/download, Supports updated packet upload , System log
Uplink Ports: Port 17-18: 2 x 10/100/1000M Base-T (uplink) / Port 19-20: 2 x 1000M Base-X (uplink) (combo)
Virtual LAN: IEEE802.1q Standard VLAN / VLAN Amount: 4K
