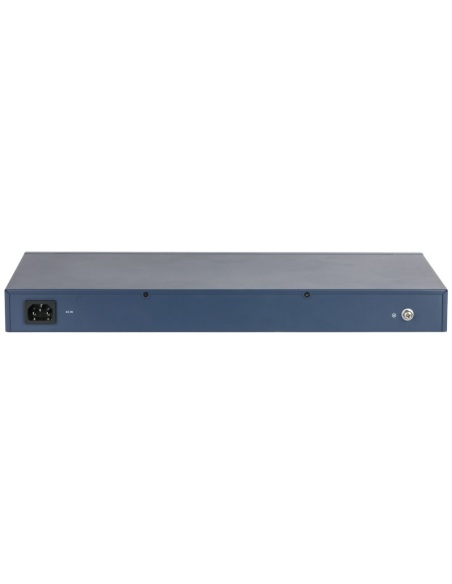

VIP Vision 24-Port Gigabit Managed Hi-PoE Switch - VSPOE-SWB24C2
$613.47 inc GST
- 24 x 10/100/1000 PoE ports
- Ports 1-2 Hi-PoE up to 90W; ports 3-24 up to 30W
- 375W total PoE budget
- 56Gbps switching capacity
- Extend mode: up to 250m

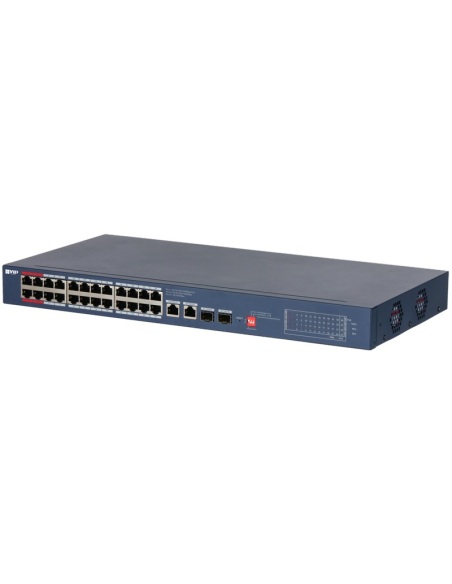

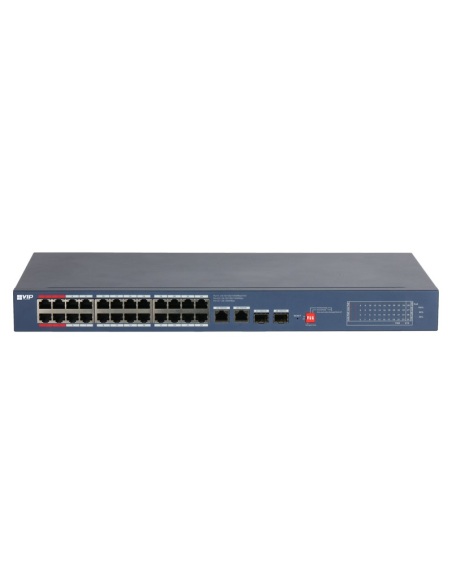

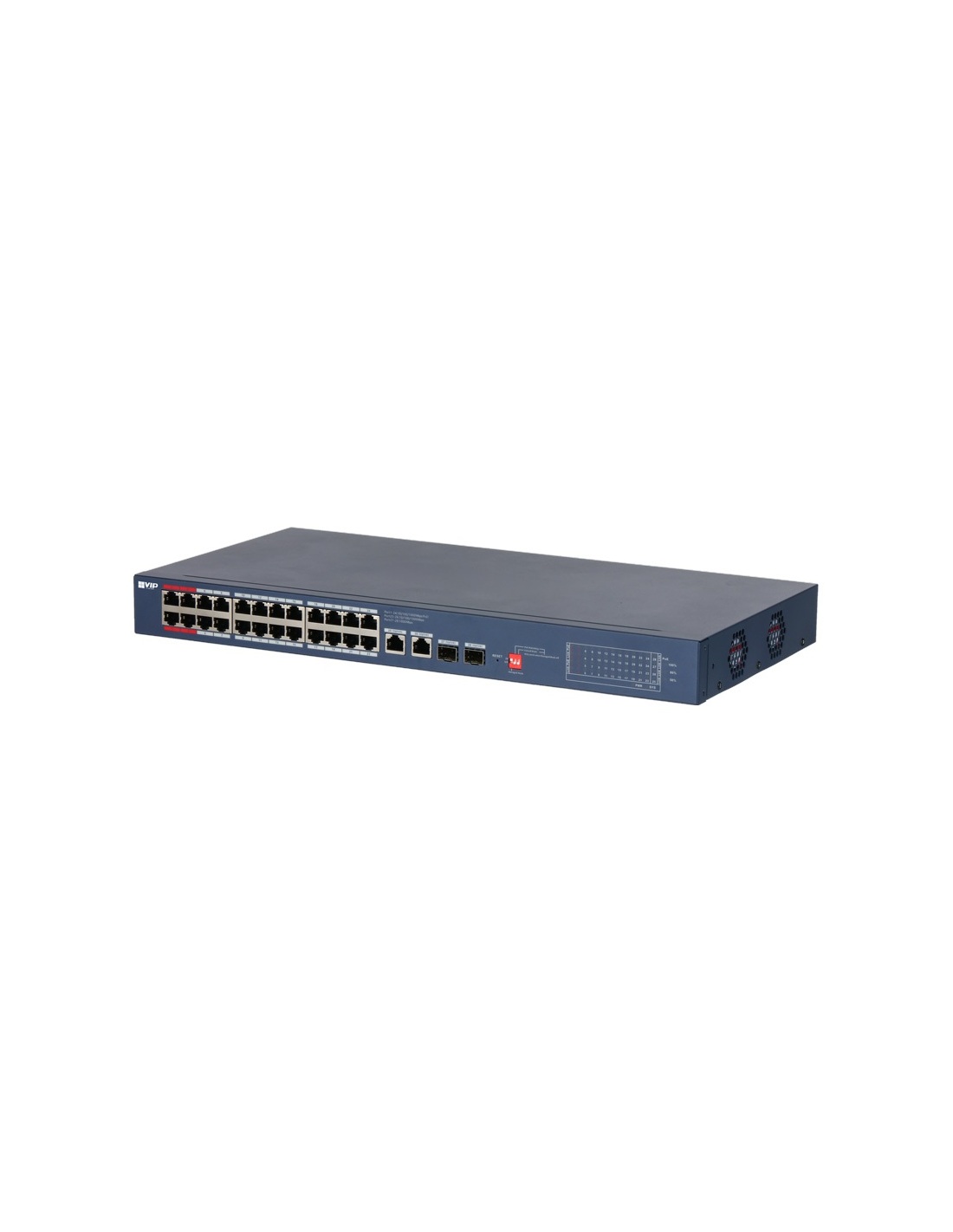

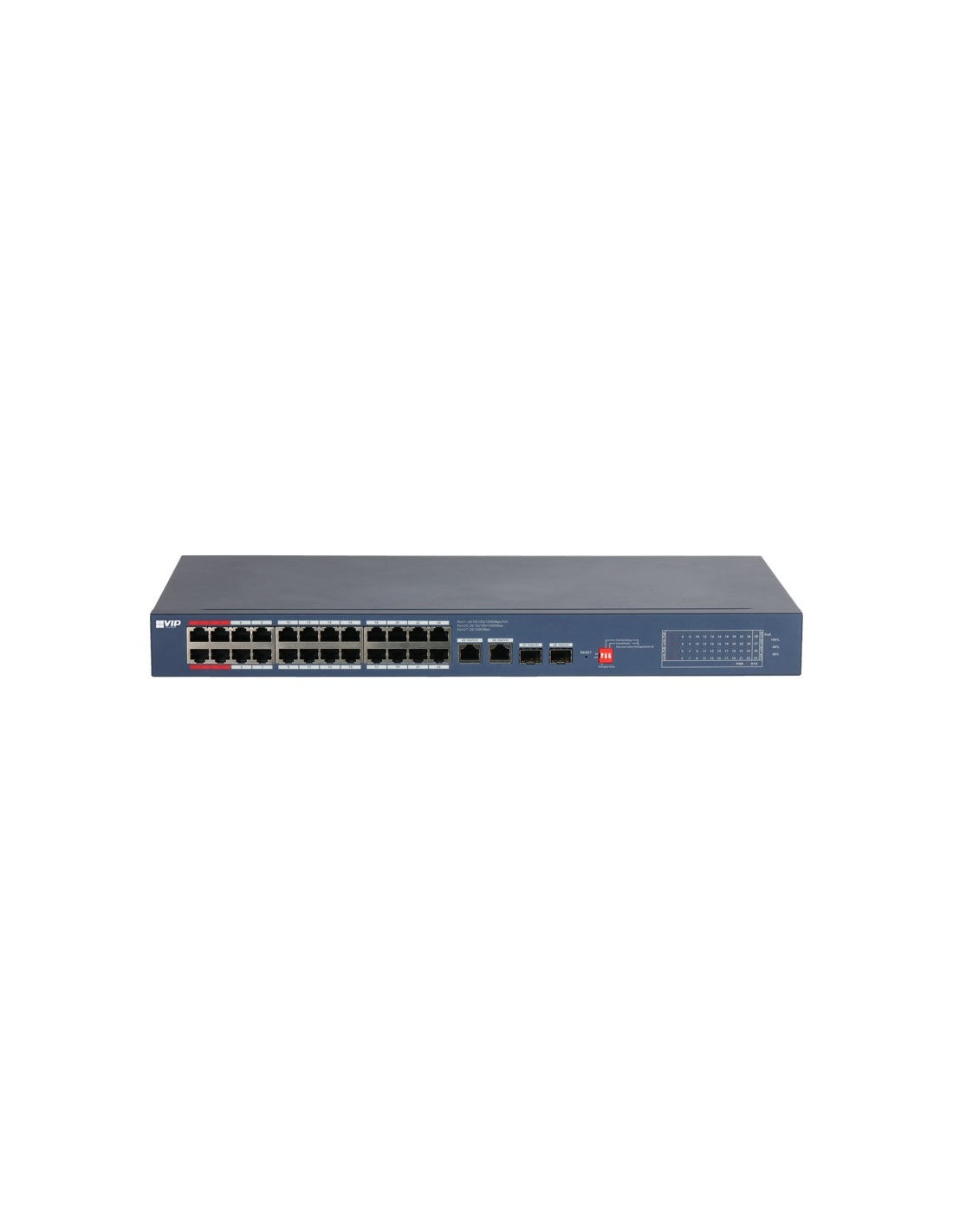

VIP Vision 24-Port Gigabit Managed Hi-PoE Switch
4 Years Warranty!
VSPOE-SWB24C2
A full gigabit 24-port managed PoE switch for larger systems. Every port runs at 1000M, Hi-PoE ports deliver up to 90W, and long-range mode runs PoE up to 250m.
Features:
• 24 x 10/100/1000 PoE ports
• Ports 1-2 Hi-PoE up to 90W; ports 3-24 up to 30W
• 375W total PoE budget
• 56Gbps switching capacity
• Extend mode: up to 250m
• L2 managed: VLAN, QoS, link aggregation, port isolation
• PoE watchdog automatically reboots frozen devices
• 1RU rackmount
Ideal for:
Large high-resolution CCTV systems, AI cameras and business networks.
Full specifications are listed in the Data Sheet tab. Need help choosing or planning an install? Our technical team at InFront Technologies is happy to help.

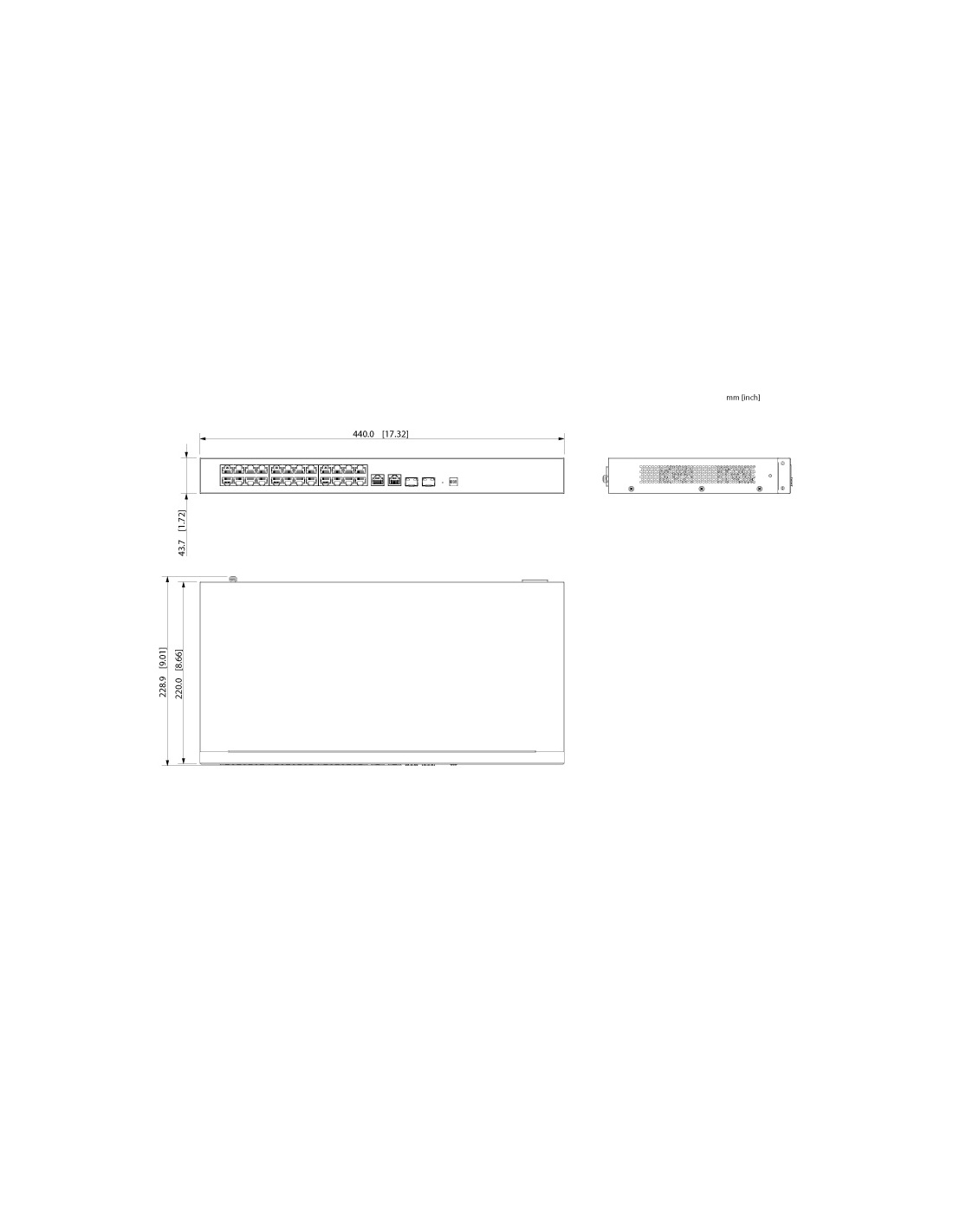

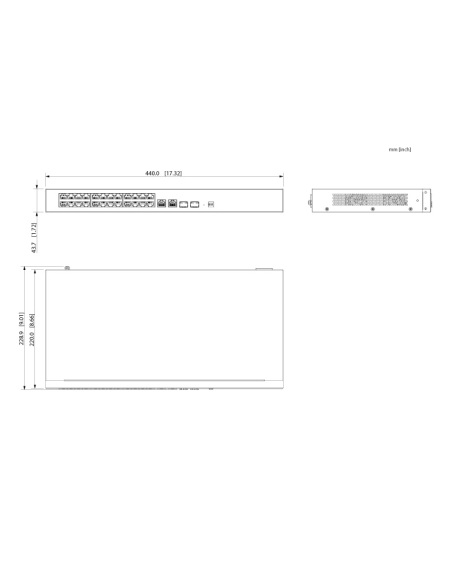

- Dimensions
- 440 x 229 x 45mm
- Operating Environment
- Rackmount Tabs / Desktop Mount
- Weight
- 2.70kg
- Ports
- 24 ports
- PoE
- Yes

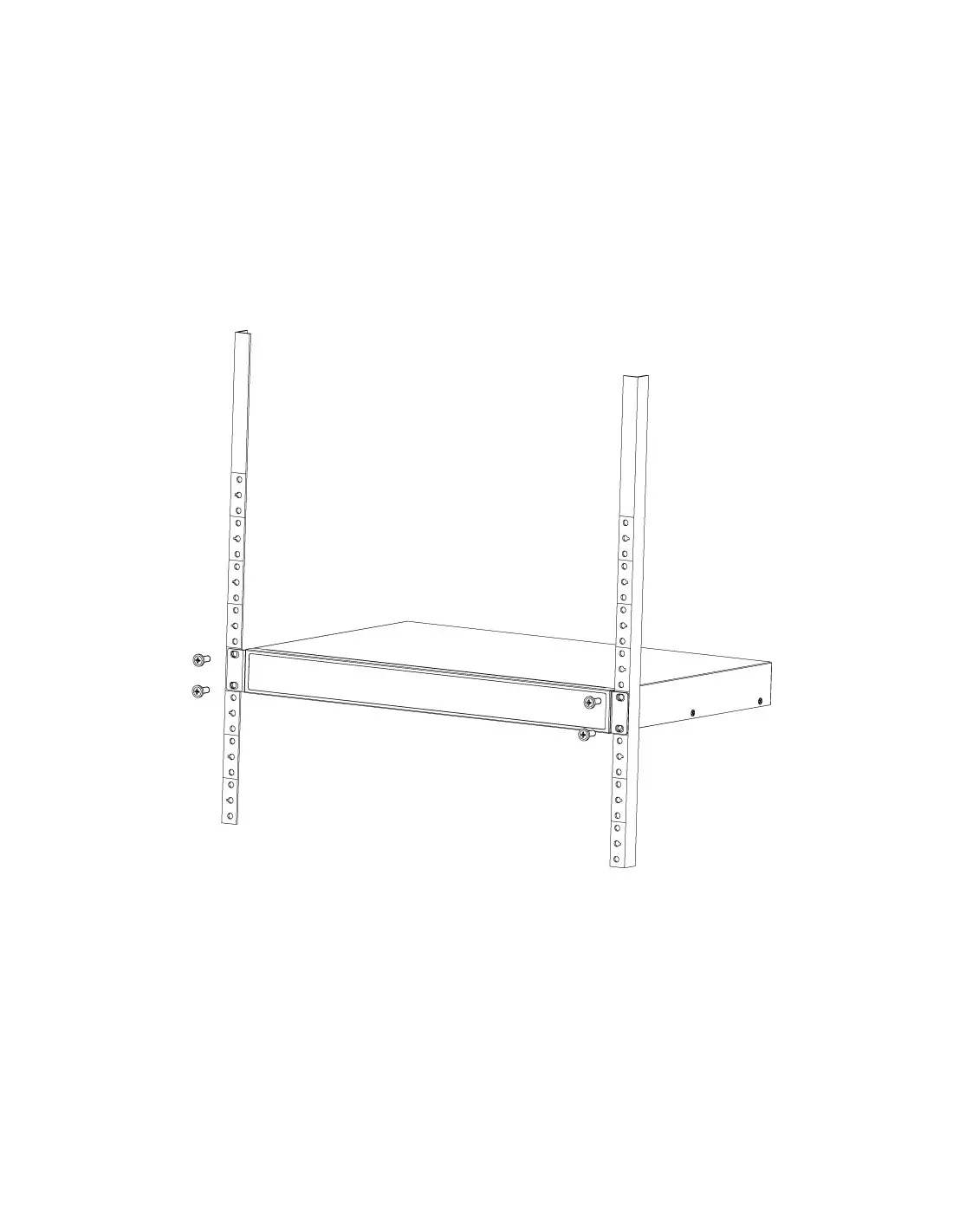

- Mounting Options
- Rackmount Tabs (1RU)
- DHCP
- Yes
- Management
- L2 Managed
- PoE Protocol
- PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE (IEEE802.3bt)
- Device Ports
- 24 x 10/100/1000 Base-T (PoE power supply ports)
- Exchange Mode
- Store & forward
- Extend Mode
- Up to 250m range at 10Mbps
- Flow Control
- IEEE 802.3x
- Input Power
- 100 ~ 240VAC
- Lightning Protection
- Common Mode: 4KV / Differential Mode: 2KV
- LLDP
- Yes
- MAC Address Capacity
- 8K
- Network Management
- Yes
- Network Time Protocol
- Yes
- Packet Forwarding Rate
- 41.664Mbps
- PoE Management
- PoE Watchdog
- Port Aggregation
- Yes
- Port Mirroring
- Local, N:1
- Quality of Service
- Yes
- Security Features
- Port Isolation
- Spanning Tree Protocol
- Yes
- Speed
- Gigabit 10/100/1000
- Switch Management
- Yes
- Switch Power Load
- Port 1-2: ?90W / Port 3-24: ?30W / Total: ?375W
- Switching Capacity
- 56Gbps
- System Maintenance
- Yes
- Uplink Ports
- 2 x 10/100/1000 RJ45 Base-T (combo port) / 2 x 1000 SFP Base-X (combo port)
- Virtual LAN
- 32, IEEE 802.1Q
