VIP Vision 24-Port Managed Hi-PoE Switch (Fast VSPOE-SWA24C2

VIP Vision 24-Port Managed Hi-PoE Switch (Fast Ethernet) - VSPOE-SWA24C2

Name: VIP Vision 24-Port Managed Hi-PoE Switch (Fast Ethernet) - VSPOE-SWA24C2
Brand: VIP Vision
SKU: VSPOE-SWA24C2
Price: 495 AUD
Availability: InStock

Reference: VSPOE-SWA24C2

In Stock - Ready to Ship

$ 495.00

inc-GST

or 4 interest-free payments of $123.75 with

24 x 10/100 PoE ports
Ports 1-2 Hi-PoE up to 90W; ports 3-24 up to 30W
375W total PoE budget
Gigabit uplinks
Extend mode: up to 250m

Description
Product Details

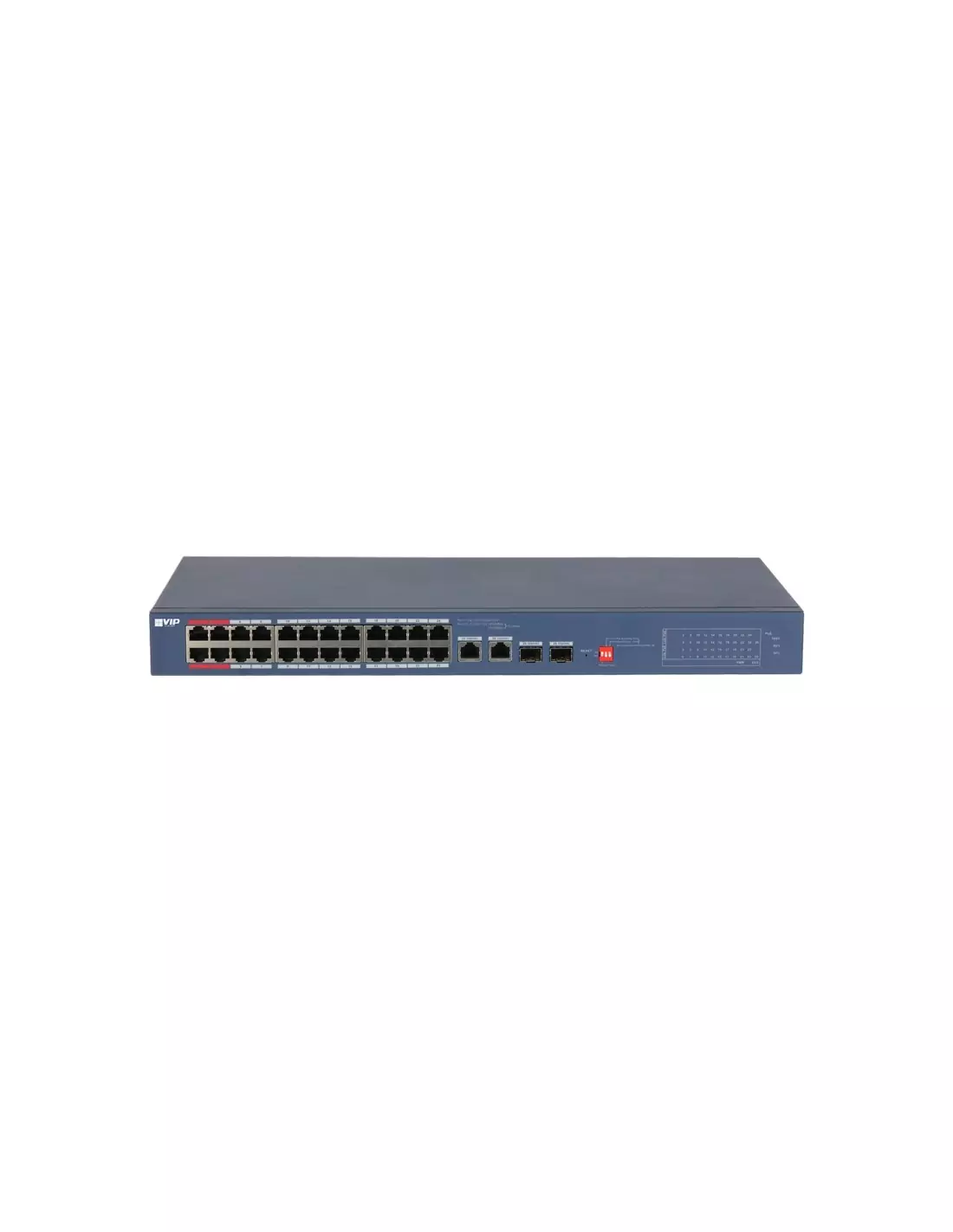

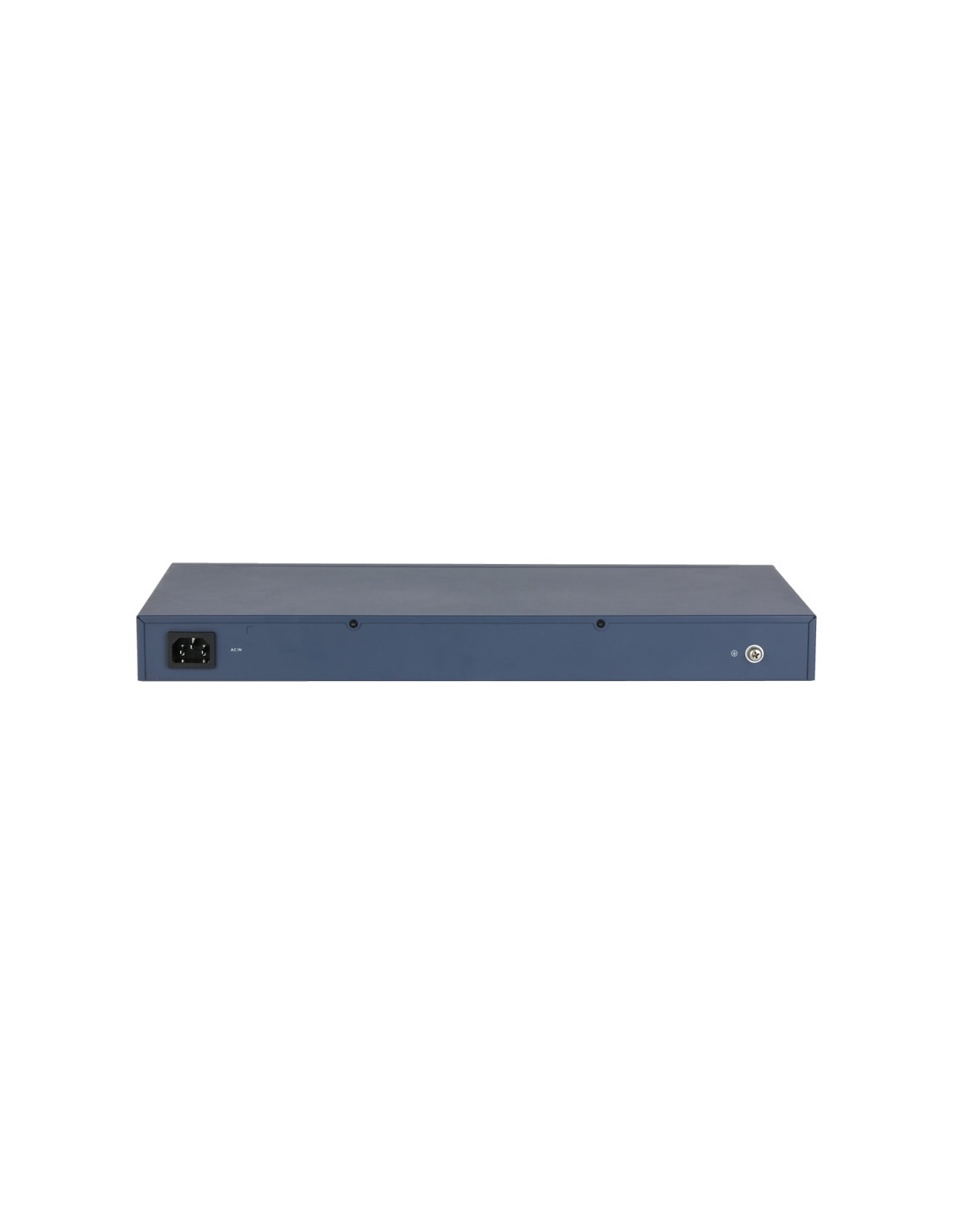

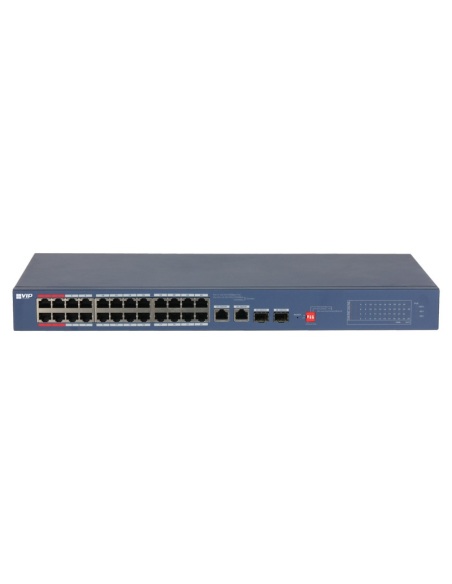

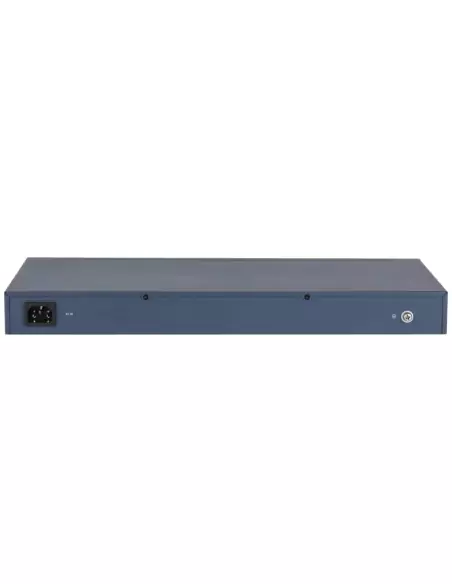

VIP Vision 24-Port Managed Hi-PoE Switch (Fast Ethernet)

4 Years Warranty!

VSPOE-SWA24C2

A 24-port managed PoE switch built for security systems, with Hi-PoE ports for 90W devices and long-range mode up to 250m.

Features:

• 24 x 10/100 PoE ports

• Ports 1-2 Hi-PoE up to 90W; ports 3-24 up to 30W

• 375W total PoE budget

• Gigabit uplinks

• Extend mode: up to 250m

• L2 managed: VLAN, QoS, link aggregation, port isolation

• PoE watchdog automatically reboots frozen devices

• 1RU rackmount

Ideal for:

Large CCTV systems, sites with PTZ cameras and network racks.

Full specifications are listed in the Data Sheet tab. Need help choosing or planning an install? Our technical team at InFront Technologies is happy to help.

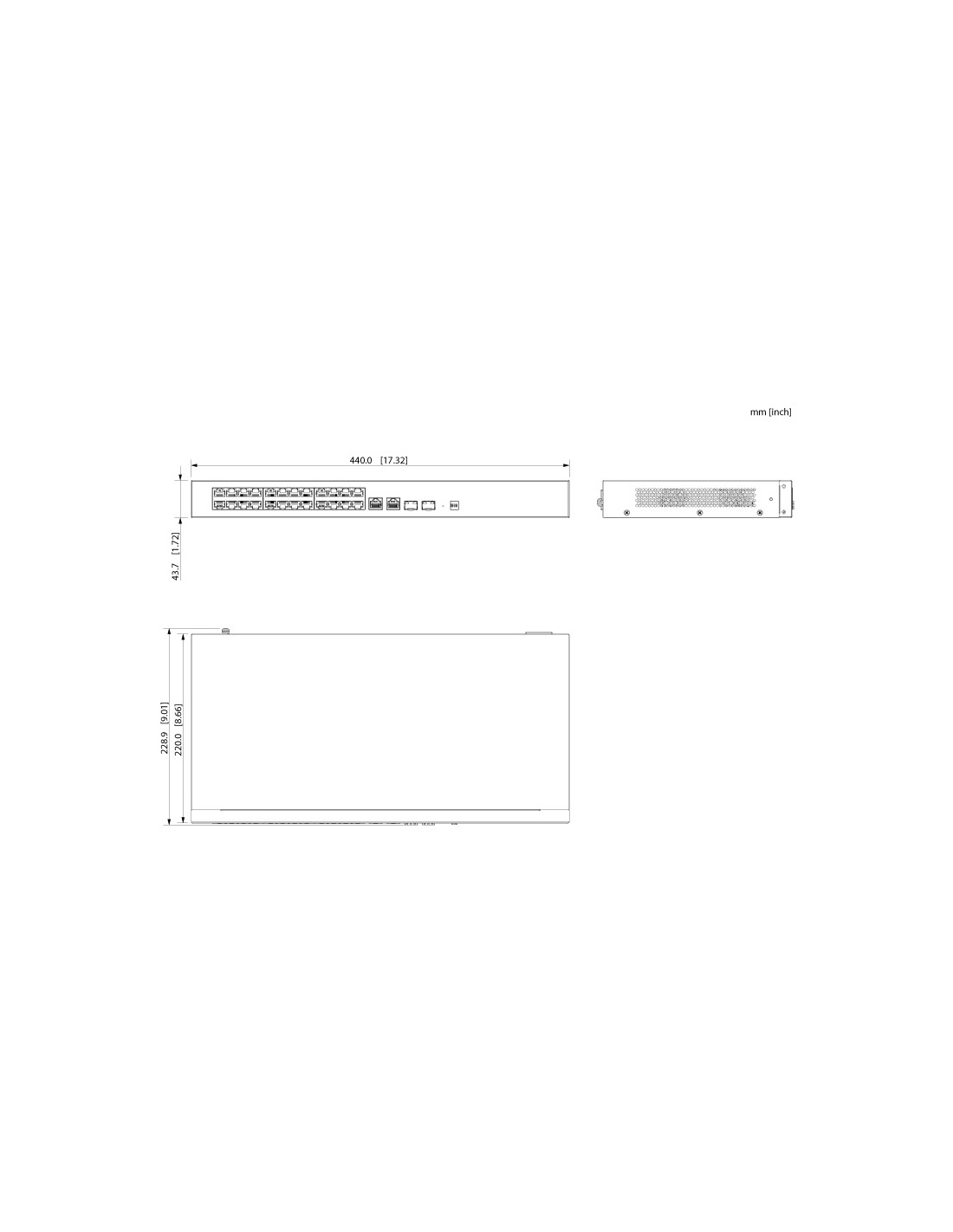

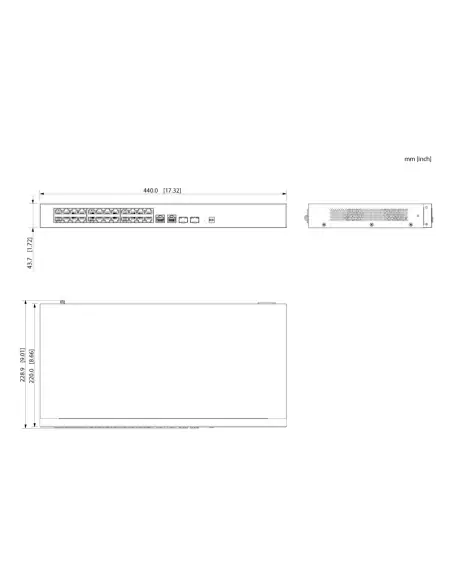

Dimensions: 440 x 229 x 45mm
Operating Environment: Rackmount Tabs / Desktop mount
Weight: 2.70kg
Ports: 24 ports
PoE: Yes
Mounting Options: Rackmount Tabs (1RU)
DHCP: Yes
Management: L2 Managed
PoE Protocol: PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE (IEEE802.3bt)
Device Ports: 24 x 10/100 Base-T (PoE power supply ports)
Exchange Mode: Store & forward
Extend Mode: Up to 250m range at 10Mbps
Flow Control: IEEE 802.3x
Input Power: 100 ~ 240VAC
Lightning Protection: Common Mode: 4kV / Differential Mode: 2kV
LLDP: Yes
MAC Address Capacity: 8K
Network Management: Yes
Network Time Protocol: Yes
Packet Forwarding Rate: 6.5Mbps
PoE Management: PoE Watchdog
Port Aggregation: Yes
Port Mirroring: Local, N:1
Quality of Service: Yes
Security Features: Port Isolation
Spanning Tree Protocol: Yes
Speed: Fast 10/100
Switch Management: Yes
Switch Power Load: Port 1-2: ≤90W / Port 3-24: ≤30W / Total: ≤375W
Switching Capacity: 8.8Gbps
System Maintenance: Yes
Uplink Ports: 2 x 10/100/1000 RJ45 Base-T (combo port) / 2 x 1000 SFP Base-X (combo port)
Virtual LAN: 32, IEEE 802.1Q
