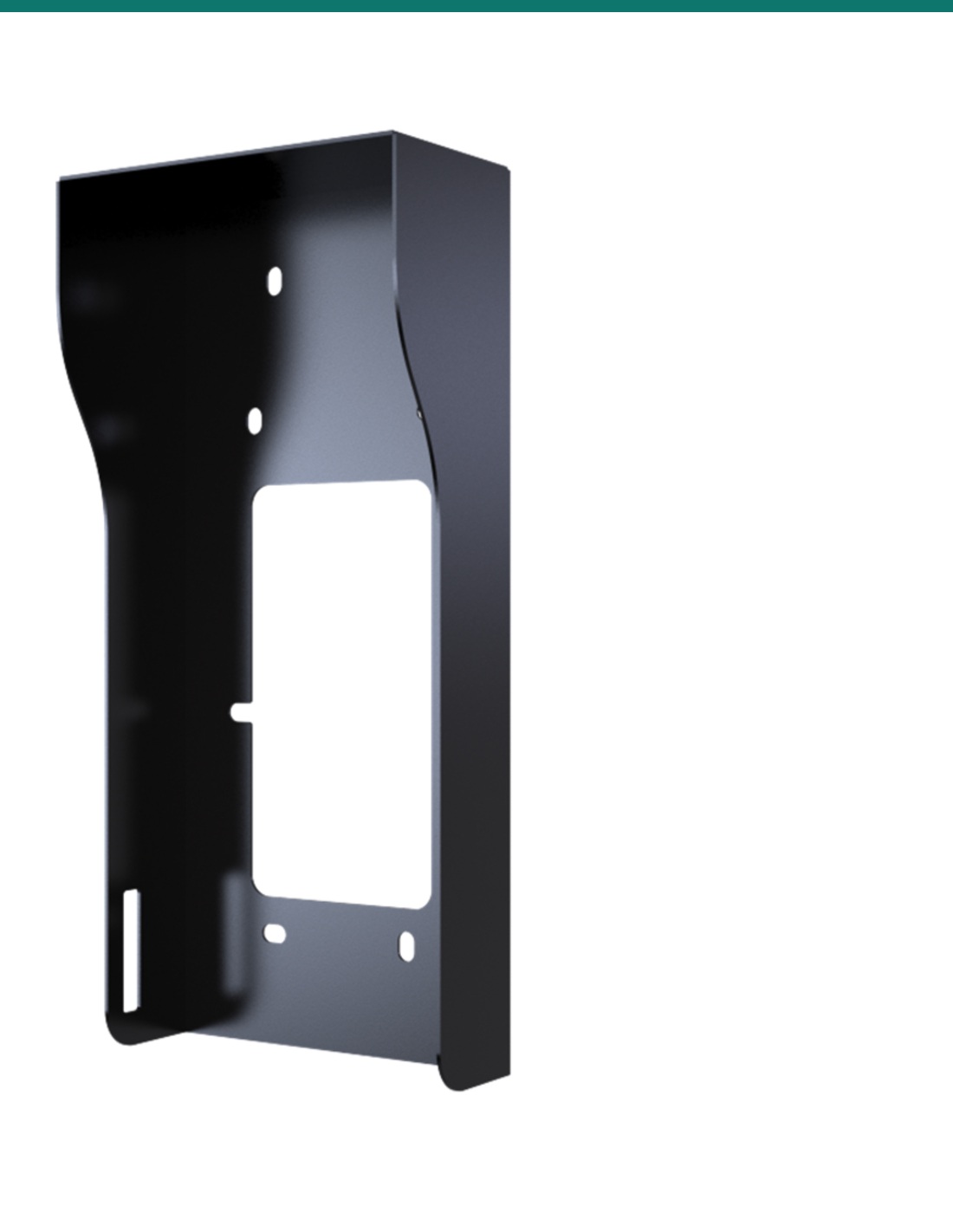

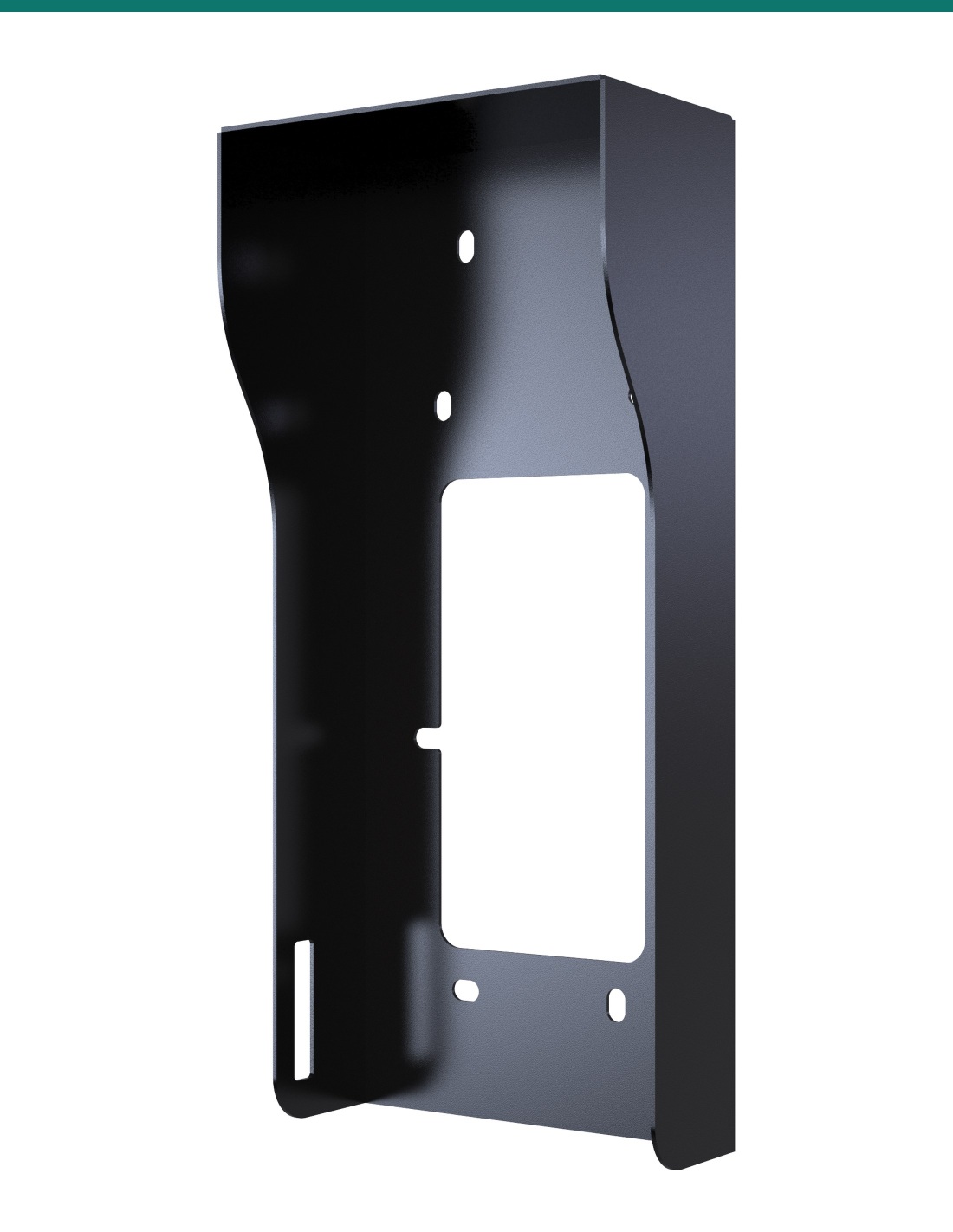

Akuvox E16 / A05 black on-wall rain hood — right three-quarter view
Akuvox E16 / A05 black on-wall rain hood

Akuvox E16 / A05 Black On-Wall Rain Hood — AK-E16-ONWALLH

AK-E16-ONWALLH
In Stock - Ready to Ship
$ 57.10
inc-GST

or 4 interest-free payments of $14.28 with

Akuvox AK-E16-ONWALLH is the on-wall rain hood for the E16C facial recognition door phone and the A05C access terminal. The black hood shades the screen and cameras and keeps rain off the glass on surface-mounted installs.

  • ✓On-wall rain hood for the Akuvox E16C and A05C
  • ✓208 × 94 × 50 mm; fixes to an 86 × 86 mm wall box or straight to the wall
  • ✓Shades the 5″ screen and cameras from rain and overhead sun
  • ✓Screws and wall anchors included · black


Akuvox · E16 / A05 · On-wall rain hood

Shade the screen. Shed the rain.
On-wall hood for E16C and A05C.

The AK-E16-ONWALLH is the rain cover Akuvox makes for the E16C, and it suits the A05C in the same body. On an exposed entry it keeps water off the glass and stops overhead sun washing out the 5″ screen and the face-recognition cameras.

This SKU is the rain hood only.

You receive the black E16 / A05 on-wall rain hood with its screws and wall anchors. The E16C or A05C is sold separately.

In the box
  • Akuvox E16 / A05 on-wall rain hood (black)
  • M4×30 crosshead screws × 2
  • M4×20 crosshead screws × 4
  • Plastic wall anchors × 4
What you also need (sold separately)
  • Akuvox E16C door phone or A05C access terminal
  • PoE 802.3af switch or 12 V DC supply

Face recognition works better in the shade.

Rain on the glass and direct overhead light are the two things that make an outdoor face-recognition door phone struggle. A hood deals with both.

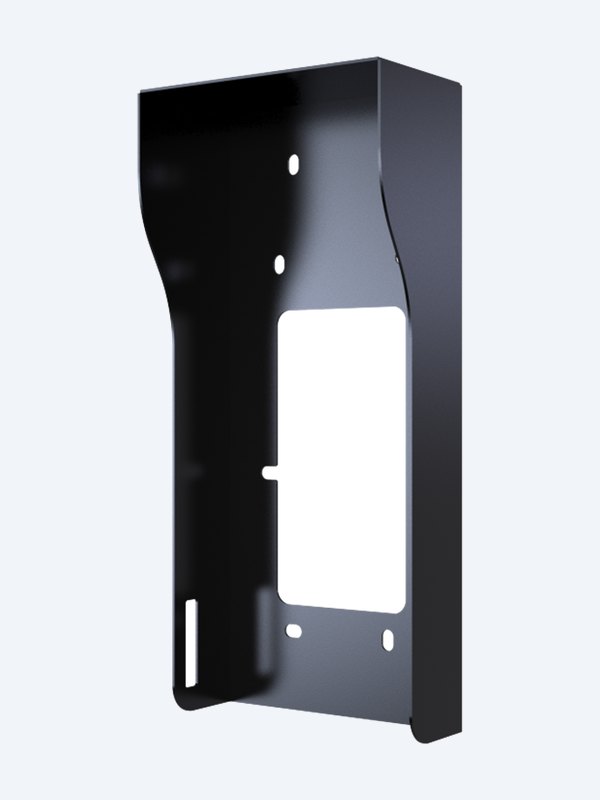

Akuvox E16 / A05 black on-wall rain hood

Protect

Top and sides covered.

The hood wraps the top and sides of the device and leaves the front open for the screen, cameras and card reader.

It measures 208 × 94 × 50 mm, is black to match the E16C and A05C fronts, and is made for surface-mounted installs.

Fit

For E16C and A05C on the wall.

The E16C and A05C share a 192 × 88 mm body, and both surface-mount on the wall bracket supplied with them. The hood suits either.

It is not for flush installs — recessed E16C and A05C units use the E16 / A05 in-wall kit.

Pair it with

Fits the Akuvox E16C and A05C

Door phone

Akuvox E16C

5″ facial recognition SIP door phone with card reader.

Access

Akuvox A05C

Facial recognition access terminal in the same body.

Watch

See it in action

Akuvox E16 touchscreen door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which devices does it fit?

The Akuvox E16C door phone and A05C access terminal when they are surface-mounted.

Can I use it on a flush-mounted E16C?

No. It is the on-wall hood. Flush installs use the E16 / A05 in-wall kit.

Do I need a wall box?

No. It can screw to a standard 86 × 86 mm junction box with the two M4×30 screws, or straight to the wall with four M4×20 screws and anchors.

How big is it?

208 mm high, 94 mm wide and 50 mm deep at the top, in black.

What fixings are included?

Two M4×30 screws, four M4×20 screws and four plastic wall anchors.

Is the door phone included?

No. This SKU is the rain hood only.

Protect exposed E16C installs.

Fit the hood wherever an E16C or A05C is surface-mounted without shelter. For a flush finish, use the E16 / A05 in-wall kit instead.

Dimensions
208 × 94 × 50 mm (H × W × D)
Colour
Black
Brand
Akuvox
Mounting
On-wall / surface
Warranty
Australian warranty
Product Type
Rain hood (on-wall)
Model
E16 / A05 on-wall rain hood
In The Box
Hood, 2 × M4×30 and 4 × M4×20 screws, 4 anchors
Compatible with
Akuvox E16C door phone and A05C access terminal (surface-mounted)
Device Size
192 × 88 × 23.8 mm (E16C)
Wall Box
86 × 86 mm junction box or direct to wall
