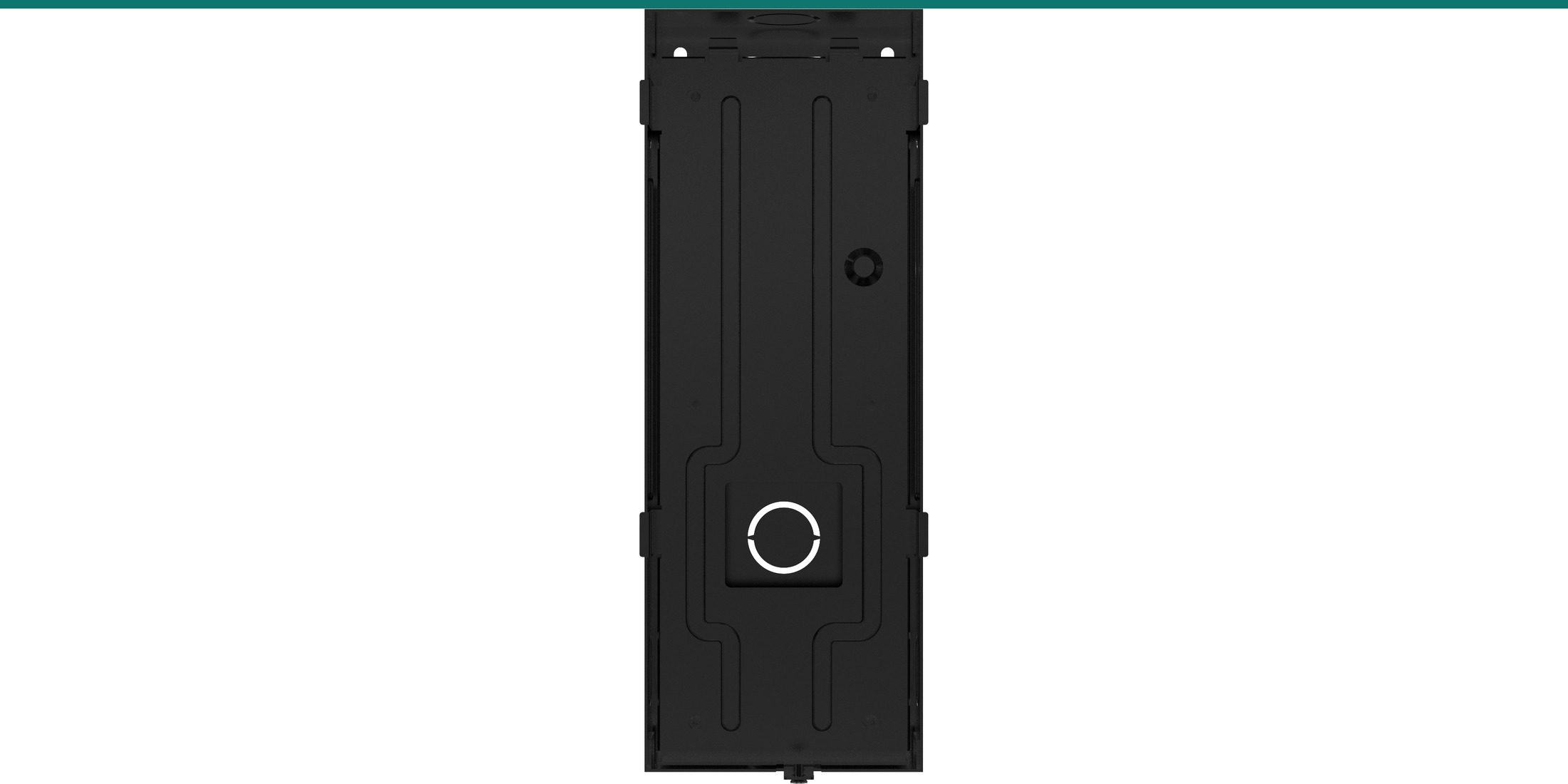

Akuvox S535 In-Wall Mounting Box and Bracket for S535 with Expansion Module — AK-S535INWALLKEX
$57.10 inc GST
Akuvox AK-S535INWALLKEX recesses an S535 that has an expansion module fitted underneath. The flush box is 52 mm longer than the standard one and the bracket carries both the station and its fingerprint, induction loop or LTE module, with the bottom fixing screw going into the module. Cut-out 255.5 × 94 × 34 mm.
- ✓Flush-mounts an Akuvox S535 with one expansion module (260 × 100 mm assembly)
- ✓Wall cut-out 255.5 × 94 × 34 mm — 52 mm taller than the standard box
- ✓Flush box 254.5 × 93 × 33 mm plus 249.3 mm flush bracket
- ✓Suits the S535 fingerprint, induction loop and LTE modules
Akuvox · S535 · In-wall box for modules
Recess the S535 and its module.
One opening, one bracket.

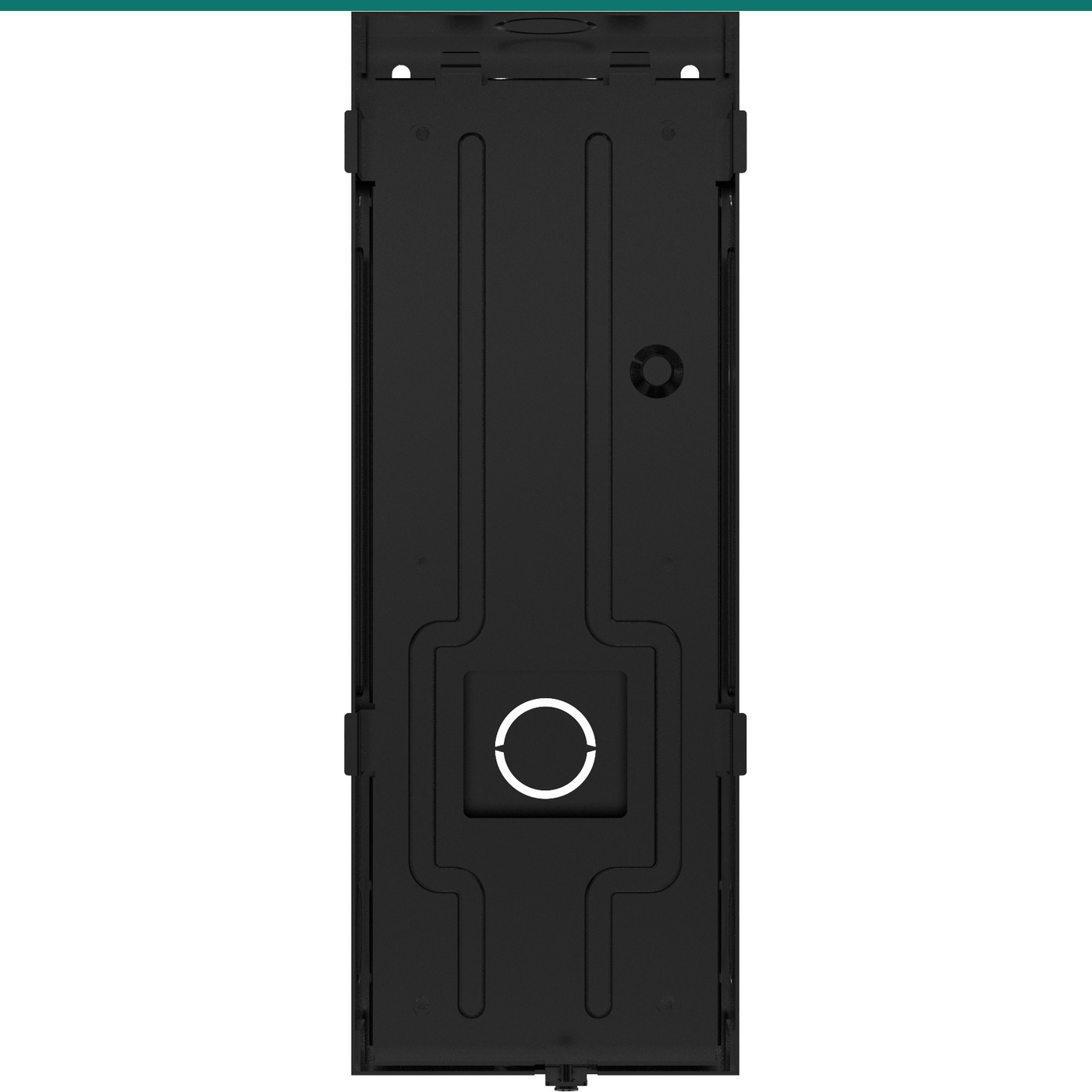

The AK-S535INWALLKEX is Akuvox’s flush-mounting set for an S535 with an optional module plugged into its expansion port. Box and bracket are both extended so the station and module recess together.
This SKU is the in-wall box and bracket for S535 with modules.
You receive the box, bracket and fixings below, as listed under flush-mounting accessories with optional module in the Akuvox S535 quick guide. The S535 and the module are sold separately.

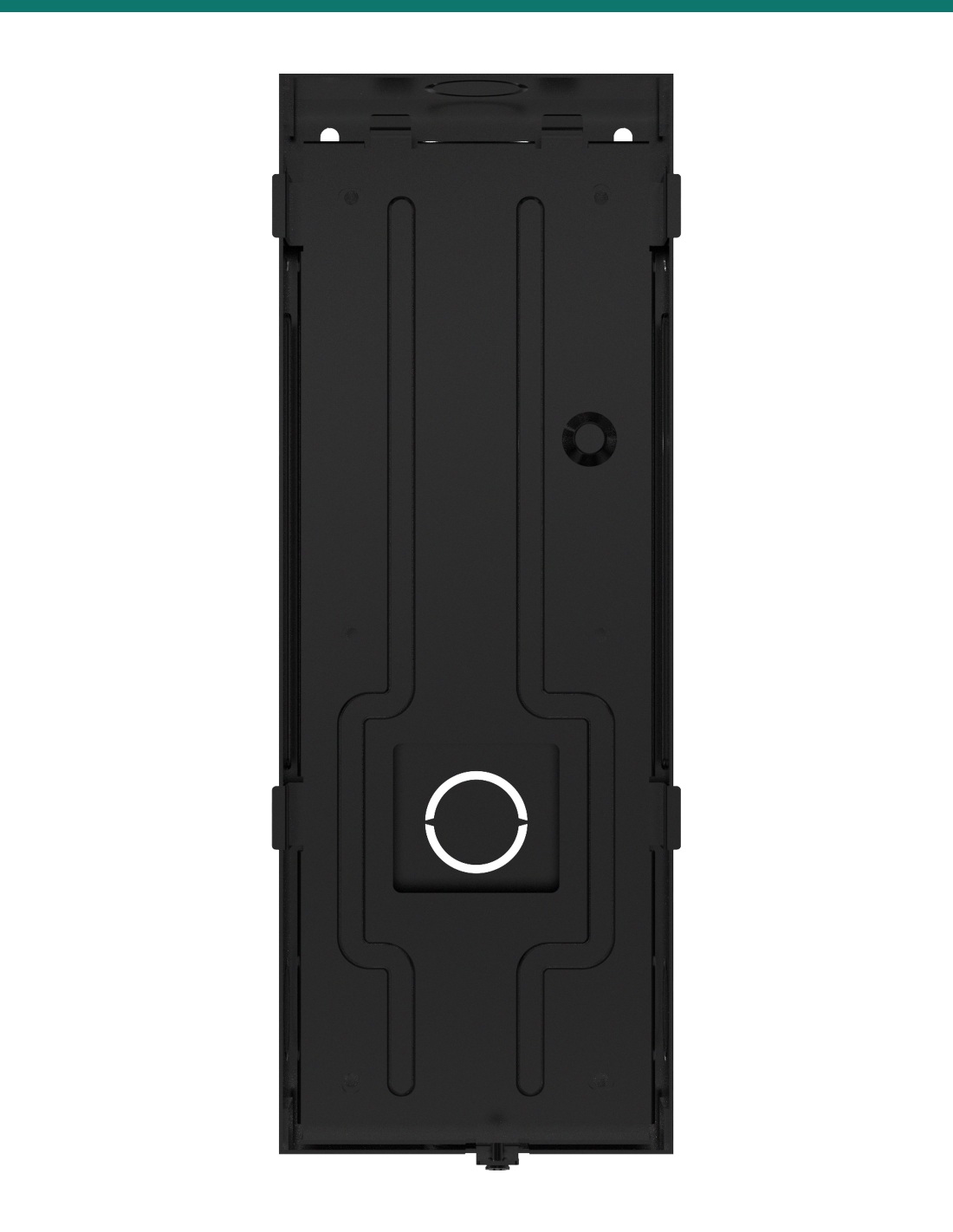

In the box
- Flush-mounting box × 1
- Flush-mounting bracket × 1
- M4×8 crosshead screws × 6
- ST4×20 crosshead screws × 4
- Plastic wall anchors × 4
What you also need(sold separately)
- Akuvox S535 door phone
- S535 fingerprint, induction loop or LTE module
- PoE 802.3at, or a 12 V DC supply of 2–4 A depending on the module
A recessed station with fingerprint, loop or LTE.
The module sits directly below the S535 in the same opening, so the finished entry reads as one 260 mm panel rather than two parts.
The difference
52 mm more opening.

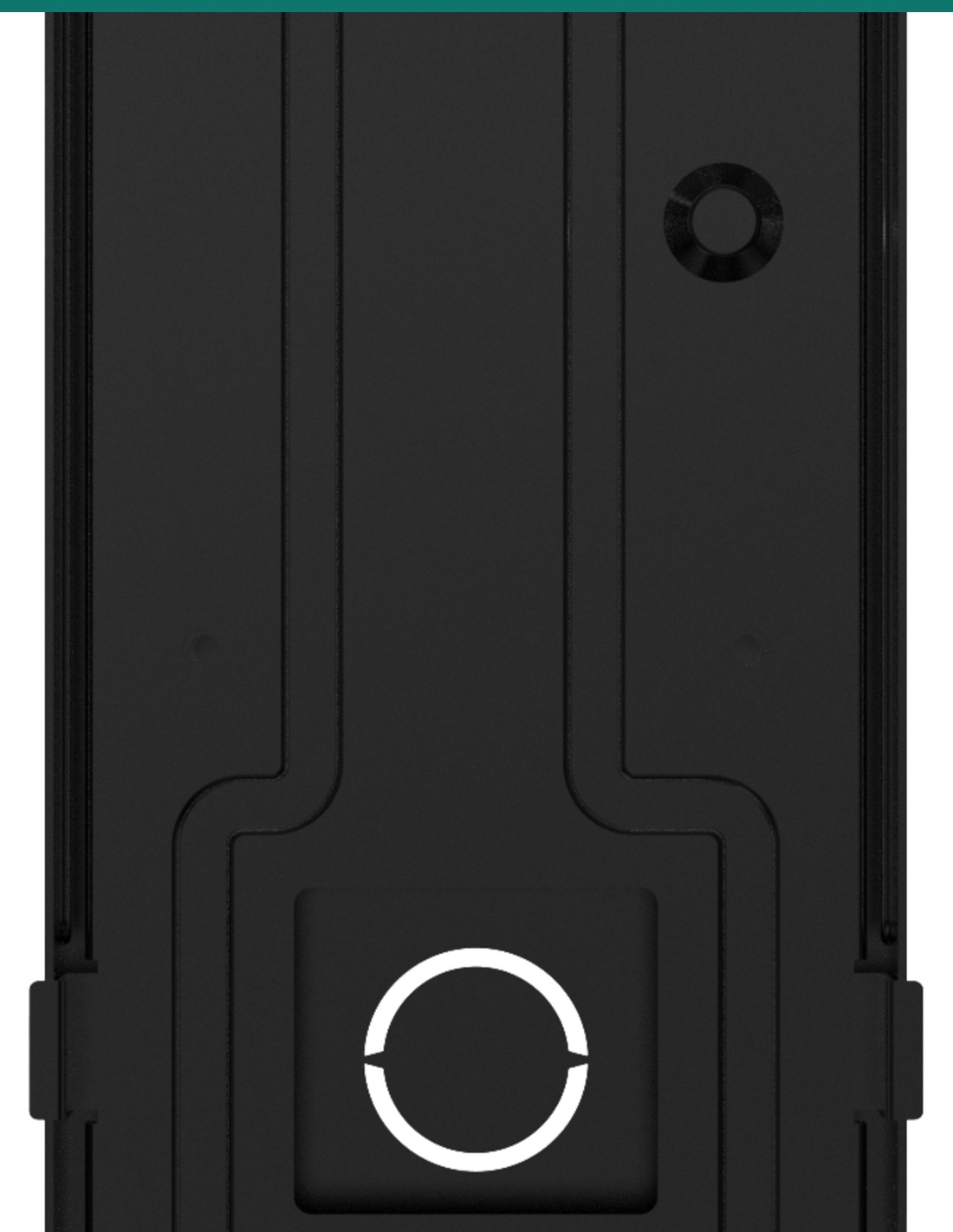

The module box is 254.5 mm long (standard 202.5 mm) and its bracket 249.3 mm (standard 199.3 mm). Width and depth are unchanged at 93 × 33 mm.
The bottom fixing point moves down to meet the module, so this box is meant for a station with a module, not on its own.
Modules
Fingerprint, loop or LTE.

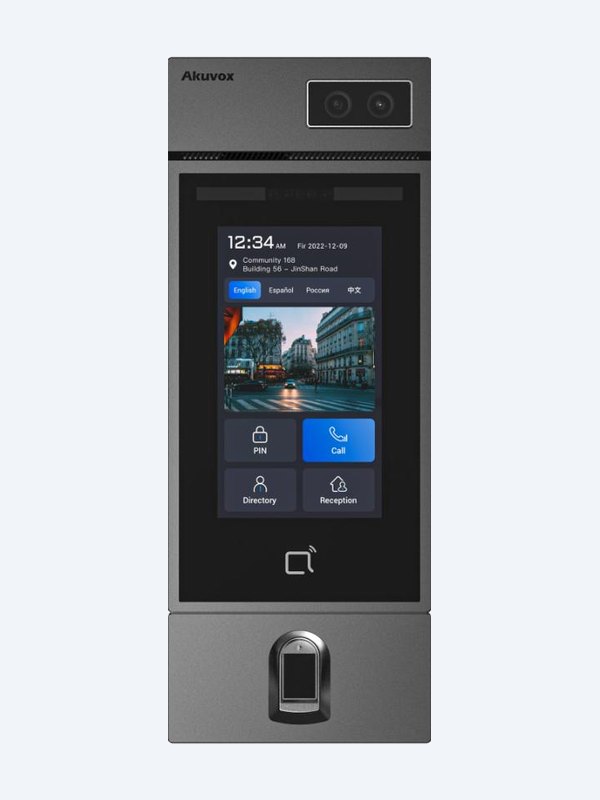

The S535 has one expansion port at the bottom left for a fingerprint module, an induction loop module for hearing-aid users, or an LTE module.
With a module fitted the S535 measures 260 × 100 mm. Akuvox notes modules must not be hot-plugged — power the station off first.
At a glance
Key specs — AK-S535INWALLKEX
Show all specifications
- Type
- In-wall (flush) box and bracket, module length
- Compatible with
- Akuvox S535 + fingerprint, induction loop or LTE module
- Wall cut-out
- 255.5 × 94 × 34 mm (H × W × D)
- Box size
- 254.5 × 93 × 33 mm (H × W × D)
- Bracket size
- 249.3 × 96.3 mm (H × W)
- Assembly size (S535 + module)
- 260 × 100 × 27 mm
- Contents
- Flush box, flush bracket, 6 × M4×8, 4 × ST4×20 + anchors
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-S535INWALLKEX
Dimensions
- Wall cut-out (H × W × D)
- 255.5 × 94 × 34 mm
- Flush box (H × W × D)
- 254.5 × 93 × 33 mm
- Flush bracket (H × W)
- 249.3 × 96.3 mm
- S535 with module (H × W × D)
- 260 × 100 × 27 mm
- Placement
- Camera centre 1,500 mm above ground; module bottom 1,257.8 mm
Kit and fitting
- Compatible with
- Akuvox S535 with fingerprint, induction loop or LTE module

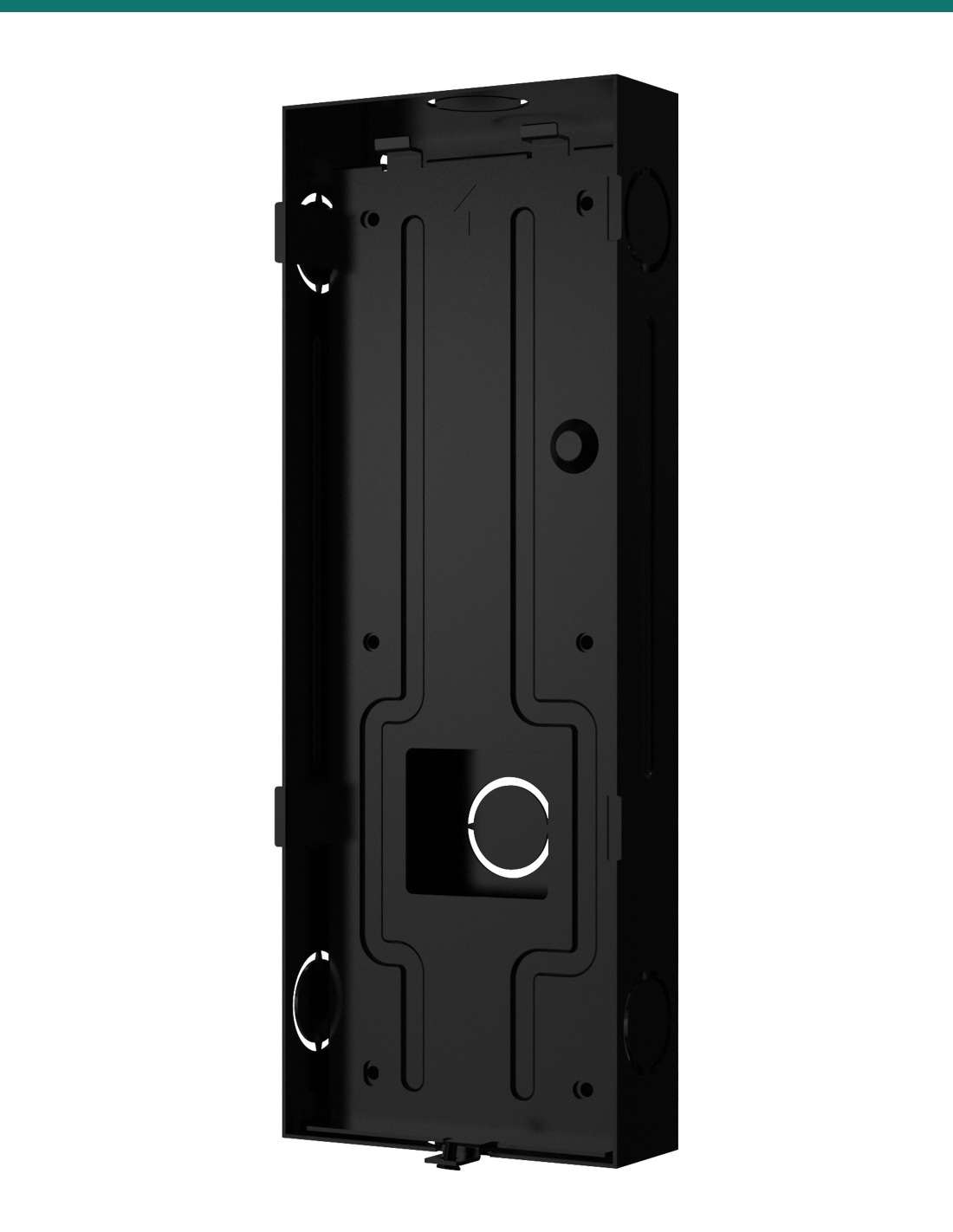

- Flush box
- 1, with knock-out cable entries
- Flush bracket
- 1, four tabs sit flush with the wall
- Bracket screws
- 6 × M4×8 crosshead
- Box screws
- 4 × ST4×20 crosshead with 4 plastic wall anchors
- Drilling
- 6 mm drill, 25 mm deep
- Final fixing
- M3×6 Torx screw through the bottom of the module
Pair it with
Fits the Akuvox S535 with a module
Door phone
Akuvox S535
5″ facial recognition SIP door phone with one expansion port.
Module
S535 fingerprint, loop or LTE module
Plugs into the S535 expansion port and recesses below the station.
Watch
See it in action
Downloads
Datasheets and guides
PDFS535 quick guideOfficial Akuvox S535 quick guide (PDF) · 1.4 MBPDFS535 Dimension DrawingsAkuvox S535 station, box, bracket and rain cover drawings in mm, V1.1 (November 2025) · 2 MB
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
What is the difference from the standard S535 in-wall box?
Length. The module box needs a 255.5 mm-tall opening and its bracket is 249.3 mm, to carry the S535 plus a module. The standard box needs 203.5 mm. Width, depth and fixings are the same.
How big a hole do I need?
255.5 mm high, 94 mm wide and 34 mm deep.
Which modules does it suit?
Any one S535 module: fingerprint (AK-S535-F), induction loop (AK-S535-IL) or LTE (AK-S535-LTE), and the matching S535 kits.
Can I use it for an S535 without a module?
It is not intended for that — the bottom fixing screw goes into the module. Use the standard in-wall box instead.
How high should the box go?
Akuvox’s placement drawing keeps the camera centre at 1,500 mm, with the bottom of the module about 1,258 mm above the ground.
Are the S535 or the module included?
No. This SKU is the box, bracket and fixings only.
Choose the box to match the build.
Use this box only when a module is fitted. An S535 on its own uses the standard in-wall box (AK-S535INWALLK) and a 203.5 mm opening.
Installation & safety notice
Fitting. Cut a 255.5 × 94 × 34 mm (H × W × D) opening, fix the box with four ST4×20 screws and anchors and the bracket with six M4×8 screws, tabs flush with the wall. Power the S535 off, fit the module to the expansion port with its shoulder screws, hang the station and fasten the Torx screw at the bottom of the module — see the Akuvox S535 quick guide.
- Brand
- Akuvox
- Warranty
- Australian warranty
- Product Type
- In-wall (flush) mounting box and bracket, module length
- Model
- S535 in-wall mounting box for modules
- Compatible with
- Akuvox S535 with fingerprint, induction loop or LTE module
- Wall Cut-out
- 255.5 × 94 × 34 mm (H × W × D)
- Contents
- Flush box, flush bracket, 6 × M4×8, 4 × ST4×20, 4 × anchors
- Box Size
- 254.5 × 93 × 33 mm (H × W × D)
- Bracket Size
- 249.3 × 96.3 mm (H × W)
- Placement
- Camera centre 1,500 mm above ground
- New
In Stock - Ready to Ship
- New
In Stock - Ready to Ship
