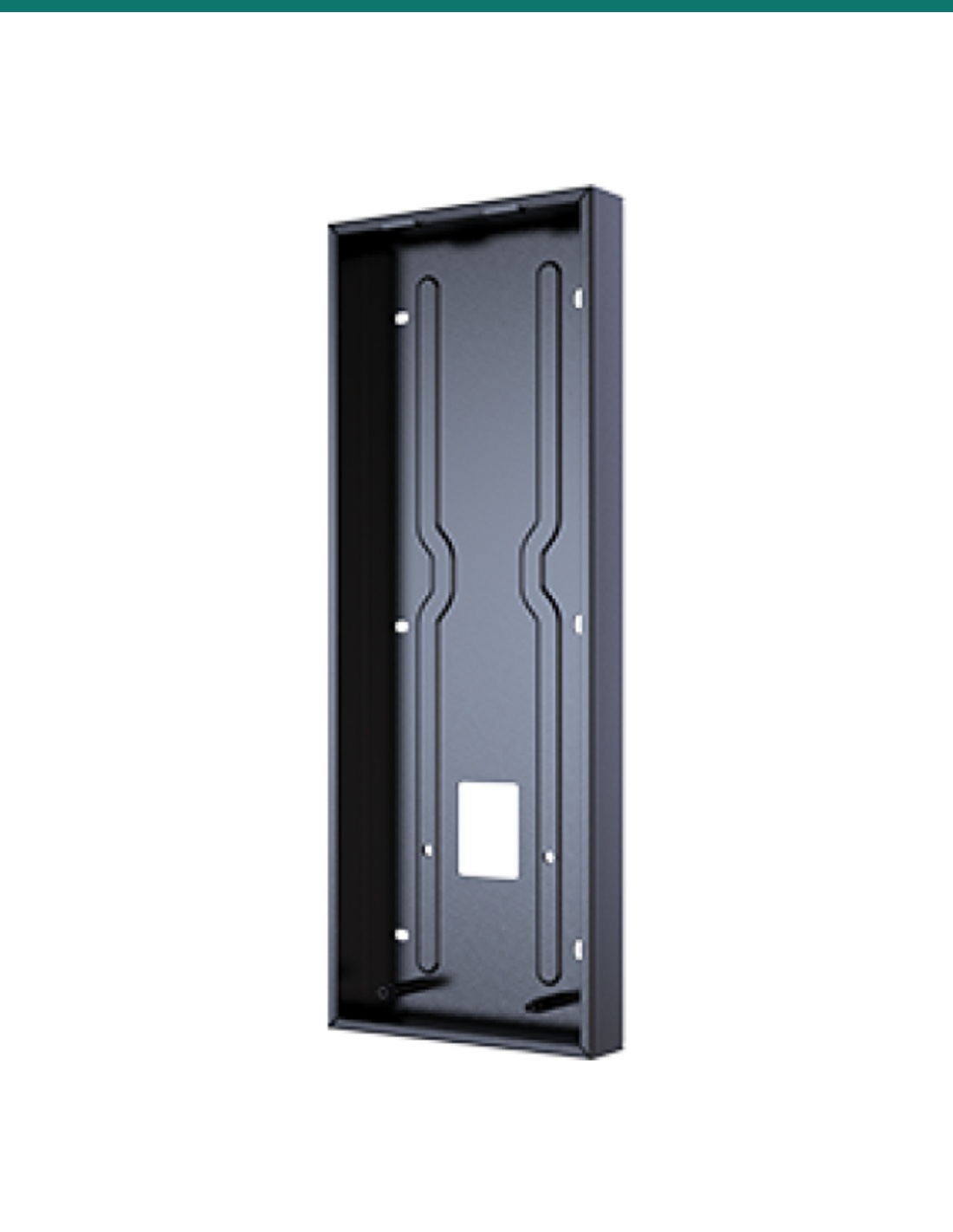

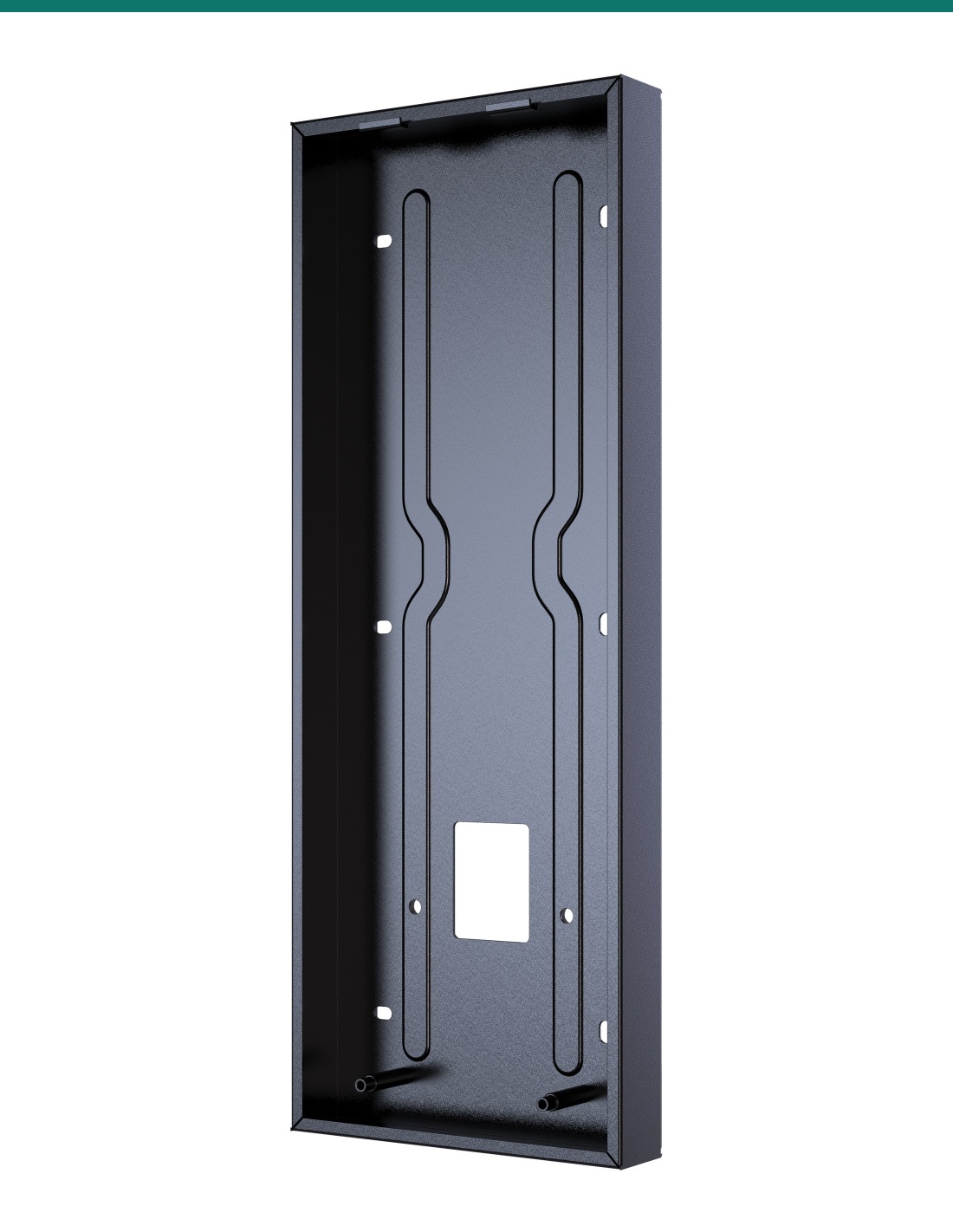

Akuvox X915 black on-wall mounting box — right three-quarter view

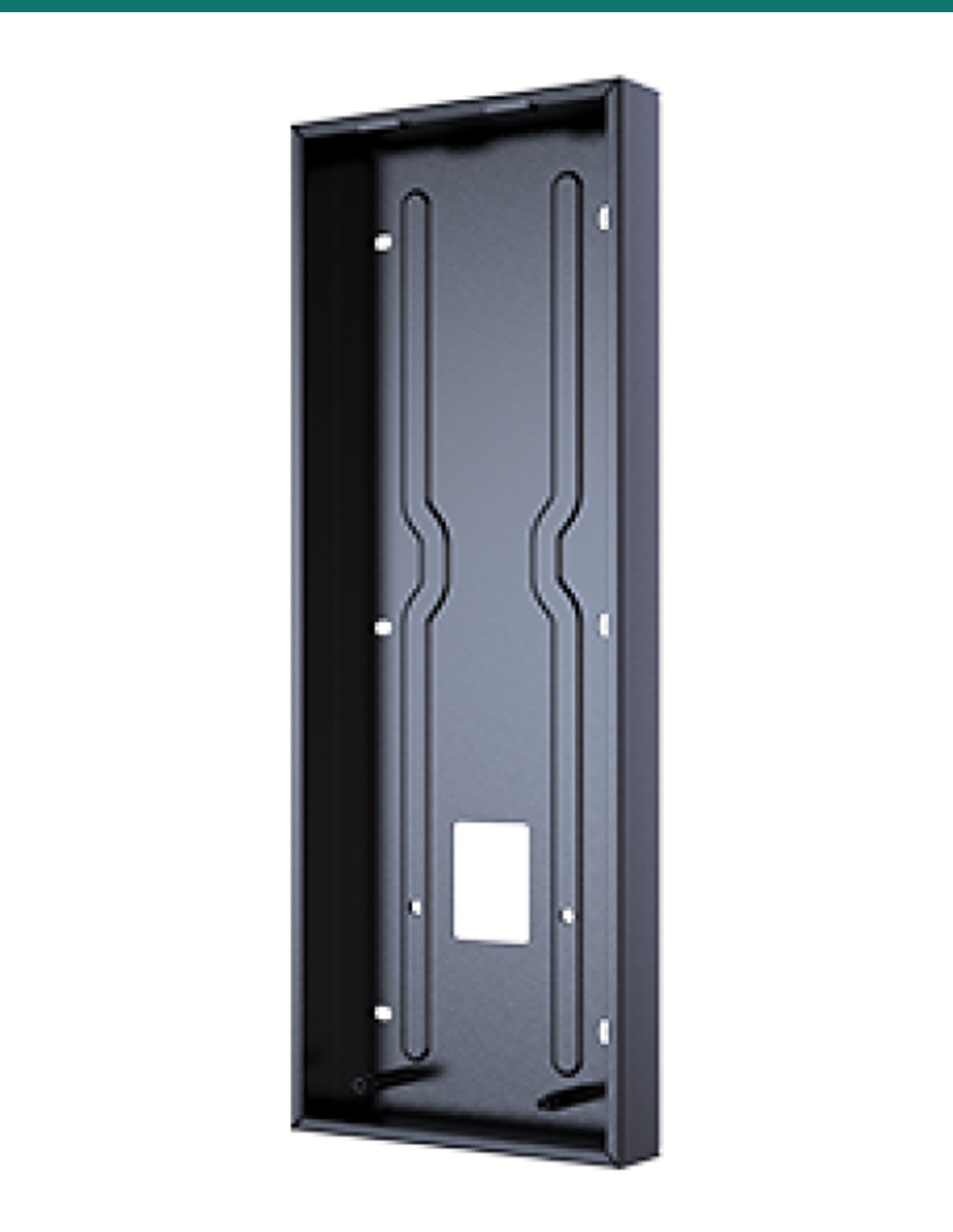

Akuvox X915 on-wall installation kit — wall-mounting box

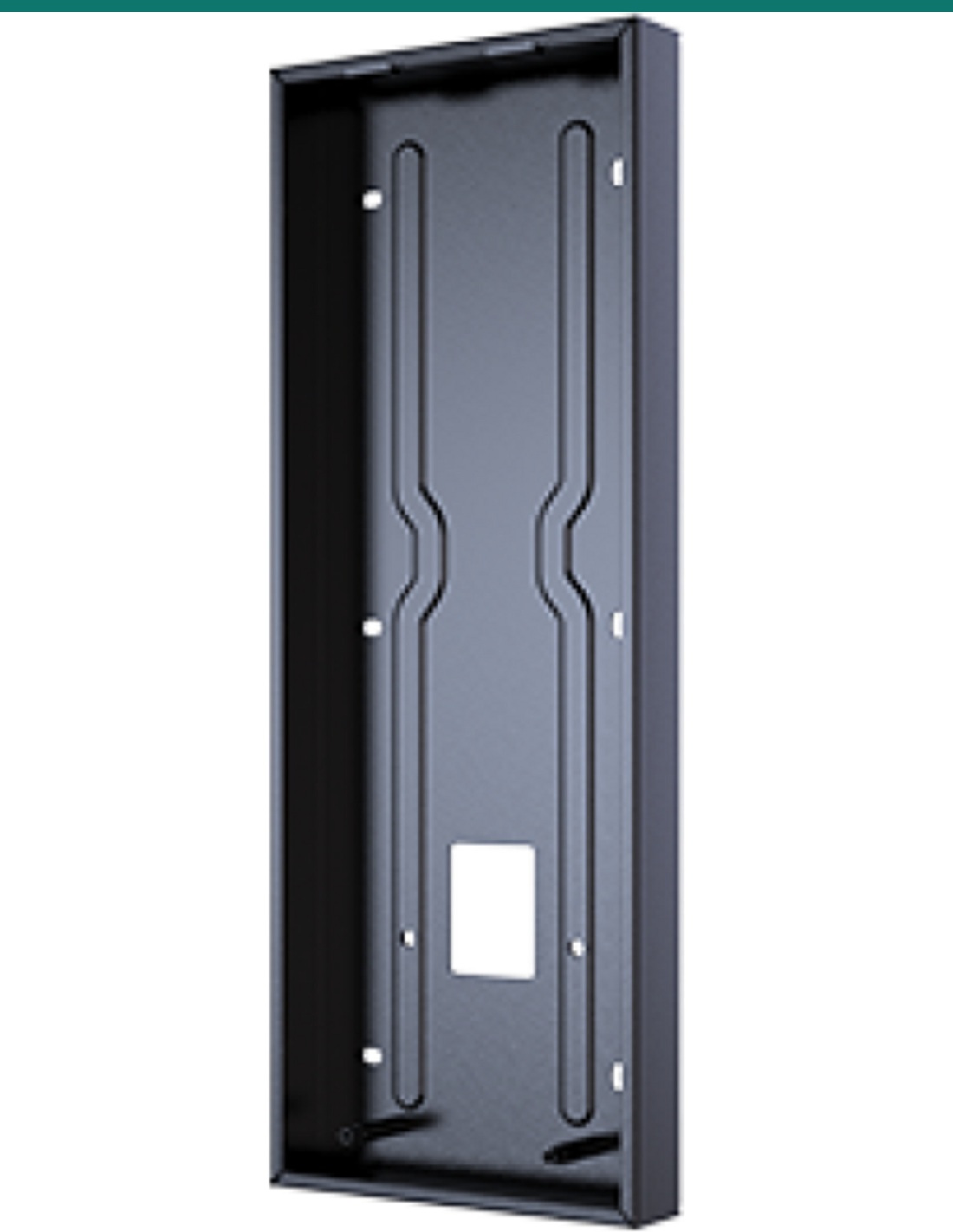

Akuvox X915 Black On-Wall Installation Kit for X915S Door Phones — AK-X915ONWALLK

Name: Akuvox X915 Black On-Wall Installation Kit for X915S Door Phones — AK-X915ONWALLK
Brand: Akuvox
SKU: AK-X915ONWALLK
Price: 57.1 AUD
Availability: InStock

Reference: AK-X915ONWALLK

In Stock - Ready to Ship

$ 57.10

inc-GST

or 4 interest-free payments of $14.28 with

Akuvox AK-X915ONWALLK is the standard surface-mount kit for the X915S. The door station ships without a mounting box; this wall-mounting box fixes to the wall — or over an 86 × 86 mm junction box — and the X915S hangs on it, standing 41.6 mm off the wall once installed. Stocked in Australia by Infront Technologies.

✓Wall-mounting box, 349 × 129 × 30.2 mm
✓2 × M4 × 30 screws to fix over an 86 × 86 mm embedded junction box
✓4 × ST4 × 20 screws and 4 plastic wall anchors
✓X915S installed on the box: 350 × 130 × 41.6 mm

Installer drilling a wall to mount an Akuvox X915

Akuvox · X915 · On-wall installation kit

Surface-mount the X915S.
Box and fixings in one kit.

The AK-X915ONWALLK is Akuvox’s standard on-wall installation kit for the X915 series. The box takes the 350 × 130 mm X915S on any flat wall, with or without a junction box behind it.

Everything to surface-mount one X915S.

You receive the wall-mounting box and fixings below. The X915S door phone, which includes its own wiring cover, terminal blocks and Torx screws, is sold separately.

In the box

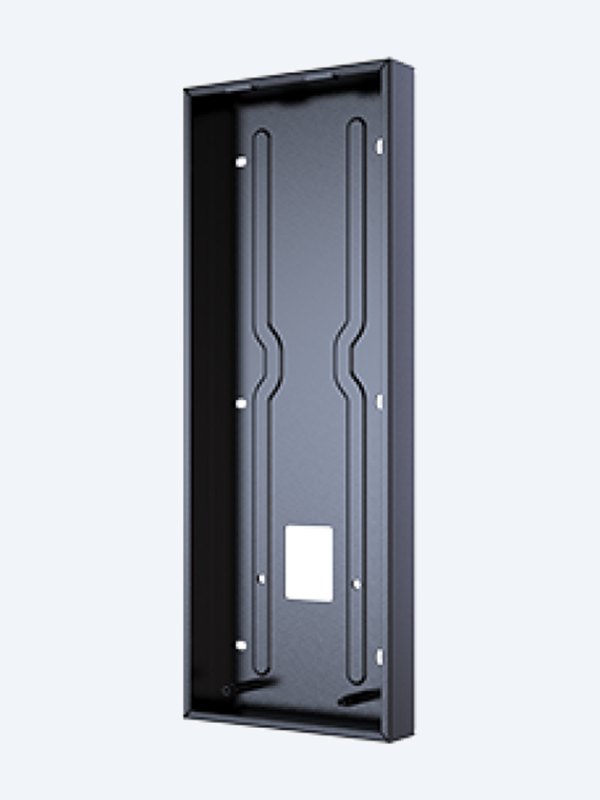

Wall-mounting box
2 × M4 × 30 crosshead screws
4 × ST4 × 20 crosshead screws
4 × plastic wall anchors

What you also need(sold separately)

Akuvox X915S door phone
Network cabling to the mounting position
X915 on-wall rain cover for exposed entries

The slimmest surface mount for the X915S.

Where you can’t recess the panel — finished walls, glass-framed entries, gate pillars — the on-wall box puts the X915S on the surface at 41.6 mm deep overall.

On the wall

With or without a junction box.

Over an 86 × 86 mm junction box, screw the box to it with the two M4 × 30 screws, mark and drill four 6 mm holes, then add the four ST4 × 20 screws and anchors.

Without a junction box, line the box up with the cable entry — Akuvox places the bottom of its square opening 10 mm from the wiring hole — and fix it with the four ST4 × 20 screws.

Choose your mount

Standard, thick, angled or flush.

The X915S ships without a mounting box. This is the standard on-wall box; Akuvox also makes a thick on-wall box, an angle on-wall kit and an in-wall kit for flush mounting.

Add the X915 on-wall rain cover on exposed entries.

At a glance

Key specs — AK-X915ONWALLK

Brand: Akuvox
Reference: AK-X915ONWALLK
Type: On-wall (surface) installation kit
Compatible with: Akuvox X915S
Contents: Wall-mounting box, 2 × M4 × 30 screws, 4 × ST4 × 20 screws, 4 plastic wall anchors
Box size: 349 × 129 × 30.2 mm (H × W × D)
Installed size: 350 × 130 × 41.6 mm with the X915S
Junction box: Fixes over an 86 × 86 mm embedded box
Anchor holes: 6 mm
Colour: Black
Shipping weight: 0.87 kg
Warranty: Australian warranty via Infront Technologies

Pair it with

Completes a surface X915S installation

Door phone

Akuvox X915S

8-inch Android face-recognition door station, supplied without a mounting box.

Weather

X915 on-wall rain cover

Black hood for a surface-mounted X915S.

Alternatives

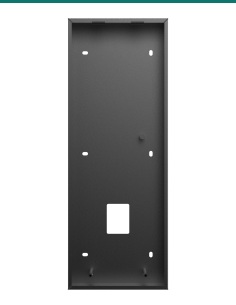

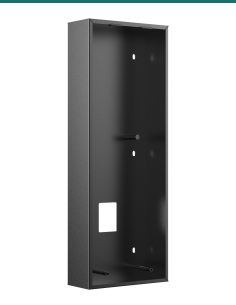

Thick box or angle kit

Deeper or upward-tilted surface mounts for the same door station.

Watch

See it in action

Mounting the X915 door phone

Answers

Common questions

Does the X915S come with a mounting box?

No. Order this on-wall kit, the thick on-wall box, the angle on-wall kit or the in-wall kit with every X915S.

Can it go over an existing wall box?

Yes. Two M4 × 30 screws fix it to an 86 × 86 mm embedded junction box, with four ST4 × 20 screws into the wall as well.

How far does the X915S stand off the wall?

41.6 mm overall on this box (350 × 130 × 41.6 mm installed), per Akuvox.

What’s included?

The wall-mounting box, two M4 × 30 screws, four ST4 × 20 screws and four plastic wall anchors.

Surface-mount your X915S, local stock.

Order one on-wall kit per X915S, or the thick box or angle kit where those suit the site. Infront Technologies stocks the X915S and its mounts in Australia.

Colour: Black
Brand: Akuvox
Mounting: Surface, on-wall
Warranty: Australian Warranty via Infront Technologies
Product Type: Surface-mounting kit
Model: X915 on-wall installation kit
Includes: Wall-mounting box, 2 × M4 × 30, 4 × ST4 × 20, 4 wall anchors
Compatible with: Akuvox X915S
Box Size: 349 × 129 × 30.2 mm (H × W × D)
Installed Size: 350 × 130 × 41.6 mm with X915S
