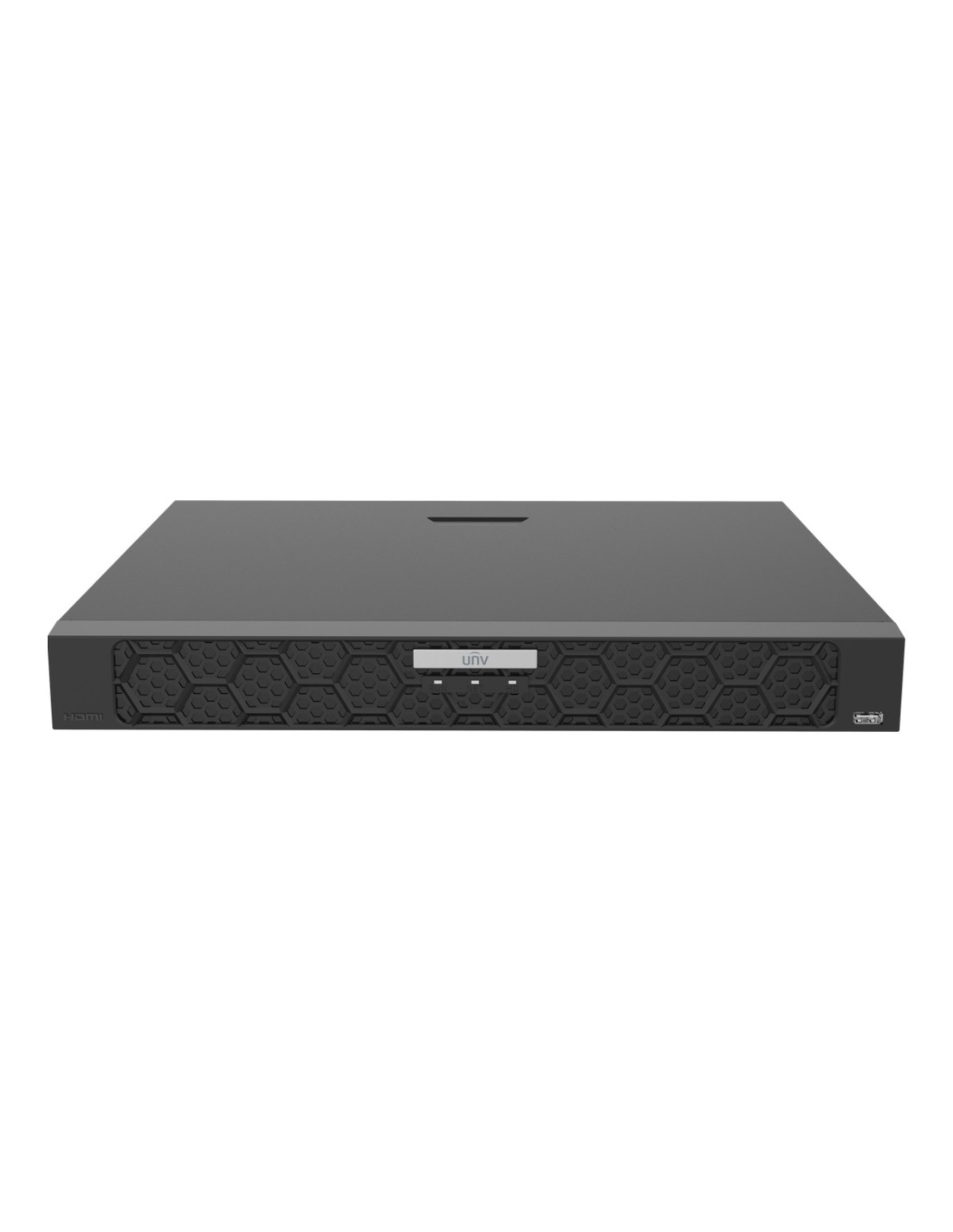

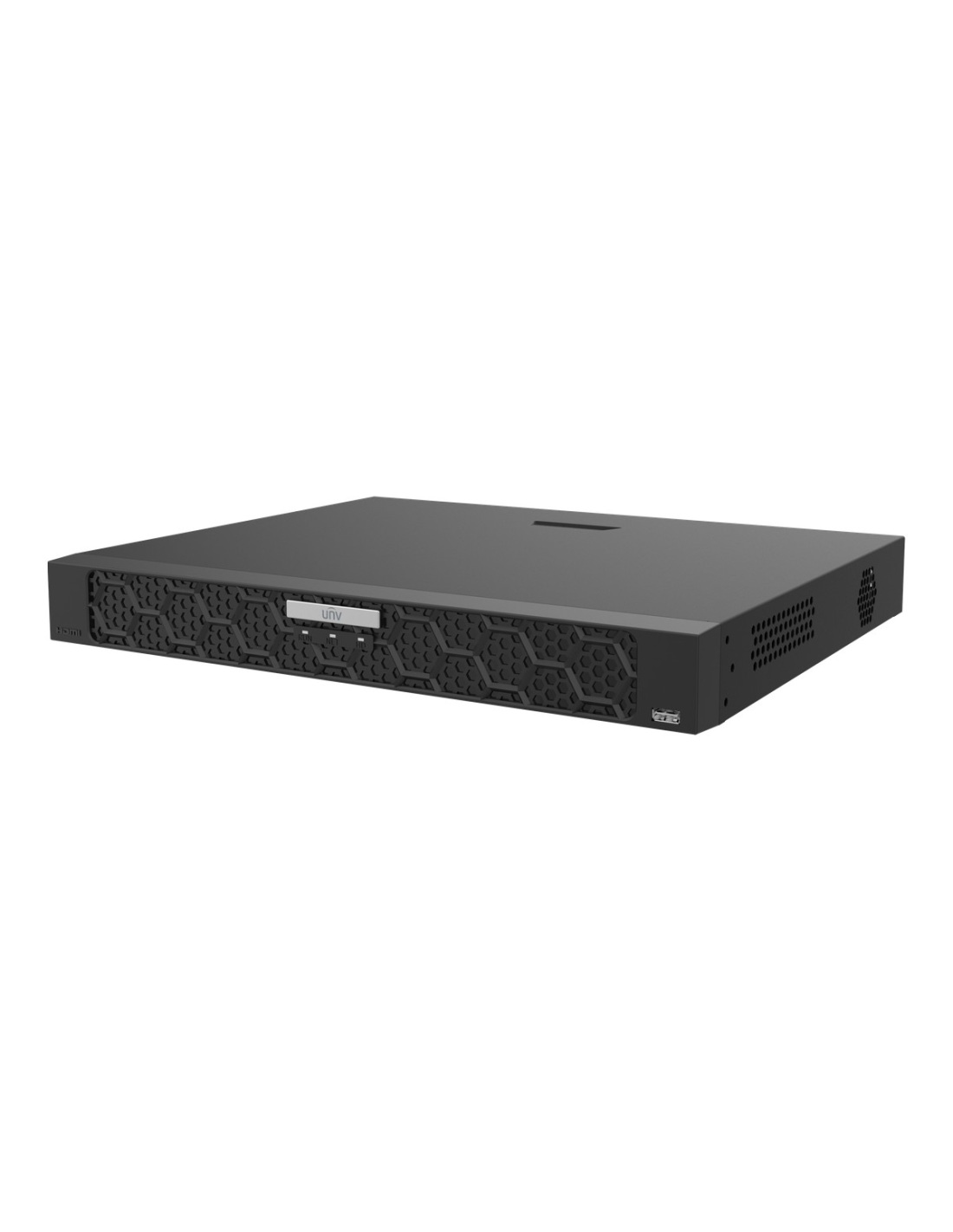

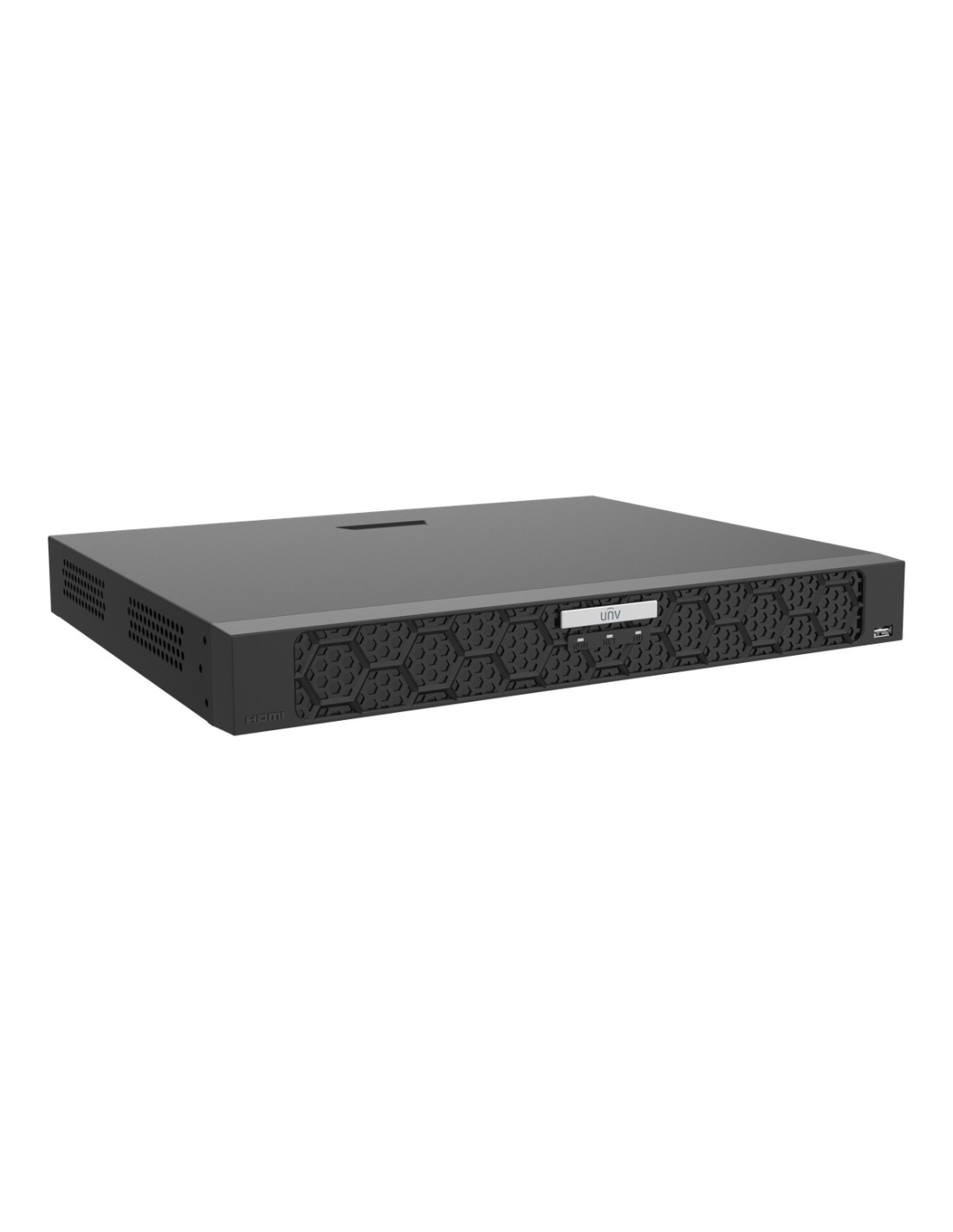

Uniview 32-Channel SeekFree NVR, 32MP Recording, 4K HDMI, 2 HDD Bays, RAID 1, LPR & Face by NVR - NVR502-32E-IM-G
NVR502-32E-IM-G-0T
In stock $ 945.00
inc-GST
or 4 interest-free payments of $236.25 with
Uniview NVR502-32E-IM-G 32-channel SeekFree network video recorder. Plain-language search, up to 32MP recording, 4K HDMI, plate comparison and face detection by NVR, two drive bays with RAID 1. No HDD, or 2–8TB fitted.
- ✓32 channels, up to 32MP each
- ✓SeekFree plain-language search
- ✓Plate comparison, face detection by NVR
- ✓2 SATA bays, RAID 1
- ✓2 Gigabit ports, ONVIF Profile S
- ✓NDAA compliant
Uniview · 32 channels · SeekFree
Type what you are looking for.
SeekFree finds it.

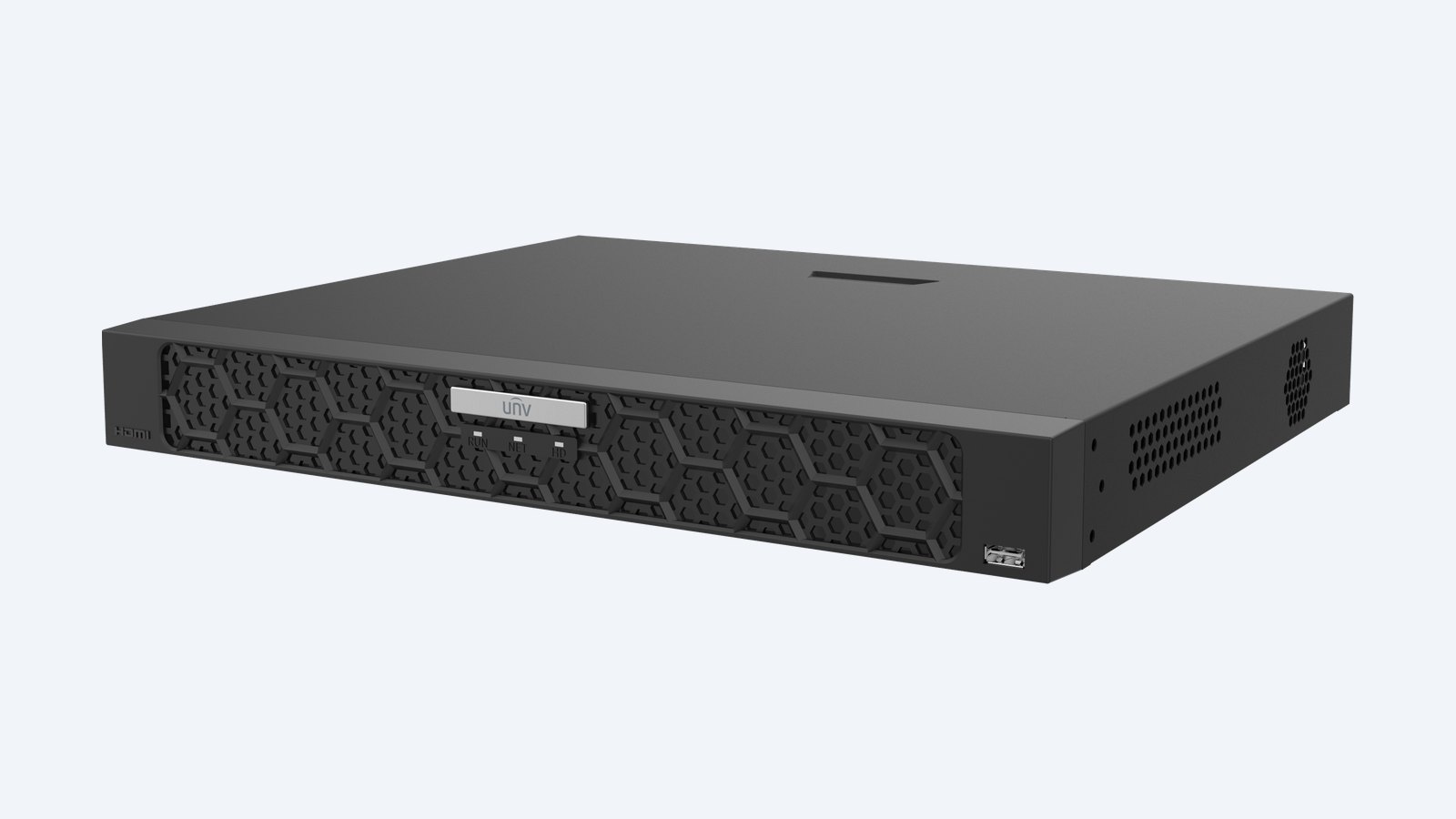

This is the Uniview NVR502-32E-IM-G. A 32-channel recorder with Uniview’s SeekFree search: describe the person or vehicle in plain words and it finds the clips. It records up to 32MP per camera, holds two drives with RAID 1 and reads number plates itself.
In one sentence: the NVR502-32E-IM-G is a 32-channel Uniview SeekFree NVR with up to 32MP recording, 192 Mbps incoming bandwidth, two SATA bays up to 24TB each with RAID 1, two Gigabit ports and 4K HDMI output.
Order it without a drive, or with a 2, 4, 6 or 8TB drive fitted.
The NVR502-32E-IM-G comes without cameras or a screen, and without a hard drive unless you choose one above. Add a PoE switch for the cameras and a screen. The recorder has no PoE ports of its own and runs from the supplied 12 V adapter.
In the box
- NVR502-32E-IM-G recorder
- 12 V DC power adapter
- Quick guide
You also need
- A hard drive, if you did not choose one fitted (a second is optional)
- Up to 32 IP cameras
- A PoE switch for the cameras
- A monitor or TV with HDMI or VGA
- Your router, for the phone app
Search by description, not by scrubbing.
SeekFree works across every channel with Uniview SIP or UMD cameras and on up to 16 channels of normal or third-party cameras. Add plate comparison against a library of up to 25,000 vehicles and face detection by the NVR, and finding an incident takes seconds.

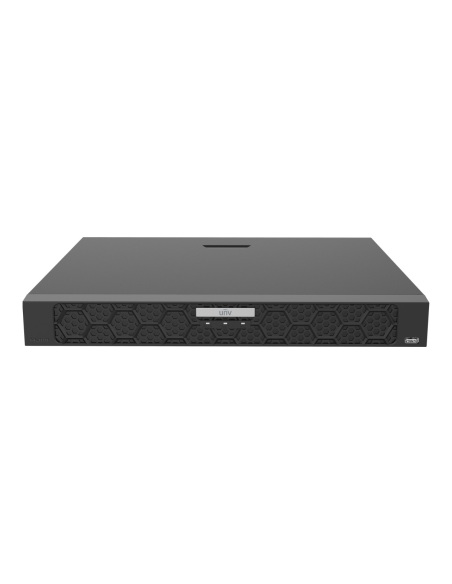

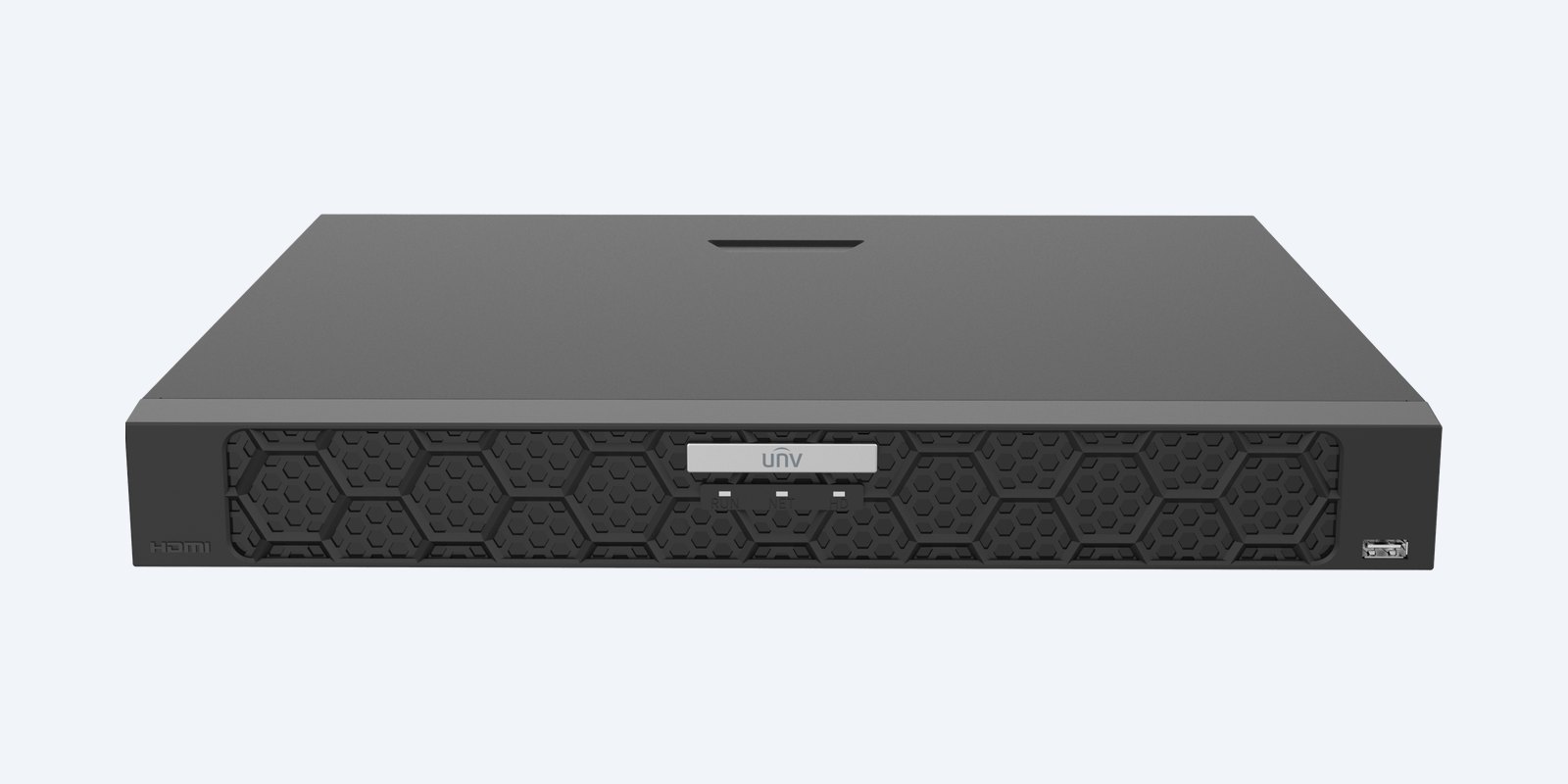

Front panel
A slim 1U case.
A USB 2.0 port for a mouse or keyboard is on the front. Two Gigabit LAN ports, HDMI, VGA, RCA audio, USB 2.0 and 3.0, RS485, alarm terminals (4 in, 1 out) and the 12 V input are at the back.

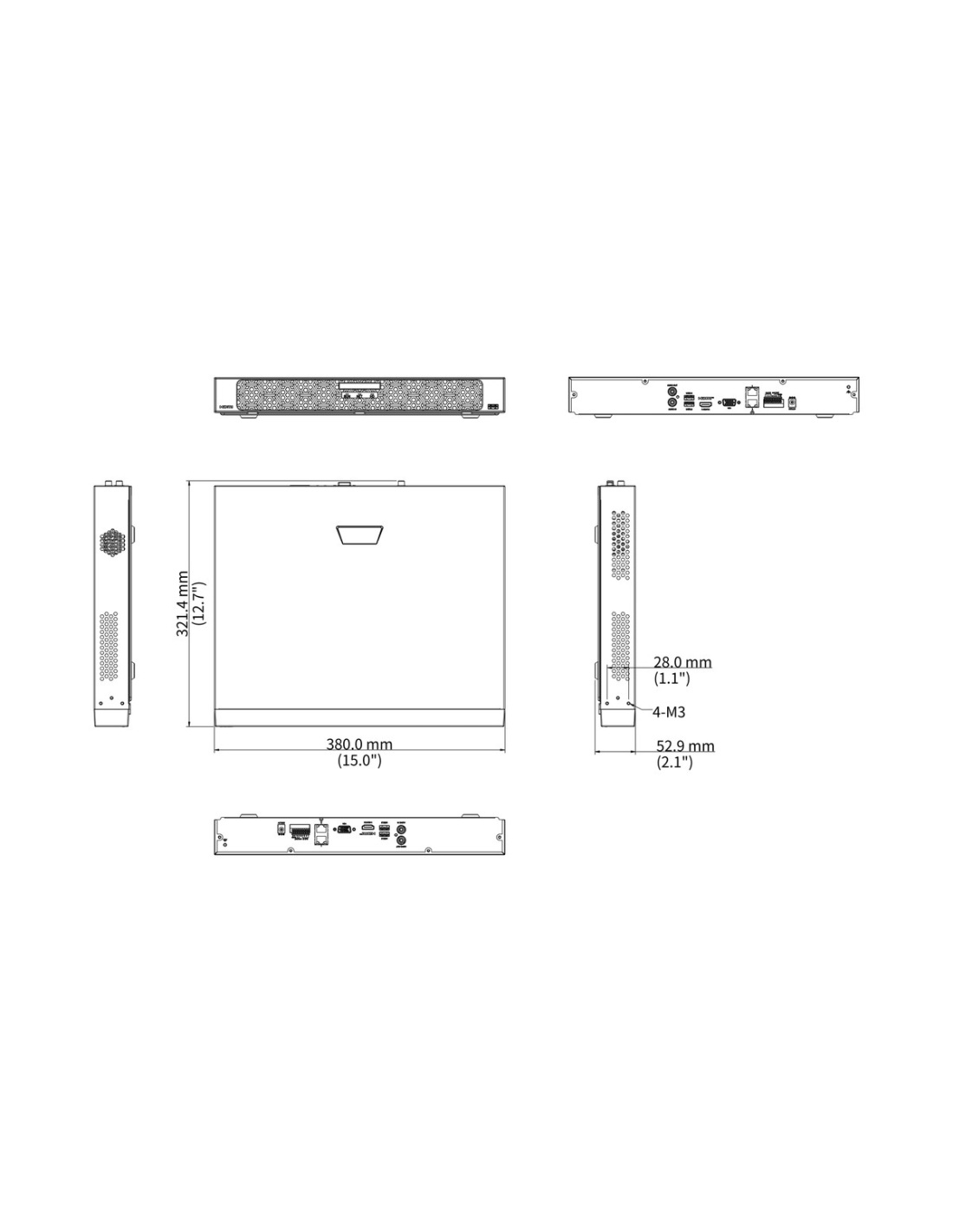

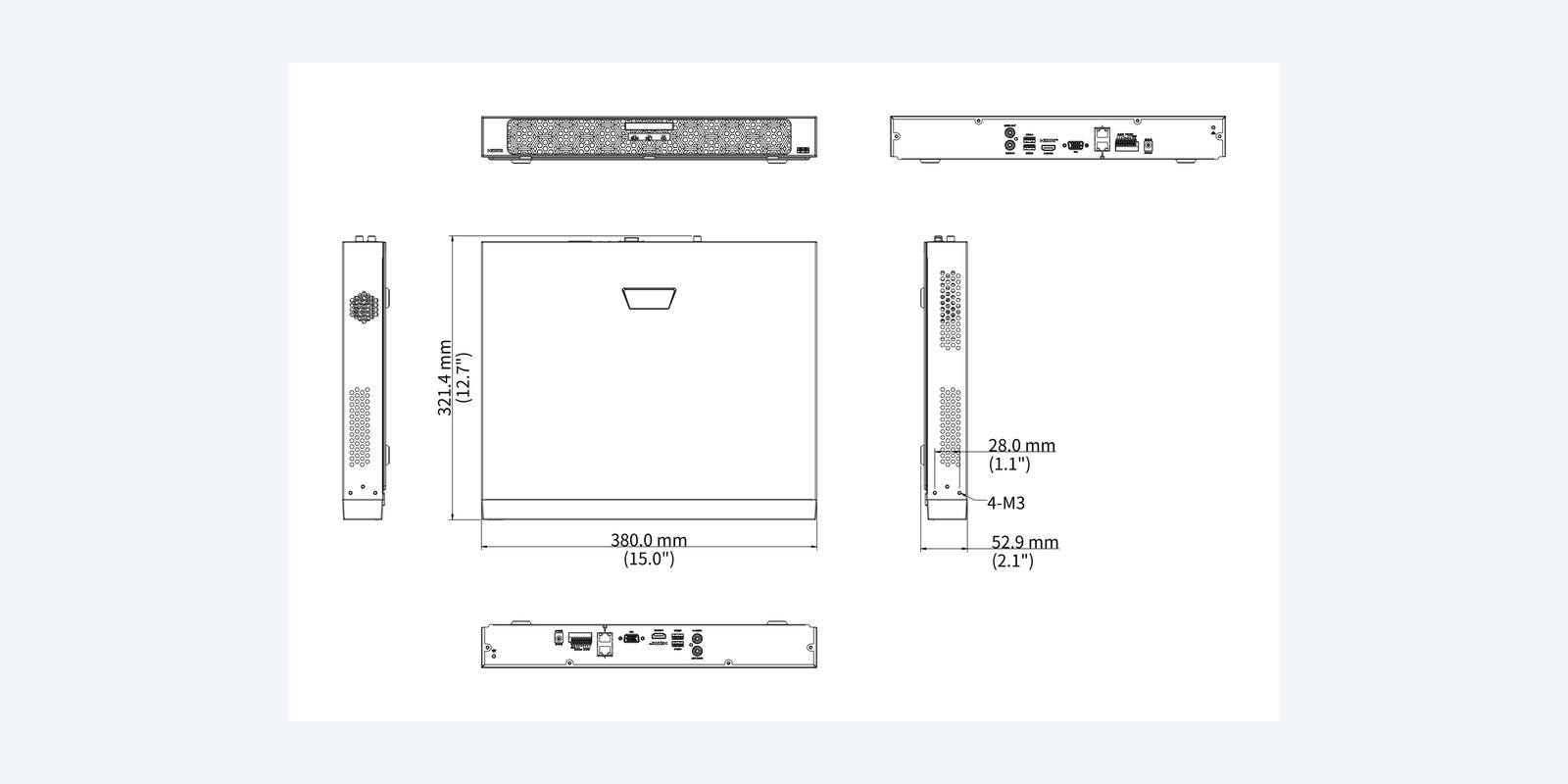

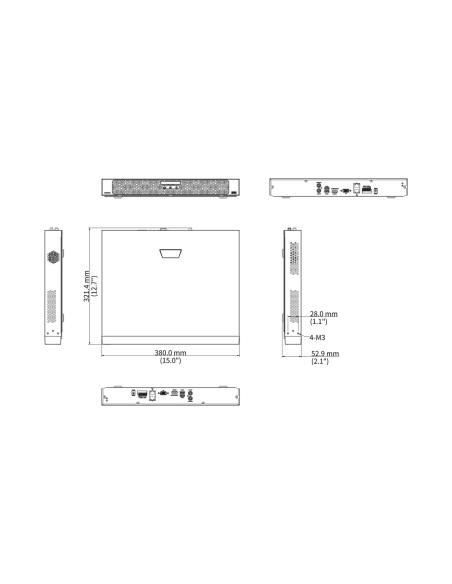

Size
380 × 322 × 53 mm.
It weighs 1.87 kg without drives and draws 25 W or less before drives. The optional Uniview RM-1U-380 bracket fits it in 1U of a 19-inch rack.
How it goes in
From the box to recording.
01
Fit the hard drives
If you did not order one fitted: with the power off, fit surveillance drives in the bays you are using, then format them or build the RAID array from the setup wizard.
02
Connect the cameras
Plug the cameras into PoE switches on the same network as the recorder. It searches the network and adds Uniview cameras automatically.
03
Connect screens and network
HDMI or VGA to the monitors, a network port to your switch or router, then power on and follow the wizard.
04
Add it to the app
Scan the P2P QR code in the UNV-Link app, or add the recorder to Uniview’s EZStation software on a PC.
At a glance
NVR502-32E-IM-G
Show specs
Channels
32 IP cameras
PoE
None — use a PoE switch
Recording
Up to 32MP
Compression
Ultra 265, H.265, H.264
Bandwidth
192 Mbps in, 192 Mbps out
Decoding
2 × 32MP, 4 × 16MP, 8 × 4K or 16 × 1080p @30 (smart off)
Outputs
HDMI up to 4K/30 Hz and VGA up to 1080p, same picture
Storage
2 SATA, up to 24TB each, RAID 1
Network
2 × RJ45 Gigabit (multi-address, load balance, fault tolerance)
Search
SeekFree text search, plate comparison, face detection by NVR
USB
1 × USB 2.0 front; 1 × USB 2.0, 1 × USB 3.0 rear
Alarm
4 in, 1 out; RS485
Power
12 V DC 3 A, ≤25 W without HDD
Size and weight
380 × 322.4 × 53 mm, 1.87 kg
Operating
−10 °C to 55 °C, ≤90% RH
Pair it with
What goes with it
Storage
Seagate SkyHawk drive
Surveillance-rated 2, 4 or 6TB drives built for 24/7 recording. Mirror two drives with RAID 1 so a drive failure loses nothing.
Cameras
Uniview IP cameras
Uniview turrets, bullets and domes add the smart events and fast searches this recorder is built around.
Network
PoE switch
This recorder has no PoE ports, so a PoE switch powers the cameras and links them to it.
Audio
Uniview IP speaker
Up to 32 Uniview IP speakers can be linked for announcements and alarm messages.
Where it is used
Where SeekFree pays off
Car parks and yards
Find a vehicle by plate or colour without scrolling through hours of footage.
Retail
Search for “person in red shirt” across every aisle camera at once.
Schools and offices
Trace someone’s path through entries and corridors in minutes.
Mixed-brand sites
Run text search on up to 16 existing normal or third-party cameras.
Uniview high-channel recorders side by side
| NVR502-16E-IM-G | NVR502-32E-IM-G | NVR508-64E-IQ | NVR516-128E-R | |
|---|---|---|---|---|
| Camera channels | 16 | 32 | 64 | 128 |
| Max recording | 32MP | 32MP | 32MP | 32MP |
| Incoming bandwidth | 192 Mbps | 192 Mbps | 512 Mbps | 640 Mbps |
| Screen outputs | HDMI 4K + VGA | HDMI 4K + VGA | 2 × HDMI 4K/60 + 2 × VGA | HDMI 8K + HDMI 4K/60 + 2 × VGA |
| Hard drive bays | 2 × up to 24TB | 2 × up to 24TB | 8 × up to 24TB | 16 × up to 16TB, hot swap |
| RAID | RAID 1 | RAID 1 | RAID 0, 1, 5, 6, 10 | RAID 0, 1, 5, 6, 10, 50, 60 |
| Network ports | 2 × Gigabit | 2 × Gigabit | 2 × Gigabit | 2 × Gigabit |
| Alarm in / out | 4 / 1 | 4 / 1 | 16 / 10 | 16 / 10 |
| Power | 12 V DC, ≤25 W | 12 V DC, ≤25 W | 100–240 V AC, ≤35 W | 100–240 V AC, ≤50 W |
| Case | 1U | 1U | 2U | 3U |
None of these has PoE ports: cameras connect through a PoE switch on the same network. Power figures without hard drives; incoming bandwidth with smart functions off. Figures from the Uniview datasheets.
Common questions
What is SeekFree?
Uniview’s plain-language search. Type a description such as a person or vehicle and its colour, and the recorder finds matching clips. It works on all channels with Uniview SIP or UMD cameras, and on up to 16 channels with normal or third-party cameras.
Can it read number plates?
Yes, with plate comparison against up to 25,000 vehicles in its library. Use Uniview LPR cameras or cameras aimed and zoomed for plates.
Does it have PoE ports?
No. Connect the cameras to a PoE switch, and the switch to one of the recorder’s two Gigabit ports. For fewer cameras, the NVR502-16E-IM-G is the 16-channel version.
Is a hard drive included?
Not as standard. The NVR502-32E-IM-G is sold without a drive, or with a 2, 4, 6 or 8TB surveillance drive fitted — choose the option above. It has two SATA bays of up to 24TB each. A fitted drive fills one bay; add a second at any time for more space or RAID 1.
Will it work with cameras that are not Uniview?
Yes. It supports ONVIF Profile S cameras, and SeekFree text search runs on up to 16 channels of normal or third-party cameras. Send us the camera model and we will check it.
Can I watch the cameras on my phone?
Yes. P2P is built in: connect the network port to your router and add the recorder to Uniview’s UNV-Link app by scanning its QR code. Live view, playback and alerts then work on iPhone and Android, and up to 128 remote users can connect.
What screen can I plug in?
Any monitor or TV with HDMI or VGA. HDMI (1.4) runs up to 4K (3840 × 2160) at 30 Hz and VGA up to 1920 × 1080; both show the same picture. A USB keyboard can be used for searching.
What is Ultra 265?
Uniview’s compression. It records the same picture as H.265 in less space, so the drive holds more days of footage. H.265 and H.264 are supported too.
What does ANR do?
If the network drops, compatible Uniview cameras keep recording to their SD card and the NVR pulls the missing footage back when the link returns.
How far can the cameras be from the recorder?
It has no PoE ports, so the cameras plug into a PoE switch and the switch connects to the recorder. Each Cat6 run from the switch can be up to 100 m, and switches can be placed around the site.
Can I mount it in a rack?
Yes, with the optional Uniview RM-1U-380 bracket it takes 1U in a 19-inch rack. Otherwise it sits on a shelf.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure how many channels or how much storage you need? Call 1300 736 970 or email [email protected] with the number of cameras and how many days you want to keep, and we will size the drives.
Installation and safety
Power. Use only the supplied 12 V DC 3 A power adapter. Power off before fitting or removing a hard drive.
Placement. Use indoors between −10 °C and 55 °C, under 90% humidity, with space around the vents. Keep it somewhere secure so a thief cannot take the footage with it.
Figures. From the Uniview NVR502-E-IM-G series datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 380 × 322.4 × 53 mm
- Power Supply
- 12 V DC, 3 A
- Audio
- 1 in, 1 out (RCA)
- Operating Environment
- −10 °C and 55 °C, ≤90% RH
- Weight
- 1.87 kg without HDD
- Power Consumption
- ≤25 W without HDD
- Video Compression
- Ultra 265, H.265, H.264
- Video Input
- 32 Channels
- Brand
- Uniview
- USB
- 2 × USB 2.0, 1 × USB 3.0
- Incoming Bandwidth
- 192 Mbps
- Interoperability
- ONVIF Profile S
- Recording Resolution
- Up to 32MP
- Display Output
- HDMI up to 4K/30 Hz, VGA up to 1080p (simultaneous)
- Network Interface
- 2 × RJ45 Gigabit
- Smart Search
- SeekFree text search, plate comparison, face detection by NVR
- Warranty
- 3 years
- Product Type
- Network Video Recorder
- Model
- NVR502-32E-IM-G
- HDD Bays
- 2 SATA
- RAID
- RAID 1
- Outgoing Bandwidth
- 192 Mbps
- Max HDD Capacity
- 24TB per drive
- Hard Drive
- Optional 2, 4, 6 or 8TB fitted (standard: no drive)
- Playback Decoding
- 2 × 32MP, 4 × 16MP, 5 × 12MP, 8 × 4K or 16 × 1080p @30
