Uniview 64-Channel SeekFree AI NVR, 4K Recording, 3 × HDMI, 4 HDD Bays, Analytics by NVR - NVR804-64-IX-G
NVR804-64-IX-G-0T
In stock $ 2,845.00
inc-GST
or 4 interest-free payments of $711.25 with
Uniview NVR804-64-IX-G 64-channel SeekFree network video recorder with 20+ analytics by NVR for up to 16 normal cameras. 4K recording, 3 × HDMI, four drive bays, ONVIF. No HDD, or 2–8TB fitted.
- ✓64 channels, up to 4K each
- ✓20+ analytics by NVR on 16 normal cameras
- ✓SeekFree plain-language search
- ✓3 × HDMI 4K/60 + VGA
- ✓4 SATA bays up to 24TB each
- ✓ONVIF Profile S, NDAA compliant
Uniview · 64 channels · SeekFree AI
Smart analytics
for the cameras you already have.
This is the Uniview NVR804-64-IX-G. A 64-channel SeekFree recorder that runs more than 20 types of analytics itself — helmet, smoking, fire, fall and fight detection among them — on up to 16 normal cameras, and finds footage from a plain-language description.
In one sentence: the NVR804-64-IX-G is a 64-channel Uniview SeekFree NVR with recording up to 4K, 384 Mbps incoming bandwidth, analytics by NVR, four SATA bays up to 24TB each, two Gigabit ports and three HDMI outputs.
Order it without a drive, or with a 2, 4, 6 or 8TB drive fitted.
The NVR804-64-IX-G comes without cameras or a screen, and without a hard drive unless you choose one above. Add PoE switches for the cameras and your screens. The recorder has no PoE ports and runs from mains power.
In the box
- NVR804-64-IX-G recorder
- Mains power cord
- Quick guide
You also need
- A hard drive, if you did not choose one fitted (up to 3 more are optional)
- Up to 64 IP cameras
- PoE switches for the cameras
- Monitors with HDMI or VGA
- Your router, for the app
Upgrade old cameras without replacing them.
Analytics run on the recorder, not the camera, so up to 16 existing normal or third-party cameras gain detections such as helmet, smoking, fire, falls and fights. With Uniview SIP or UMD cameras, SeekFree text search covers every channel.

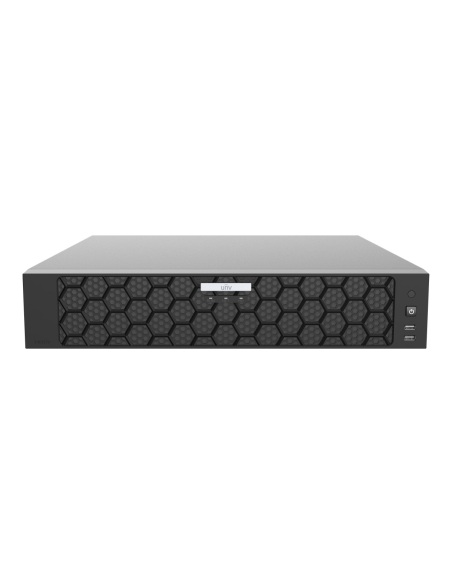

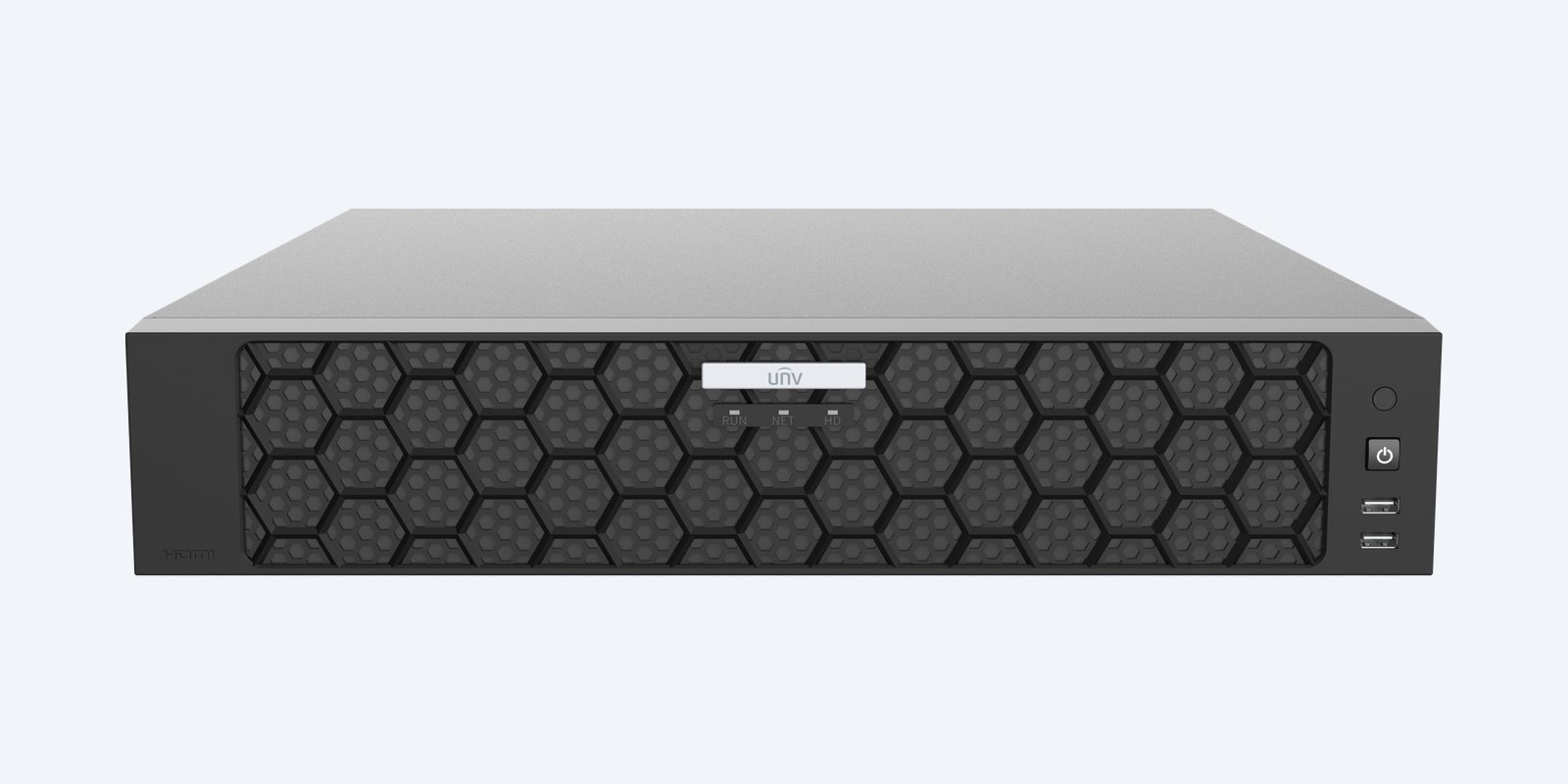

Front panel
A 2U rack case.
Two USB 2.0 ports are on the front. The back carries two Gigabit LAN, three HDMI and one VGA, two USB 3.0, eSATA, RS485, RS232, alarm terminals (16 in, 10 out), a 12 V output and RCA audio (1 in, 3 out).

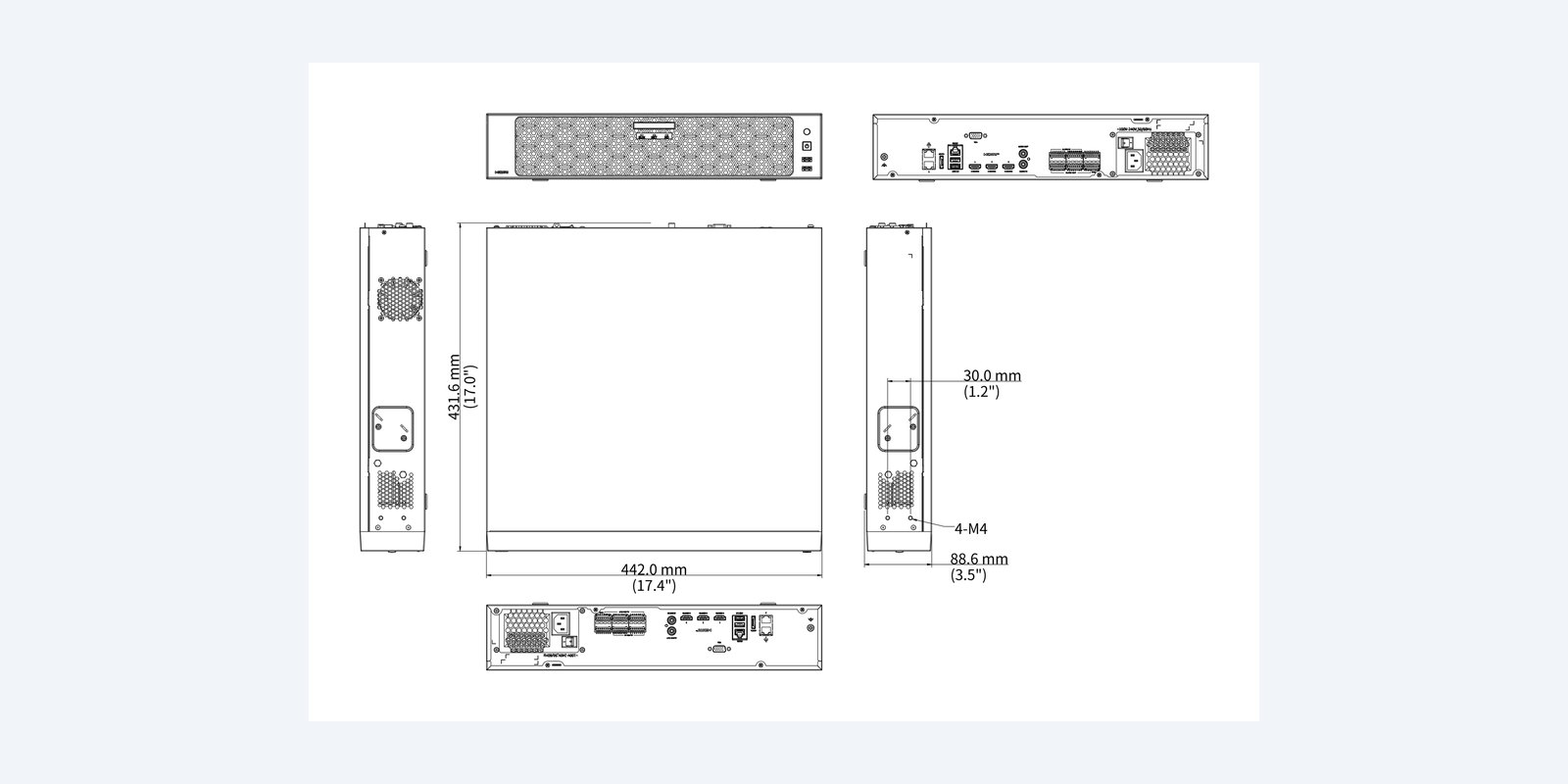

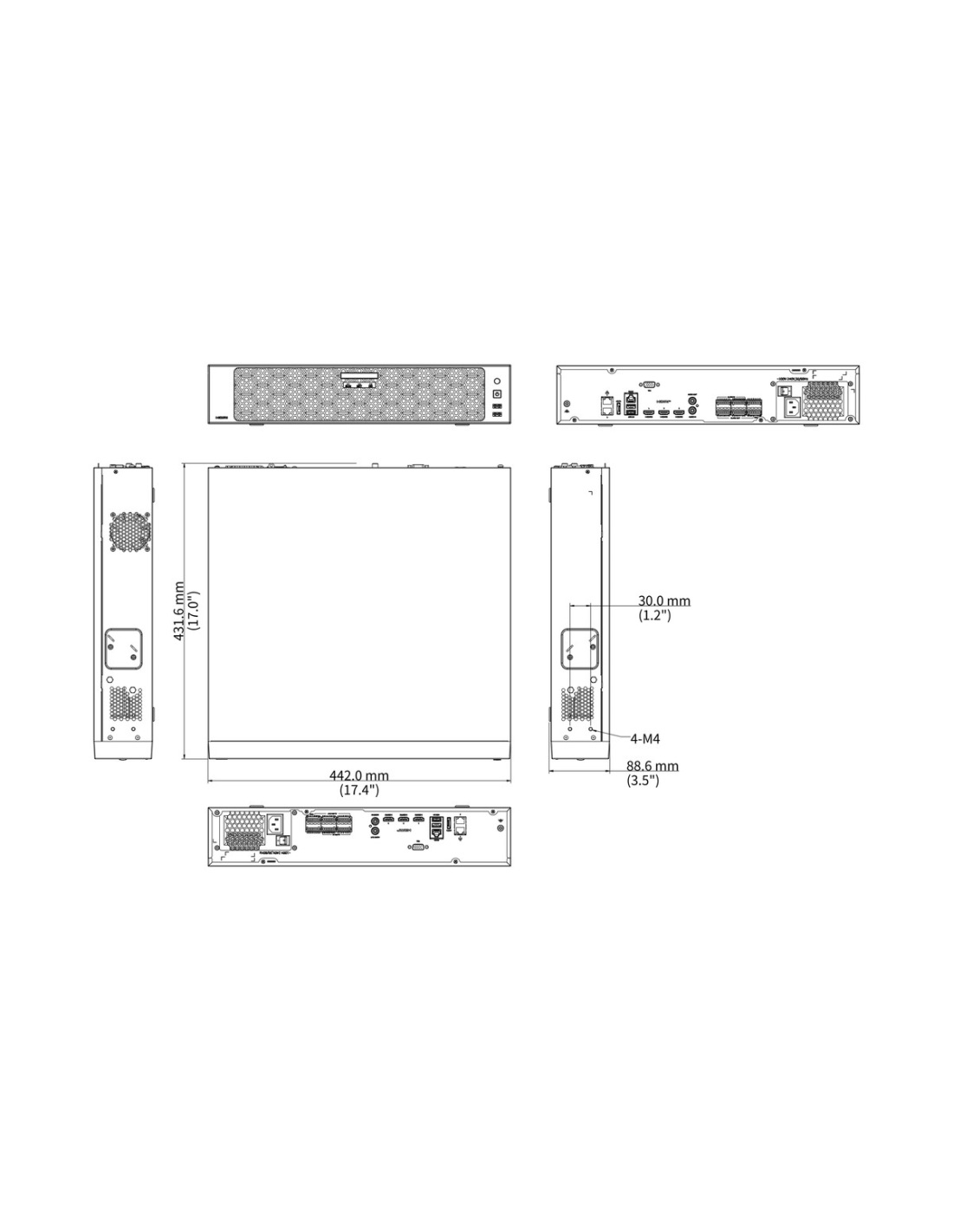

Size
442 × 432 × 89 mm.
A 2U, 19-inch case drawing 50 W or less before drives. It mounts with Uniview FL-2U rack ears.
How it goes in
From the box to recording.
01
Fit the hard drives
If you did not order one fitted: with the power off, fit surveillance drives in the bays you are using, then format them from the setup wizard.
02
Connect the cameras
Plug the cameras into PoE switches on the same network as the recorder. It searches the network and adds Uniview cameras automatically.
03
Connect screens and network
HDMI or VGA to the monitors, a network port to your switch or router, then power on and follow the wizard.
04
Add it to the app
Scan the P2P QR code in the UNV-Link app, or add the recorder to Uniview’s EZStation software on a PC.
At a glance
NVR804-64-IX-G
Show specs
Channels
64 IP cameras
PoE
None — use PoE switches
Recording
Up to 4K (8MP)
Compression
Ultra 265, H.265, H.264
Bandwidth
384 Mbps in, 384 Mbps out
Decoding
6 × 4K, 12 × 4MP or 25 × 1080p @30 (H.265)
Outputs
3 × HDMI (4K/60 Hz), 1 × VGA; HDMI1 and VGA same picture, HDMI2 and HDMI3 independent
Analytics
20+ types by NVR on up to 16 normal cameras; face detection by NVR
Search
SeekFree text search
Storage
4 SATA, up to 24TB each; Disk groups and redundant storage (RAID not listed for this model)
Network
2 × RJ45 Gigabit
USB
2 × USB 2.0 front, 2 × USB 3.0 rear
Alarm
16 in, 10 out; RS485, RS232, eSATA, 12 V out
Power
100–240 V AC, ≤50 W without HDD
Operating
−10 °C to 55 °C
Pair it with
What goes with it
Storage
Seagate SkyHawk drive
Surveillance-rated 2, 4 or 6TB drives built for 24/7 recording. Four bays of up to 24TB each give long retention for 64 cameras.
Cameras
Uniview IP cameras
Uniview turrets, bullets and domes add the smart events and fast searches this recorder is built around.
Network
PoE switch
This recorder has no PoE ports, so a PoE switch powers the cameras and links them to it.
Audio
Uniview IP speaker
Up to 64 Uniview IP speakers can play a warning when an analytic triggers.
Where it is used
Where analytics by NVR pay off
Construction and industry
Helmet and smoking detection on existing site cameras.
Aged care and health
Fall detection in corridors and common rooms.
Hospitality and venues
Fight detection at entries, bars and car parks.
Warehouses
Fire and smoke alerts plus fast search across every aisle.
Uniview NVR804 SeekFree recorders side by side
| NVR804-16-IX-G | NVR804-32-IX-G | NVR804-64-IX-G | |
|---|---|---|---|
| Camera channels | 16 | 32 | 64 |
| 1080p channels decoded at once | 16 | 25 | 25 |
| Face detection by NVR (Uniview face cameras) | Up to 16 | Up to 32 | Up to 32 |
| IP speakers | 32 | 32 | 64 |
| RAID | RAID 0, 1, 5 | RAID 0, 1, 5 | Not listed (disk groups and redundant storage supported) |
All three record up to 4K (8MP), take 384 Mbps of incoming video, have 3 HDMI outputs (4K/60) plus VGA, 4 SATA bays of up to 24TB each, 2 Gigabit ports, 16 alarm inputs and 10 outputs, and a 2U case drawing 50 W or less without drives. None has PoE ports. Figures from the Uniview datasheet.
Common questions
Which analytics does the recorder run itself?
More than 20 types, including helmet, smoking, fire, fall and fight detection, on up to 16 normal cameras (Uniview or third-party). Uniview smart cameras send their own events on every channel.
What is SeekFree?
Uniview’s plain-language search: type a description of a person or vehicle and the recorder finds matching clips. It covers all channels with Uniview SIP/UMD smart cameras and up to 16 channels of normal or third-party cameras.
How many cameras can use face detection?
Face detection by the NVR works with up to 32 Uniview face detection cameras on the NVR804-64-IX-G.
Is a hard drive included?
Not as standard. The NVR804-64-IX-G is sold without a drive, or with a 2, 4, 6 or 8TB surveillance drive fitted — choose the option above. It has four SATA bays of up to 24TB each. A fitted drive fills one bay; add more at any time. Uniview lists disk groups and redundant storage for this model rather than RAID.
Will it work with cameras that are not Uniview?
Yes. It supports ONVIF Profile S cameras, and its analytics and SeekFree search run on up to 16 channels of normal or third-party cameras. Send us the camera model and we will check it.
Can I watch the cameras on my phone?
Yes. P2P is built in: connect the network port to your router and add the recorder to Uniview’s UNV-Link app by scanning its QR code. Live view, playback and alerts then work on iPhone and Android, and up to 128 remote users can connect.
What screen can I plug in?
Monitors with HDMI or VGA. It has three HDMI outputs up to 4K at 60 Hz and one VGA; HDMI2 and HDMI3 show independent layouts, so up to three screens can show different views.
What is Ultra 265?
Uniview’s compression. It records the same picture as H.265 in less space, so the drive holds more days of footage. H.265 and H.264 are supported too.
What does ANR do?
If the network drops, compatible Uniview cameras keep recording to their SD card and the NVR pulls the missing footage back when the link returns.
How far can the cameras be from the recorder?
It has no PoE ports, so the cameras plug into a PoE switch and the switch connects to the recorder. Each Cat6 run from the switch can be up to 100 m, and switches can be placed around the site.
Can I mount it in a rack?
Yes. It is a 2U, 19-inch case that mounts with Uniview FL-2U rack ears — ask us if you need a set.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure how many channels or how much storage you need? Call 1300 736 970 or email [email protected] with the number of cameras and how many days you want to keep, and we will size the drives.
Installation and safety
Power. Runs from 100–240 V AC. Power off before fitting or removing hard drives, and earth the case.
Placement. Use indoors between −10 °C and 55 °C, under 90% humidity, with space around the vents. Keep it somewhere secure so a thief cannot take the footage with it.
Figures. From the Uniview NVR804-IX-G series datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 442 × 431.6 × 88.6 mm (2U)
- Power Supply
- 100–240 V AC
- Audio
- 1 in, 3 out (RCA)
- Operating Environment
- −10 °C and 55 °C, ≤90% RH
- Power Consumption
- ≤50 W without HDD
- Video Compression
- Ultra 265, H.265, H.264
- Video Input
- 64 Channels
- Brand
- Uniview
- USB
- 2 × USB 2.0, 2 × USB 3.0
- Incoming Bandwidth
- 384 Mbps
- Interoperability
- ONVIF Profile S
- Recording Resolution
- Up to 4K (8MP)
- Display Output
- 3 × HDMI up to 4K/60 Hz, 1 × VGA
- Network Interface
- 2 × RJ45 Gigabit
- Smart Search
- SeekFree text search; 20+ analytics by NVR; face detection by NVR
- Warranty
- 3 years
- Product Type
- AI Network Video Recorder
- Model
- NVR804-64-IX-G
- HDD Bays
- 4 SATA
- RAID
- Disk groups and redundant storage (RAID not listed for this model)
- Outgoing Bandwidth
- 384 Mbps
- Max HDD Capacity
- 24TB per drive
- Hard Drive
- Optional 2, 4, 6 or 8TB fitted (standard: no drive)
- Playback Decoding
- 6 × 4K, 8 × 6MP, 10 × 5MP, 12 × 4MP, 16 × 3MP or 25 × 1080p @30 (H.265)
