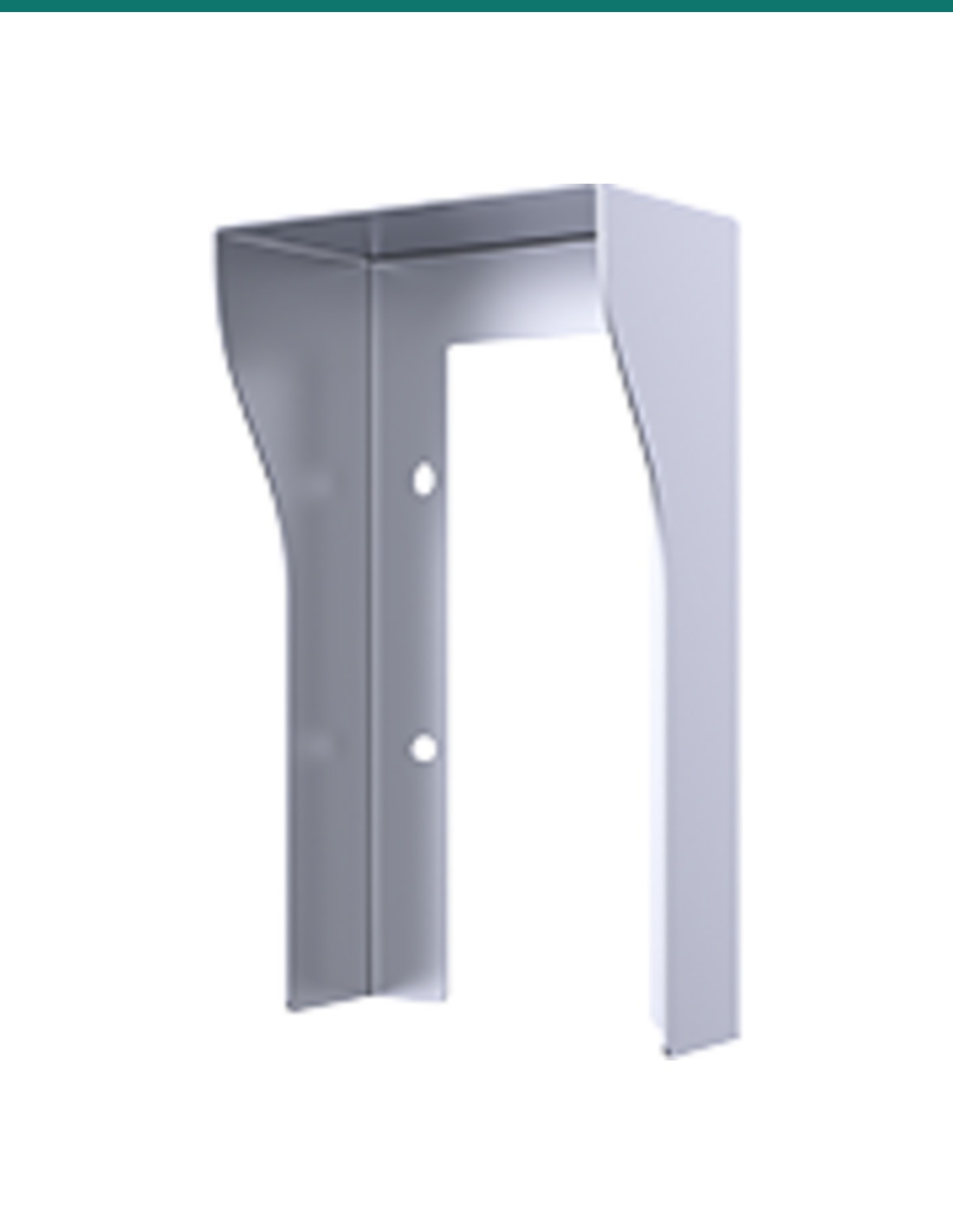

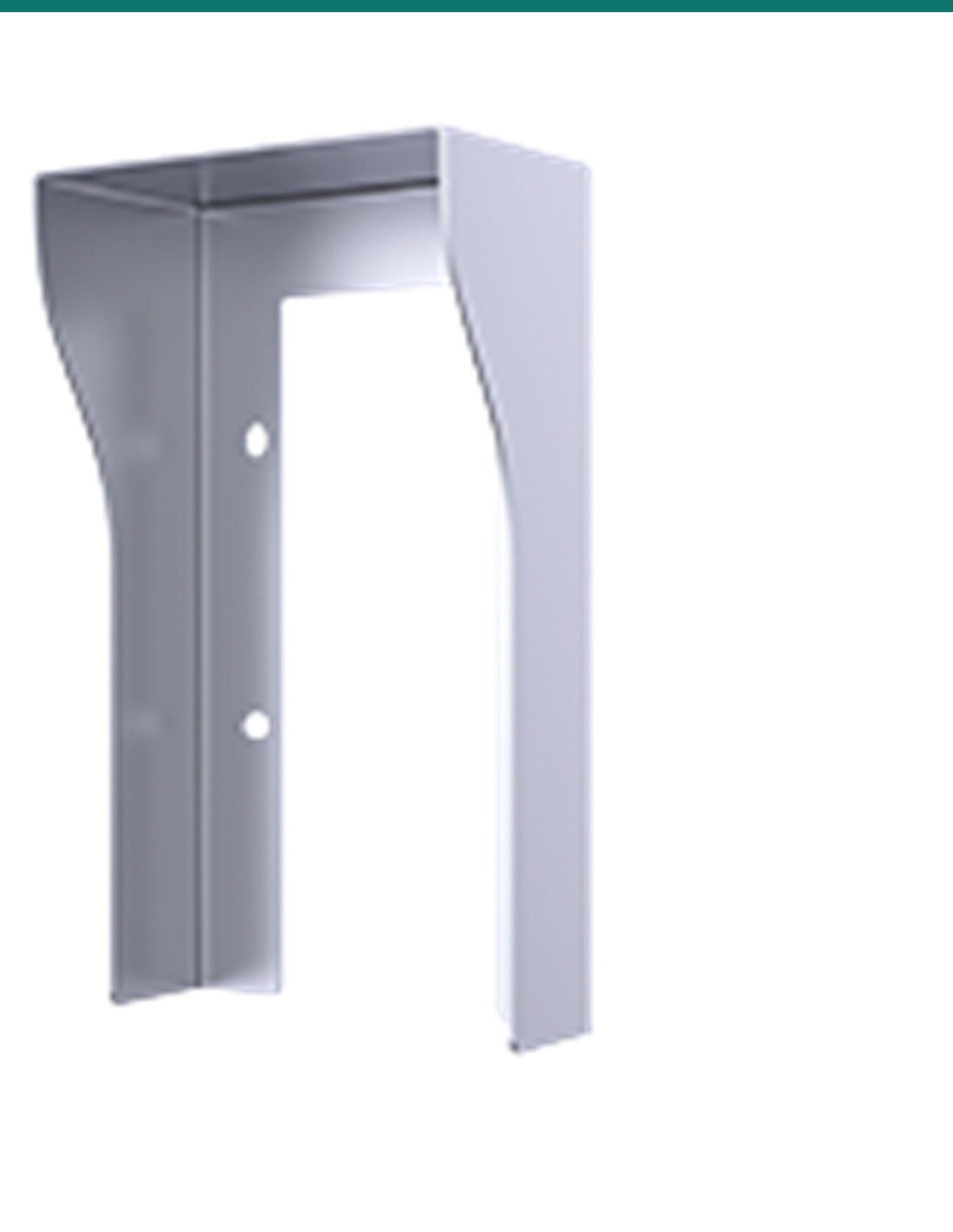

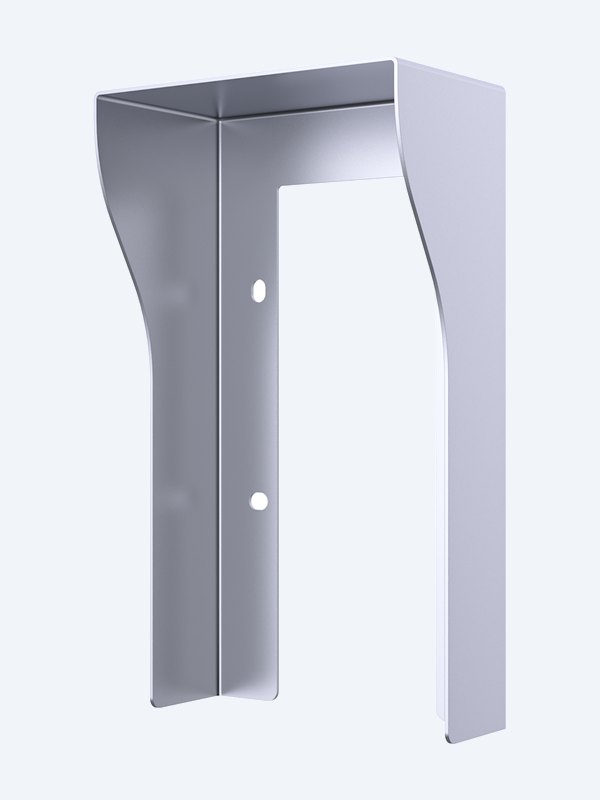

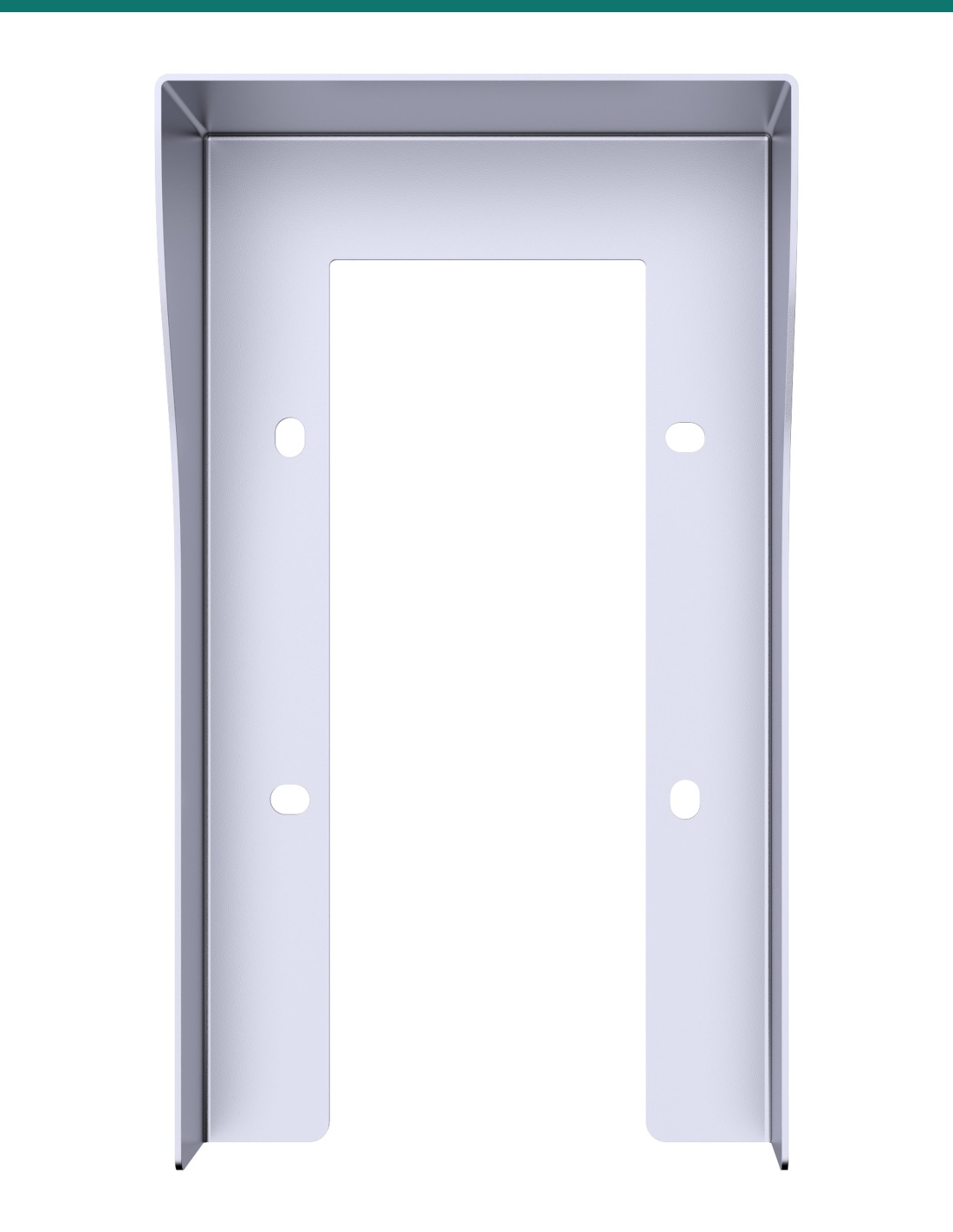

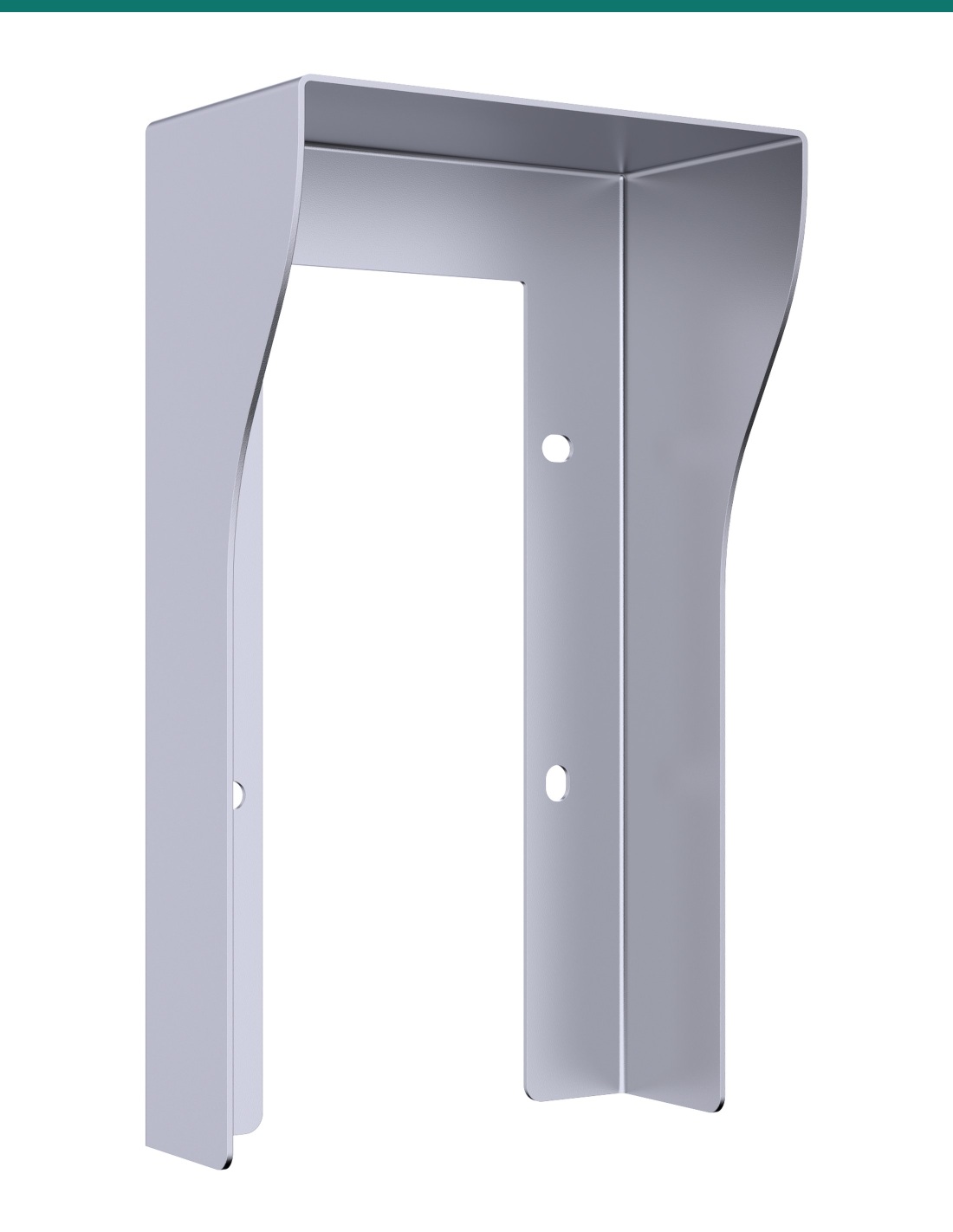

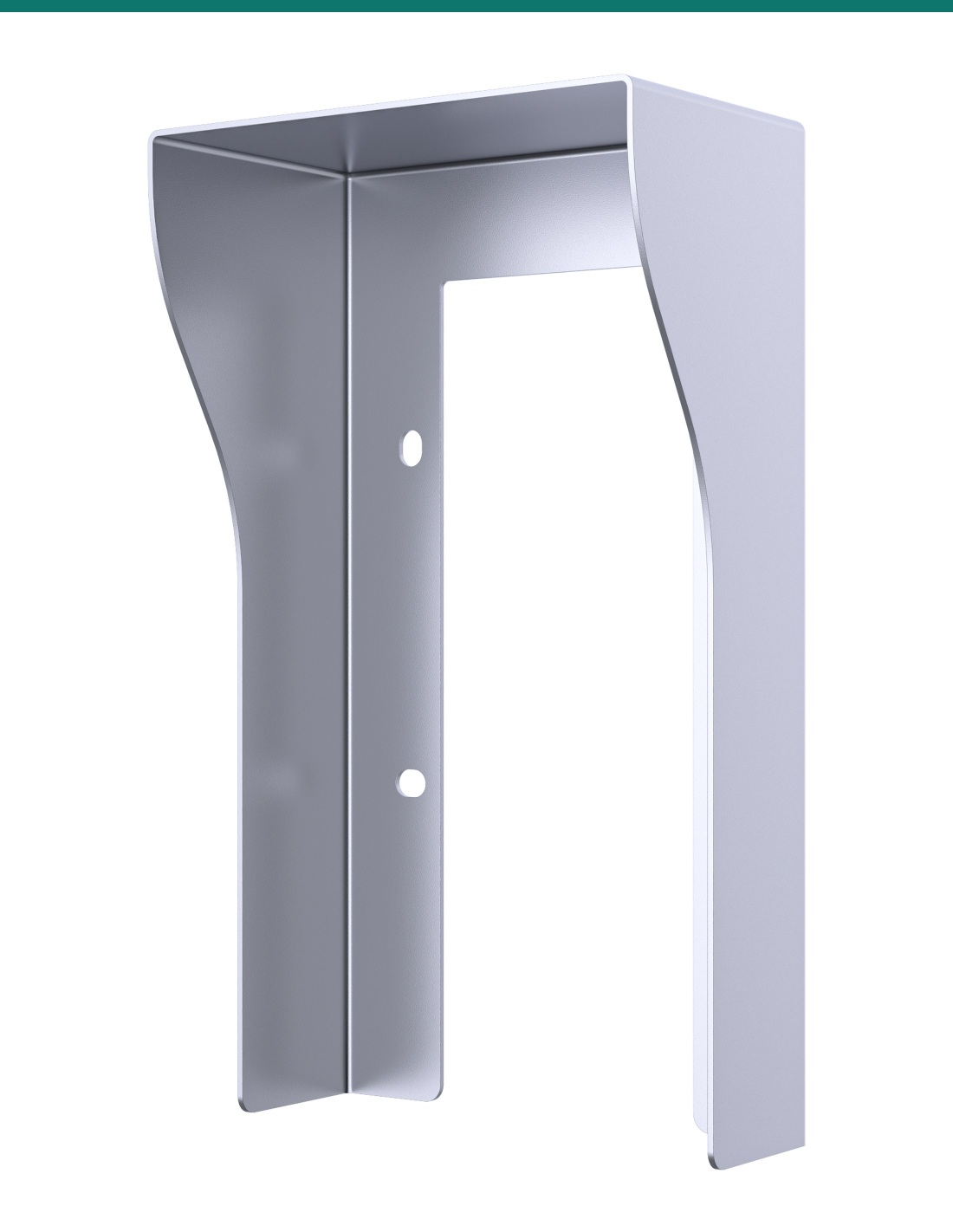

Akuvox R20A / R25A Silver On-Wall Rain Hood — AK-R20ONH
AK-R20ONH
In Stock - Ready to Ship $ 57.10
inc-GST
or 4 interest-free payments of $14.28 with
Akuvox R20A / R25A on-wall rain hood in silver is a folded metal canopy that wraps the top and sides of an R20A or R25A door phone, keeping driving rain, dripping water and overhead sun off the camera, card reader and call button. Made for surface-mounted stations. Stocked in Australia by Infront Technologies.
- ✓Silver on-wall rain hood for Akuvox R20A and R25A
- ✓Shields the camera, reader and call button from rain and overhead glare
- ✓Fixes with the station’s own wall-mounting bracket — no extra box
- ✓Use the matching in-wall hood for flush-mounted stations (AK-R20INH)
Akuvox · R20A / R25A · Silver on-wall rain hood
Keep the weather off the door phone.
Silver, made for R20A and R25A.
The AK-R20ONH is Akuvox’s on-wall rain cover for the 145 × 85 mm R20A and R25A. It is screwed to the wall together with the station’s own wall-mounting bracket, so it needs no extra box.
Rain hood only.
You receive the silver on-wall rain hood. The door phone is sold separately.
In the box
- Akuvox R20A / R25A on-wall rain hood (silver)
What you also need(sold separately)
- Akuvox R20A or R25A door phone (surface-mount, with its wall-mounting bracket)
A clearer picture in bad weather.
Water on the lens and sun straight down on the camera are the two most common causes of a poor door picture. A hood fixes both and protects the button and reader from the worst of the weather.
Protection
Rain and glare stay off the lens.
The hood wraps the top and both sides of the station, so rain runs off the canopy instead of across the camera window and the card-reader area.
It also blocks overhead sun, which helps the camera on north- and west-facing doors.
Fitting
Uses the station’s own fixings.
Mounts with the door phone’s own wall-mounting bracket: the hood and bracket screw to the wall together, then the station hooks on and locks with its two M3×6 hex screws.
Four ST4×20 screws straight into the wall, or two ST4×20 plus two M4×30 screws into an 86 mm wall box.
At a glance
Key specs — AK-R20ONH
- Brand
- Akuvox
- Reference
- AK-R20ONH
- Type
- On-Wall rain hood
- Colour
- Silver
- Compatible with
- Akuvox R20A and R25A door phones (145 × 85 mm)
- Installation
- Surface (on-wall) mounted stations
- Fixing
- Four ST4×20 screws straight into the wall, or two ST4×20 plus two M4×30 screws into an 86 mm wall box.
- Warranty
- Australian warranty via Infront Technologies
Pair it with
Pairs with
Door phone
Akuvox R20A or R25A
The single-button door phones this hood is shaped for — pick the silver finish to match.
Angle
R20A / R25A rotary angle bracket
Turns a surface-mounted station towards the path when the wall runs side-on to visitors.
Answers
Common questions
Which door phones does it fit?
Akuvox R20A and R25A, which share the 145 × 85 mm housing. It is too short for the R20K, R25K and R20B — they have their own hoods.
How is it fixed?
The hood goes behind the door phone’s wall-mounting bracket and both are screwed to the wall — four ST4×20 screws, or two ST4×20 plus two M4×30 if there is an 86 mm wall box. The station then hooks on and locks with its two M3×6 hex screws.
What is different about the black version?
Only the finish. Shape and fit are identical (AK-R20ONH-BLACK).
On-wall or in-wall — which do I need?
Use the on-wall hood when the station is surface-mounted on its wall bracket, and the in-wall hood when it is recessed with the in-wall kit. This is the on-wall version.
The right hood for the right install.
Pick silver to match a silver R20A; the black version is AK-R20ONH-BLACK. For a flush-mounted station use the in-wall hood (AK-R20INH) instead. Order through Infront Technologies for Australian stock.
Installation & safety notice
Mounts with the door phone’s own wall-mounting bracket: the hood and bracket screw to the wall together, then the station hooks on and locks with its two M3×6 hex screws.
- Colour
- Silver
- Brand
- Akuvox
- Mounting
- On-Wall (surface) installs
- Warranty
- Australian Warranty via Infront Technologies
- Product Type
- Rain hood
- Model
- R20A / R25A on-wall rain hood
- Compatible with
- Akuvox R20A and R25A
- Fixing
- Four ST4×20 screws straight into the wall, or two ST4×20 plus two M4×30 screws into an 86 mm wall box.
