VIP Vision 16-port Managed Gigabit Hi-PoE Ethernet Switch - VSPOE-SWB16G2
- 14 x PoE+ device ports with 1000Mbps per port
- 2 x Hi-PoE device ports with 1000Mbps per port
- 2 x 1000Mbps Gigabit SFP (Base-X) uplink ports
- 1 x RS232 via RJ45 console port for management access
- Total PoE power load up to 240W
- Managed switch for network transmission customisation
- Rackmount tabs included for easy cabinet mounting
- Professional appearance full metal enclosure
VIP Vision 16-port Managed Gigabit Hi-PoE Ethernet Switch
VSPOE-SWB16G2
4 Years Warranty!
The VSPOE-SWB16G2 is a rackmount, gigabit Hi-PoE switch in 16 ports. It is a versatile networking solution for demanding bandwidth requirements, with flexibility for a range of high-powered PoE devices. It is an L2 managed switch, offering configuration of network traffic quality of service, VLAN, and a suite of other features.
Product Features:
• 14 x PoE+ device ports with 1000Mbps per port
• 2 x Hi-PoE device ports with 1000Mbps per port
• 2 x 1000Mbps Gigabit SFP (Base-X) uplink ports
• 1 x RS232 via RJ45 console port for management access
• Total PoE power load up to 240W
• Managed switch for network transmission customisation
• Rackmount tabs included for easy cabinet mounting
• Professional appearance full metal enclosure

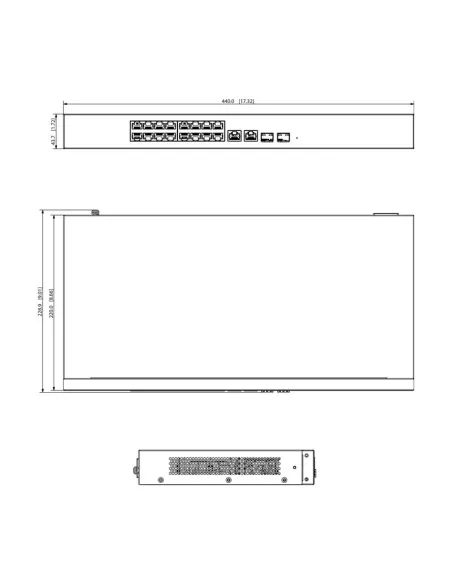

- Dimensions
- 440 x 300 x 44mm
- Operating Environment
- -10° ~ 55°C / RH90% (max)
- Weight
- 3.75kg
- Category
- Network and Communication
- Ports
- 16 ports
- PoE
- Yes
- Mounting Options
- Rackmount Tabs (1RU)
- DHCP
- DHCP Client / DHCP Server / DHCP Snooping
- PoE Protocol
- PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE
- Device Ports
- 16 x 10/100/1000 Base-T (PoE power supply ports)
- Exchange Mode
- Store & forward
- Extend Mode
- N/A
- Flow Control
- Half-duplex based on back pressure type control; Full duplex based on PAUSE frame
- Input Power
- 100 ~ 240VAC
- Lightning Protection
- Common Mode: 2kV / Differential Mode: 1kV
- LLDP
- Support
- MAC Address Capacity
- 8K
- Network Management
- WEB (HTTP protocol) / Serial / Support SNMP V1/V2/V3
- Network Time Protocol
- Support
- Packet Forwarding Rate
- 23.81Mpps
- PoE Management
- N/A
- Port Aggregation
- Manual aggregation / LACP protocol
- Port Mirroring
- Many-to-one port mirroring
- Quality of Service
- Quality of Service based on CoS / DPL / PCP / DEI / DSCP / 8 output queue per port / Supports port shaping & port tag remarking
- Security Features
- User management, SSH, HTTPS, SNMP v1/2/3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection
- Spanning Tree Protocol
- STP / RSTP / MSTP
- Speed
- Gigabit 10/100/1000
- Switch Management
- Managed
- Switch Power Load
- Port 1-2: ≤60W / Ports 3-16: ≤30W (Total: ≤240W)
- Switching Capacity
- 52Gbps
- System Maintenance
- Configuration file upload/download / Supports updated packet upload / System log
- Uplink Ports
- 2 x 1000 Base-X
- Virtual LAN
- 802.1Q Standard VLAN
VIP Vision is backed by over 2,000 professionals in research and development at the forefront of advanced surveillance and IP intercom technologies. Their constant pursuit of innovation delivers cutting edge products with high quality, performance and reliability.
With 4 to 128 channel systems, VIP Vision offers professional video surveillance solutions for small projects through to large commercial, public sector and government level applications.
Stream beyond Ultra HD with 12 megapixel recording using the latest range of VIP Vision IP surveillance cameras. Adaptable to any task, the range offers a wide selection of professional bullet and dome cameras, as well as application specific models such as PTZ, fisheye and pinhole cameras.
VIP Vision IP systems are accompanied by an extensive range of accessories including, video wall controllers, brackets & adapters, central management software and PoE accessories to help you deliver the most professional and reliable install possible.
Rest assured knowing you have usable video evidence when it matters most with VIP Vision IP surveillance.
