Keep the weather off your X912.

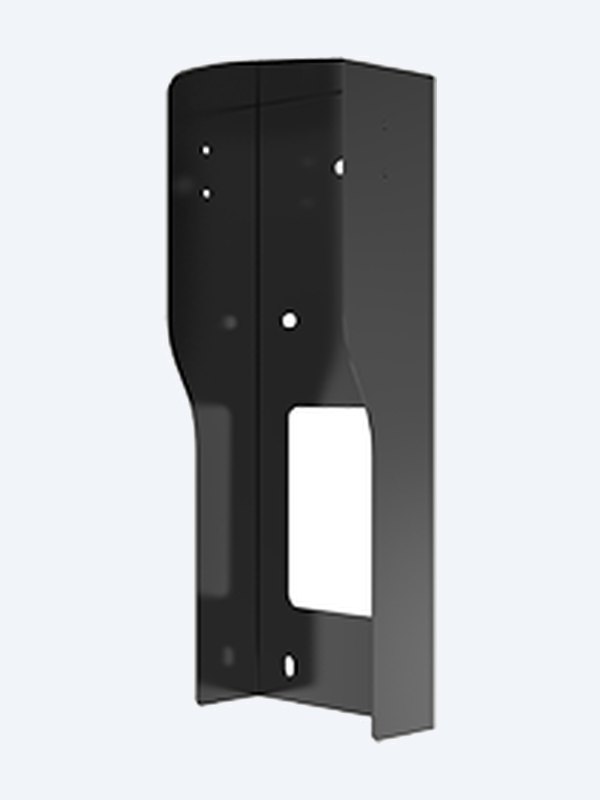

Black on-wall rain cover.

The AK-X912ONWALLH is Akuvox’s on-wall rain cover for the X912 series. It mounts with the bracket that comes with the door phone and shelters the 233.5 × 94 mm station on exposed entries.

Fit

Fixes with the X912 bracket.

Drill five 6 mm holes, 20 mm deep, using the X912 wall template. Put the X912’s wall-mounting bracket inside the rain cover with the screw holes aligned, then fix both to the wall with five ST4 × 20 screws.

Hang the X912 on the bracket and push down until it clicks. If it’s a tight fit, loosen the five screws, lift the cover slightly and retighten.

Which cover

On-wall or in-wall?

This cover is for surface-mounted X912s hung on the standard wall bracket.

For a flush, recessed X912 use the X912 in-wall rain cover, which fits with the X912 in-wall installation kit.

Pair it with

Fits the Akuvox X912 door phones
