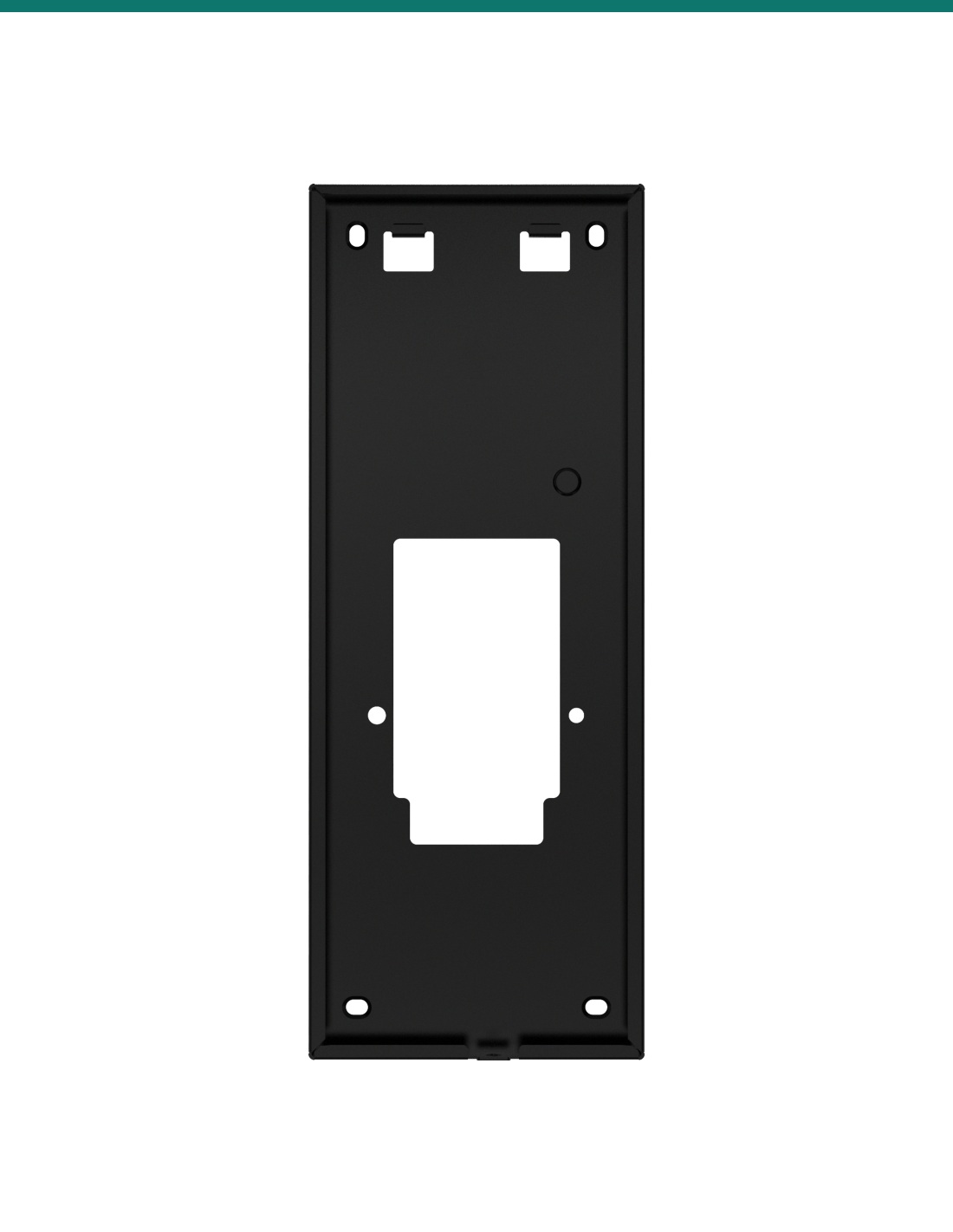

Akuvox S535 Black On-Wall Mounting Box for S535 with Expansion Module — AK-S535ONWALLKEX

SKU AK-S535ONWALLKEX In Stock - Ready to Ship
$58.00 inc GST

Akuvox AK-S535ONWALLKEX is the on-wall box for an S535 with an expansion module fitted underneath. At 259.2 mm it is 50 mm longer than the standard box, so the S535 and its fingerprint, induction loop or LTE module hang on one plate and the bottom fixing screw goes into the module.

  • ✓Surface-mounts an Akuvox S535 with one expansion module (260 × 100 mm assembly)
  • ✓Black box, 259.2 × 99.5 × 15 mm — 50 mm longer than the standard box
  • ✓Suits the S535 fingerprint, induction loop and LTE modules
  • ✓4 × ST4×20 screws and anchors, plus 2 × M4×30 for an existing wall box



Description

Akuvox · S535 · On-wall box for modules

Room for the S535 and its module.
50 mm longer than standard.

The AK-S535ONWALLKEX is Akuvox’s wall-mounting box for an S535 with an optional module plugged into its expansion port. The module adds 50 mm below the station, and this box is long enough to carry both.

This SKU is the on-wall box for S535 with modules.

You receive the box and fixings below, as listed under wall-mounting accessories with optional module in the Akuvox S535 quick guide. The S535 and the module are sold separately.

In the box
  • Wall-mounting box × 1
  • Plastic wall anchors × 4
  • ST4×20 crosshead screws × 4
  • M4×30 crosshead screws × 2
What you also need (sold separately)
  • Akuvox S535 door phone
  • S535 fingerprint, induction loop or LTE module
  • 12 V DC supply or PoE 802.3at, per the S535 quick guide for your module

Station and module on one plate.

The S535 hooks onto the top of the box and the module sits directly below it. One Torx screw through the bottom of the module locks the pair to the box.

The difference

259.2 mm instead of 209.5 mm.

Same 99.5 mm width, 15 mm depth, hooks and cable opening as the standard box. The extra 50 mm carries the module, and the bottom fixing point moves down to meet it.

Without a module the bottom fixing point would sit below the station, so use the standard box for an S535 on its own.

Modules

Fingerprint, loop or LTE.

The S535 has one expansion port at the bottom left. Akuvox offers a fingerprint module, an induction loop module for hearing-aid users and an LTE module for sites without a wired network.

With any one of them fitted, the S535 measures 260 × 100 mm.

Akuvox S535 with induction loop module fitted below the station

Pair it with

Fits the Akuvox S535 with a module

Door phone

Akuvox S535

5″ facial recognition SIP door phone with one expansion port.

Module

S535 fingerprint, loop or LTE module

Plugs into the S535 expansion port and mounts below the station.

Flush

S535 in-wall box for modules

The recessed equivalent for an S535 with a module.

Answers

Common questions

What is the difference from the standard S535 on-wall box?

Length. This box is 259.2 mm long to carry the S535 plus a module (260 mm together); the standard box is 209.5 mm for the S535 alone. Width, depth and fixings are the same.

Can I use it for an S535 without a module?

It is not intended for that — the bottom fixing screw goes into the module. Use the standard on-wall box instead.

Which modules does it suit?

Any one of the Akuvox S535 fingerprint, induction loop or LTE modules.

Are the S535 or the module included?

No. This SKU is the mounting box only.

Choose the box to match the build.

Use this box only when a module is fitted. An S535 on its own uses the standard on-wall box (AK-S535ONWALLK).

Installation & safety notice

Fitting. Fix the box with the arrow up using four ST4×20 screws and anchors in 6 mm holes, 25 mm deep. Power the S535 off, fit the module to the expansion port with its shoulder screws, then hang the station and fasten the Torx screw at the bottom of the module. Akuvox’s placement drawing puts the bottom of the module at 1,024 mm — see the Akuvox S535 quick guide.

Colour
Black
Brand
Akuvox
Size
259.2 × 99.5 × 15 mm (H × W × D)
Warranty
Australian Warranty via Infront Technologies
Product Type
On-wall (surface) mounting box, module length
Model
S535 on-wall mounting box for modules
Compatible with
Akuvox S535 with fingerprint, induction loop or LTE module
Contents
Wall box, 4 × ST4×20 screws, 4 × anchors, 2 × M4×30 screws
