Akuvox S535 Black On-Wall Rain Cover for Surface-Mounted S535 — AK-S535ONWALLKB

SKU AK-S535ONWALLKB In Stock - Ready to Ship
$68.30 inc GST

Akuvox AK-S535ONWALLKB is the black rain cover for an S535 face recognition door phone mounted on the wall surface. A hood with its own back plate, it fits behind the standard S535 on-wall box and shelters the cameras and screen from rain and overhead sun. A recessed S535 uses the in-wall rain cover instead.

  • ✓Rain cover for an Akuvox S535 on the standard on-wall box
  • ✓Black, 219.5 × 103.4 mm, projecting 51.4 mm at the top and 28 mm at the bottom
  • ✓Back plate with cable cut-out and the on-wall box’s fixing pattern
  • ✓For an S535 without a module — flush installs use AK-S535INWALLKB


Akuvox · S535 · On-wall rain cover

Shelter a surface-mounted S535.
Hood and back plate in one.

The AK-S535ONWALLKB is Akuvox’s on-wall rain cover for the S535. The S535 is weather-rated; the hood keeps driving rain off the glass and cuts the overhead glare that washes out faces on camera.

This SKU is the on-wall rain cover.

You receive the black S535 on-wall rain cover. The S535 door phone and the S535 on-wall mounting box are sold separately.

In the box
  • Akuvox S535 on-wall rain cover (black)
What you also need (sold separately)
  • Akuvox S535 door phone
  • S535 on-wall mounting box (AK-S535ONWALLK)

Clear faces, rain or shine.

Rain on the lens blurs faces and overhead sun washes out the picture. The hood covers the top and sides of the S535 so face recognition and video calls stay clear on an exposed wall.

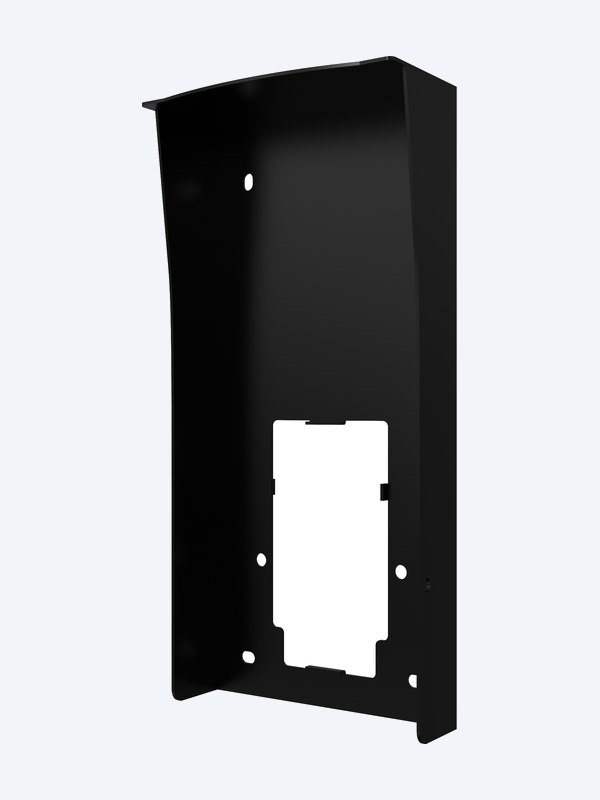

Akuvox S535 black on-wall rain cover

Design

Hood and back plate in one.

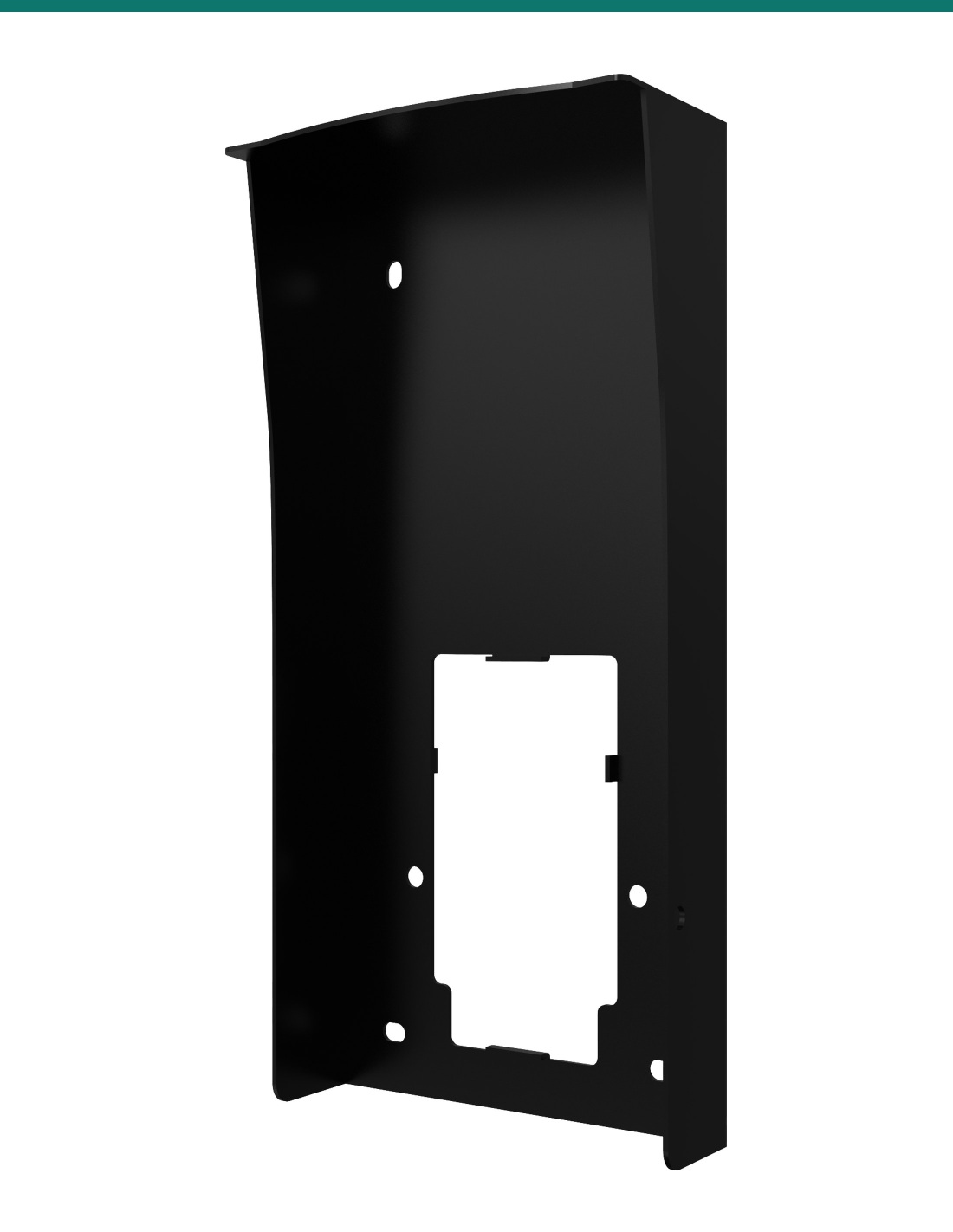

A single black piece: a back plate with a centre cable cut-out and fixing holes, and a hood that wraps the top and sides with a narrow lip along its front edge.

The plate’s holes match the S535 on-wall box, so the box fixes to the wall through it and the S535 hangs on the box as normal.

Fit

Sized for the standard on-wall box.

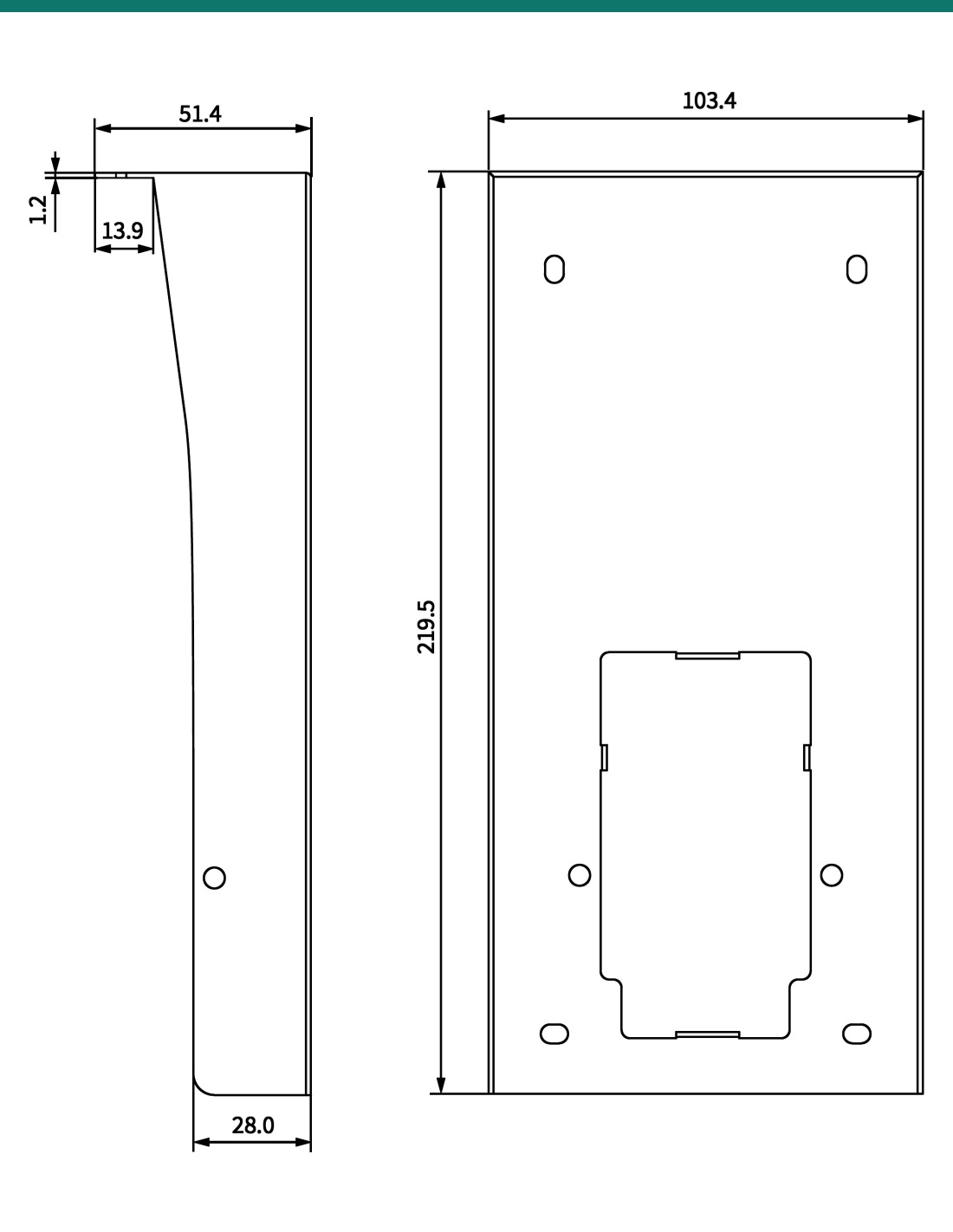

219.5 × 103.4 mm around the 210 × 100 mm S535, projecting 51.4 mm at the top and 28 mm at the bottom.

On the standard 15 mm box the S535 face sits 42 mm off the wall, inside the hood. It is not designed for the S535 with a module or for the 34 mm thick box.

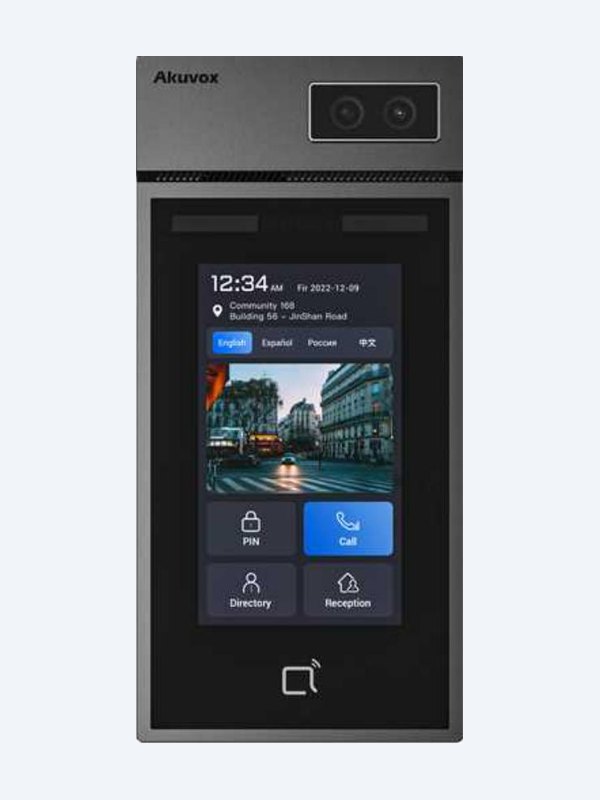

Akuvox S535 facial recognition door phone

Pair it with

Fits the Akuvox S535

Door phone

Akuvox S535

5″ facial recognition SIP door phone with card, PIN, QR and app entry.

Mounting

S535 on-wall mounting box

The surface box the S535 hangs on; it fixes to the wall through the hood’s back plate.

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Do I still need the on-wall box?

Yes. The S535 hangs on the standard on-wall box (AK-S535ONWALLK), which fixes to the wall through the hood’s back plate.

Can I use it on a flush-mounted S535?

No. A recessed S535 uses the S535 in-wall rain cover (AK-S535INWALLKB).

Does it suit the thick on-wall box or an S535 with a module?

No. It is 219.5 mm tall for the 210 mm S535 on its own, and its 51.4 mm projection is sized for the standard 15 mm box rather than the 34 mm thick boxes.

What is the difference between AK-S535ONWALLKB and AK-S535ONWALLH?

None — both order codes are the same black Akuvox S535 on-wall rain cover.

Does it change the mounting height?

No. Akuvox’s drawings keep the camera centre 1,500 mm above the ground with or without the cover.

Is the door phone included?

No. This SKU is the rain cover only.

Protect exposed S535 installs.

Fit it wherever a surface-mounted S535 has no awning or porch roof. Recessed S535 units use the in-wall rain cover (AK-S535INWALLKB).

Installation & safety notice

Fitting. The cover’s back plate goes against the wall with the S535 on-wall box over it; the plate’s centre cut-out lines up with the box’s cable opening and its holes with the box’s fixing holes. Fix the box as usual (arrow up, 6 mm holes 25 mm deep), then hang the S535 and fasten its Torx screw — see the Akuvox S535 quick guide.

Colour
Black
Brand
Akuvox
Size
219.5 × 103.4 mm (H × W)
Warranty
Australian warranty
Product Type
Rain cover (on-wall)
Model
S535 on-wall rain cover
Use With
S535 on-wall mounting box (AK-S535ONWALLK)
Compatible with
Akuvox S535 door phone, surface-mounted, without module
Projection
51.4 mm at the top, 28 mm at the bottom
